-40% DROK DC 6-90V 15A Motor Control Module, Universal PWM Motor Speed Controller Generator, 0.01-1000W Adjustable  Brushed Motor Controller

Ask Question

It is a 1000W DC Motor Speed Regulator/Adjustable Speed Controller/PWM Regulator, Voltage range: DC 6 ~ 90V (cannot be used in AC), Current range: Rated current 8A, PWM frequency: 16kHz, It has small size, high efficiency, long term stable and reliable quality,easy installation and use, Especially Suitable for DC Motor and other equipment etc.

Product Parameters:
  • Voltage range: DC 6 ~ 90V (cannot be used in AC)
  • Current range: Rated current 8A (max. current 15A); Quiescent Current 0.005A (standby mode)
  • Power range: 0.01 ~ 1000W
  • PWM frequency: 16kHz
  • Fuse specification: 15A ceramic arc fast-melting fuse.

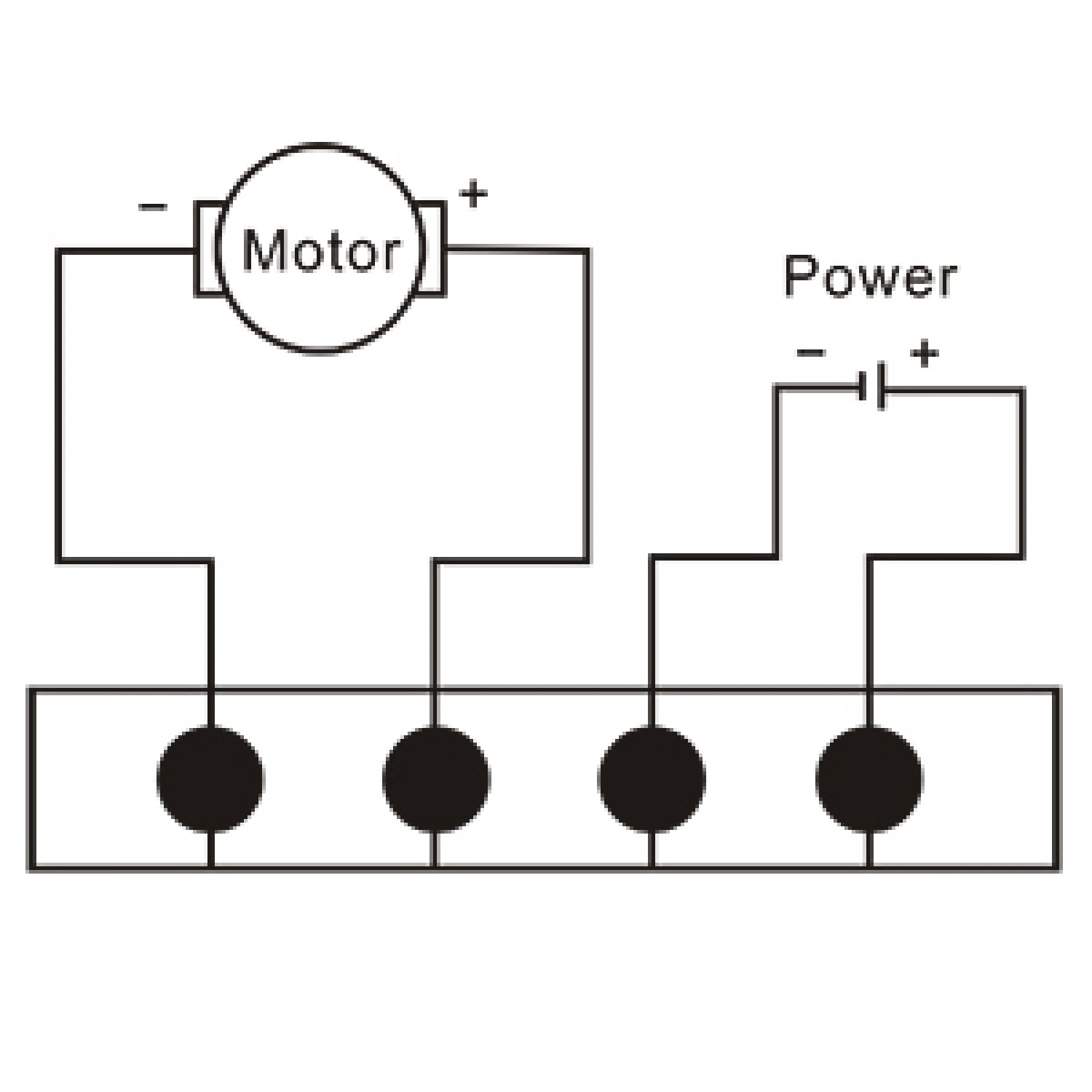

  • Polarity of motor: No need to distinguish the positive side and the negative side when you connect the motor and you can adjust the order of the wires to change the direction.
Using Instruction & Considerations:
  •  The input of the DC motor speed regulator must be DC input, cannot be connected to AC input (e.g. Household AC 220V), otherwise, the motor speed regulator will be burnt.
  • The positive side and the negative side of DC power supply cannot be reversed connected, or the motor speed regulator will be damaged.
  • No need to distinguish the positive side or the negative side of the motor. When the operating direction cannot meet your expectation, you can adjust the order of the wires to change the direction.
  • Adjusting the potentiometer knob can change the duty ratio of the output of the motor speed regulator, and then change the speed of the motor.
Note:
  • Different voltage input is matched to different power range:
  • DC6C
Product Features:

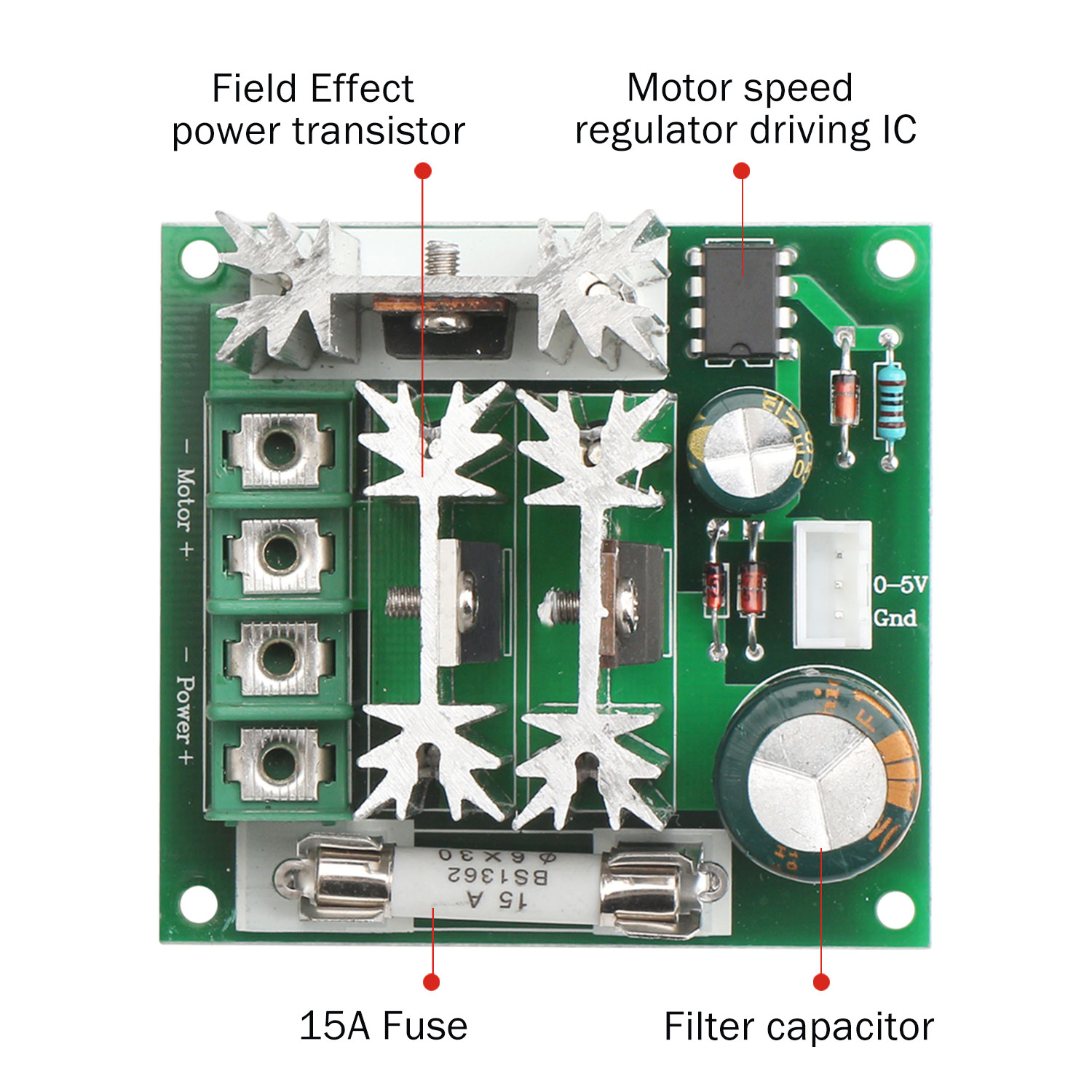

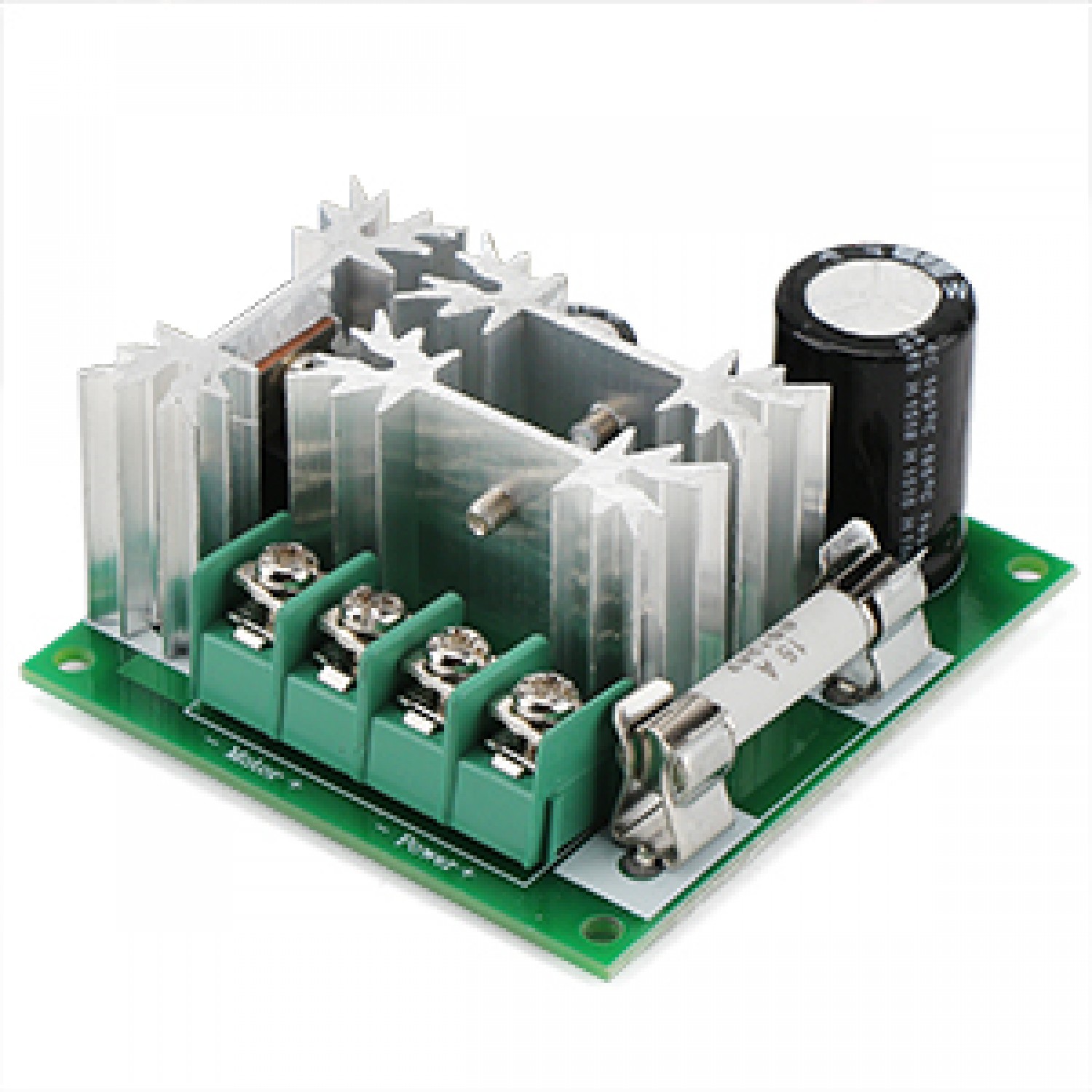

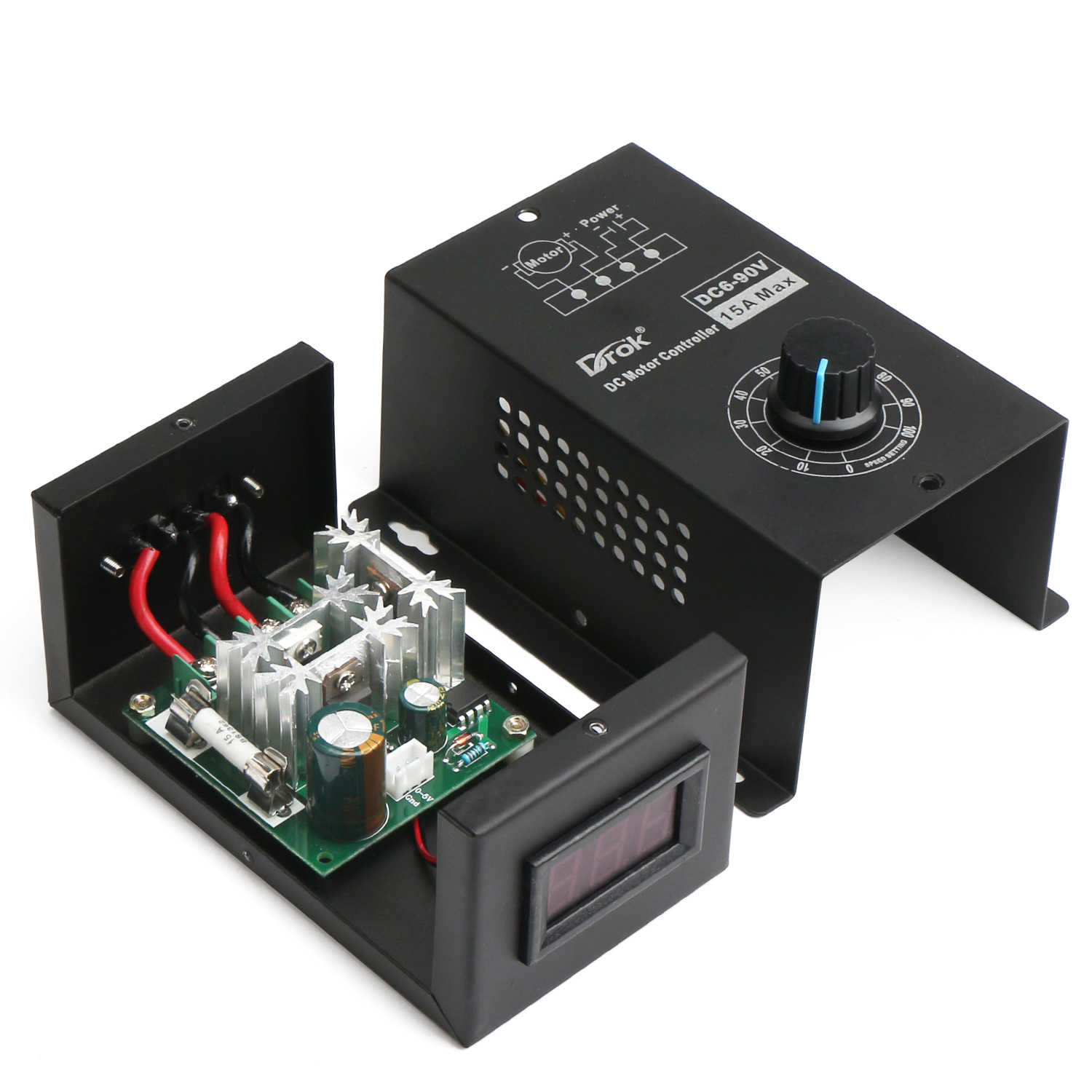

  •  IMPORTED IC CHIP: Adopts imported filtering capacitance, field effect power transistor, specified motor speed regulation drive IC and 1.6mm FR-4 double-sided circuit board.
  • FLAME-RETARDANT METAL SHELL: High-temperature resistance and flame-retardant, no deformation. Using metal spraying paint, no rust.

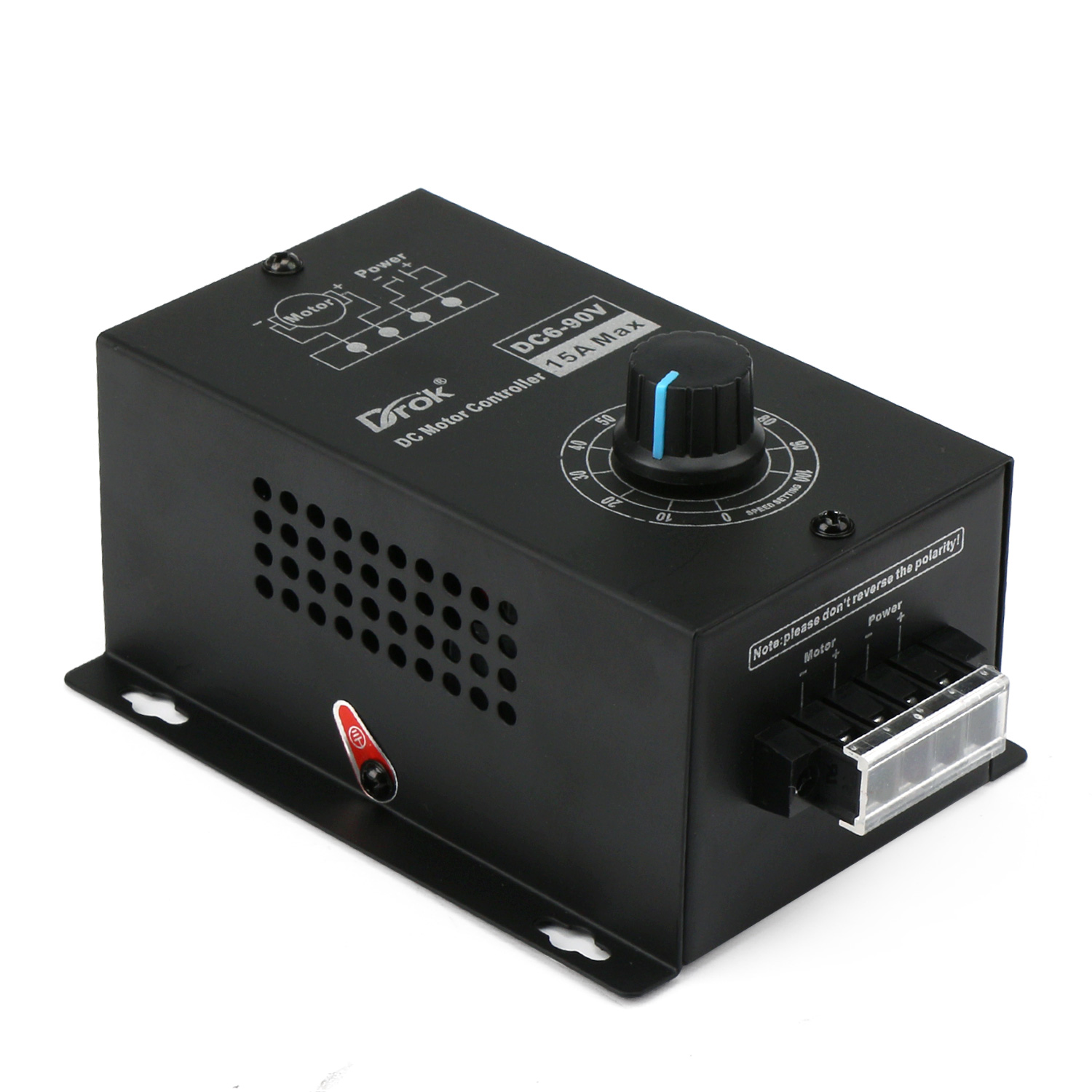

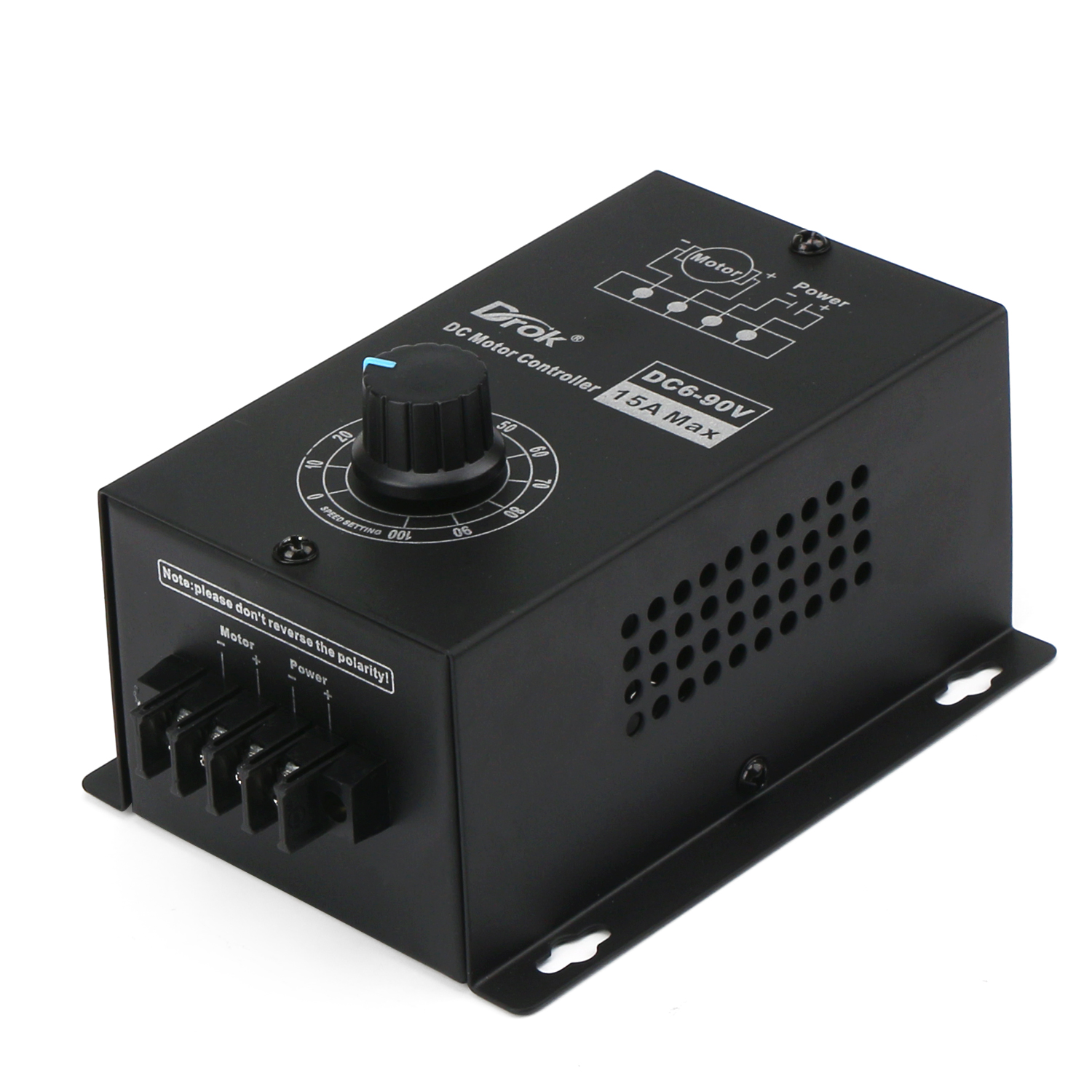

  • NEW WIRING TERMINALS DESIGN: The wiring terminals adopts fence type design and is with safety cover, which allows large current going through, no generating heat.

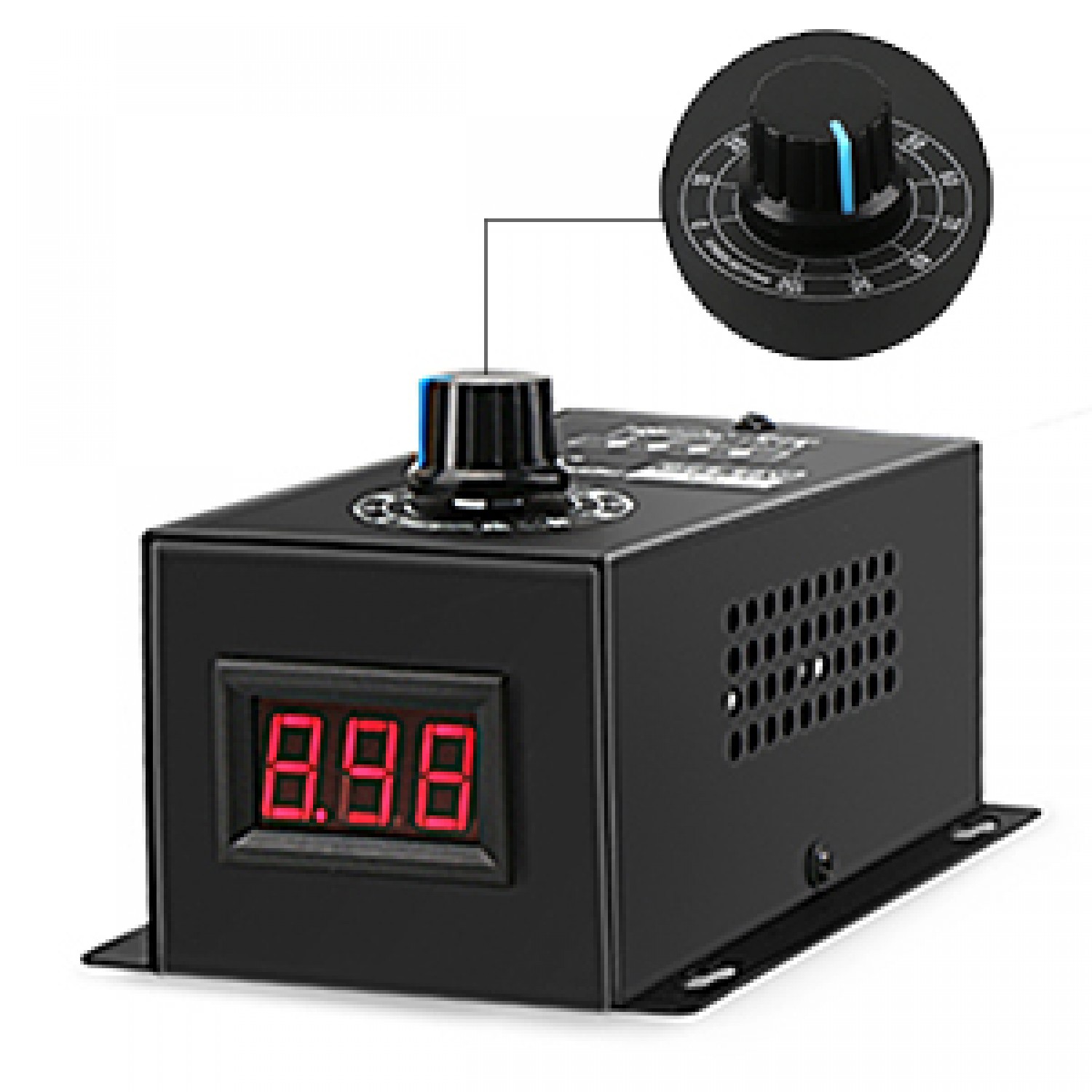

  • ADJUSTABLE KNOB: The adjustable knob can be used to adjust voltage freely, convenient and simple, 0-220V stepless adjustable.
  • POWE SUPPLY REVERSED CONNECTION PROTECTION: This motor speed regulator has power supply reversed connection protection, over-voltage protection and 20A ceramic arc fast-melting fuse. It can be controlled directly by PLC voltage.

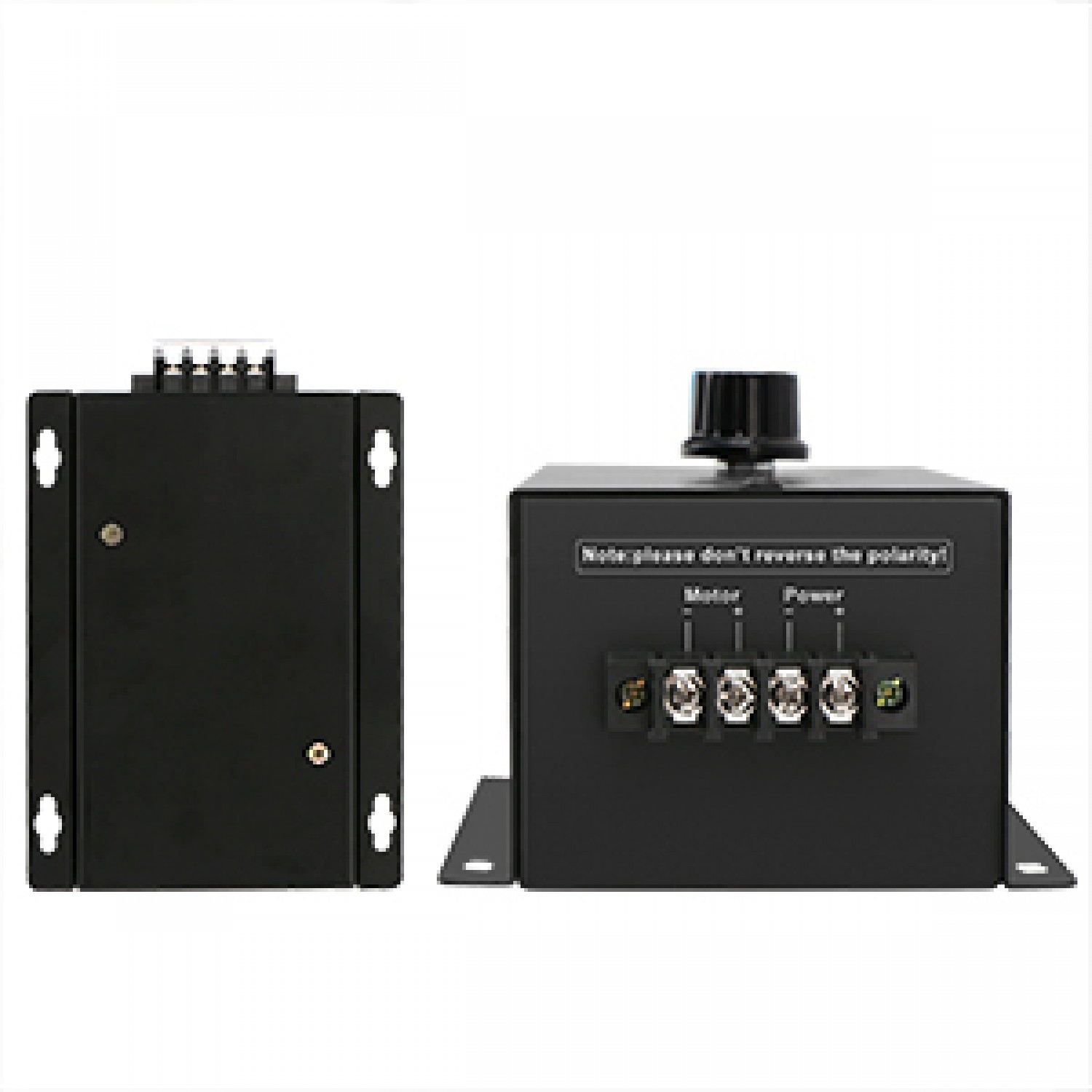

  • HUMANIZED MOUNTING HOLES DESIGN: This regulator can be flatted on or hung on.

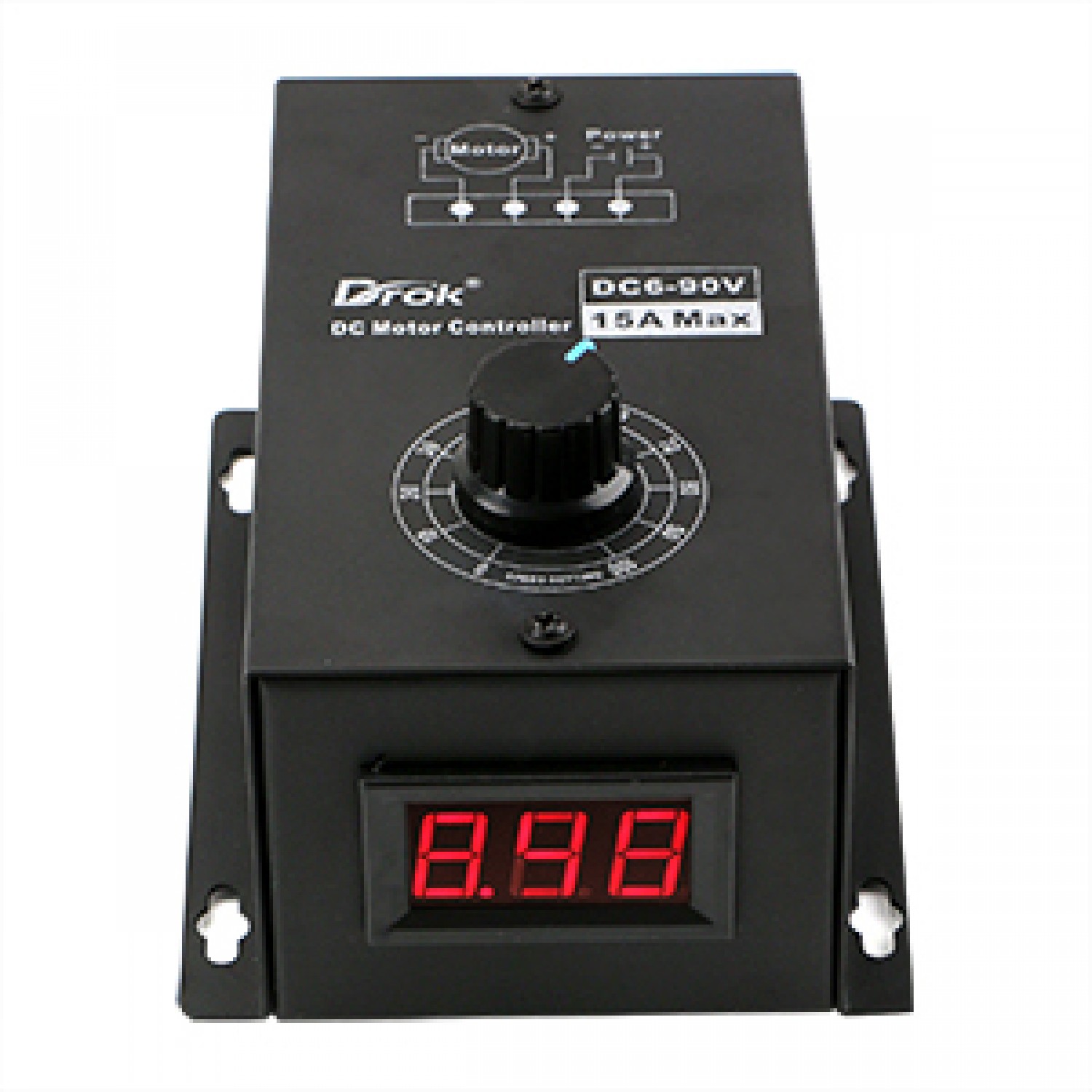

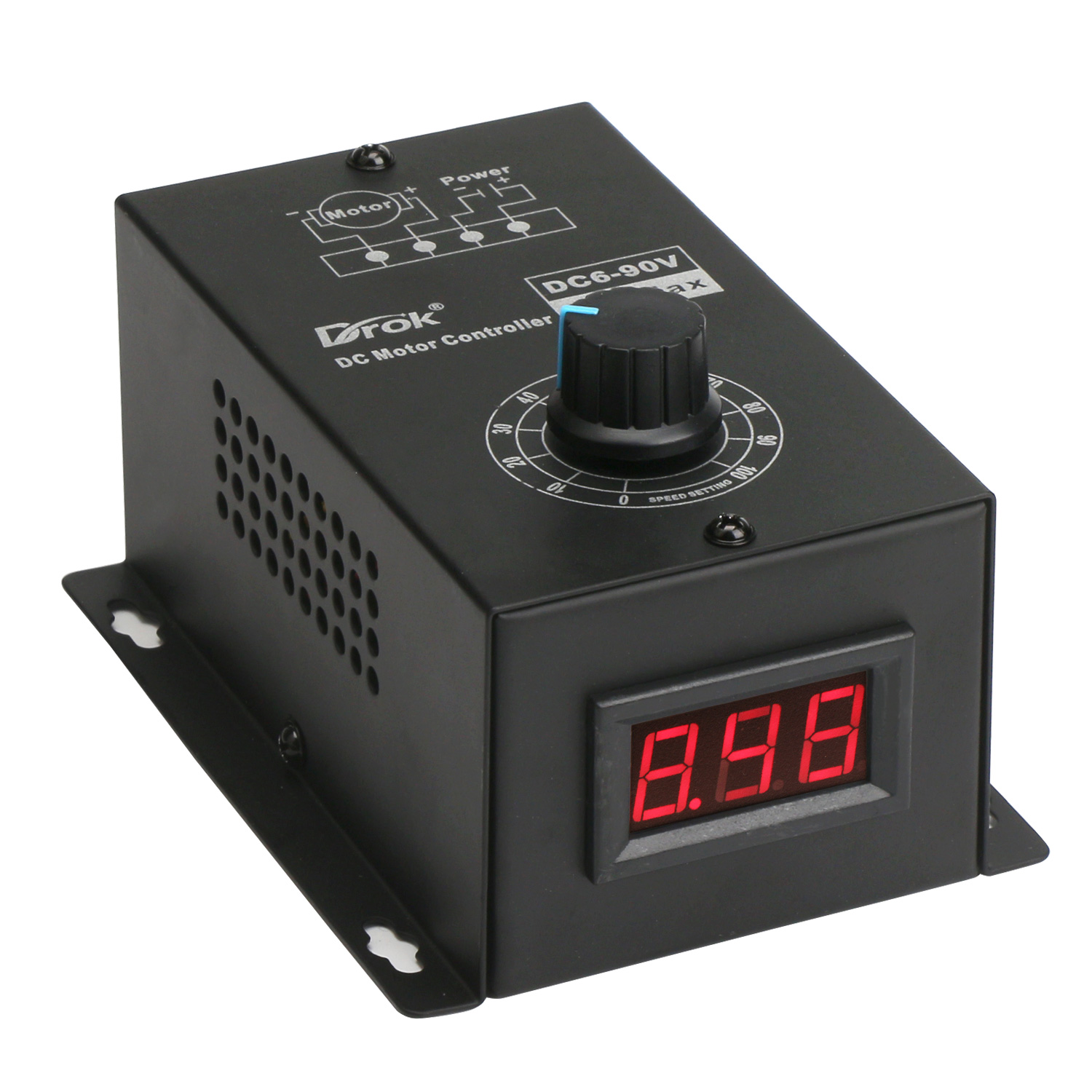

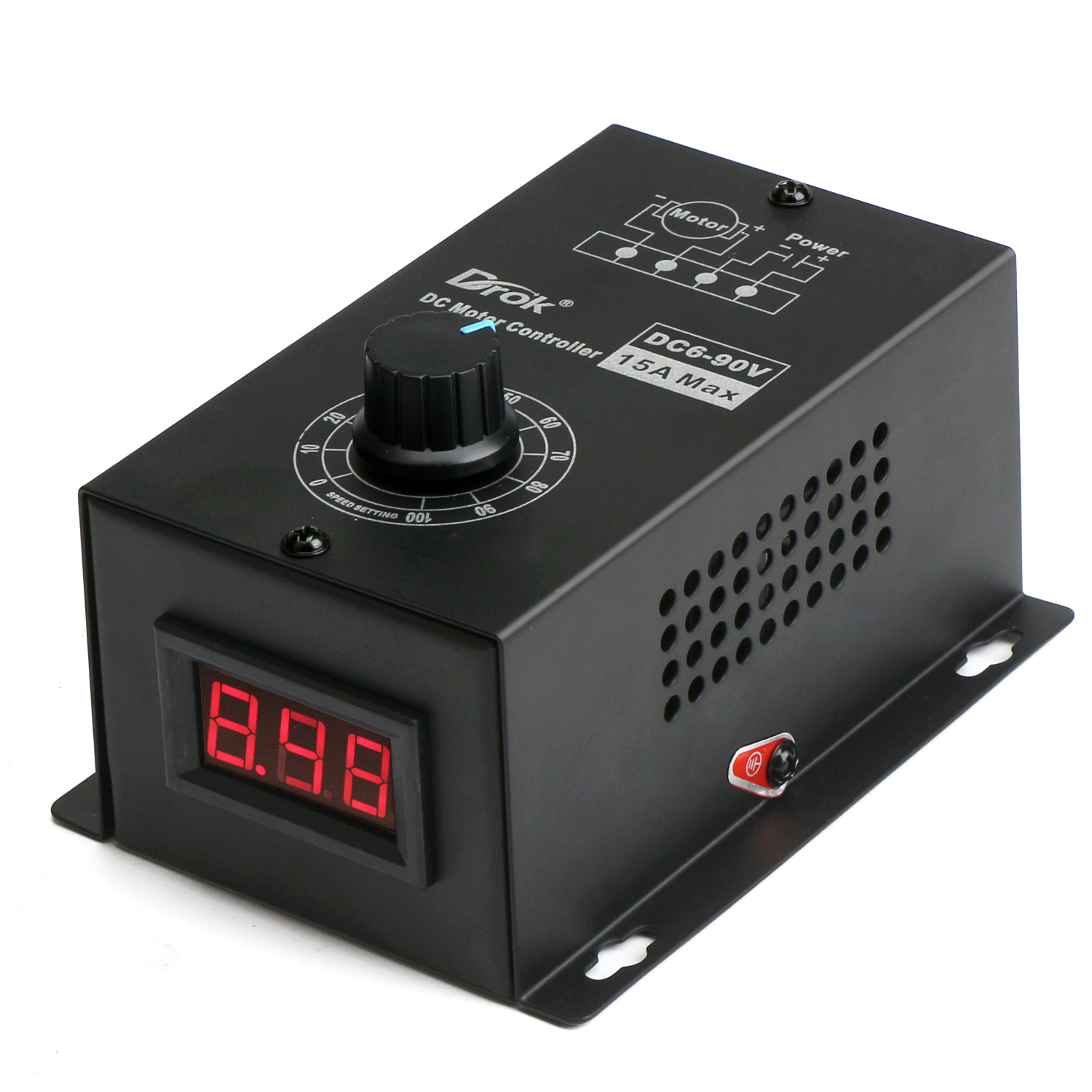

  • VOLTAGE DIGITAL DISPLAY: This regulator owns output voltage display for you to check he output value and can adjust the voltage.
Package include:
  • 1 x DC Motor Speed Regulator ( PWM Regulator )
Attributes
input voltage6~90V
output current8A
output power1000W
output voltage--
output ways1
