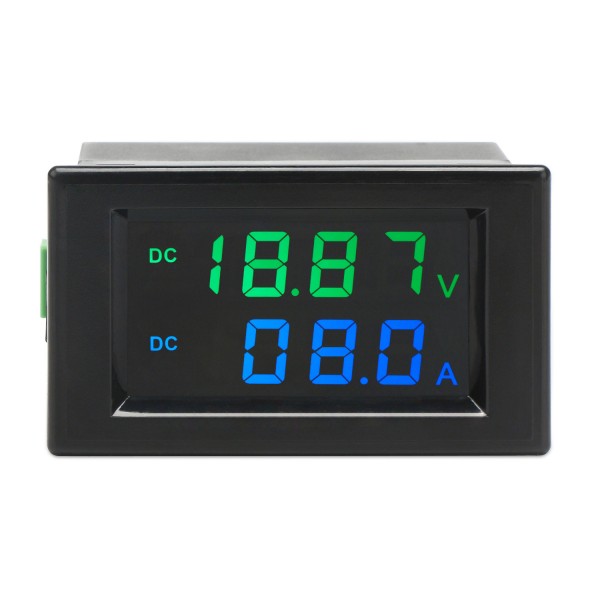

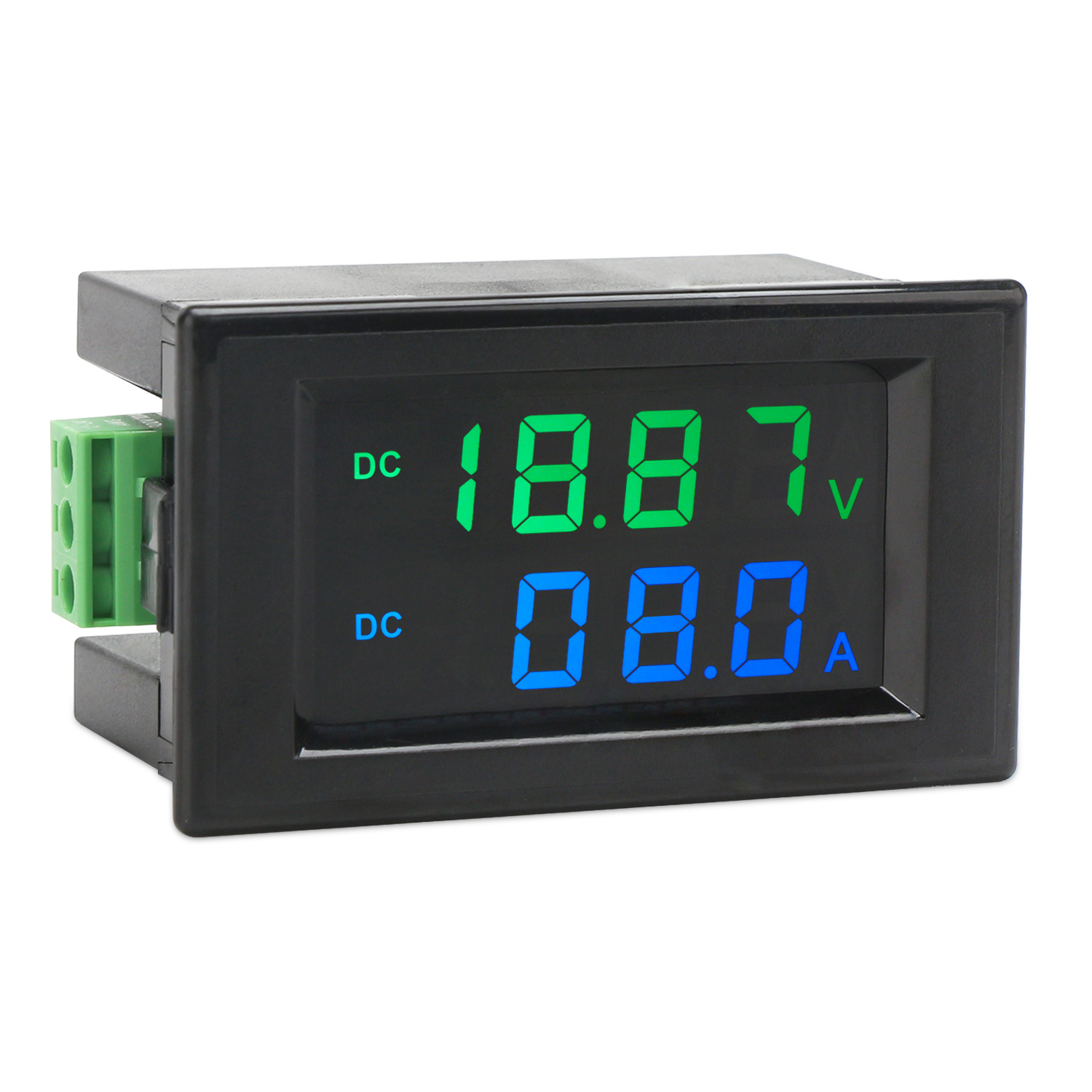

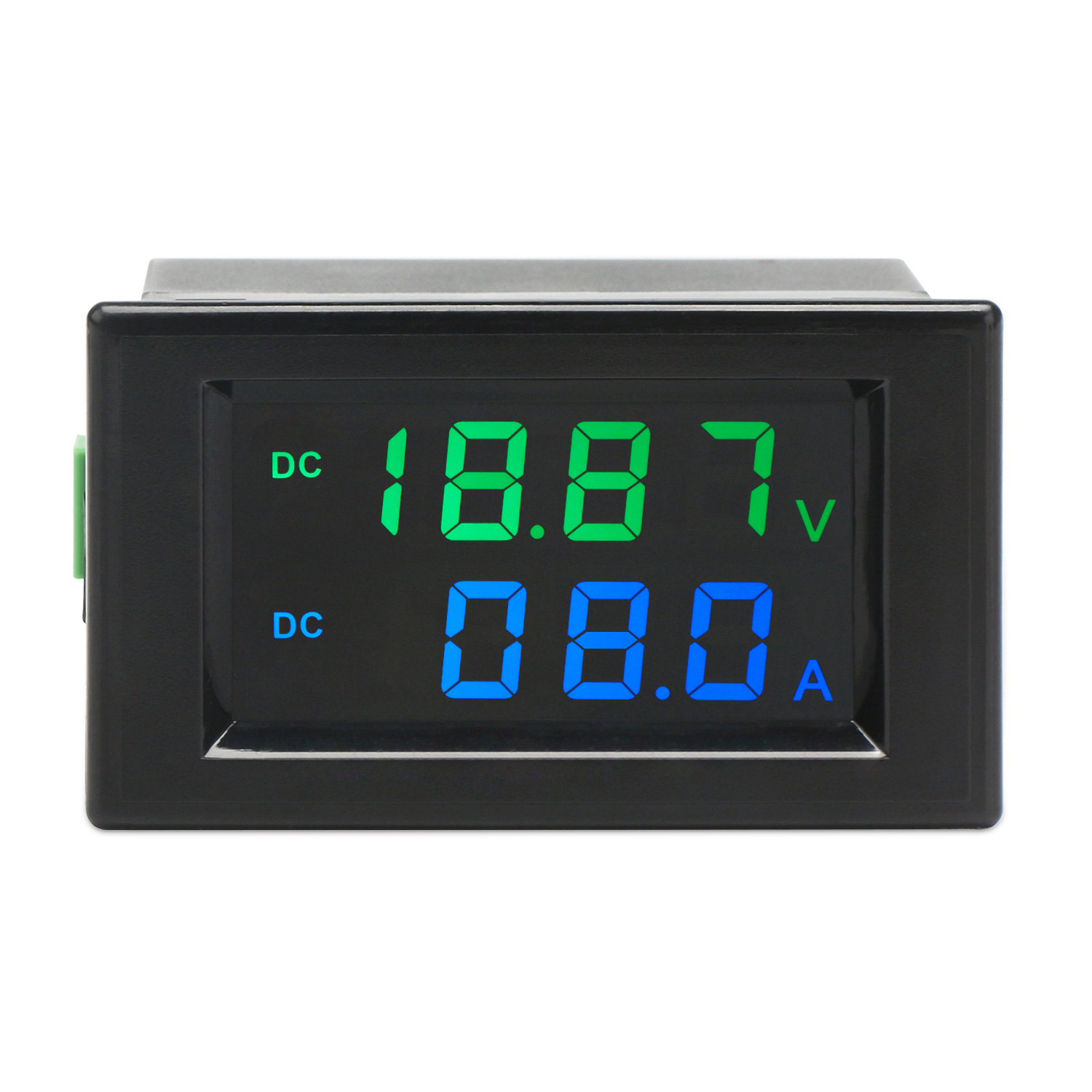

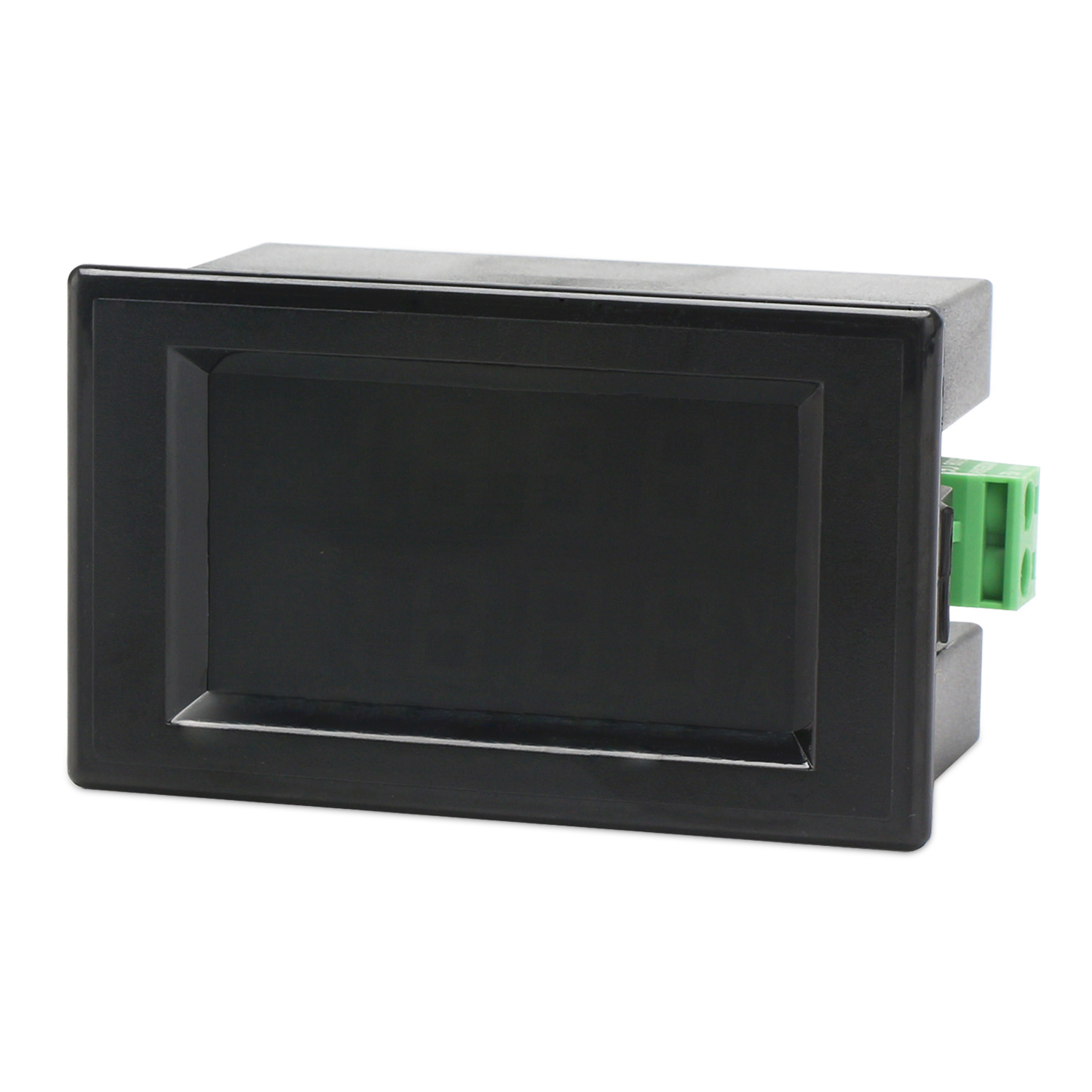

-33%  Digital Voltmeter Ammeter DC 0~199.9V 10A Digital Multimeter Gauge Panel Meter DC 12V 24V Voltage Current Meter Tester

Ask Question

Parameter:
  • Measuring voltage range: DC 0~199.9V
  • Measuring current range: 0~10.00A
  • Measurement accuracy: 1% (±2 digits)
  • Power consumption: <0.5VA
  • Measurement speed: about 2 times/second

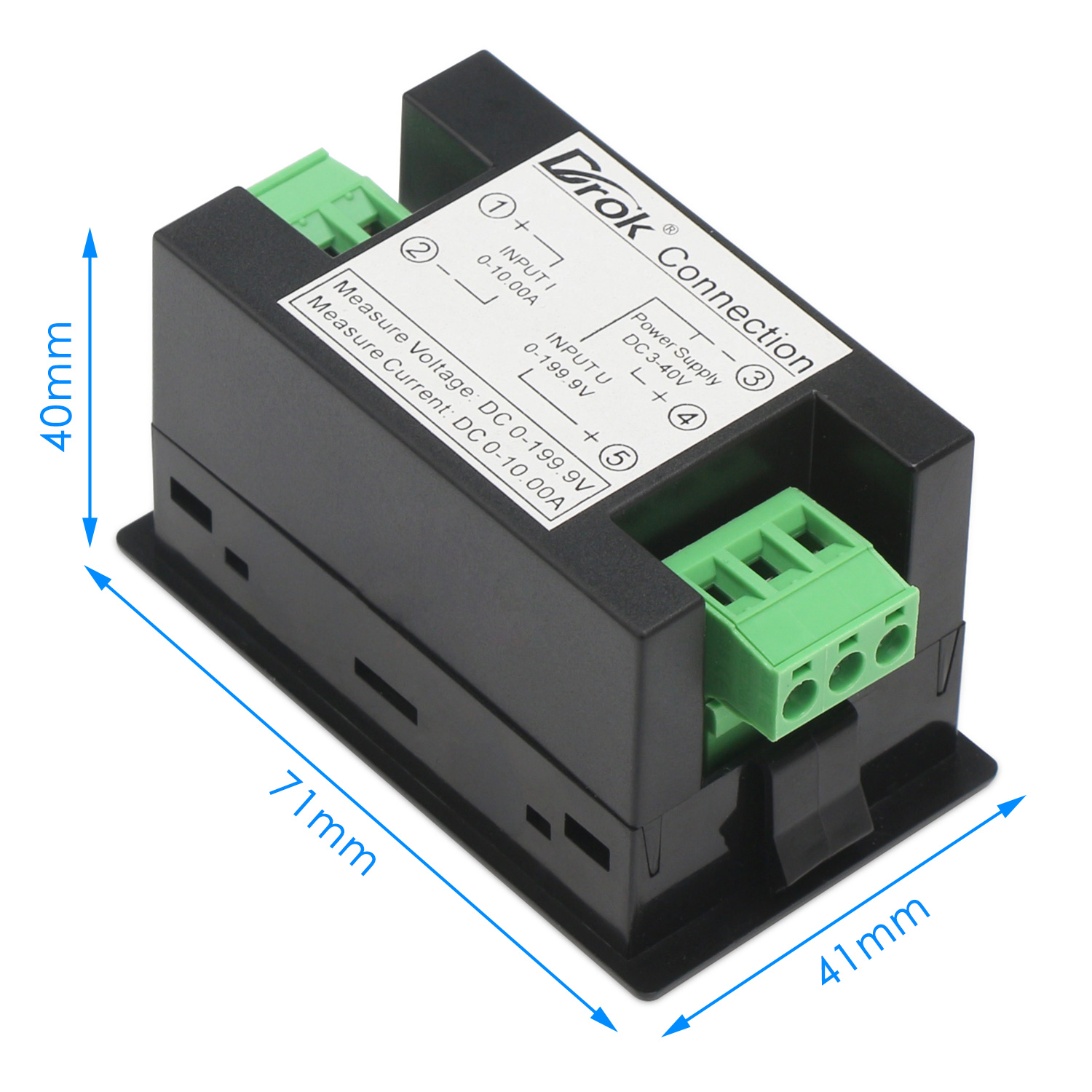

  • Dimension: 71 x 41 x 40mm/2.79 x1.61 x 1.57 inch
  • Screen size: 43 x 25mm/1.69x0.98 inch
  • Operating temperature: -10°c~+50°c
  • Operating humidity: 10~80% (no condensation)
  • Operating air pressure: 80~106kPa
  • Sunlight exposure: no direct exposure
Note:
  • 1. If used to measure DC 0V~3V/40V~199.99V, please add a 3~40V power supply.
    •    If used to measure DC 3~40V, no external power supply required.

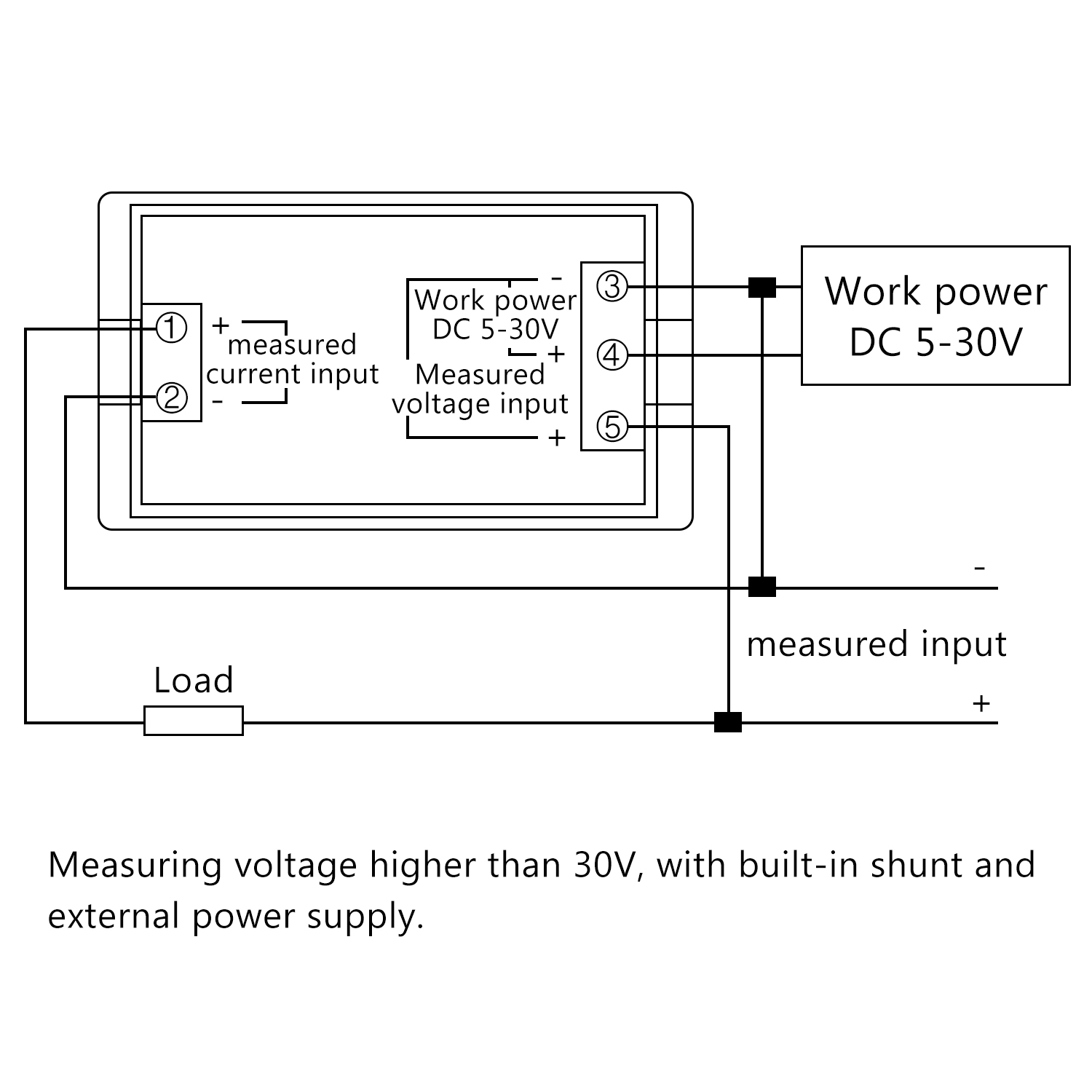

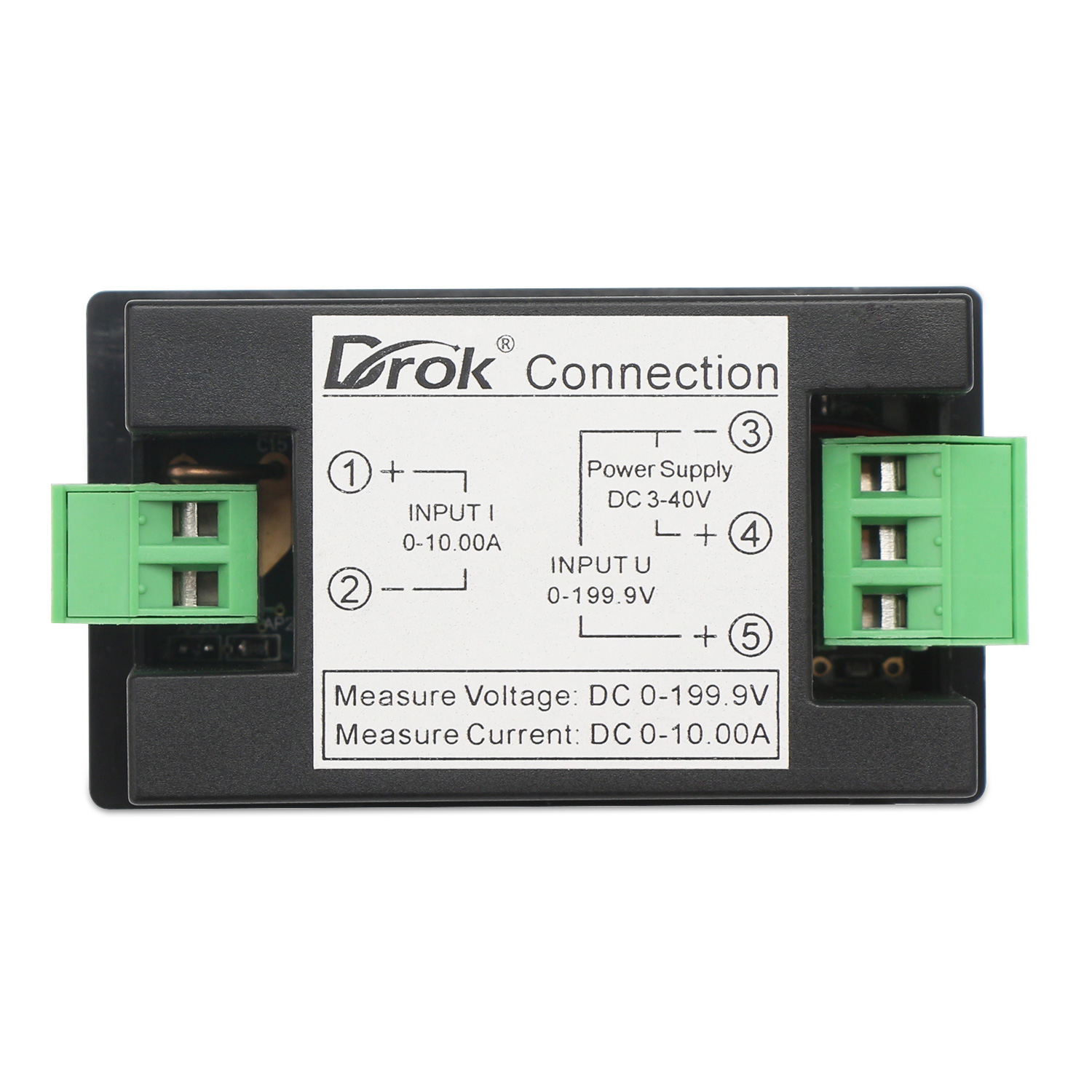

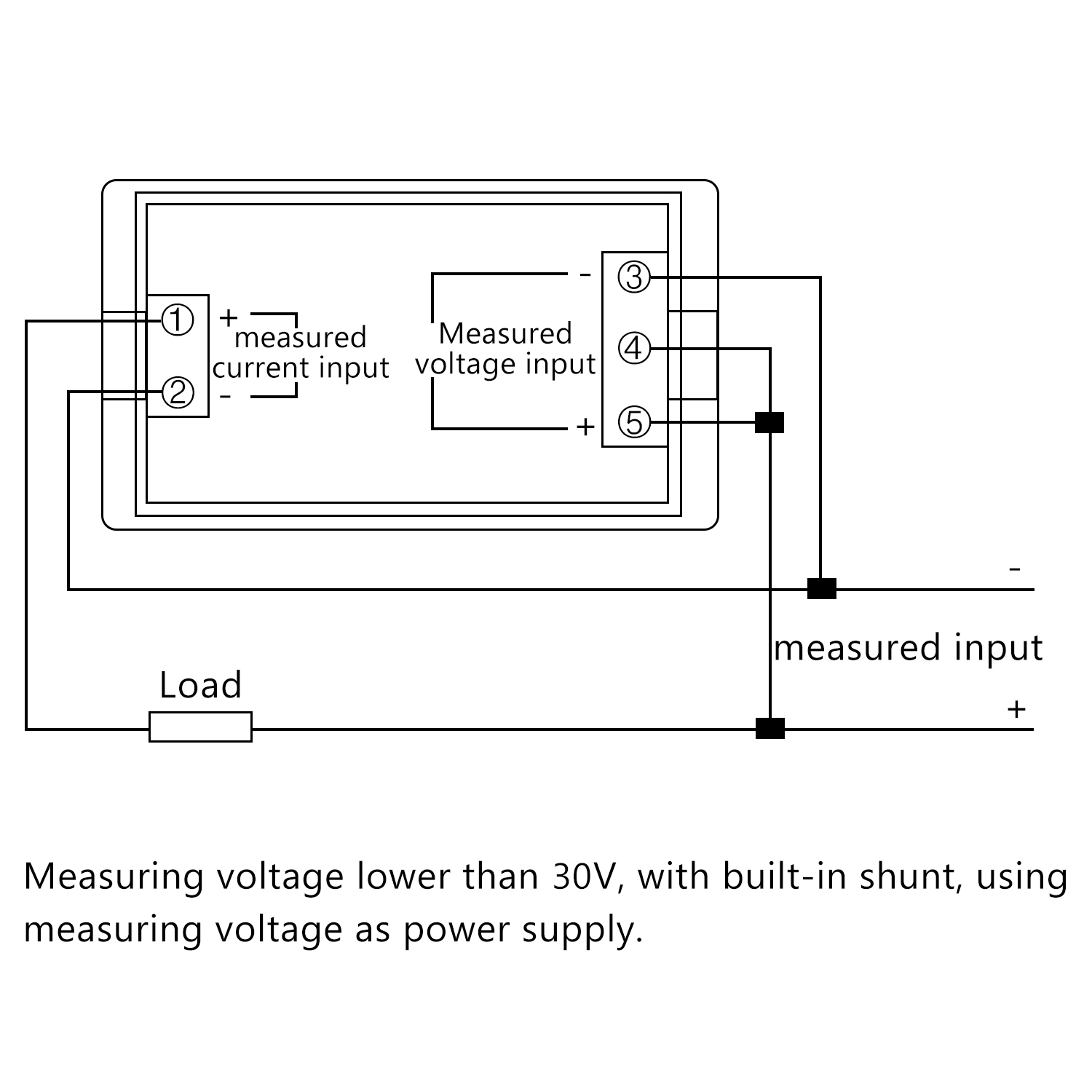

  • 2. Please connect the wires strictly follow the wiring diagram.
    •    (The shunt should be connected on the negative pole of the power supply;
    •    the load under tested should be connected on the positive pole of the power supply.)
    •    If connected incorrectly, the meter will burn.
Package Included:
  • 1 x Digital Voltmeter Ammeter
Attributes
input voltage 0~199.9V
output current 0~10.00A
output ways 1

Write a review

Please login or register to review

Digital Voltmeter Ammeter DC 0~199.9V 10A Digital Multimeter Gauge Panel Meter DC 12V 24V Voltage Current Meter Tester

  • Brands Drok
  • Product Code: 200394
  • Availability: In Stock
  • $13.99
  • $9.35
  • Bulk Buy Discounts. Buy more please contact us
    Qty 2 5 10 30+
    Price $8.75 $8.37 $8.09 $7.85
