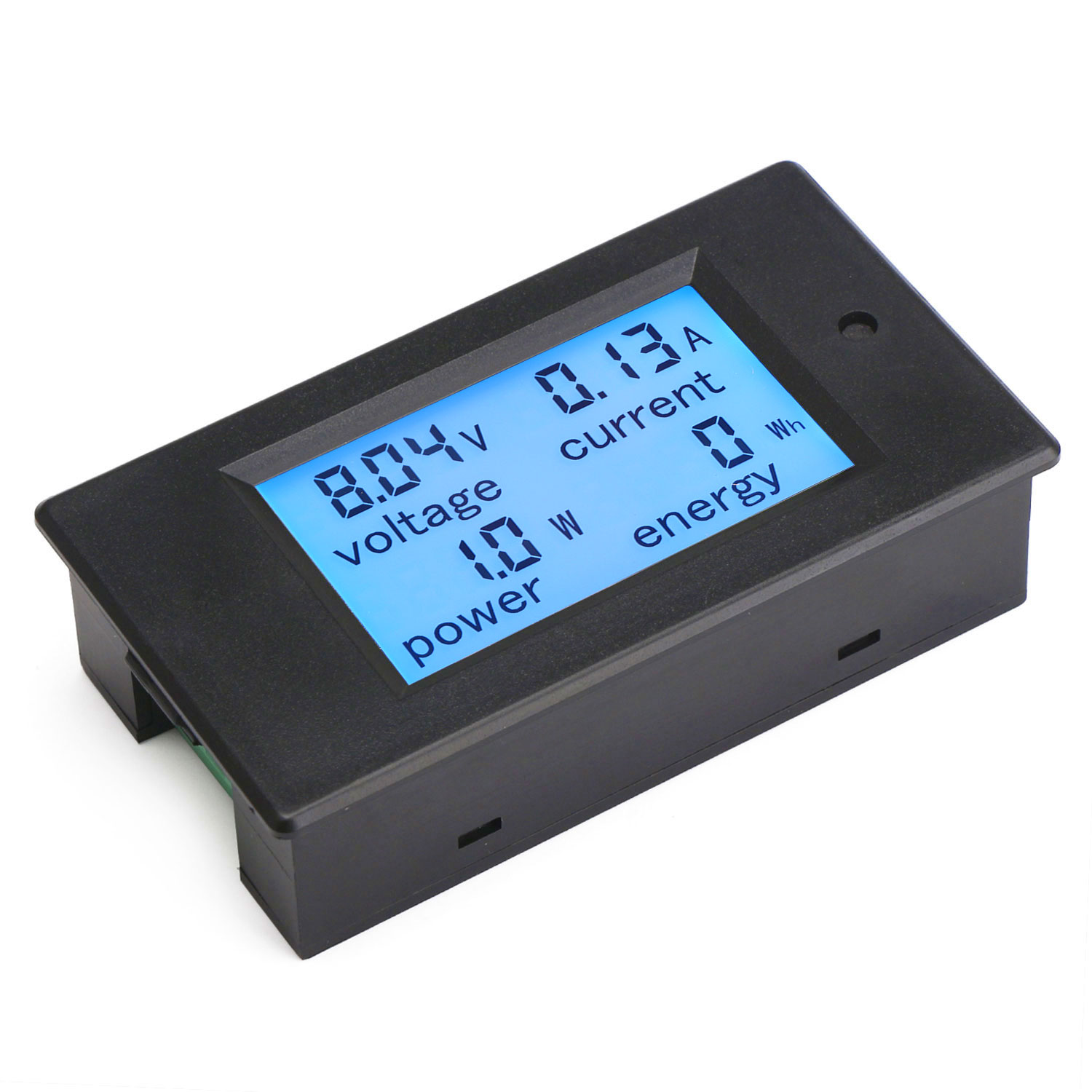

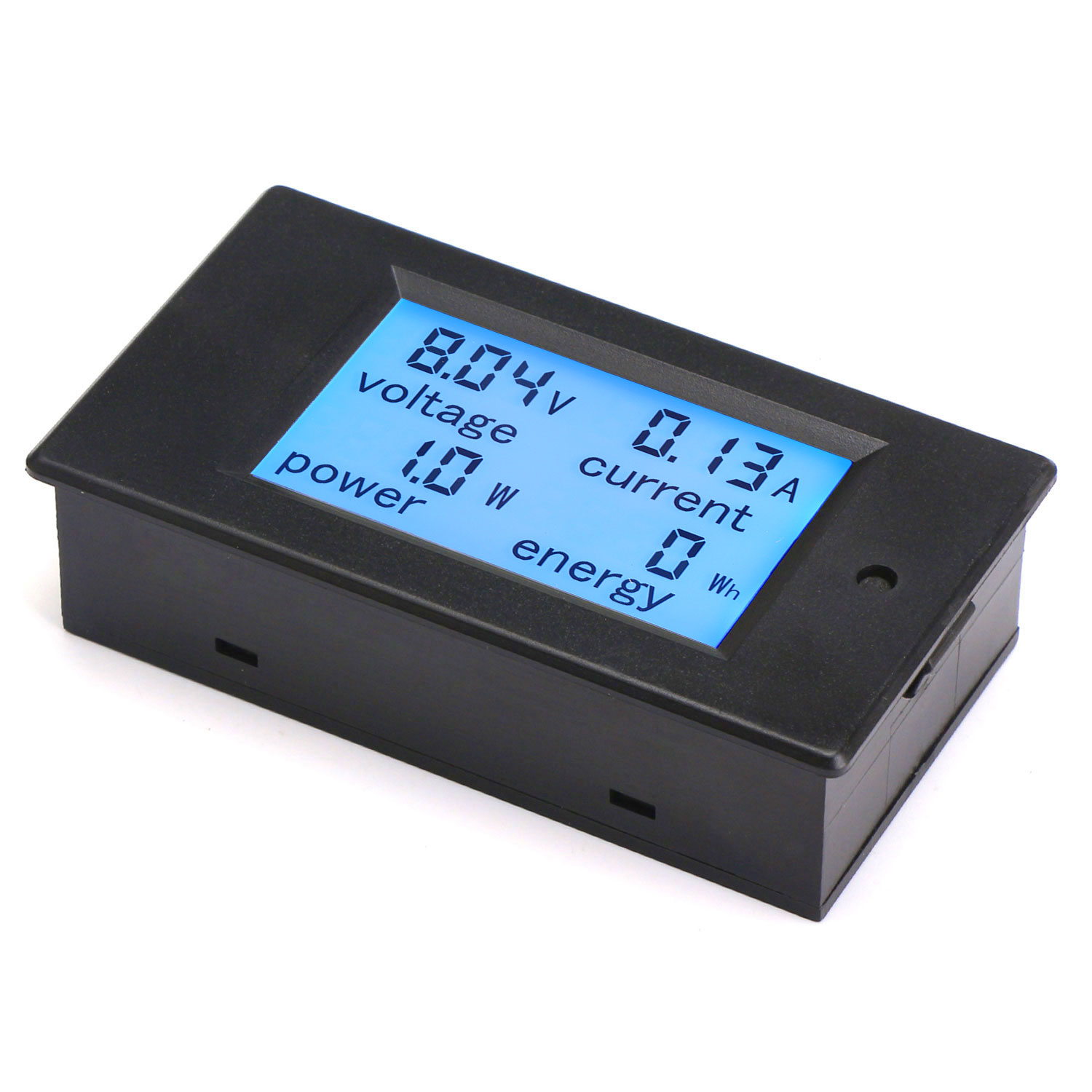

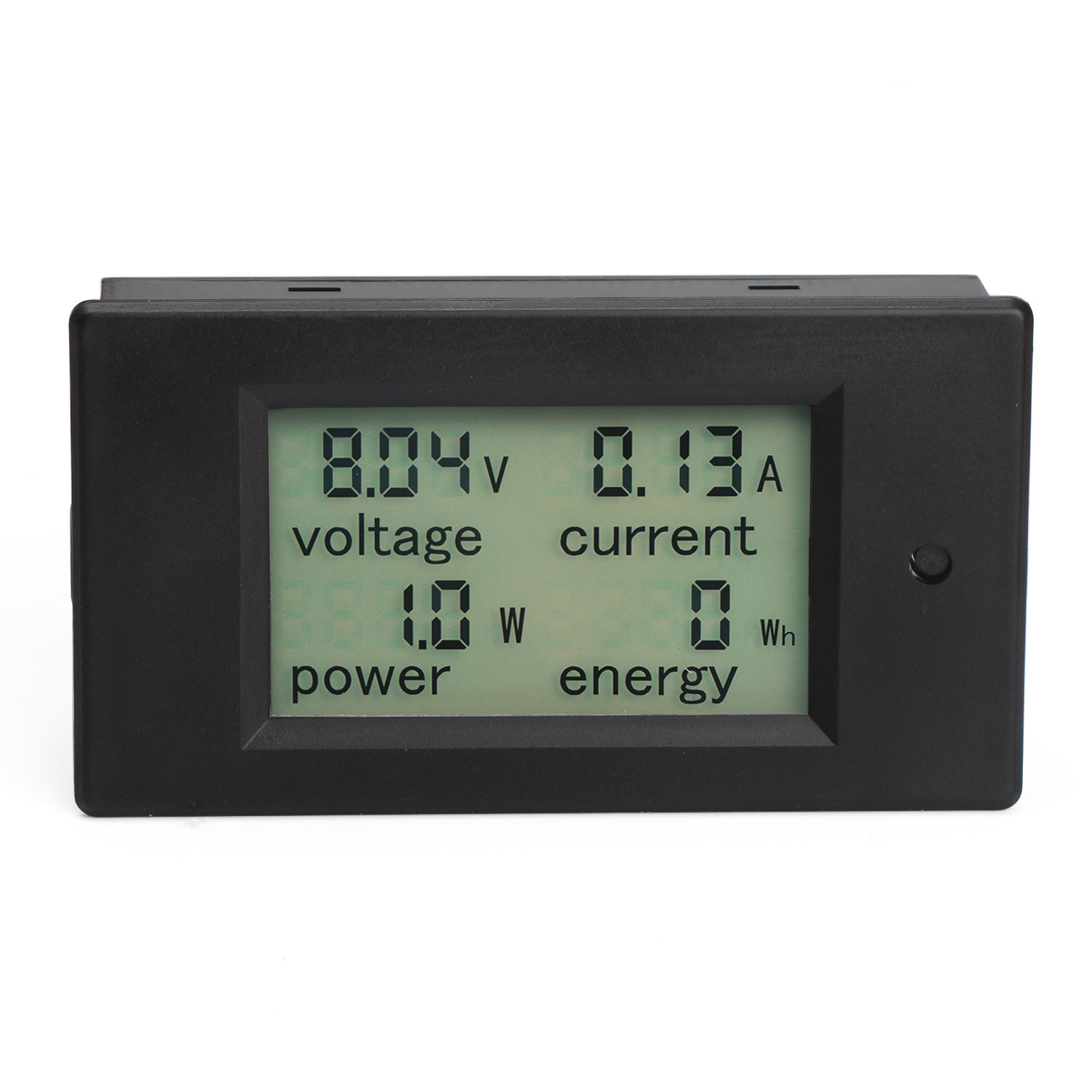

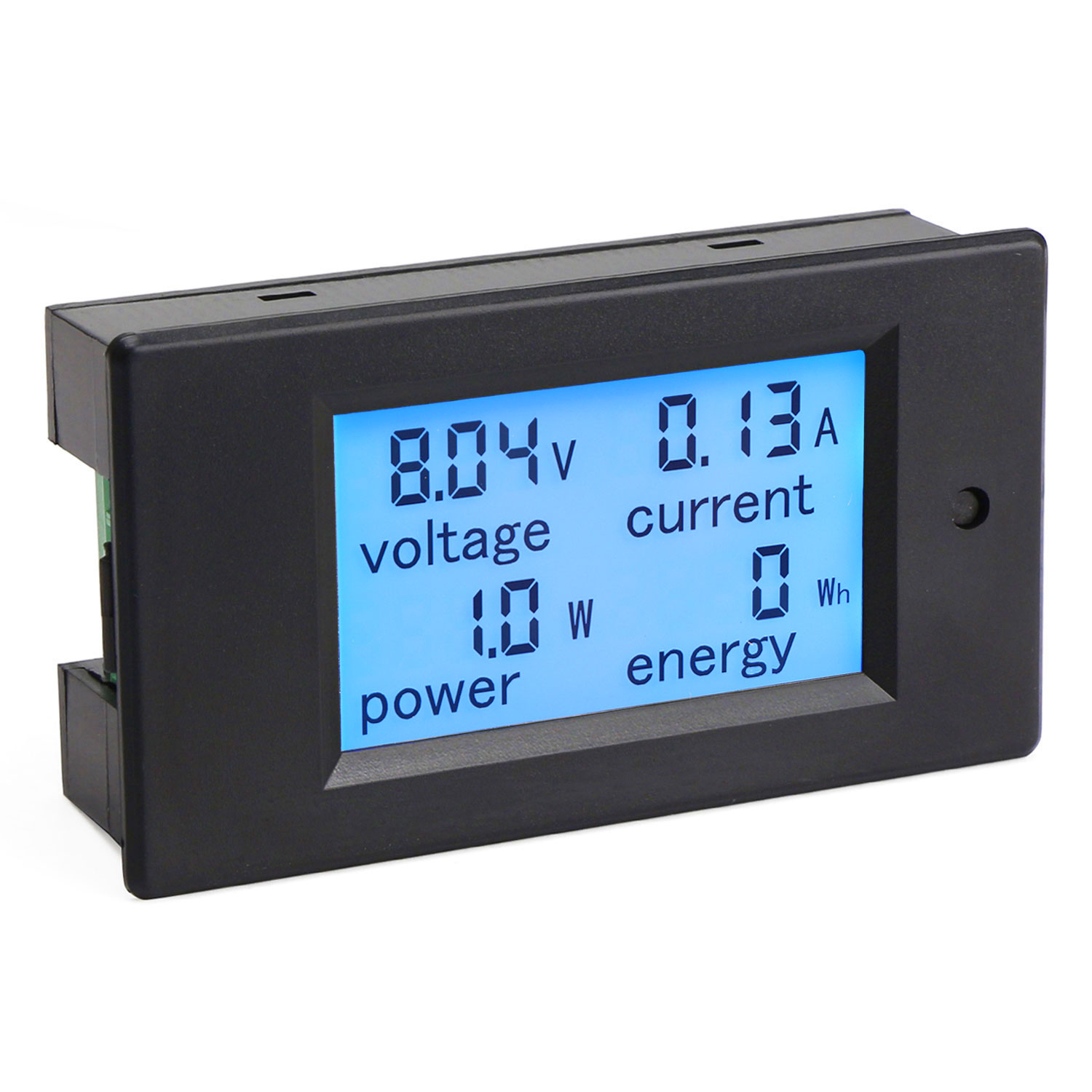

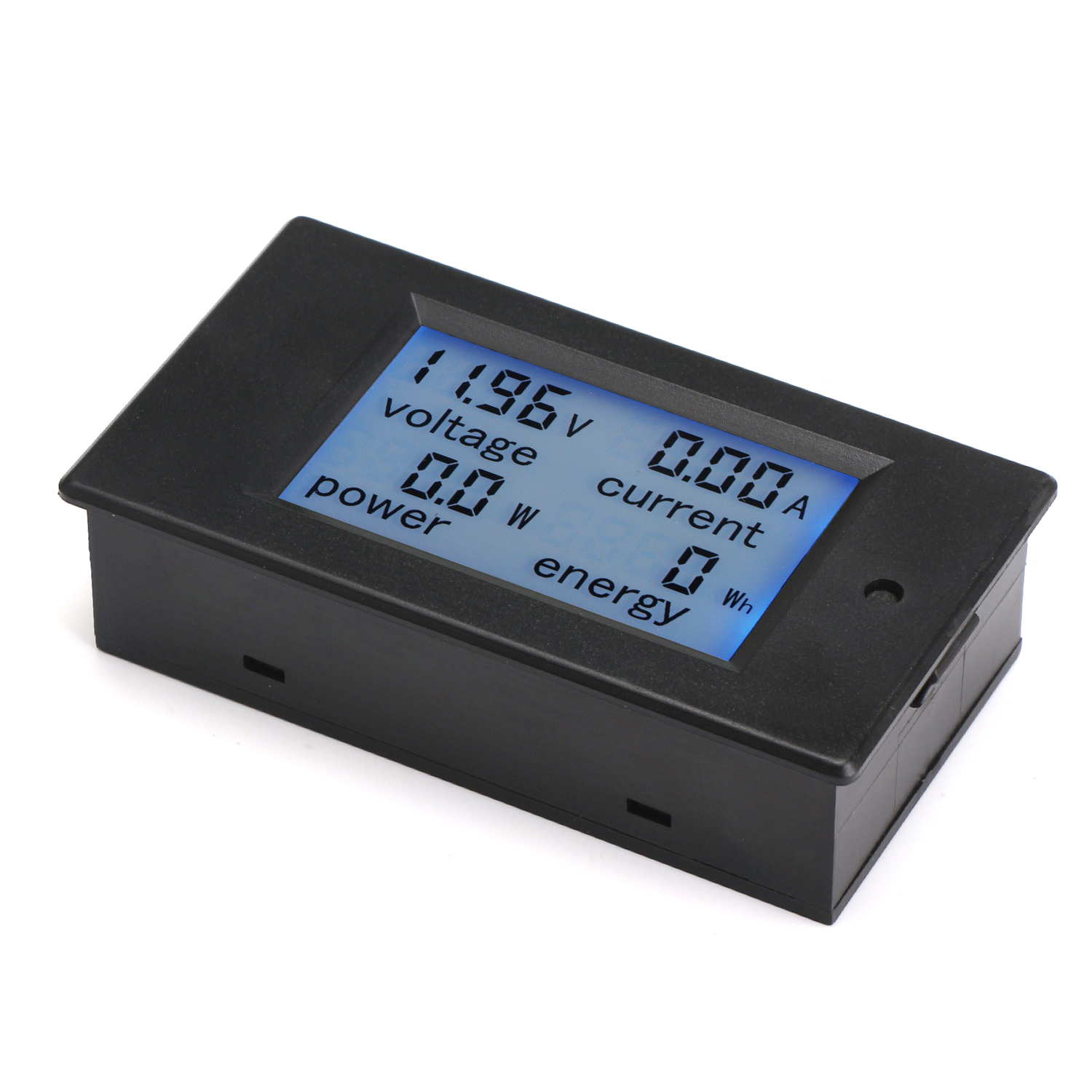

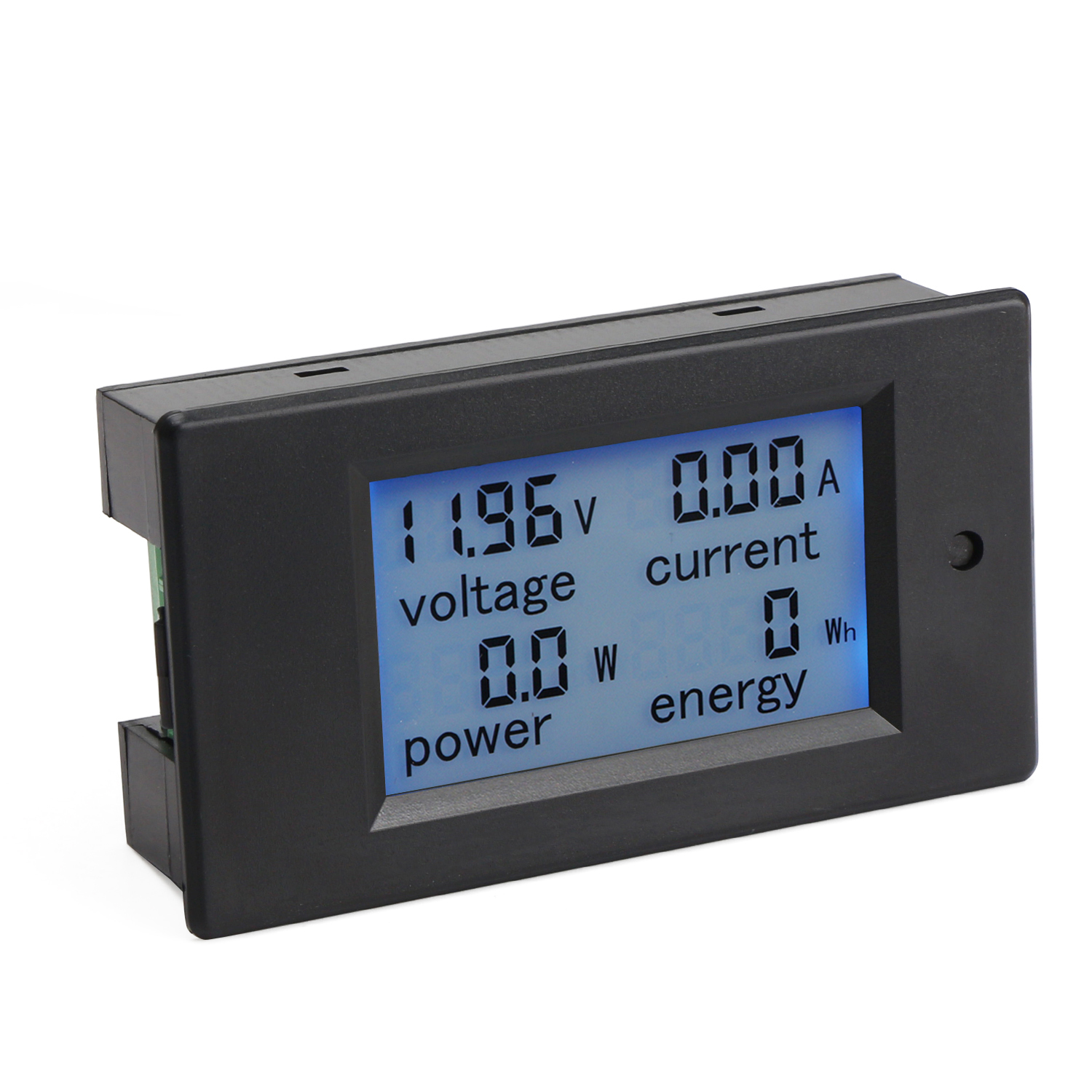

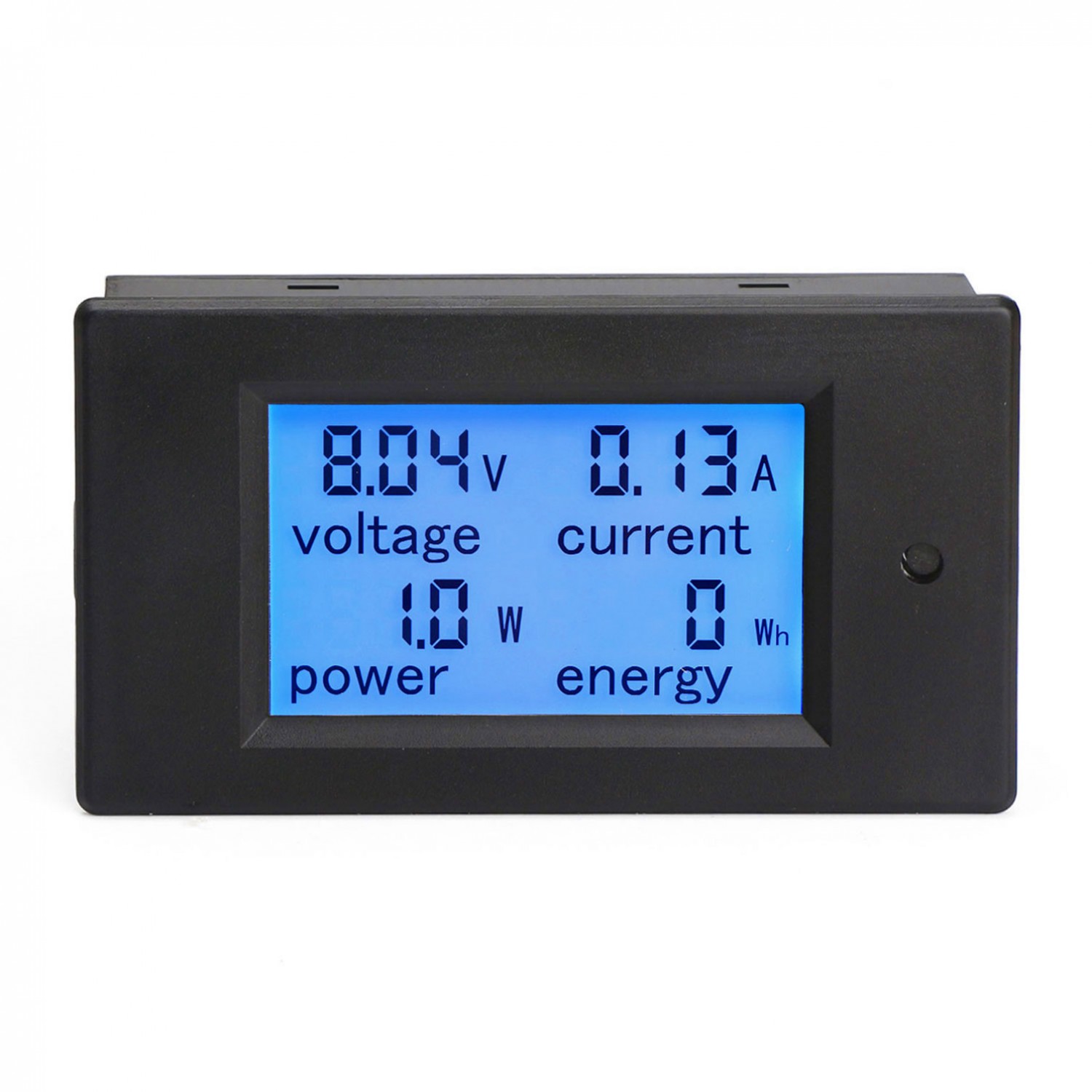

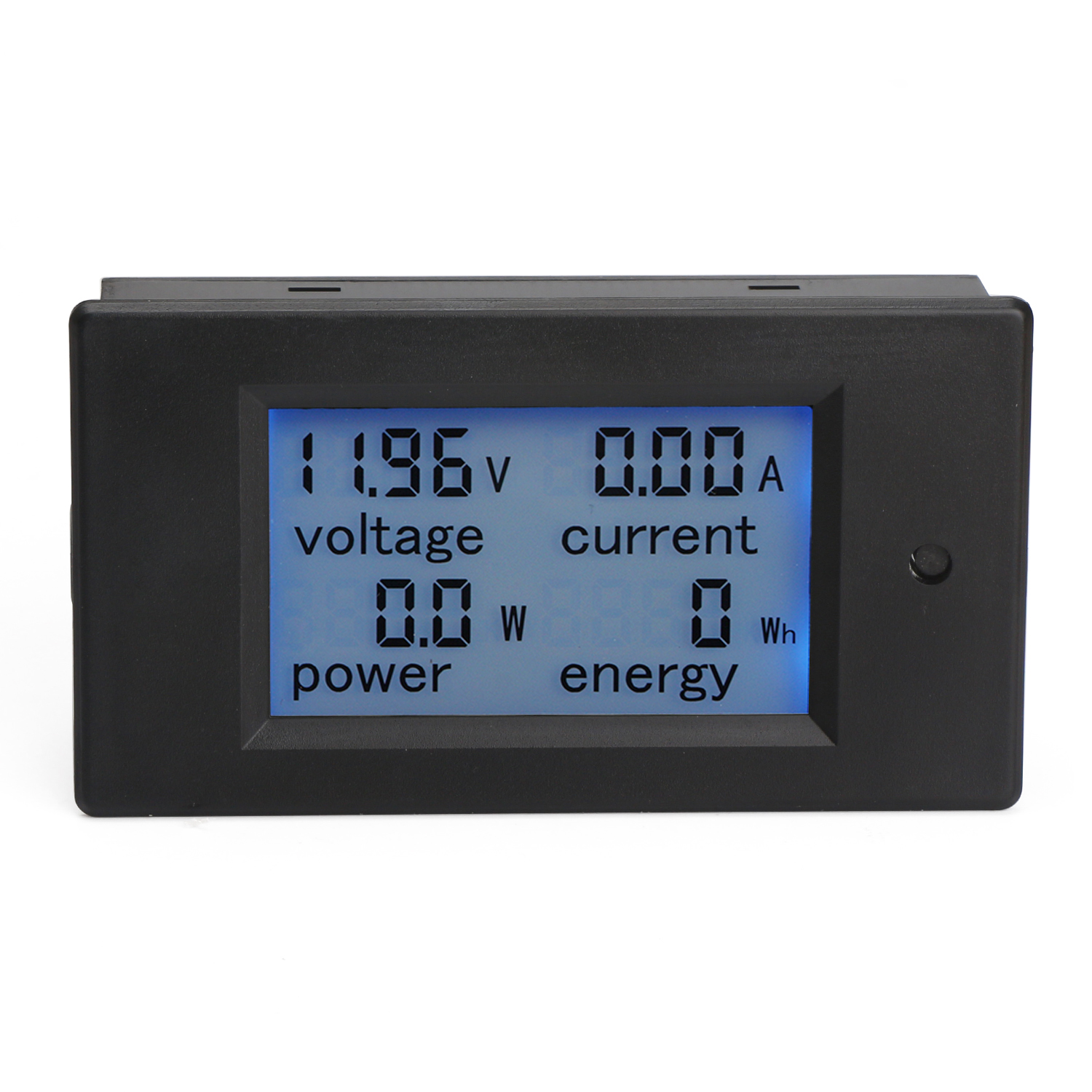

It is a Digital Multimeter 4in1 Voltmeter/Ammeter/Power Meter/Energy Meter, 6.5 ~ 100VDC, Rated Power: 2000W, Measuring Current Range: 0~20A, It has small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:Suitable for industrial equipment,electronic equipment measurement or other products voltage/current /Power /Energy measurement.
- Working Voltage: 6.5 ~ 100VDC
- Measuring Voltage Range: 6.5~100V (display 6.50~99.99V)
- Measuring Current Range: 0~20A (display 0.00~20.00A)
- Rated Power: 20A/2000W
- Measuring Accuracy: 1.0 grade
- Test range and display format:
- Measuring Power Range: 0~2kW
- within 1kW, display 0.0~999.9W;
- above 1kW, display 1000~2000W.
- Measuring Energy Range: 0~9999kWh
- within 10KWh, display 0~9999Wh;
- above 10kWh, display 10~9999kWh.
- Electrical parameter measurement function(voltage, current, power, energy)
- Voltage alarm function(over voltage alarm threshold, backlight and power will flash to alarm)

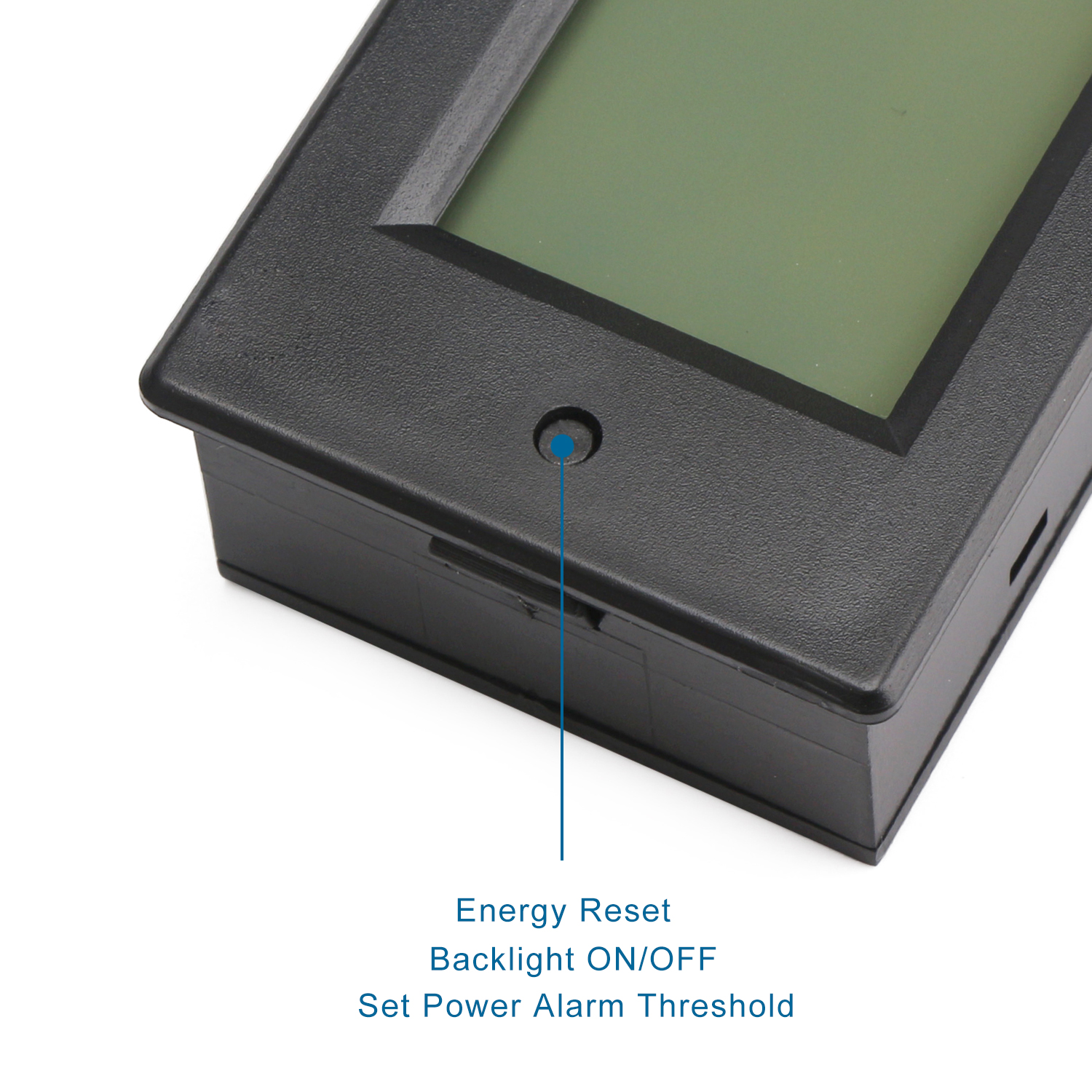

- Reset Function: the energy can be reset by button
- Store data when power off

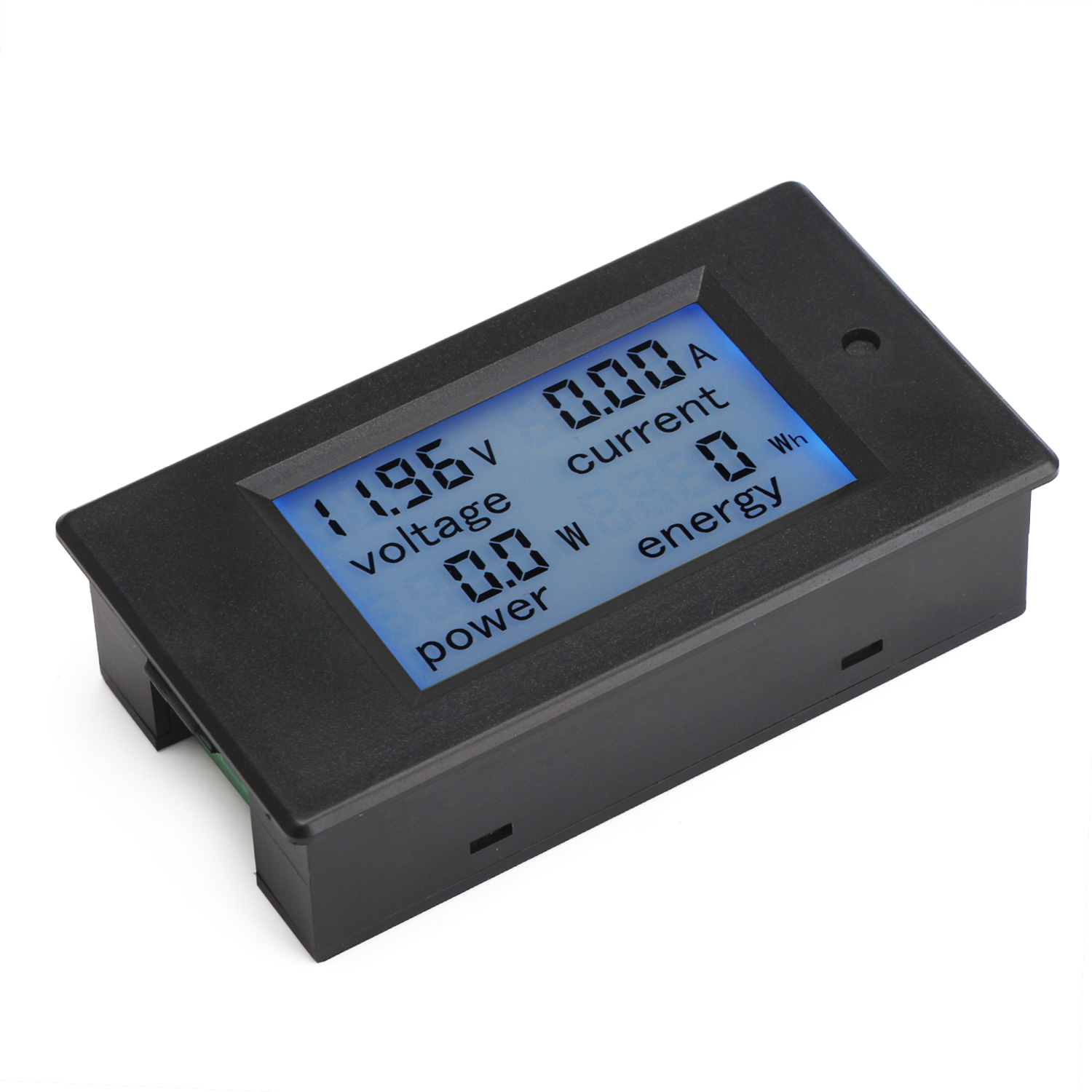

- Large-screen LCD(display voltage, current, power, energy at the same time)
- Backlight function
- This module is suitable for indoor, please do not use outdoor.
- Applied load should not exceed the rated voltage or current.

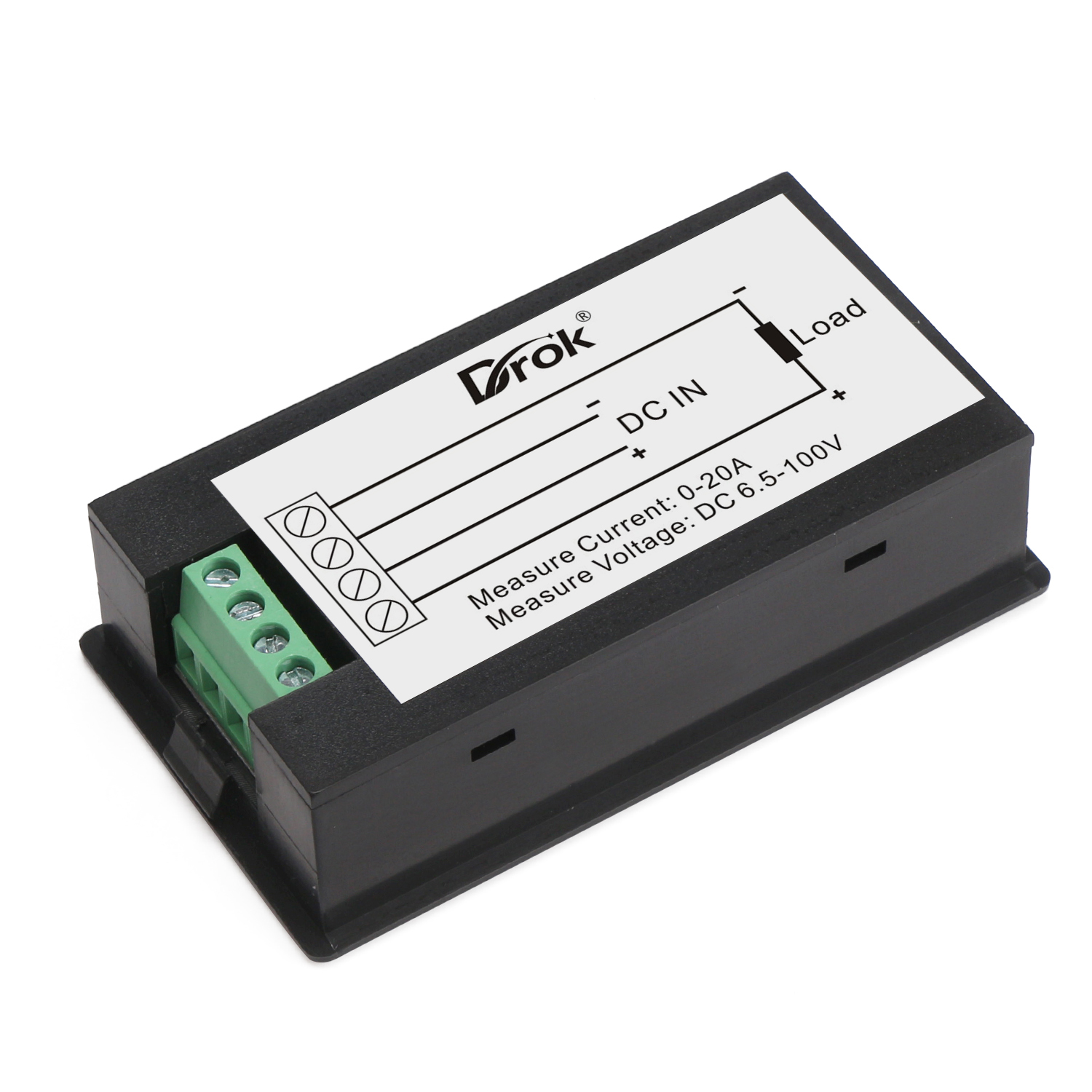

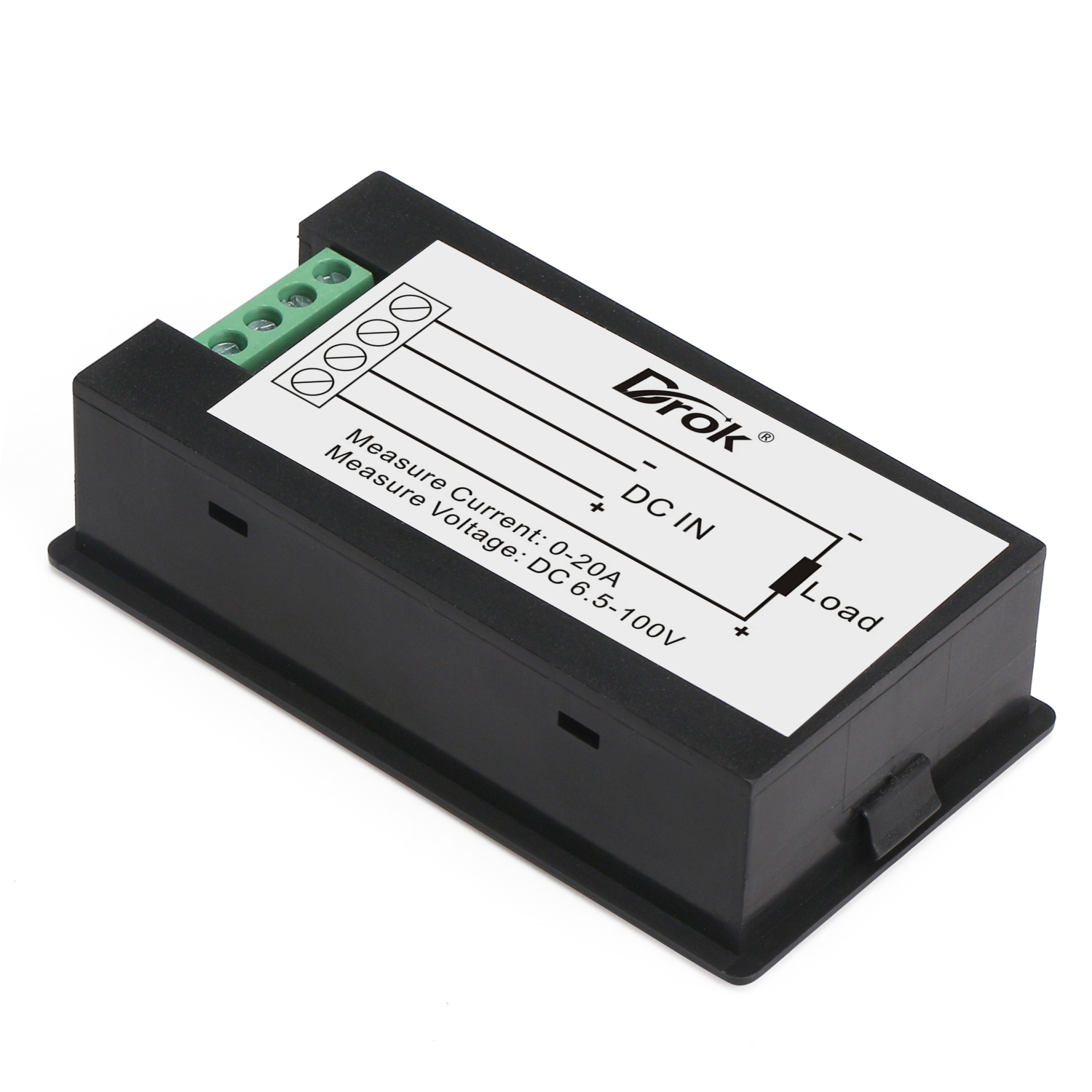

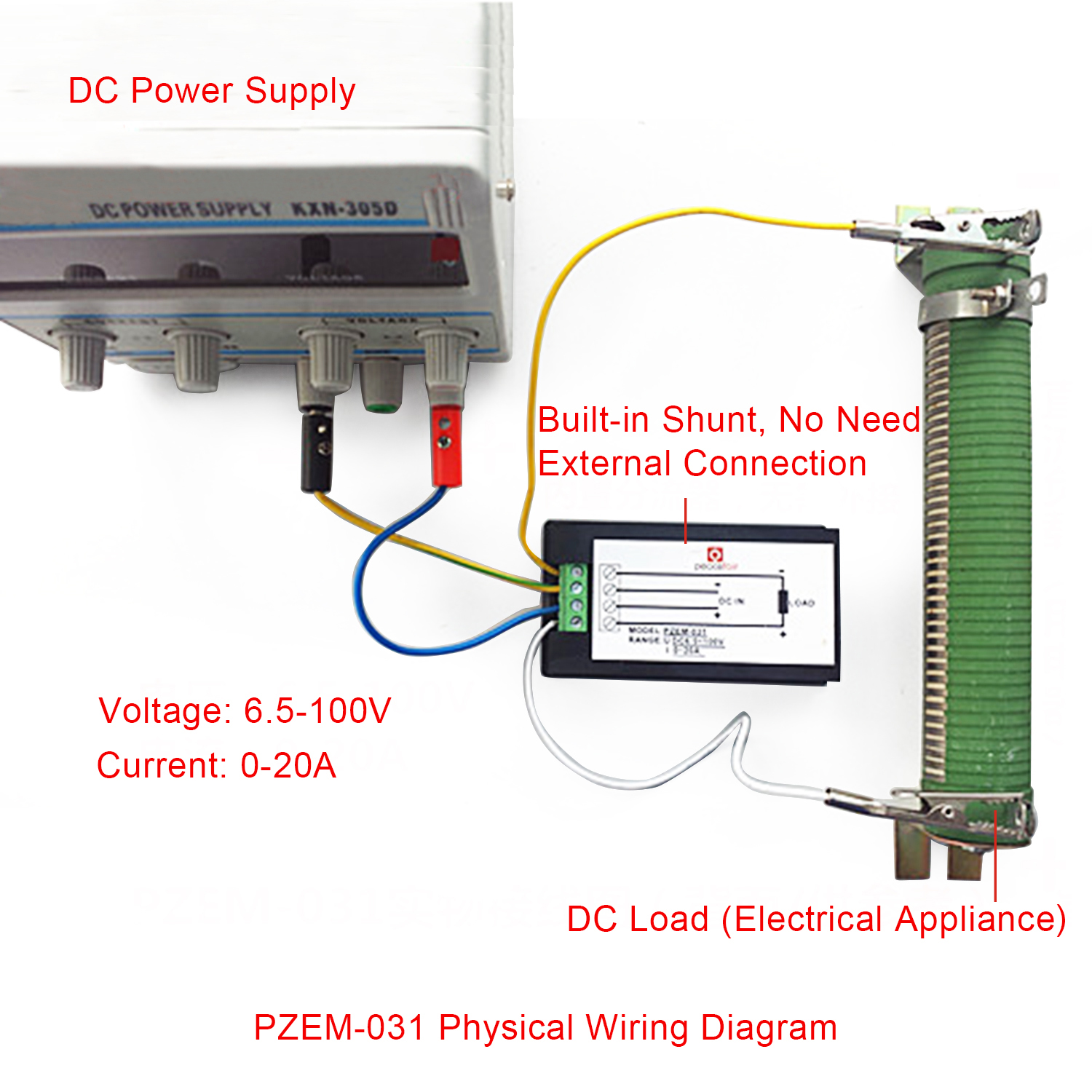

- Wiring order can't be wrong.
1 x DC Power Multimeter (4in1 Digital Voltmeter/Ammeter/Power Meter/Energy Meter)
