Power Monitor 4in1 Digital Voltmeter/Ammeter/Power Meter/Energy Meter DC 6.5~100V/100A/10kW/9999kWh Multifunction Digital Meter + Resistor shunt

It is a Digital Meter Multimeter 4in1 Voltmeter/Ammeter/Power Meter/Energy Meter, 6.5 ~ 100VDC, Rated Power: 10000W, Measuring Current Range: 0~100A,  It has small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:Suitable for industrial equipment,electronic equipment measurement or other products voltage/current /Power /Energy measurement.

Parameters:

• Working Voltage: 6.5 ~ 100VDC
• Measuring Voltage Range: 6.5~100V (display 6.50~99.99V)
• Measuring Current  Range: 0~100A (display 0.00~99.99A)
• Rated Power: 100A/10000W
• Measuring Accuracy: 1.0 grade
• Test range and display format:
• Measuring Power Range: 0~10kW

  • within 1kW, display 0.0~999.9W;
  • above 1kW, display 1000~9999W.
• Measuring Energy Range: 0~9999kWh

  •  within 10KWh, display 0~9999Wh;
  •  above 10kWh, display 10~9999kWh.

Function:

• Electrical parameter measurement function(voltage, current, power, energy)
• Voltage alarm function(over voltage alarm threshold, backlight and power will flash to alarm)

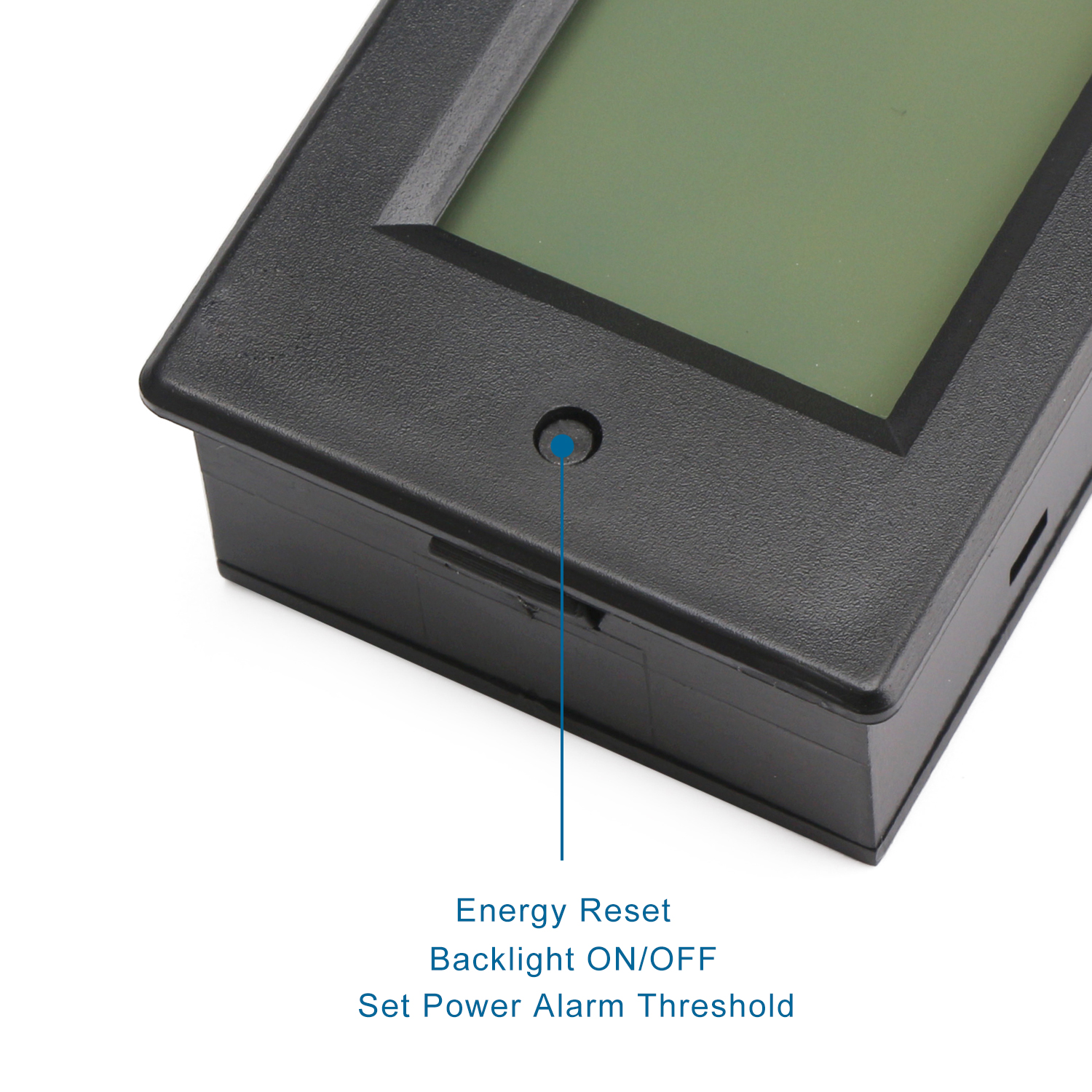

• Reset Function: the energy can be reset by button
• Store data when power off

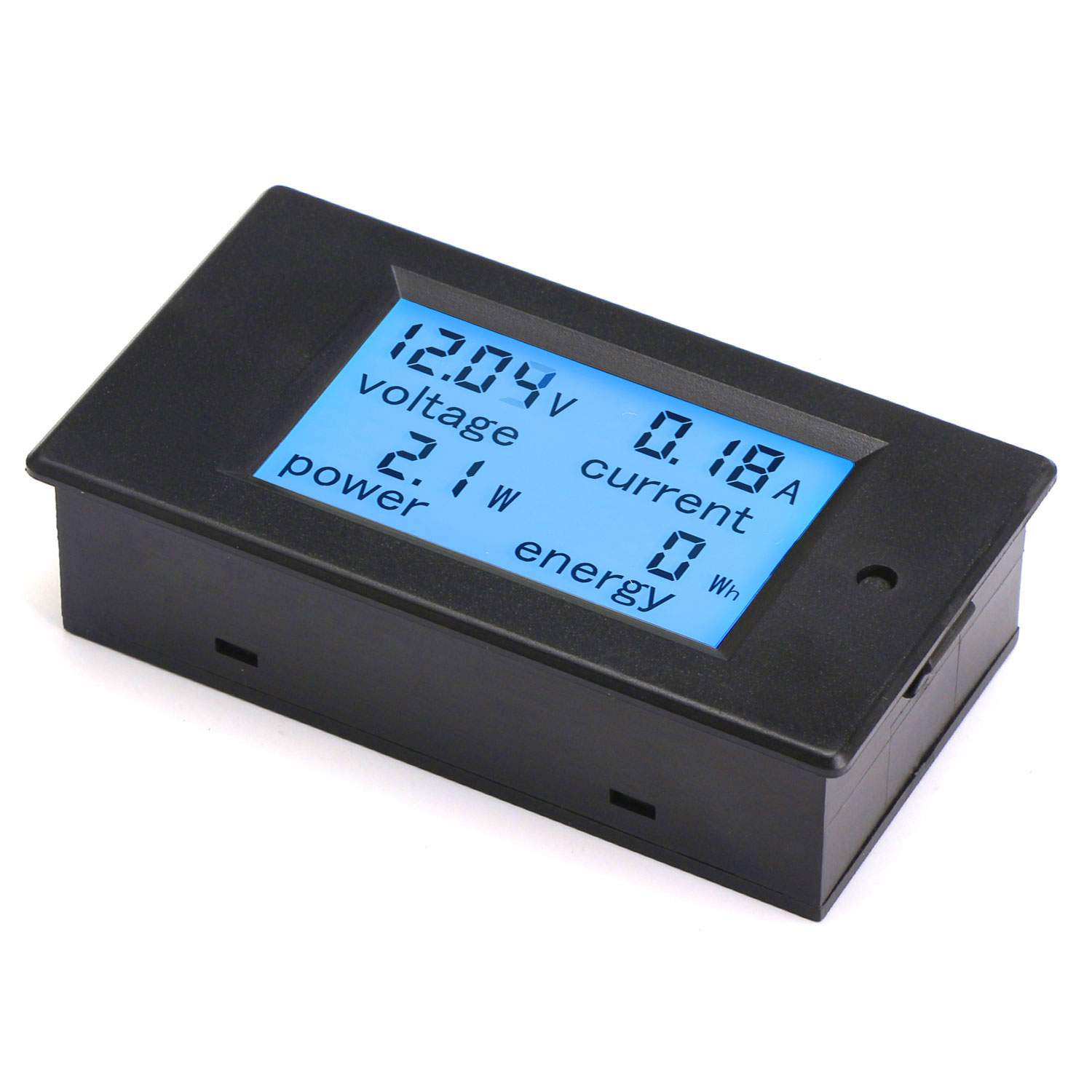

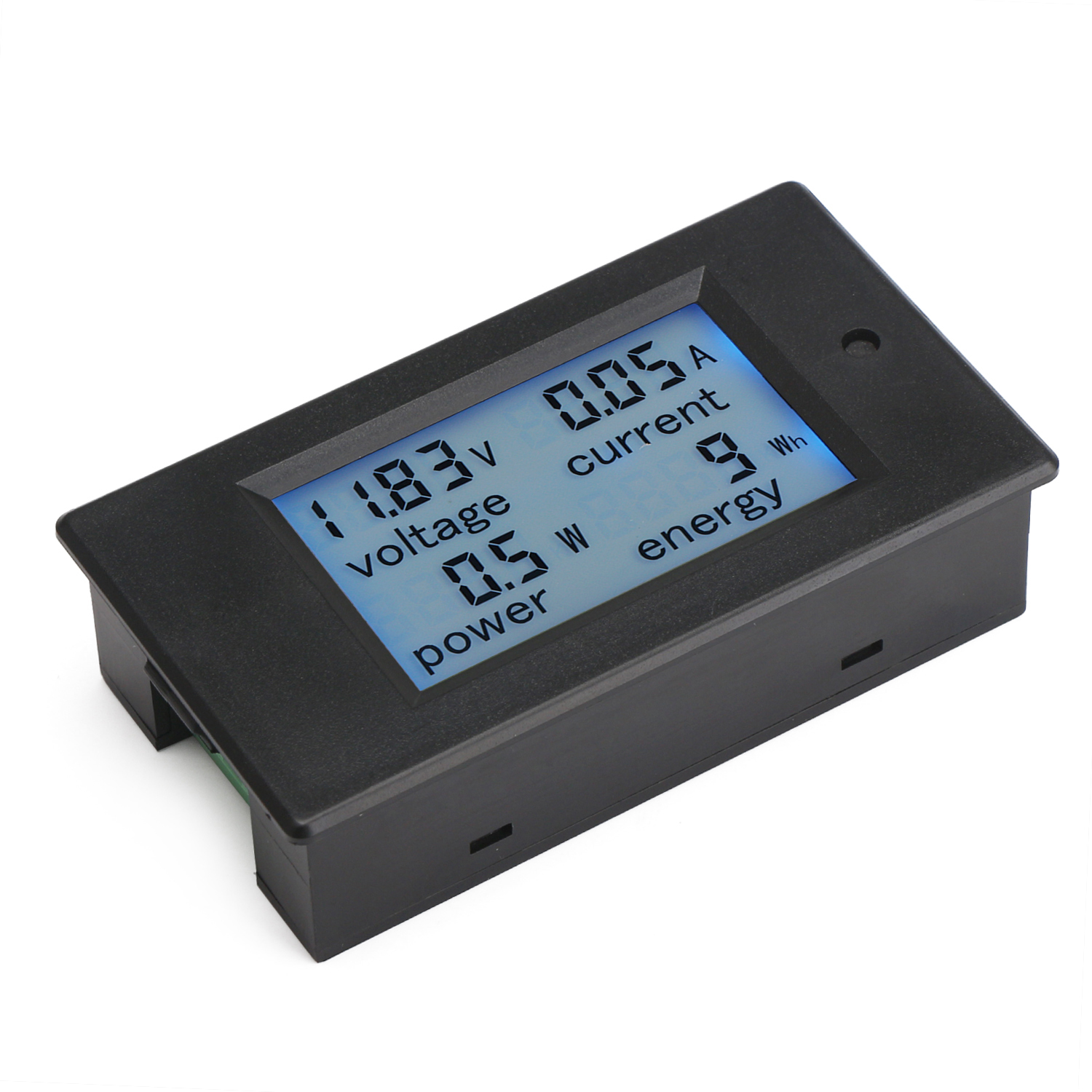

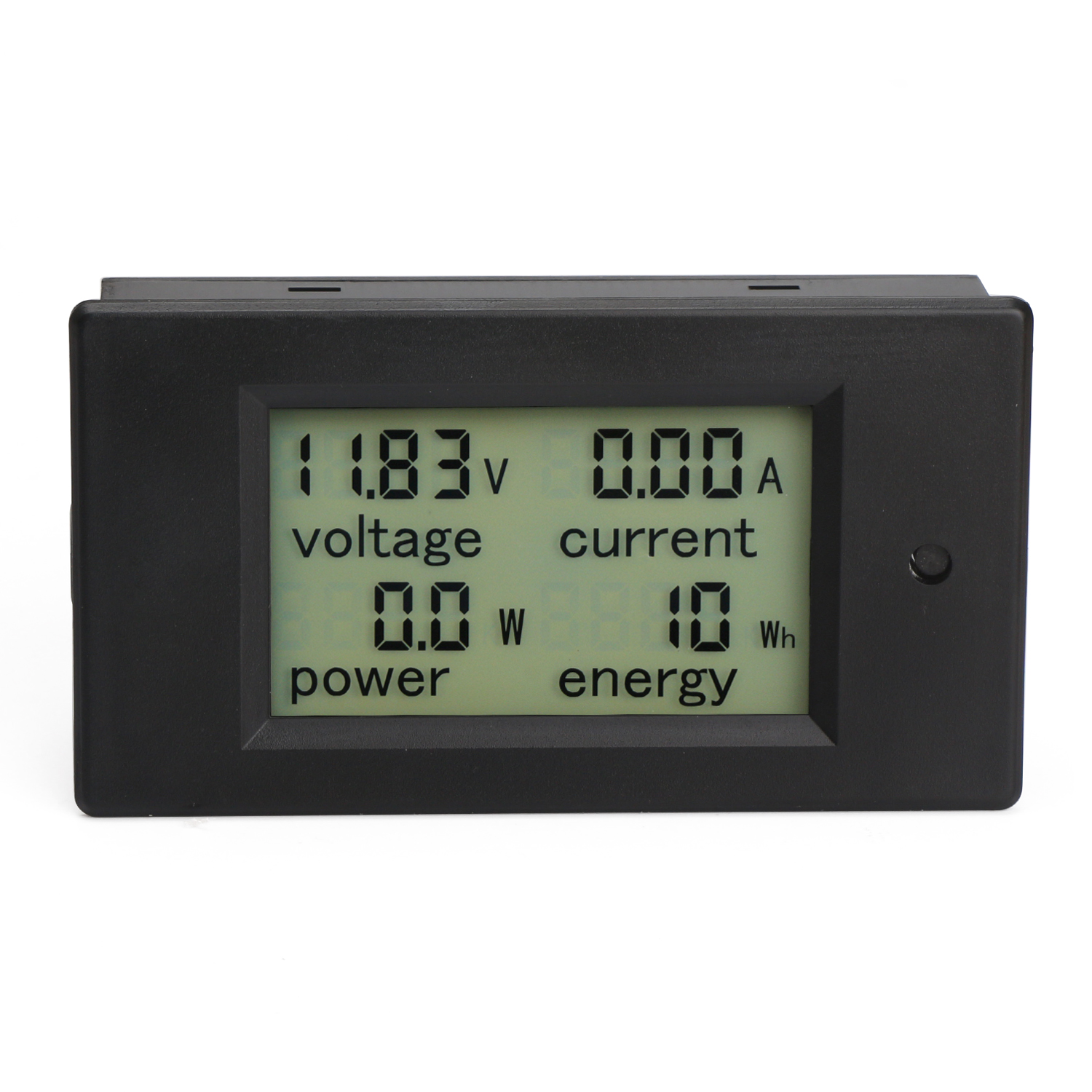

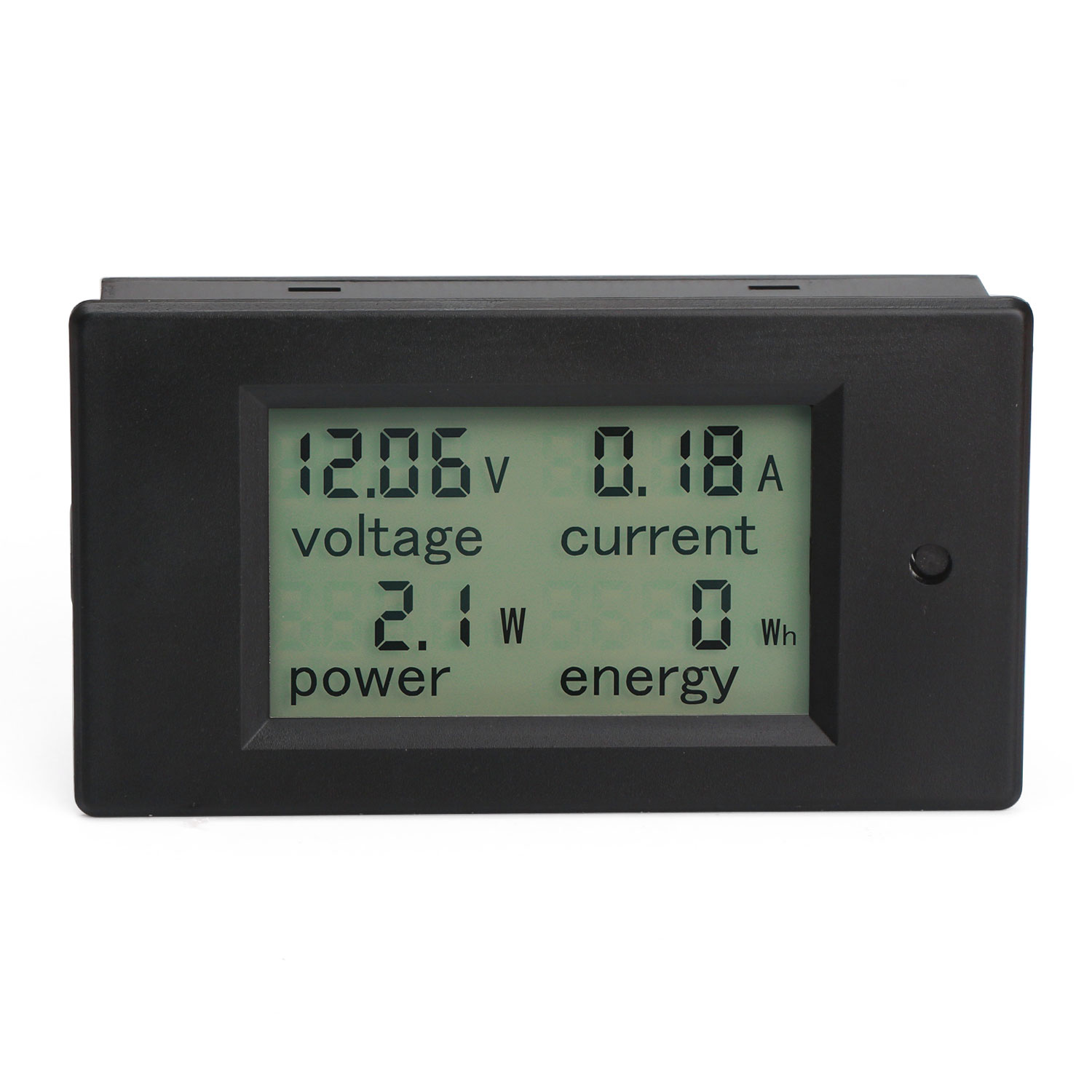

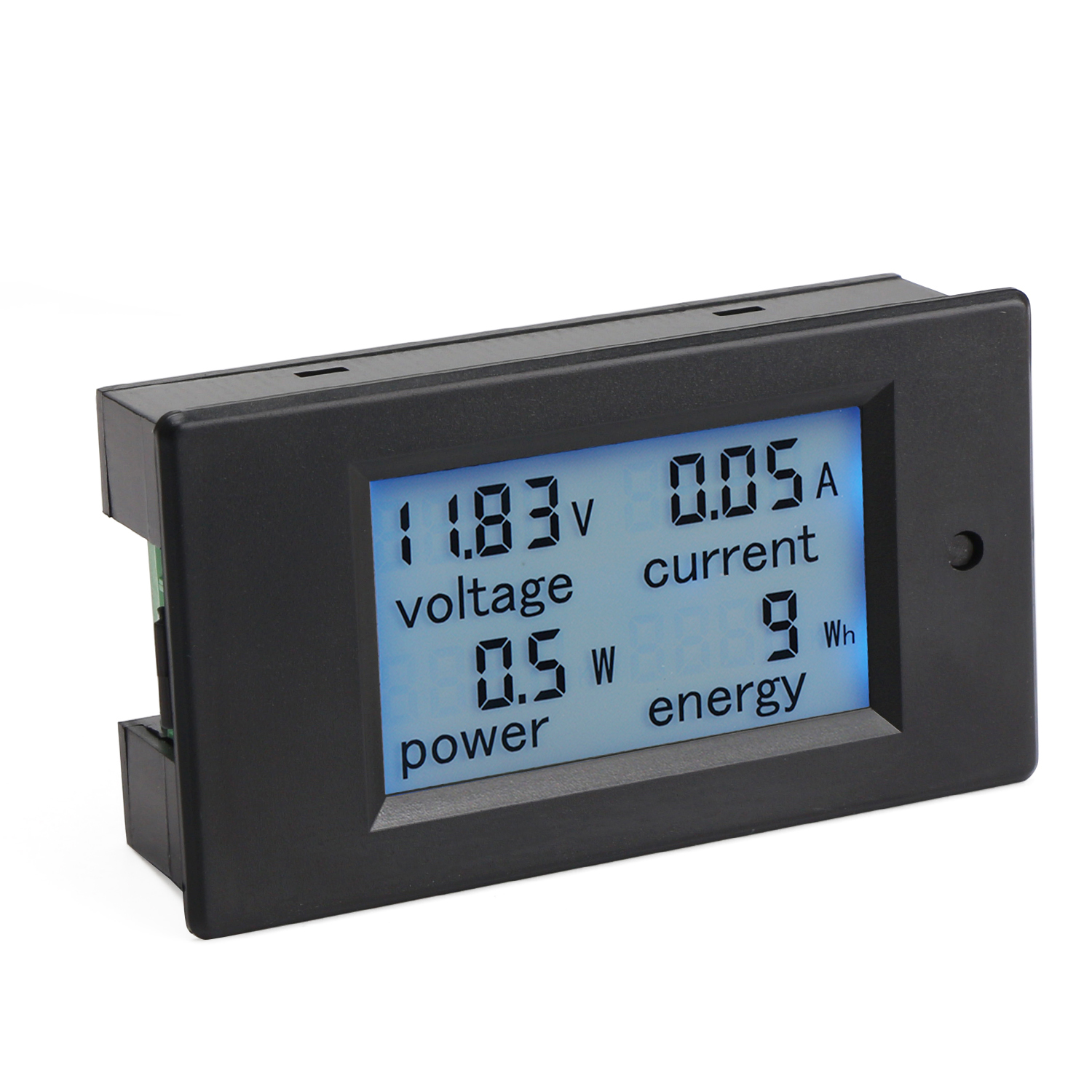

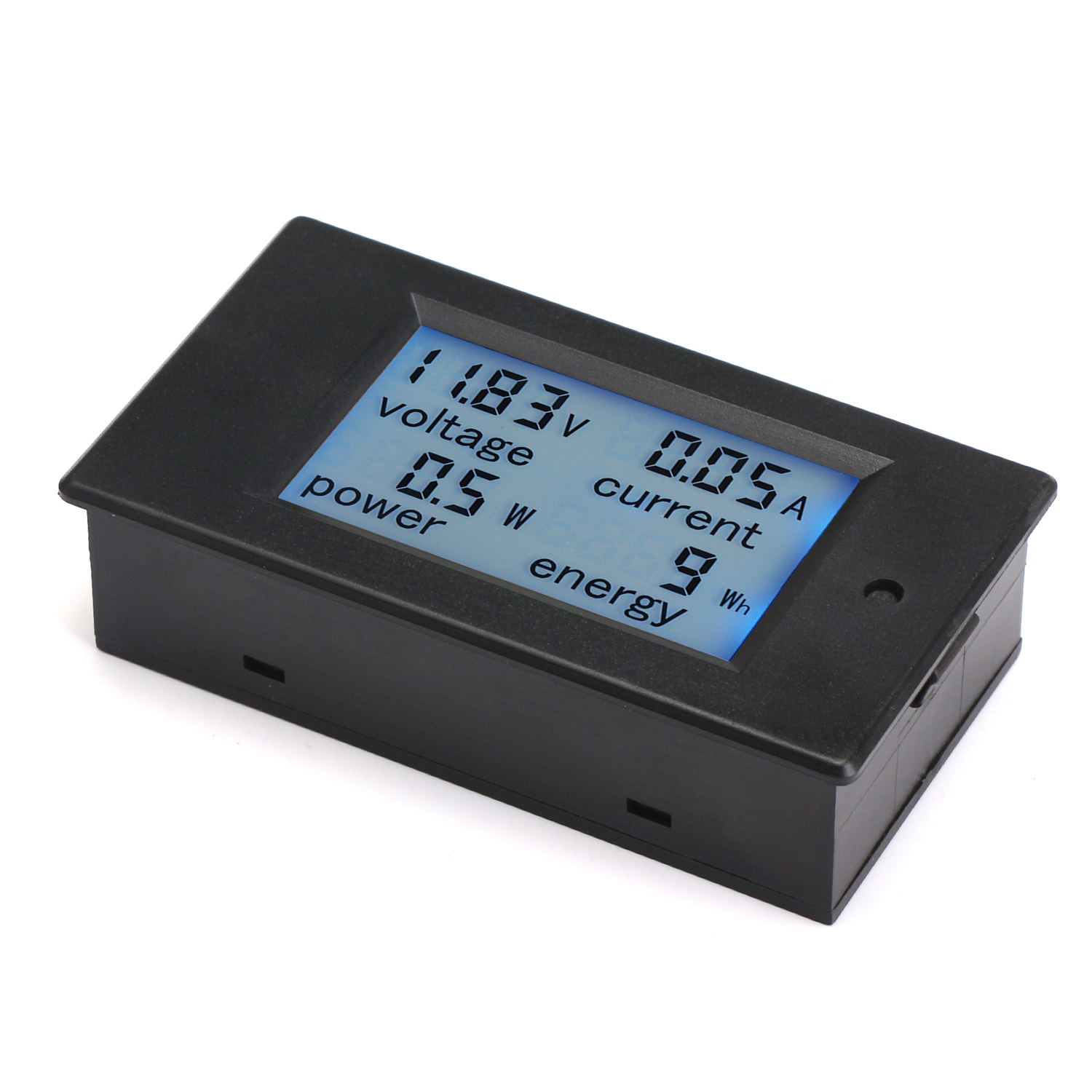

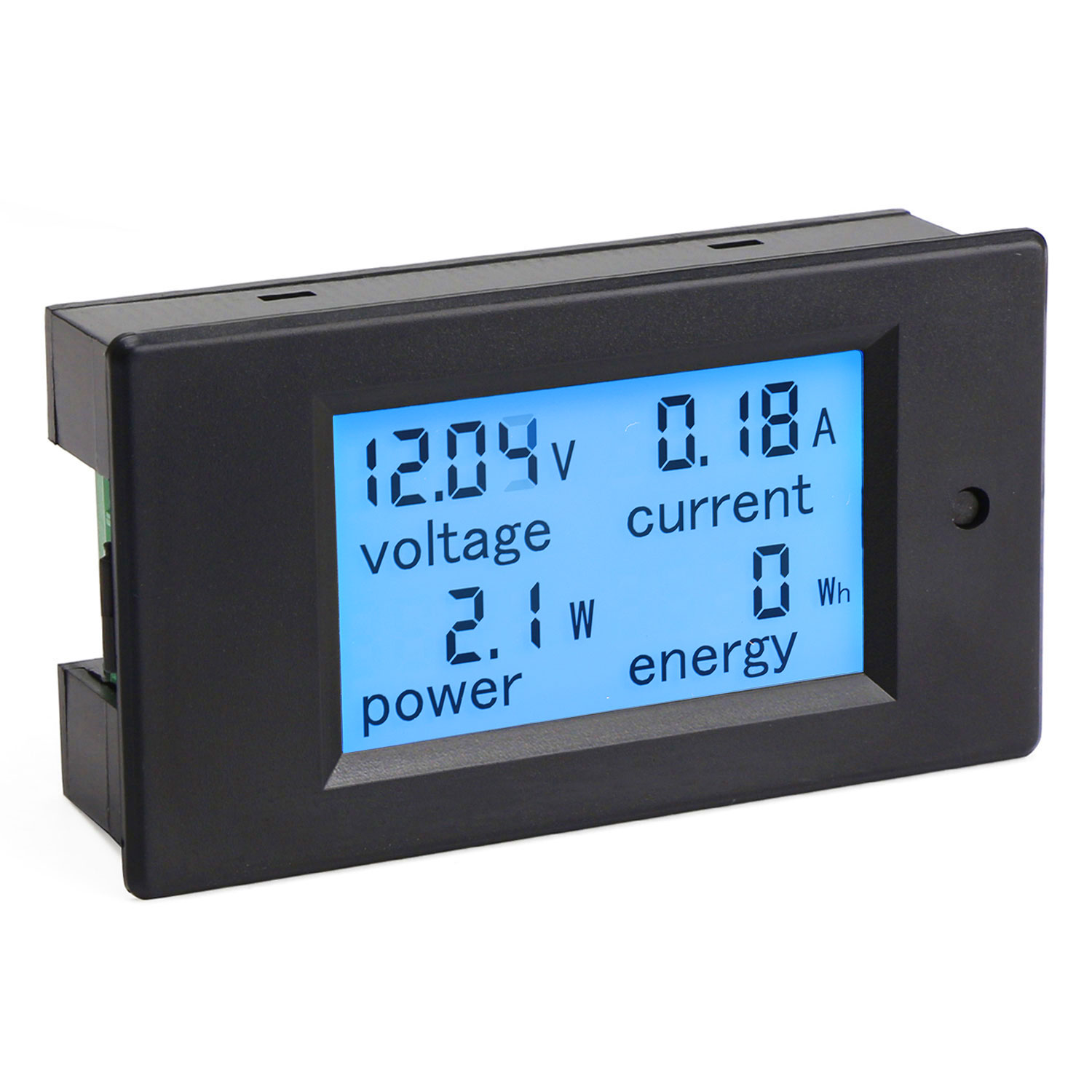

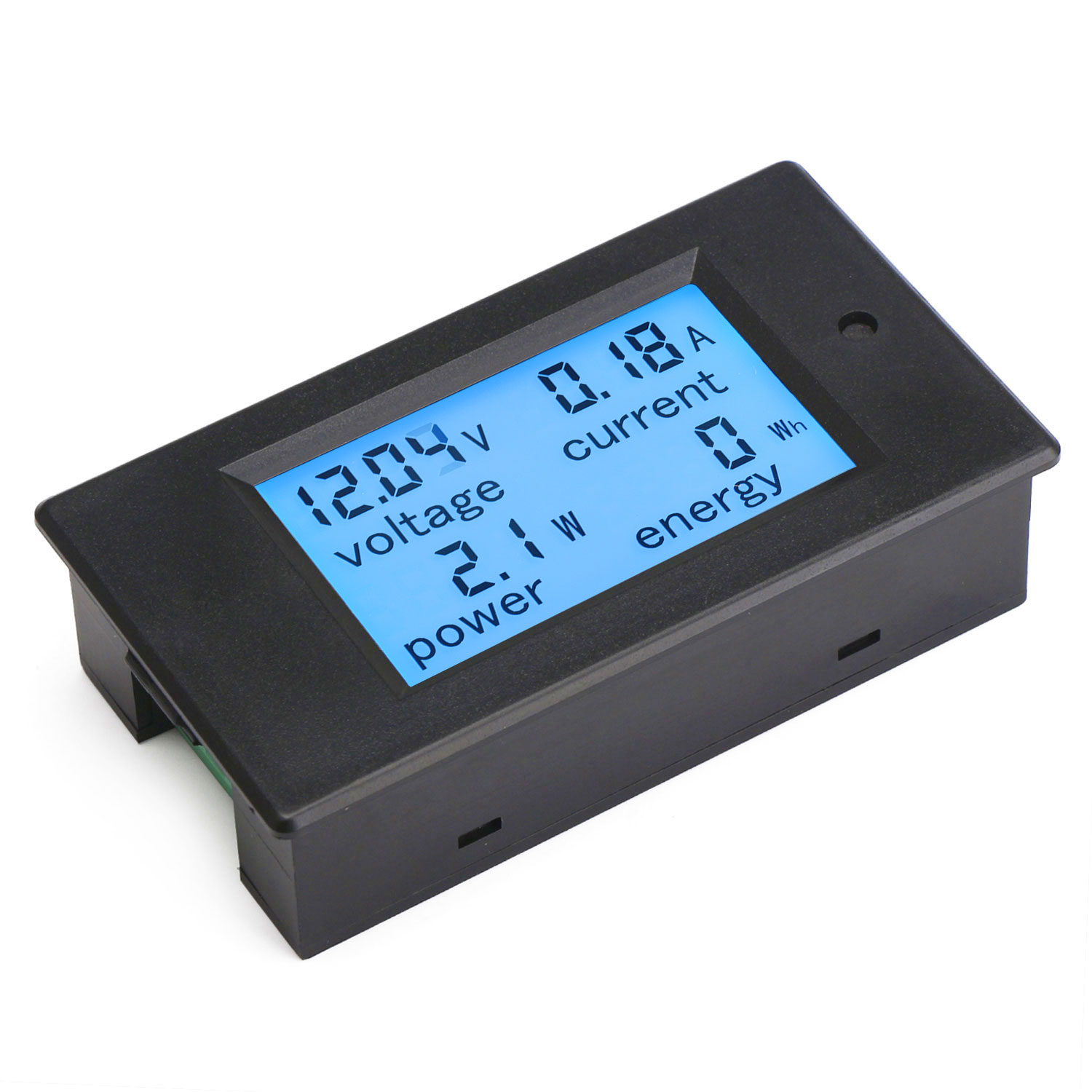

• Large-screen LCD(display voltage, current, power, energy at the same time)
• Backlight function

Note:

• This module is suitable for indoor, please do not use outdoor.
• Applied load should not exceed the rated voltage or current.

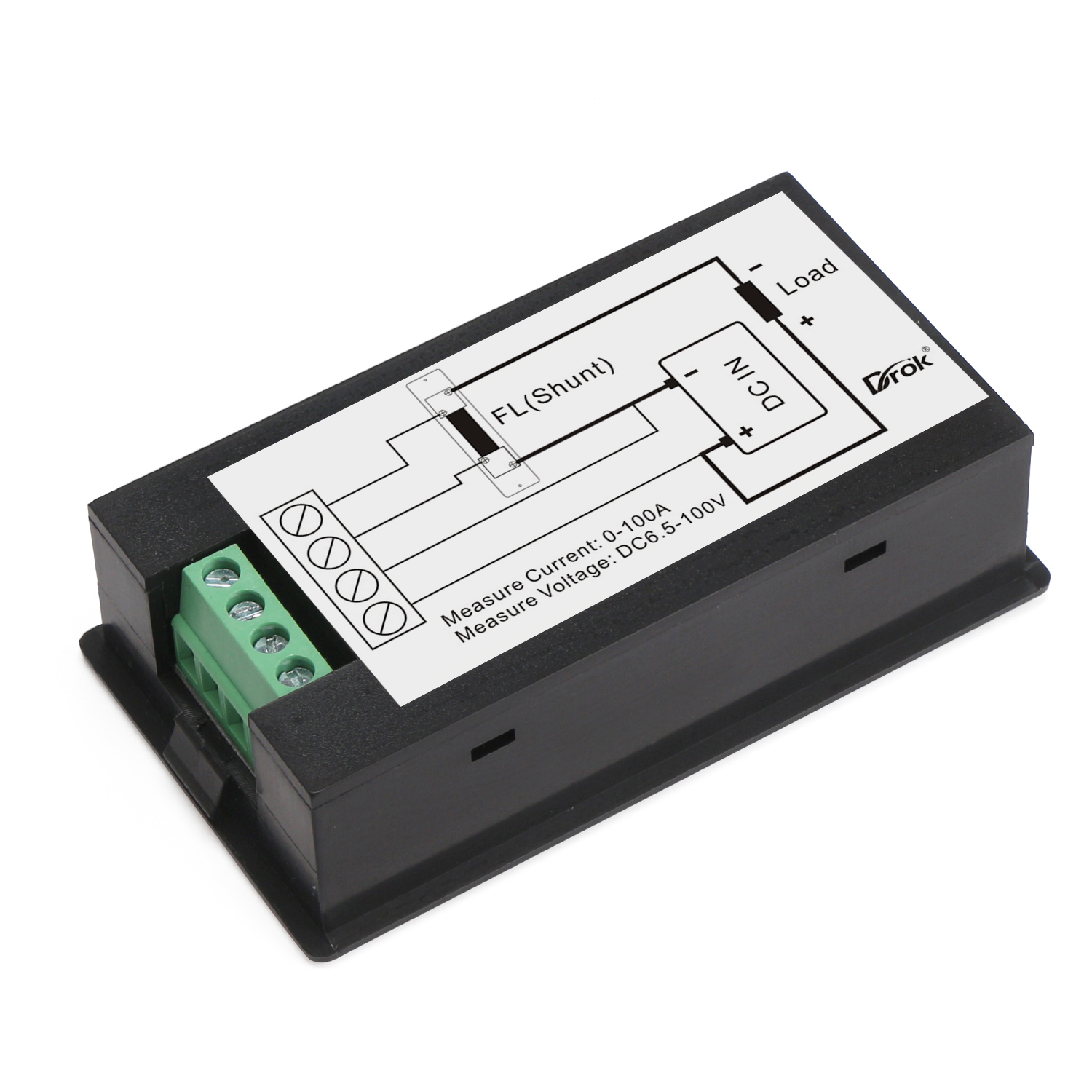

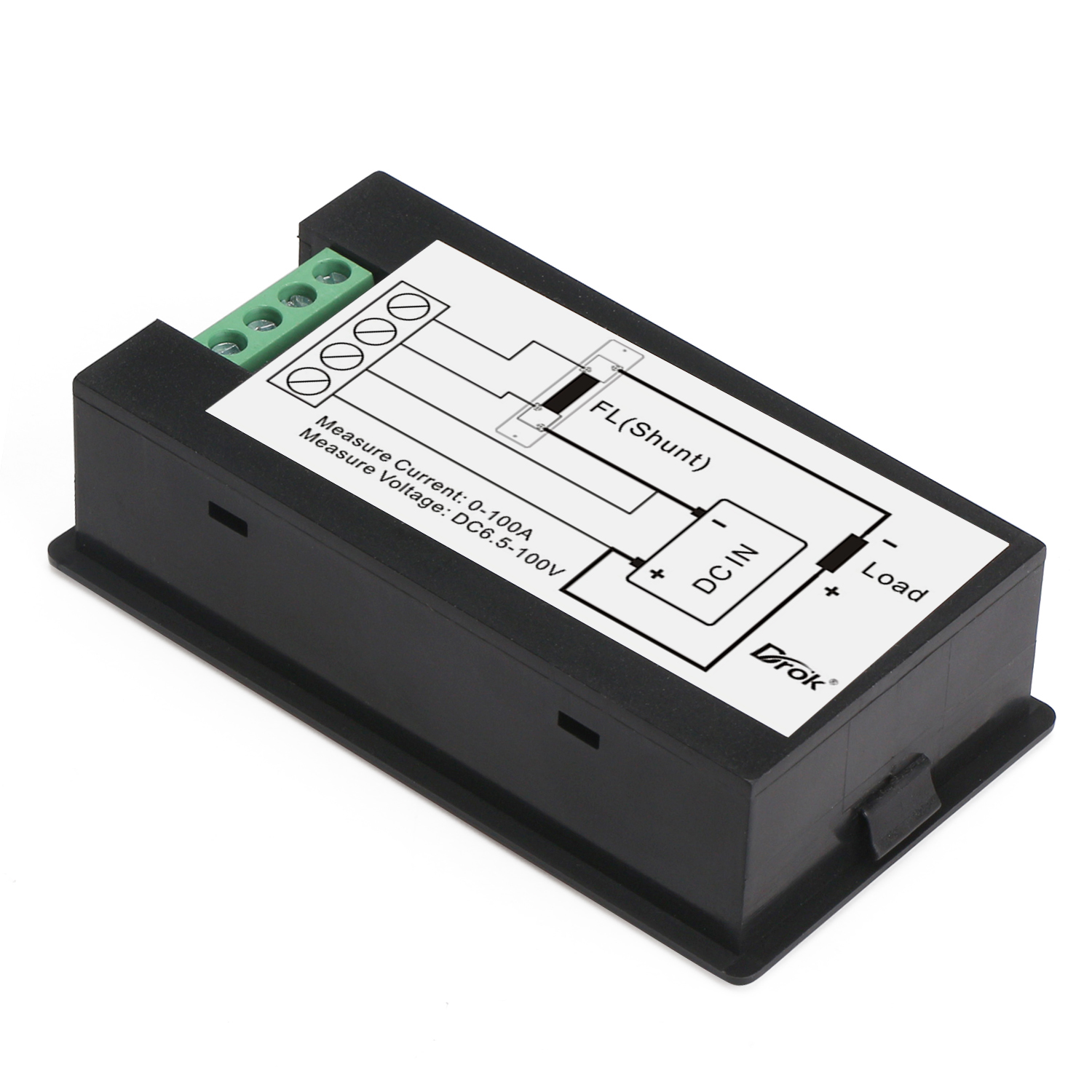

• Wiring order can't be wrong.

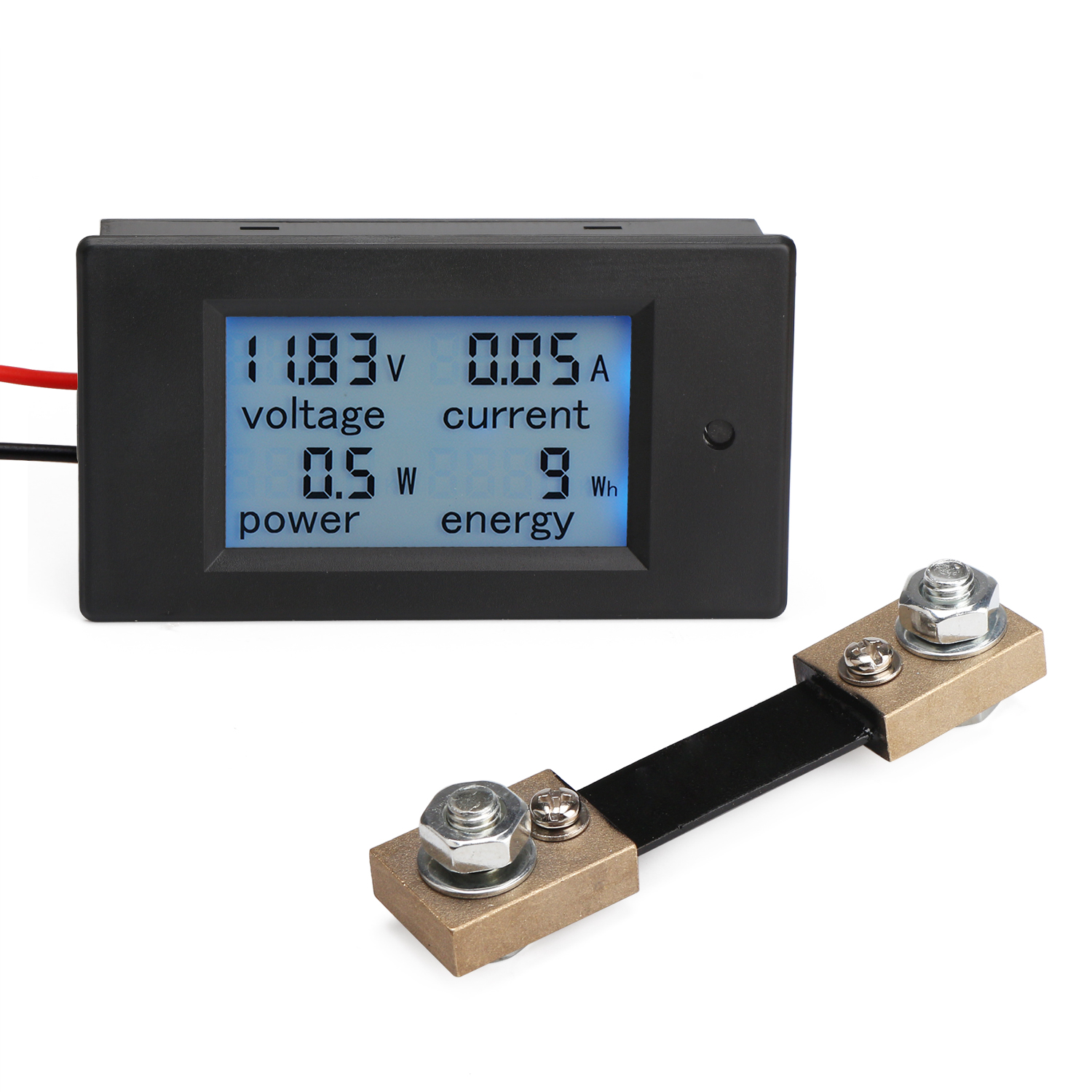

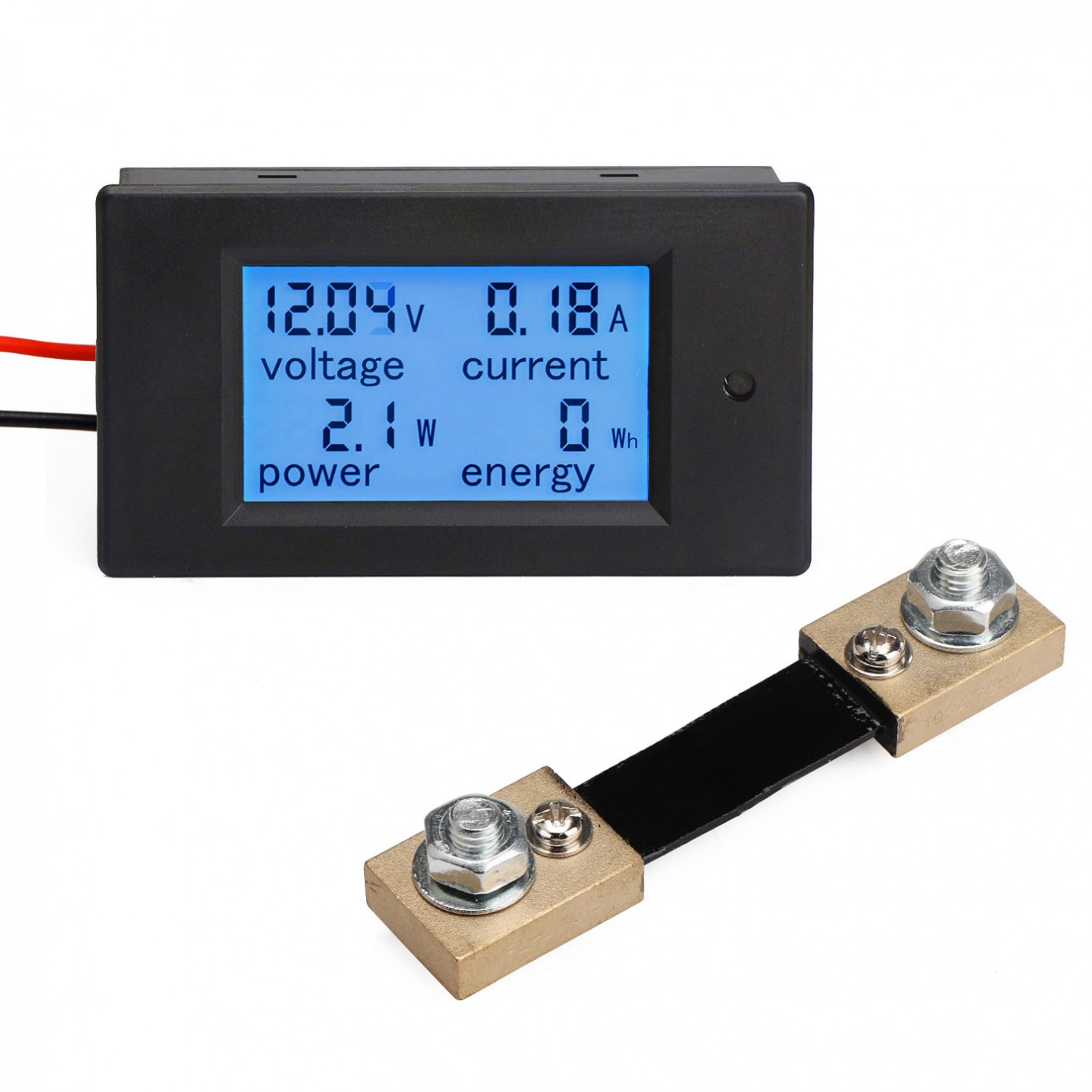

Package Includes:

• 1 x DC Power Multimeter (4in1 Digital Voltmeter/Ammeter/Power Meter/Energy Meter)
• 1 x Resistor shunt
