It is a Power Supply Module/Adapter/CNC Controller, Input Voltage Range: 10V ~ 65V, Output AdjustableVoltage Range: 0 ~ 60V, Output Adjustable Current Range: 0 ~ 12A, Suitable for DIY an adjustable voltage regulated power supply, Industrial equipment Voltage convert, Power Supply Transformers, Laptop Power Supply, Batteries Buck, Car Power Supply etc
Product Parameters:- Input Voltage Range: DC 10V ~ 65V
- Output AdjustableVoltage Range: DC 0 ~ 60V
- Output Adjustable Current Range: 0 ~ 12A
- Output Power: 0 ~ 720W
- Output Voltage Setting Resolution: 10mV
- Output Current Setting Resolution: 10mA
- Power Supply Effect: CV<0.5%+10mV CC<1%+10mA
- Load Effect: CV<0.5%+10mV CC<1%+10mA
- Output Ripple: < 50mVpp(input 54V,output 12V,current 5A)
- 100Hz Fluctuation Transmission Ratio:< 1/10000
- Typical Efficiency: 94% (input 54V, output 30V, current 5A
- Voltage Display Error: ±1%+20mV
- Current Display Error: ±1%+20mA
- Response Time: <50ms
- Save Operation: M0~M9 10 groups of data
- Operating Temperature: 0~40℃

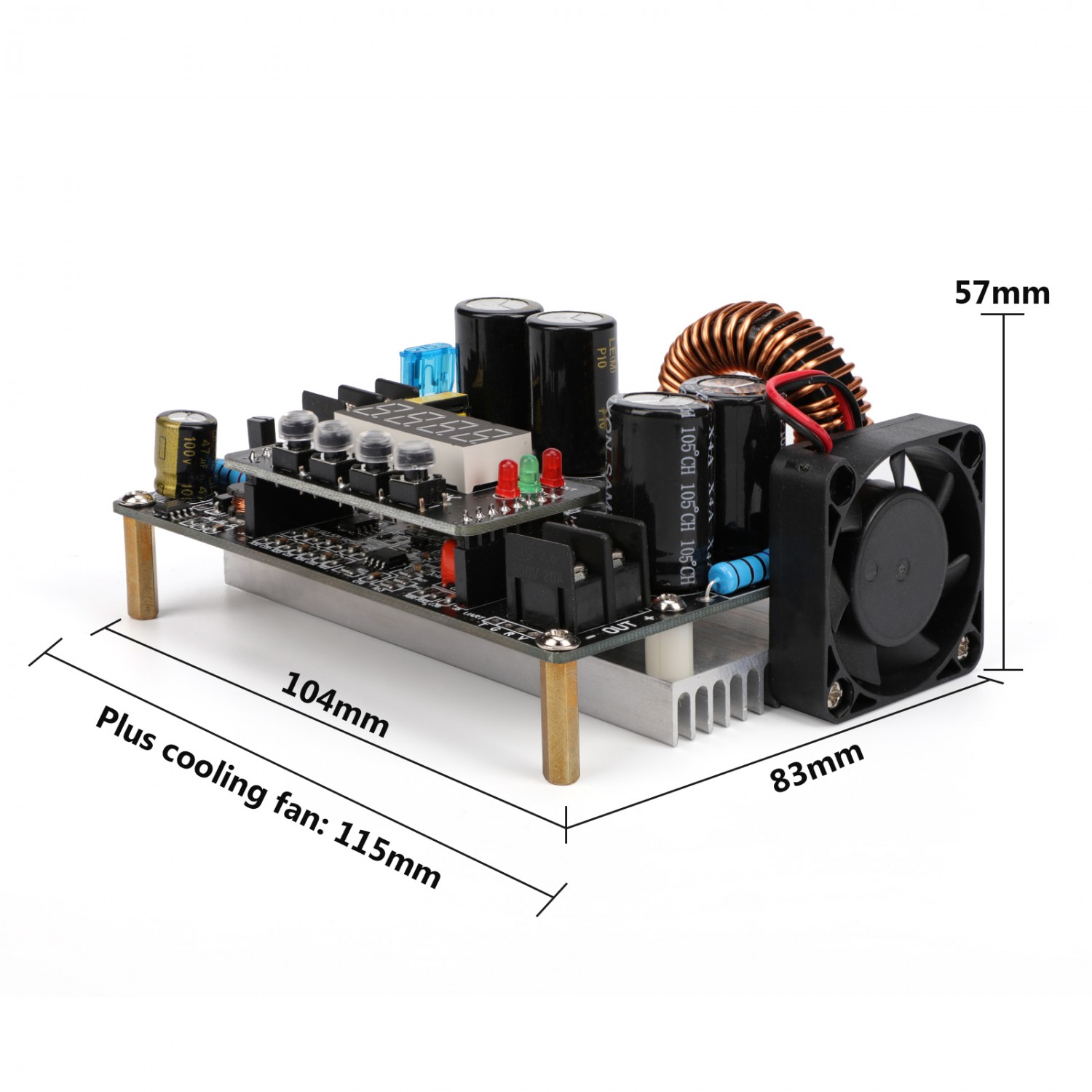

- Dimension:3.97*2.95*1.89 inches

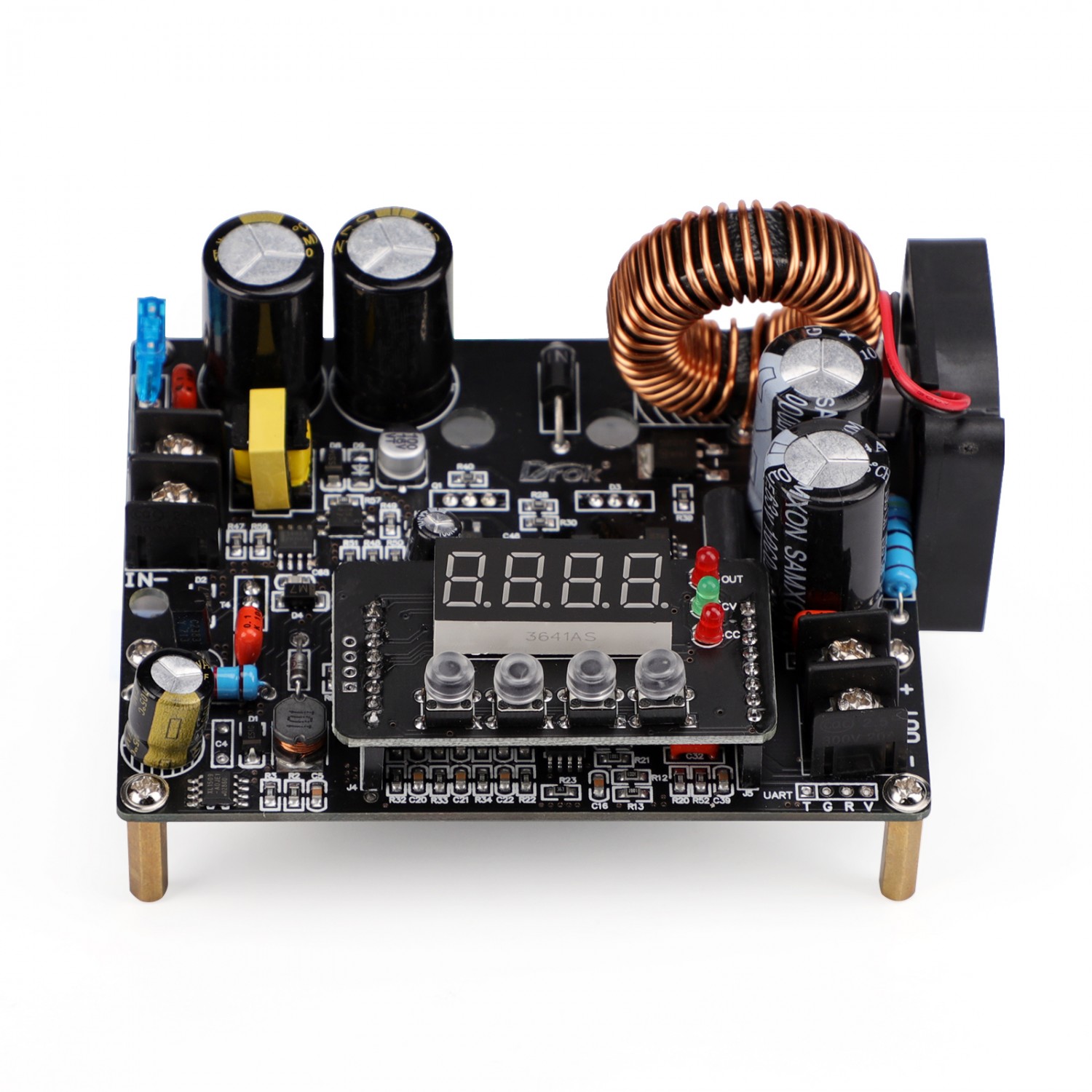

- DKP6012 DC-DC numerial control buck voltage converter is a programmable buck module with all-digital LED display which can display real-time voltage and current.
- Compared to similar product, you will find that this buck module has a compact size and it works efficiently and stably.
- We applied advanced microprocessor control for this buck module. Voltage and current can be adjusted accurately by pressing button, you can adjust it to output constant voltage and current.
- If you want a secondary development on this item, please connect the reserved port to single chip microcomputer or computer comunication.

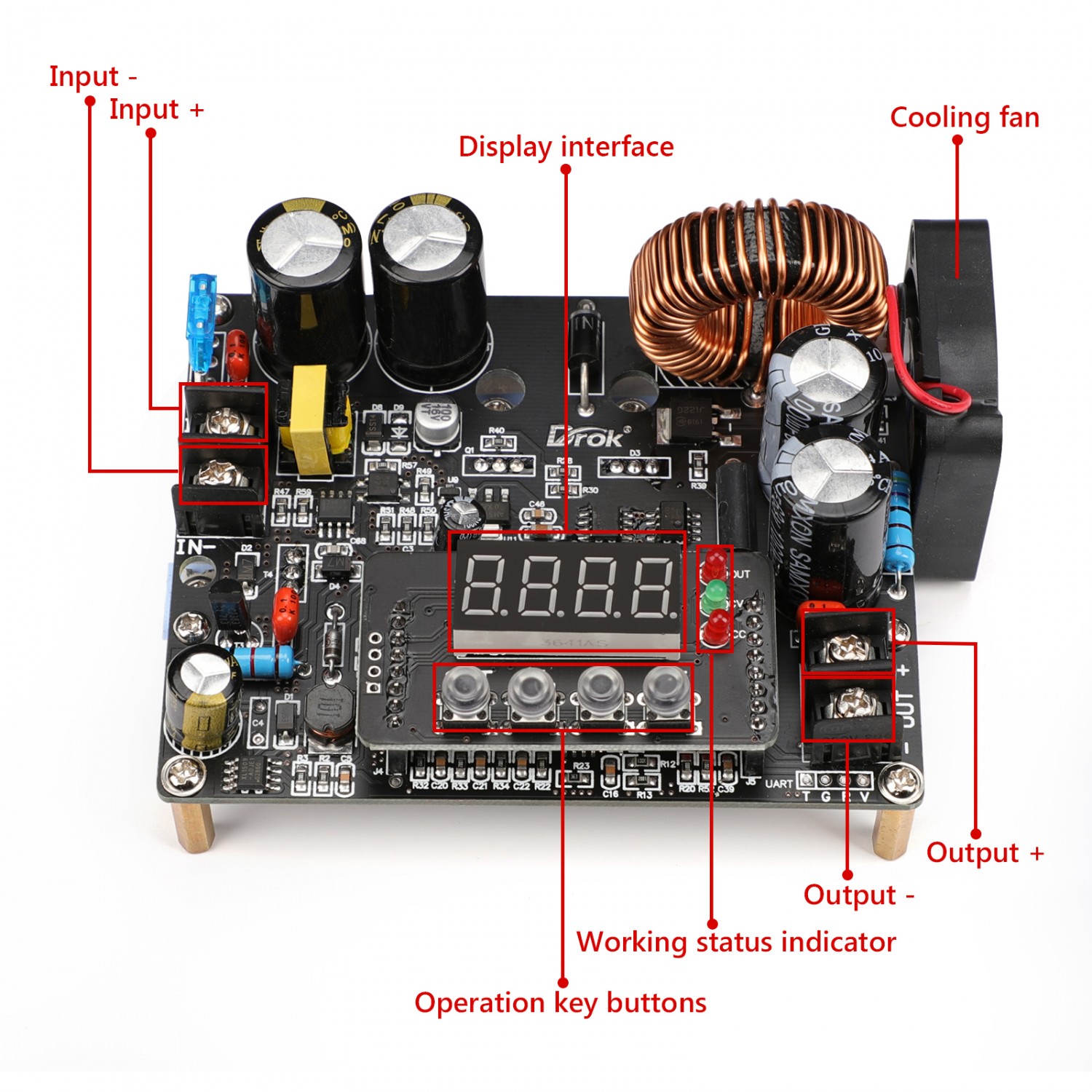

- You can also check working status by checking the indicator. This voltage regulator will output automatically once you power it, you can turn on or off this function as your need. You can also lock the key to prevent any wrong adjustment by accident.
- 1 x NC Buck Module (720W Power Supply Module)
Attributes | |
input voltage | 10~75V |
output current | 0.01A |
output power | 720W |
output voltage | 0.01V |
output ways | 1 |
