-54% USB mini discharge load resistor DC 3.7V~13V 0.15A~3.00A 15W Adjustable Constant Current Electronic Load USB Doctor

Ask Question

It is a USB Load Resistor/USB Adjustable Constant Current Electronic Load/Mobile Power Detector Tester, Applied voltage range: DC 3.7V~13V, Adjustable current range: 0.15A~3.00A, Suitable for USB Output Interface Products

Parameters:

  • Applied voltage range: DC 3.7V~13V
  • Adjustable current range: 0.15A~3.00A
  • Electricity discharging: continuous 15W Temperature control: about 40°c

Description:

  • This is industrial-grade long-life electronic load. The fan intelligently starts or stops controlling about 40°temperature. This product adopts long-life ball bearing fan which has fast rotating speed and strong wind power. Besides, the fan supports continuous 15W discharging for non-stop work. It is suitable for long-period discharging usage or aging test of products by factory.

Instruction:

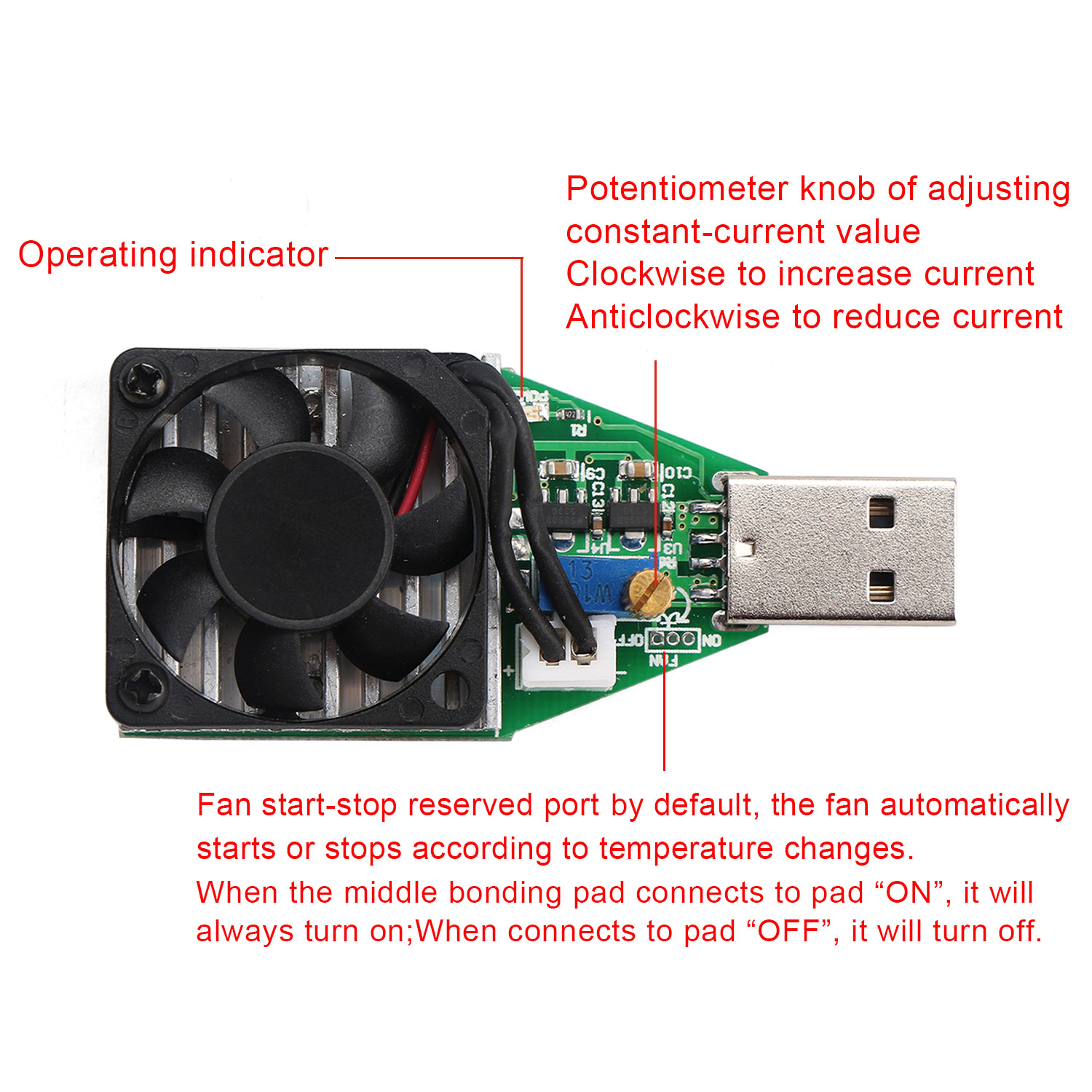

  • 1. Adjusting knob of constant current potentiometer: which can increase current by clockwise rotation and decrease current by anticlockwise rotation.
  • 2. Start or stop reserved interface: The fan will automatically start or stop along with change of temperature by default. When the middle pad connects to ON pad, that means turning on; when it  connects OFF pad, that refers to turning off.

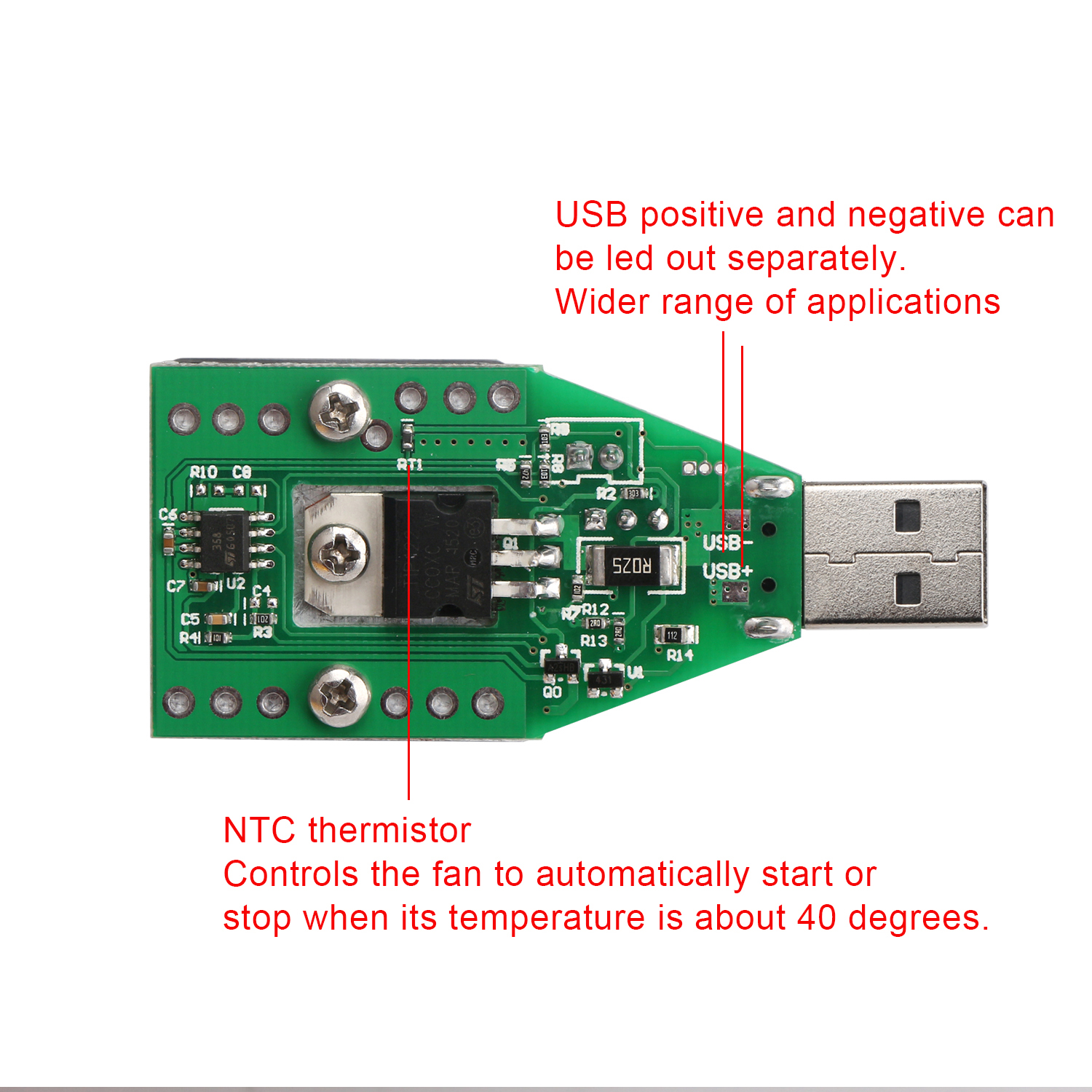

  • 3. USB positive and negative pole can be extracted individually; This has wide range of application.
  • 4. NTC thermistor: it controls the fan to automatically start or stop when its temperature is about 40°c

Package Includes:

  • 1 x USB electronic load
Attributes
input voltage3.7~13V
output current0.15~3A
output power15W
output voltage--
output ways1

Write a review

Please login or register to review

USB mini discharge load resistor DC 3.7V~13V 0.15A~3.00A 15W Adjustable Constant Current Electronic Load USB Doctor

  • Brand: Drok
  • Product Code: 180054
  • Availability: In Stock
  • $13.50
  • $6.20
  • Bulk Buy Discounts. Buy more please contact us
    Qty5102030+
    Price$5.89$5.58$5.27$4.96
