It is a 36W Boost Converter/Power Supply Module/Car Adapter, Input voltage: DC 5~11V, Output voltage: DC12V, Output current: 3A, it has waterproof, damp-proof and shock-proof, overcurrent, over-temperature, low heat and dissipate heat protection, very suitable for buses, CMB, large trucks, motor car so on.Parameters:
- Input voltage: DC 5~11V
- Output voltage: DC12V
- Output power: 36W
- Output current: 3A
- Continuous output current: 3A
- Transfer efficiency: over 93%
- Working temperature: -40°c to +85°c

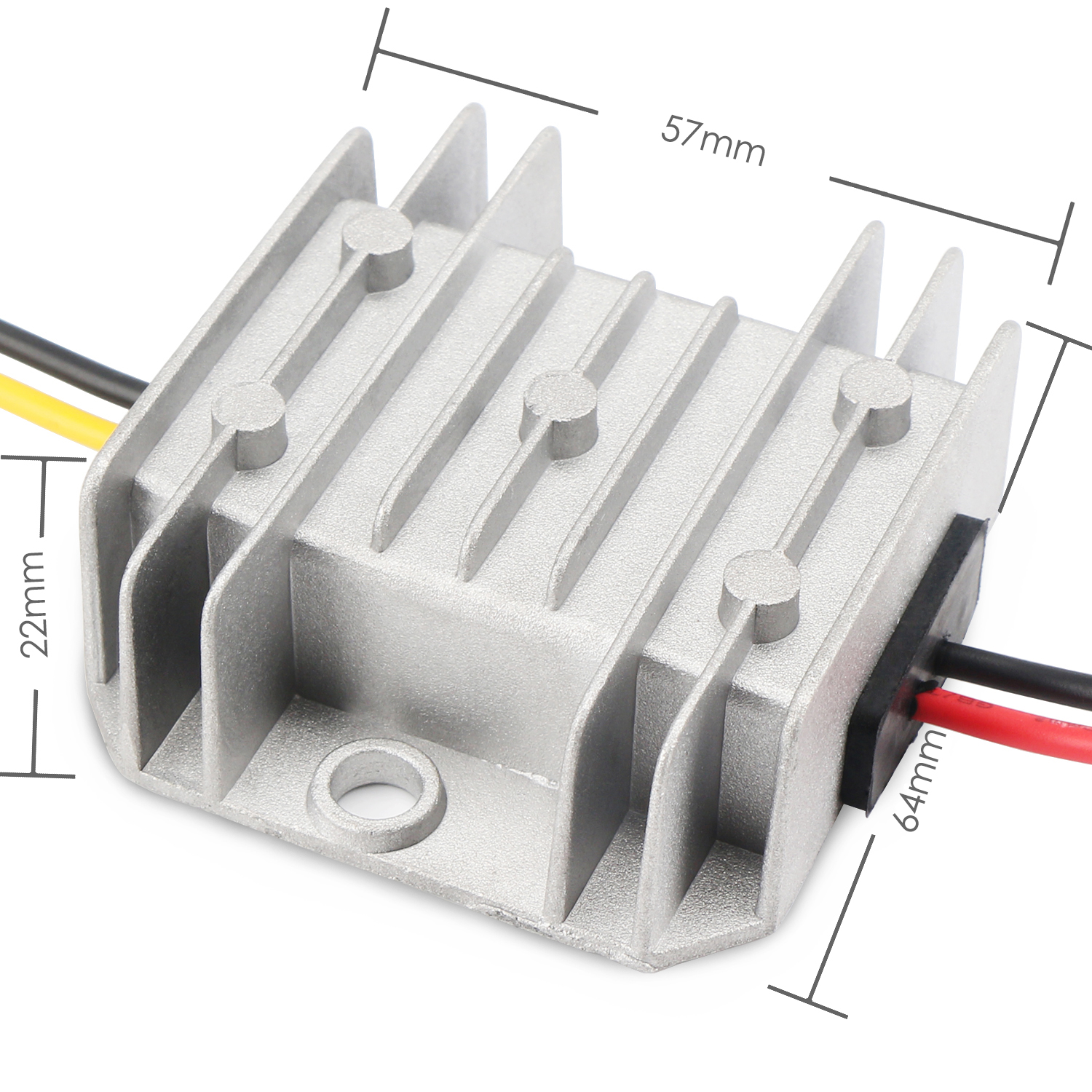

- Dimension: 66 x 60 x 22mm
- Mounting wire length: 13~14cm
- Well Constructed and Advanced components: synchronous rectification technology, original imported chips and selected Aluminum shell.
- High conversion efficiency which can up to 93%, low heat generated, reliable and stable .
- Multiple protection: overcurrent protection, overheat protection and instant high voltage protection.
- Waterproof, damp-proof and shock-proof, can be used in various harsh environment.

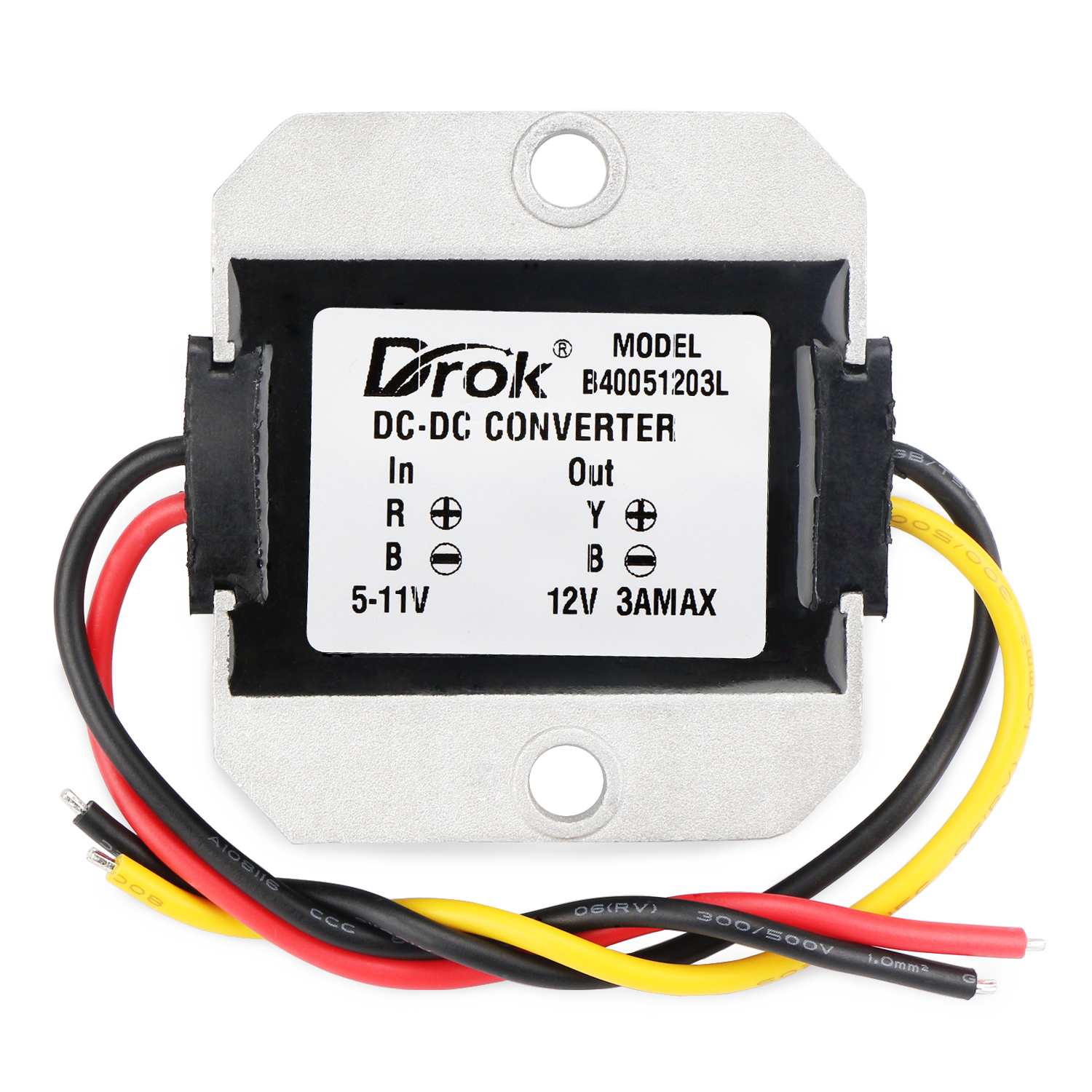

- Input side: red wire +, black wire -
- Output side: yellow wire +, black wire -
- Widely used in car Car stereos, radios, walkie-talkies to monitor, LED display, car for children, LCD TV, electric fans, solar power, photovoltaic panels, electrical motors and industrial equipment.
- 1 x DC 5~11V to 12V Boost Converter (Car Adapter/Power Supply Module/Voltage Regulator)
