Features:

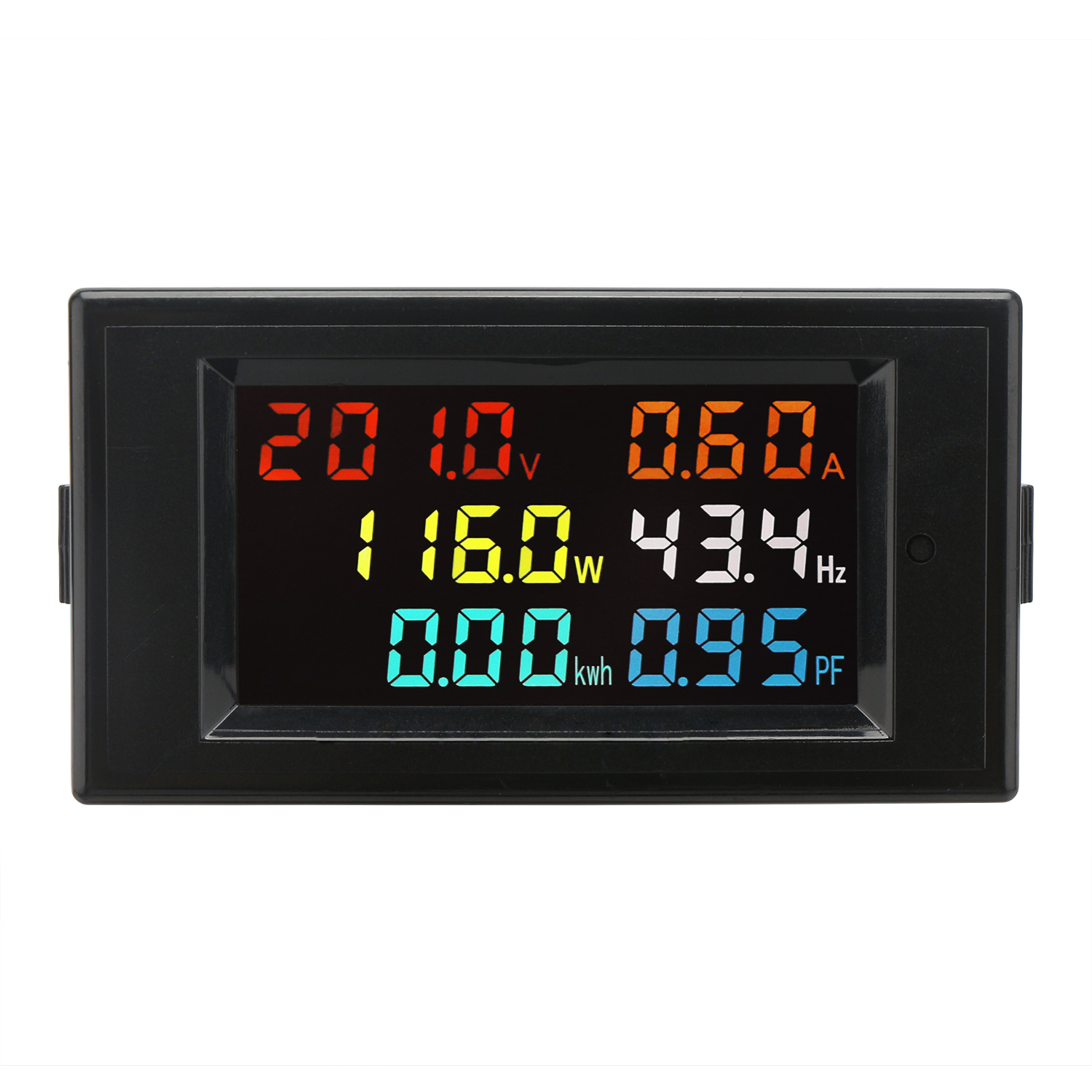

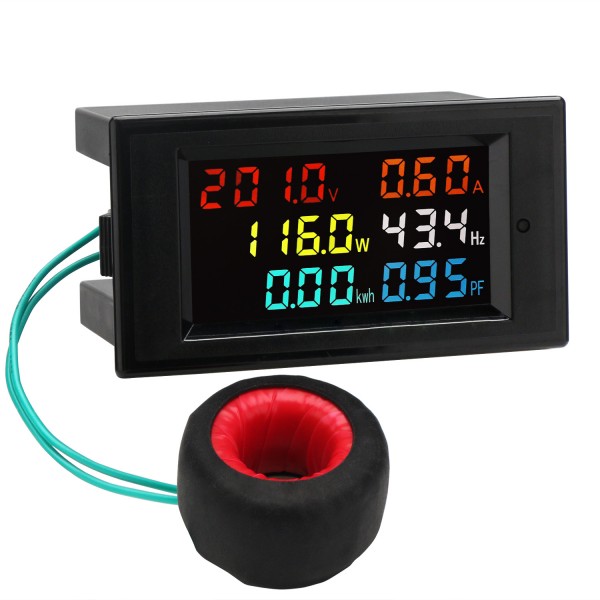

1) 6-IN-1 MULTIMETER --- detect and display voltage, current, active power, battery electric energy, power frequency and power factor on one interface.

2) MEASUREMENT RANGE --- voltage AC 80.0-300.0V; current 0-100A; power 0-30000W; Electric energy 0-99999kwh; frequency 45.0Hz-65.0Hz; power factor 0.00-1.00PF.

3) DISPLAY --- digital LCD color display.

4) DATA AUTO STORAGE --- when power off, the electric energy data will be stored and memorized automatically, can be reset.

5) NOTE --- this meter can only be used for measuring 50-60Hz pure AC city electricity, it will be damaged if used to measure square wave, inverter output or modified sine wave circuit.

Description:

Measuring parameter: voltage, current, active power, battery electric energy, power frequency and power factor.

Voltage Measuring Range: AC 80.0-300.0V

Current Measuring Range: AC 0-99.99A

Resolution: 0.01A, display 100.0A when over 100A.

Active Power Measuring Range: 0-30000W

Resolution: 0.1W (0-9999.9W); 1W (10000W-30000W)

Electric Energy Measuring Range: 0-99999kwh

Resolution: 0.01kwh (0-999.99kwh); 0.1kwh (1000.0-9999.9kwh); 1kwh (10000.0-99999kwh)

Power Frequency Range: 45.0Hz-65.0Hz

Power Factor Range: 0.00-1.00PF

Measuring Accuracy: 1% ± 2 digits

Measuring Speed: 2 times per second

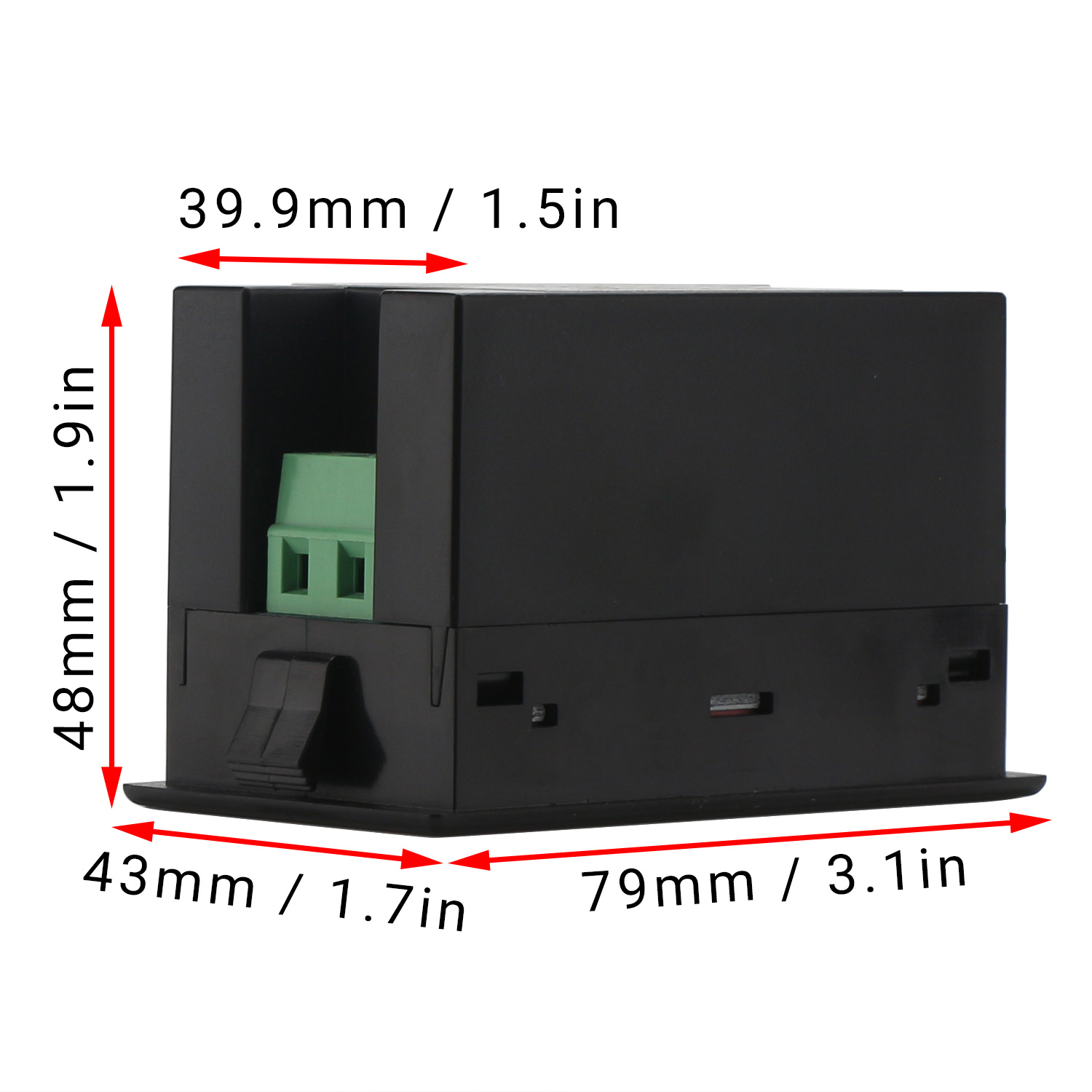

Outside Dimension: 79*43*48mm/3.1*1.7*1.9in

Installation Dimension: 76*39mm/2.9*1.5in

Screen Dimension: 52*26mm/2*1in

Current Transformer (CT) Hole Diameter: 15.5mm/0.6in

Operating Condition:

Working Temperature: -10～+50℃

Working Humidity: 10~80% (no condensation)

Working Pressure: 80~106kPa

Sunlight: No direct exposure

Data Storage & Reset Function:

Storage Function: Automatically save the accumulated electric energy value when power off.

Reset Function: Long press the reset button for 5 seconds, the accumulative electricity will be reset to be 0.

Wiring Connection:

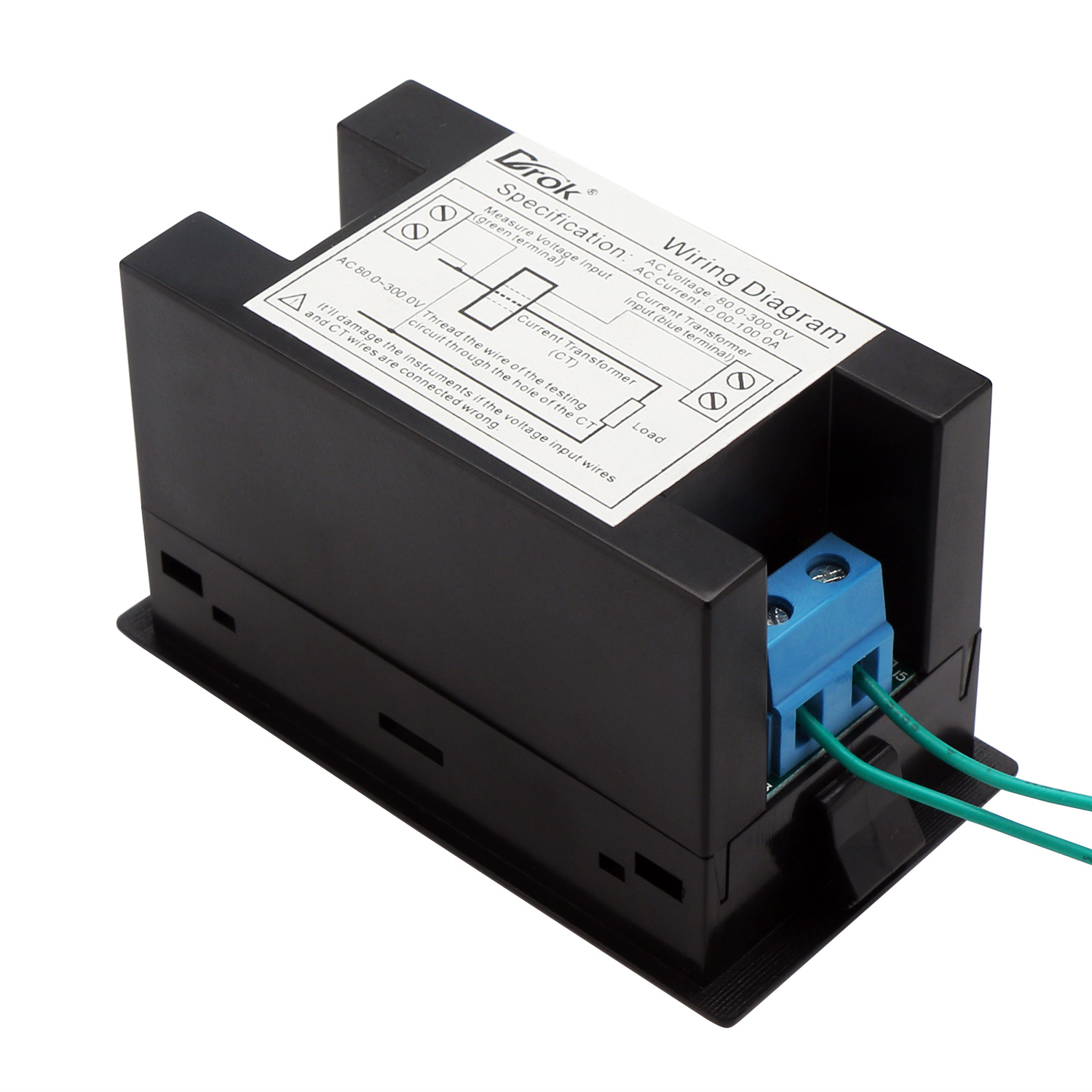

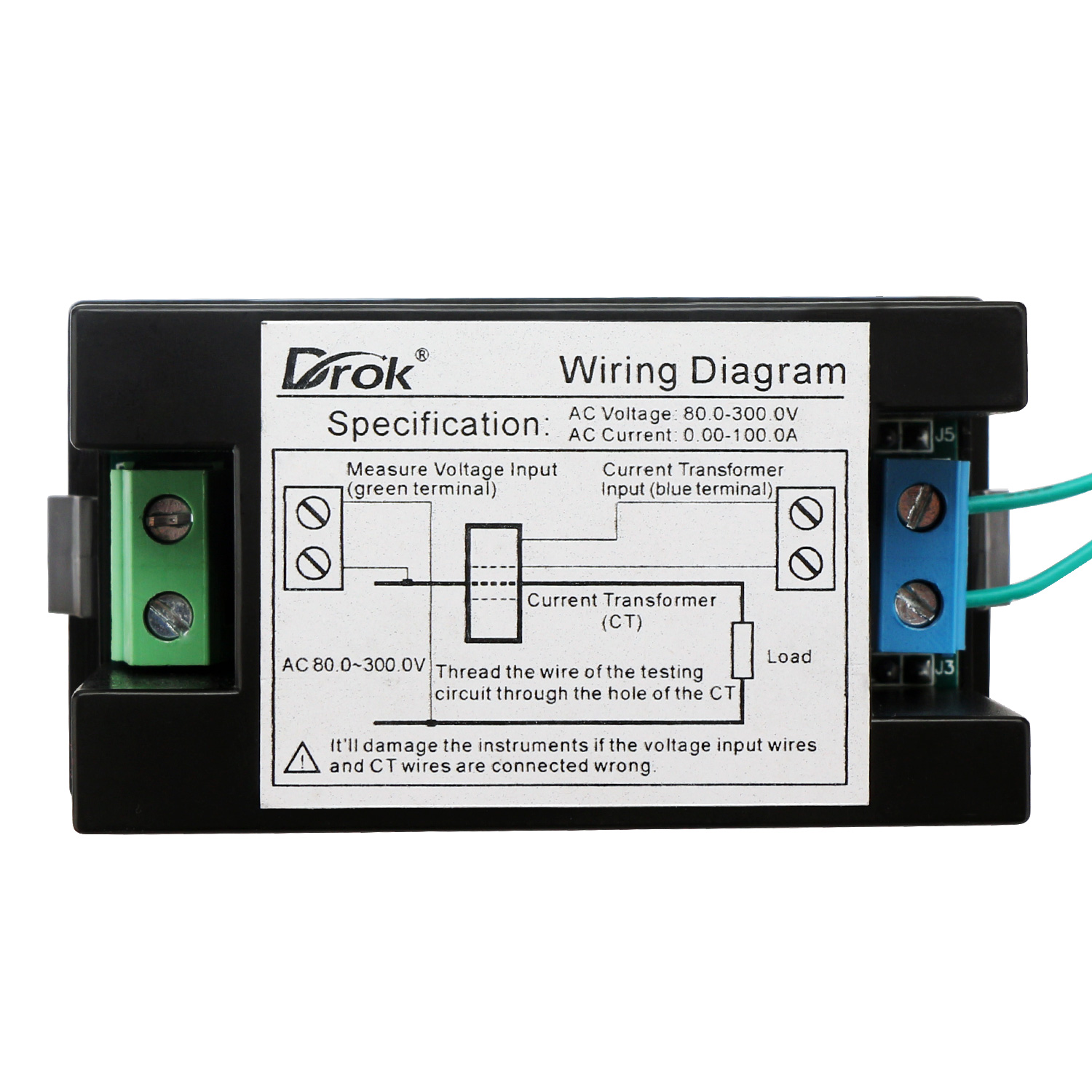

1. Connect the green wire of the CT(current transformer) to the BLUE terminal of the meter.

2. Pass the wire of the circuit to be measured through the hole of the CT, and then connect it to the green terminal.

3. After power on, the screen will display the measured data.

Note:

1. The multimeter can only work on AC 50-60Hz pure mains supply. Do not use it to measure square wave, inverter output or corrected sine waves circuits, otherwise the product will be damaged.

2. Do not wrongly exchange the wiring of voltage input(green terminal) and current transformer(blue terminal), otherwise the product will be damaged.

3. Do not squeeze the LCD screen when installing the multimeter, otherwise the screen will display gibberish or broken codes.

Package Included:

1x AC Display Meter
