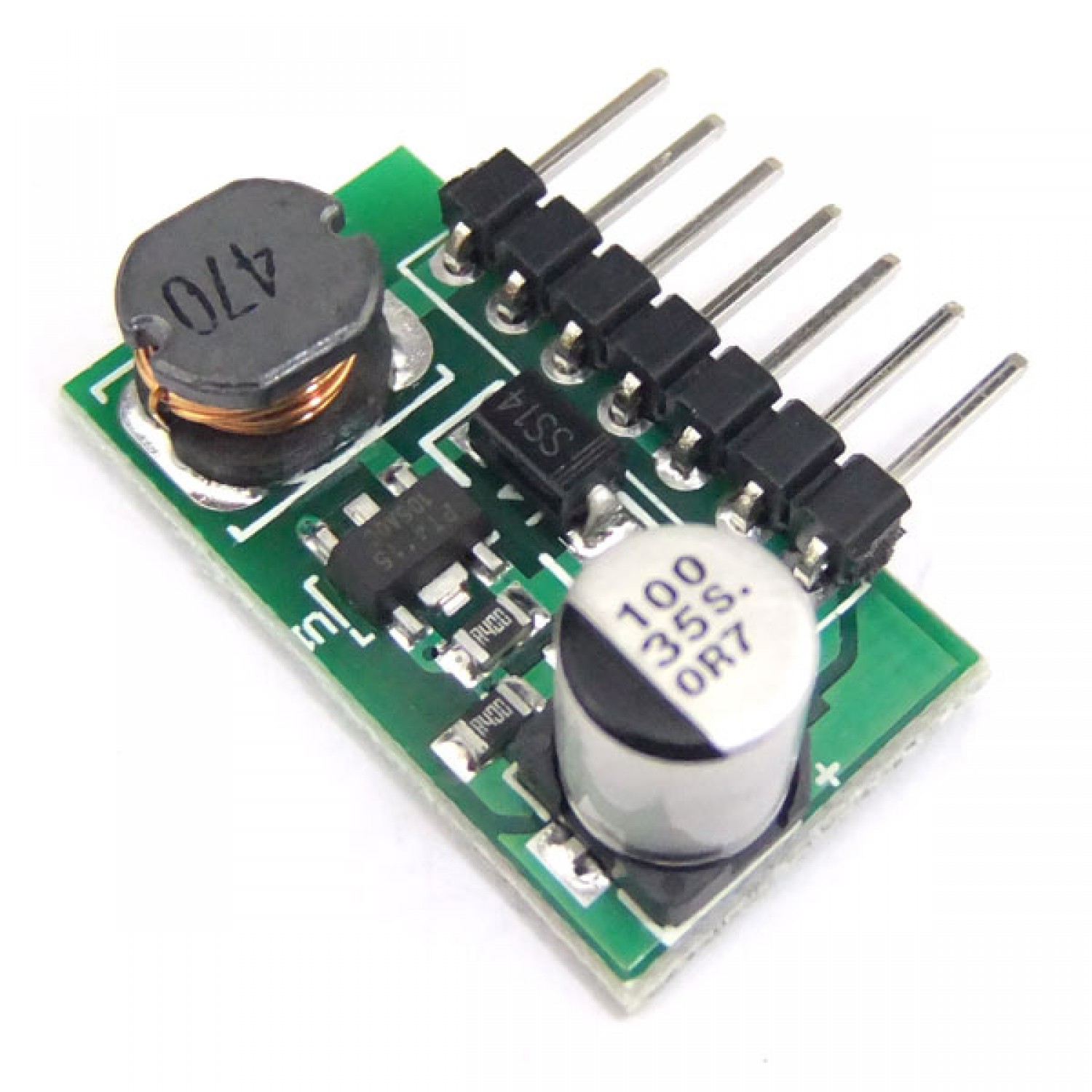

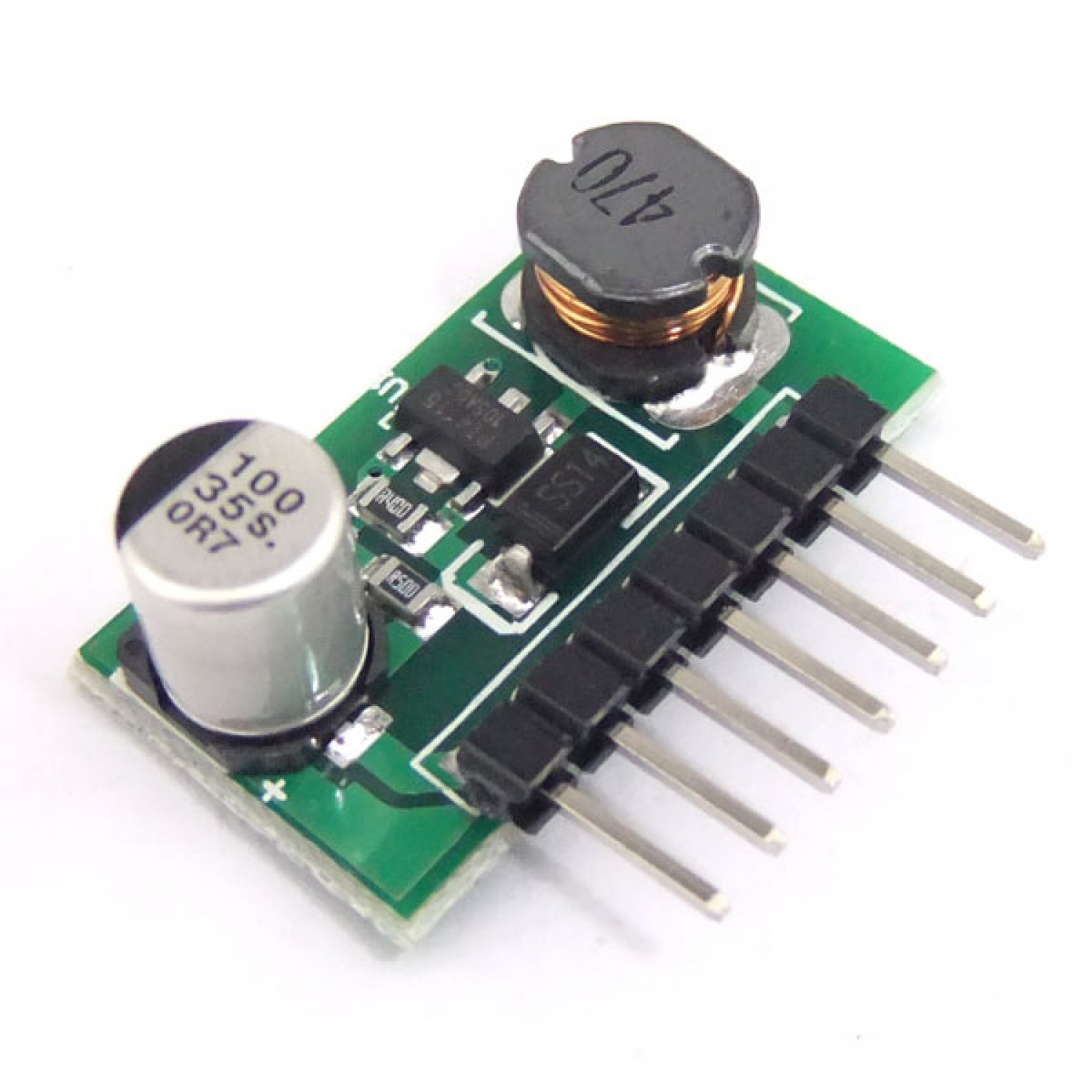

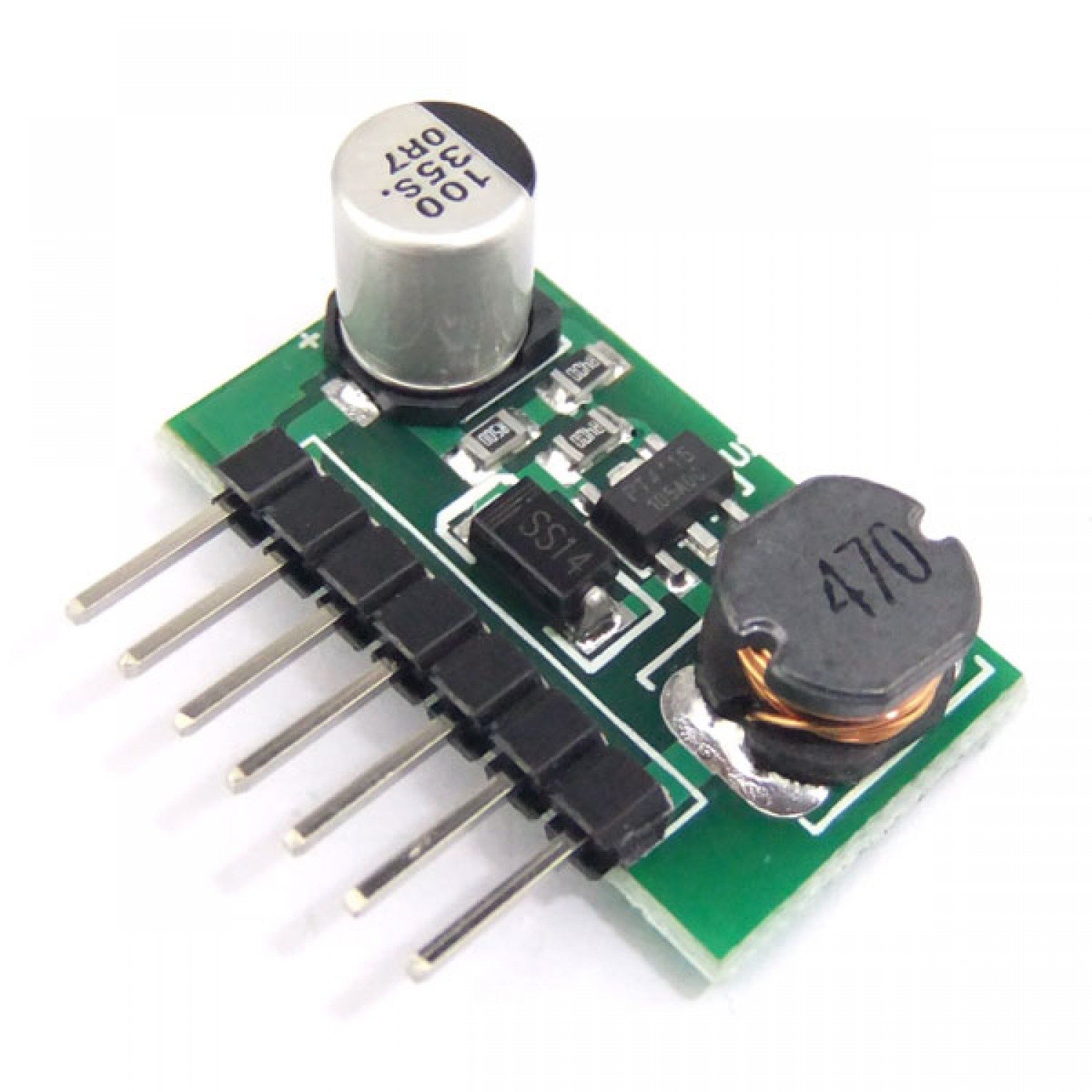

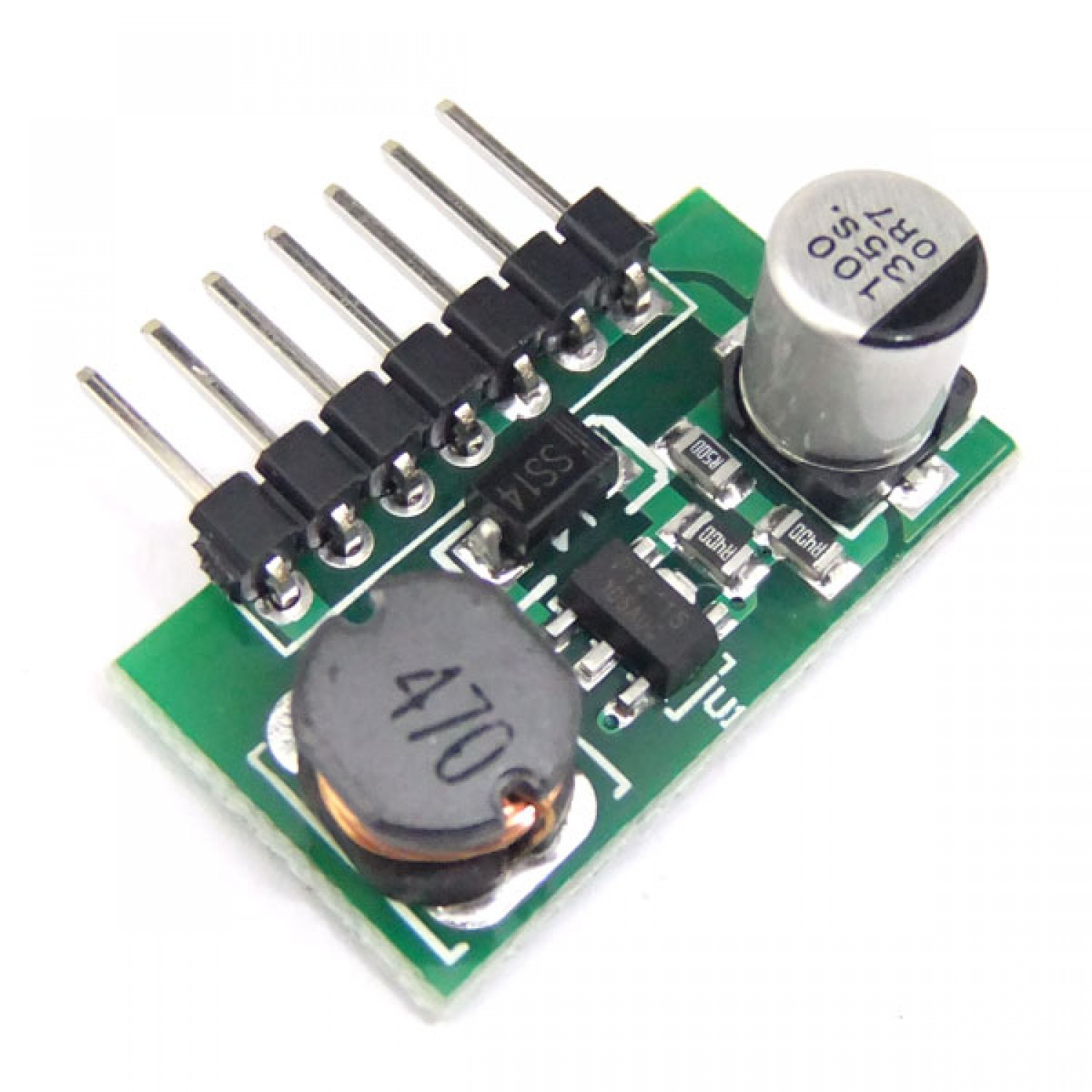

It is a 3W Power Supply Module/Dimmer/Dimming Controller, The Recommended Input voltage: 24V DC, Output voltage: 1.2V~28V DC, It has small size, high efficiency, easy installation and use.

Feature:
  • LED Driver Module

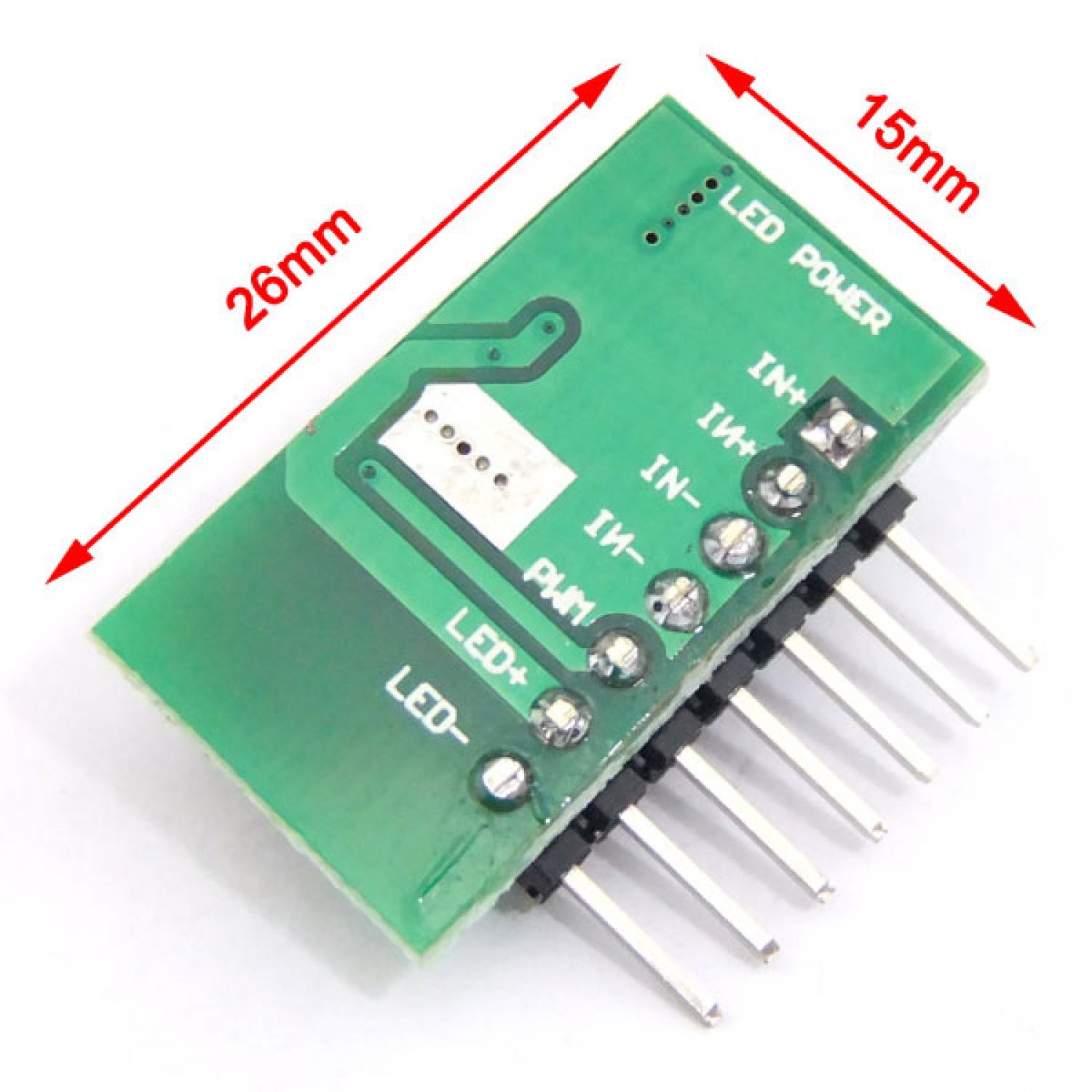

  • Cutting Size: 26mm x 15mm
  • Limit of input voltage:  7VDC Min.  30VDC Max.
  • The Recommended Input voltage: 24V DC
  • Input filter: capacitor
  • Output voltage: 1.2V~28V DC
  • Output Current: 700mA
  • Output Power: 3W
  • Output current accuracy: ± 3% Max.
  • Output current stability: ± 1% Max. (Vin = 24V, Vo = 1.2-22V)
  • Internal power consumption:700mV (Vin = 24V, 5LEDS)
  • Temperature Coefficient: ± 0.015% / °c (ambient temperature -40 °c to +71 °c)
  • Full load efficiency: 96%
  • Ripple noise (Vp-p): 120mV (Vin = 24V, 5LEDS)
  • Output short circuit protection: sustainable
Note:
  • Buck mode, please ensure the input voltage more than the output 2V above)
  • Limit frequency of the PWM signal: 20HZ-20KHZ, recommends about 1KHZ
Connection:
  • IN+ :Power supply positive
  • IN- :Power supply negative
  • LED+:The LED anode
  • LED-:The LED cathode
  • PWM :Dimming control signal (2.8V-6V open)
Package includes:
  • 1 x LED Dimmer ( Dimming Controller/PWM Controller )
Attributes
input voltage 24V
output current 0.7A
output power 3W
output voltage 1.2~28V
output ways 1
