Input Voltage: DC 12V (10~23V)
Output Voltage: DC 24V ±1
Output Current: 20A
Output Power: 480W
Conversion Efficiency: maximum exceeds 95%
Operating Temperature: -40℃~+80℃
Waterproof Grade: IP67
Dimension: 3.82*3.15*1.54 inch
Installation Hole Diameter: 6.0mm/0.04inch
Installation Hole Distance； 71mm/2.80 inch

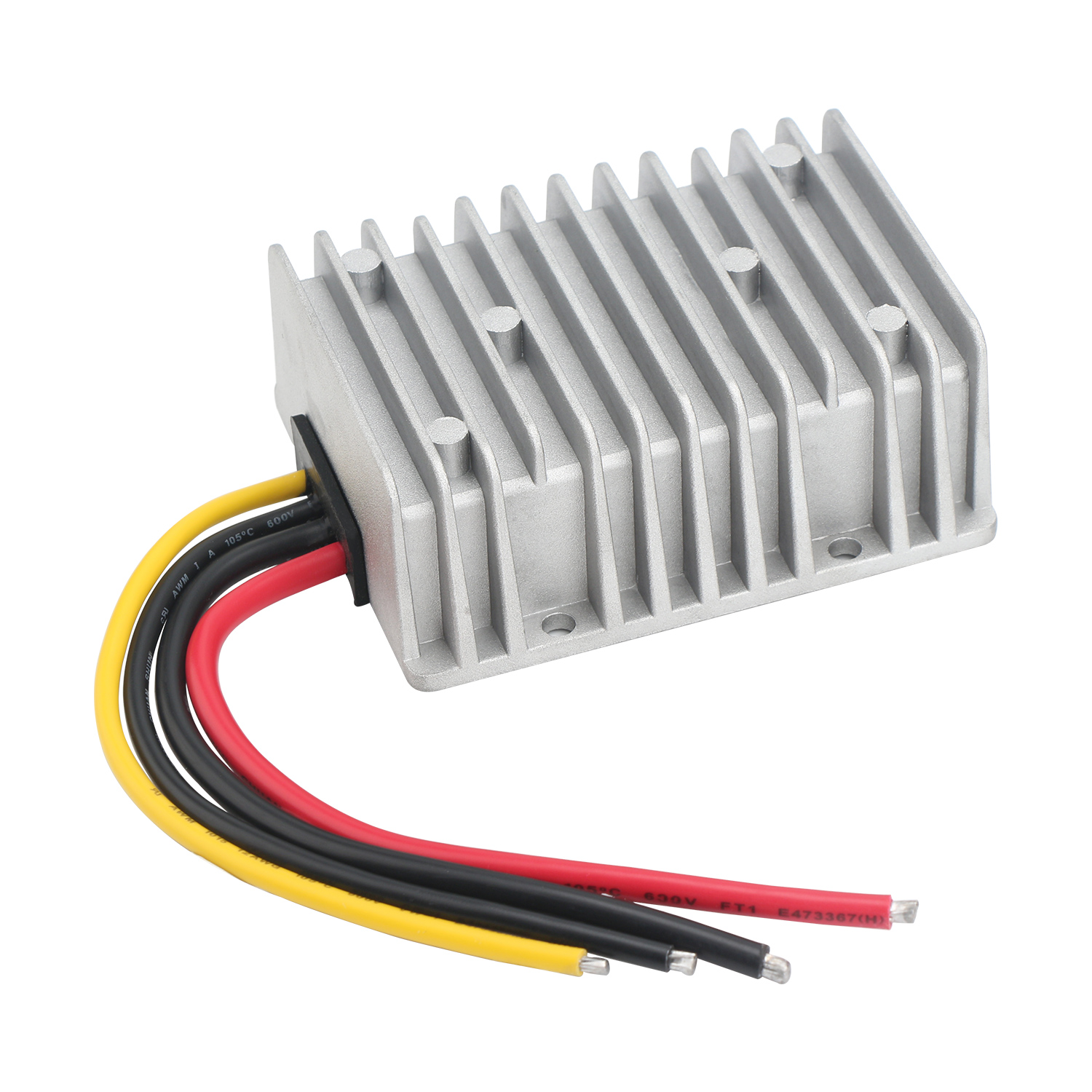

Installation Cable Length: 13~14cm/5.12~5.51 inch
Cooling Method: natural cooling
Protection Function: over-current, over-voltage, over-temperature

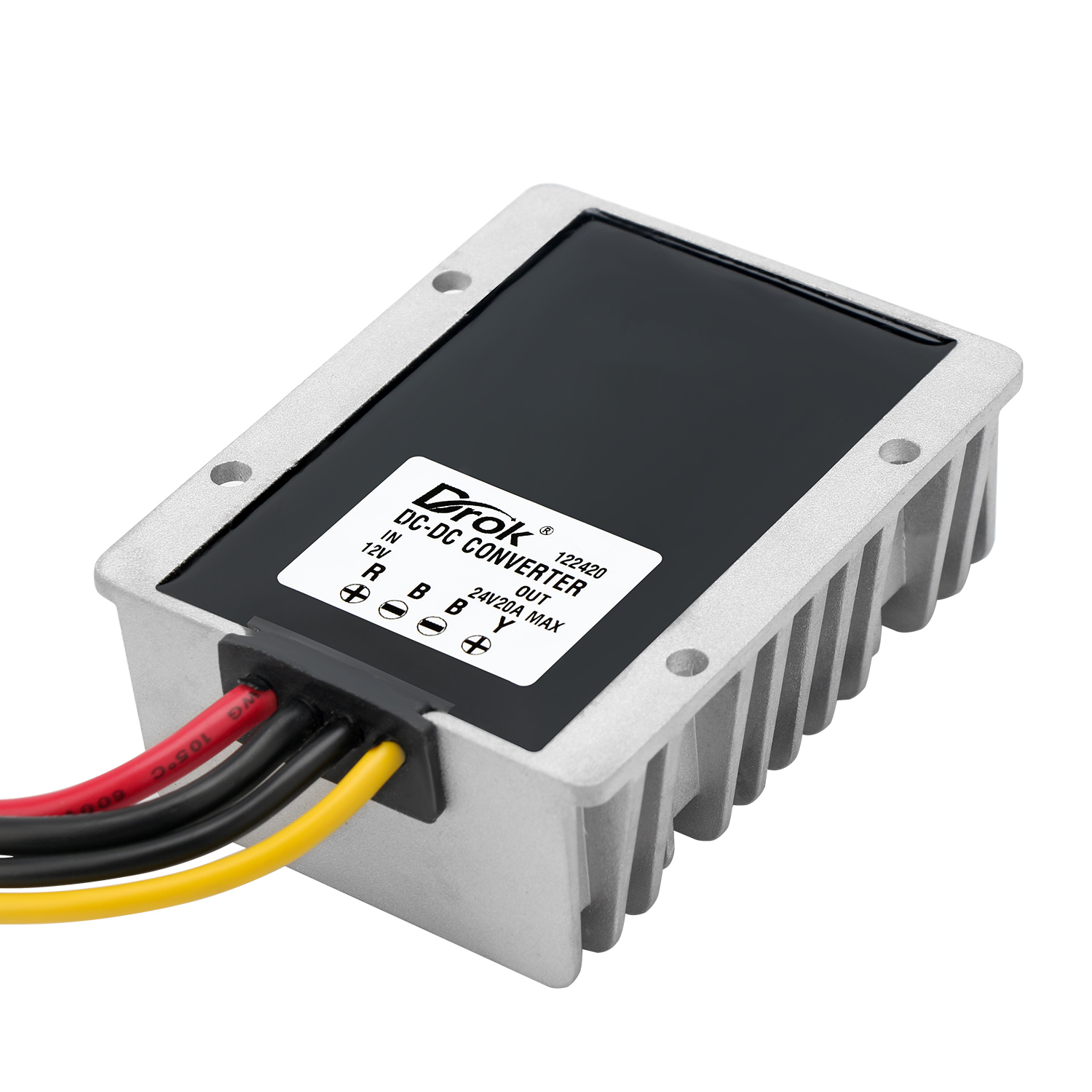

(1) PARAMETER --- DROK car boost converter module input voltage range is DC 10V~23V (12V); output voltage is DC 24V; output current is 20A; output power is 480W.
(2) APPLICATION --- this dc voltage regulator can be used for motor, photovoltaic panel, car speaker system, electric fan, LED display screen, surveillance cameras, etc.
(3) PROTECTION --- over-voltage protection, over-current protection, over-temperature protection.
(4) HIGH CONVERSION RATE --- the dcdc power supply module adopts synchronous rectification technology, owns a high conversion efficiency of over 95% with low heat generates, stable and reliable.

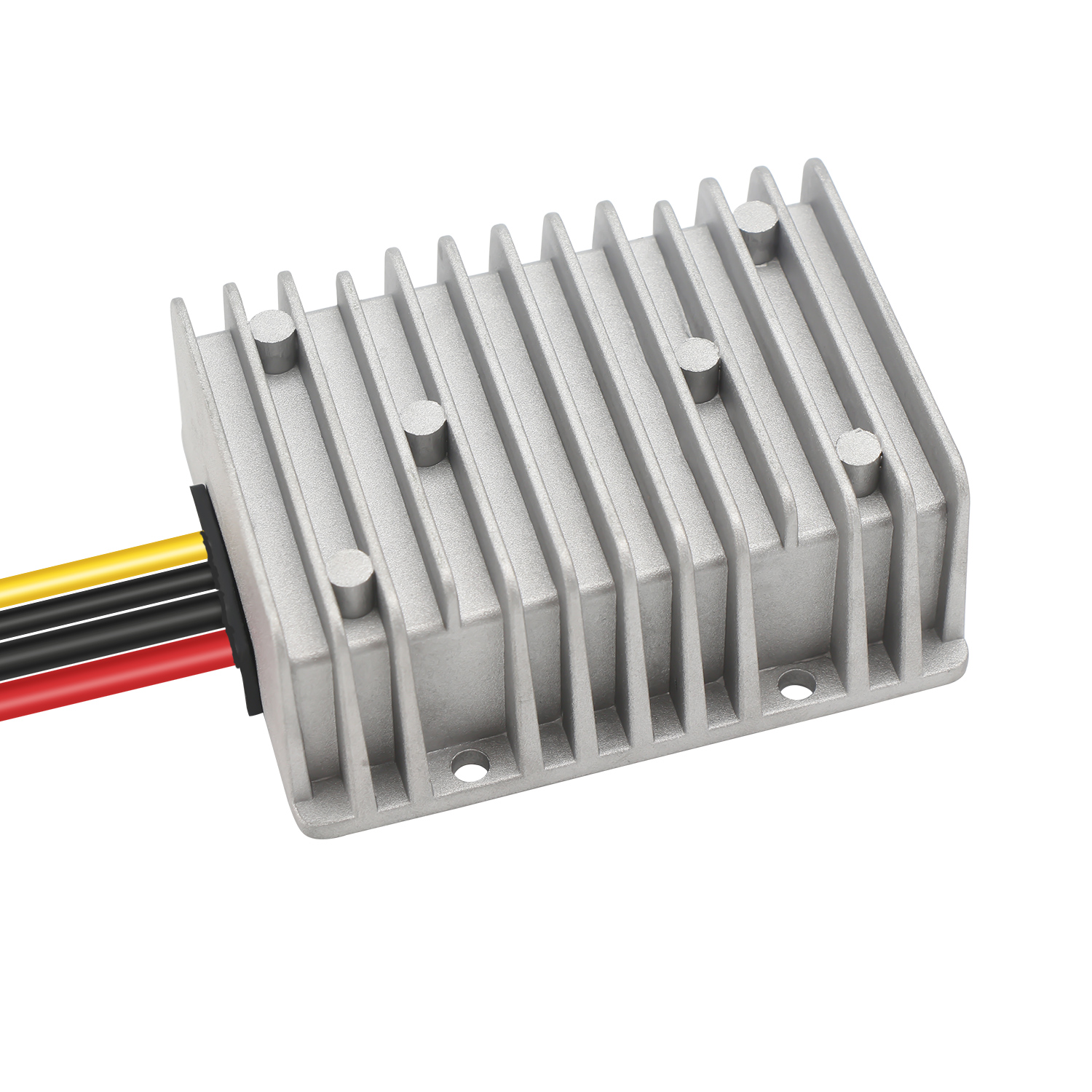

(5) FEATURE --- high-frequency low-internal-resistance capacitor filter; silicone sealing technology, with IP67 waterproof grade and good heat conductivity; aluminium alloy shell, waterproof, shock-proof and dust-proof.
1x Step Up Voltage Module
- Stock: In Stock
- Model: 200492
- Weight: 0.50kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
- SKU: 200492
