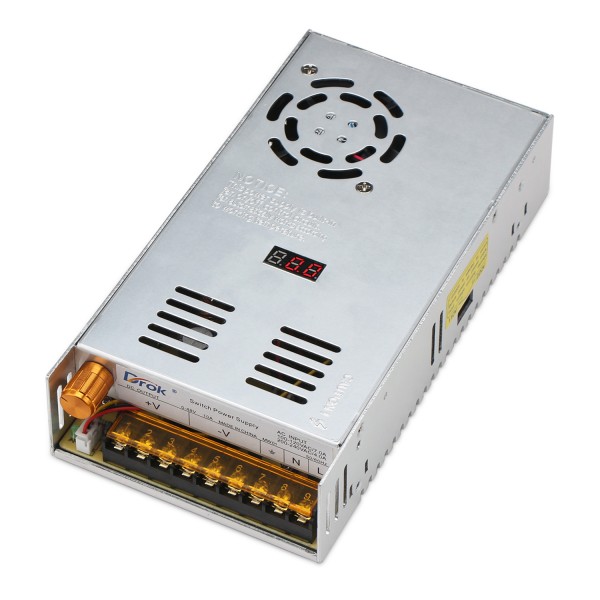

It is a 48W Switching AC Power Supply/Adjustable Adapter, Input voltage: AC 110 ~ 220V ± 15%, Output: DC 0 ~ 48V 10A, Applications:used for a variety of DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electrolysis and plating speed regulation, research and testing, student experiments, and so on.

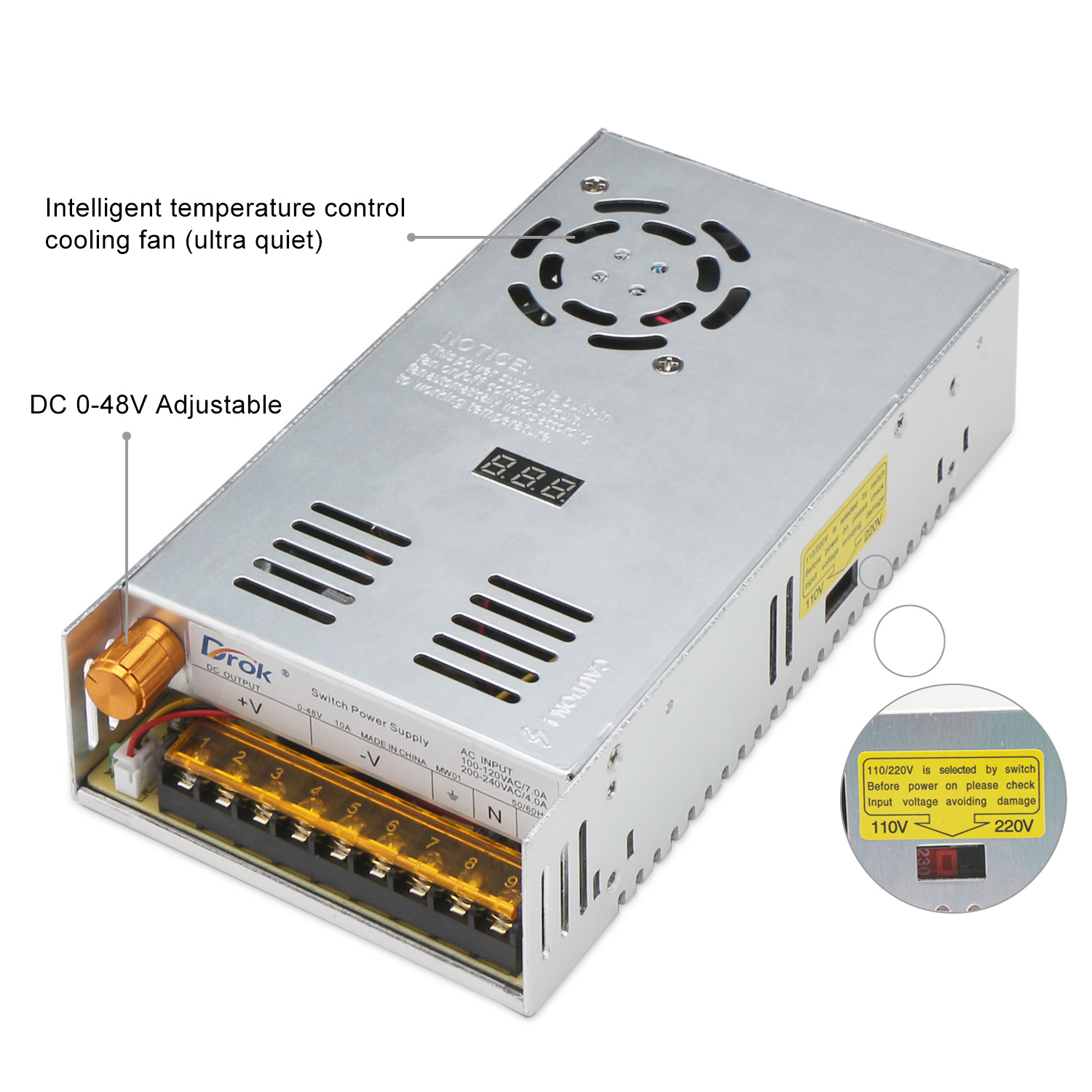

• Input voltage: AC 110 ~ 220V ± 15%
• Output voltage/current: DC 0 ~ 48V 10A
• Rated power: 480W

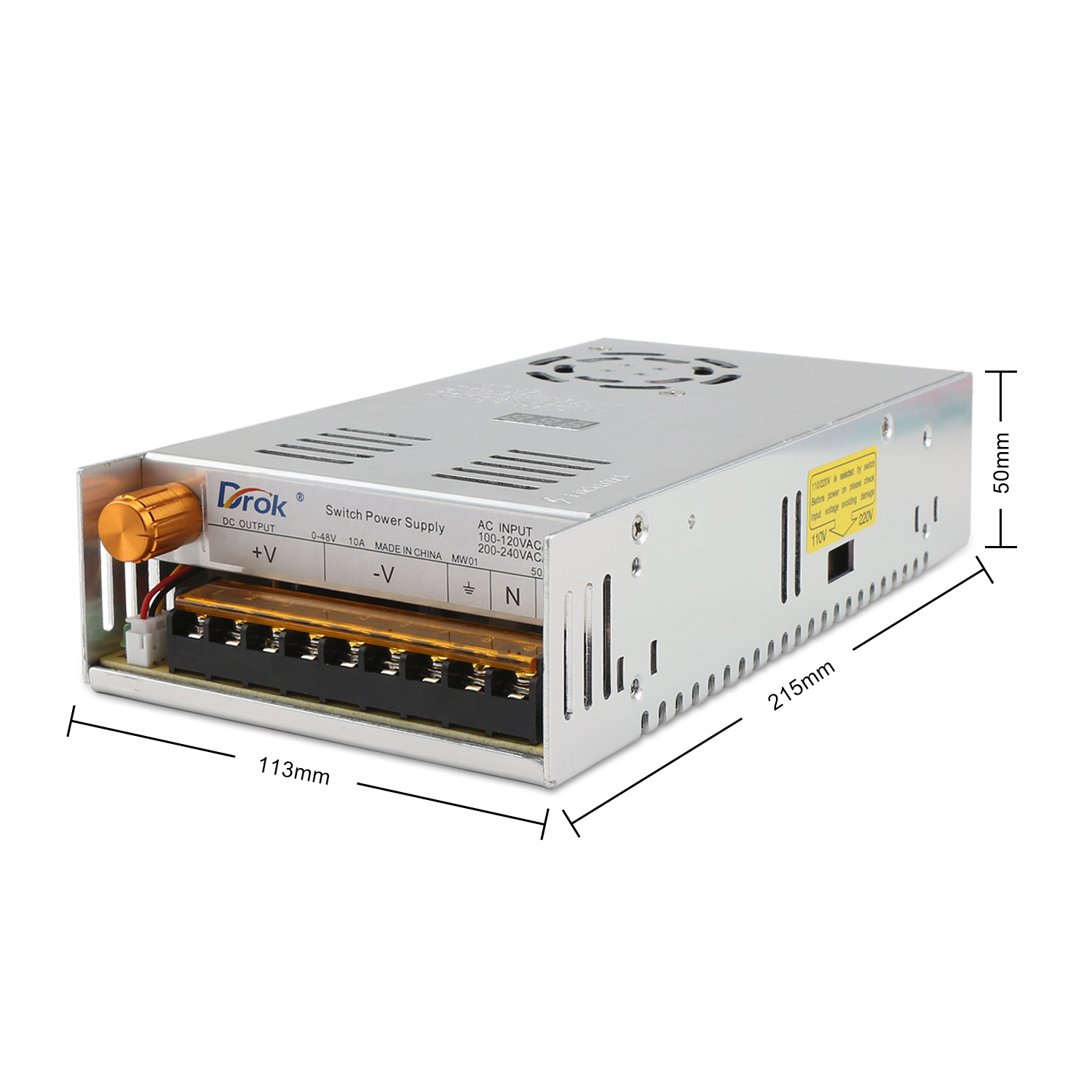

• Product Dimension: 215 x 115 x 50mm (length x width x height)

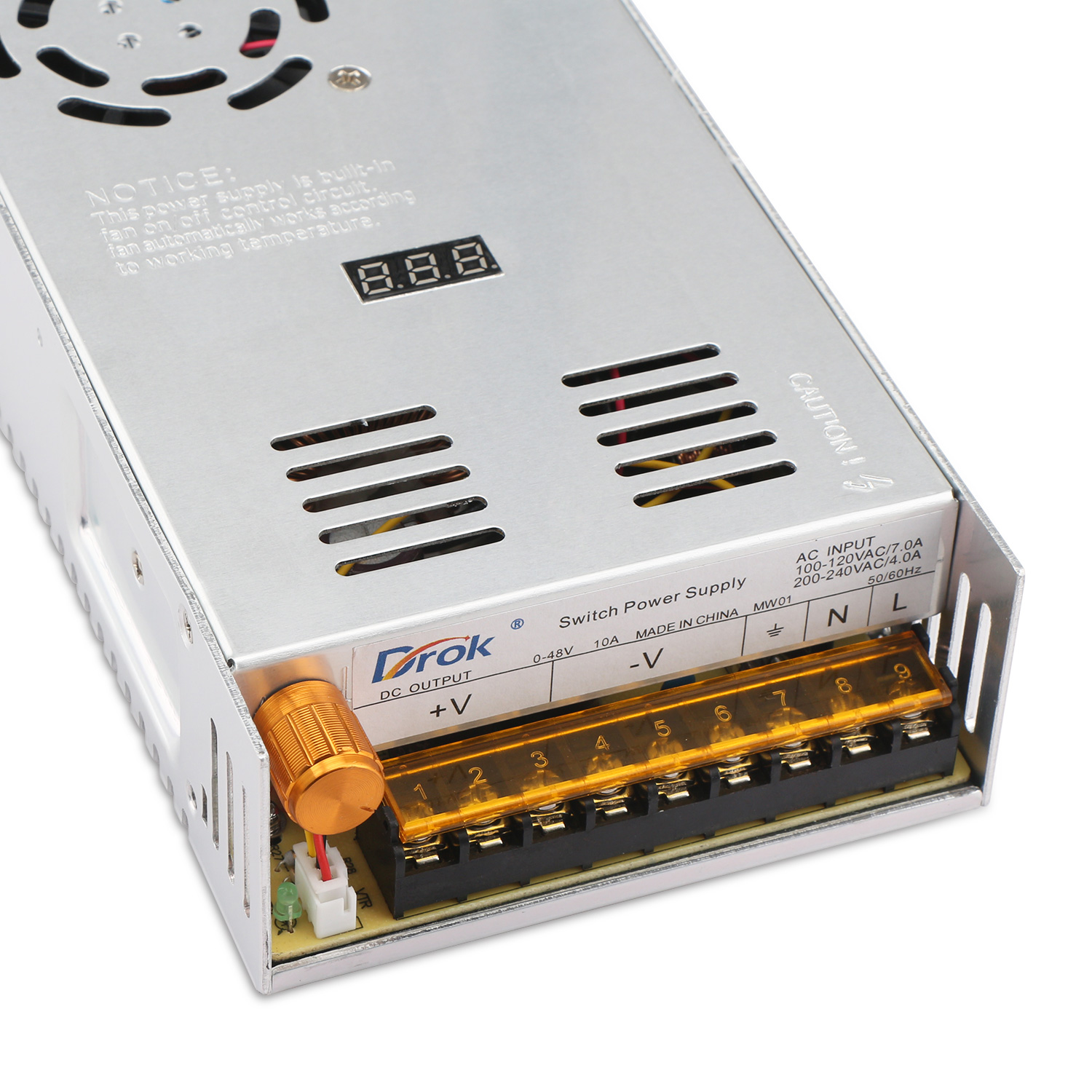

• 〨: Ground
• N: Null wire
• L: Live wire
• V+: DC output +
• V-: DC output -

• The current is unregulated and max. is 10A. The actual current is decided by load.
• Any devices below 10A current can use this product. Any devices above 10A current cannot use this product.

• If use motor, fan and other inductive load, please pay attention to the load’s maximum starting current parameter. This parameter shall not be higher than the power supply’s max. current. Otherwise it may damage the power supply. Or allocate the soft starting protection circuit for the load to absorb the impact current.

• Mainly used for a variety of DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electrolysis and plating speed regulation, research and testing, student experiments, and so on.

• 1 x AC-DC Switching Power Supply (Power Adapter)
