It is a 530W Step Down Converter/Voltage Regulator/Car Adapter, Input voltage: DC 48V (wide voltage range: DC30~60V, adjustable), Output voltage: DC 24V(non-adjustable), Output current: 22A, It has small size, high efficiency, long term stable and reliable quality,easy installation and use. Application: Wide application electric motor, audio equipment, GPS navigator, air conditioner, electric fan, LED lights, LED vehicle display, solar battery and other industrial electric.Technical Parameters:
- Input voltage: DC 48V (wide voltage range: DC30~60V, adjustable)
- Output voltage: DC 24V(non-adjustable)
- Output current: 22A
- Output power: 530W
- Conversion rate: 96%
- Over-current protection: 22A
- Over-temperature: 150°c

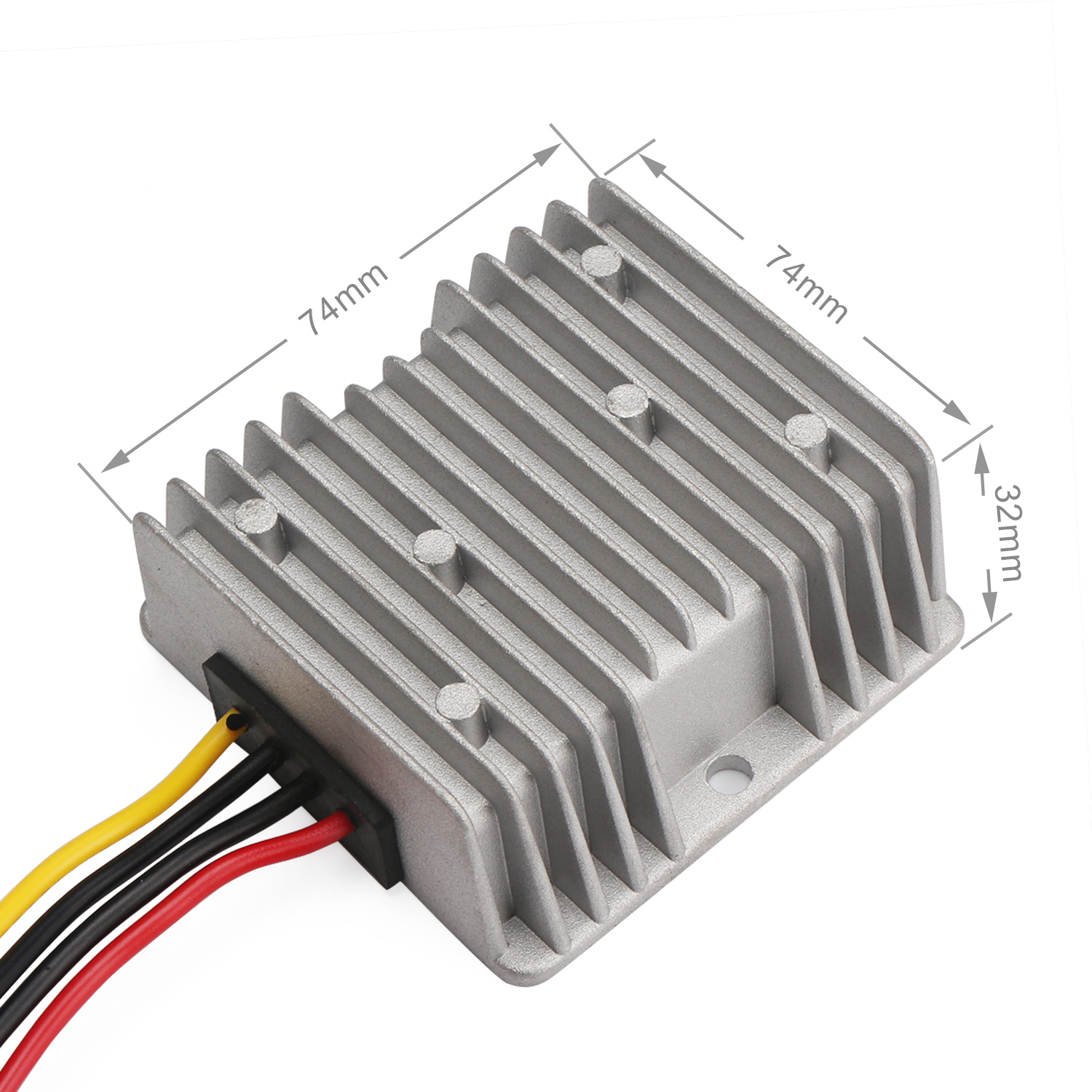

- Dimension: 74 x 74 x 32mm
- Wire length: 15cm(5.91'')
- 1. Adopts Adopts synchronous rectification technology, high conversion rate(above 902%), low heat and stable.
- 2. Multiple protection function: over-current protection, transient absorption of high voltage protection, over-heat protection, output short-circuit protection(even if the input is short-circuit, it will not produce any extra energy to cause the power supply over-heat or autoignition.)
- 3. Uses embedding technology, waterproof, dust-proof,moisture-proof, shock-proof and can be applied to various poor working condition.
- 4. With aluminum alloy shell, safe and better heat dissipation.

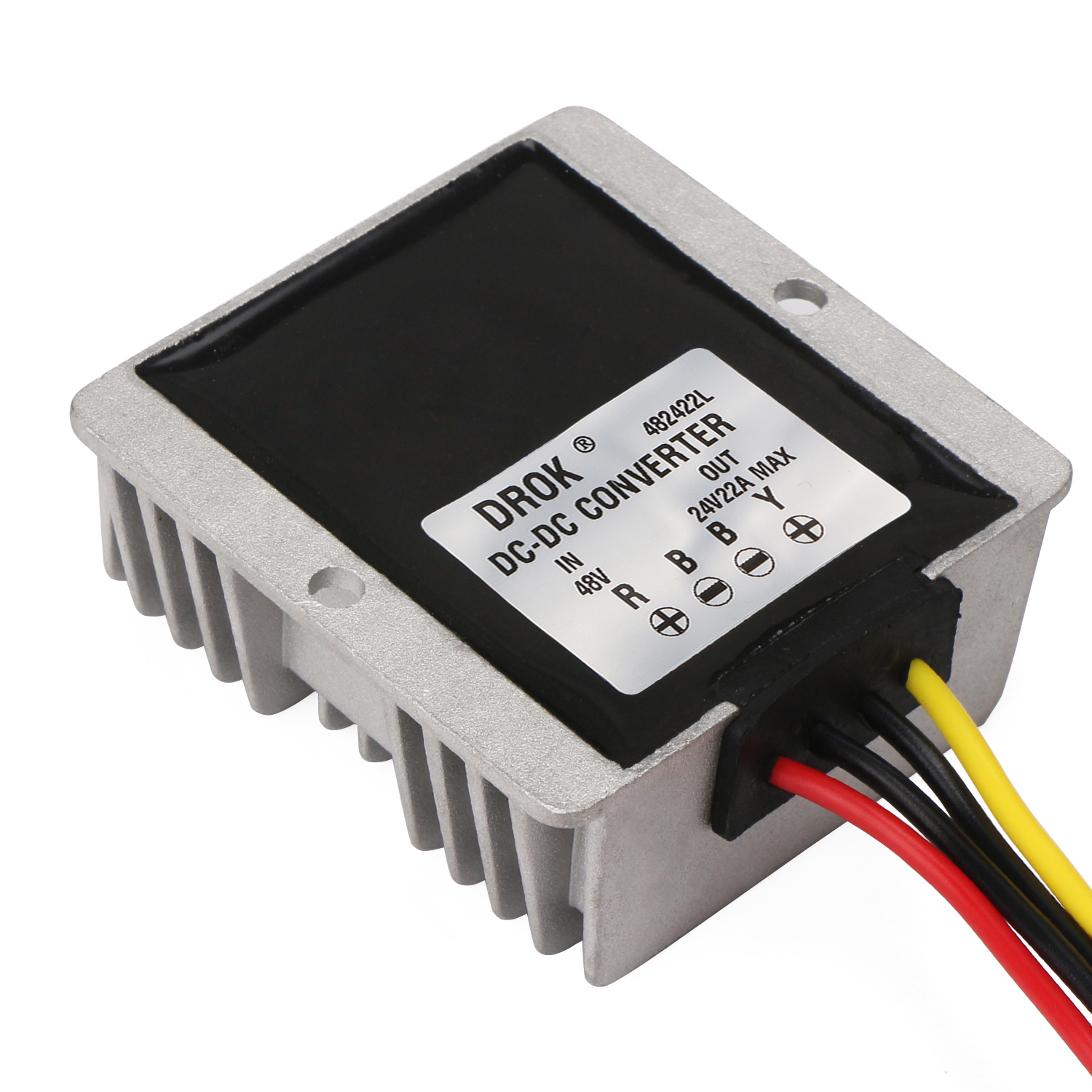

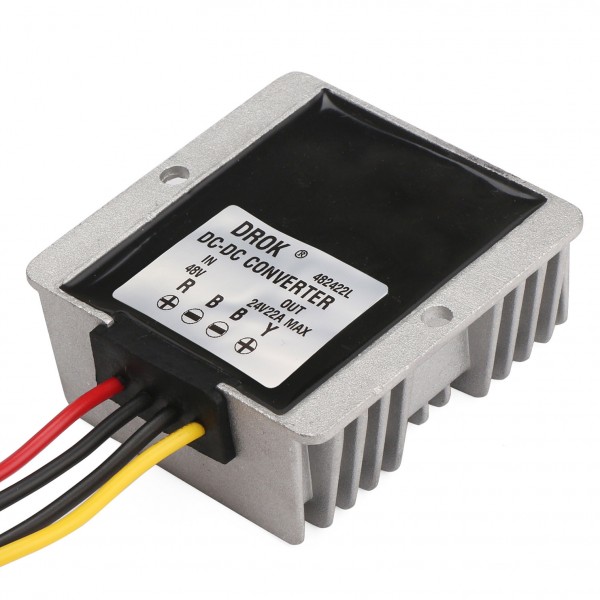

- Red wire: Input+
- Black wire: Input-
- Yellow wire: Output+
- Black wire: Output-
- Electric motor, audio equipment, GPS navigator, air conditioner, electric fan, LED lights, LED vehicle display, solar battery and other industrial electric equipment.
- 1 x 48V to 24V 22A 530W Buck Power Converter (Car Adapter/Power Supply Module/Voltage Regulator)
