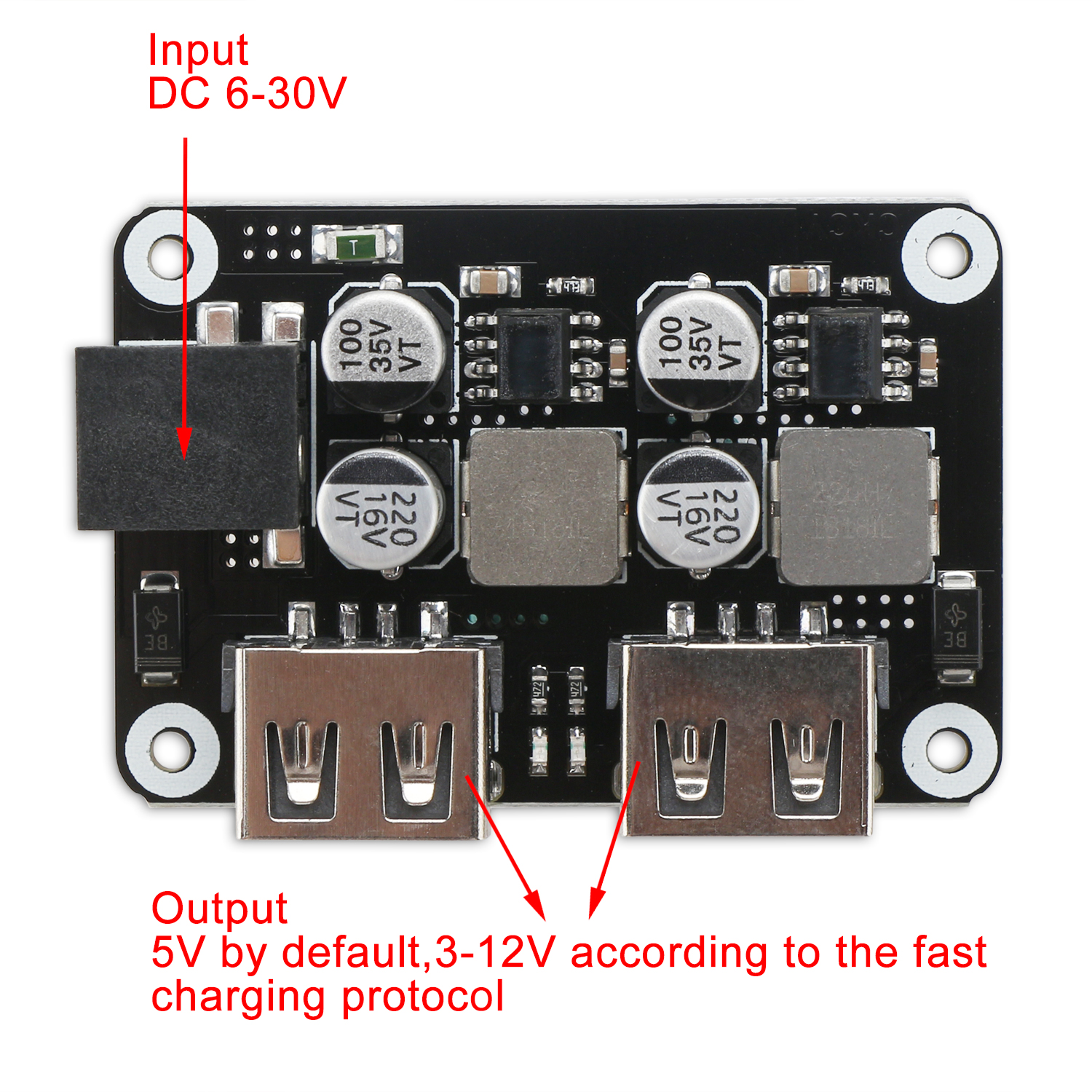

Input voltage: DC 6-30V
Output voltage: default DC 5V. Automatically adjusted within 3-12V after triggering quick charging.
Output rated current: 2.4A single port
Output rated power: 24W single port

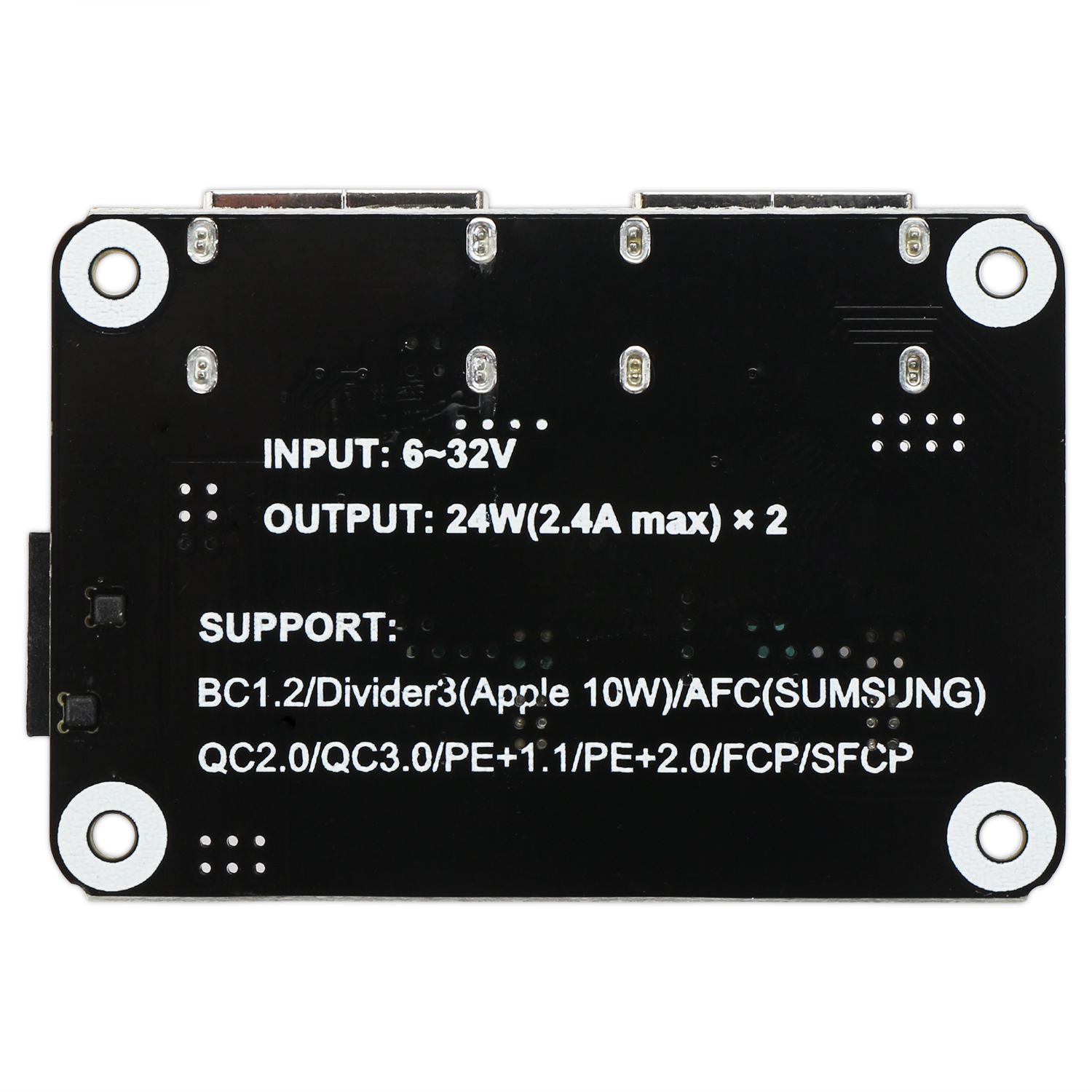

Supportable fast charge version: QC 2.0, QC 3.0, MTK PE 1.1/2.0, Apple, Samsung AFC, Huawei FCP, SFCP.
PARAMETER --- input voltage DC 6-30V; output voltage default 5V, after triggering quick charging, it will automatically adjusted at 3-12V.
OUTPUT CAPACITY --- rated 2.4A/24W *2
OUTPUT PORT --- dual USB port
PROTECTION --- output over-voltage protection; input with fuse.
QUICK CHARGE --- QC 2.0, QC 3.0, MTK PE 1.1/2.0, Apple, Samsung AFC, Huawei FCP, SFCP
1. output over-voltage protection (limited max output voltage is 13V, ensure it won't exceed 13V when the chip fail to function);
2. input with fuse.
1. The max output current of the module does not mean that it can output the max current value whatever devices it is charging.
2. The output current value depends on the device.
3. When charging, the input current will become smaller and smaller when the battery is more and more close to be full-charged.

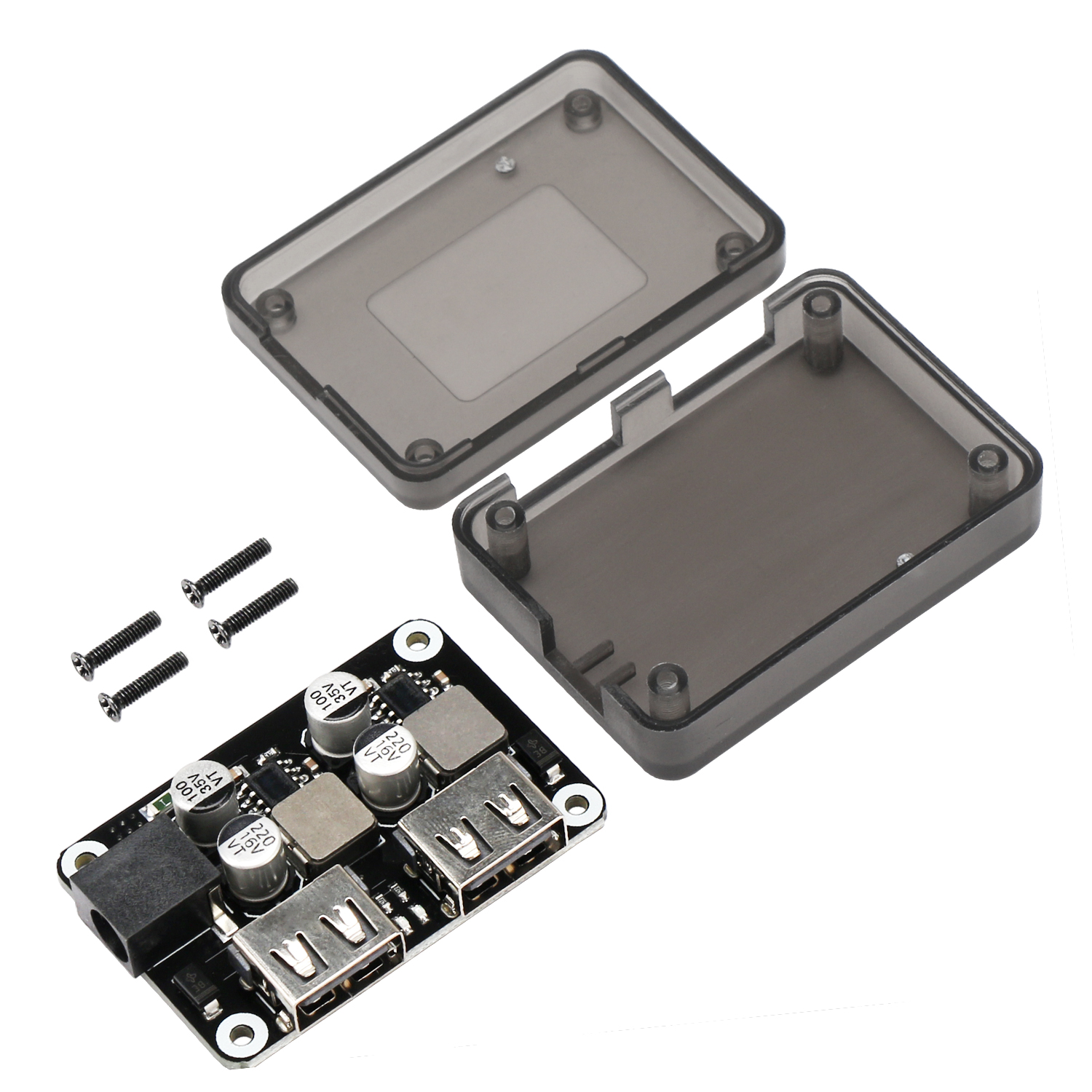

1* Dual USB Charging Module
- Stock: In Stock
- Model: 200407
- Weight: 0.10kg

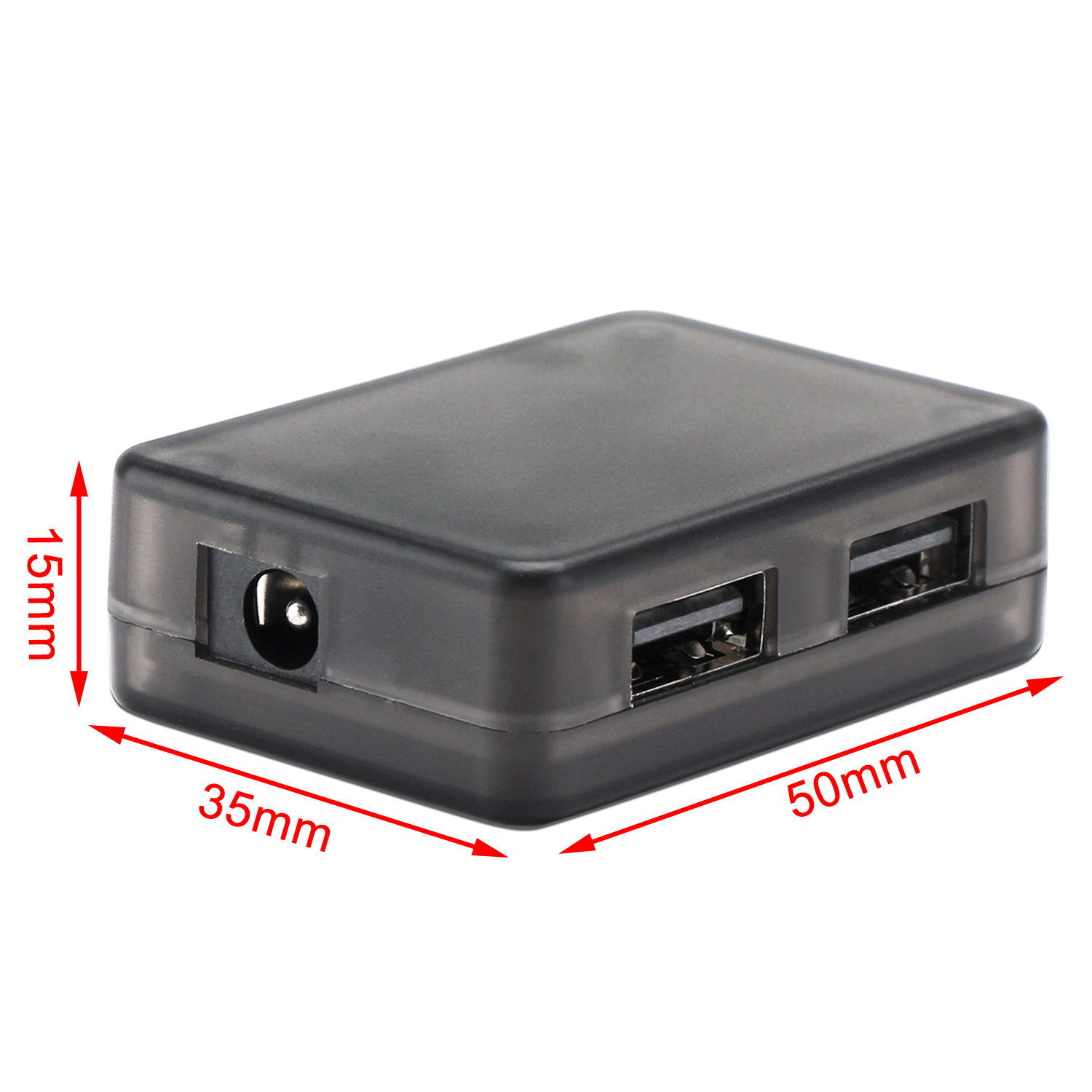

- Dimensions: 10.00cm x 10.00cm x 10.00cm
- SKU: 200407
