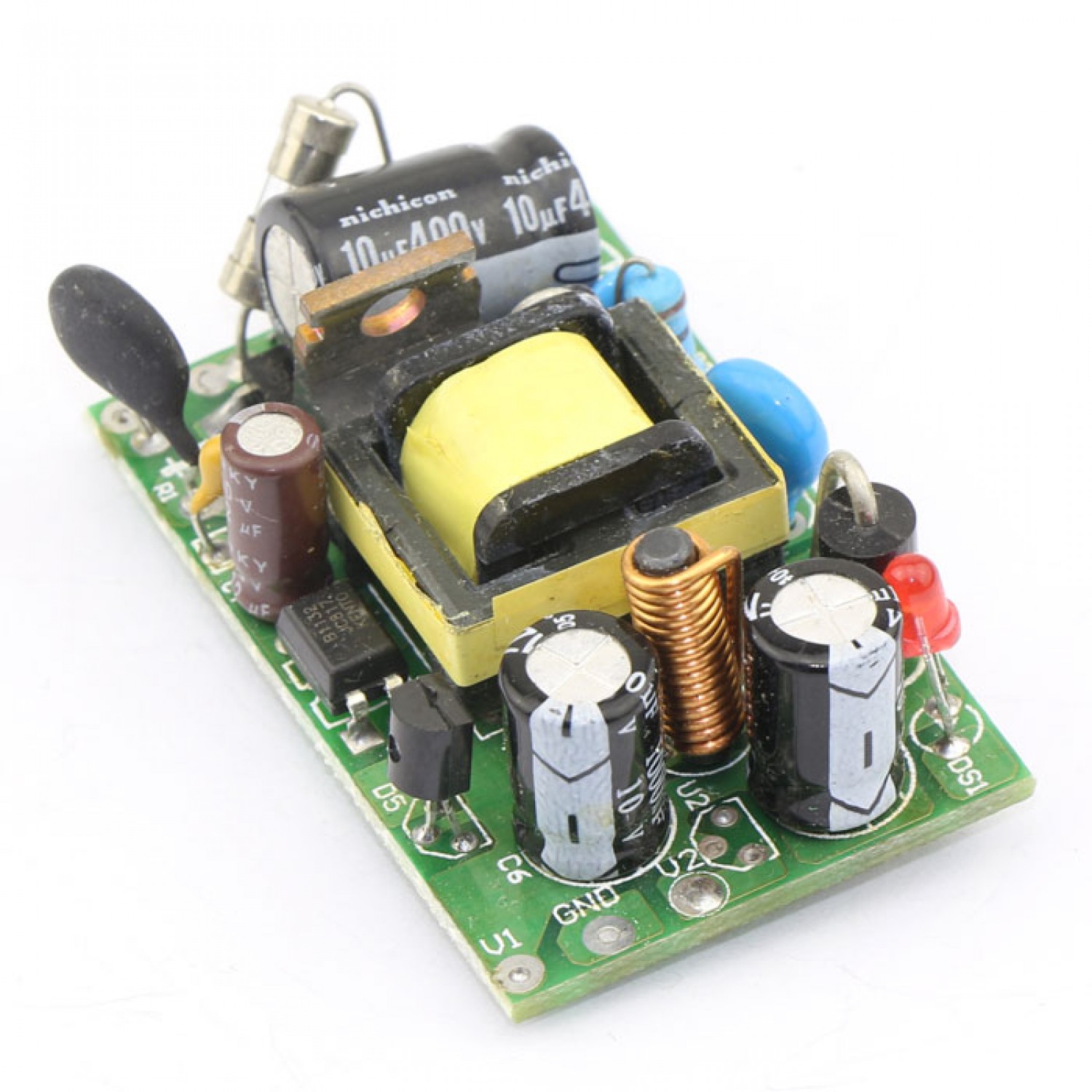

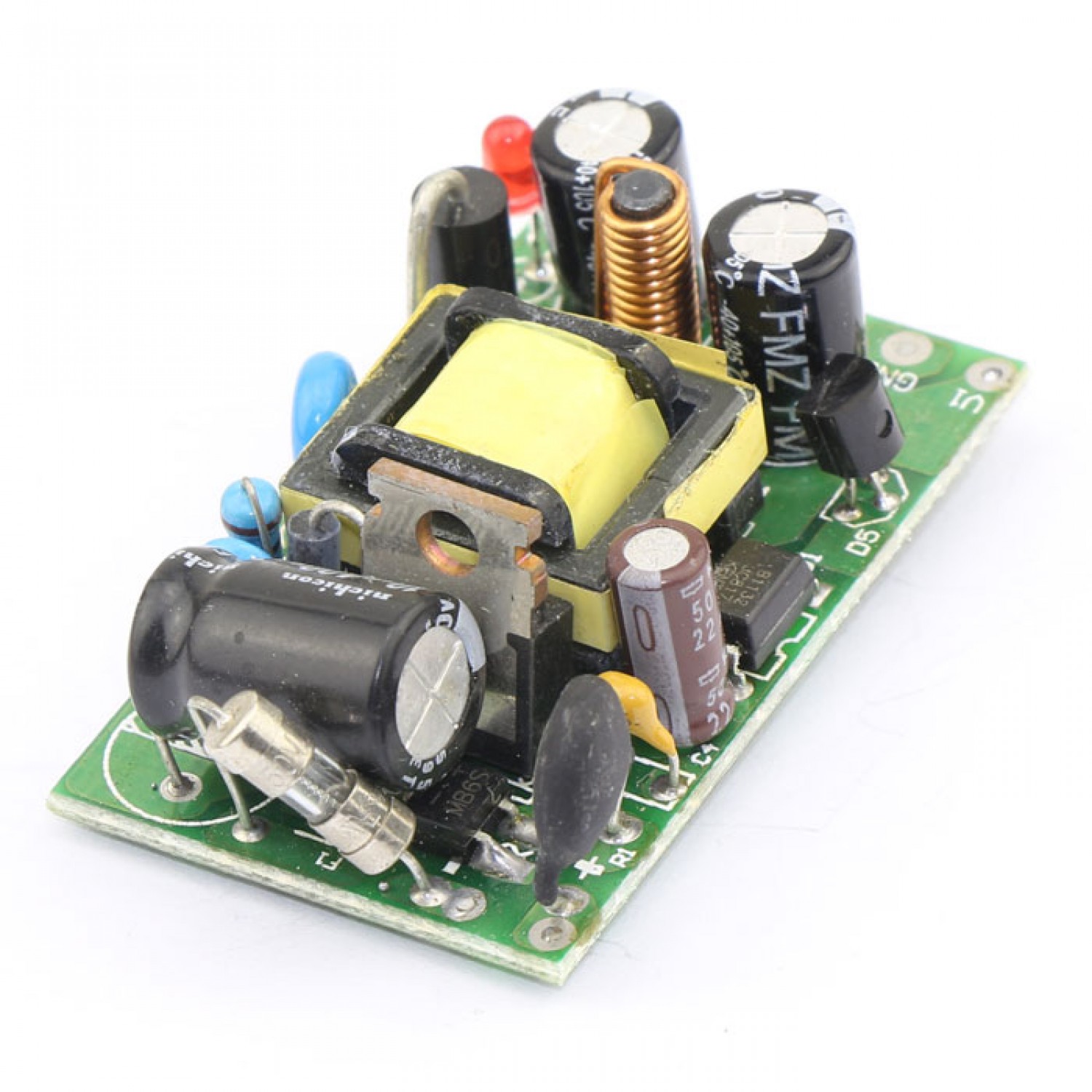

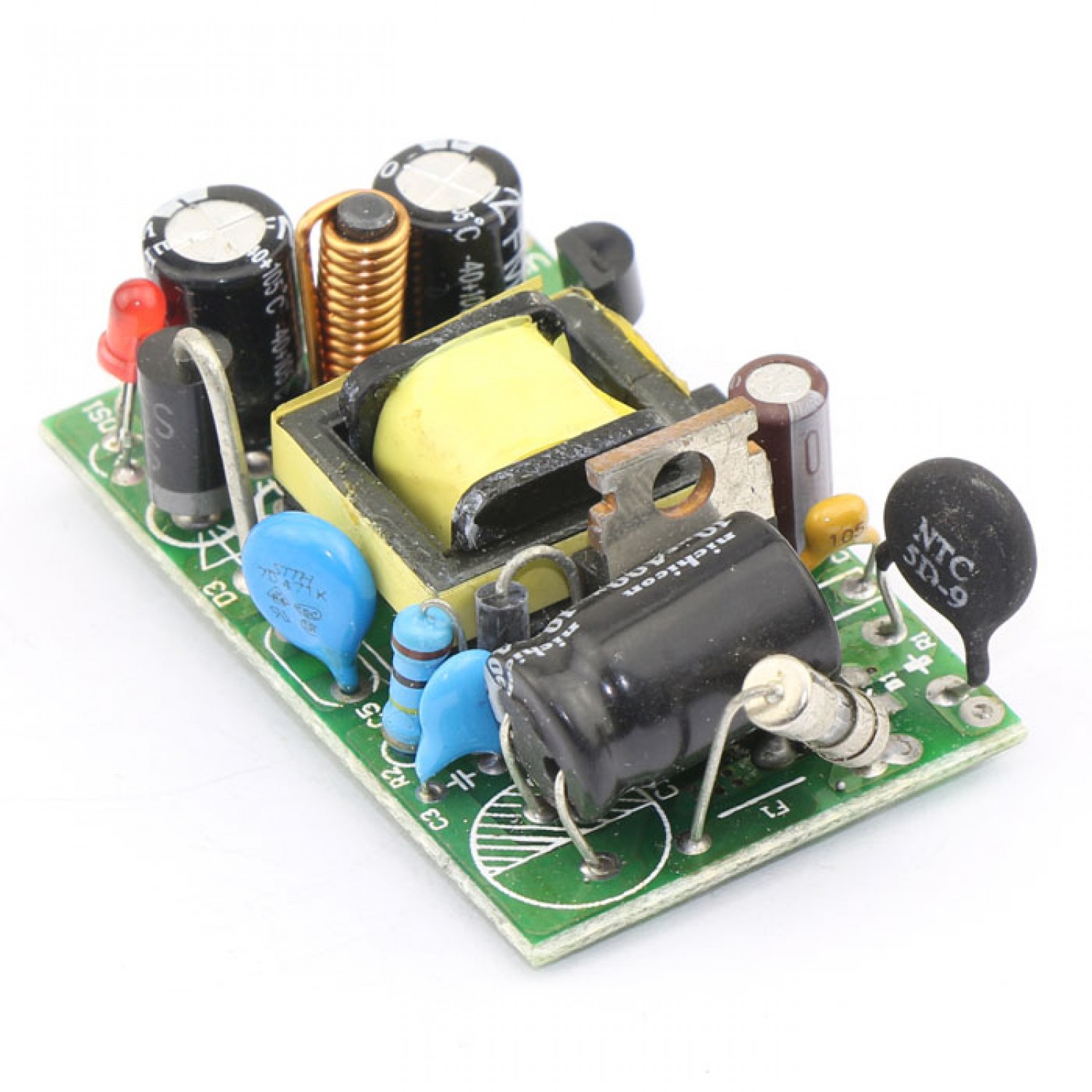

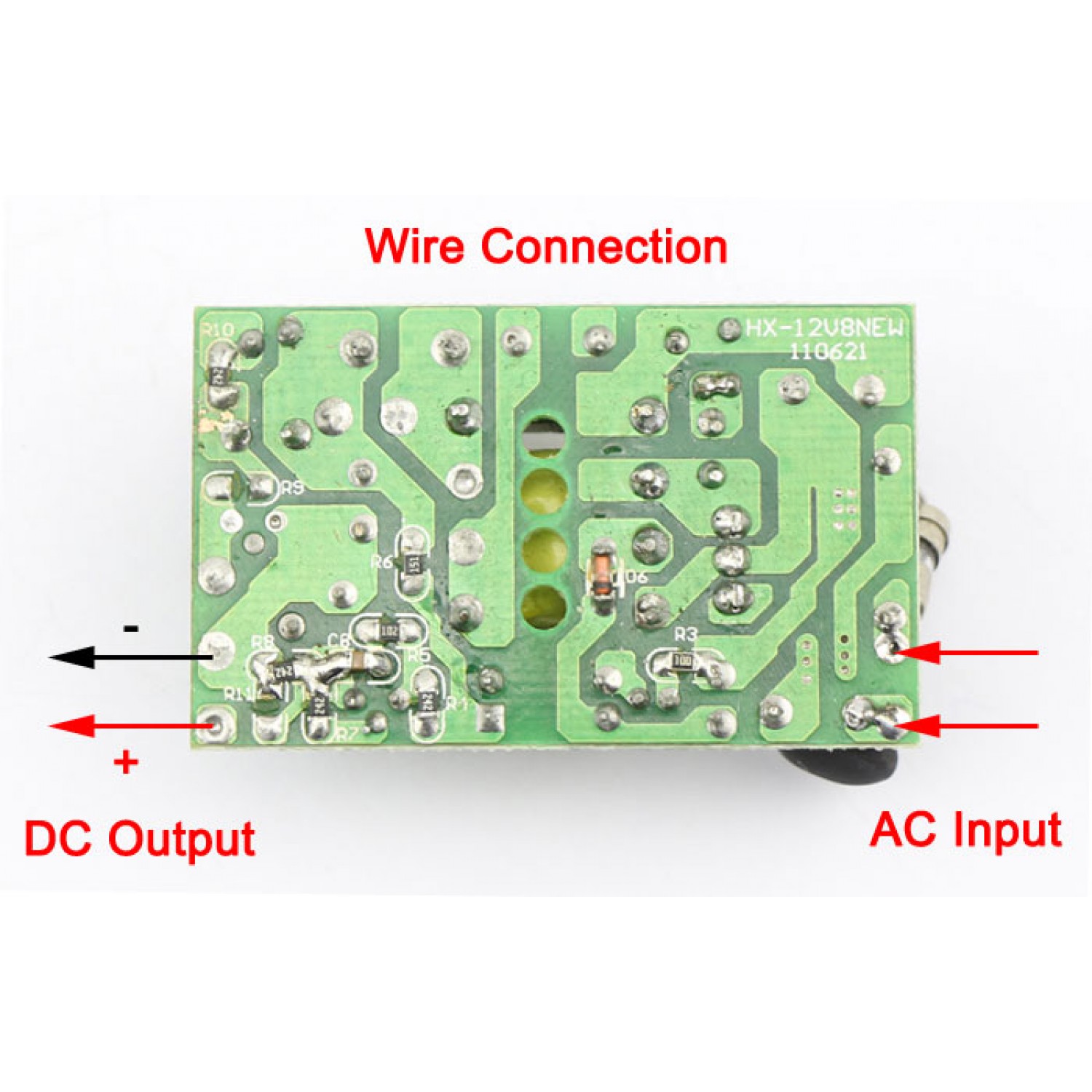

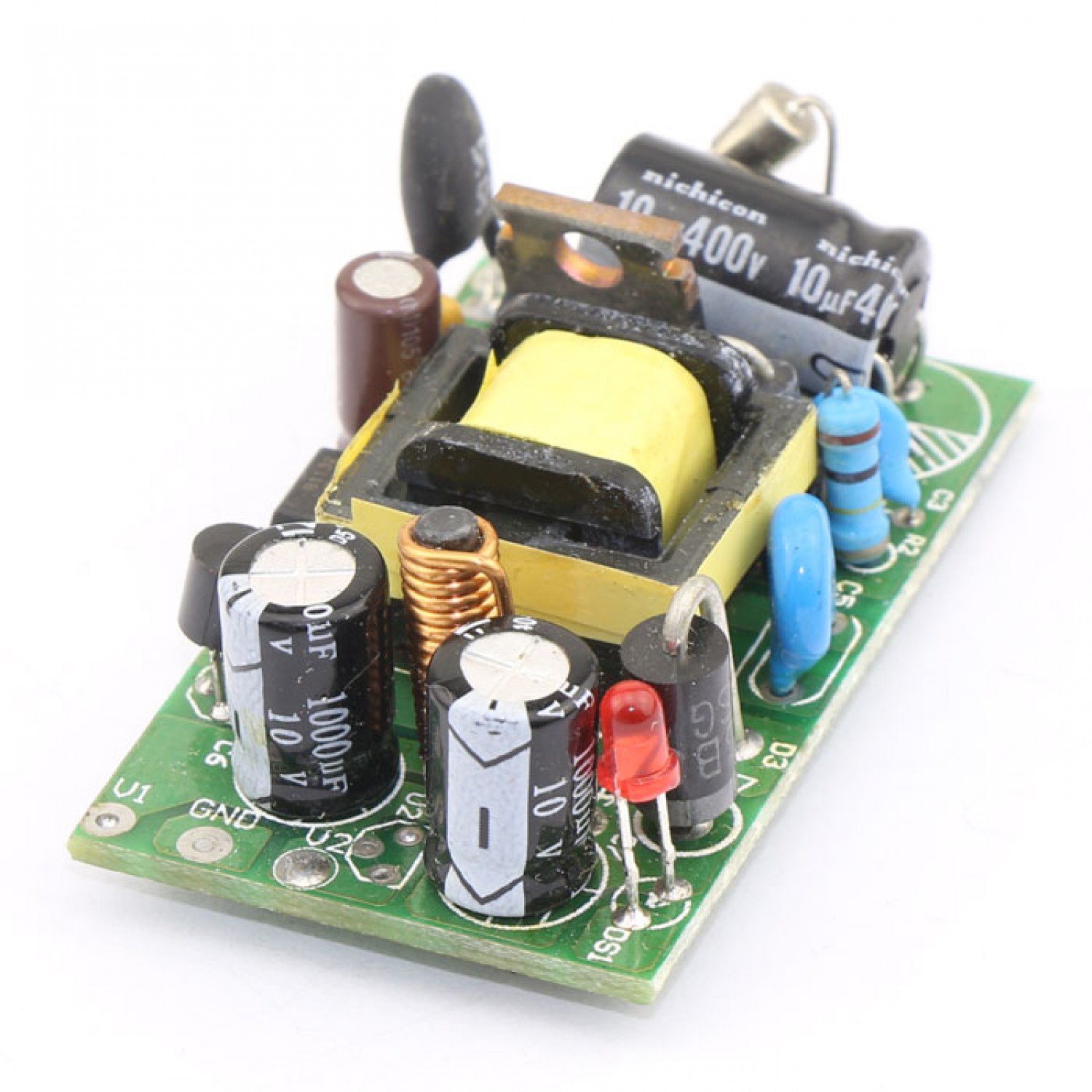

-23% 7.5W Power Converter AC 90V~240 110V 220V to DC 5V 2000mA Switching Power Supply DC 5V Power Supply Module/Adapter

Ask Question

It is a 7.5W Switching Power Supply/Adapter, Input voltage: 90VAC to 240 VAC  50/60HZ, Output voltage: DC 5V (±0.2V), Output Current: 1500mA,Peak 2000mA, It has Shortage Protection,Temperature protection,Overcurrent protection. Applied to the power adapter,industrial equipment,microcontroller,LED lighting power supply,and etc.

Features:
  • Mounting dimensions: 50mm x 30mm
  • Circuit board model:SMP-5V/1.5A
  • Input voltage: 90VAC to 240 VAC  50/60HZ
  • Output voltage: DC 5V (±0.2V)
  • Output Current: 1500mA,Peak 2000mA
  • Output power: 7.5W
  • Output efficiency:83% (Rated load)
  • Output ripple: 60mv
  • Switch machine overshoot: 10%
  • Output rise time: 100ma
  • Operating temperature: -20 to 60 °c
  • Relative humidity: 40 to 90% RH
  • Applied to Power adapter, industrial equipment, power microcontroller and LED lights
Protection function:
  • Output power protection: lock, restart recovery
  • Shortage Protection: lock, restart recovery
  • Temperature protection: lock, restart recovery
  • Overcurrent protection: lock, restart recovery
Package Include:
  • 1 x Switching Power Supply ( Power Supply Module/Voltage Regulator/Adapter )
Attributes
input voltage90~240V
output current1.5A
output power7.5W
output voltage5V
output ways1
