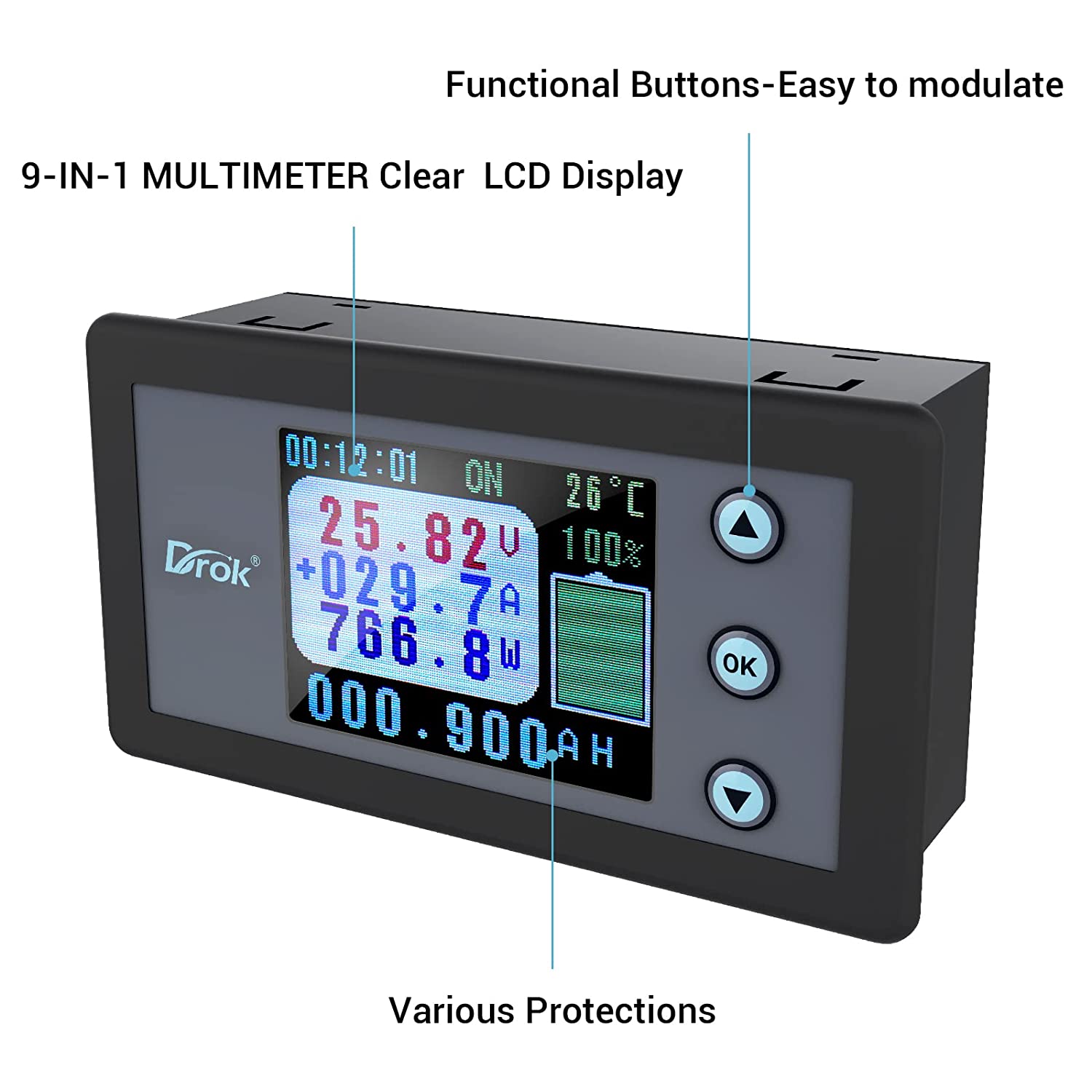

DC 120V 50A Multimeter
Specification:
Measuring Parameters: Voltage, current, power, battery capacity, amp-hour, watt-hour, time.
Voltage Measurement Range: DC 0.01-120V
Current Measurement Range: DC 0.1-50A
Voltage Measurement Accuracy: ± 1% ± 5 digits
Current Measurement Accuracy: ± 2% ± 5 digits
Display Resolution: 0.1A, 0.01V,0.01AG, 0.01H(1 min)
Measurement rate: 20 times/second
Display: 1.8 inch LCD color screen

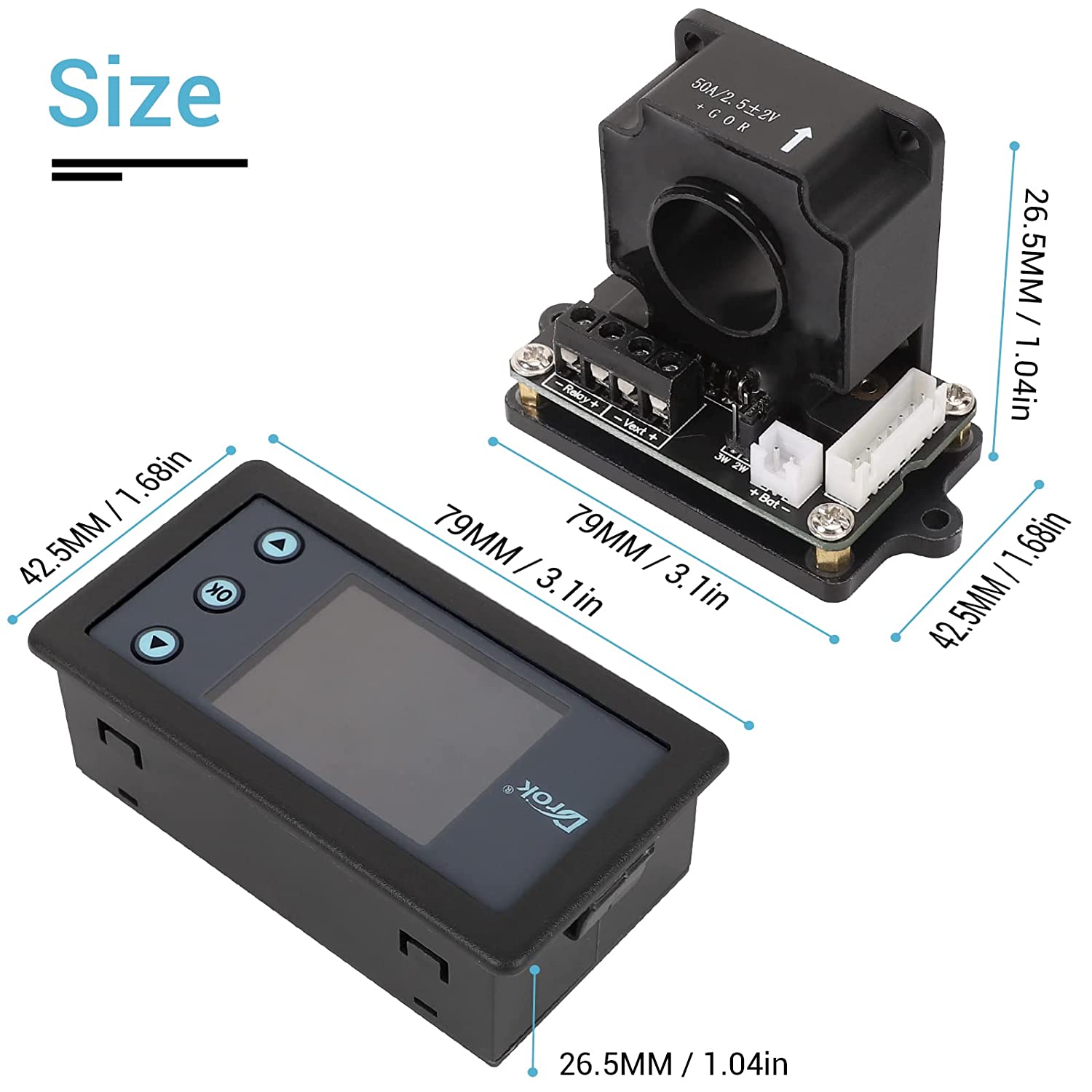

Size(Display Board): 78*42*26mm/3.07*1.65*1.02 inch
Size(Measuring Board): 56*36*34mm/2.21*1.42*1.34 inch
Hall Sensor Size: 79*42.5*26.5mm/3.10*1.68*1.04 inch
Protection Function:
OVP (Over-voltage protection): 0.01V-120V
OCP(Over-current protection): 0.1-50A
OPP(Over-power protection): 0.01W-9.99KW
LOP(Low-voltage protection): 0.01V-120V
OAH(Over-charge protection): 0.01AH-9999AH
OFT(Over-time protection): 1min-99hour59min
Application:
Battery charge-discharge monitor for electric car;
Battery power energy level indicator for photovoltaic system;
Battery voltage current power tester meter.
Other Functions:
> AH power off memorized function;
> Time & AH reset function;
> Calibration function;
> LCD screen can be switched off automatically or manually.

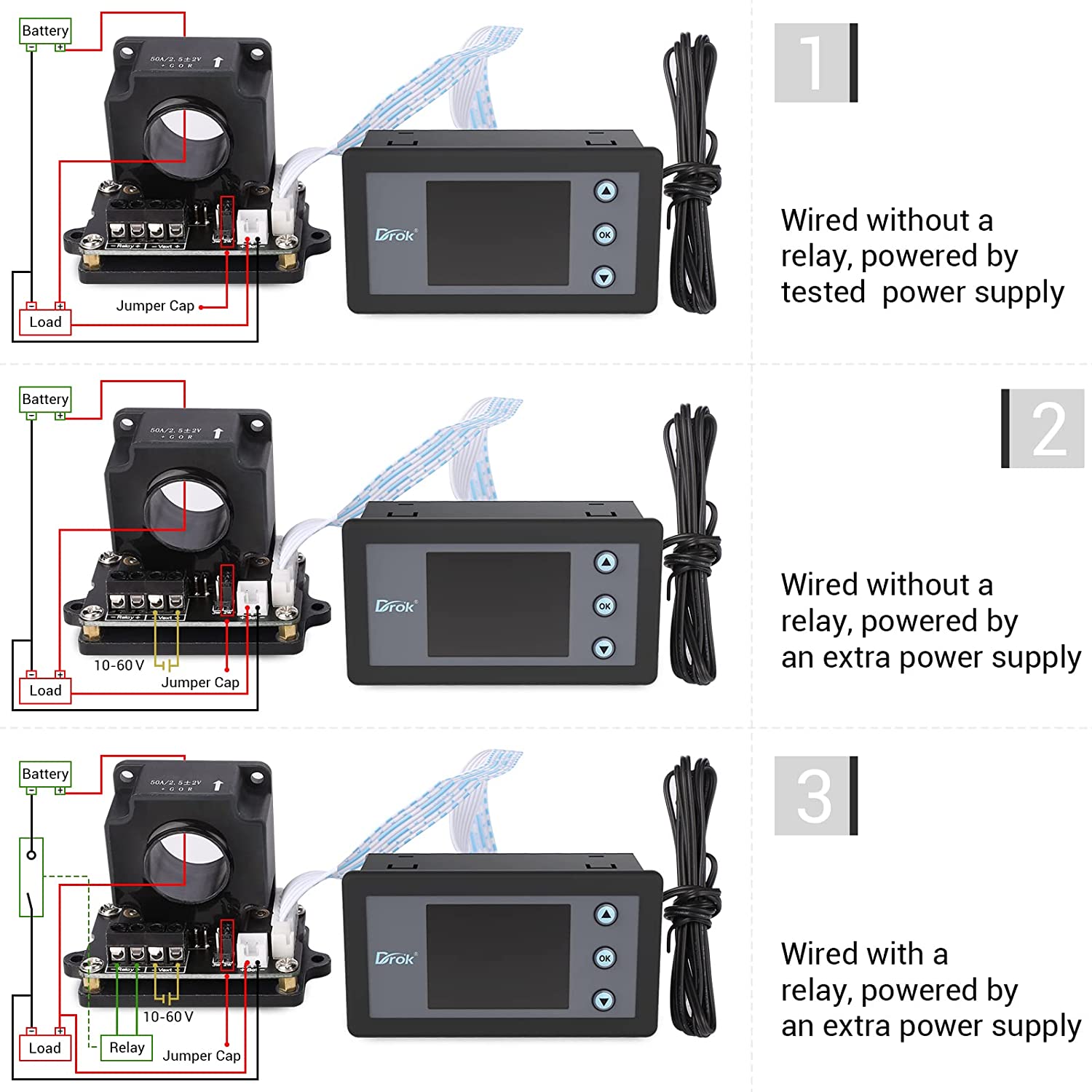

> With output control button to enable/disable output (requires a relay).
Package Includes:

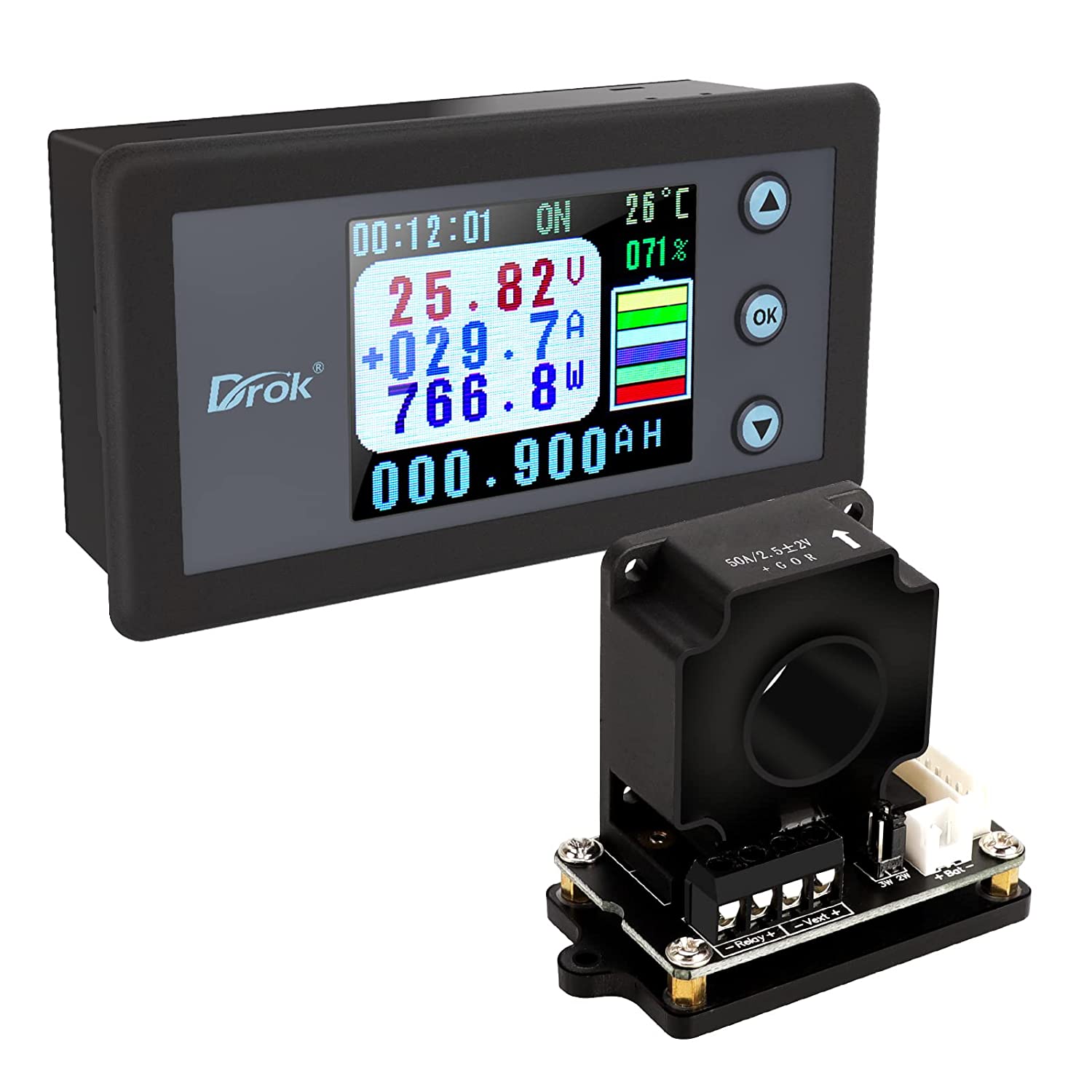

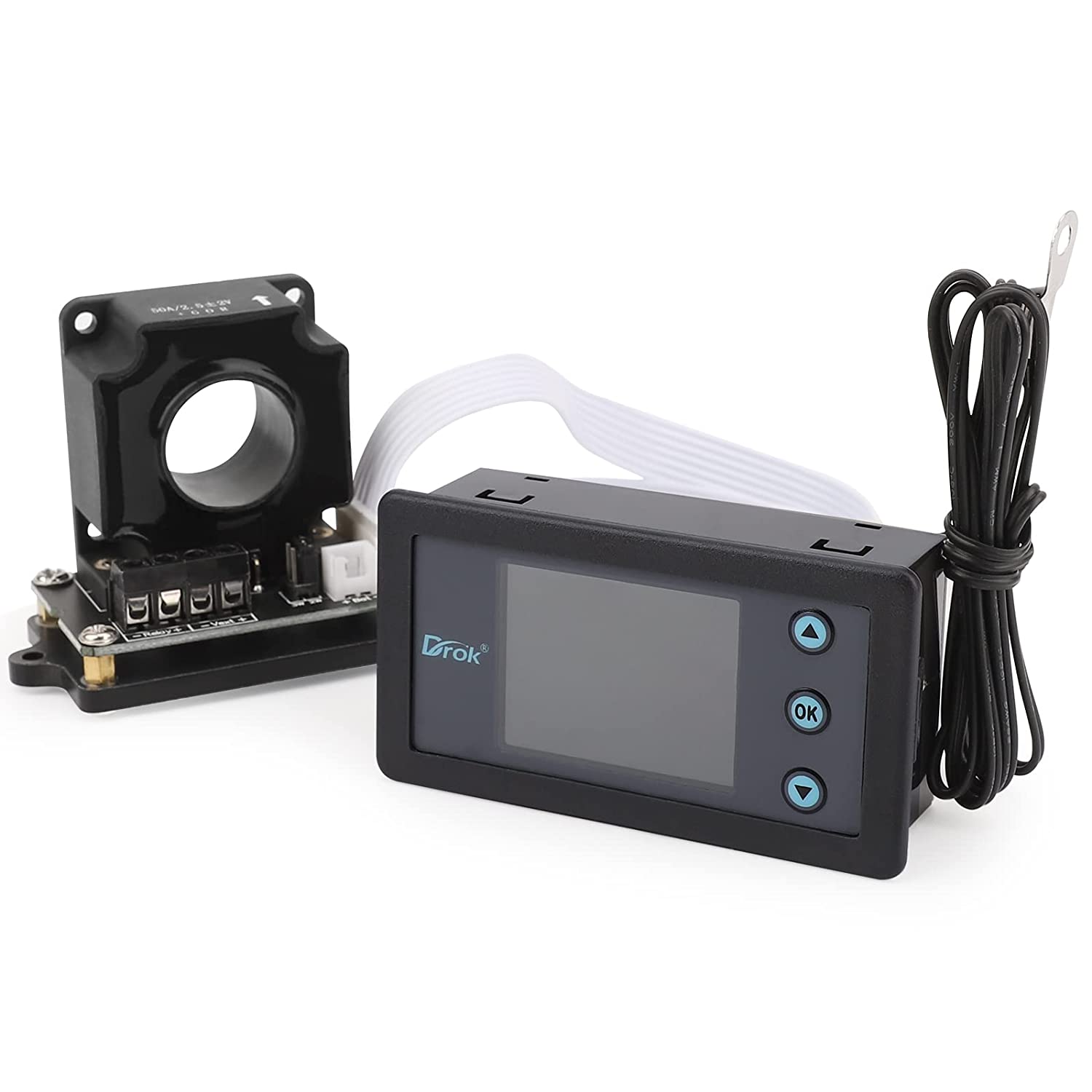

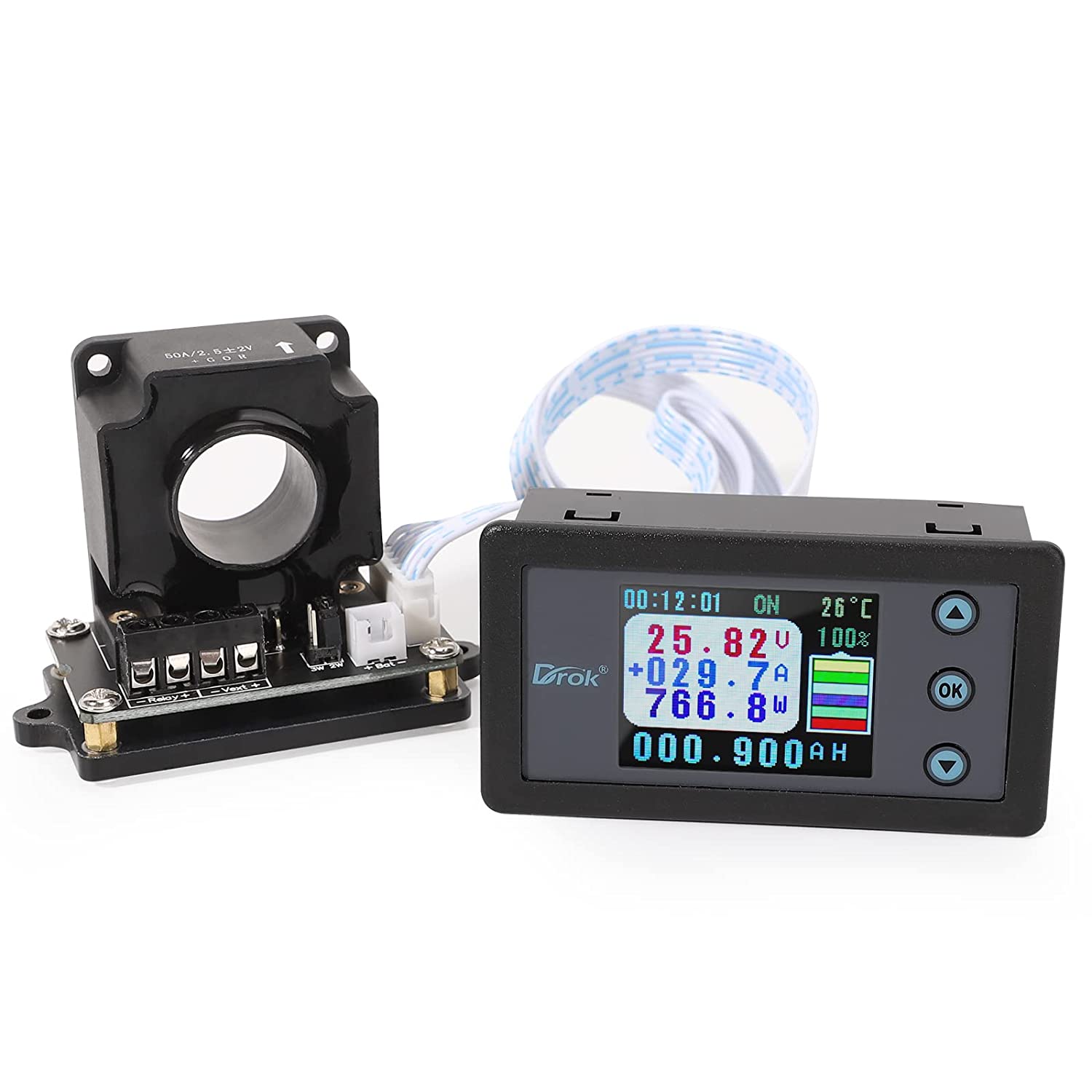

1x Charge-Discharge Monitor
1x Hall Sensor
