About this item

• 9-IN-1 MultiMeter --- Precision Measuring: Voltage, Current, Temperature, Power, Kilowatt-Hour, Amp-Hour, Capacity, Charging Time, Battery Lasts Time.

• APP Control --- This meter can be controled by Mobile Phone via Bluetooth, you can see the Volt/Amp Curve and Adjus Voltage through the App. Fast and Convenient.

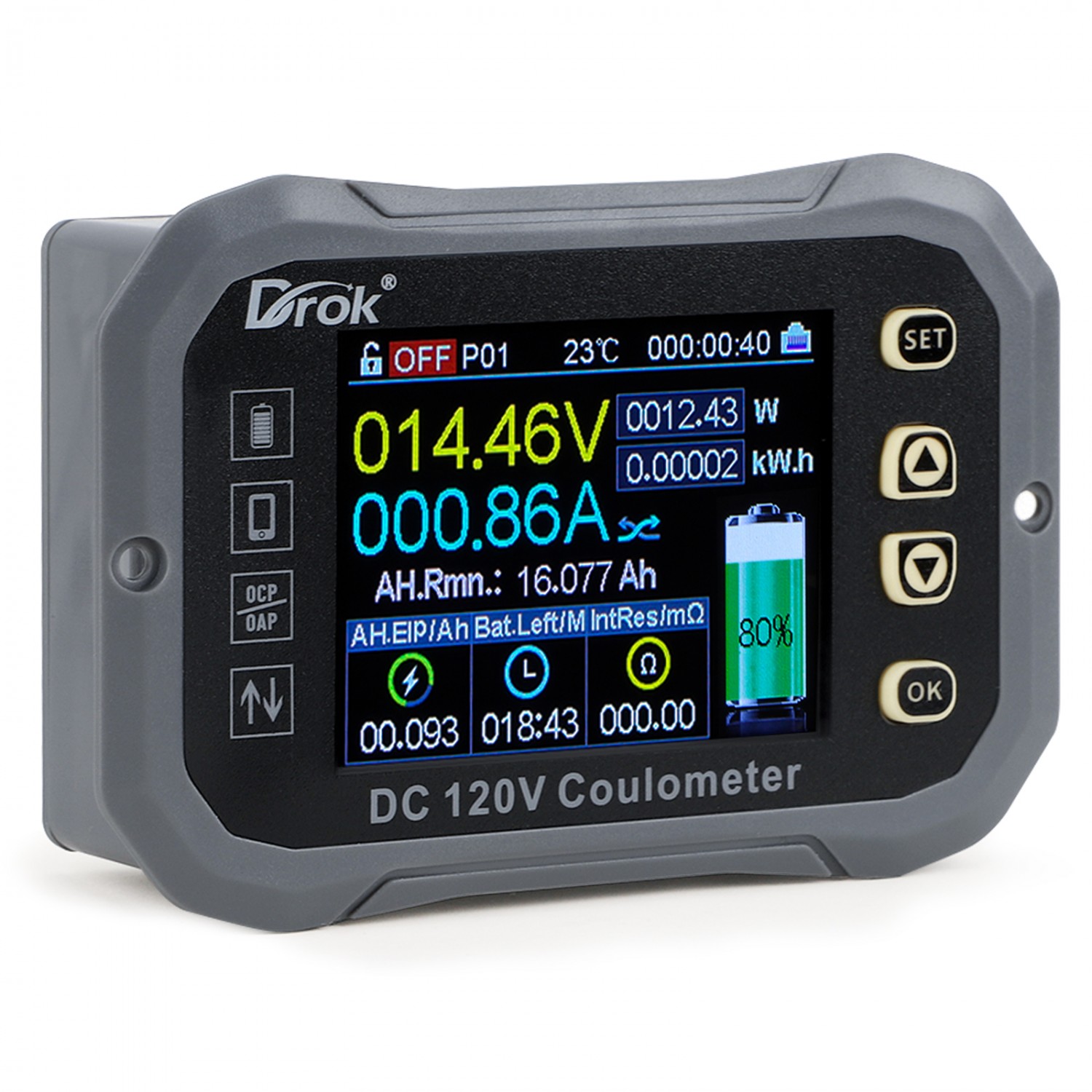

• LCD Screen --- 2.4 Inch High Definition Color Screen, makes it dirct and clear.

• Protection --- OVP, LVP, OTP, OCP, OPP, NCP

Product Parameter

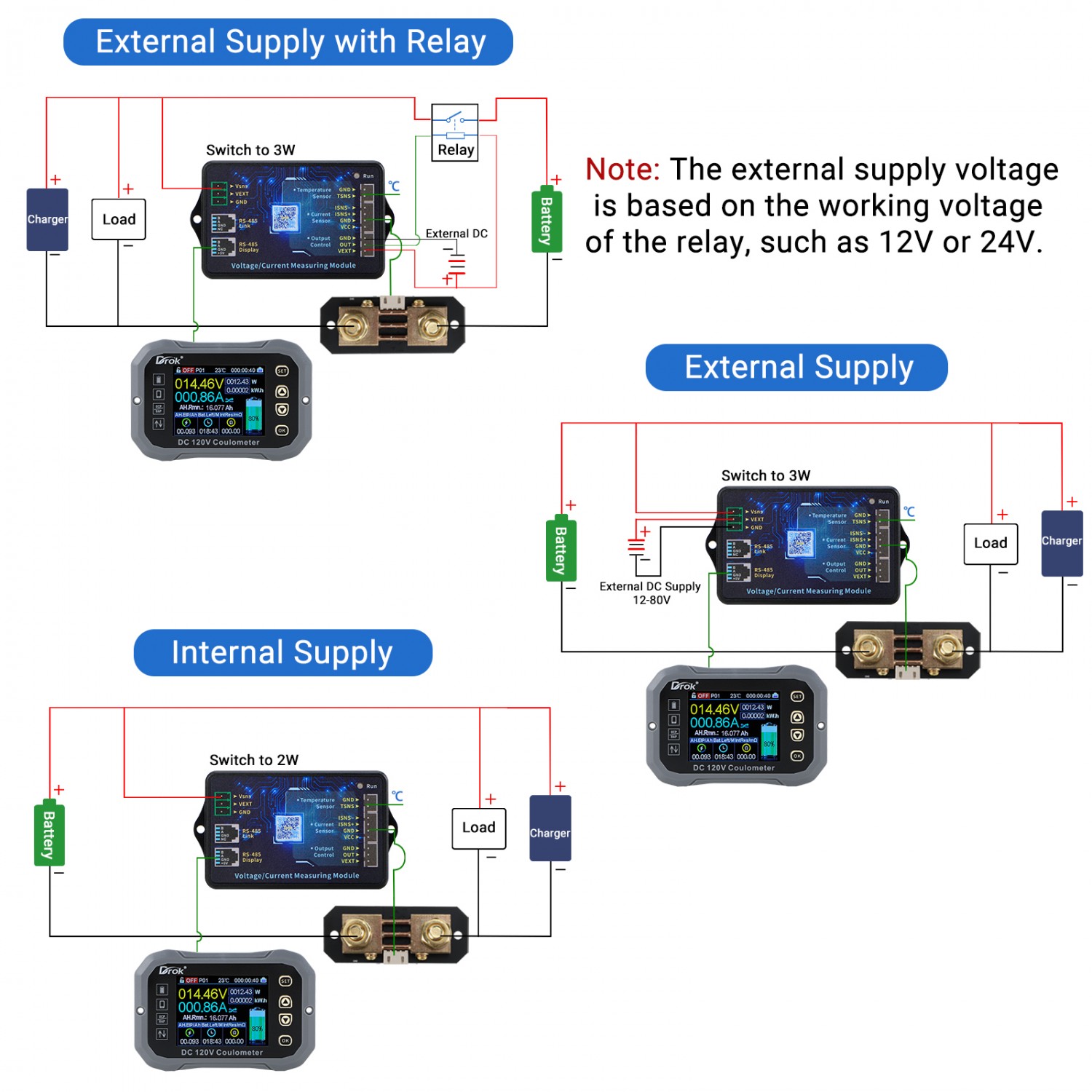

  Voltage Range: 0-120V (external power supply); 10-120V (internal  power supply)

  Current Range: 0-100A

  Voltage Precision: ±2% + 3 Digits

  Current Precision: ±5% + 3 Digits

  Voltage Resolution: 0.01V

  Current Resolution: 0.01A

  Power: 0-72KW

  Power Resolution: 0.01W

  Amp-Hour: 0-9999.99AH

  Watt-Hour: 0-9999.99kWH

  Power Dissipation: Meter, around 0.5w; Measurement board, around 0.4w

  OPP: 0-999999.99W

  NCP: 100A

  OCP: 100A

  OVP: 0-120V

  LVP: 0-120V

  OTP: 0-120℃

  Enter Sleep Mode: 0-60s

  Bluetooth Communication Distance:  withinin 10 meters, no obstacles.

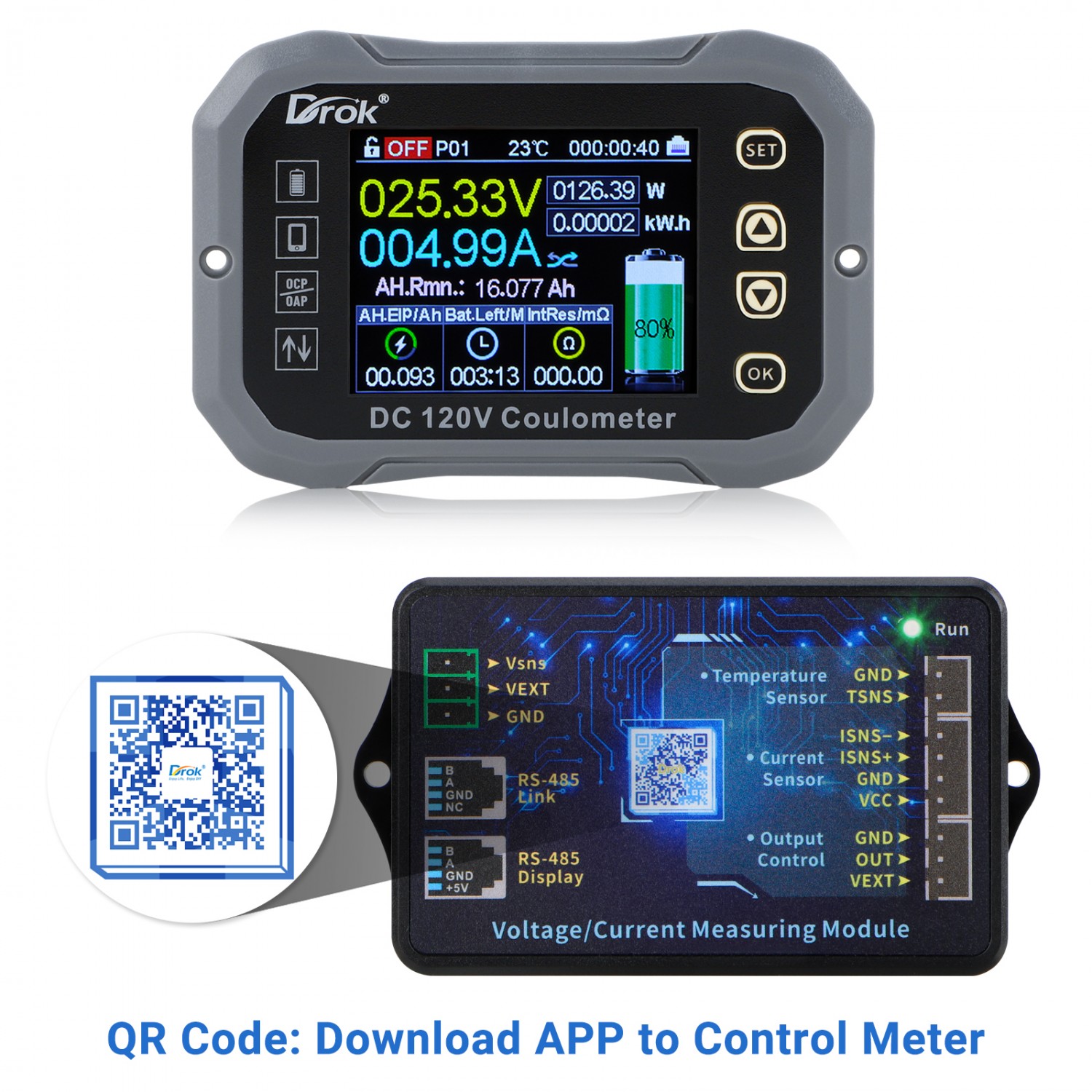

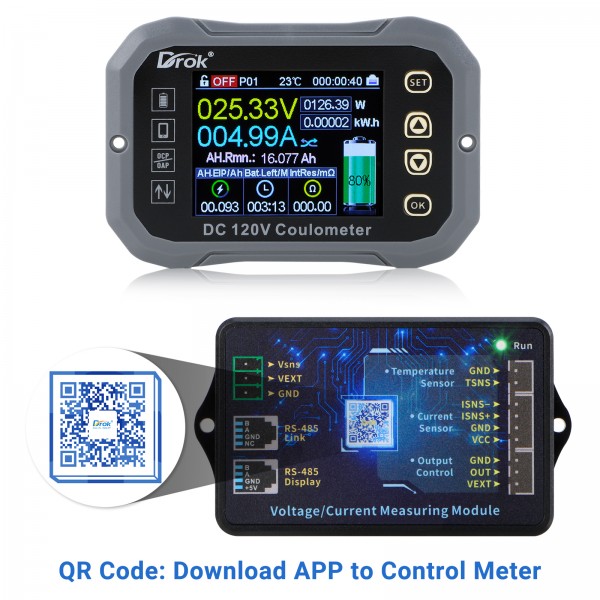

APP download: Please scan the QR code on meter to get Android Package.
