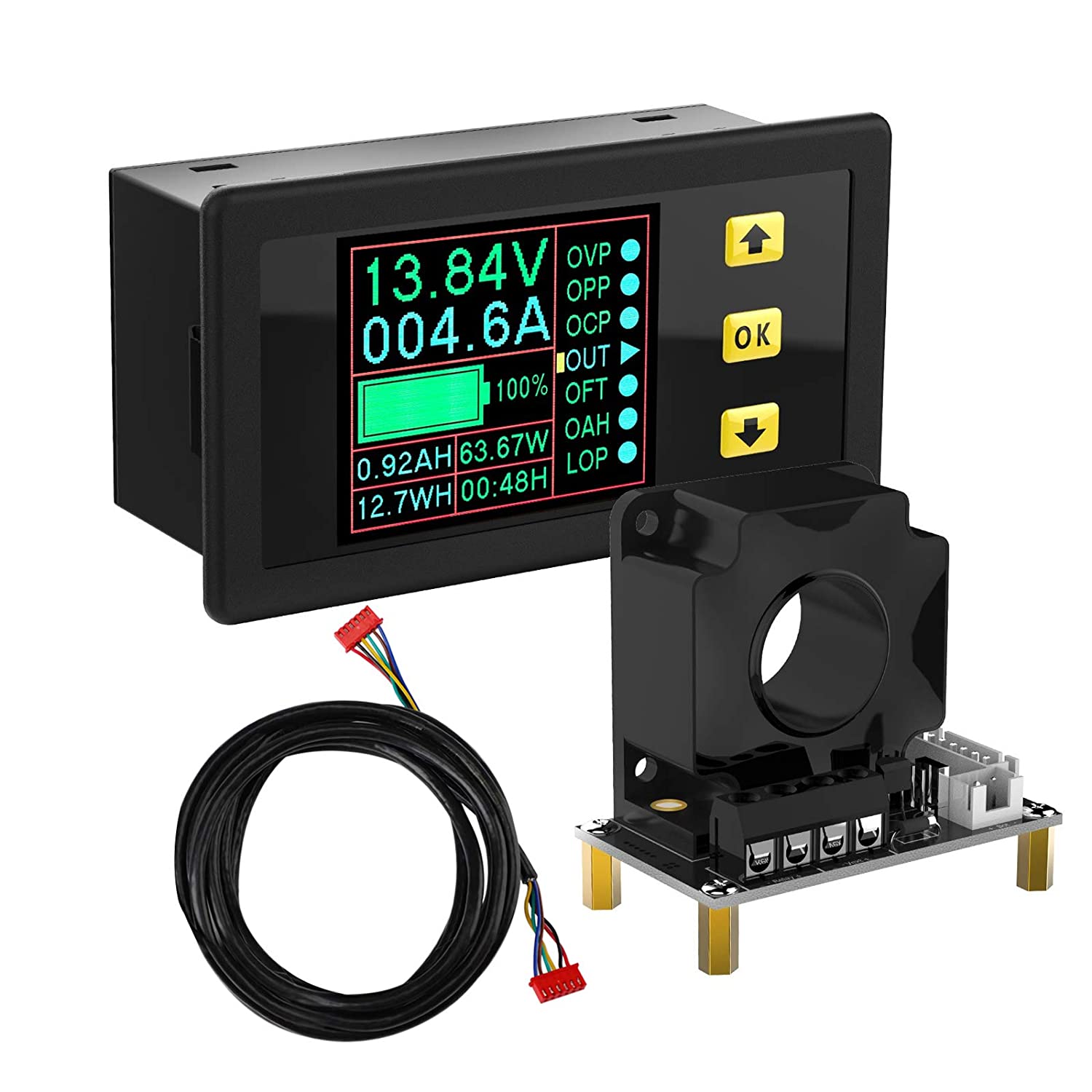

Current measuring range: DC 0-100A
Display resolution: 0.1A, 0.01V, 0.01AH, 0.01H (1 min)
Voltage measure range: No extra power supply DC 12-90V; With an extra power supply DC 0-90V
If the relay (this product doesn't contain a relay) is connected, press the button ↑ ↓ to move the yellow cursor to OUT after powering on, and press OK to control the output.
If the OUT light turns green, the output will be turned on; if the OUT light is gray, the output will be turned off.

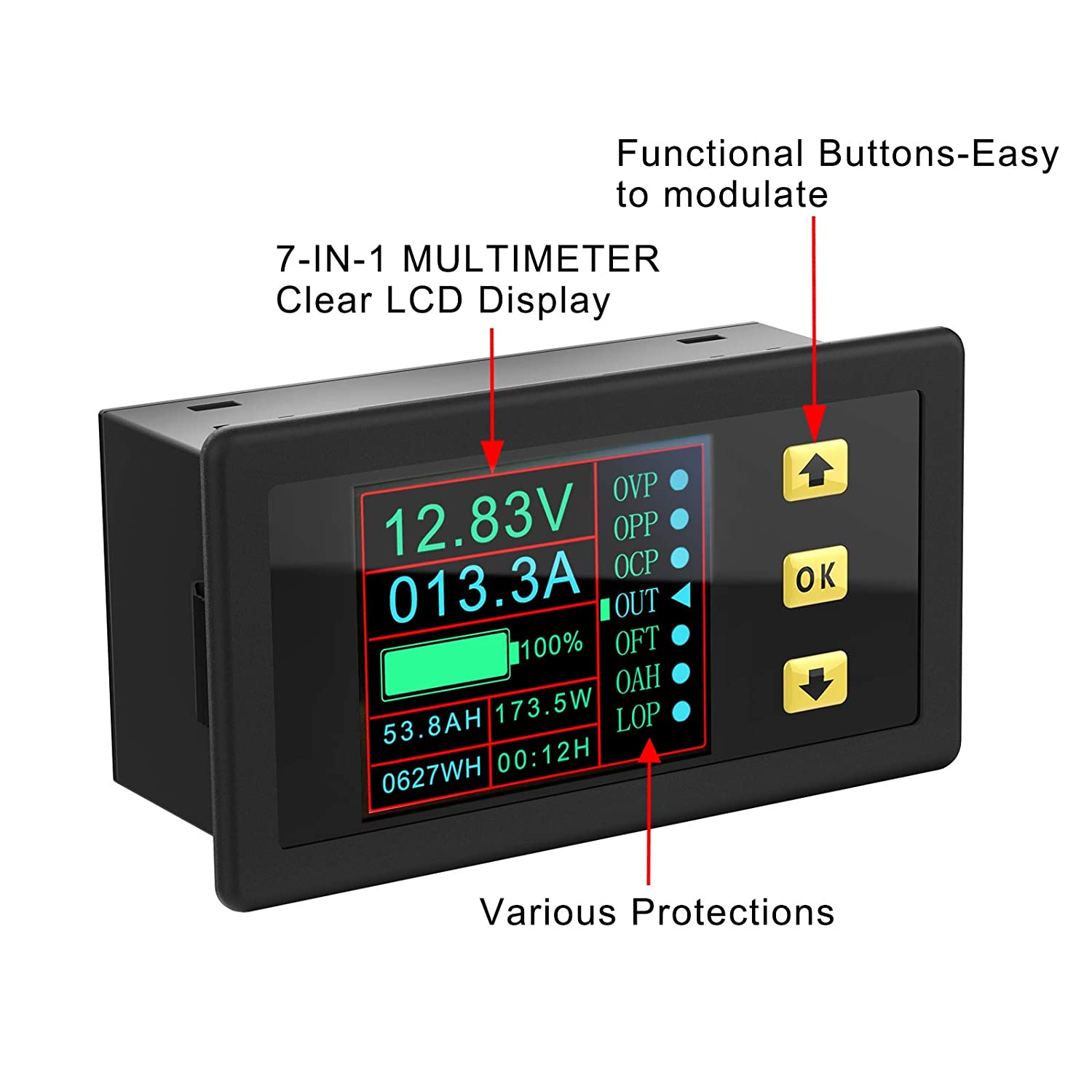

Protection Function Menu
OVP (Over-voltage protection): 0.01V-90V
OCP(Over-current protection): 0.1-100A
OPP(Over-power protection): 0.01W-9.99KW
LOP(Low-voltage protection): 0.01V-90V
OAH(Over-charge protection): 0.01AH-9999AH
OFT(Over-time protection): 1min-99hour59min
For details on how to set each protection, please check User Manual [PDF ] from Product guides and documents on this page.

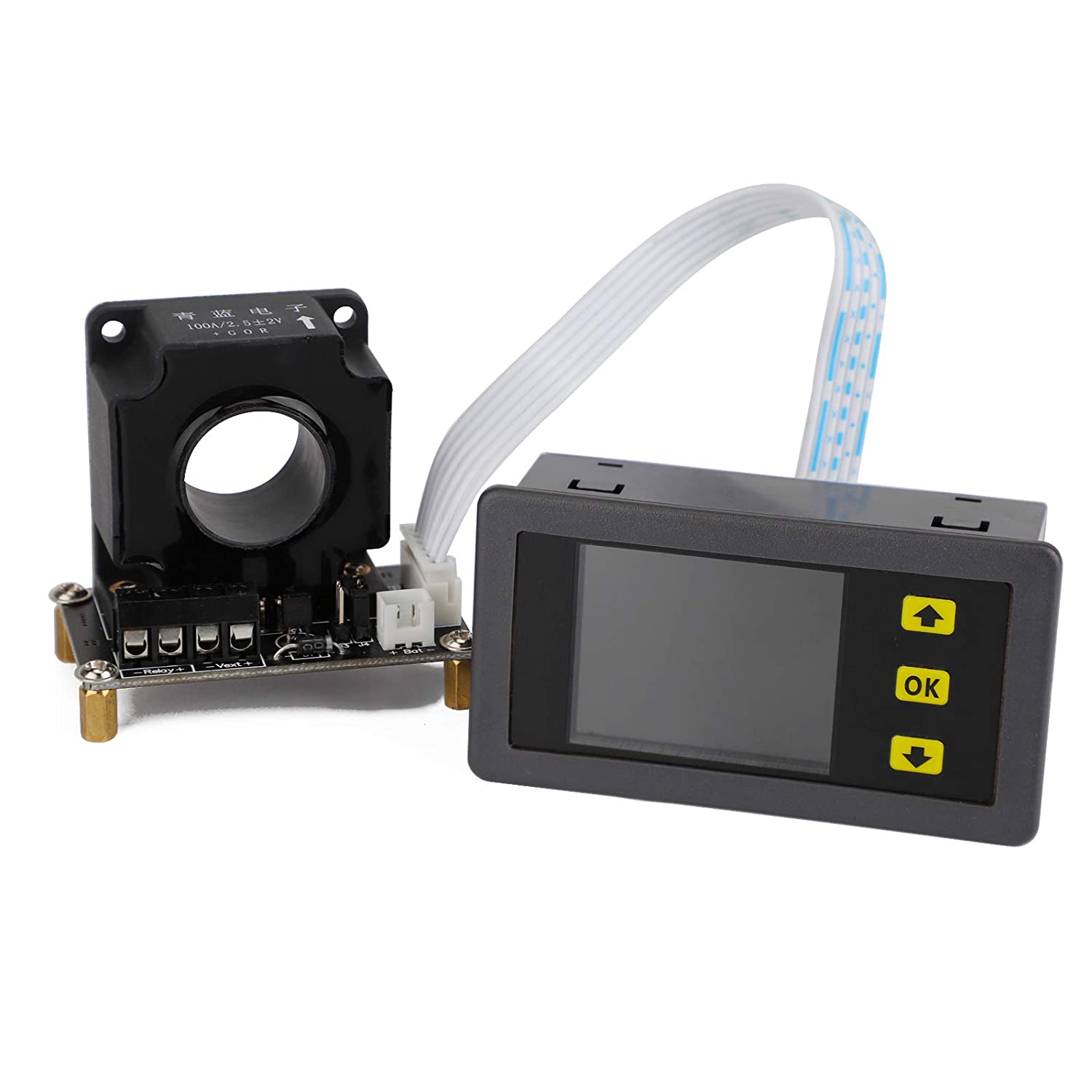

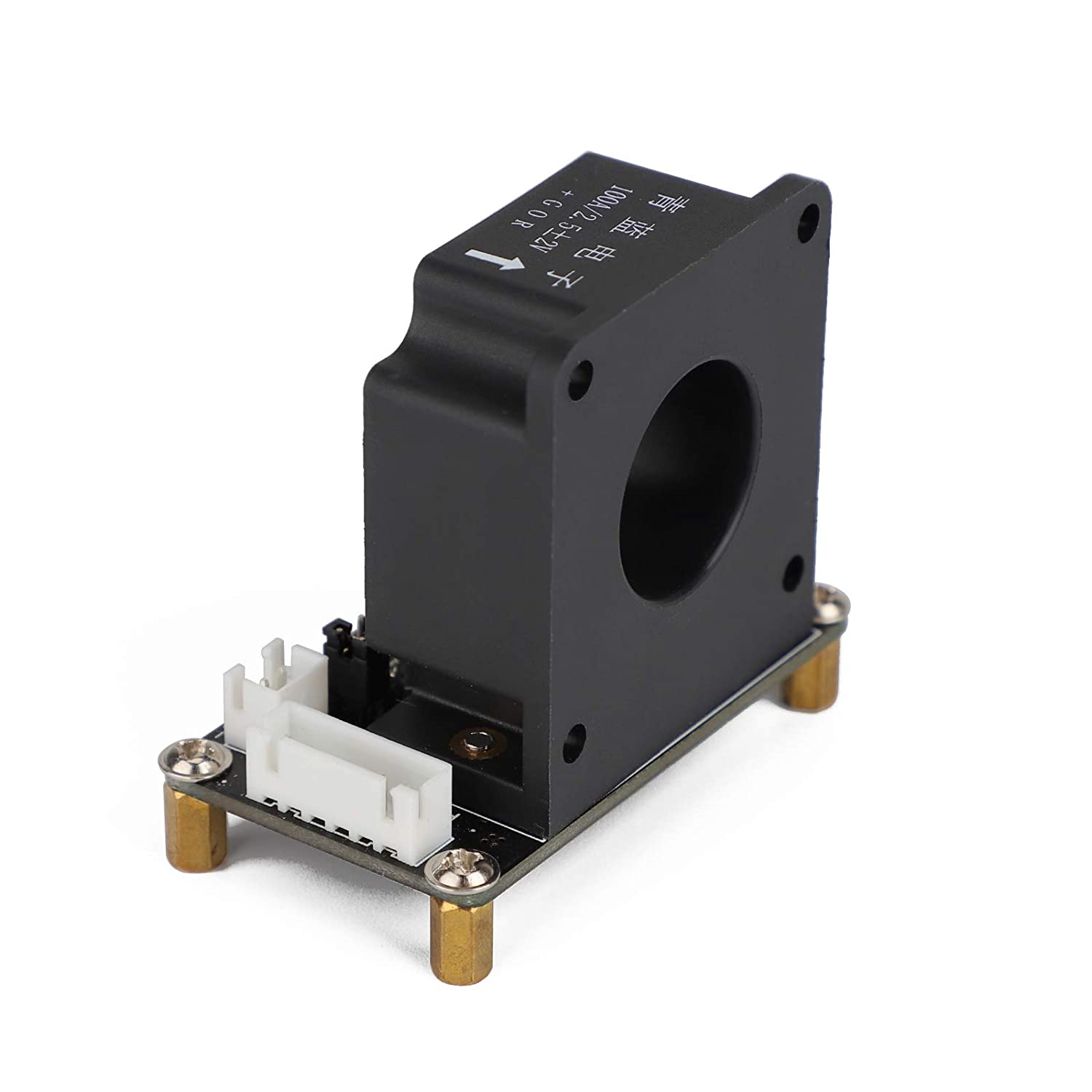

Pass the current wire through the round hole of the hall sensor, then the current will be detected. The current can be detected in both positive and negative directions.

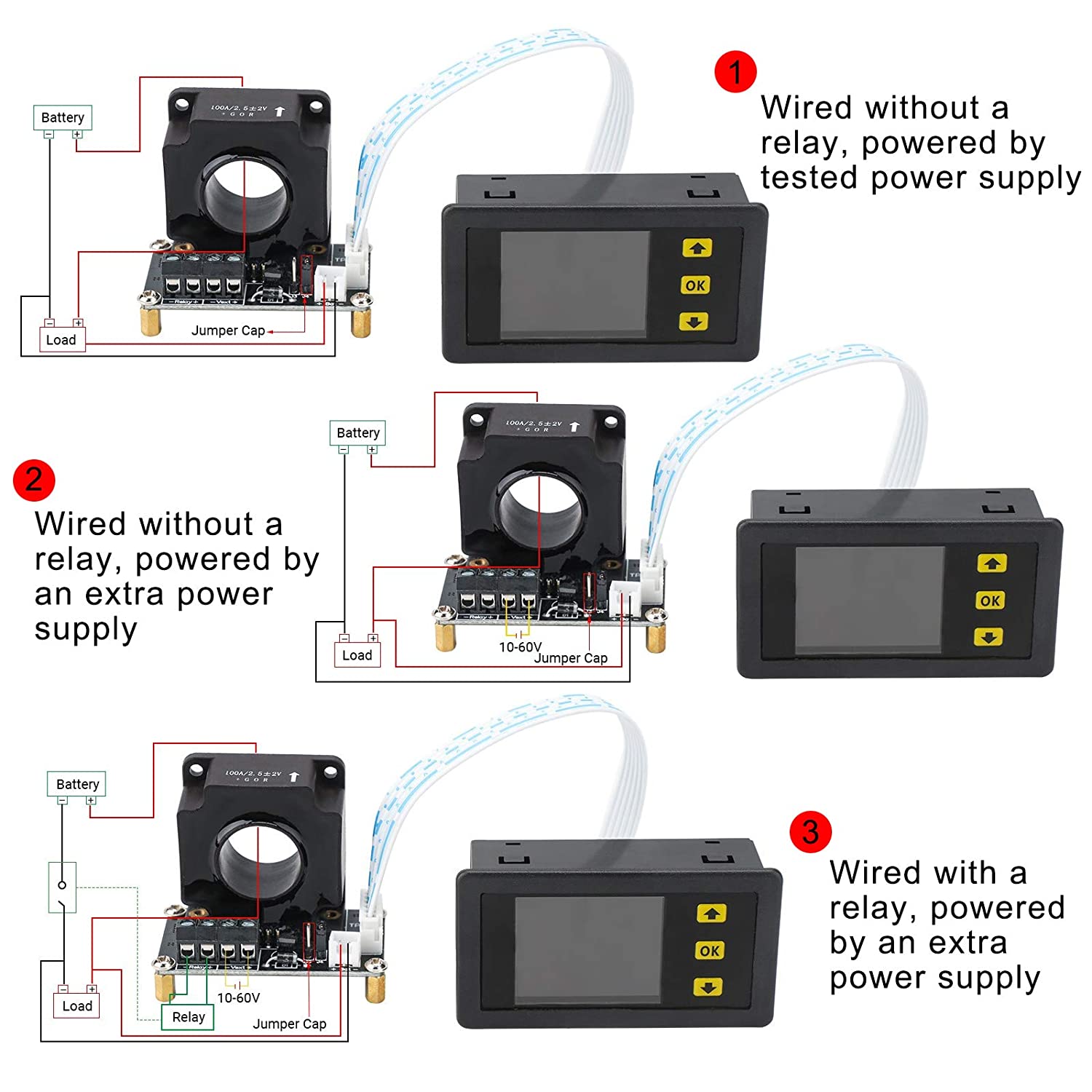

Check the jumper connection, which needs to be connected on J4 when no external power supply for the hall sensor, while on J3 with an external power supply added to the hall sensor.

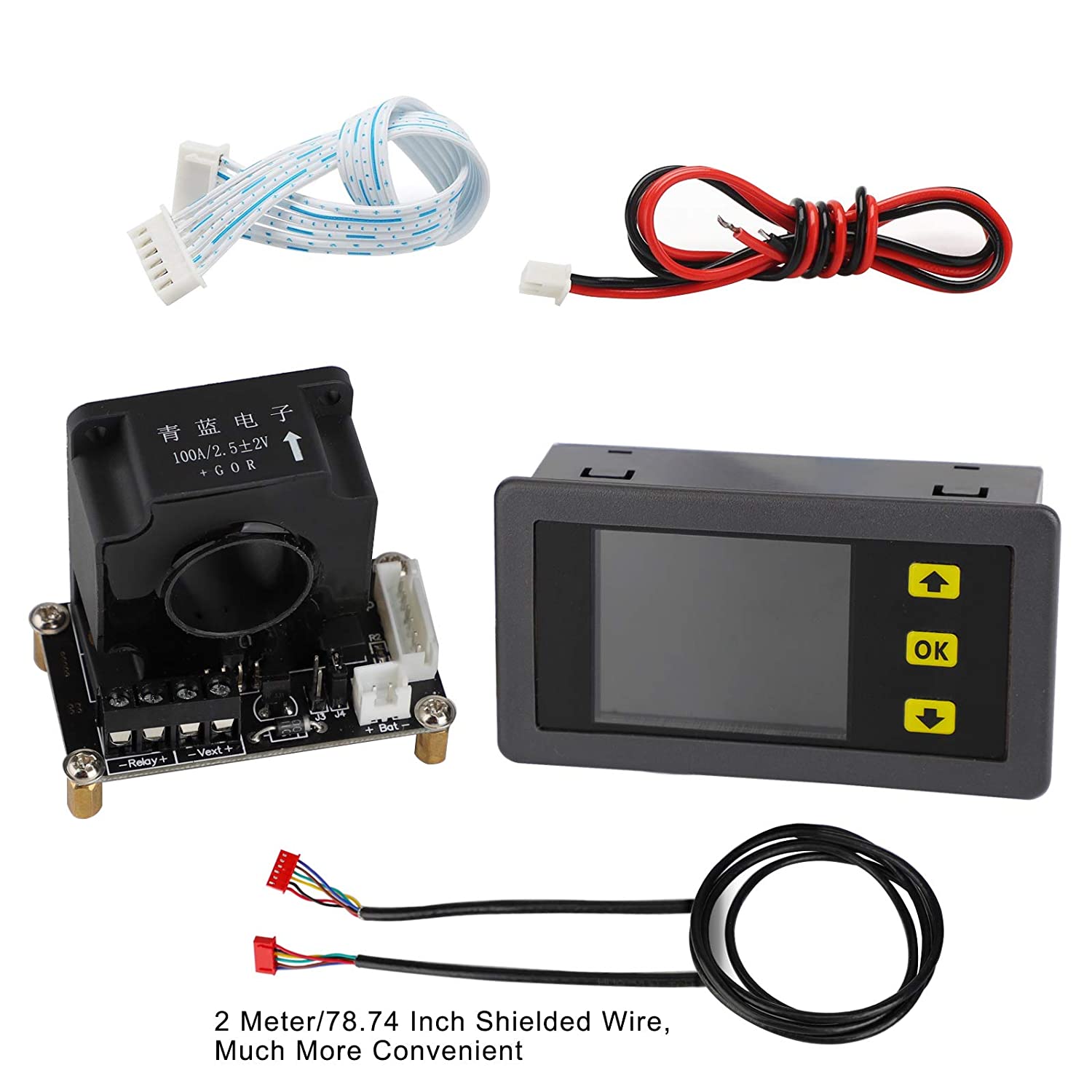

2-meter Shield Wire
Equipped with a 2 meters shilded wire, which is a good option for those who need to work with a long distance.
