-54% Power Converter/PWM Controller DC 4.5~30V to 0.8~30V 5A Buck Power Supply Module/Voltage Regulator DC 5V 12V 24V Adapter/Charger

Ask Question

It is a Power Supply Module/Adapter/Charger/PWM Controller,  Input Voltage: DC 4.5~30V, Output Voltage: DC 0.8~30V, Output Constant Current Range: 0.1~5A, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, LED lights, Fan, intercom and monitor system, etc.

  • Module properties: non-isolated step-down module (BUCK)
  • Input Voltage: DC 4.5~30V
  • Output Voltage: DC 0.8~30V
  • Output Constant Current Range: 0.1~5A
  • Operating temperature: -40°c to +85°c
  • Working frequency: 300KHz
  • PWM control frequency range: 100-300Hz
  • Conversion efficiency: up to 95%
  • Short circuit protection: YES ( the Limit current is the Setting constant current value)
  • Over-temperature protection: Yes (Over-temperature Automatically shuts down the output)
  • Input reverse polarity protection: None ( please install diode at input port )

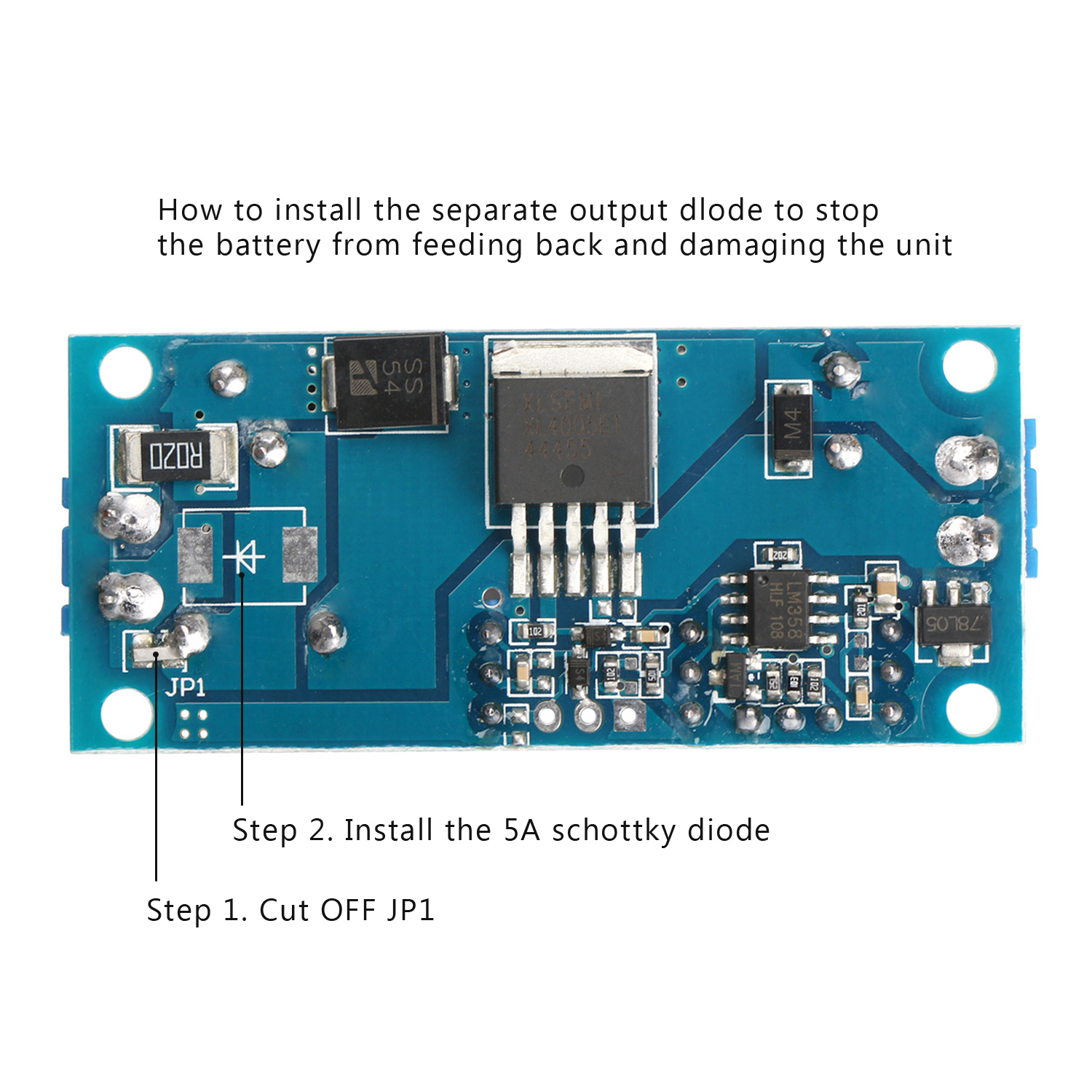

  • Output anti irrigation protection: None ( please follow the picture to install the Anti-irrigation diode )
  • Charging indication: charging Red light, full charged Green light
  • Installation: four 3mm screws

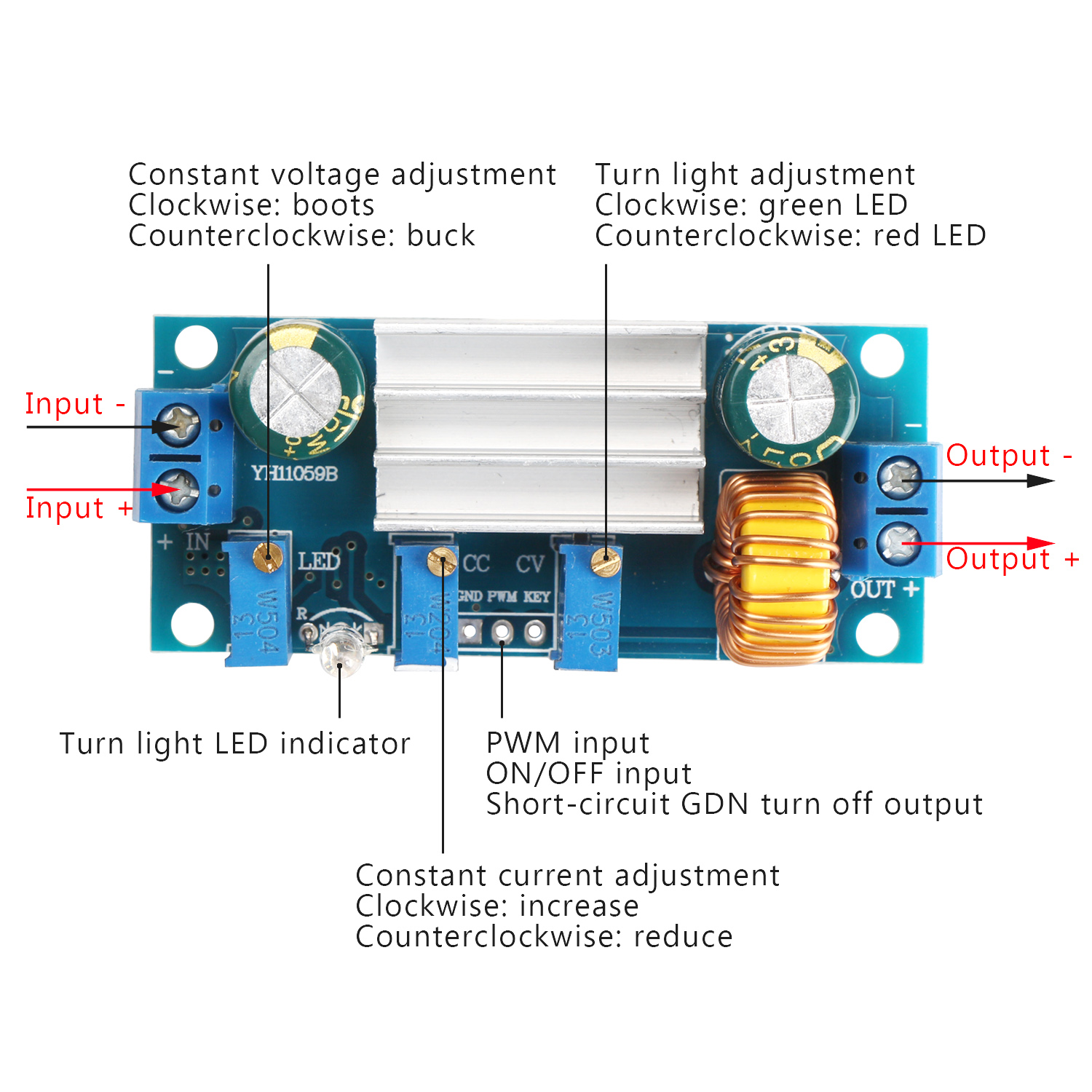

  • Wiring: Connection: V-IN input, V-OUT output

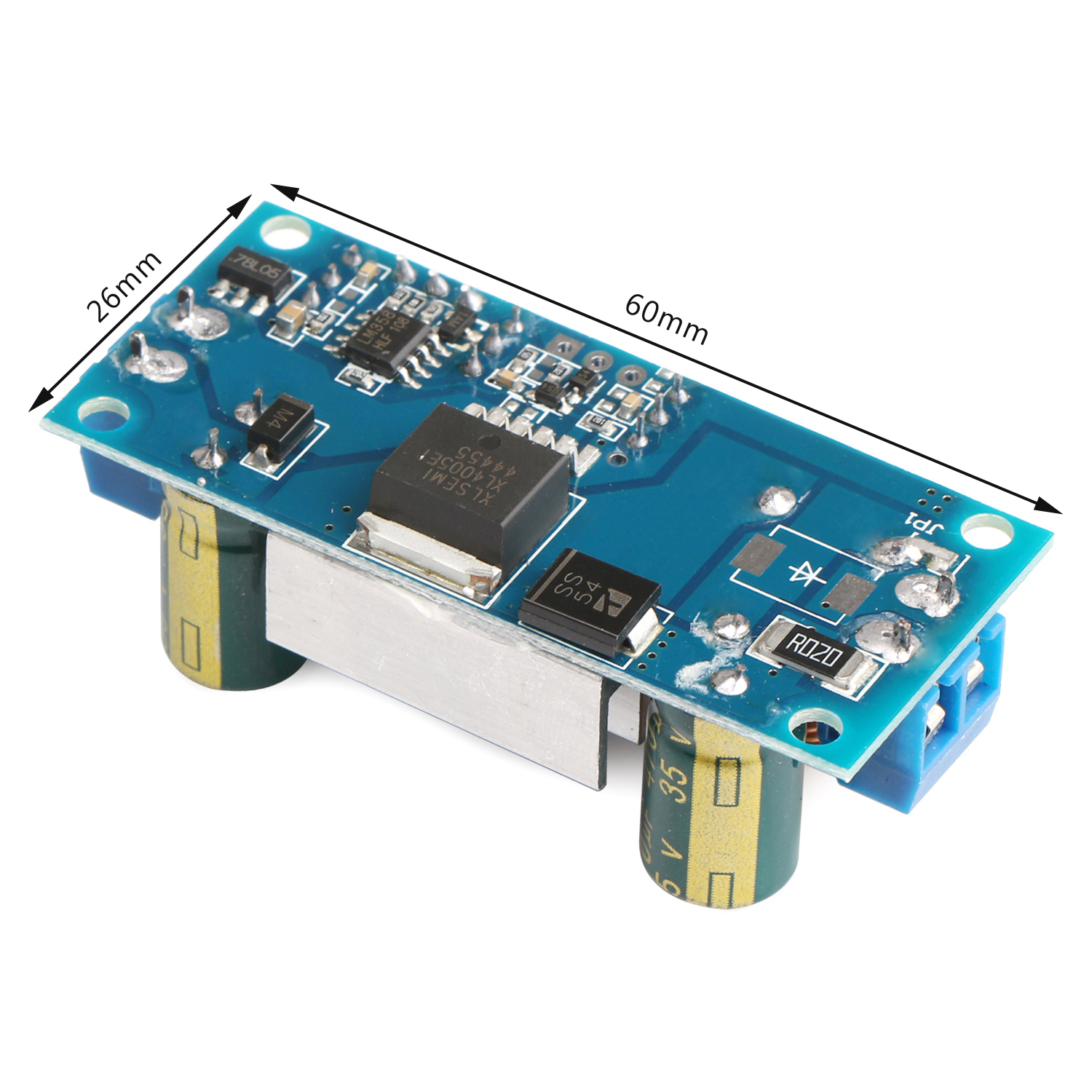

  • Dimensions: 60 x 26 x 20mm
Some Application:
  • DIY voltage Regulator, with constant current, can protect the load.
  • The power supply for electronic equipment.
  • For a variety of battery charging, Setting the charging voltage and charging current according to the different voltage and battery capacity, with charging indicator,
  • convenient to observe the state of charge.
  • solar panels power supply for battery charging, With constant current, which prevents battery overcharge.
  • Driver high-power LED, Free series-parallel combination, With PWM control input, Available SCM to Control the LED brightness (PWM control frequency range 100-300Hz).
  • Use as a car power supply, Power supply for electronic equipment.
Package Include:
  • 1 x DC Buck Converter ( Power Supply Module/Voltage Regulator/Adapter/Charger )
input voltage4.5~30V
output current0.1~5A
output power--
output voltage0.8~30V
output ways1
