Description:
Working Voltage Range: DC 4.0-25.0V
Discharging Power: Max 35W
Working Current: 0.03-5.00A

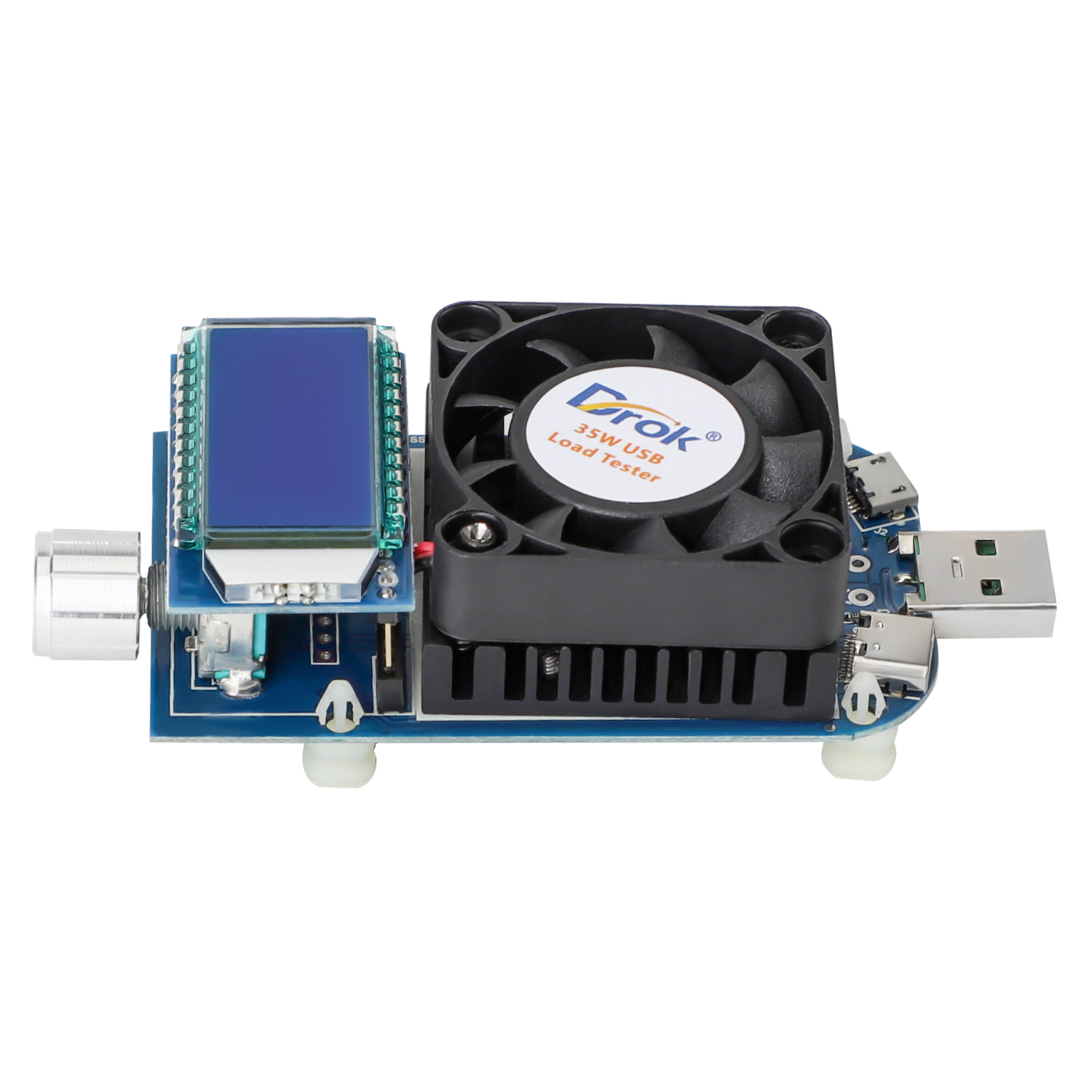

USB Intelligent Electronic Load
Support fast charge.
LCD high definition display, friendly human-computer interface and
excellent performance indicators to meet diverse testing needs.
Set maximum discharge Capacity (OAH) and maximum discharge time (OHP).
Intelligent temperature is greater than 40 ℃ fan starts automatically.
Fast charge automatic detection function.
Power-on Auto trigger fast charge function.
Features:

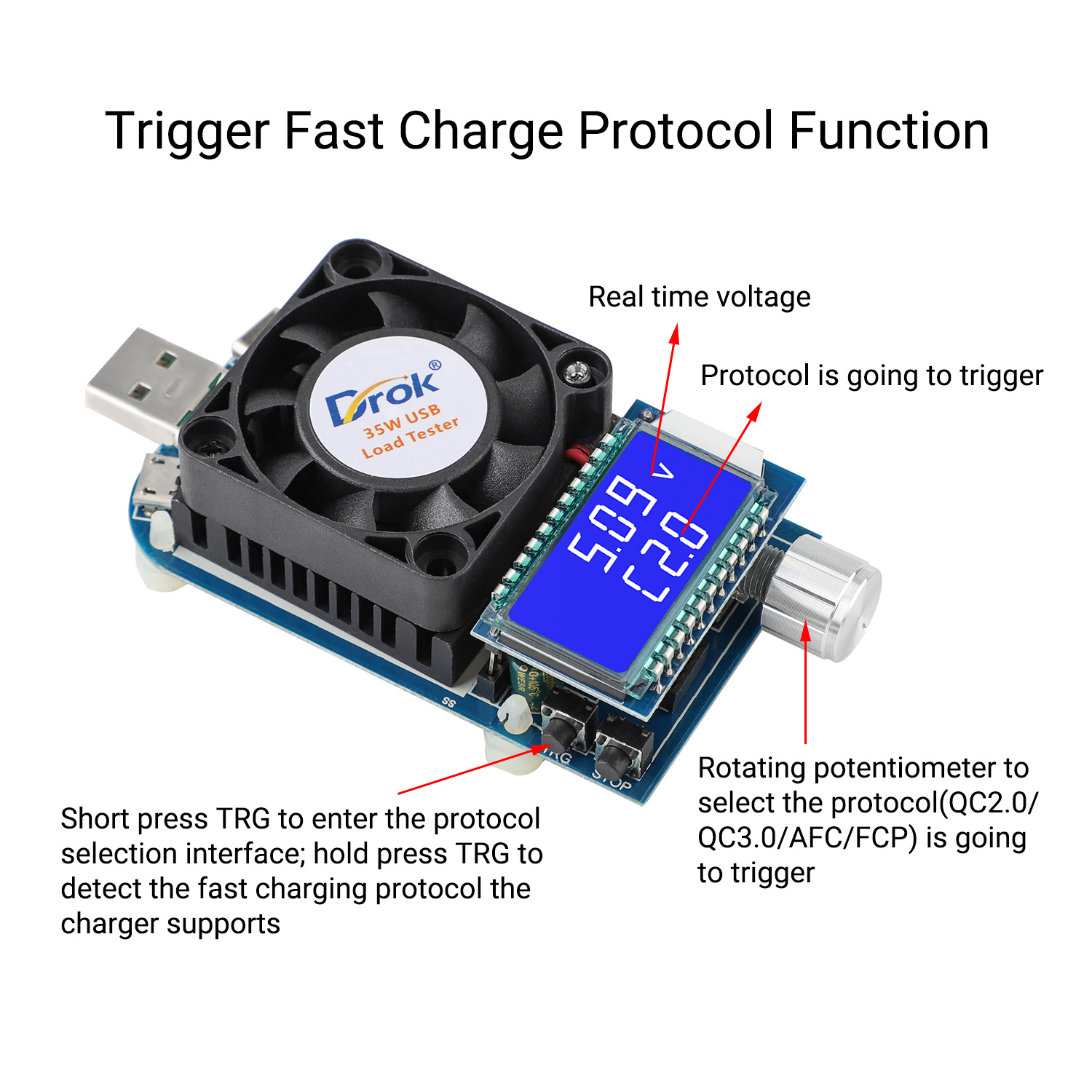

- USB Intelligent Electronic Load --- a electronic load, also can used to detect and test the QC2.0, QC3.0, AFC and FCP fast charge adapter, trigger output 5v / 9v / 12v / 20v.
- Application --- can be used for power aging test, charger factory batch aging test, battery discharge test.
- Parameters -- rated operational voltage range DC 4.0-25.0V, max discharging power 35W, rated operational current 0.03-5.00A.

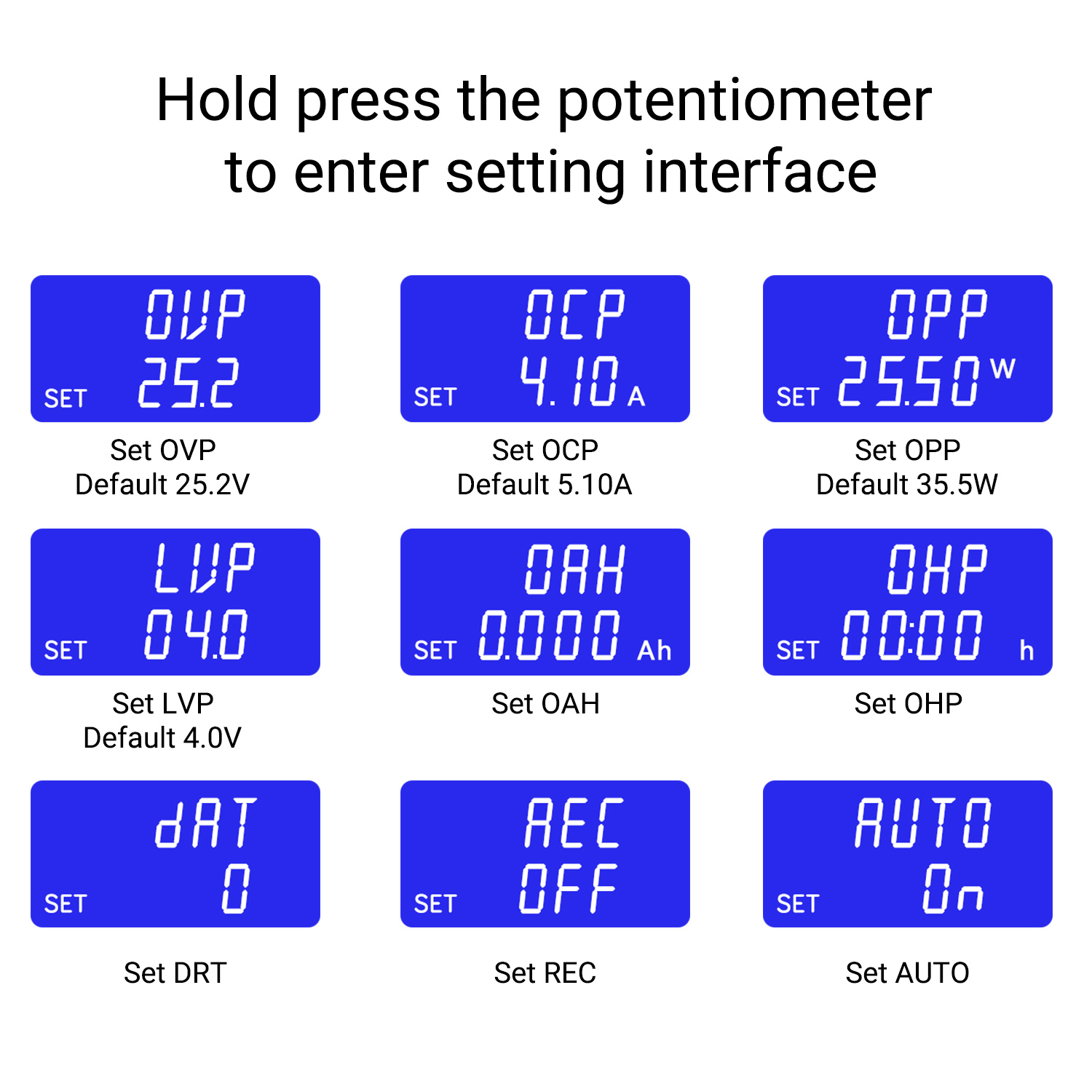

- Safe Protection -- anti-reverse protection, overvoltage protection OVP, overcurrent protection OCP, over-power protection OPP, low-voltage protection LVP, over-temperature protection OTP.

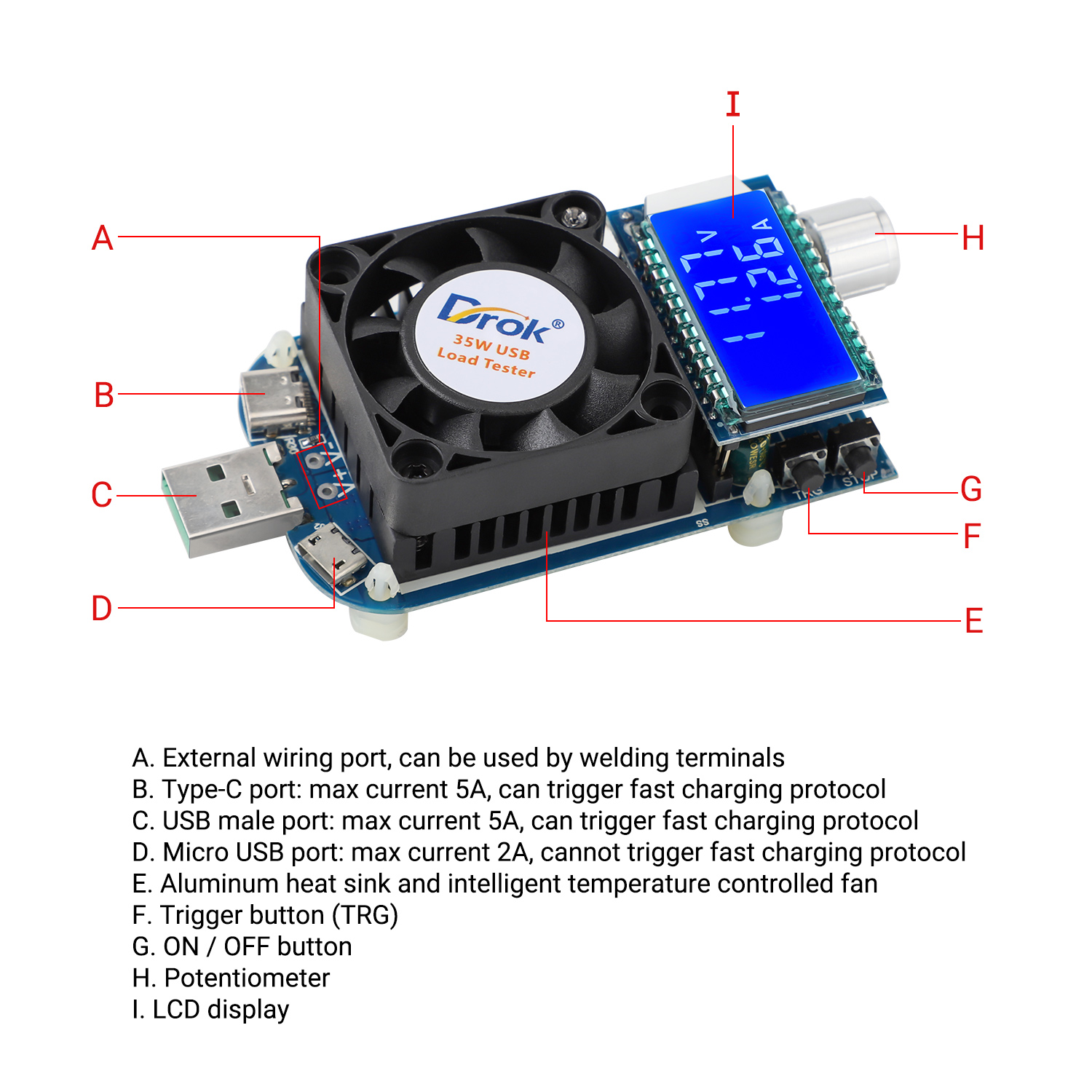

- Connection Ports --- USB, Micro USB, Type C and external wiring port.
Package Includes:
1 x USB Load Tester
