Hello Ralph E Burns,

Thanks for writing in.

Apparent power does not represent the actual power consumed by AC circuit, it is  the maximum power that the circuit may provide or the maximum active power that the circuit may consume.

For example, The output capacity of transformer is showed by apparent power, it means the maximum output transformer can hold.

For any mroe questions, please kindly let us know.

Best regards.

Hello Gill St Onge,

Thanks for your order and sorry for inconvenience may cuase.

As it is raw board, factory doesn’t have paper for it. Here is a pdf instruction for your reference. 090627

Any more questions, please kindly let us know.

Best regards.

Hello Donald J Steele,

Thank for writing in.

Are you talking about 200141 item? Please kindly refer to the following wiring. It may help you to get more details about positive and negative. If there are any other questins, please kindly contact us.

Best regards.

Hello Michael，

Thanks for writing in.

We are not sure  which wire goes through CT, is it neutral wire?

There are two hot wires in your system, but CT can only hold one wire and meter can only read one of them. You need two meters to check them separately.

In addition,  the green terminal should be connected to hot wire and neutral instesd of two hot wires.

Best regards.

Hello Jonathan，

200338 is a buck converter. Output voltage can’t be larger than input. If input voltage drops below  12V,  output will also change.

Best regards.

Hello Randy,

Thanks for writing in.

As shown in following picute, you may press K+ button  to enter to F0 and F2 setting.

To set battery speification, plesae keep pressing k-  button then connect  power  supply (don’ release the button)

Any more questions, please feel free to cotnact us.

Hello Walt,

Thanks for writing in and sorry for inconvenience caused on you.

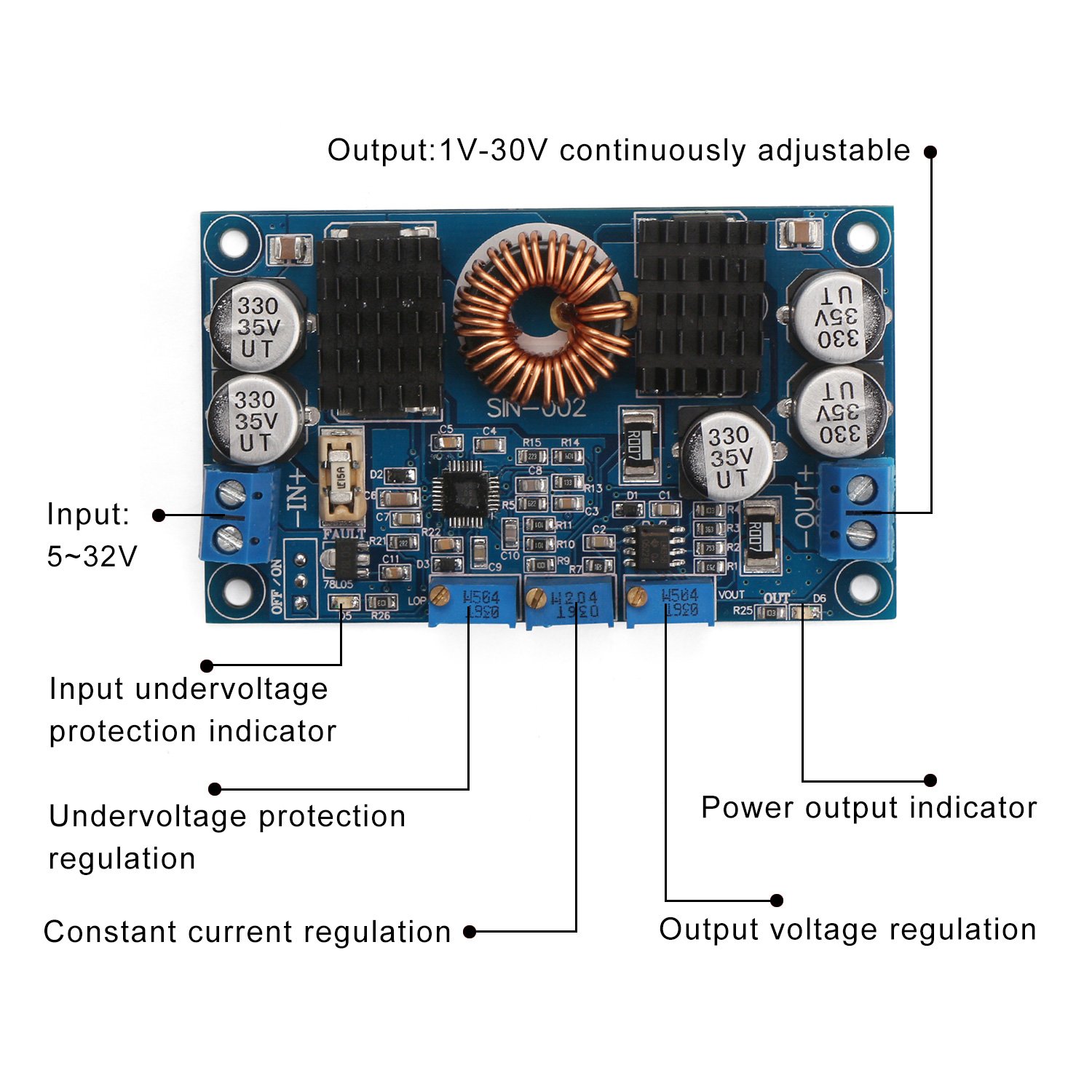

Here we attached the link again. 200133

Best regards.
