Input Voltage: DC 5V~32V (12V/24V)
Output Voltage: DC 12V
Output Current: 3A
Output Power: 36W
Conversion Efficiency: 95%
Operating Temperature: -40~+85℃, industrial grade

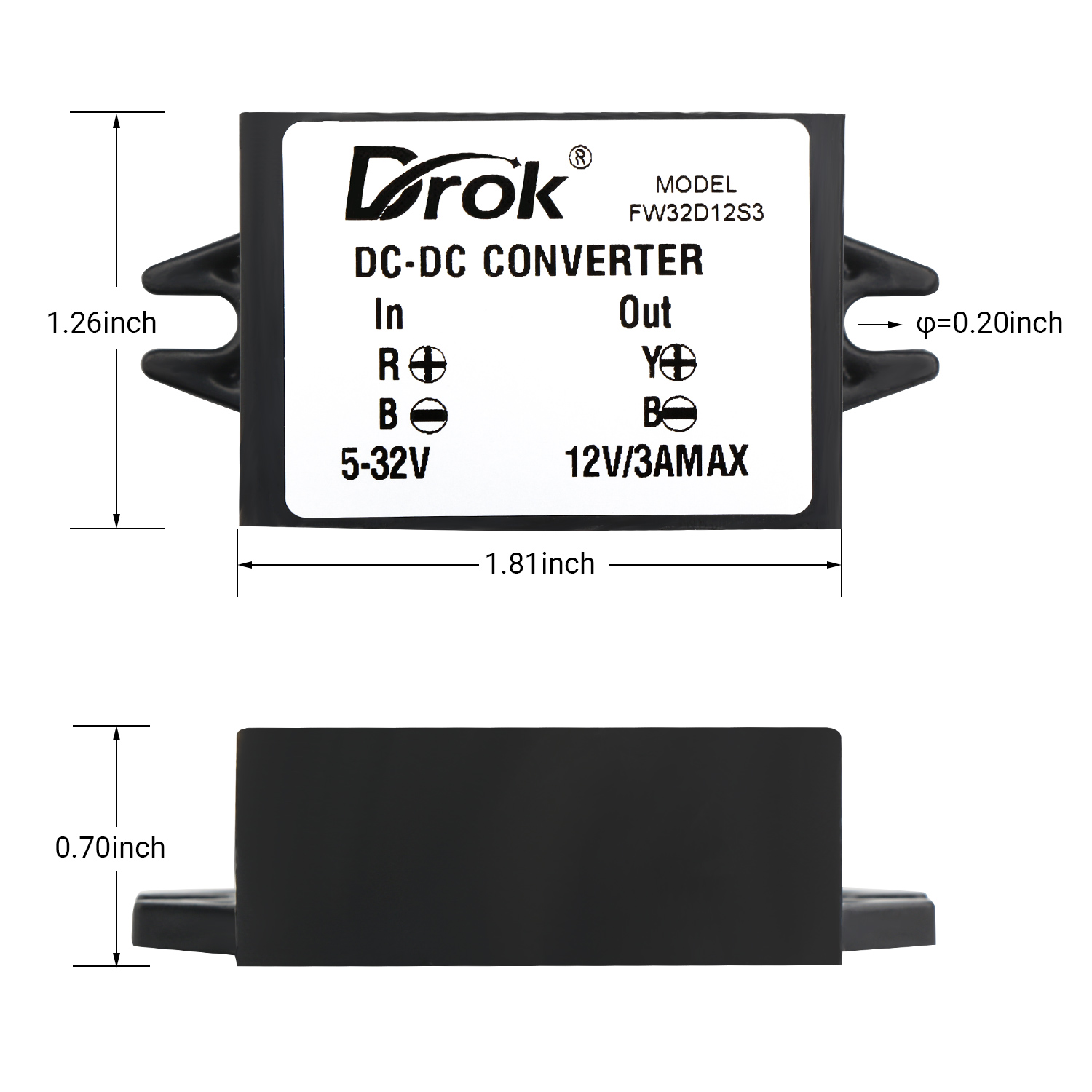

Dimension: 1.81*1.26*0.70 inch
Installation Hole Distance: 56mm/2.20 inch
Installtion Hole Dismeter: 4mm/0.16 inch
Installation Cable Length: 13~14cm/5.12~5.51 inch
Waterproofing Grade: IP67
Heat Dissipation Method: natural cooling
Protective Function: over-current, over-heat, instantly absorb high voltage protection
1) PARAMETER --- DROK buck boost converter module input voltage is DC 5V~32V (12V/24V); output voltage is DC 12V; output current is 3A; output power is 36W.
2) APPLICATION --- this step up down voltage regulator can be used for motor, car navigation system, photovoltaic panel, LED display screen, electric fan, audio speaker, etc.
3) PROTECTIVE FUNCTION --- over-current, over-heat, instantly absorb high voltage protection.
4) HIGH CONVERSION EFFICIENCY --- synchronous voltage stabilization technology, with a conversion efficiency of over 95%, low heat generated.
5) FEATURE --- flame-retardant plastic shell, with few heat generated, reliable and durable; silicone sealed, with IP67 waterproof grade, dust-proof, waterproof, shock-proof, can be used in various environment.
1x 12V Buck Boost
- Stock: In Stock
- Model: 200493
- Weight: 0.10kg
- Dimensions: 10.00cm x 10.00cm x 10.00cm
- SKU: 200493
