Features:

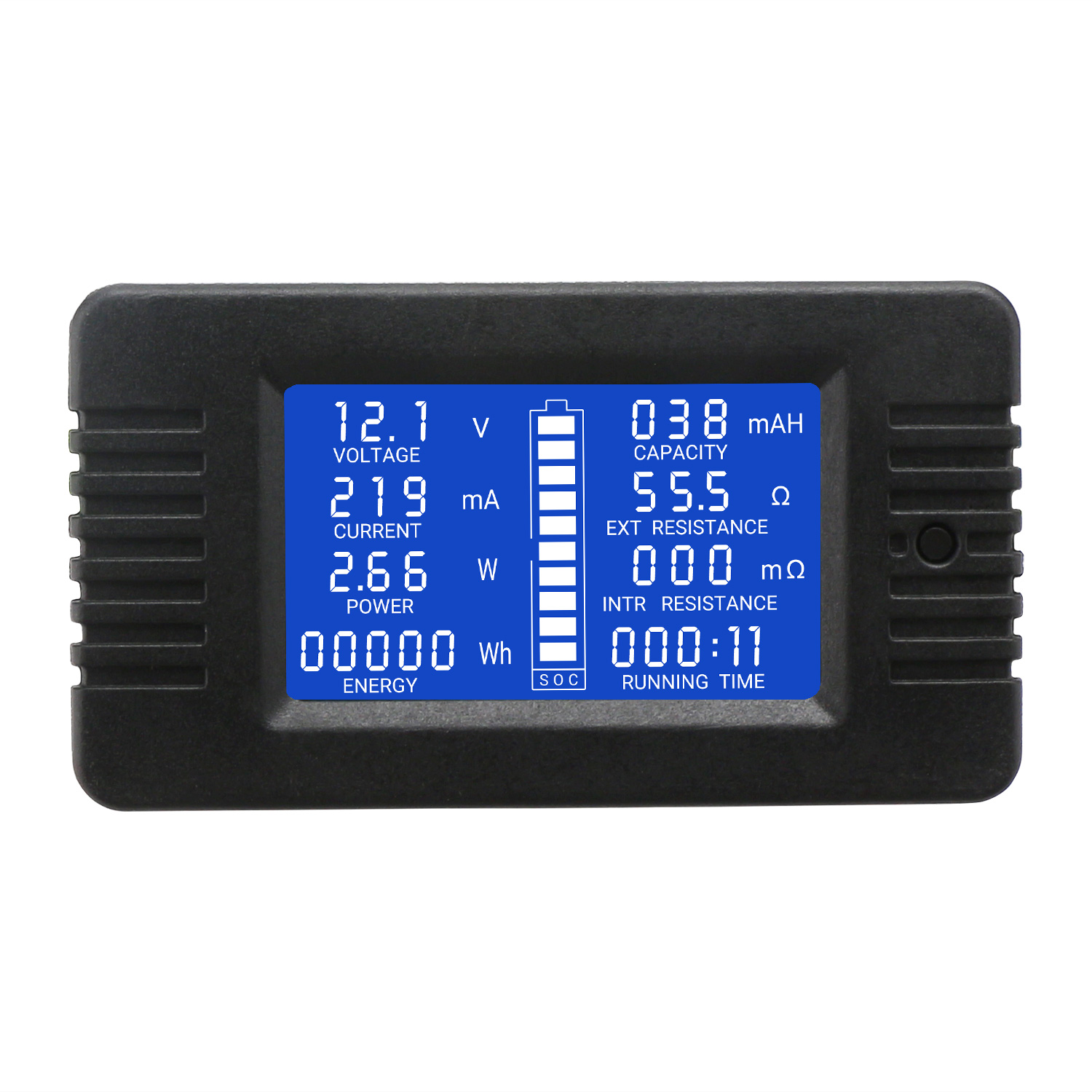

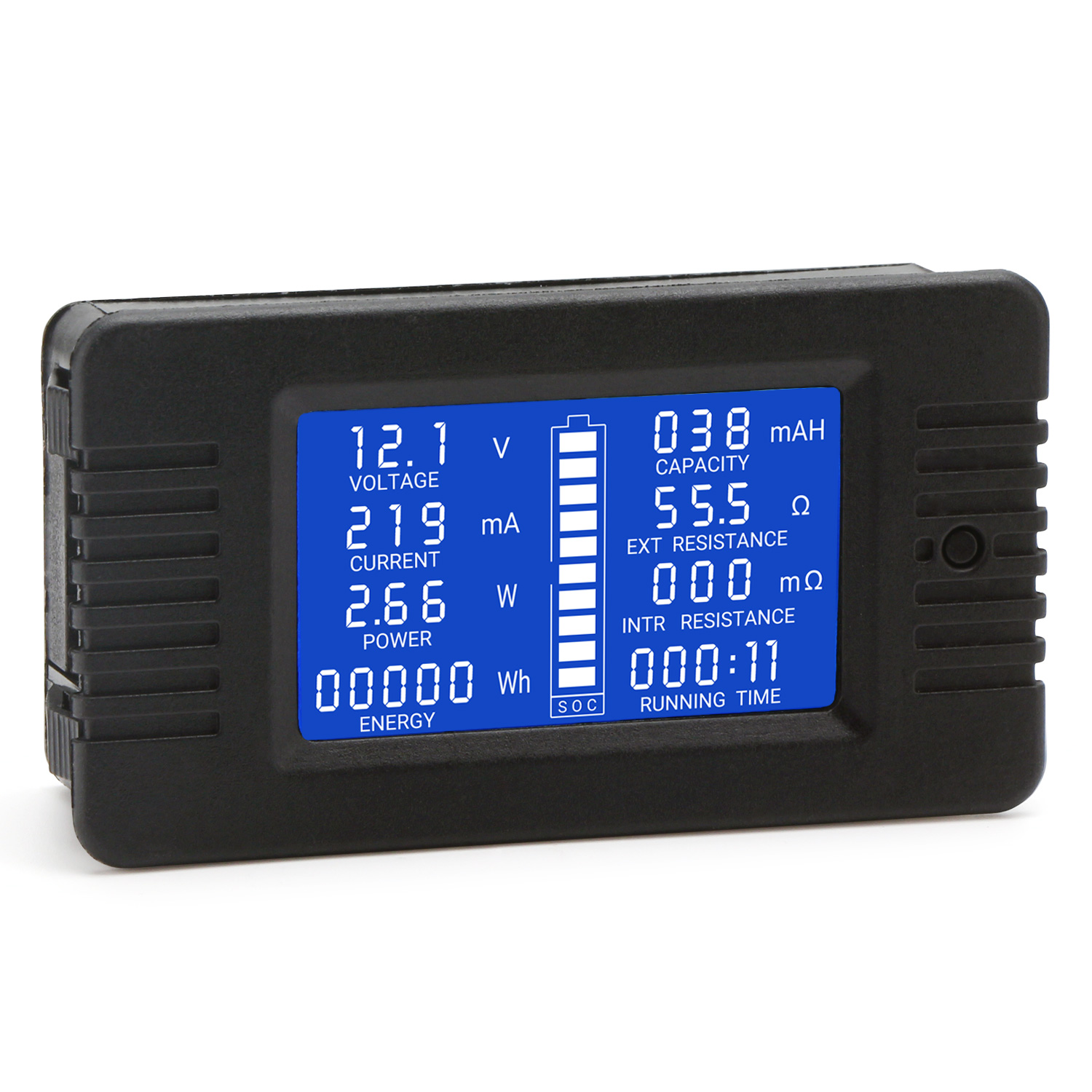

(1) 9-IN-1 MULTIMETER --- measure and display voltage, current, power, energy consumption, capacity, internal resistance, external resistance, running time and SOC simultaneously on one interface.

(2) MEASURING RANGE --- Voltage 0-200V, Current 0-10A, Power 0-2kW, Energy Consumption 0-9999kWh, Capacity 0-1000AH, Internal Resistance 0-999mΩ, External Resistance 0-1000Ω, Running Time 0-999h.

(3) DISPLAY --- STN LCD display, with switchable backlight, provide a better visual experience whenever day or night.

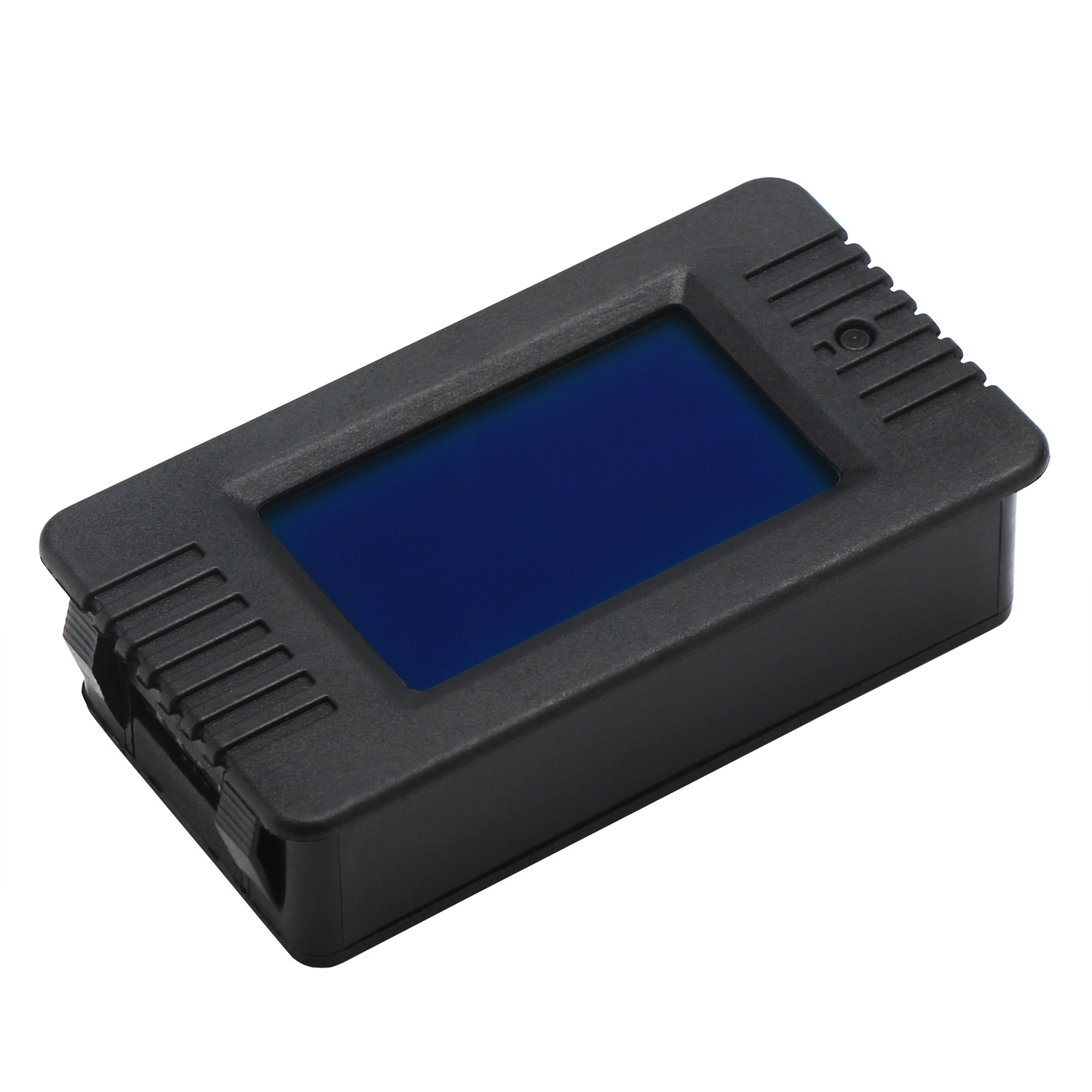

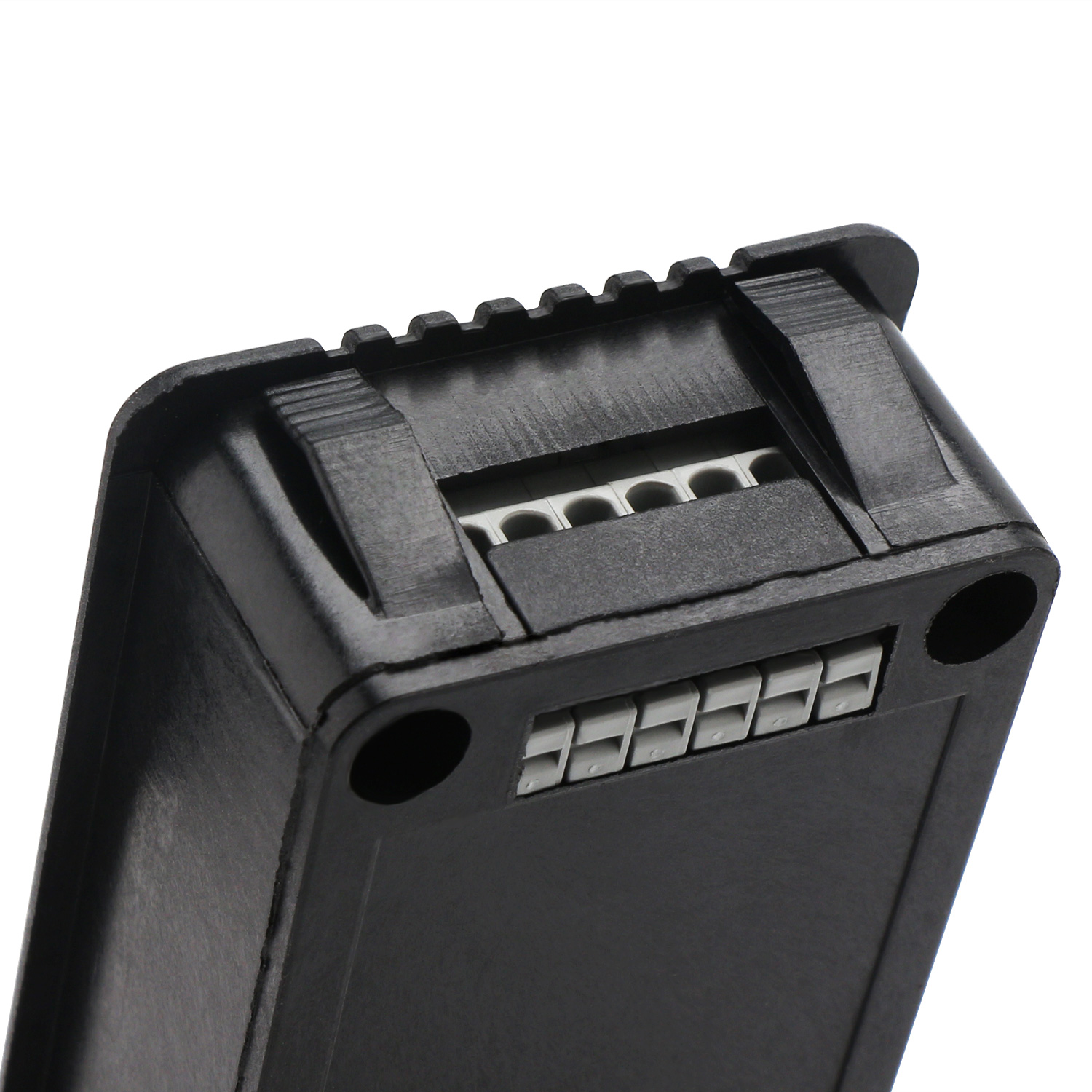

(4) FEATURES --- high-precision chip for accurate measurement; no screw installation; strengthened nylon case.

(5) WIDE APPLICATION --- widely used for auto, RV, solar system, industrial assembly line, etc.

Description:

Measuring Parameter:

Voltage, current, power, energy consumption, capacity, internal resistance, external resistance, running time and SOC

Voltage:

Measuring range: 0-200V

Minimum resolution: 0.01V

Measurement accuracy: 1%

Current:

Measuring range: 0-10A

Minimum resolution: 1mA

Measurement accuracy: 1%

Power:

Measuring range: 0-2000W

Minimum resolution: 0.01W

Measurement accuracy: 1%

External Resistance:

Measuring range: 0-1000Ω

Minimum resolution: 0.1Ω

Measurement accuracy: 1%

Internal resistance:

Measuring range: 0-999mΩ

Minimum resolution: 1mΩ

Measurement accuracy: 1%

Capacity:

Measuring range: 0-1000AH

Minimum resolution: 1mAH

Measurement accuracy: 1%

Running time:

Measuring range: 0~999h

Working Temperature Range: -20℃~60℃

Working Mode:

Normal display mode & hibernate mode.

Application:

This DC multimeter display panel can be widely used for auto, RV, solar system, industrial assembly line, etc.

Note:

1. This multifunctional meter is only suitable for indoor use, please do not use it outdoor.

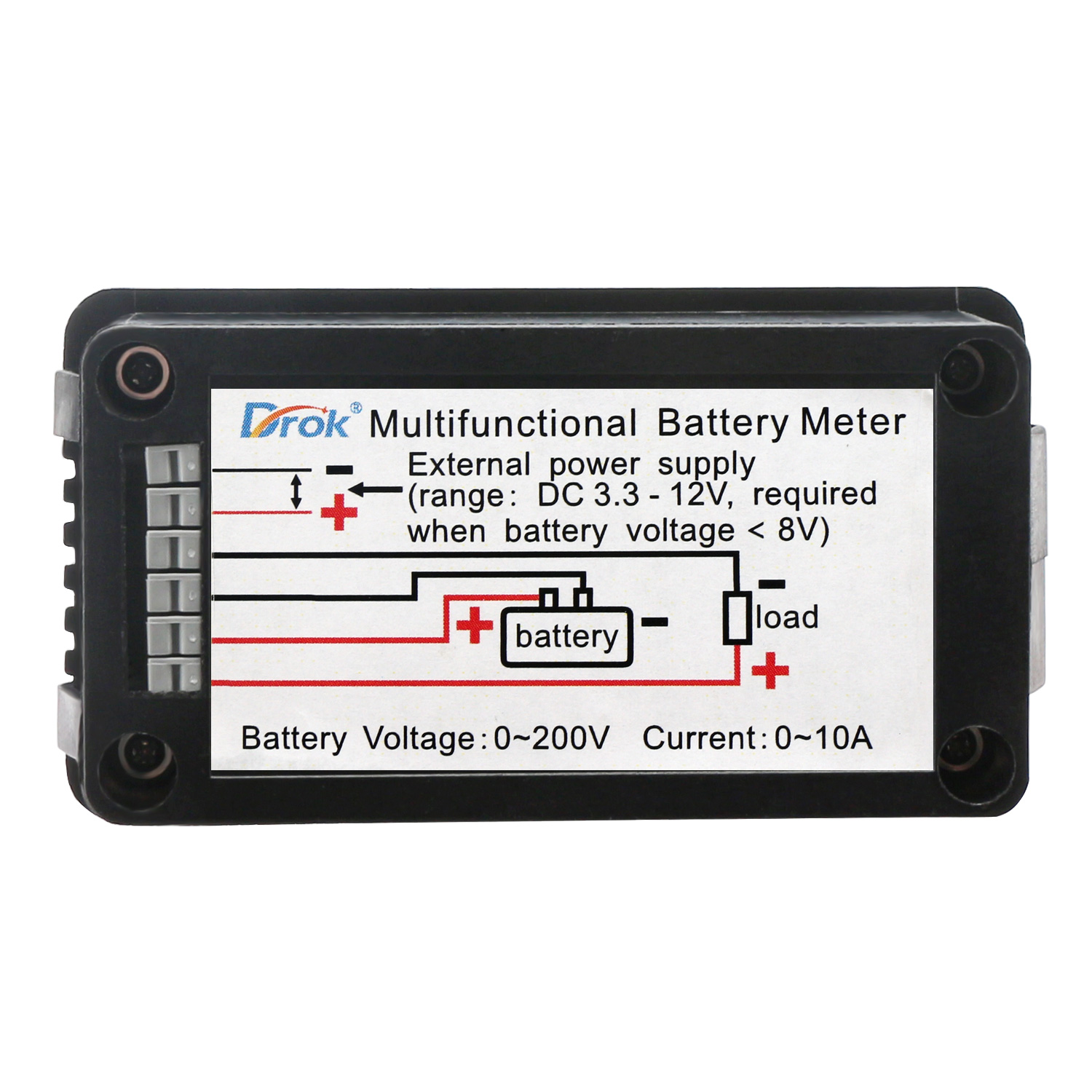

2. Please connect the wires in strictly accordance with the wiring diagram.

3. The power of the load cannot exceeds the rated power.

Package Included:

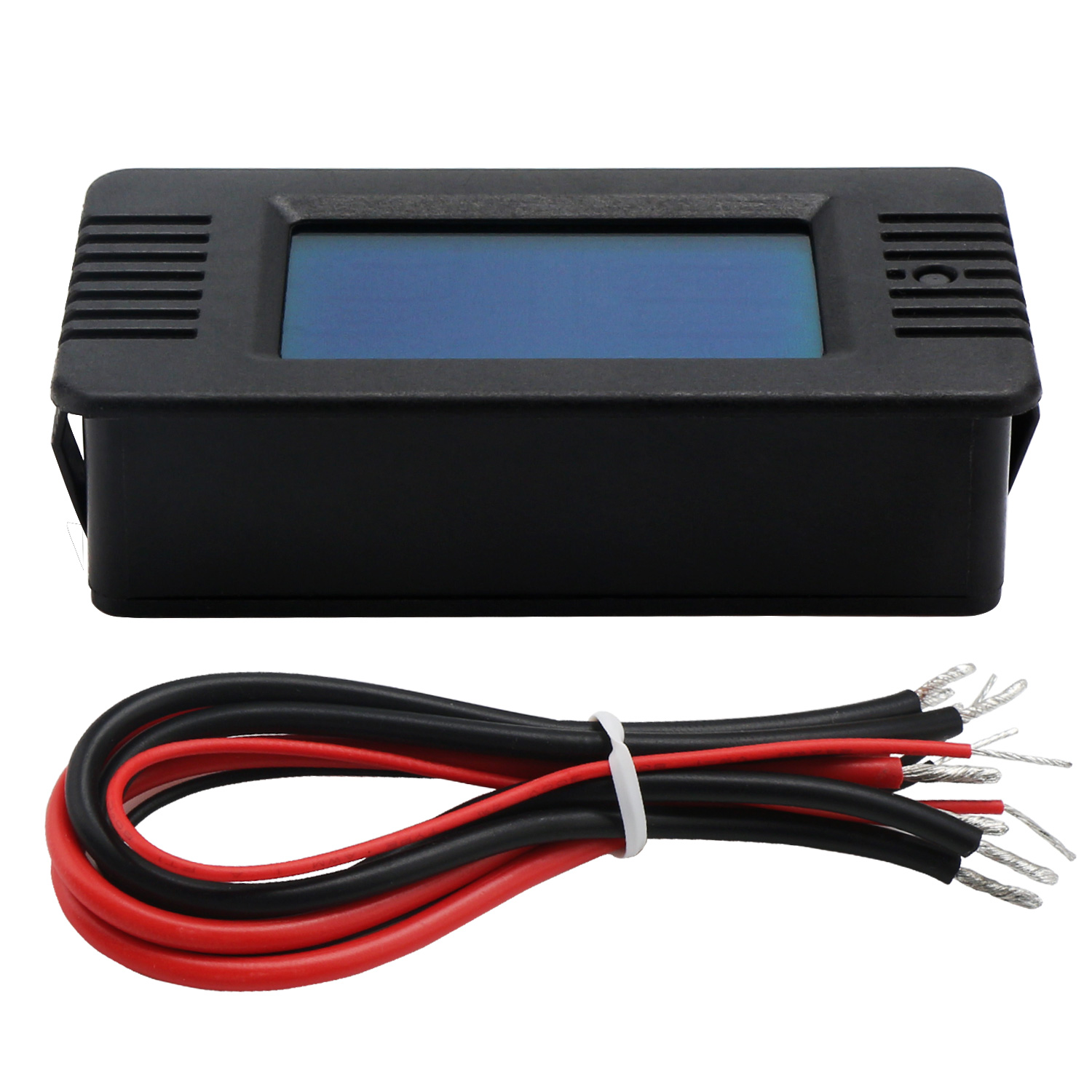

1x DC Multimeter Panel
