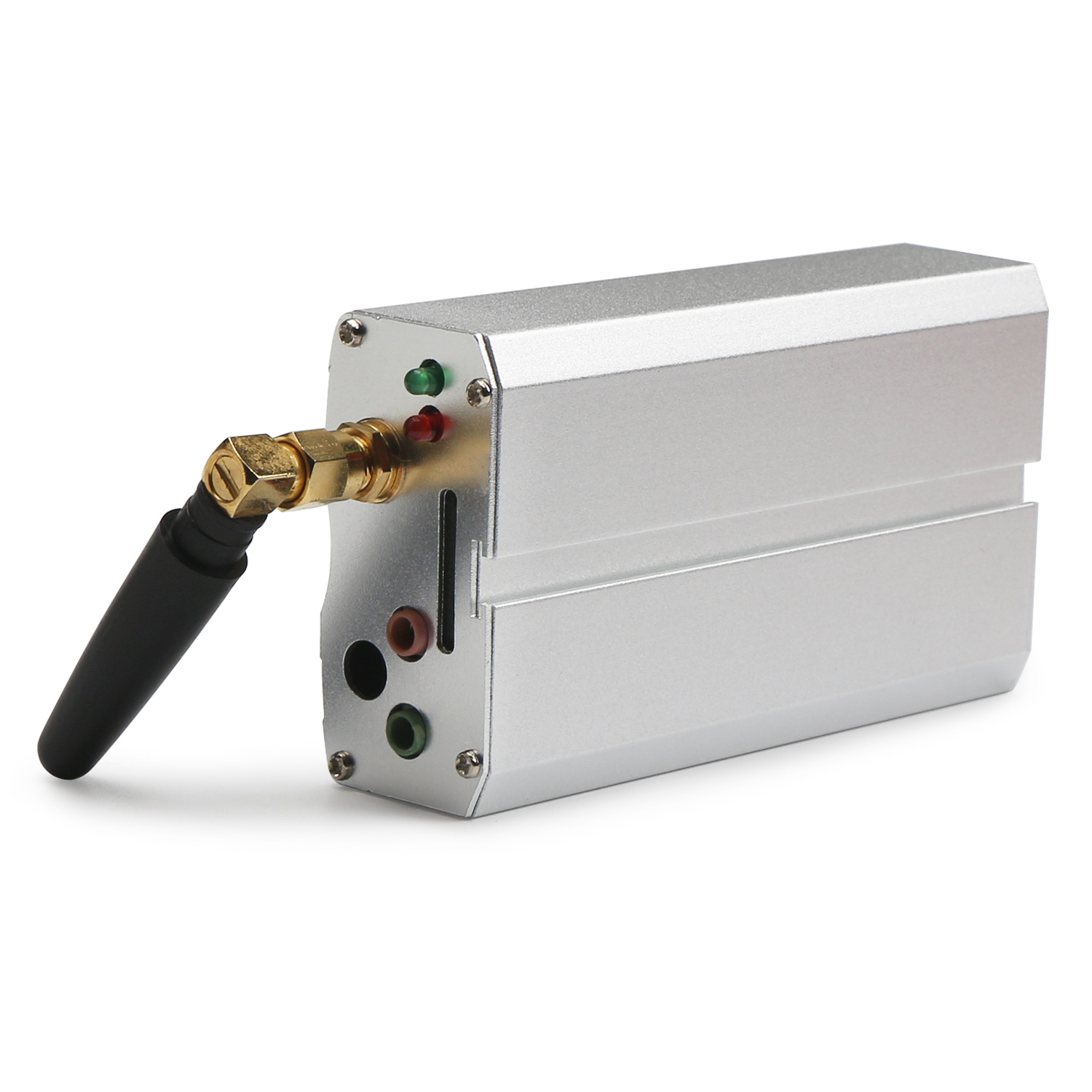

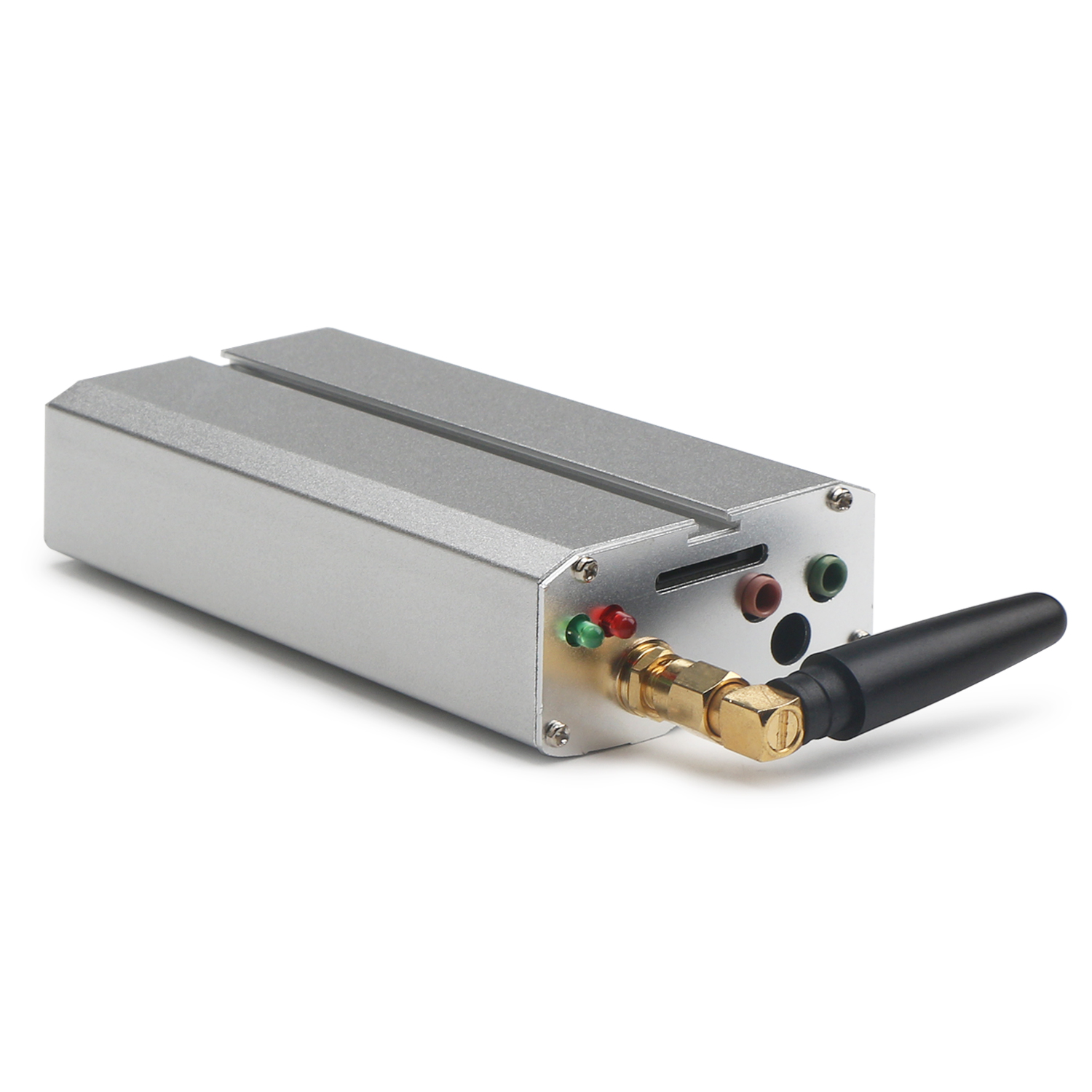

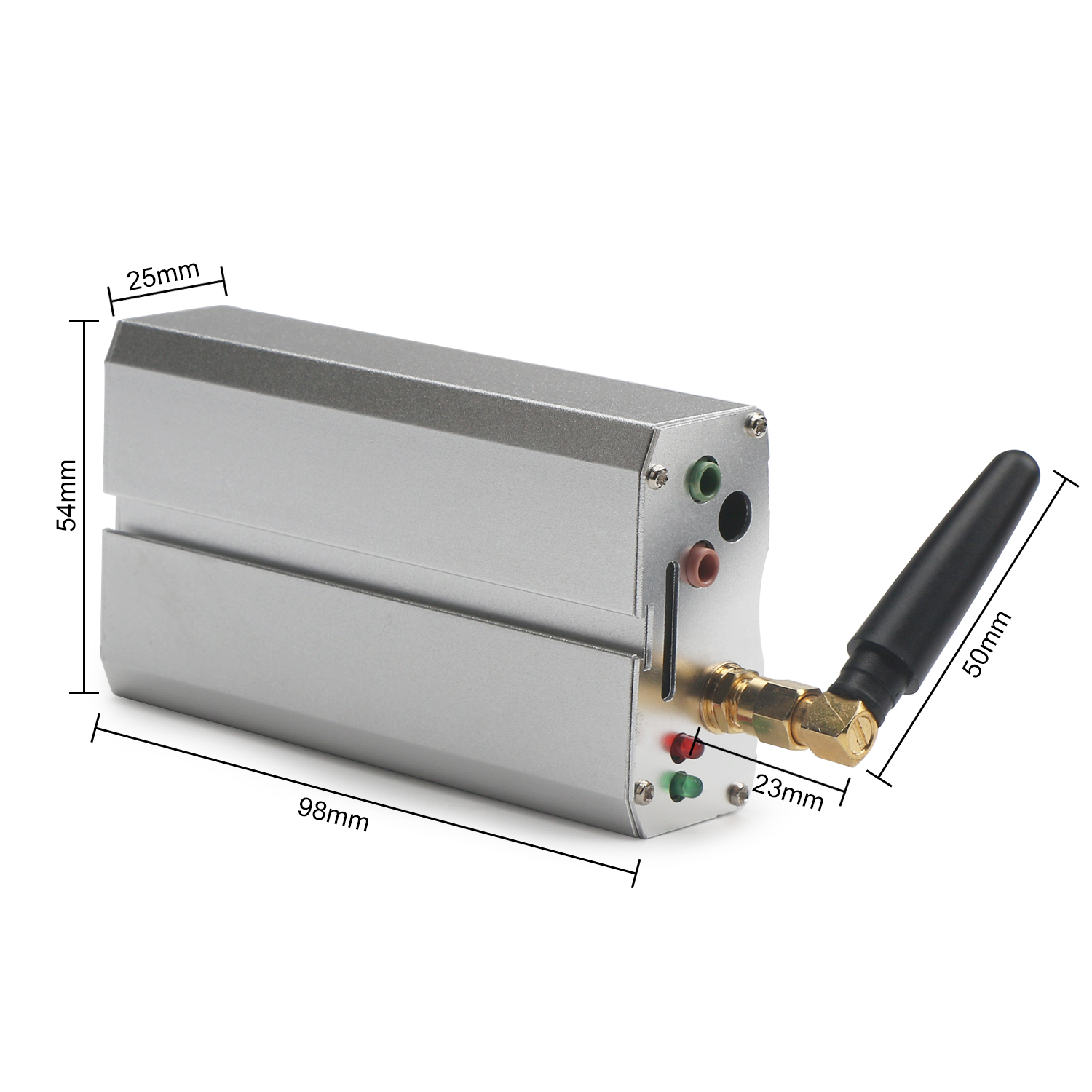

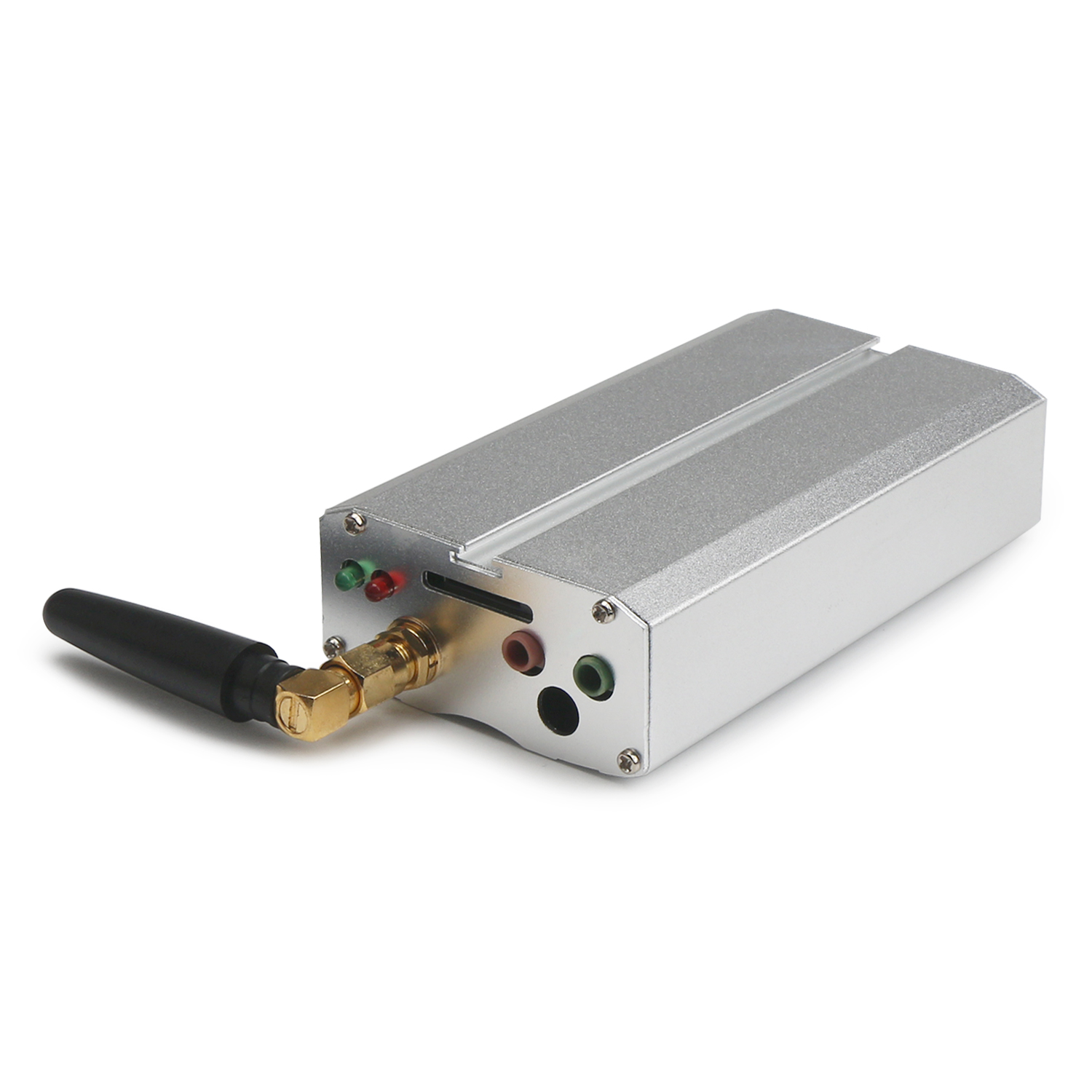

-41% SIM800 Development Board GSM/GPRS Arduino Expansion Module with Audio Port Supports SMS,MMS and the GPRS Connection etc

Ask Question

It is a SIM800 Module Development Board, Wide input voltage range: DC 5 ~ 15V, usually 5V is suggested. Supports SMS,MMS and the GPRS connection, This board is  SMA antenna interface with Audio interface.

Product Information:
  • QL800 module supports SMS,MMS and the GPRS connection and its kernel is SIM800 and SIM800A. Users use the standard AT commands to control it, in fact,you can send a text message in both English and Chinese, voice calls, and links to GPRS by sending a few AT commands.
  • GPRS can be a TCP or UDP link, linked directly by IP or domain name and also can be set to be transparent transmission mode.

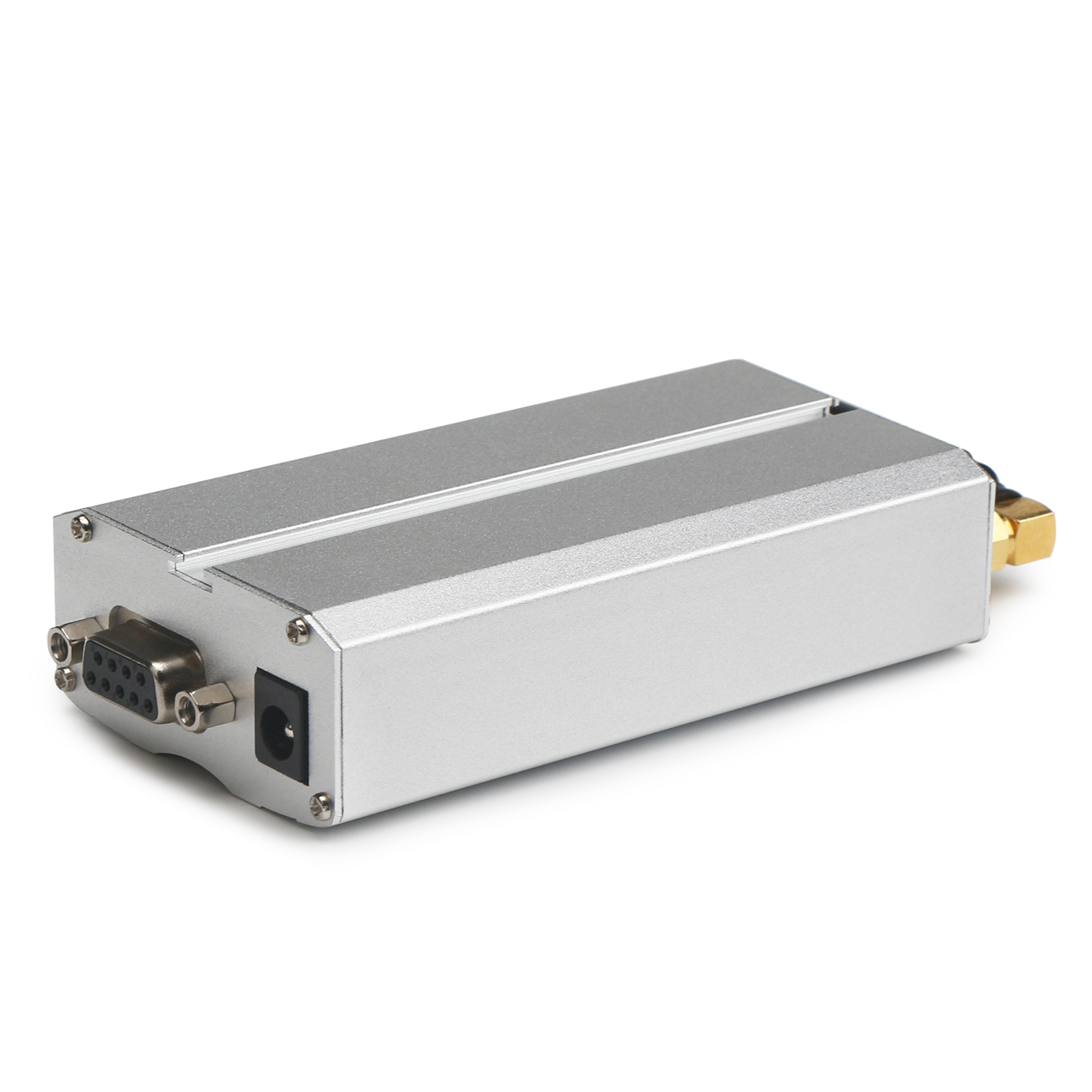

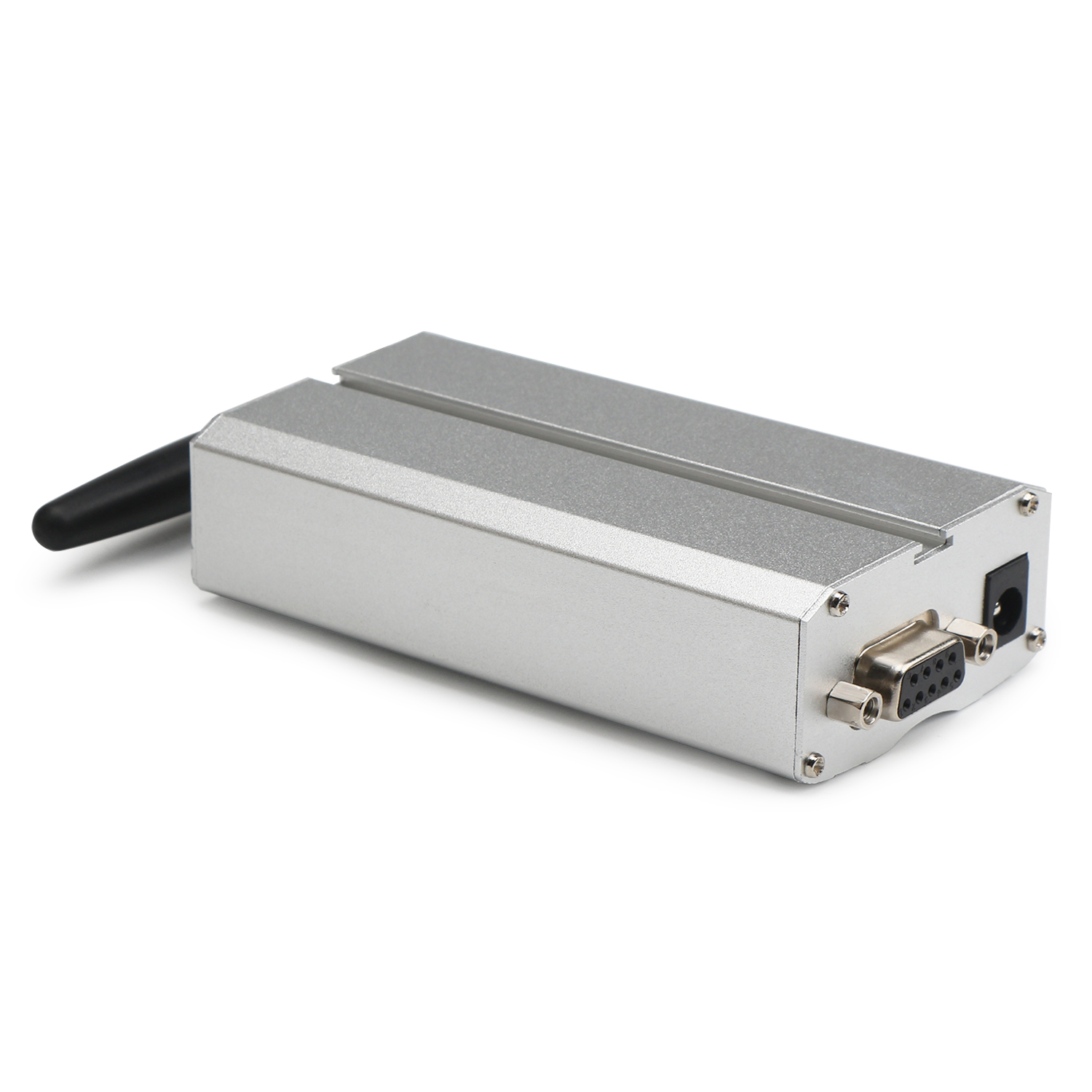

  • This module provides a standard RS232 interface (DB9 female interface), which can be directly connected to the PC and other embeddable devices and then sending the AT command through a serial port, at this time you can send messages and make a call.
  • Whatever the control system of the control end (upper computer) is, such as Windows, LINUX or other real-time operating system, or even no system such as PLC and SCM, as long as you can control a serial port to send and receive data, you can use this module.
Module function characteristics:
  • 1. This board is equipped with serial port electric level conversion chip, the serial port is drawn by RS32 interface and connected to computer directly, then you can test this board on computer.
  • 2. Wide input voltage range: DC 5 ~ 15V, this board is so flexible that it can accept different power supply voltage of the system. Usually, we suggest to use 5 v. There is also a 5.5 * 2.1 DC005 reserved power interface.
  • 3. Work automatically when electrify it without pressing any button or you can use SCM to control and make it turn on..

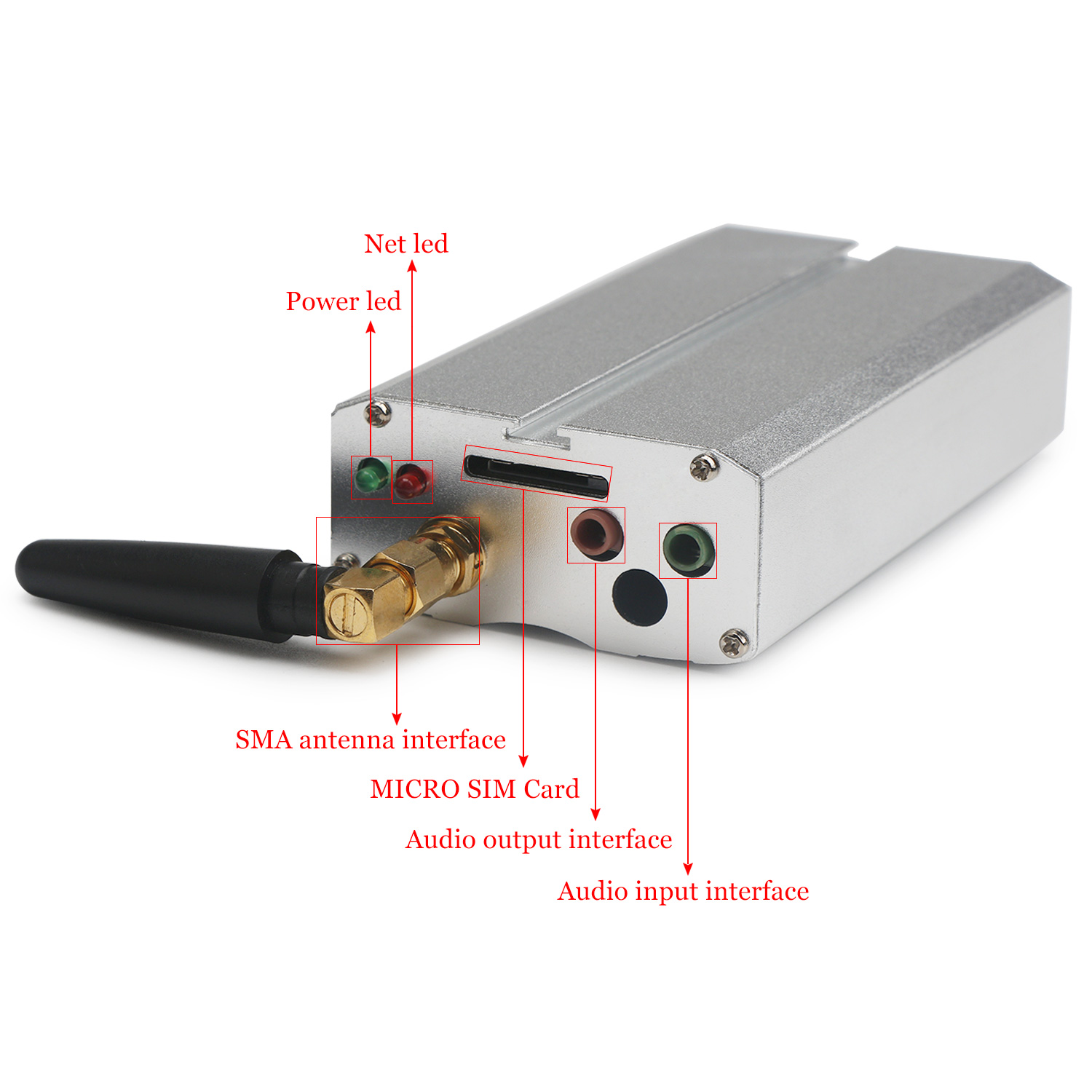

  • 4. With LED indicating the network status, working status and reminding you when a call coming, you will be clear to the working condition of this board.
  • 5. This board is designed with SMA antenna interface, which will make the antenna solid and not easy to fall off .
  • 6. Audio interface: we use the standard 3.5 mm audio input and output ports so that it can be compatible for computer headphone jack.
  • Note: the 95% of the users' mobile phone cards are small cards, so we adopt small cards for this module.
Package Includes:
  • 1 X SIM800 Module with Antenna
Attributes
input voltage5~15V
output current--
output power--
output voltage--
output ways1
