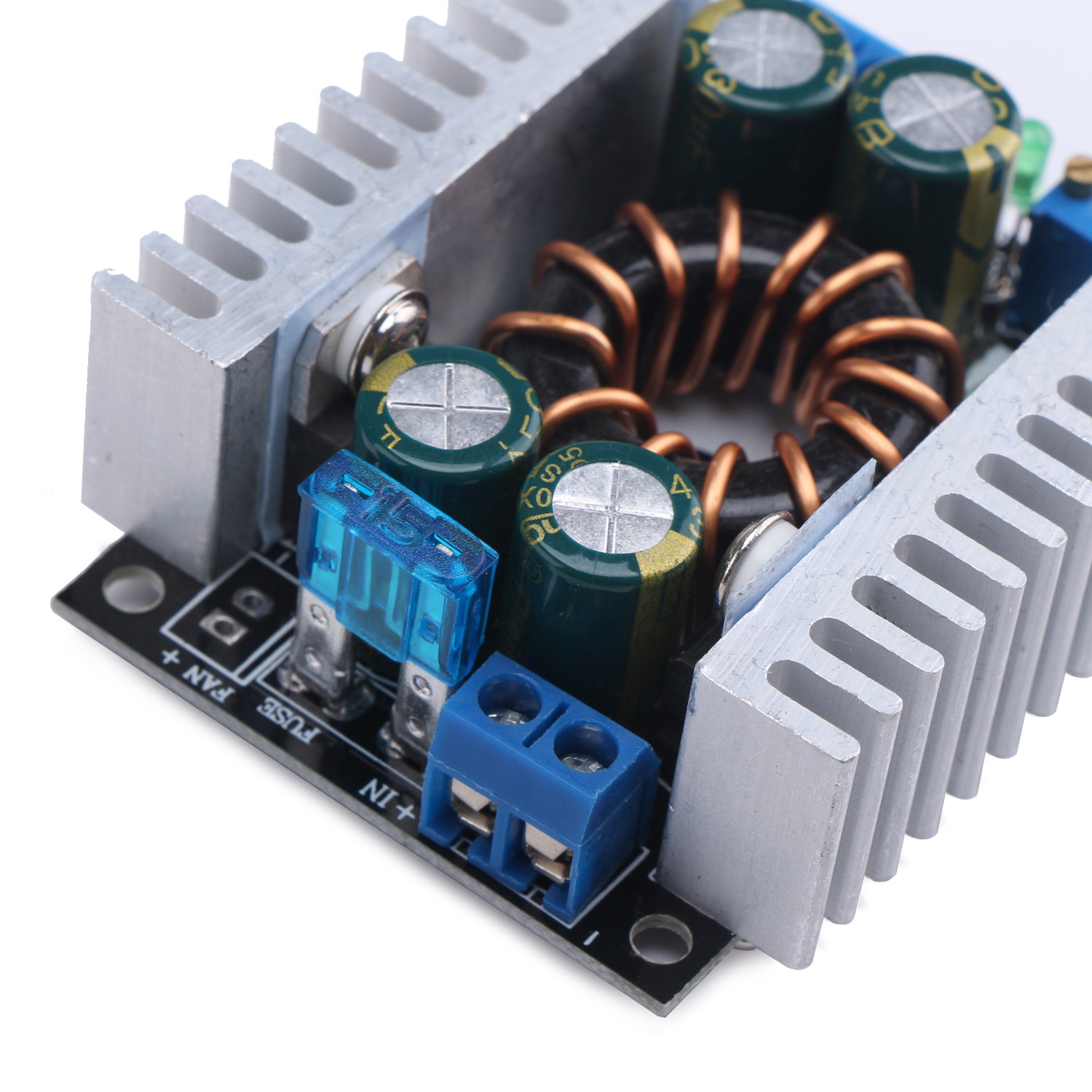

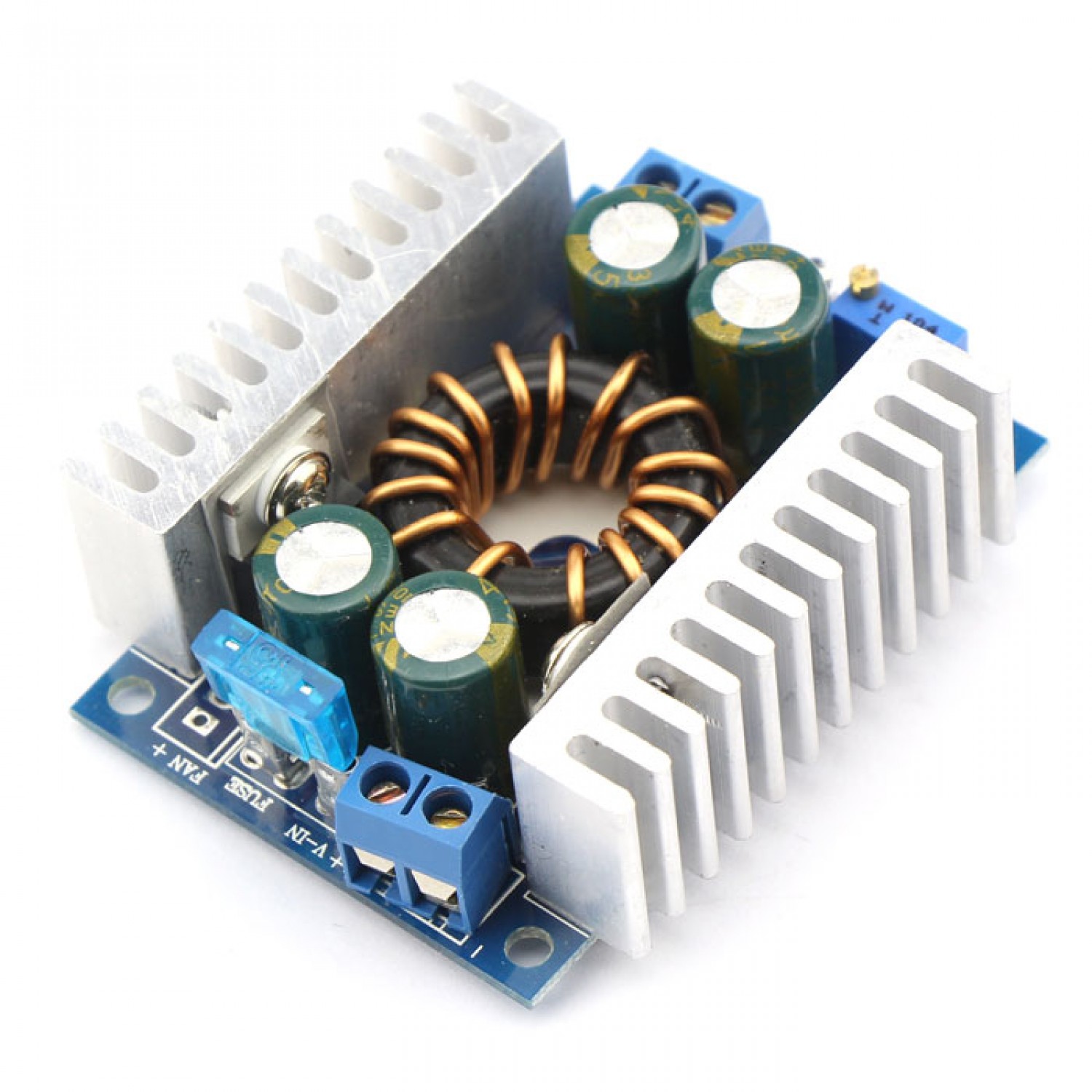

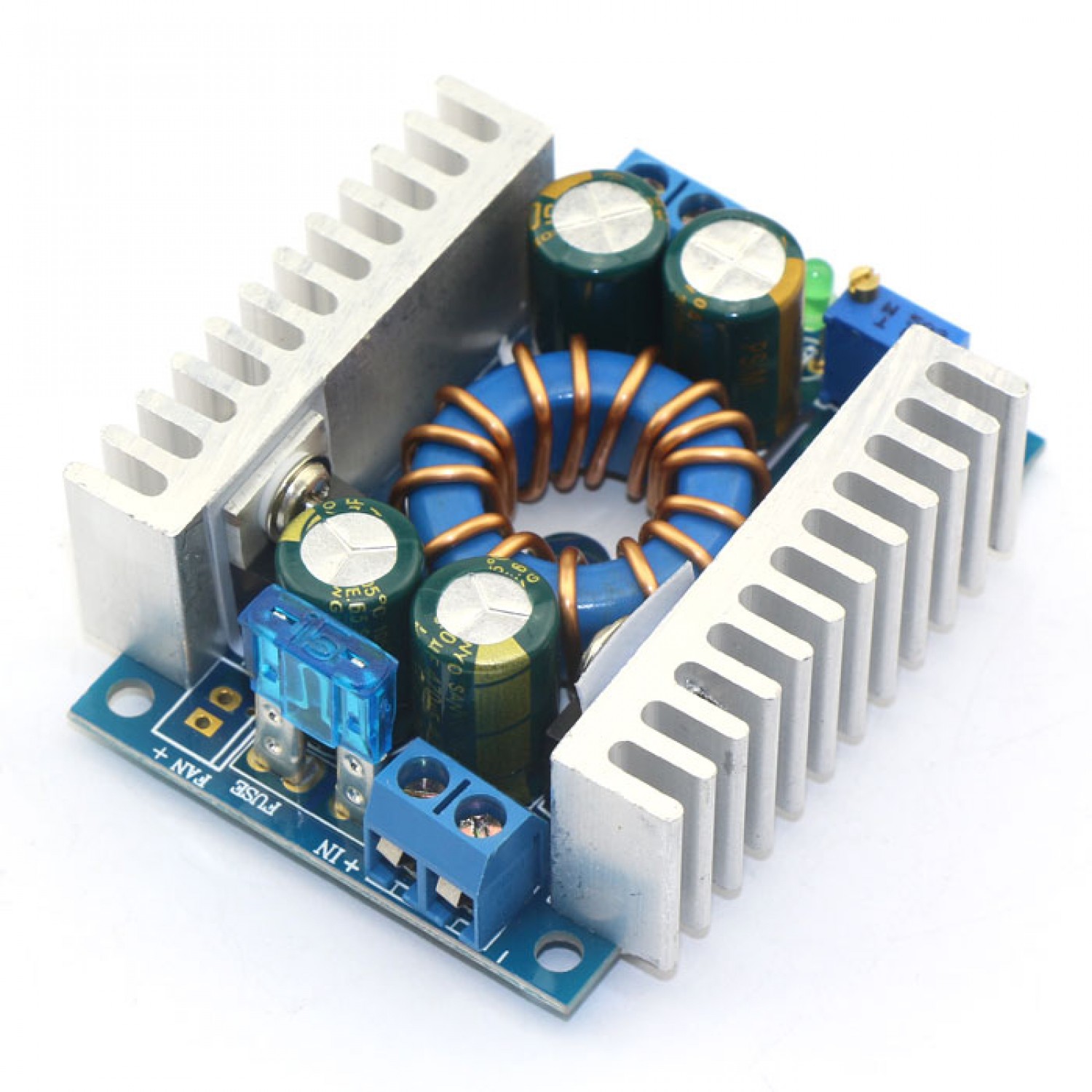

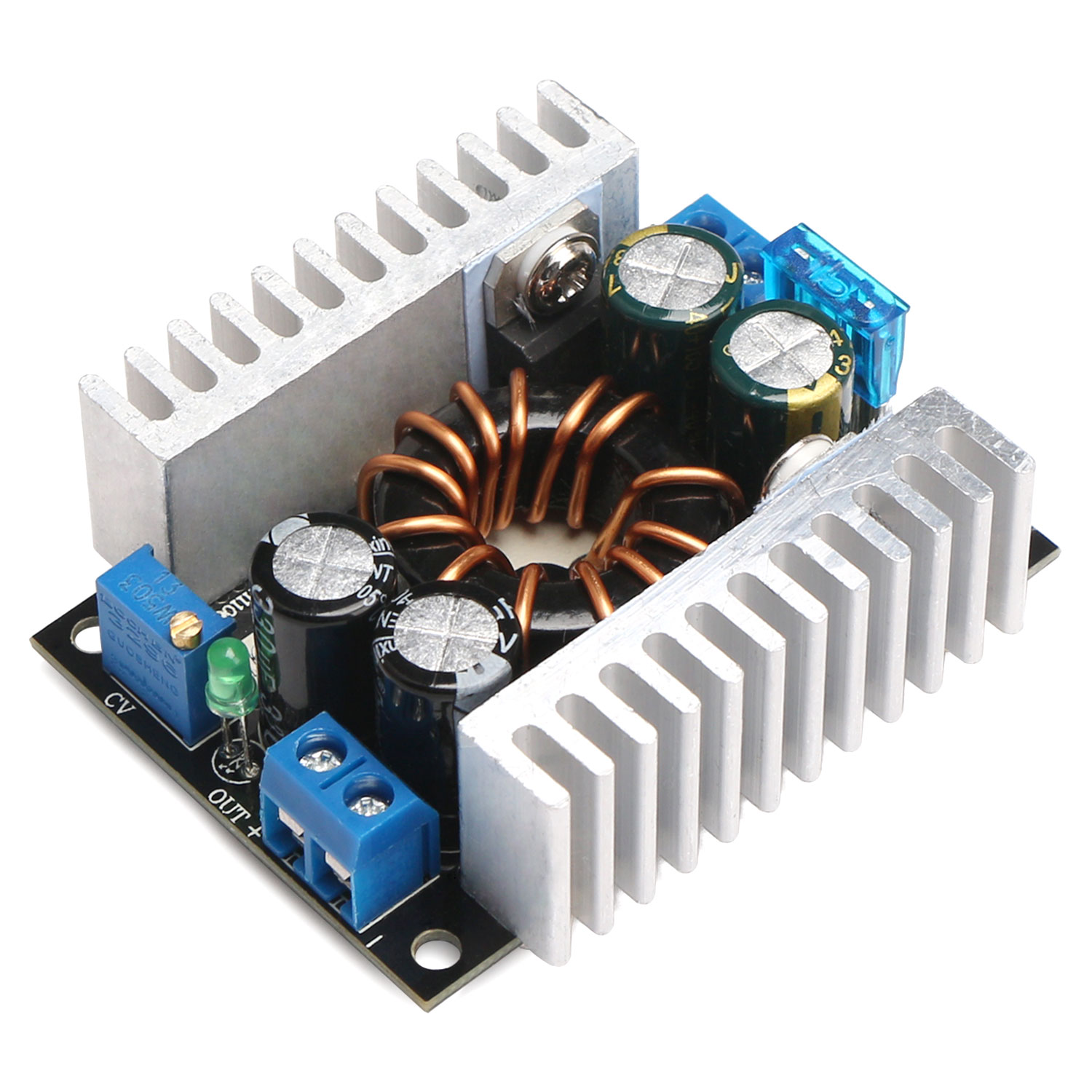

-36% 150W Power Supply Module DC 12V 24V Boost Converter Adjustable Voltage Regulator Notebook/Mobile Power Module/Adapter/Driver

Ask Question

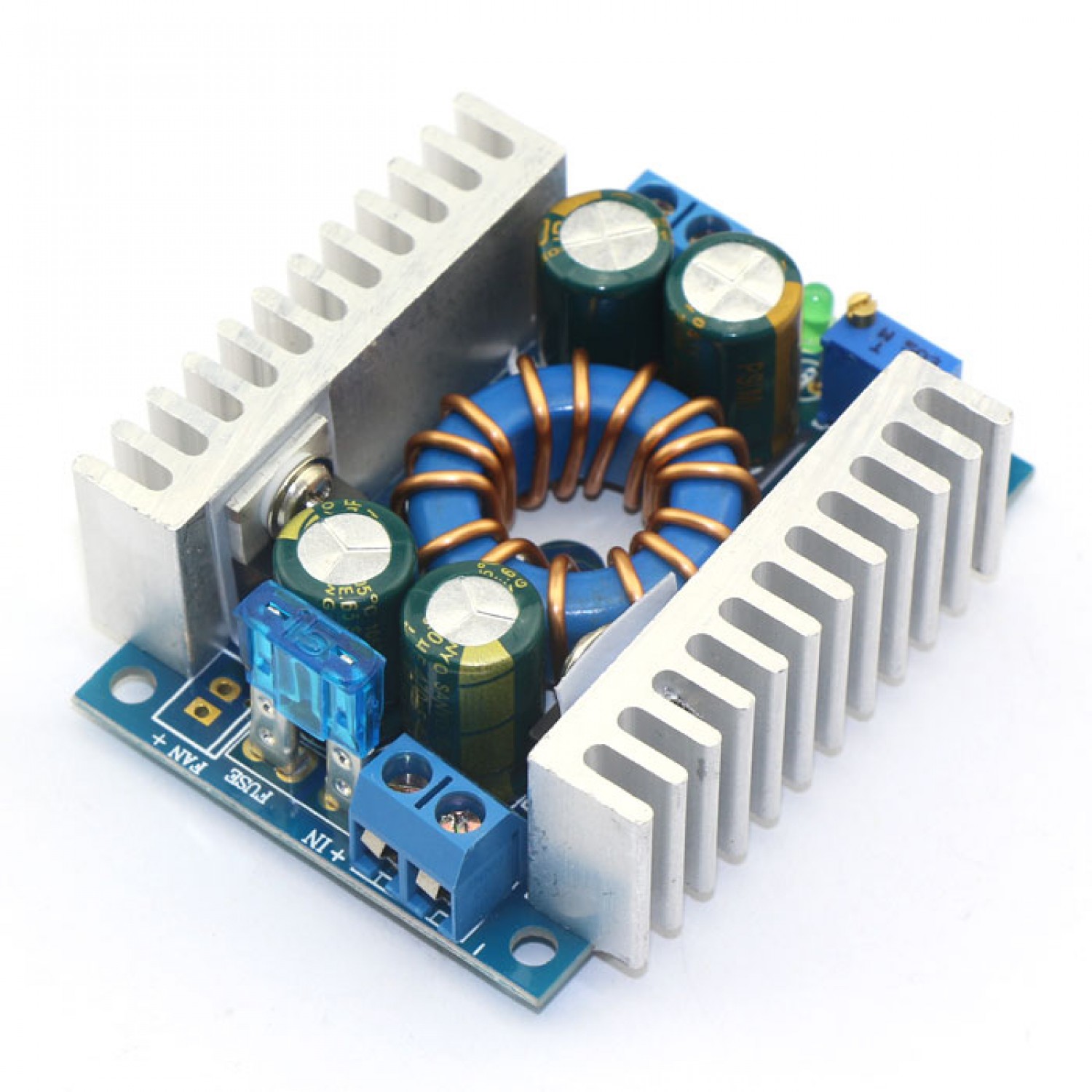

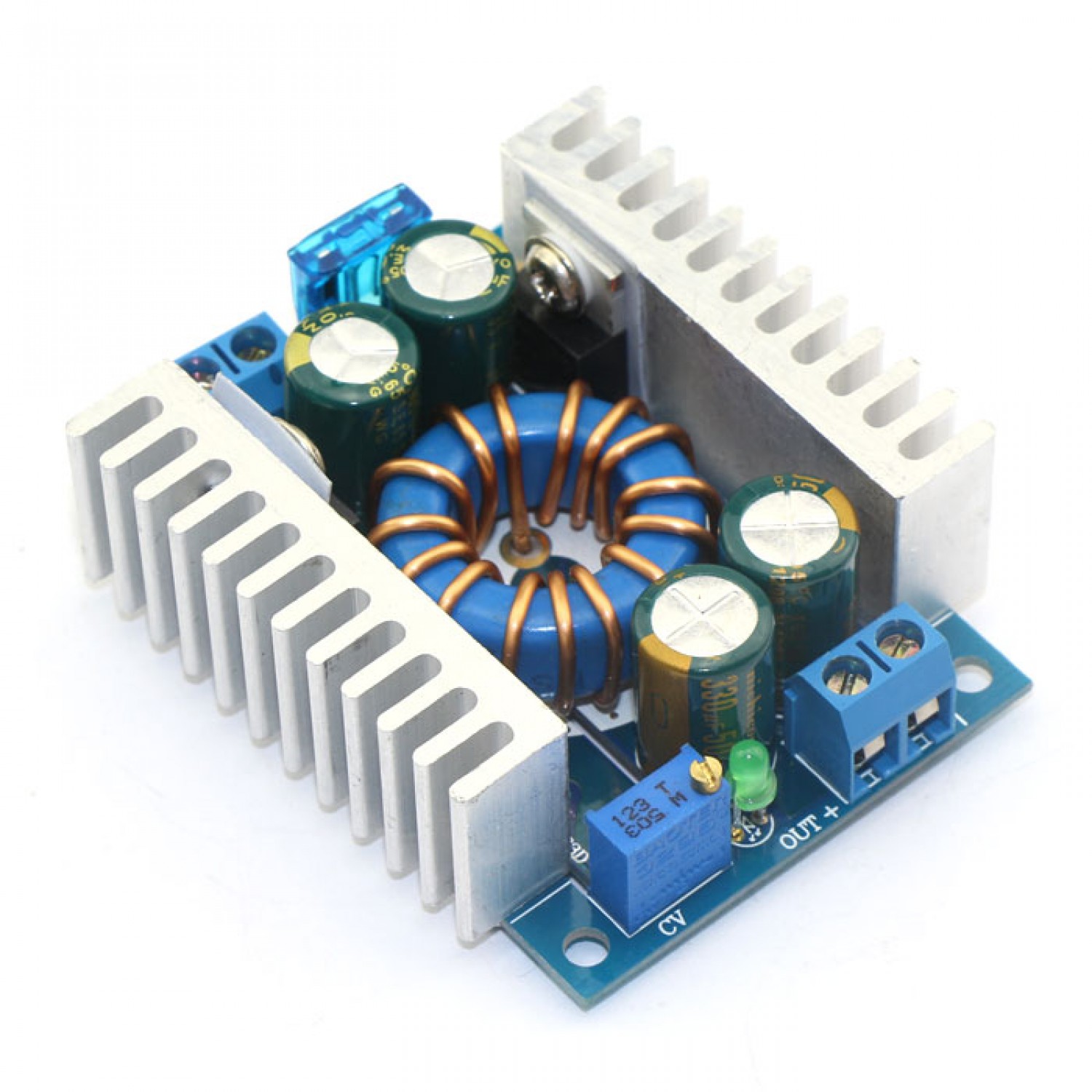

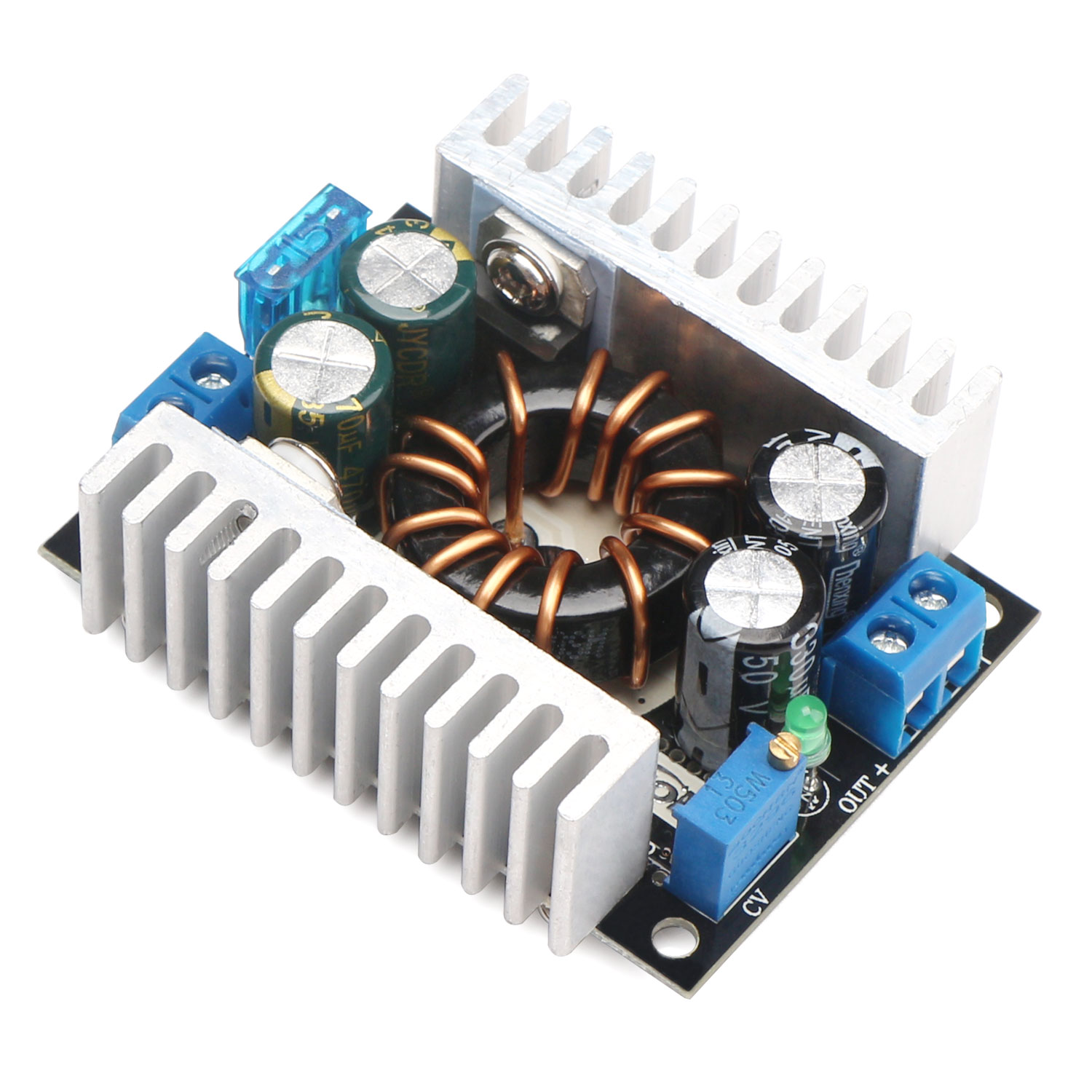

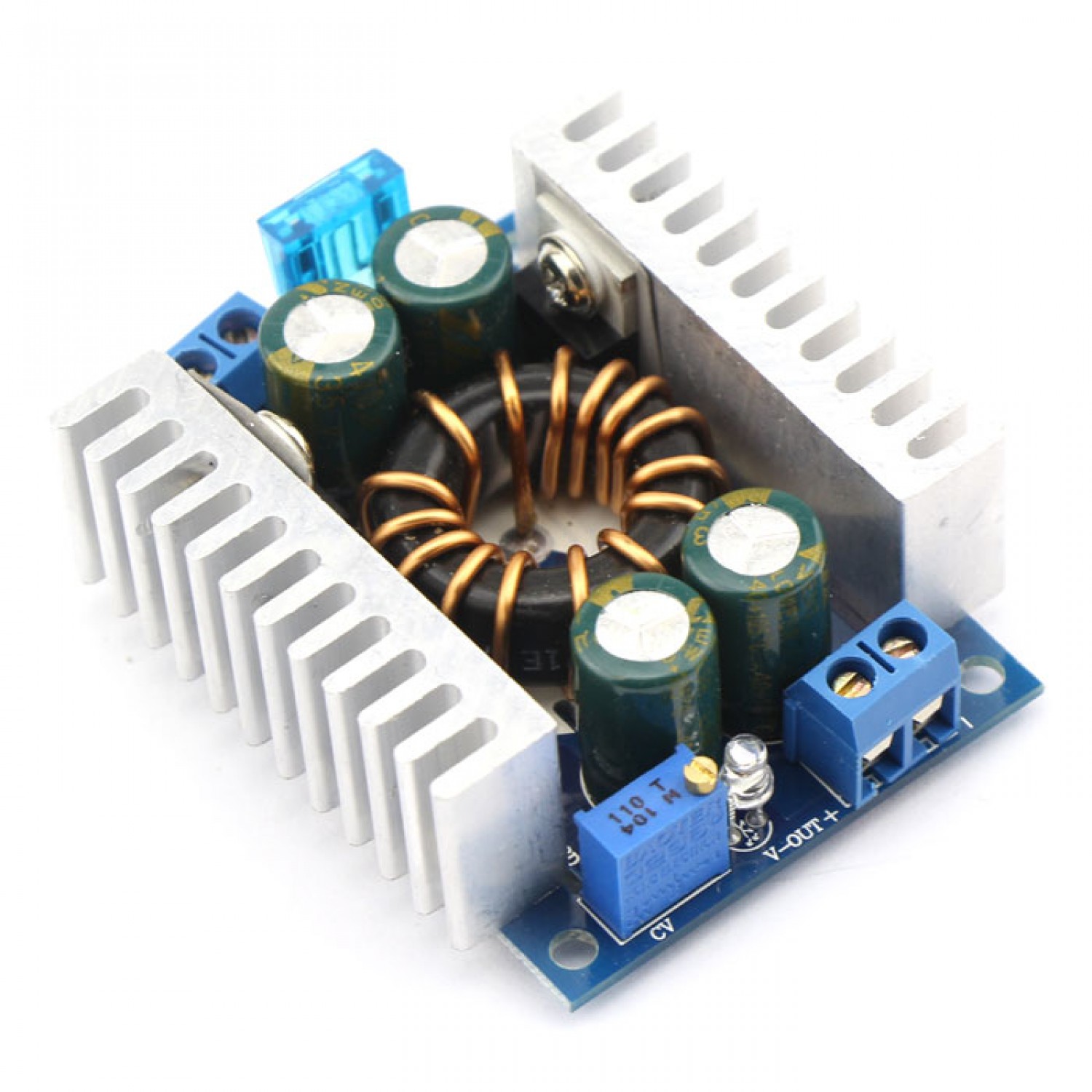

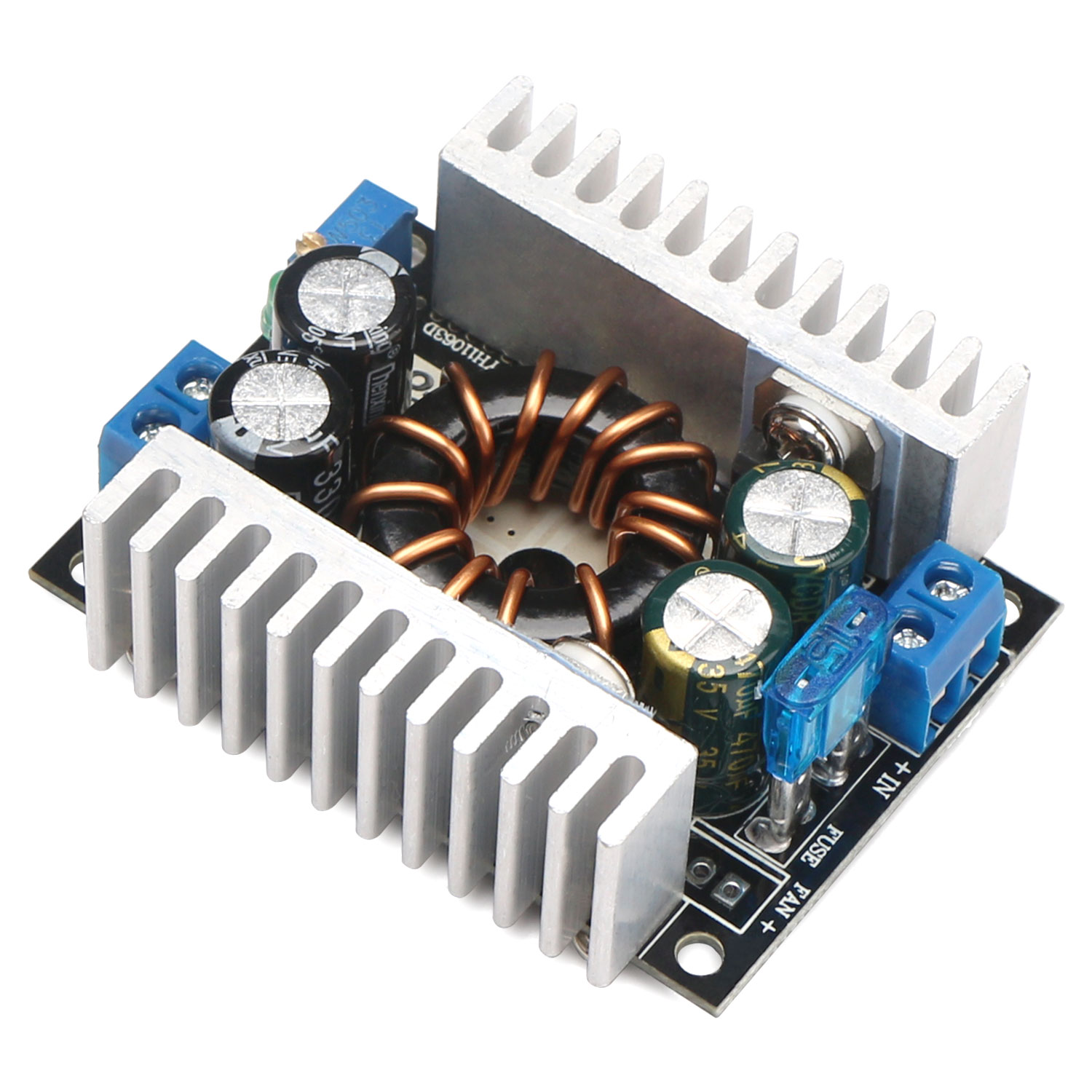

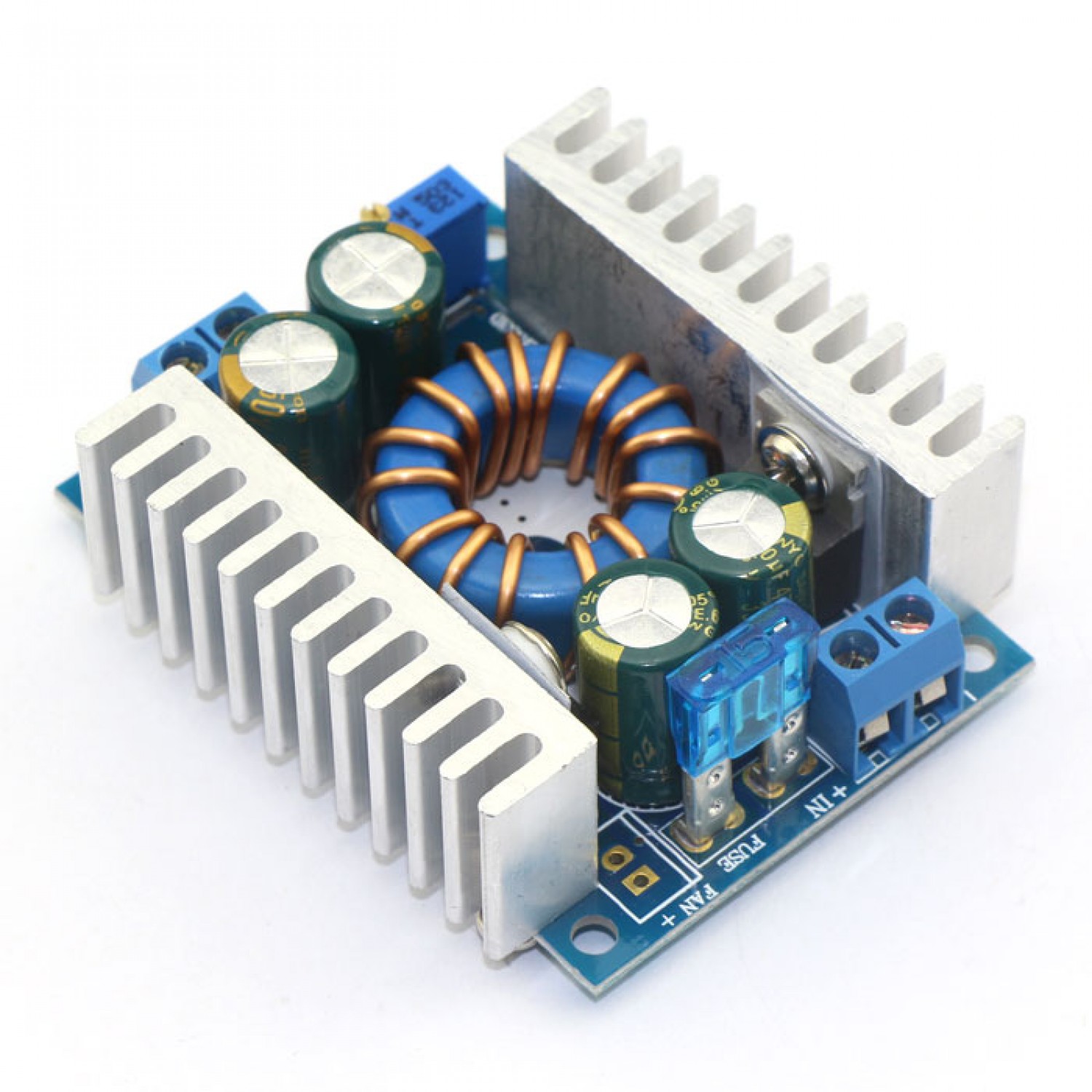

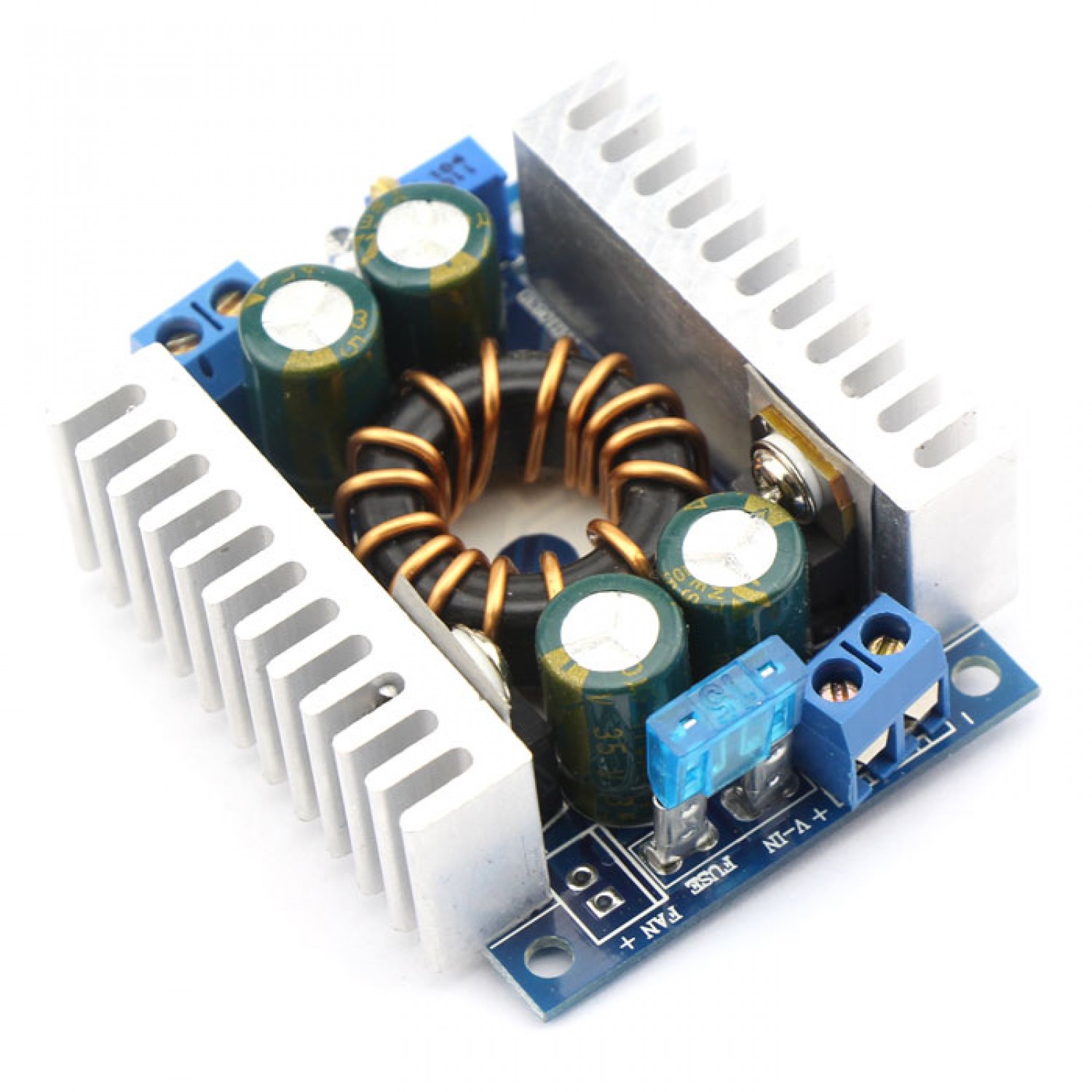

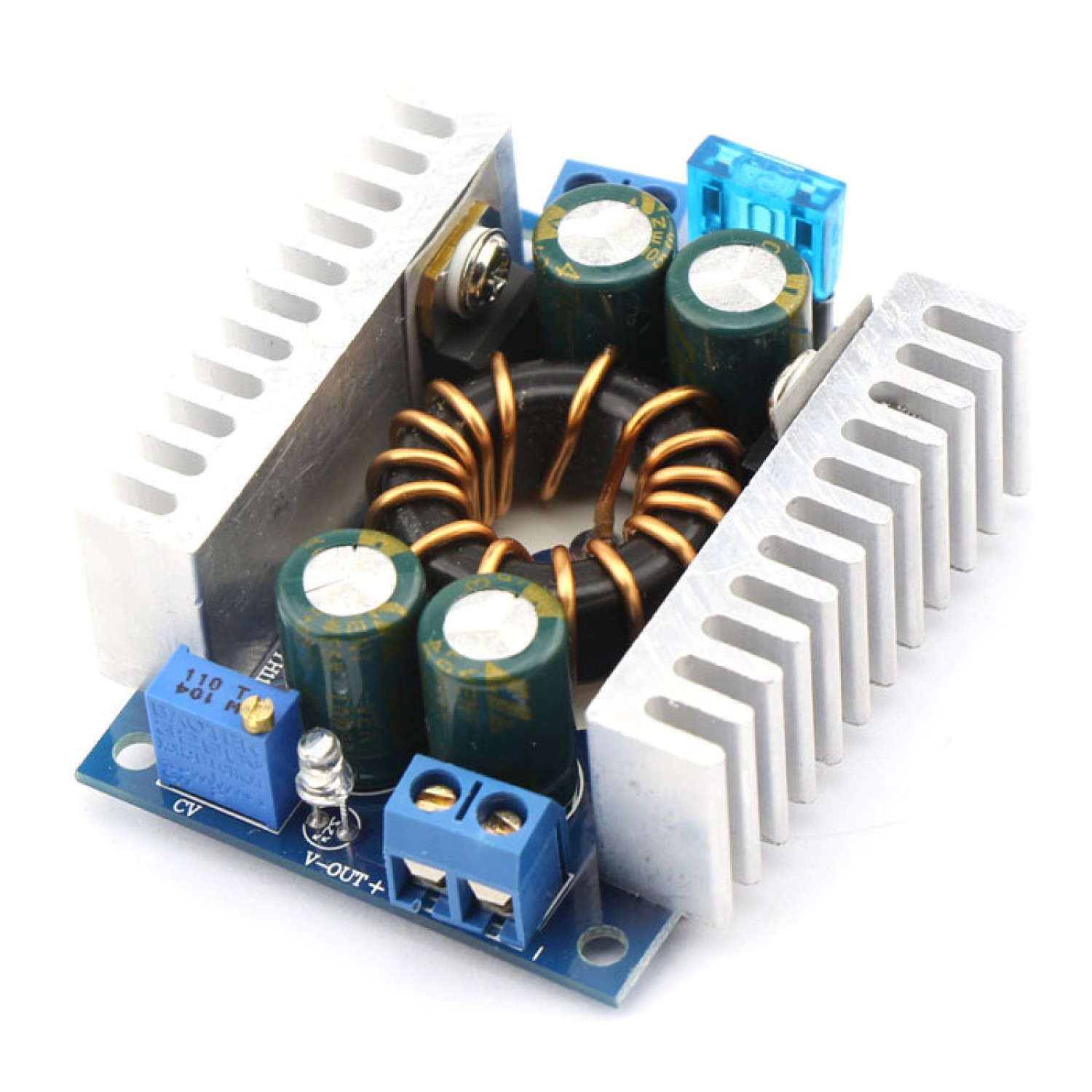

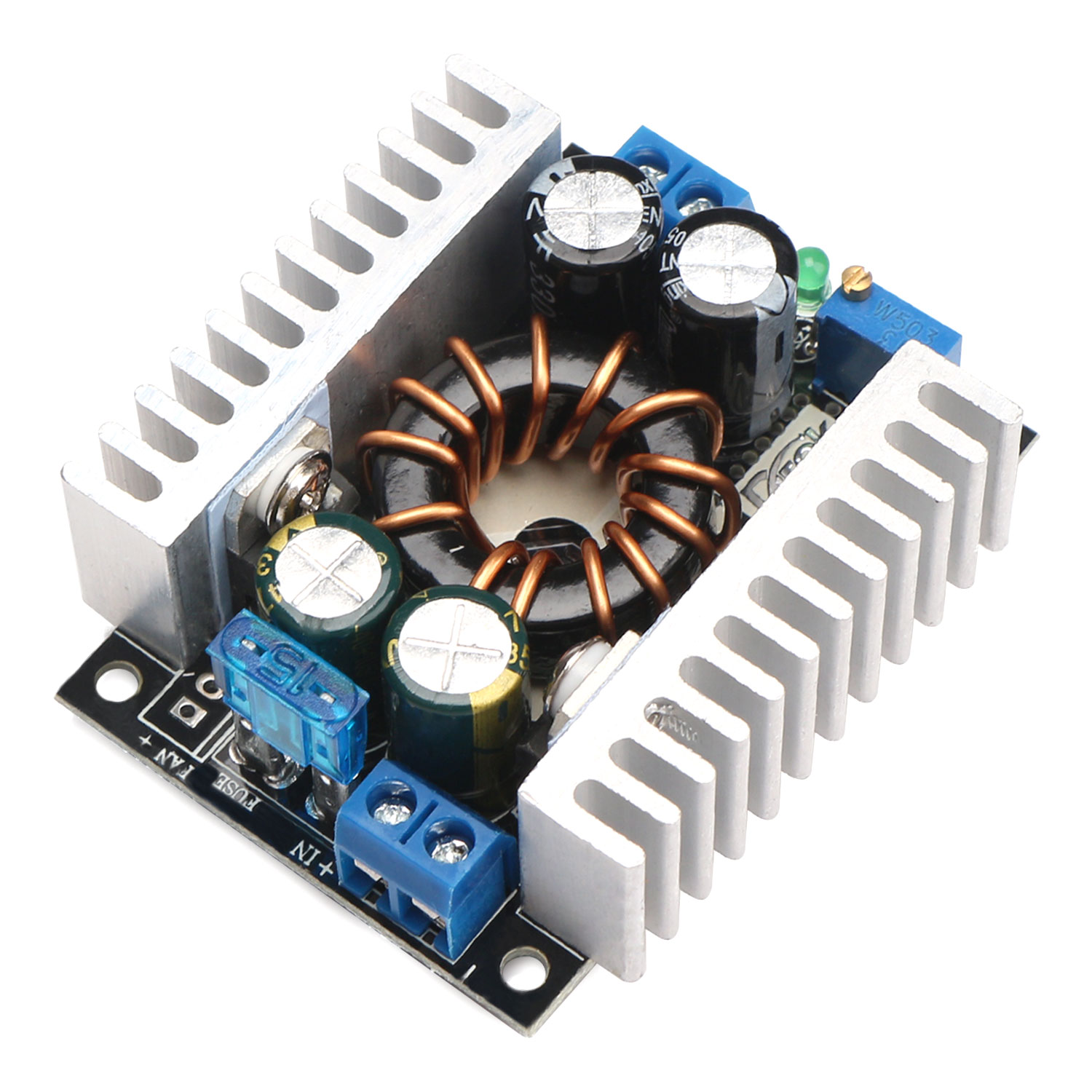

It is a DC Step Up Converter Regulator, DC 12V 24V Adjustable Voltage Regulator Notebook/Mobile Power Module/Adapter/Driver, It has small size, high efficiency, easy installation and use, Applied to the Car Power,notebook mobile power, voltage Regulator,industrial equipment,and DIY ect.

Parameters:

  • Module Name: 150W boost module
  • Module properties: non-isolated module
  • Minimum voltage difference: 0V

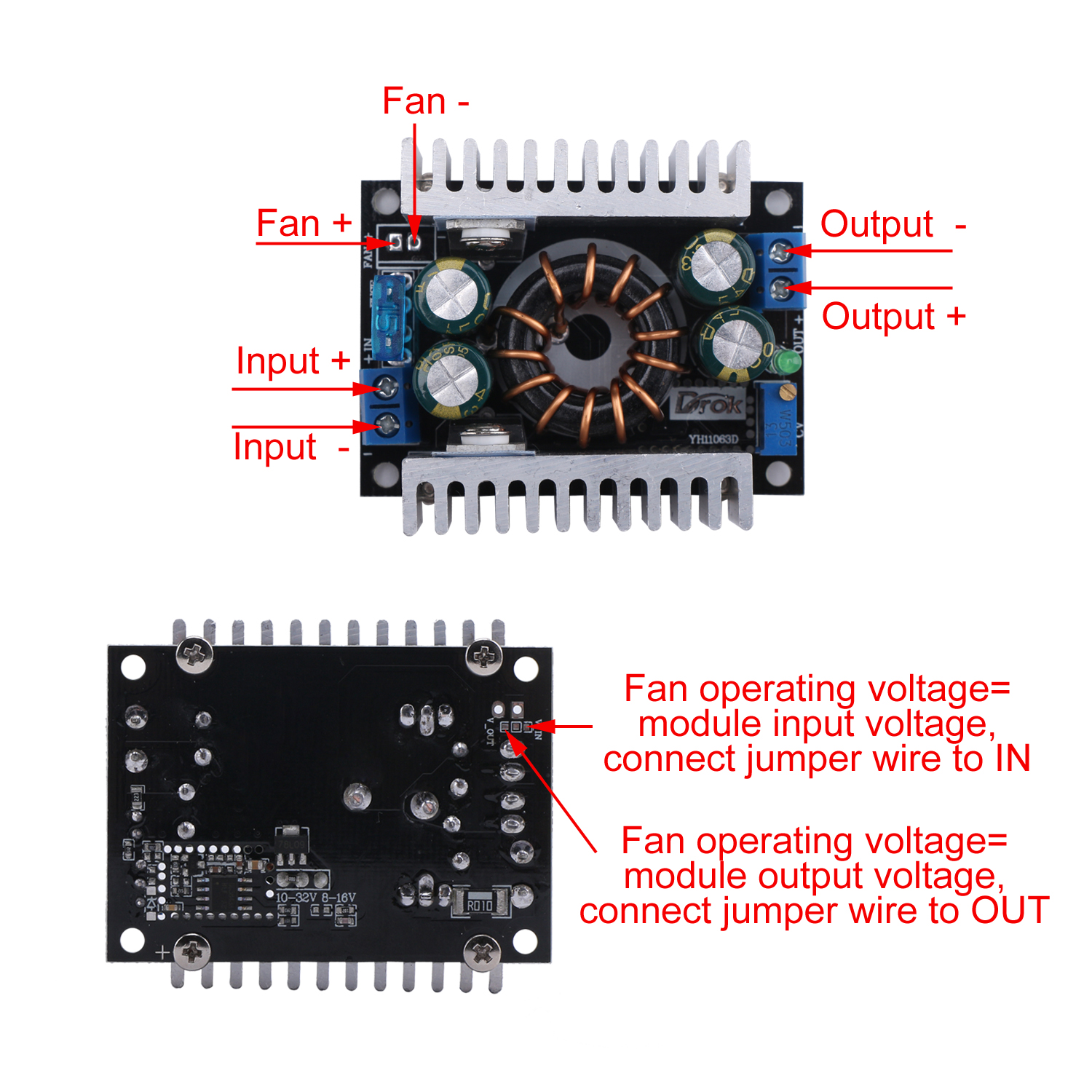

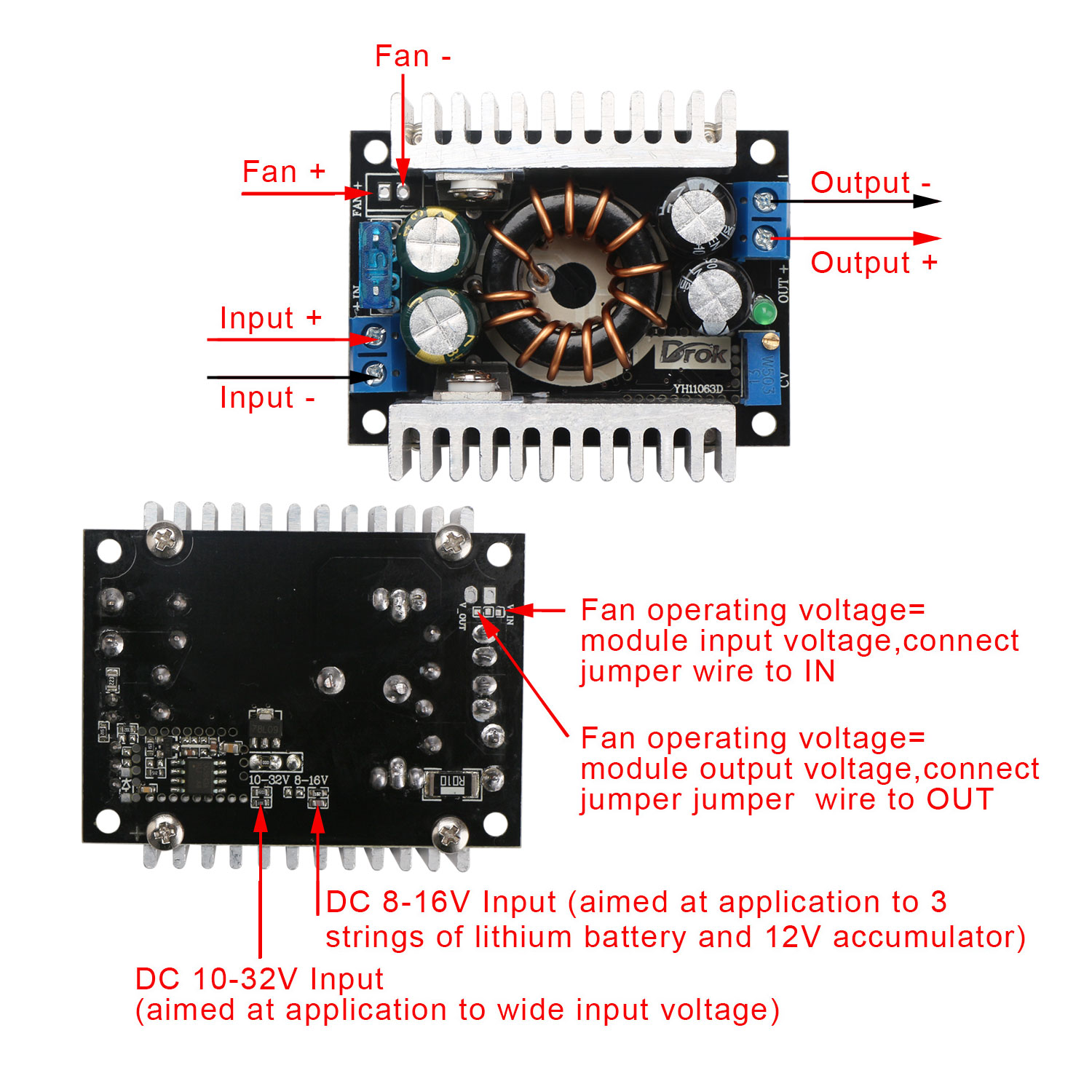

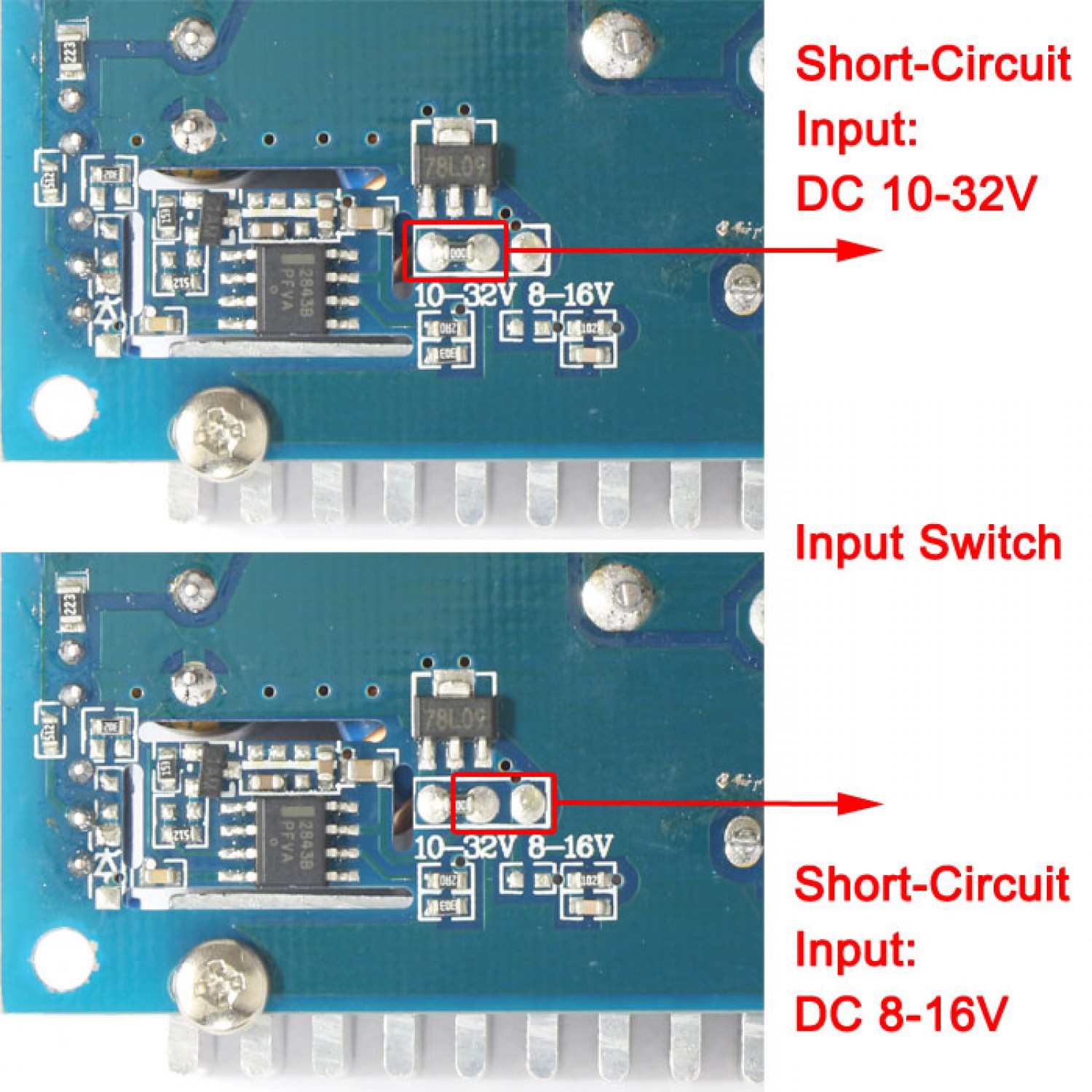

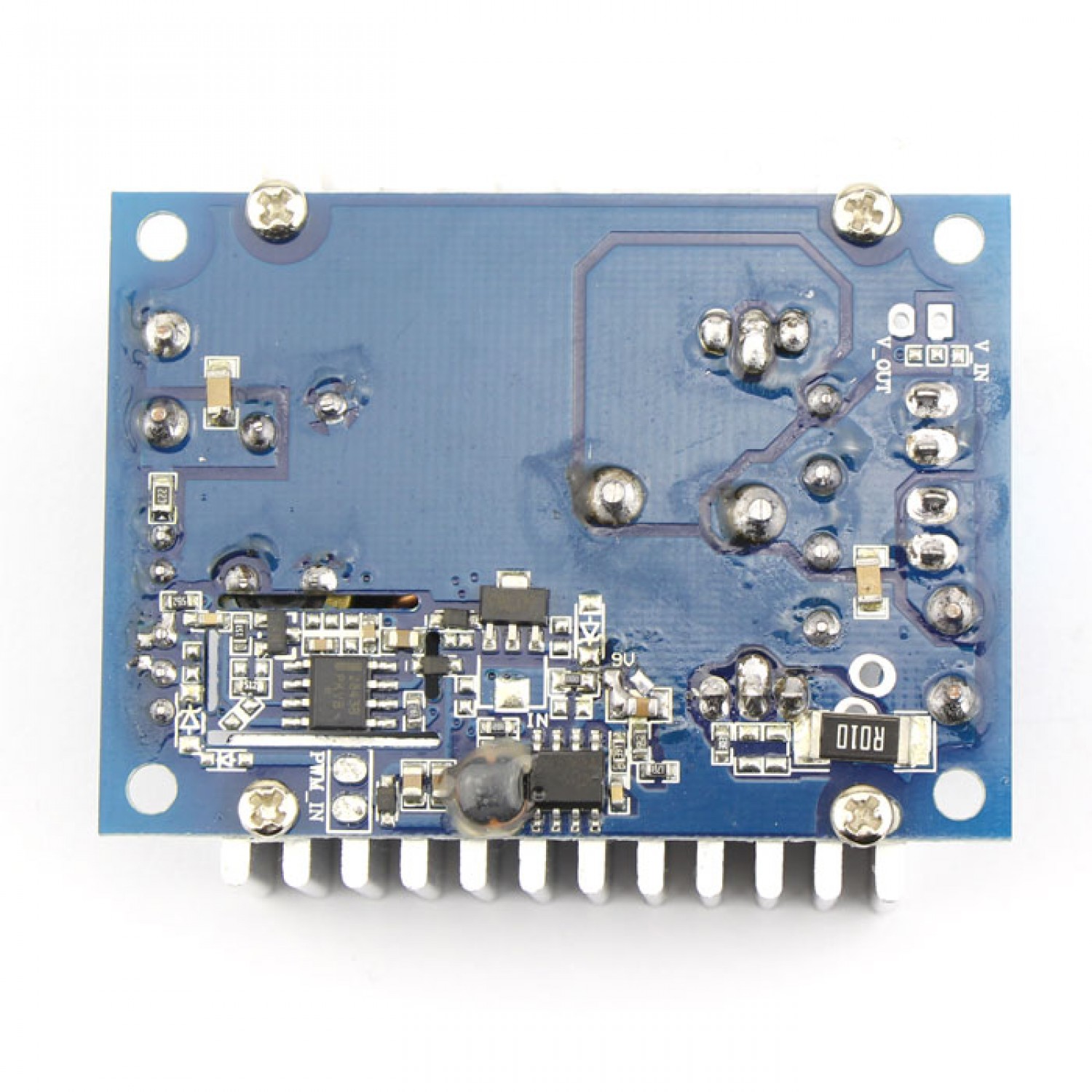

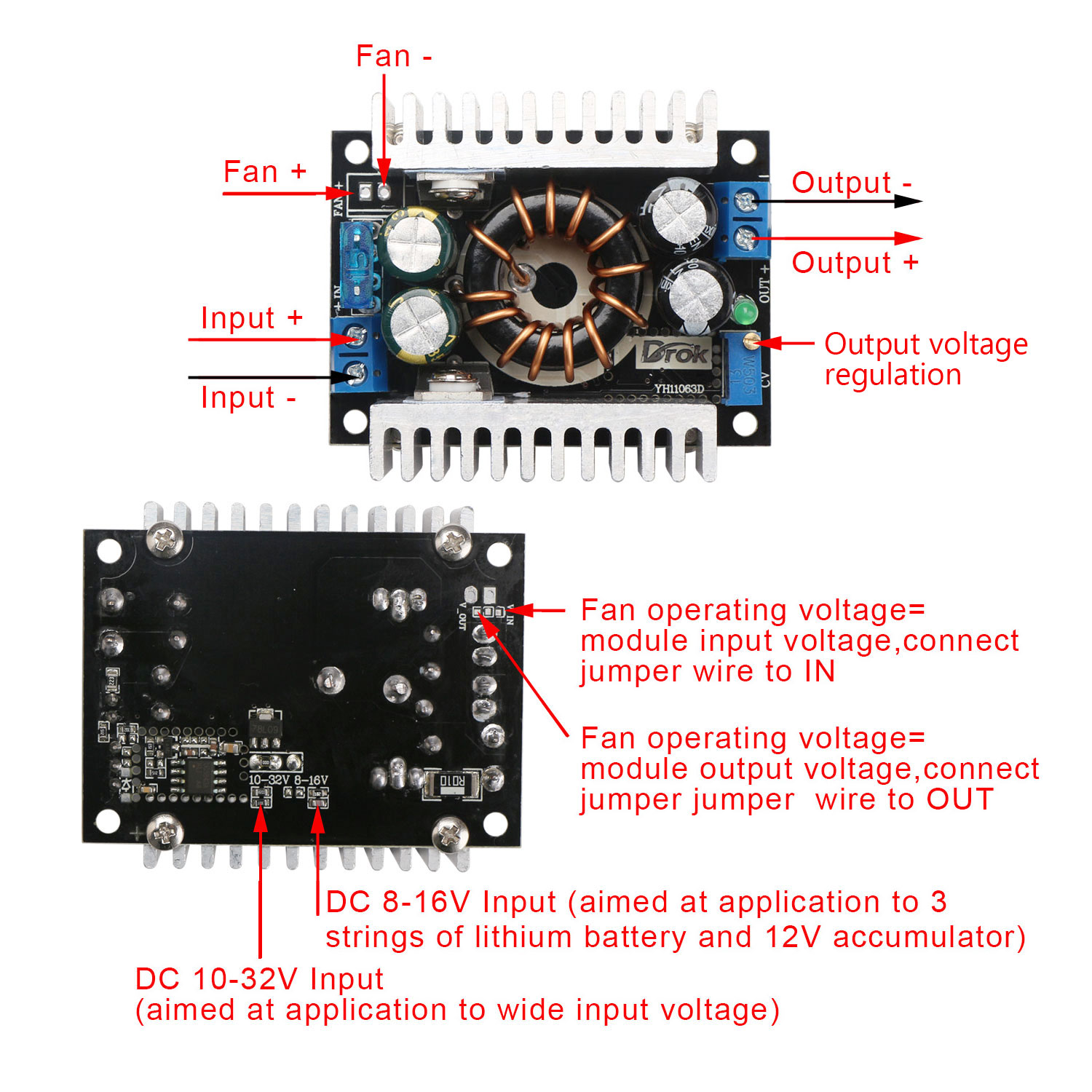

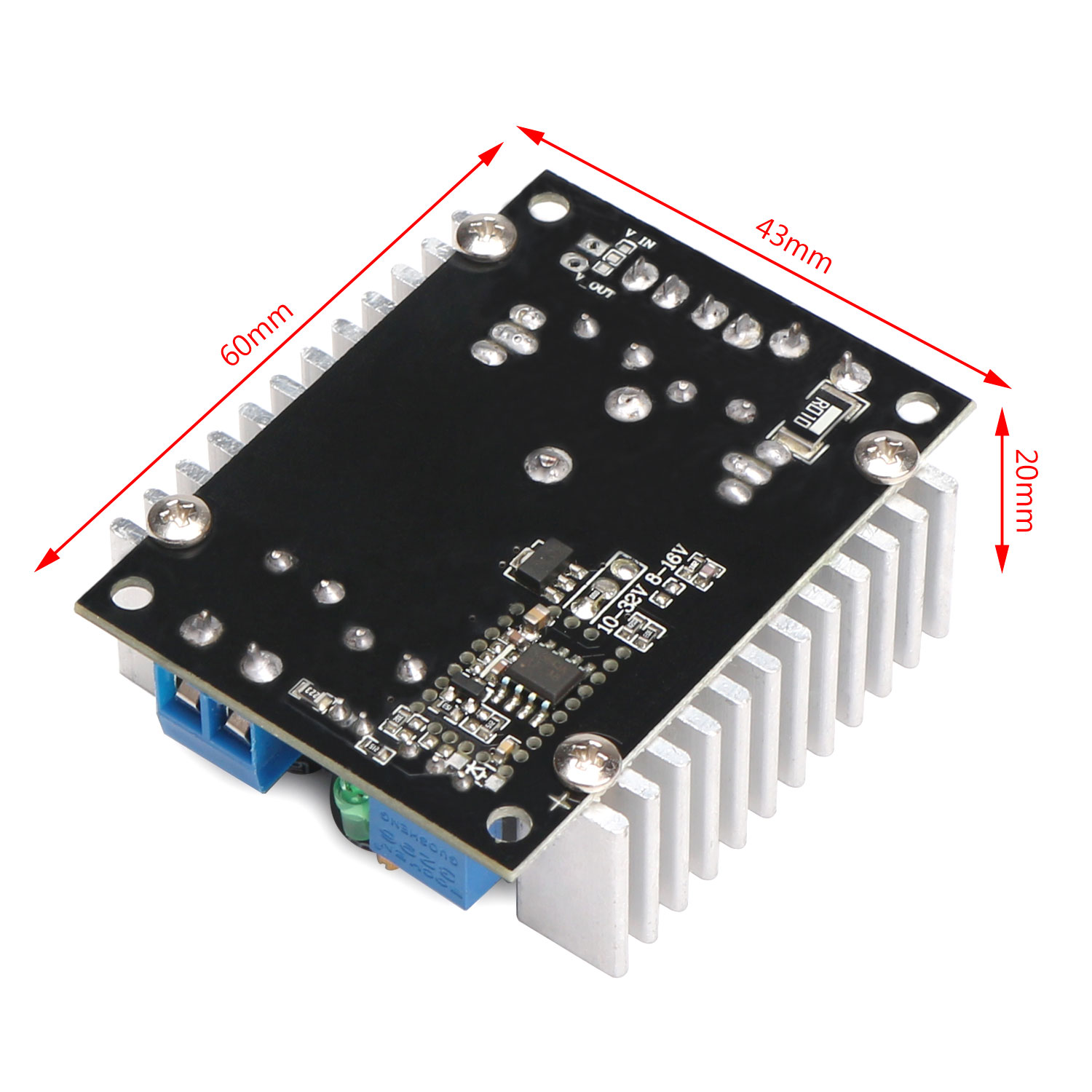

  • Two Input voltage optional:  select the input voltage by adjusting the jumper on the back of the PCB
  • Input/output Voltage 1: When Input DC 10~32V (aimed at application to wide input voltage)
  • Input/output Voltage 2: When Input DC 8~16V (aimed at application to 3 strings of lithium battery and 12V accumulator)

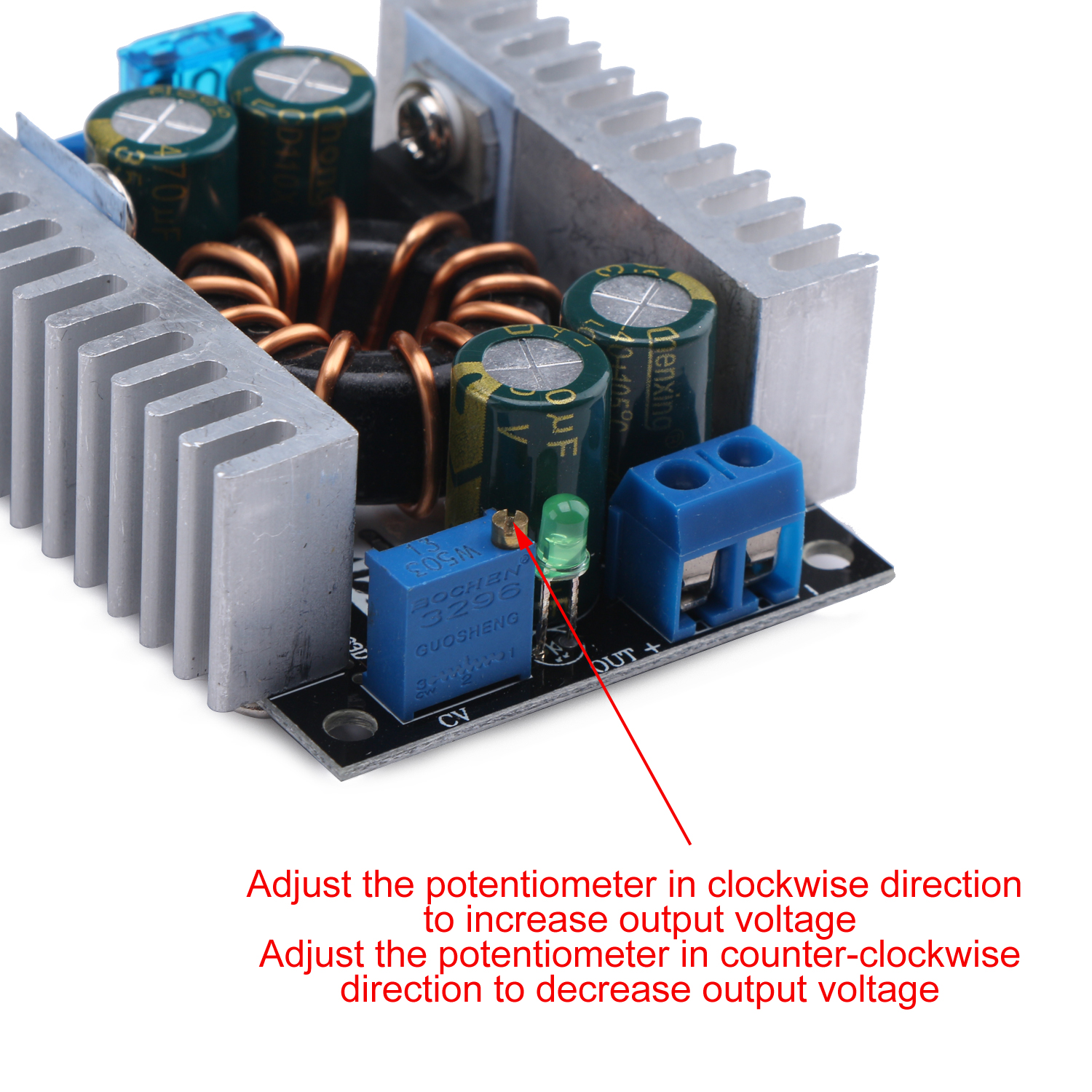

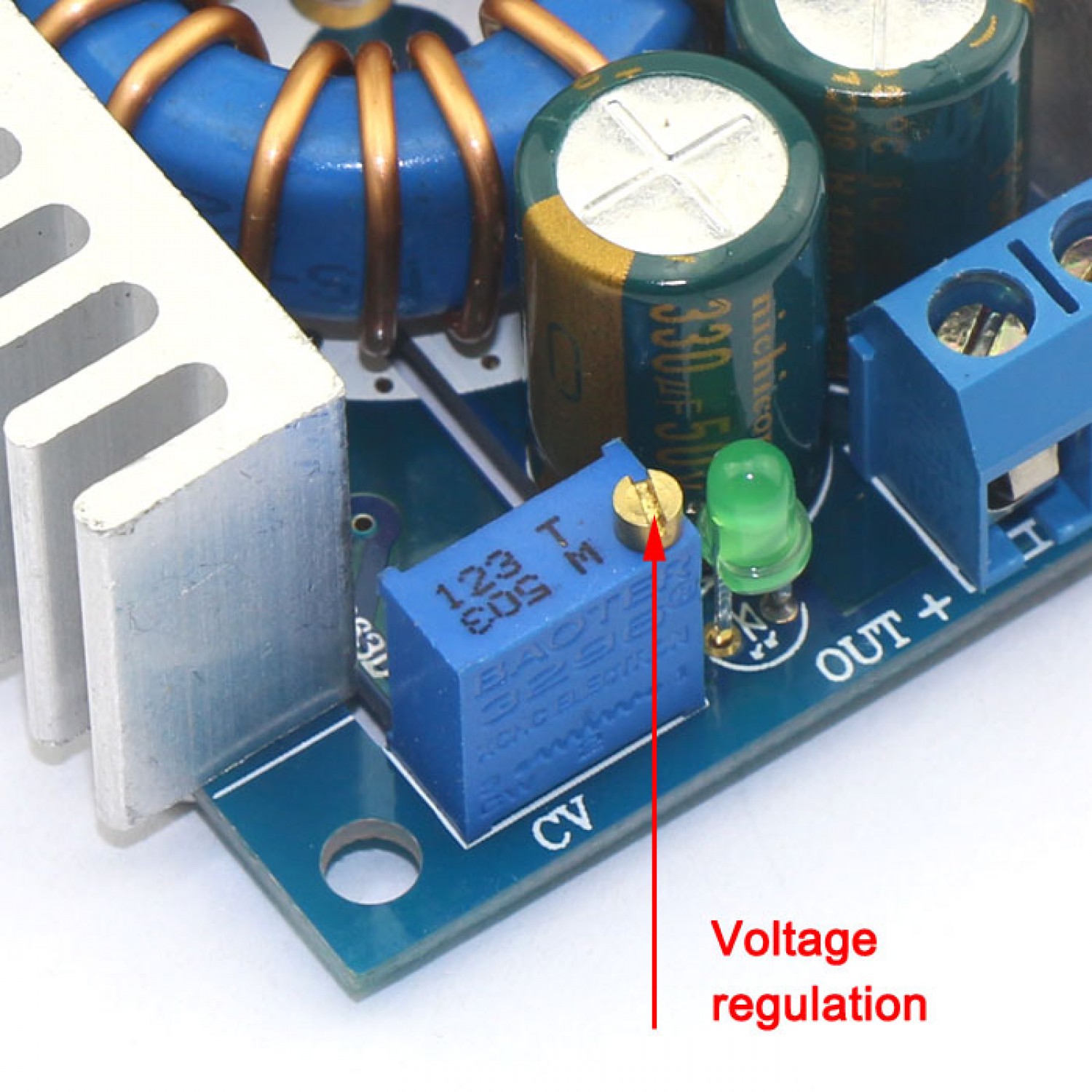

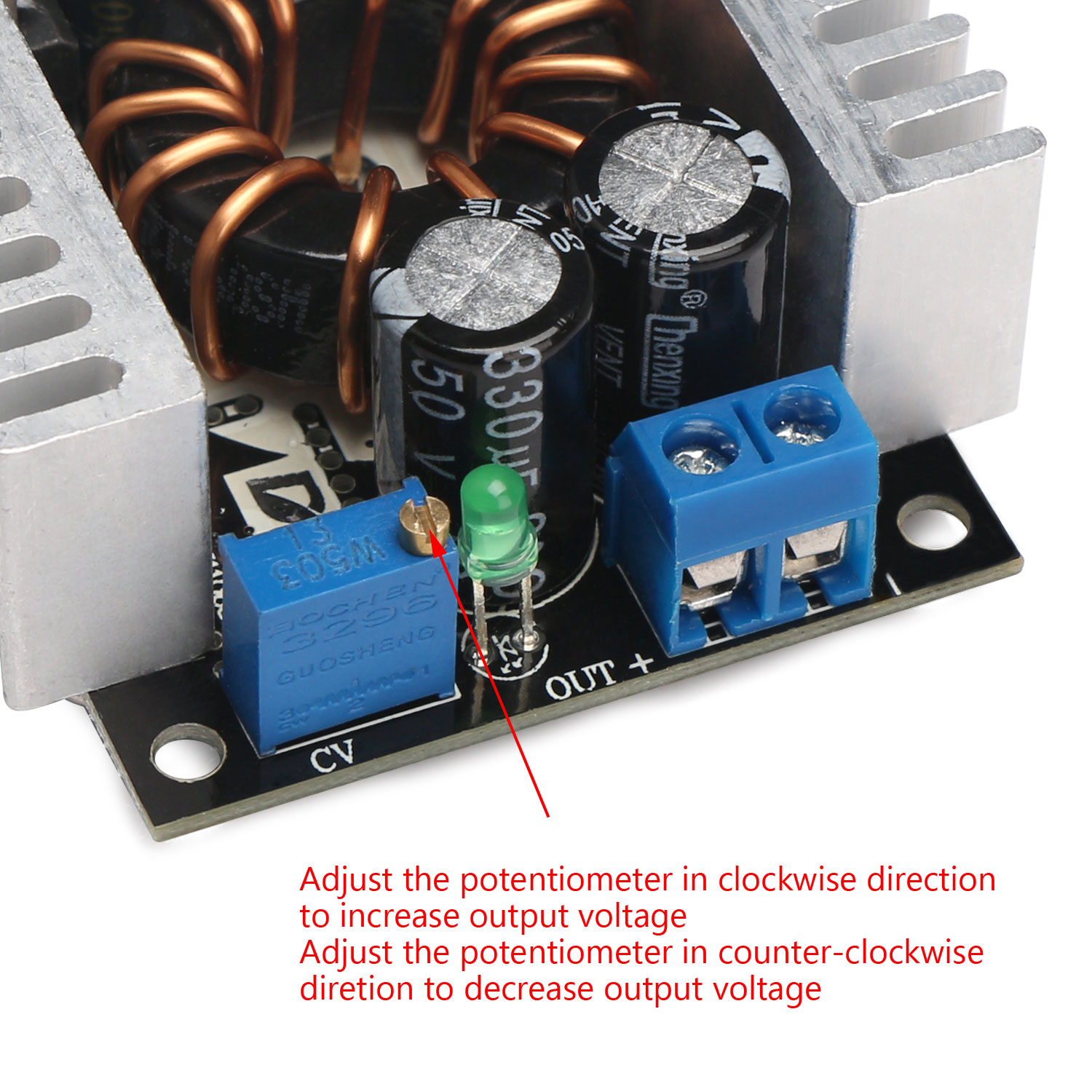

  • Output Voltage 1 : When Input DC 10~32V,Output 10~46V((adjustable, default 19V)
  • Output Voltage 2 : When Input DC 8~16V,Output 8~46V(adjustable, default 19V)
  • Input Current: 16A Max. (exceed 8A please enhance heat dissipation)
  • Output current: 8A Max. (exceed 4A please enhance heat dissipation)
  • Quiescent operating current: 15mA (12V to 20V, higher output voltage will increase the quiescent current)
  • Output power: 90W(natural cooling), 150W(enhance heat dissipation)
  • Capacitances:2 x 470uF/35V(input) ; 2x 330uF/50V(output)
  • Operating temperature: -40°c to +85°c
  • Working frequency: 380KHz
  • Conversion efficiency: up to 95%
  • Operating indicator: Yes
  • Short circuit protection: None
  • Input reverse polarity protection: None (If need please install diode at input port)
  • Installation: 4x 3mm screws
  • Wiring: Terminals, Needn't solder, V-IN input, V-OUT output

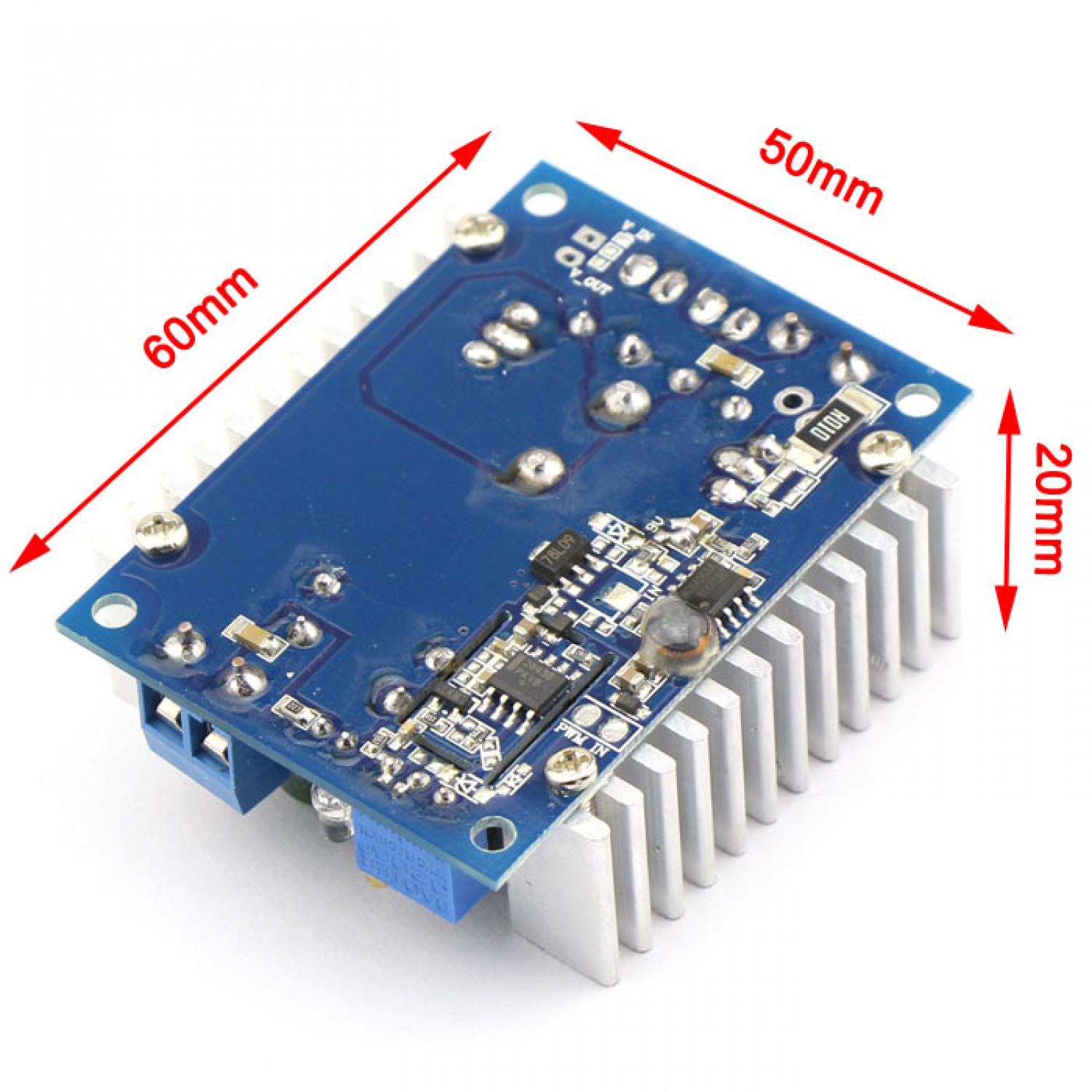

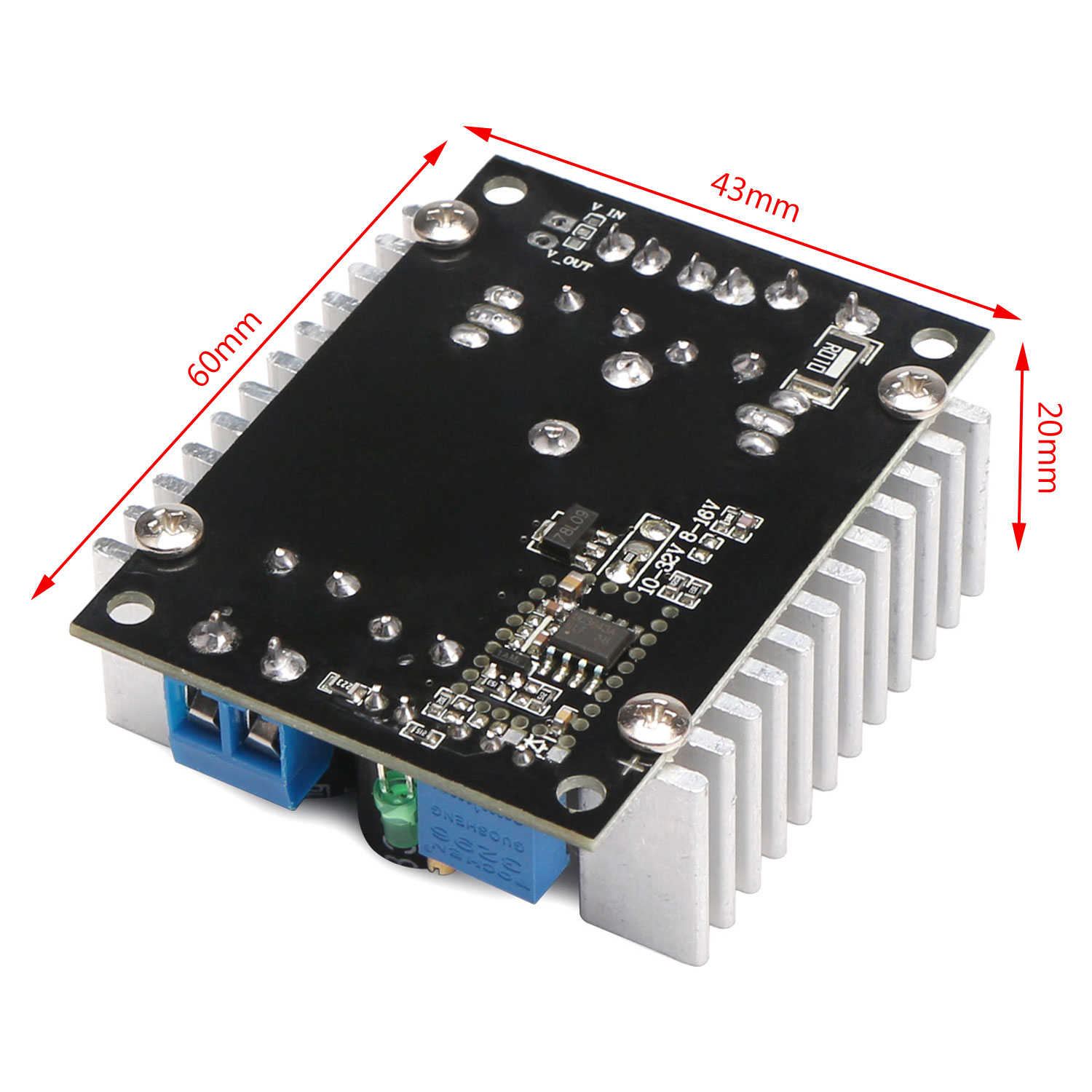

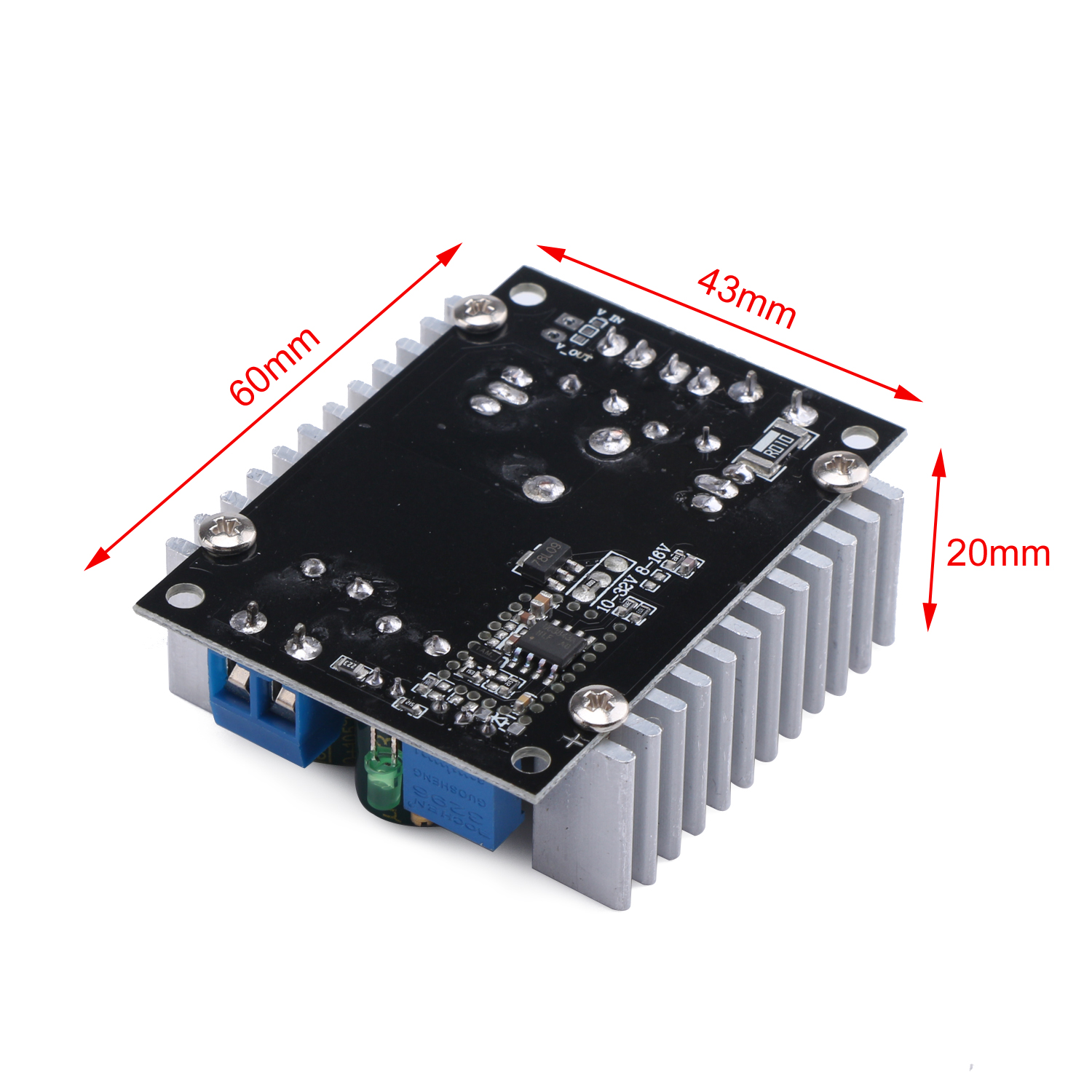

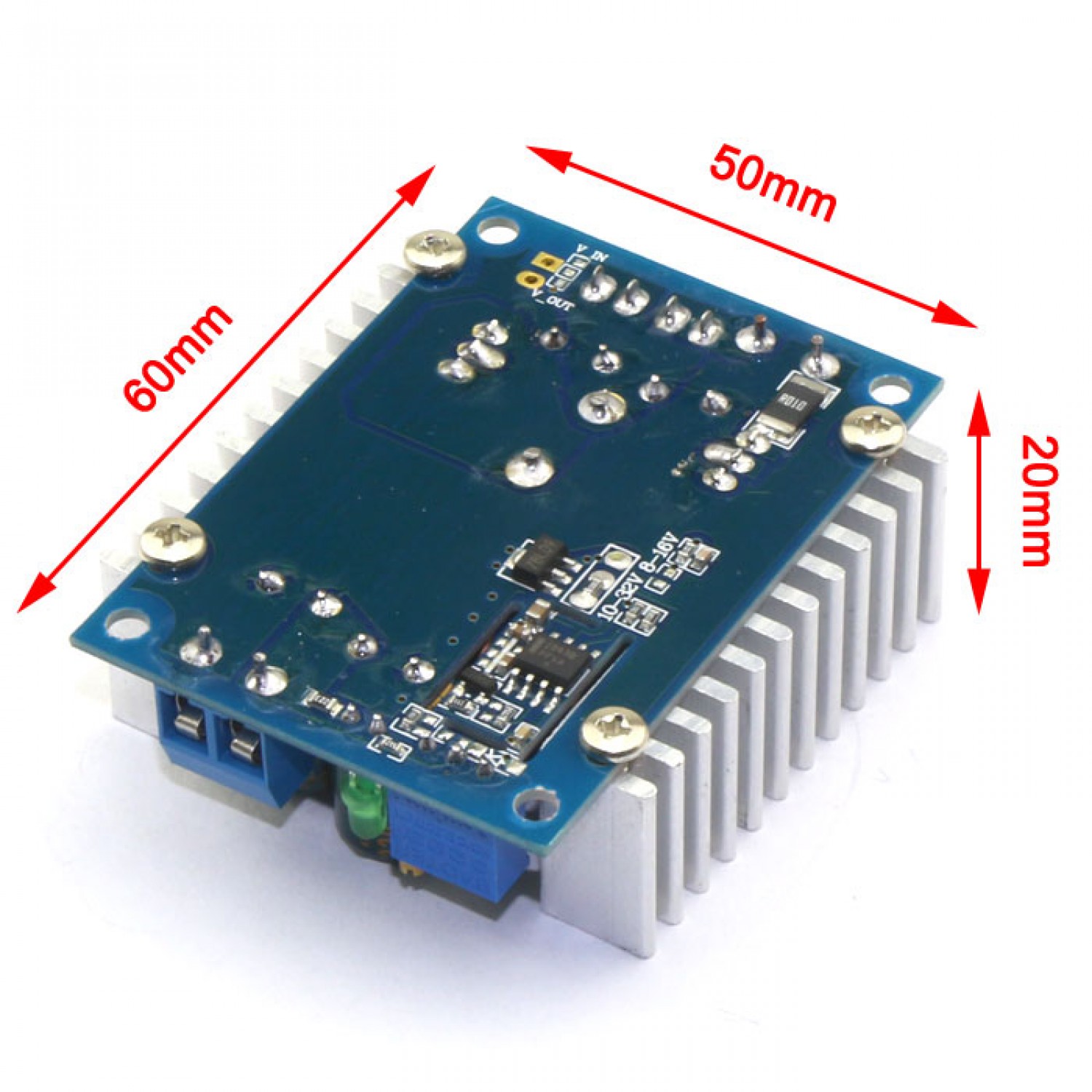

  • Module size: 60mm x 50mm x 20mm

Testing:

  • 16V to 19V, output current 3A, efficiency 94%
  • 12V to 20V, output current 5A, efficiency 89.5%
  • 12V to 30V, output current 3A, efficiency 89.2%
  • 24V to 42V, output current 3A, efficiency 95.2%

Some Applications:

  • DIY a voltage Regulator, adjustable.
  • The power supply for electronic equipment.
  • Used as a car power supply, Power supply for laptop,PDA, or other digital products
  • DIY a notebook mobile power

Package Include:

  • 1 x DC Boost Converter (Car Converter)
Attributes
input voltage8~32V
output current8A
output power90W
output voltage8~46V
output ways1
