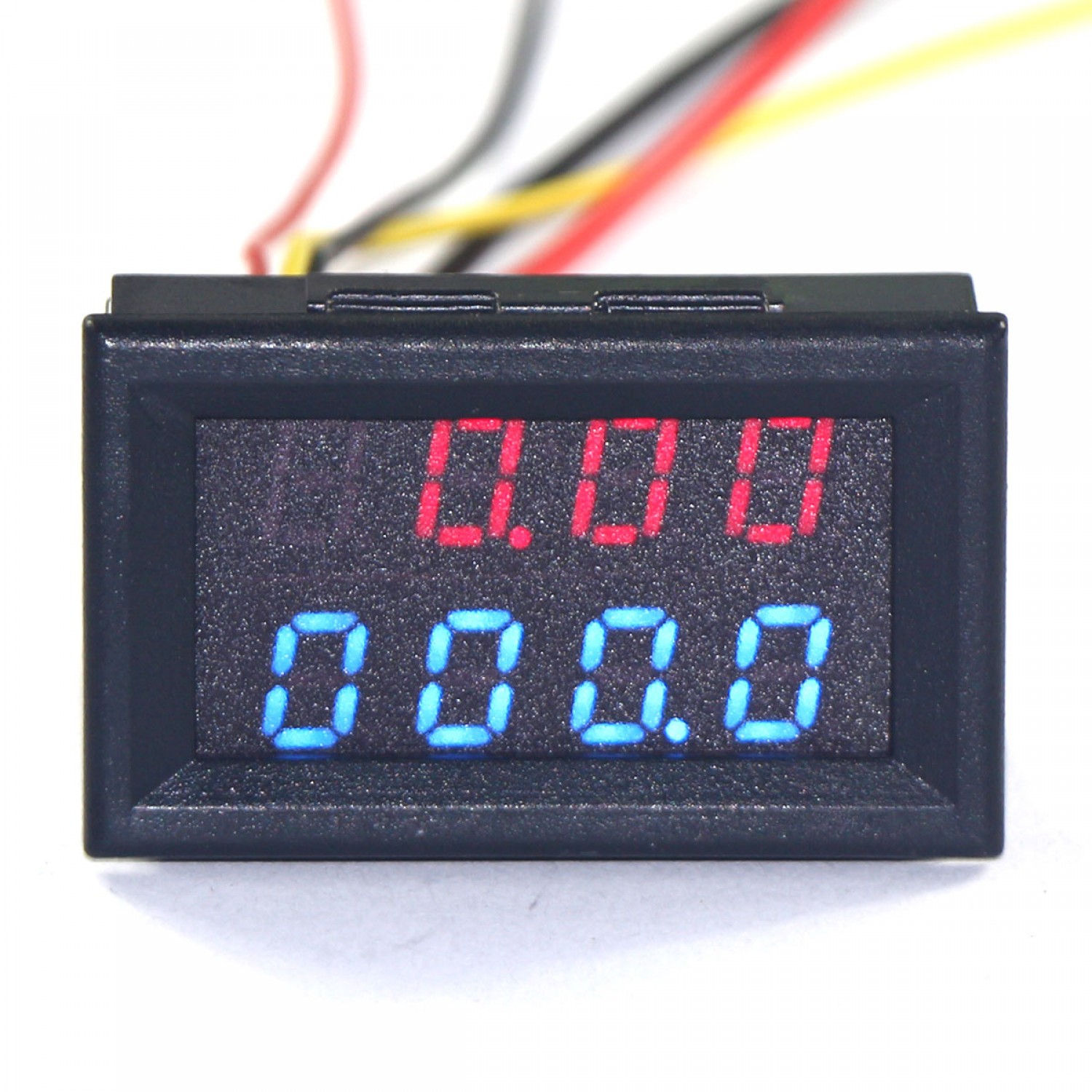

-52% 0.28"High Accuracy DC 0-33.00V/0-999.9mA-3.000A 12V Voltmeter Ammeter Voltage Current Tester Monitor Panel Gauge

Ask Question

It is a Red Blue Dual LED Voltmeter Ammeter,Supply voltage: DC 3.5-28V,Measurement range: DC 0-999.9mA-3.000A(current); 0.00-33.00V(voltage),Measurement accuracy: ± (0.3% + 2 digits).


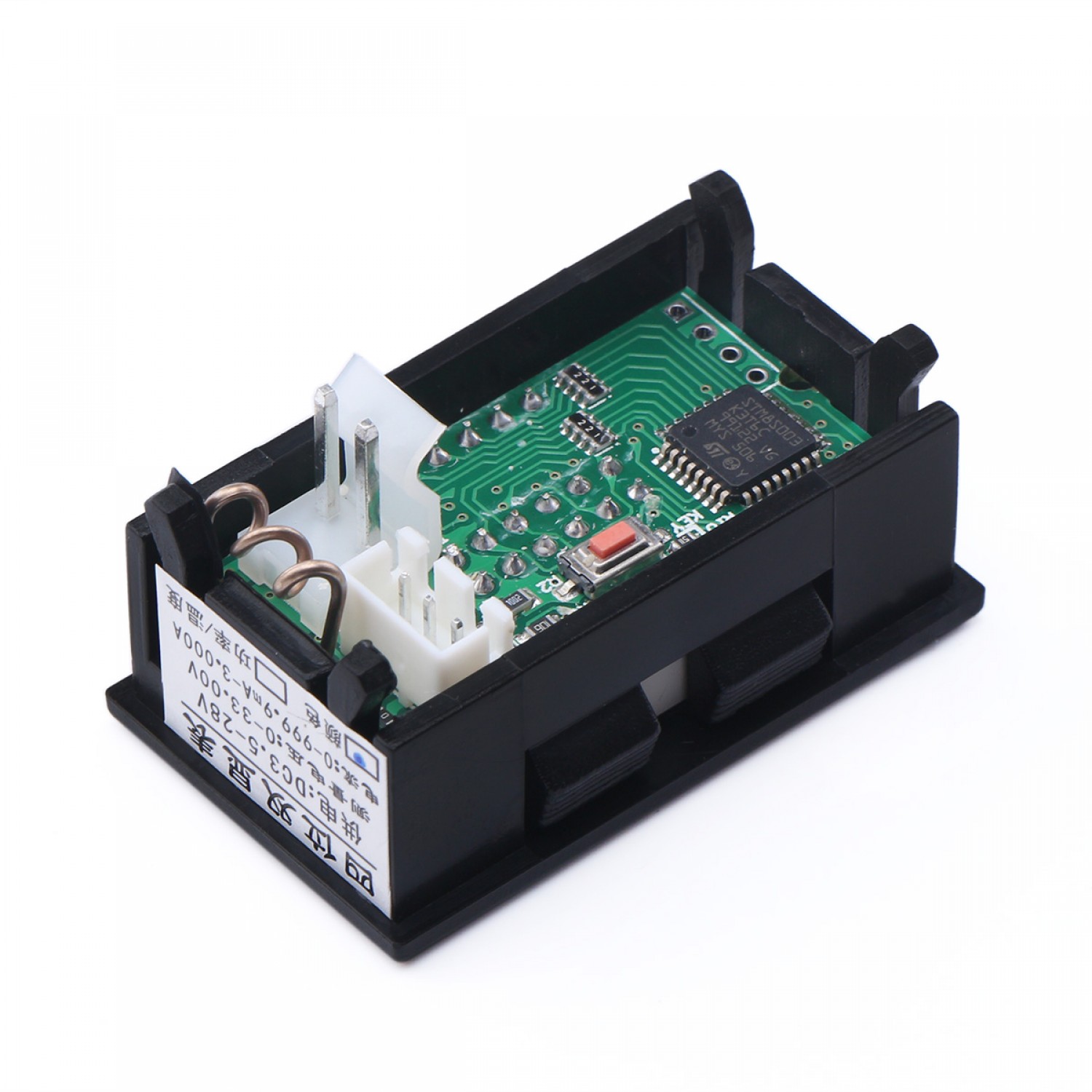

Technical Parameters:

  • Display color: Red+Blue

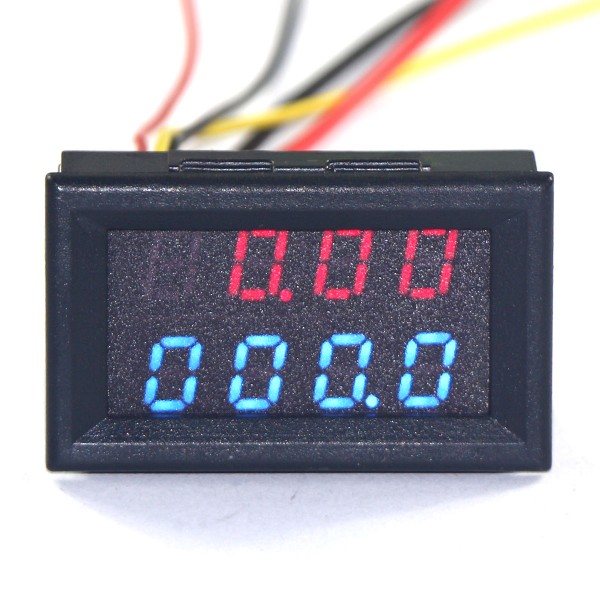

  • Display mode: Dual 0.28" LED digital 4 bit tube
  • Refresh rate: About 200 ms/time

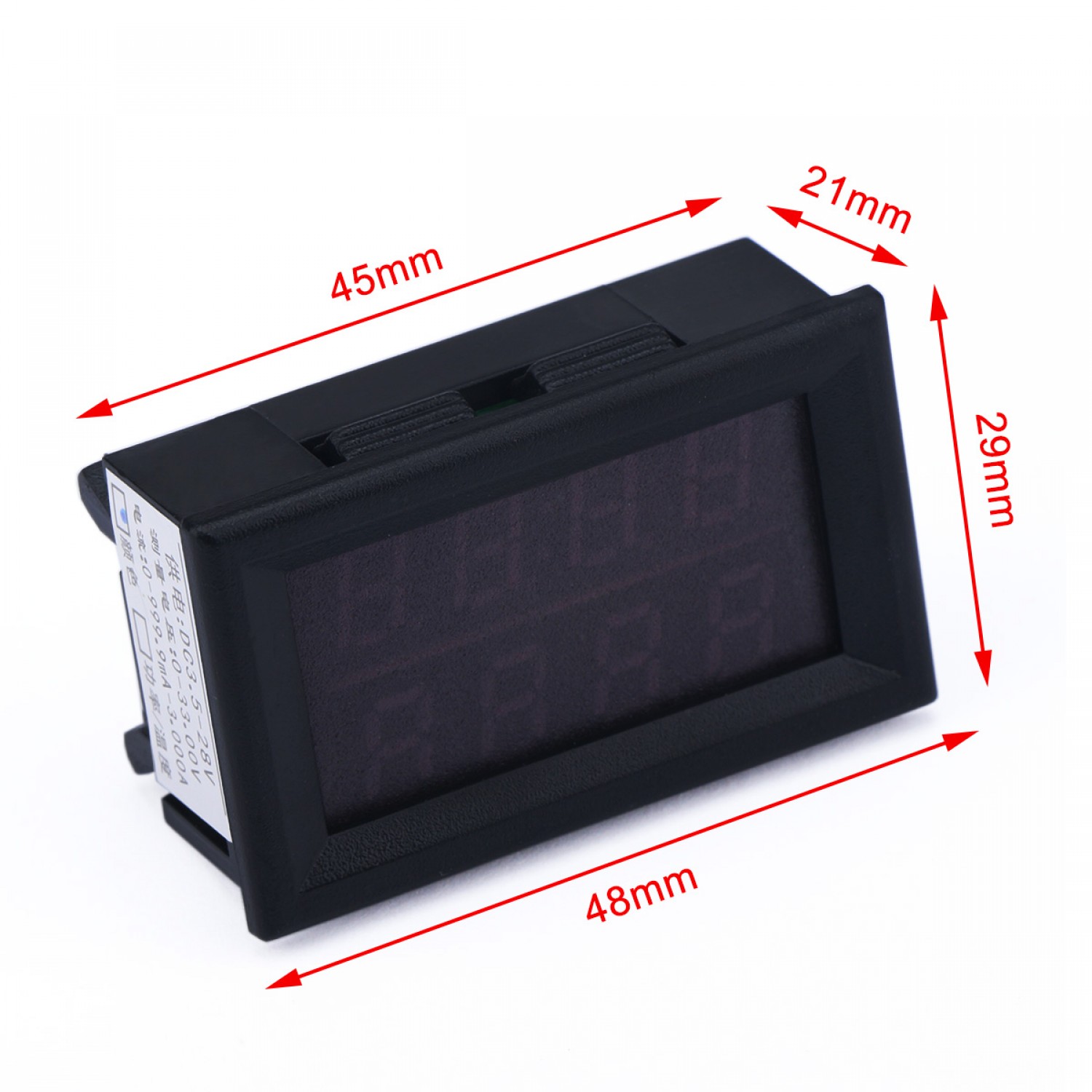

  • Dimenions: 48 x 29 x 26 mm (L*W* H)
  • Cutting size: 45 x 26 mm (L*W)
  • Supply voltage: DC 3.5-28V

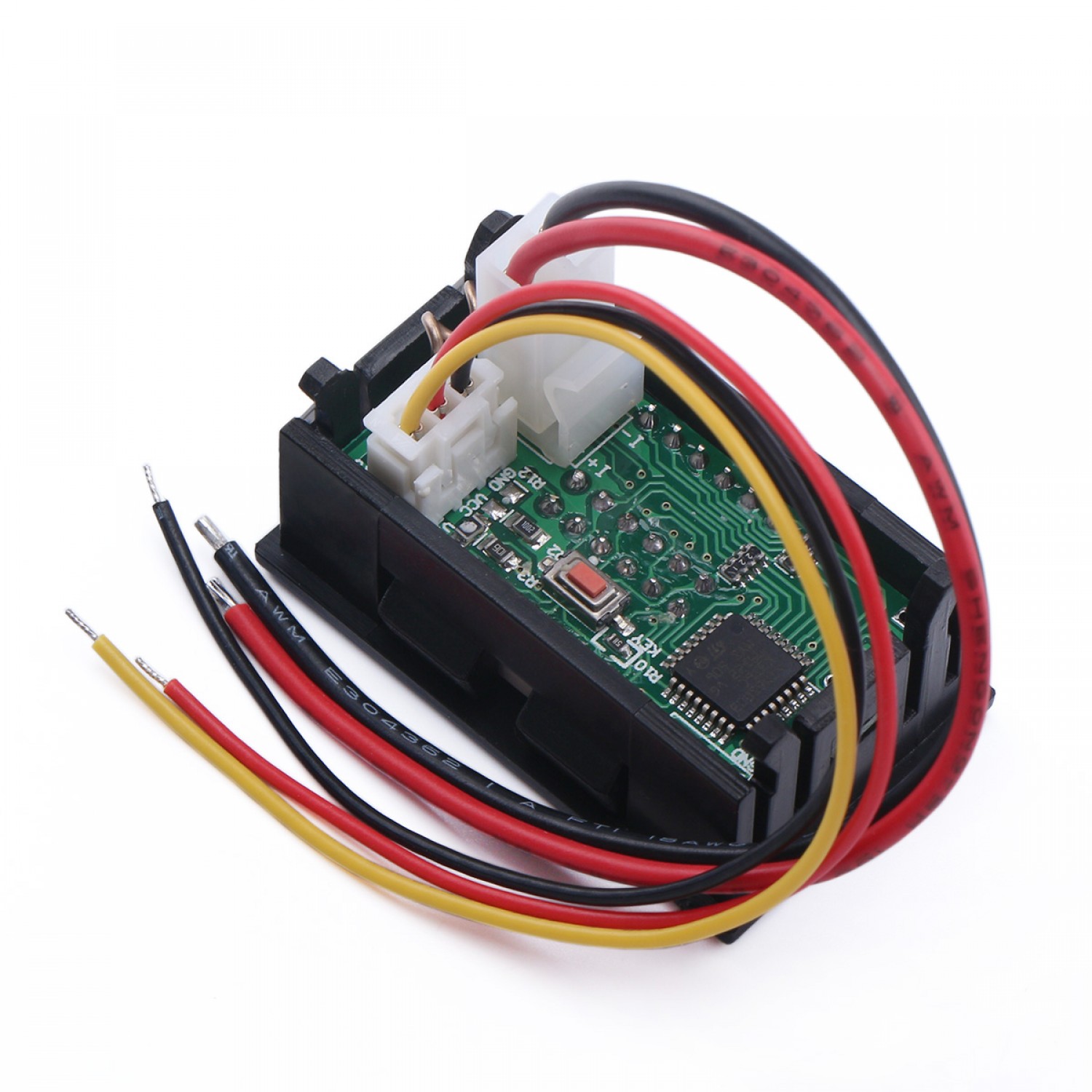

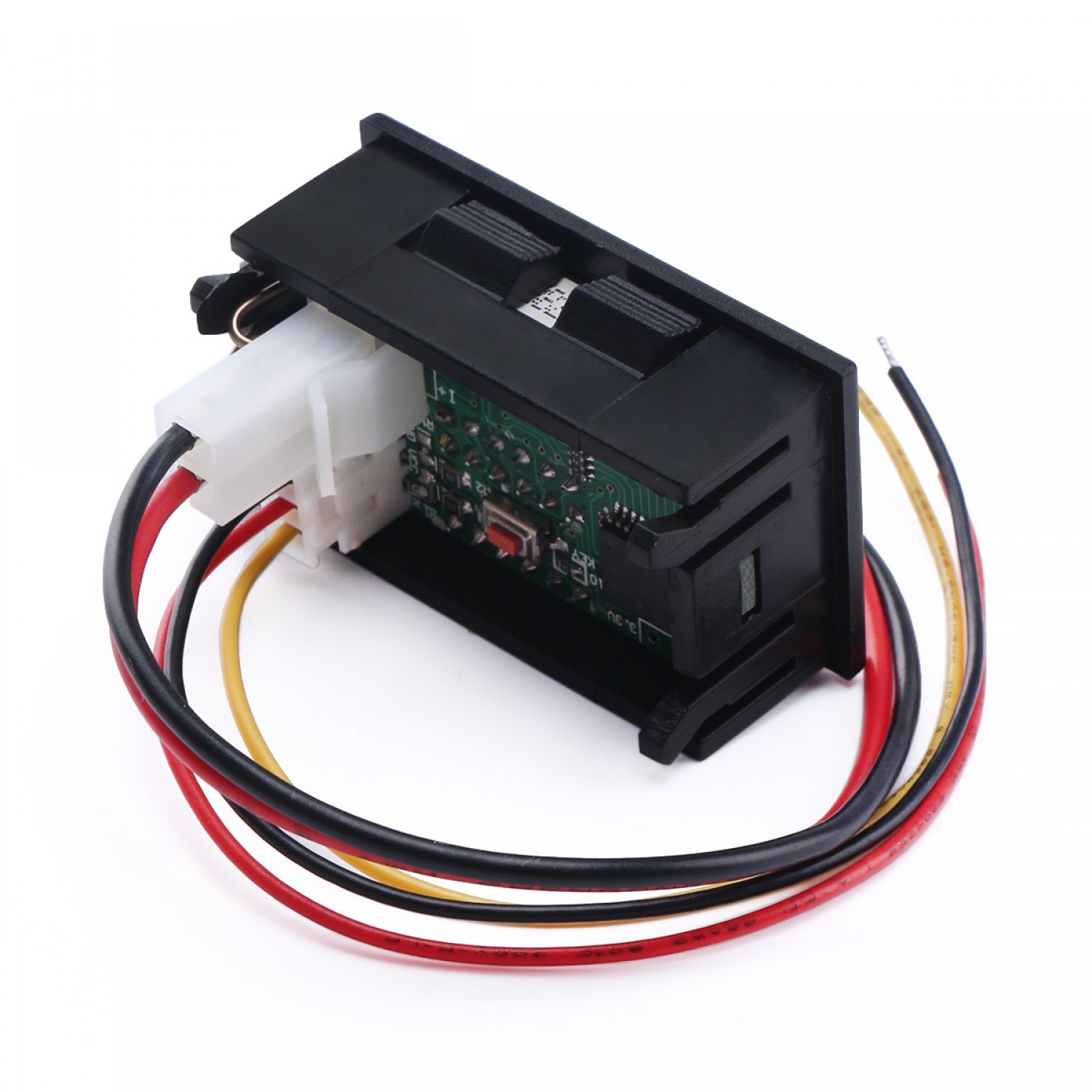

  • Lead wire length: 14 cm (5-wires)
  • Measurement range: DC 0-999.9mA-3.000A(current); 0.00-33.00V(voltage)
  • Operation temperature: -10 degrees~65 degrees
  • Measurement accuracy: ± (0.3% + 2 digits)
  • Net weight : 22g

Display description:

  • Voltage measurement range:0.00-33.00V; the minimum resolution is 10mV
  • Current measurement range: 0-999.9mA-3.000A. when the measuring current is below 1A, it display ***.*mA,the resolusion is 0.1mA; when the measuring current is higher than 1A, it display *.***A,the resolusion is 1mA;

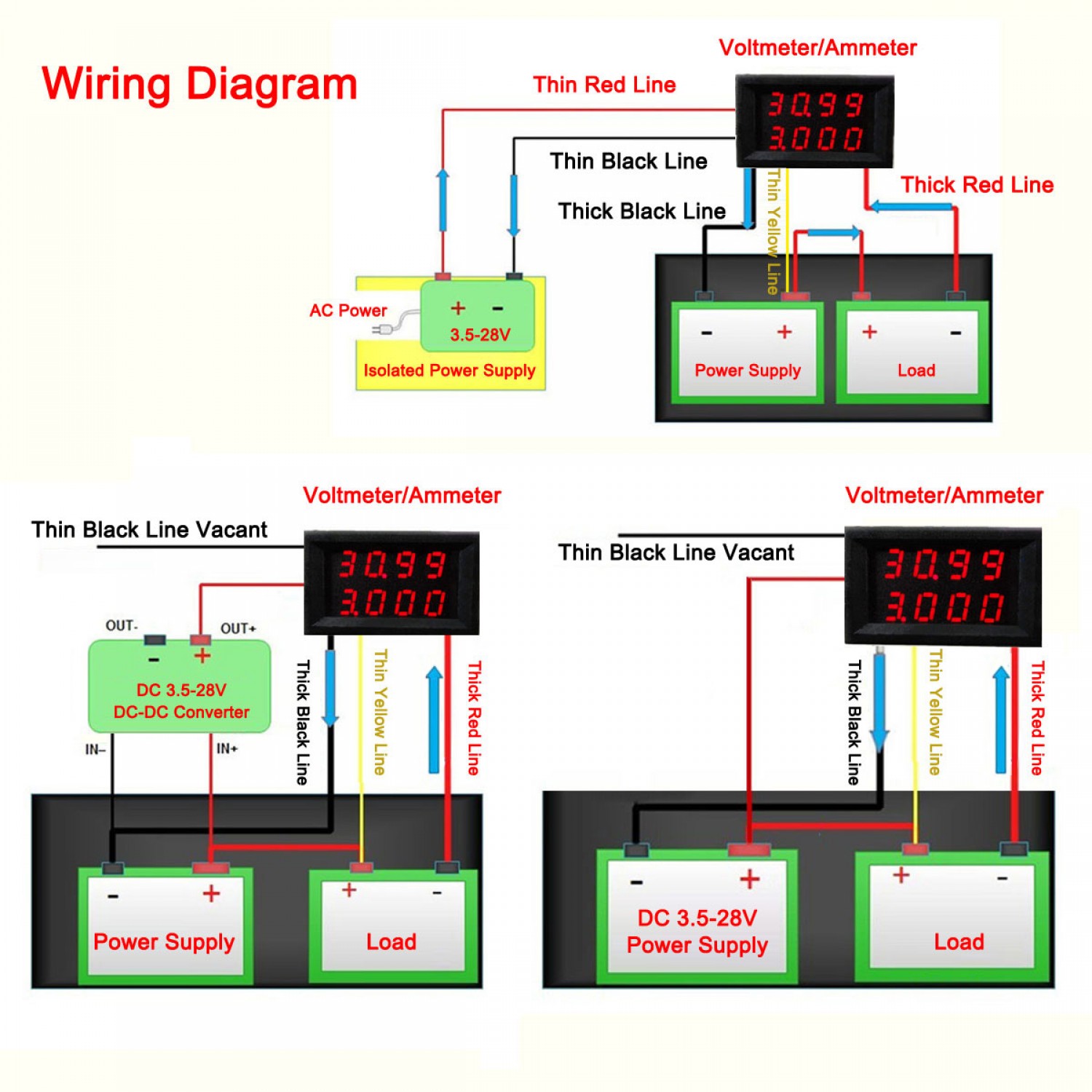

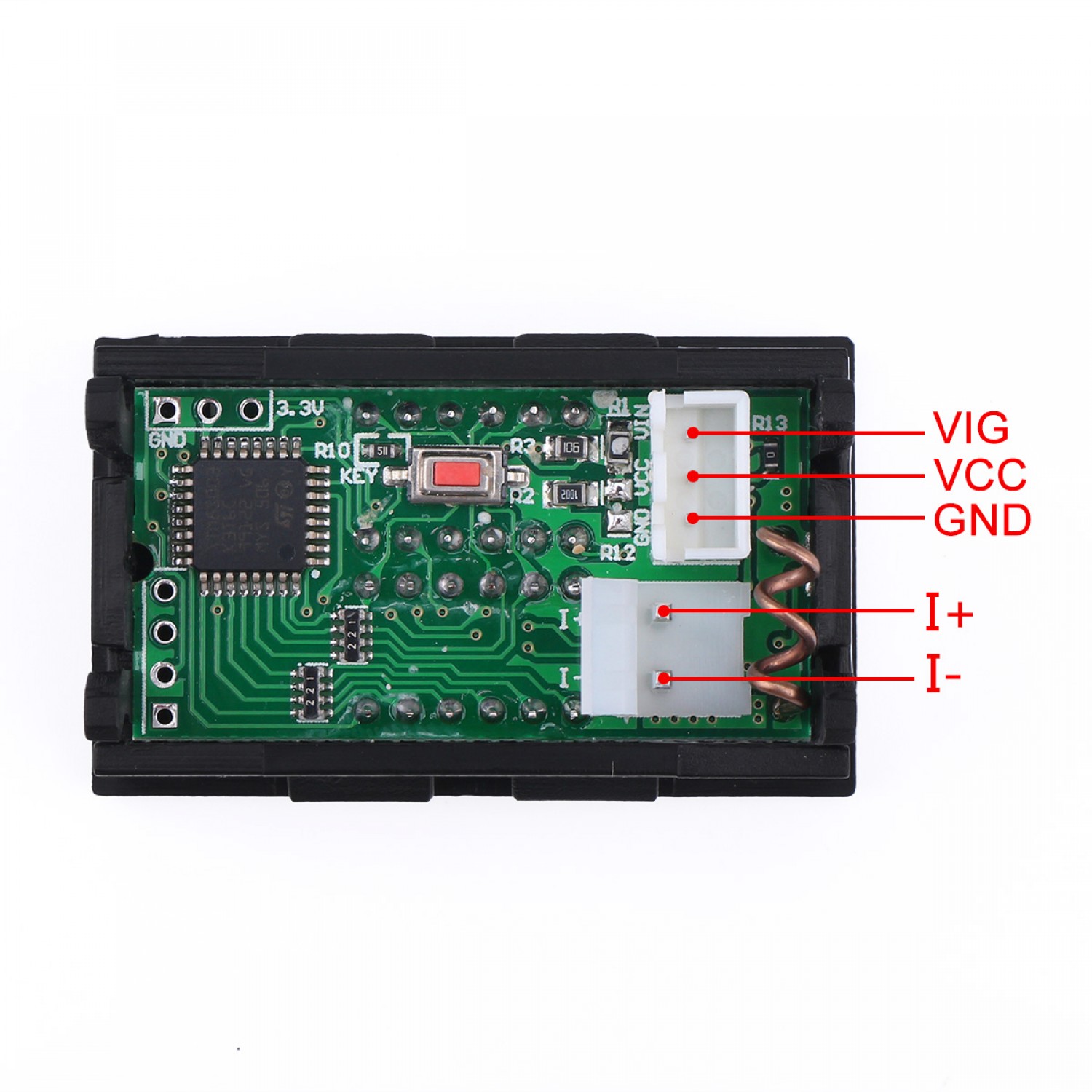

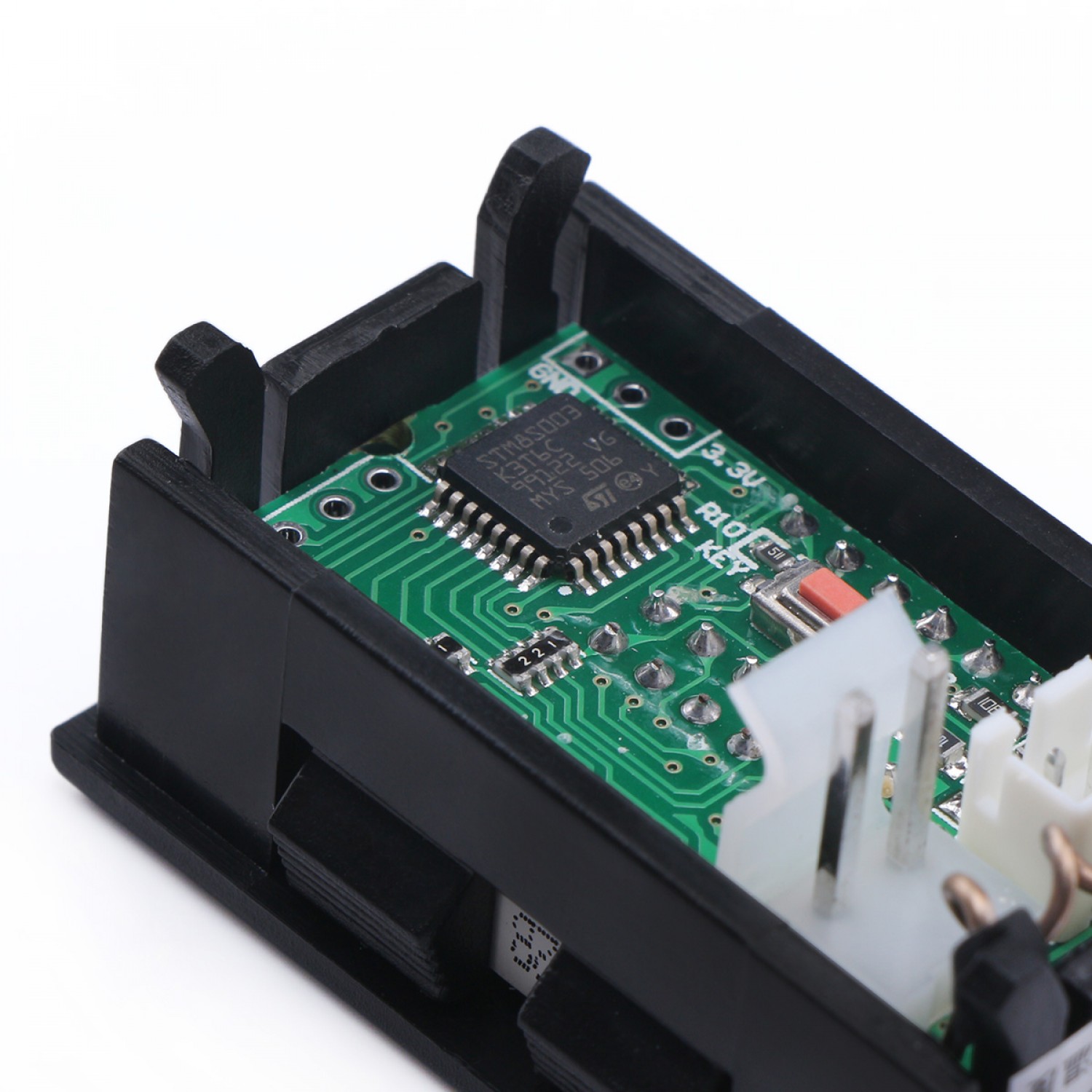

Wiring Instruction:
  • RED(VCC): Power input+, 3.5-28V (NOTE: If the measuring signal is lower than 28V and have abundant power supply, it can be used as power supply for the meter. black wire and yellow wire are contacted together to use)
  • Black(GND): Power input- , Measurement signal- (3.5-28V)
  • Yellow(VIN): Measurement signal+ (0-33.00V)
  • RED(I+): Current input+ (in series in Power Supply Negative or Load Negative)
  • Black(I-): Current input- (in series in Power Supply Negative or Load Negative)
Voltage compensation function description:
  • 1,When the system load is bigger, there will be some certain voltage drop on the connecting wire. so the meter will not properly display the output voltage of the power supply system. now the voltage compensation function can solve this problem by moderate compensation of the voltage loss on connecting wire.
  • 2,When you use this function, first please prepare an at least 4.5 digit multimeter. then connect it to the output of the system supply power, and shut down the power of the voltage current meter. then keeping press the button on the back of the voltage current meter and power to the meter at the same time.
  • 3,Now the below digital tube will display [**]; ** , this indicate the storage compensation voltage level (when the meter was just produced, (when the meter was just produced, the level is 00, display [00], meaning no compensation).
  • 4,When you loose the button, the below digital tube will display --**, this indicate that the meter is going in the state of setting compensation voltage. please connect the bigger load in the circuit( we advise the current of the load should be higher than 2A, so the voltage compensation will be more precise.) ,then check the voltage which the above digital tube show. press shortly the button one time, it will be automatically added 1 level (The maximum compensation level is 99), until the voltage on the meter is the same to the voltage on the multimeter.
  • 5,Keeping press the button more than 2s to store the voltage compensation. so you will measure the voltage by this compensation level. If you want to shunt down the compensation, please adjust level to 00.

Package include:
  • 1x Digital Voltage&Ammeter

Attributes
input voltage3.5~28V
output current0~3A
output power--
output voltage0~33V
output ways1

Write a review

Please login or register to review

0.28"High Accuracy DC 0-33.00V/0-999.9mA-3.000A 12V Voltmeter Ammeter Voltage Current Tester Monitor Panel Gauge

  • Brand: Drok
  • Product Code: 300006
  • Availability: In Stock
  • $19.84
  • $9.52
  • Bulk Buy Discounts. Buy more please contact us
    Qty5103050+
    Price$9.04$8.57$8.09$7.62
