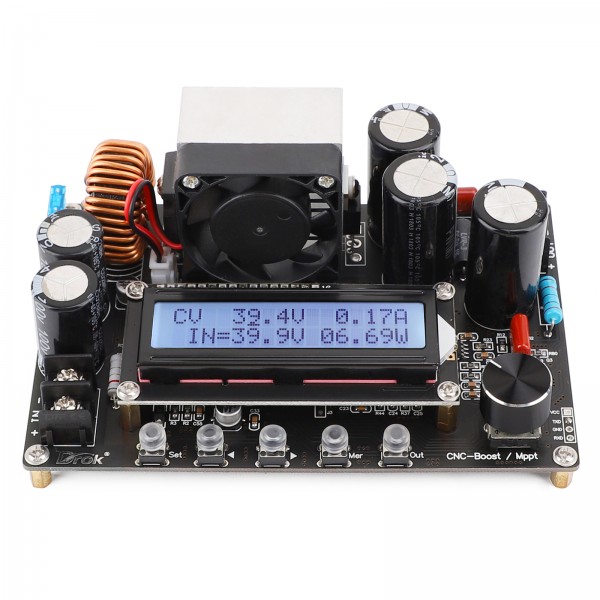

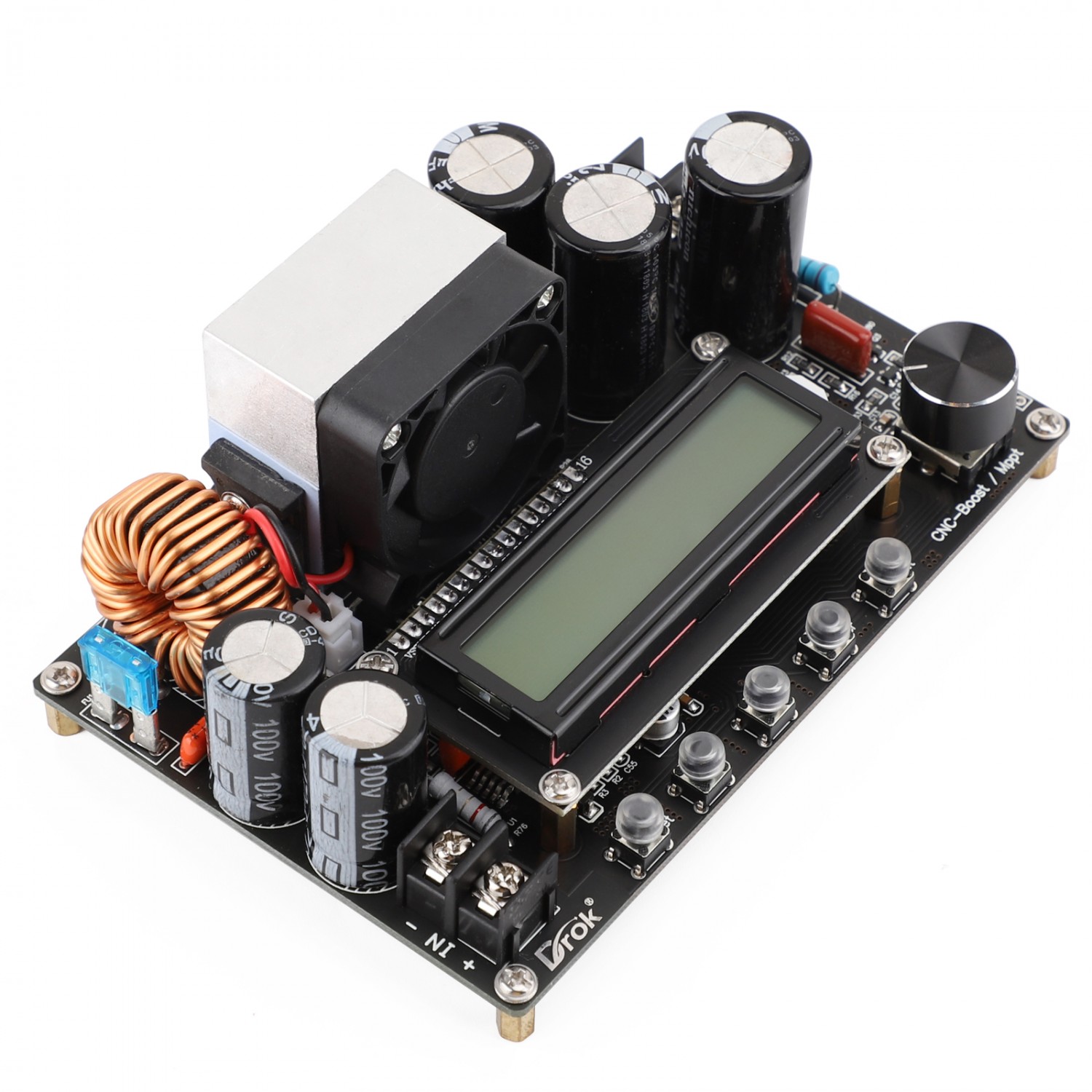

CNC 10V-65V to 12V-120V Adjustable Power Supply Boost Module
Parameter:
Input Voltage: DC 10V-65V
Input Current: DC 0-15A
Output Voltage: DC 12-120V
Output Current: DC 0-12A
Output Power: 0-800W
Input Protection: Input Low Voltage Protection (LVP)
Output Protection: Over Voltage Protection (OVP) Over Current Protection (OCP)
Voltage Regulation Resolution: 0.1V
Current Regulation Resolution: 0.1A
Voltage Display Resolution: 0.1V
Current Display Resolution: 0.01A

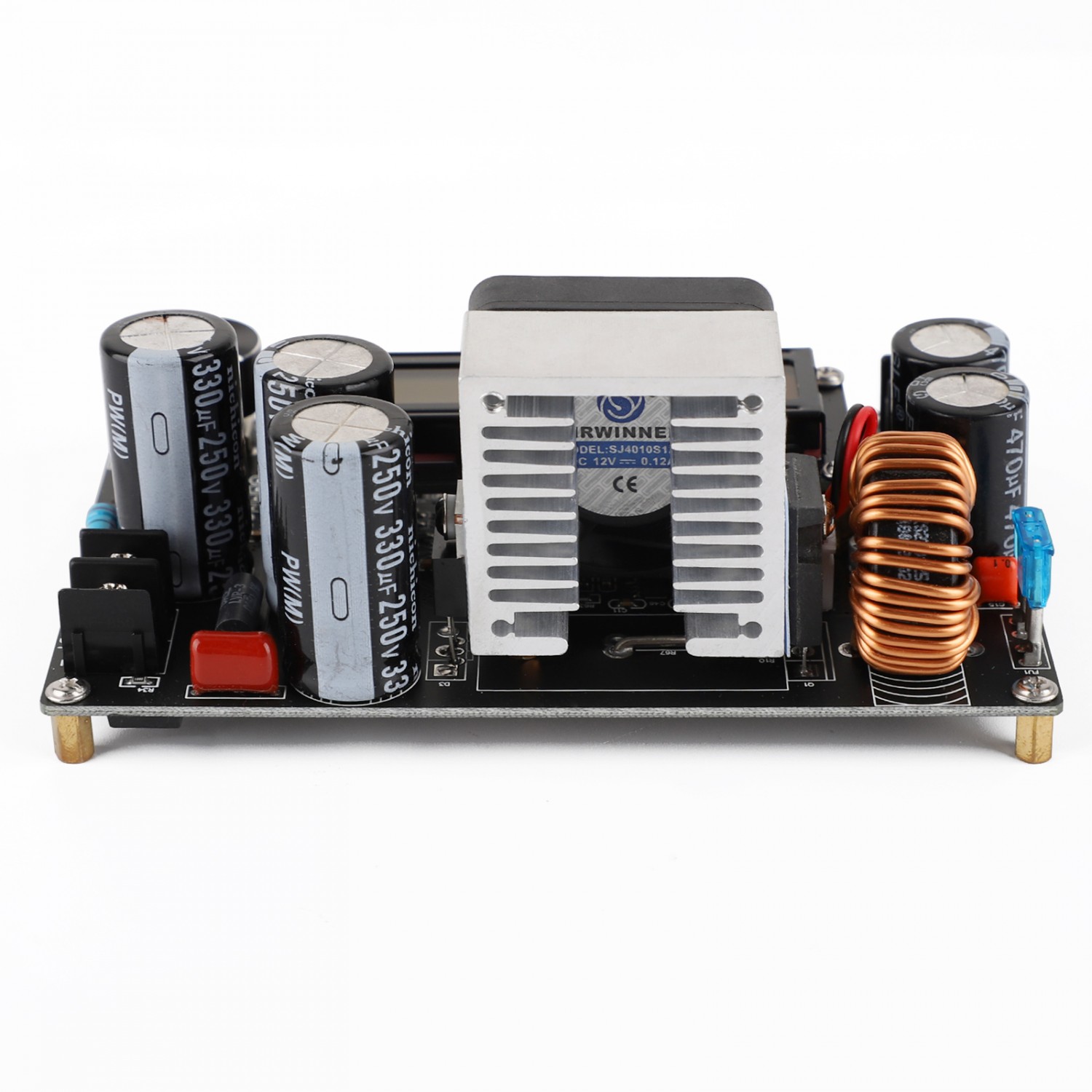

Fan Start-up Condition: Output Current > 1.5A or Power > 40W
Short Circuit Protection: 15A Automotive Fuse
Wiring Mode: Terminal 8500

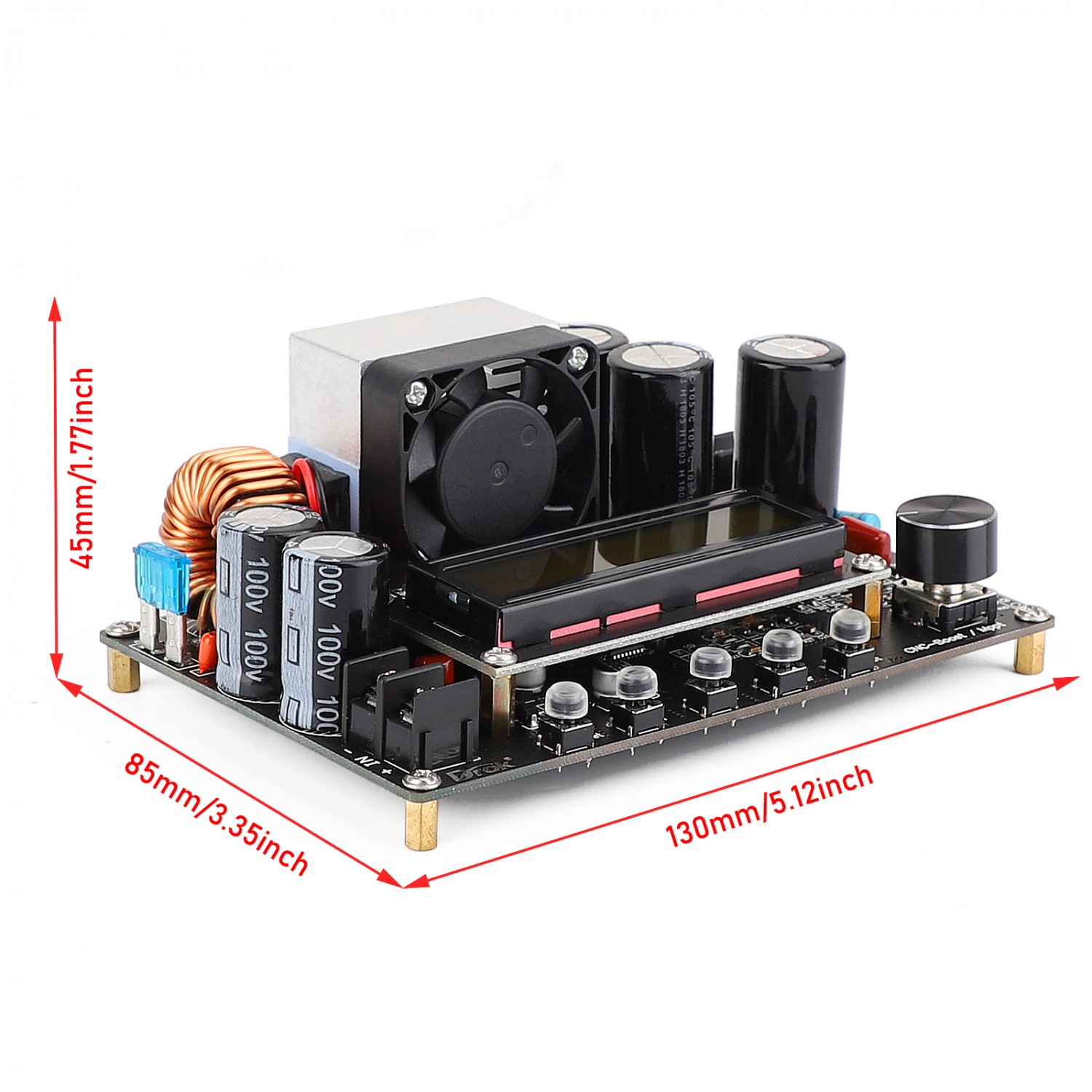

Size: 130×86×60mm

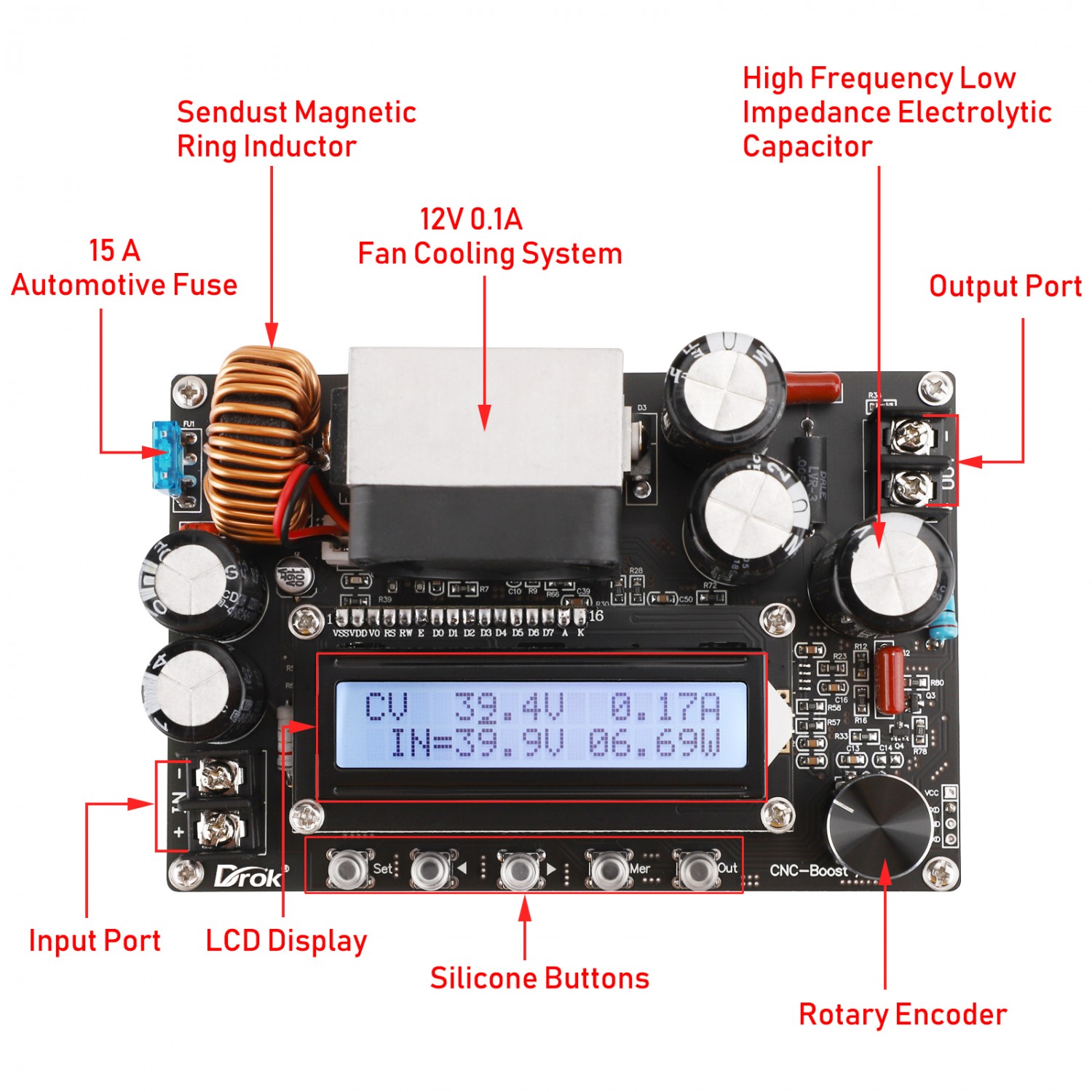

Feature
Adjustable Voltage & Current
Boost MPPT Function --- which is suitable for solar panel boost charging to capture the maximum output power.
CNC Function --- which enables users to read or set the parameters with computer or single chip microcomputer.
LCD Display --- the module status reader is designed with LCD color screen, clear and convenient.
Protection --- with input low voltage protection(LVP), over voltage protection(OVP), over current protection(OCP).
Attributes | |
input voltage | 10V-65V |
output current | 0-12A |
output voltage | 12-120V |
