-29% DC Current Detector Meter 0.56

Ask Question

0.56" Red/Blue/Green LED Digital Ammeter. Small dimension, Measuring Range: DC 0-50.0A ,Application: industrial equipment monitoring,Motorcycle, Car, E-bike, ATV, Scooter,Battery,Electromobile ,and All kinds Current Measuring.

Feature: Features:

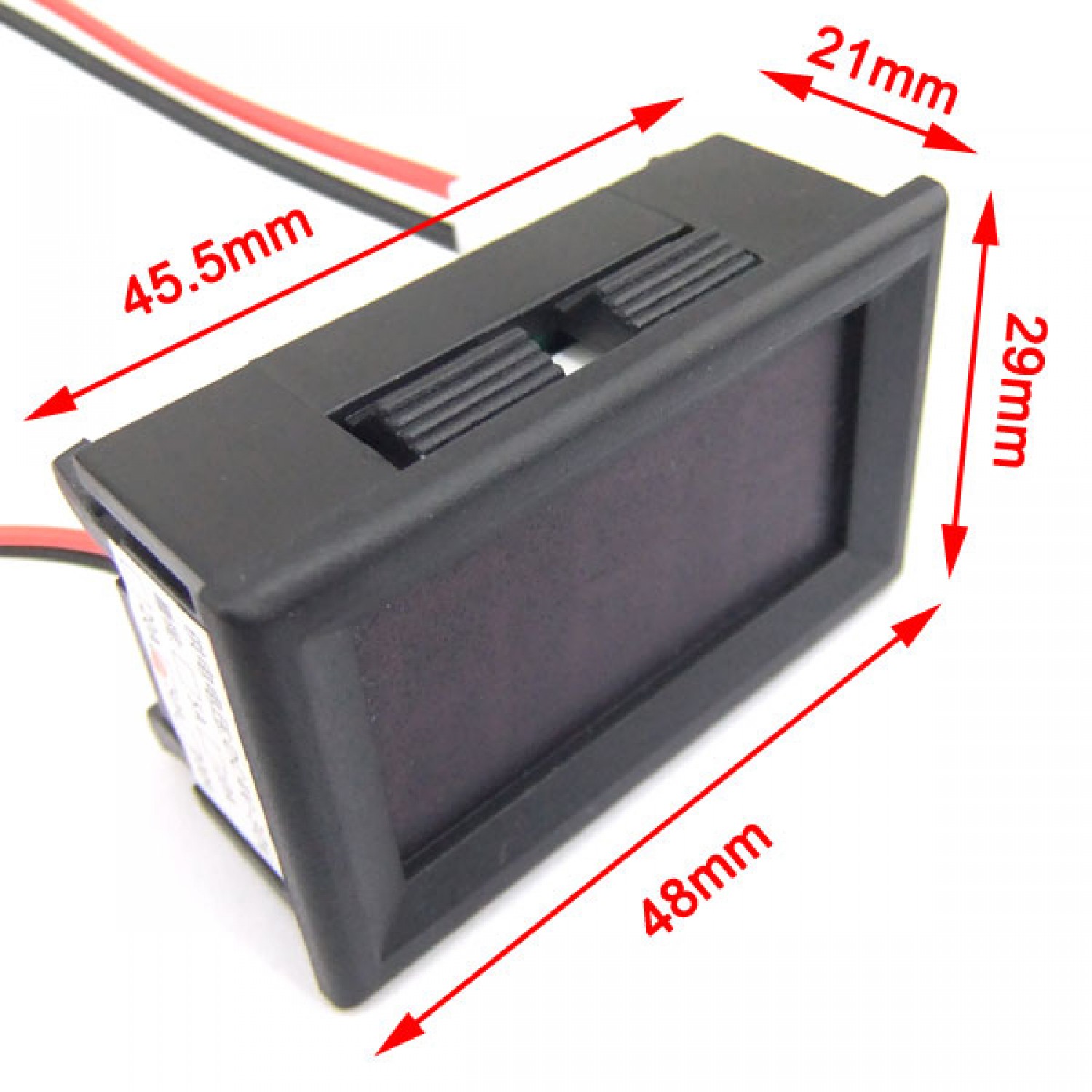

  • Cutting size:45.5mm x 26.5mm
  • Dimensions: 48mm x 29mm x 21mm
  • Measuring Range: DC 0-50.0A
  • Power Supply: DC 7-30V (2 wires)

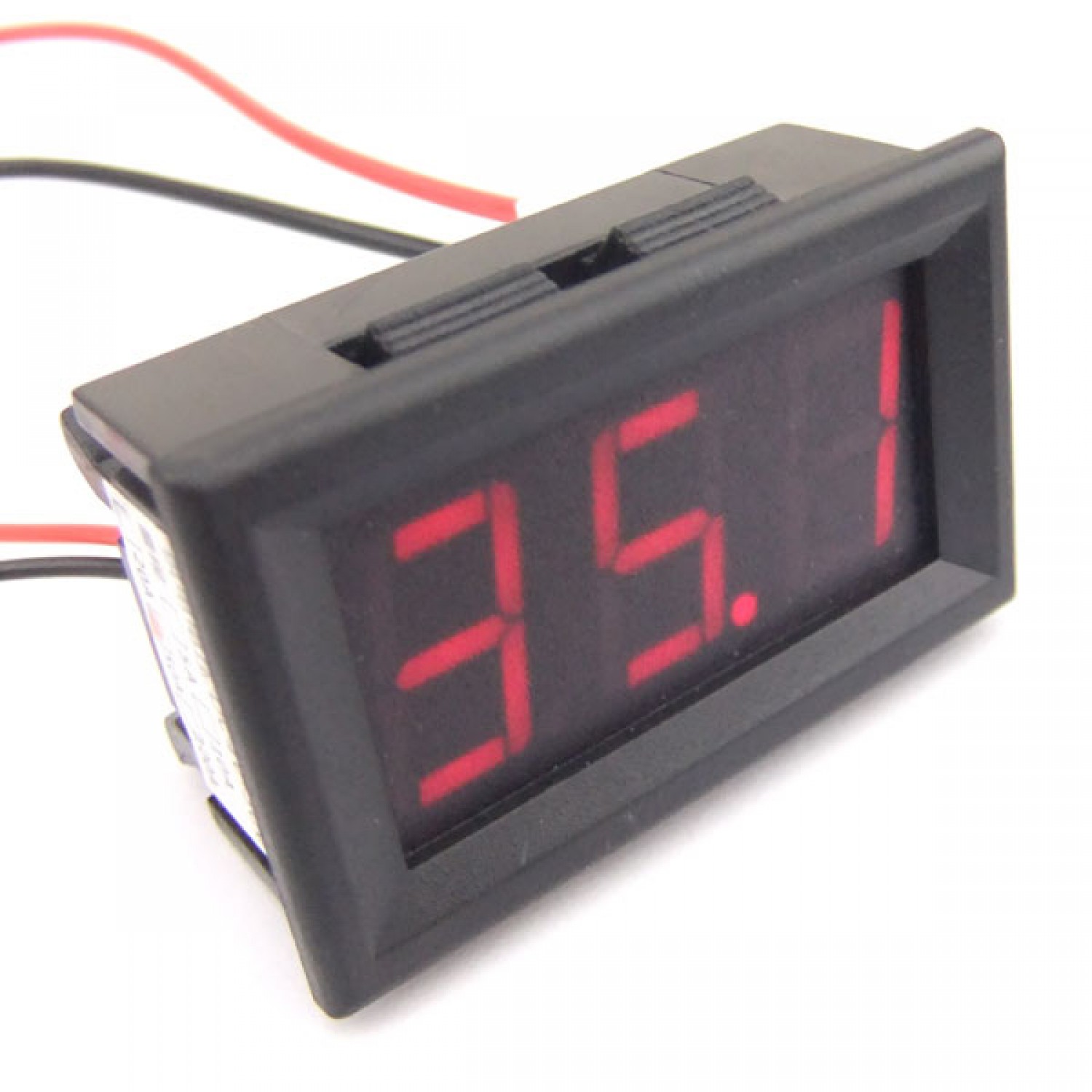

  • Display: Three  0.56 " LED digital tube
  • Display Color: Red/Blue/Green
  • Refresh rate: about 300mS / times

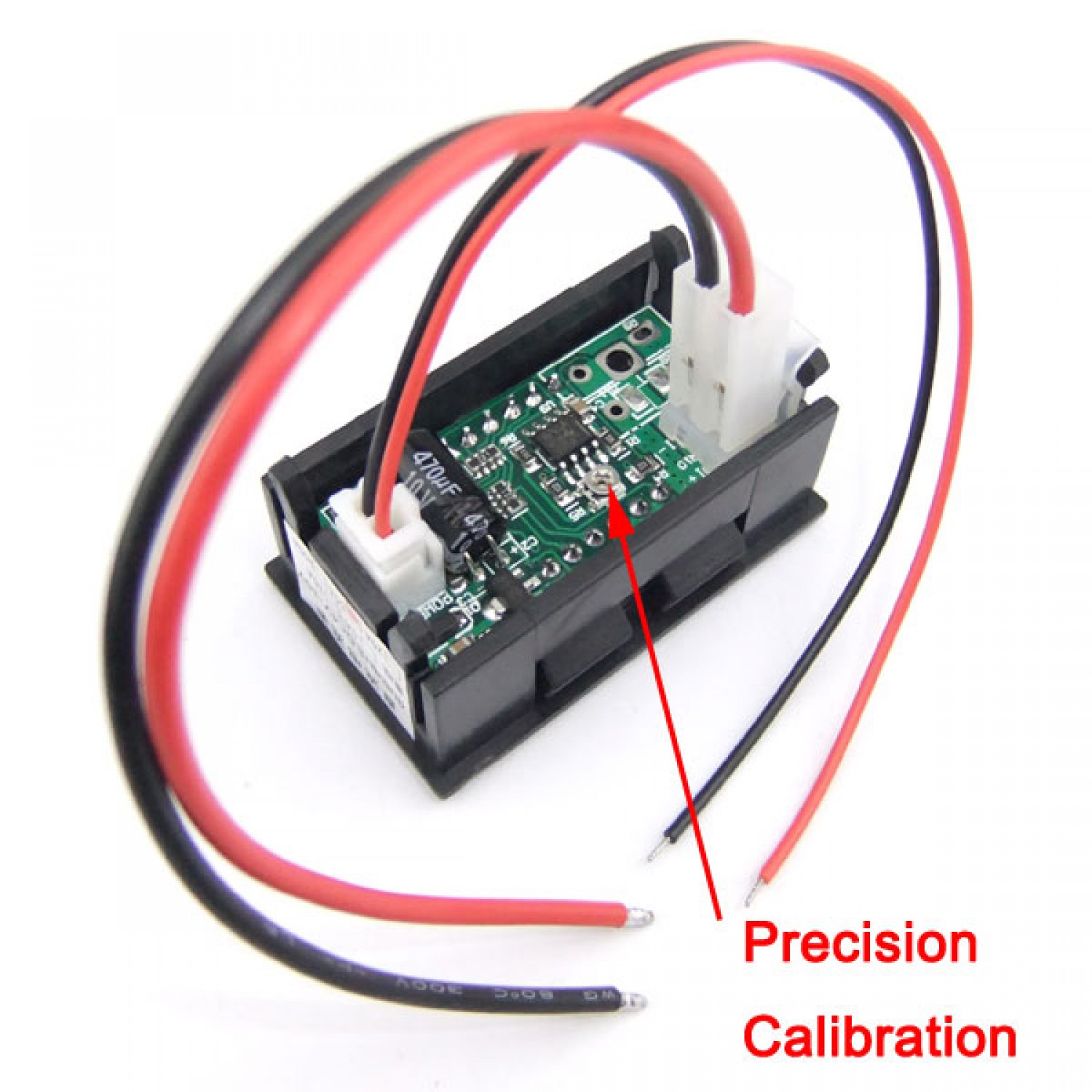

  • Accuracy: 1 %(+/-  2 digit)   (Measuring 75mv)
  • Application:  industrial equipment monitoring,Motorcycle, Car, E-bike, ATV, Scooter,Battery,Electromobile ,and All kinds Current Measuring

Note:

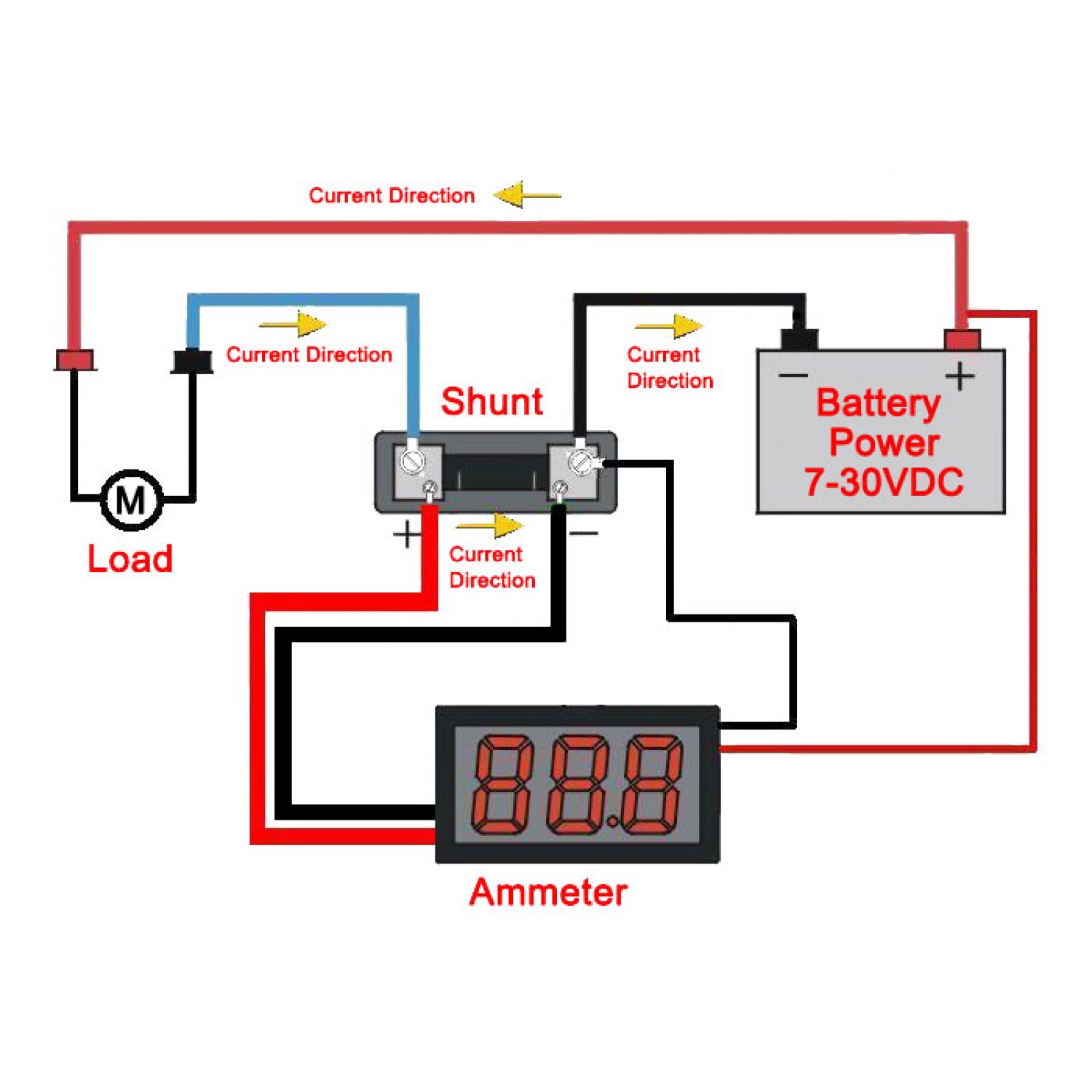

  • Common ground design,the ammeter can only series connection between the test equipment negative and the test equipment power supply negative
  • Recommend to use a separate isolated power supply

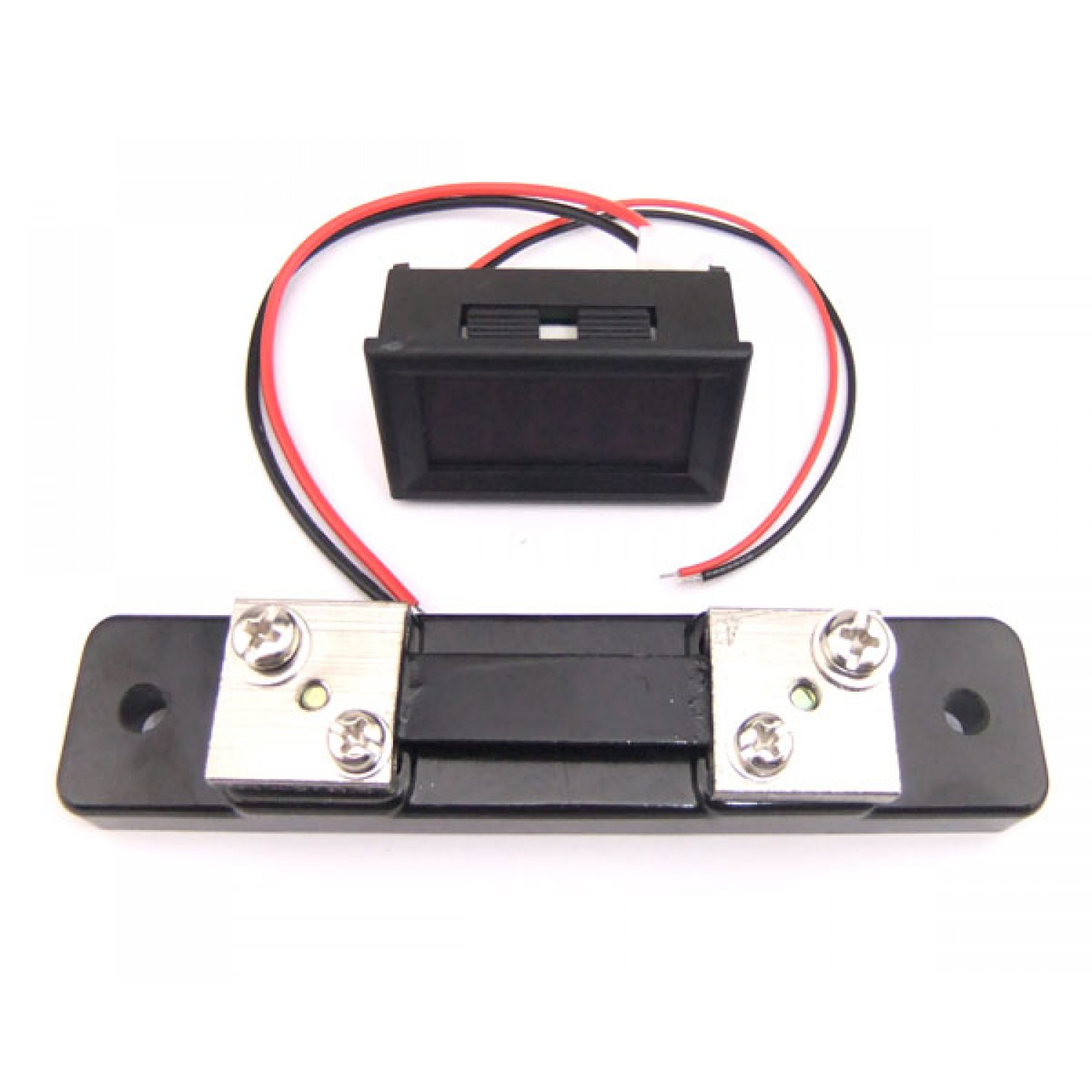

Package Includes:
  • 1x Digital Ammeter

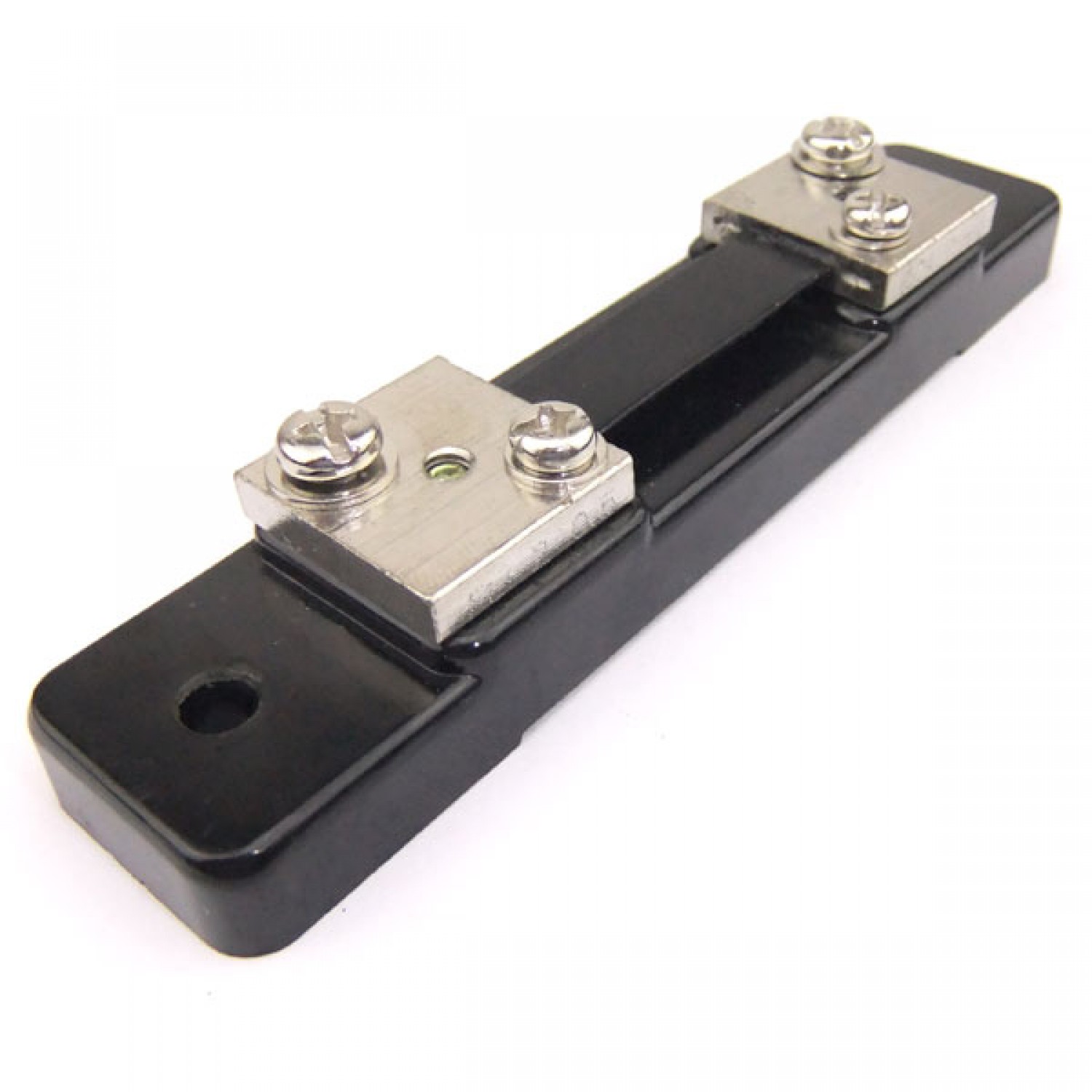

  • 1x Current Shunt
Attributes
input voltage7~30V
output current0~50A
output power--
output voltage--
output ways1

Write a review

Please login or register to review

DC Current Detector Meter 0.56

  • Brand: Drok
  • Product Code: 090888
  • Availability: In Stock
  • $9.80
  • $6.96
  • Bulk Buy Discounts. Buy more please contact us
    Qty251030+
    Price$6.61$6.26$5.92$5.57
