Description:

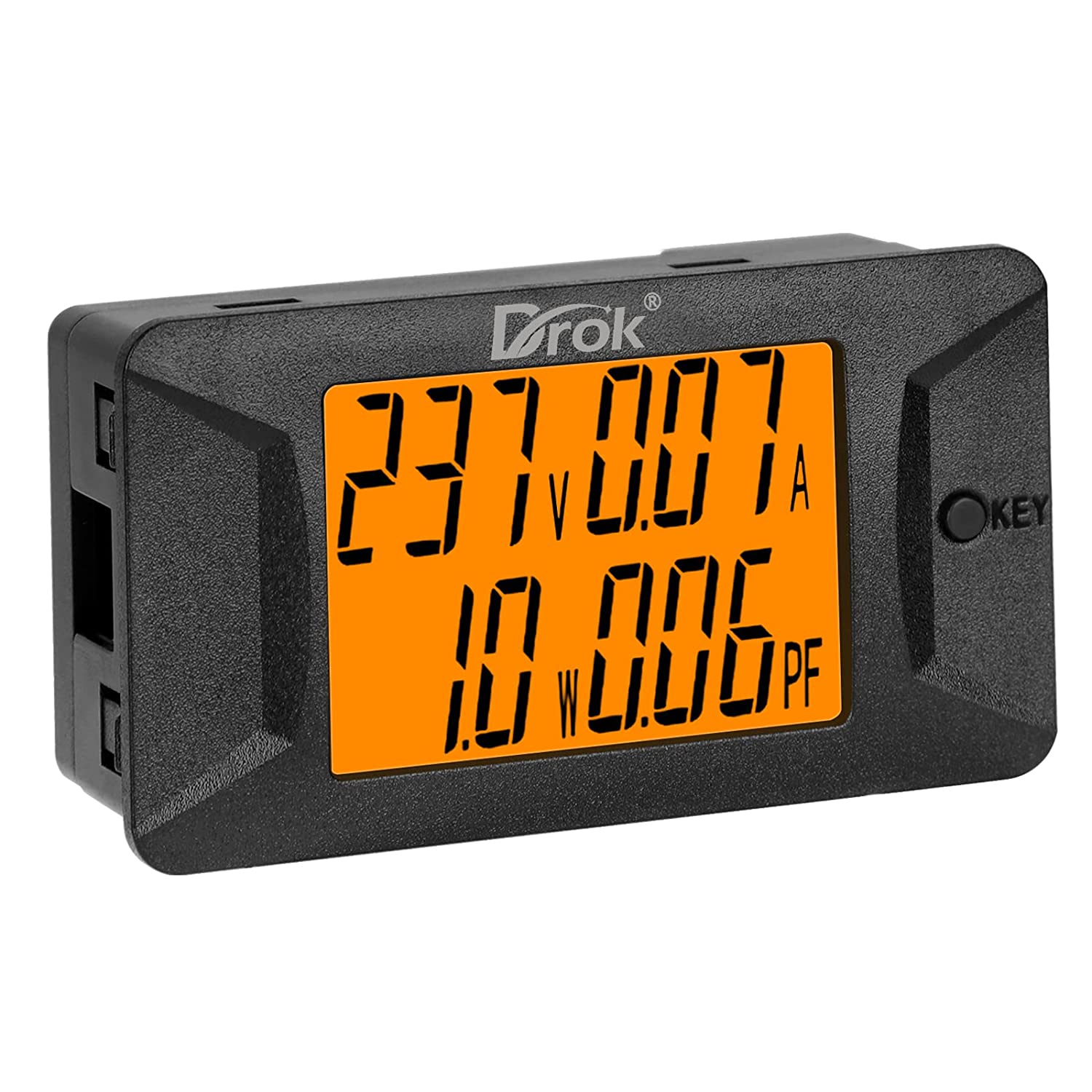

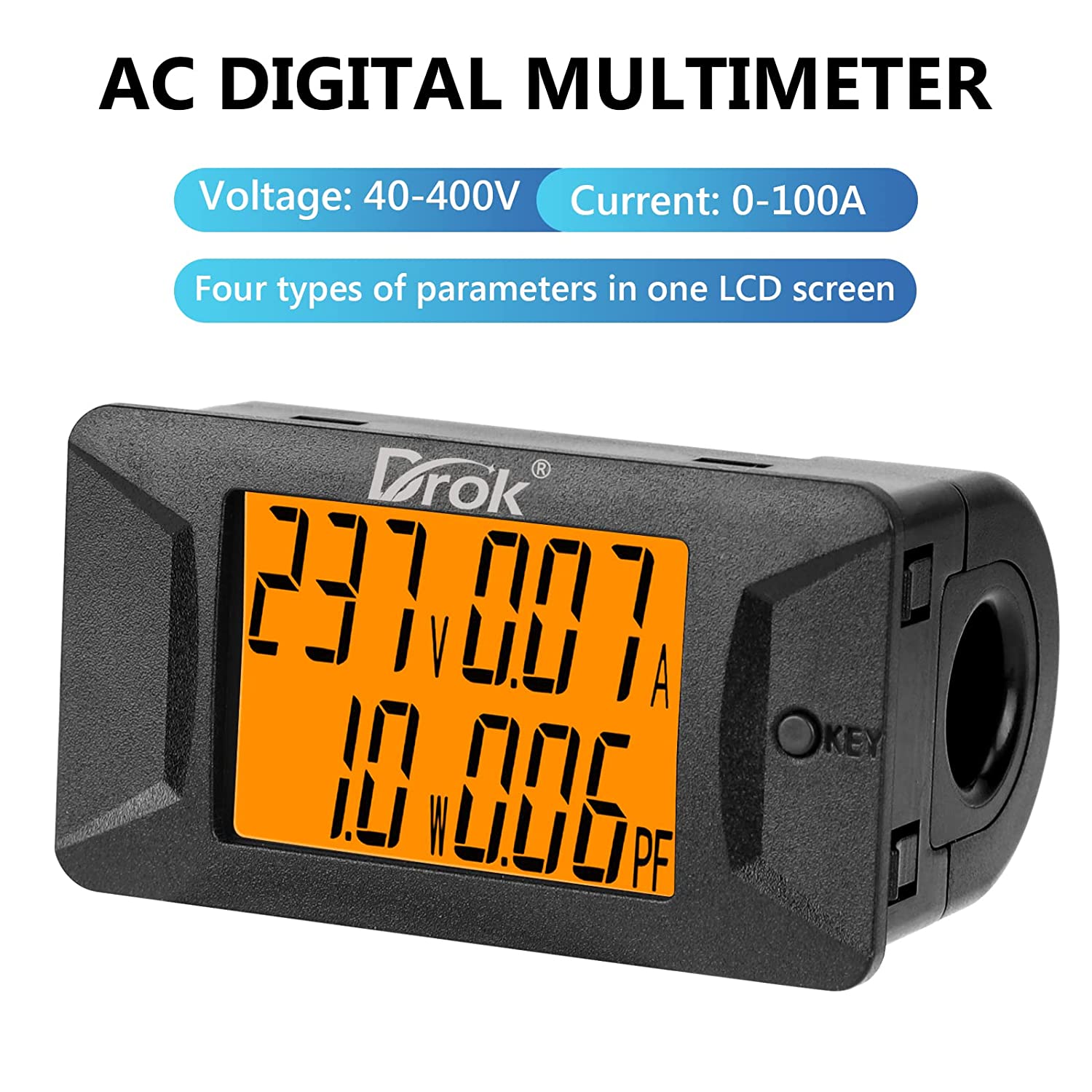

Orange backlight and Big Font reading, which can show  data more clearly.


​Parameters:

Voltage measuring range: AC 4-400V
Current measurement range: AC 0.02A-100A

Power Range: 0-22kw (Notice: The minimum detection value is 2.2w

Power Factor Range: 0-1

Display Format: 10.0V (  voltage＜100v)； 100V( value≥ 100v)

                          1.00A ( current ＜10A); 10.0A ( value＜100A; 100A ( value ≥100A)

                          10.0 W (power < 100W); 100W ( value <1000W)；1.00 KW （value<10000 W）; 10.0 KW (value ≥10000 W)

                          1.00 PF

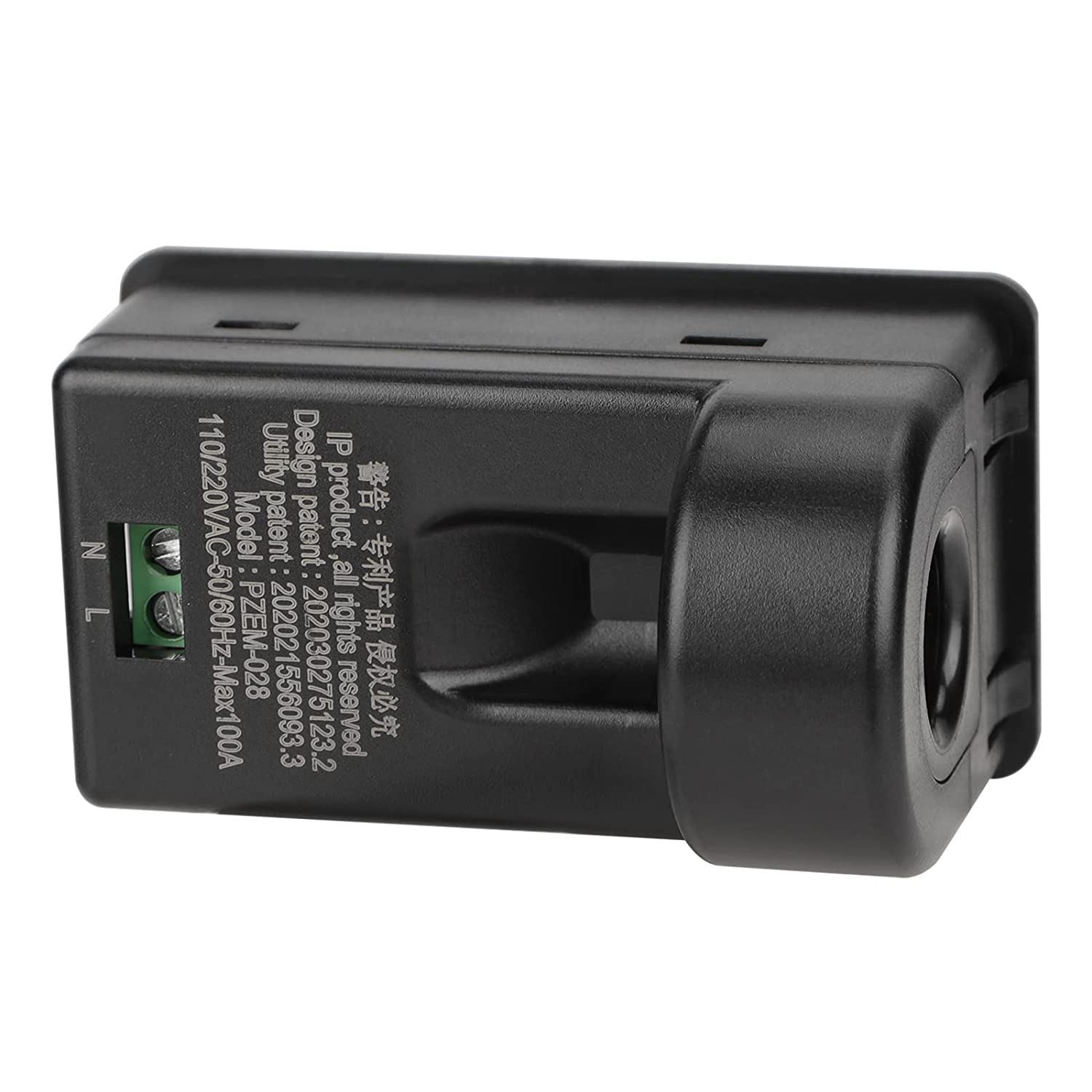

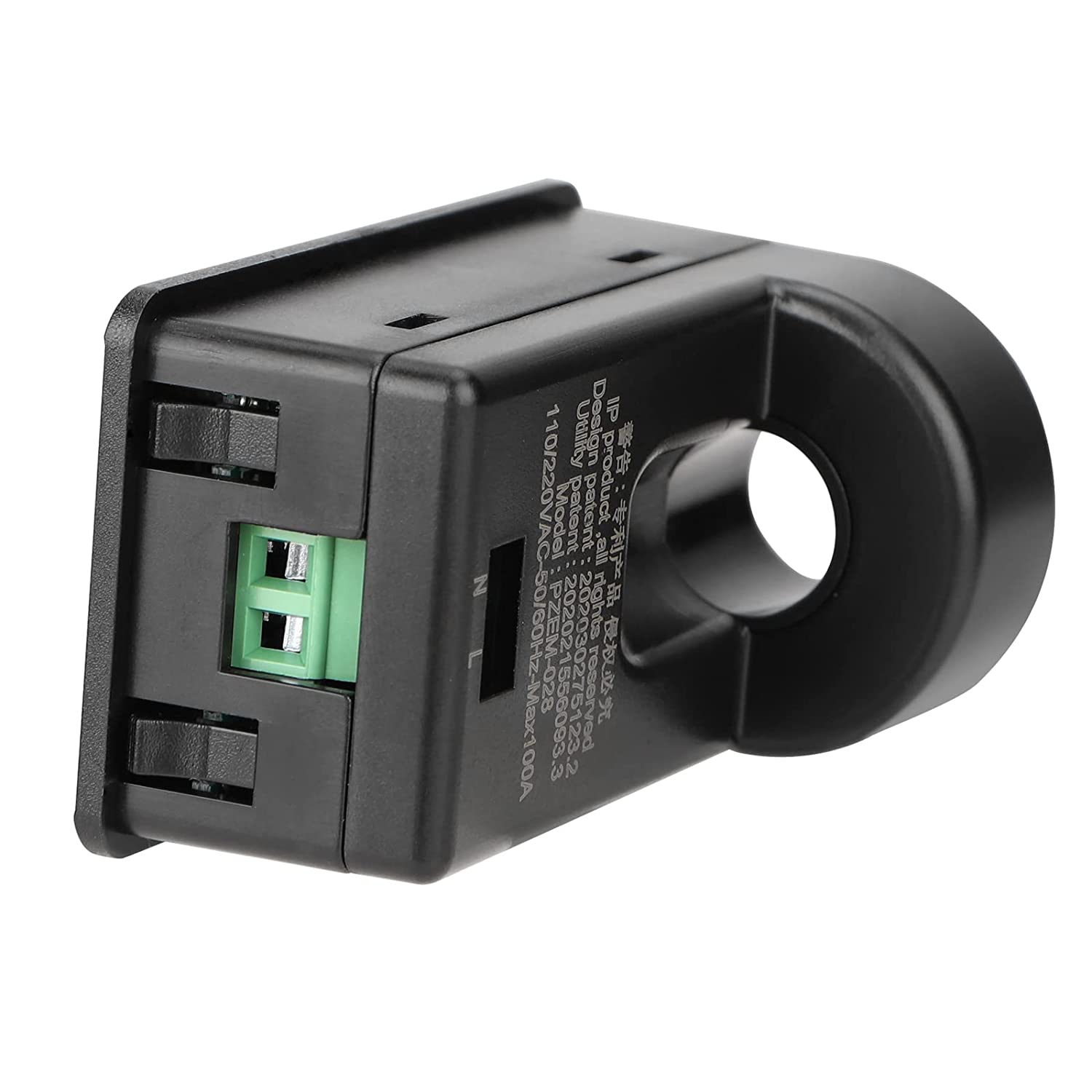

Buit-in CT hole diameter: 1.41 cm
Display: STN LCD display

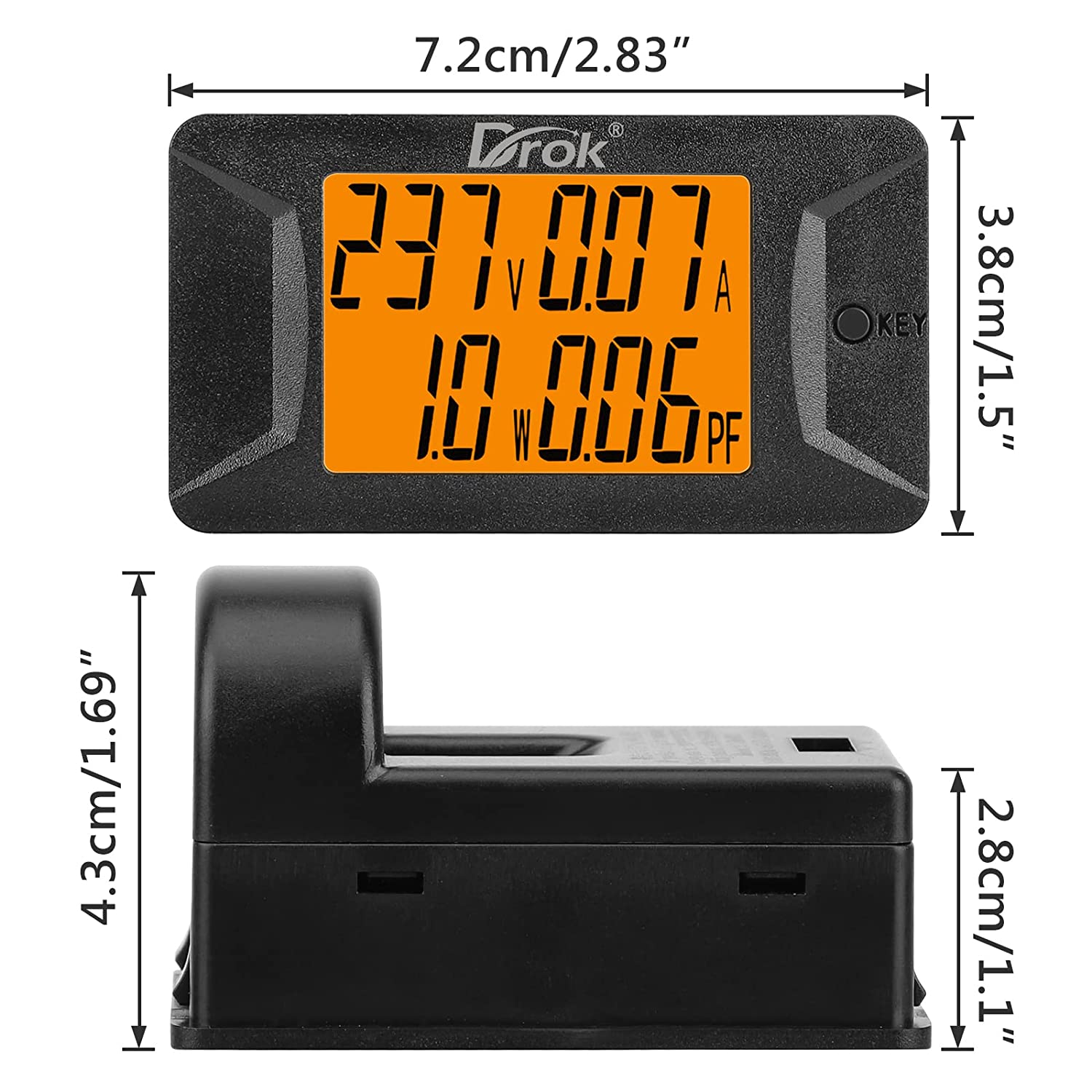

Overall Dimension: 7.2 * 4.3 * 3.8 cm
Installation dimension: 6.9* 3.7 cm

Sun exposure: no direct exposure

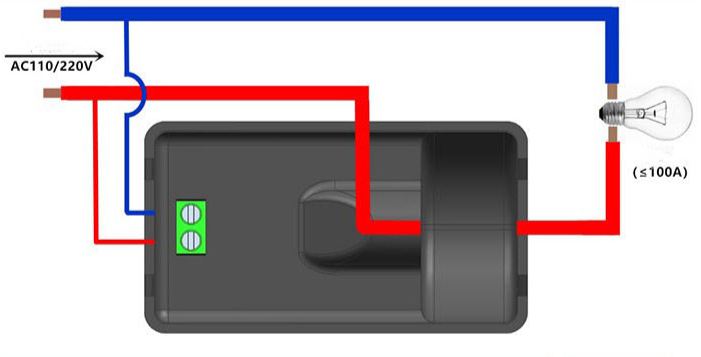

   Wiring:
