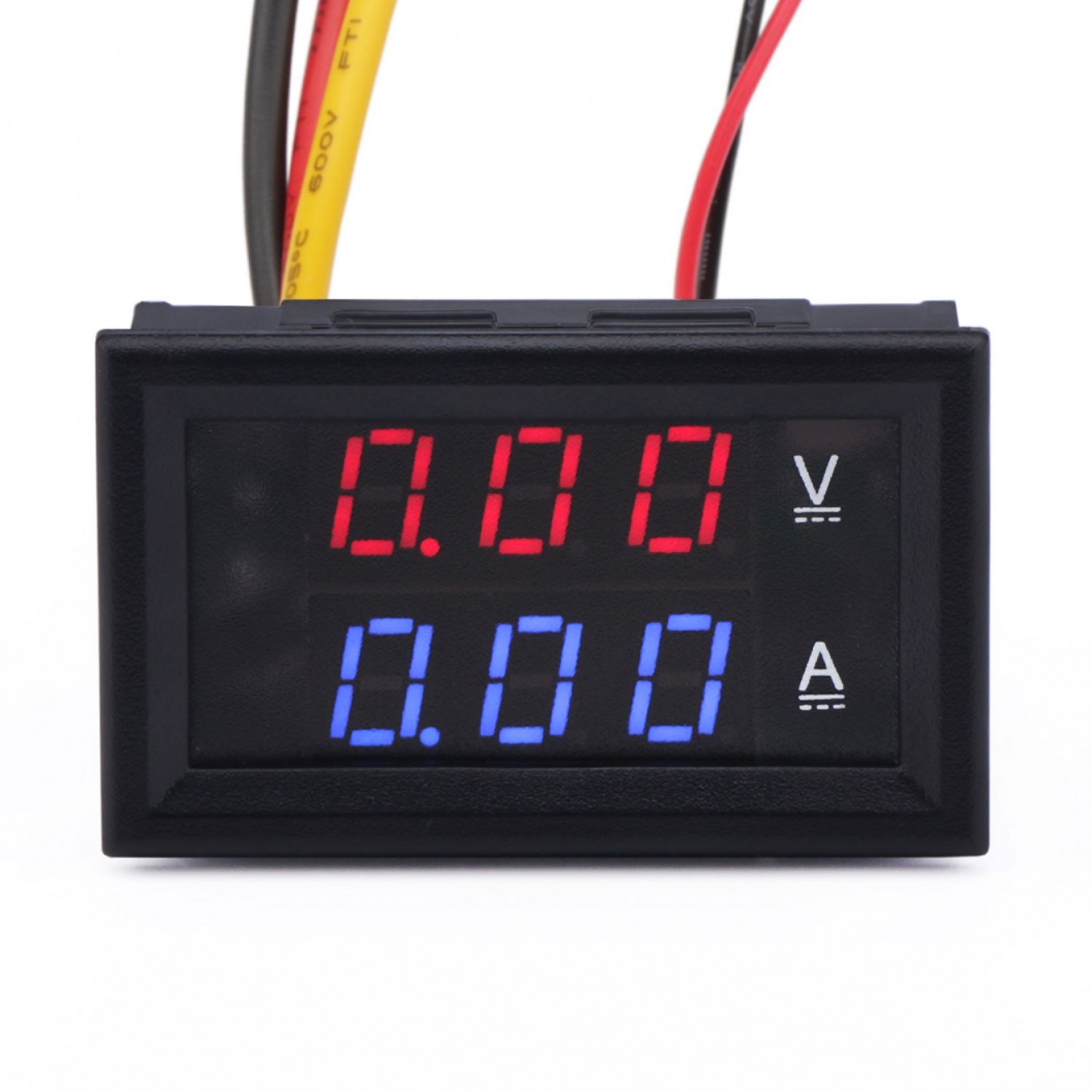

It is a 2in1 Volt Amp Panel Meter, Measure Voltage Range DC 0-100V,Measure Current Range 0-10A forward current , Accuracy: 1% (± 1 digit ), small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.

Features:

Operating voltage:DC 4.5 ~ 30V
Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1V
Measure current :10A (measure directly,built-in shunt)
Minimum resolution(A): 0.01A
Operating current: <20mA
Display: three 0.28" LED digital tube
Display color: Red and Blue (two-color display)
Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.5mm
Refresh rate: about 500mS / times
Measure accuracy: 1% (± 1 digit)
Operating temperature: -10 to 65° c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa

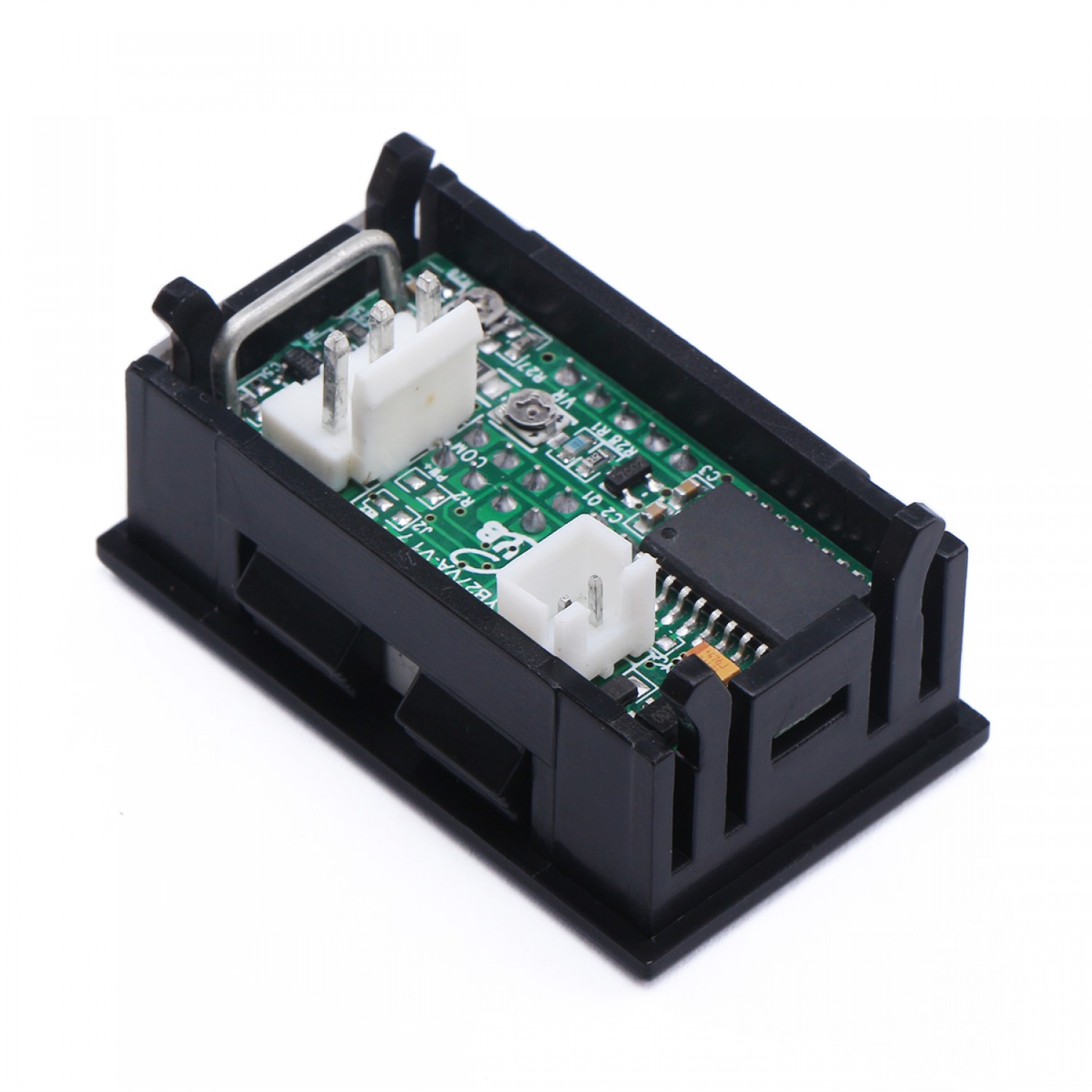

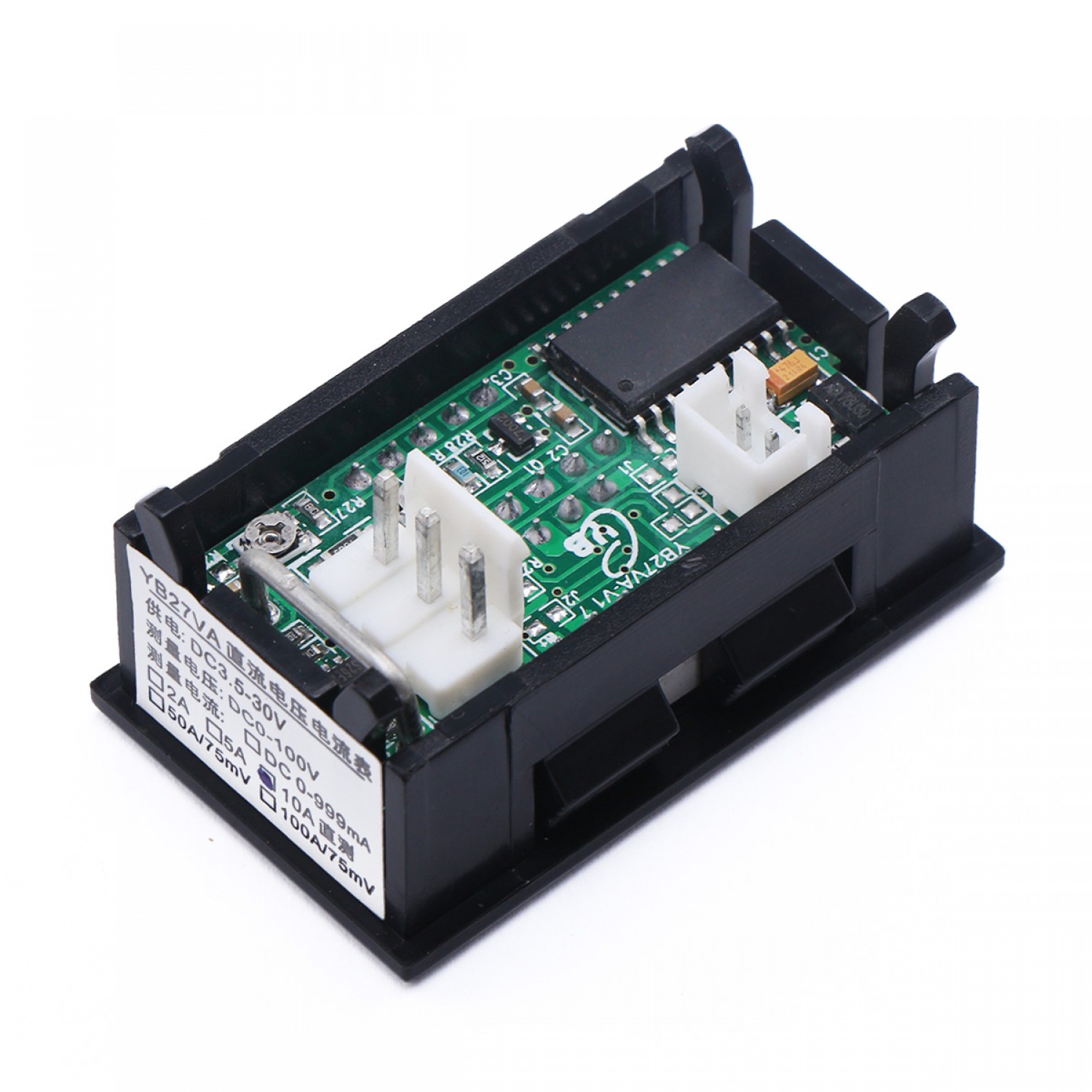

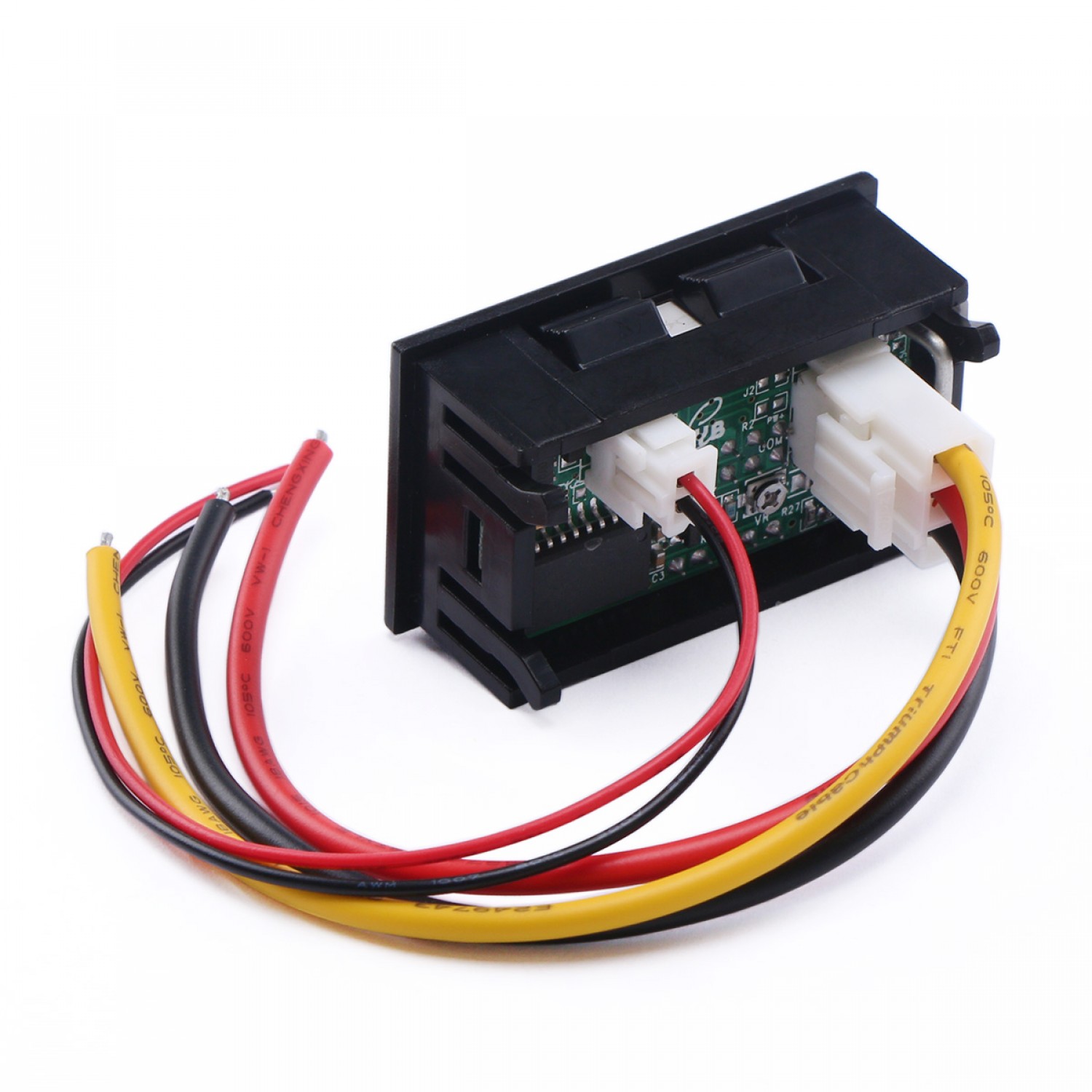

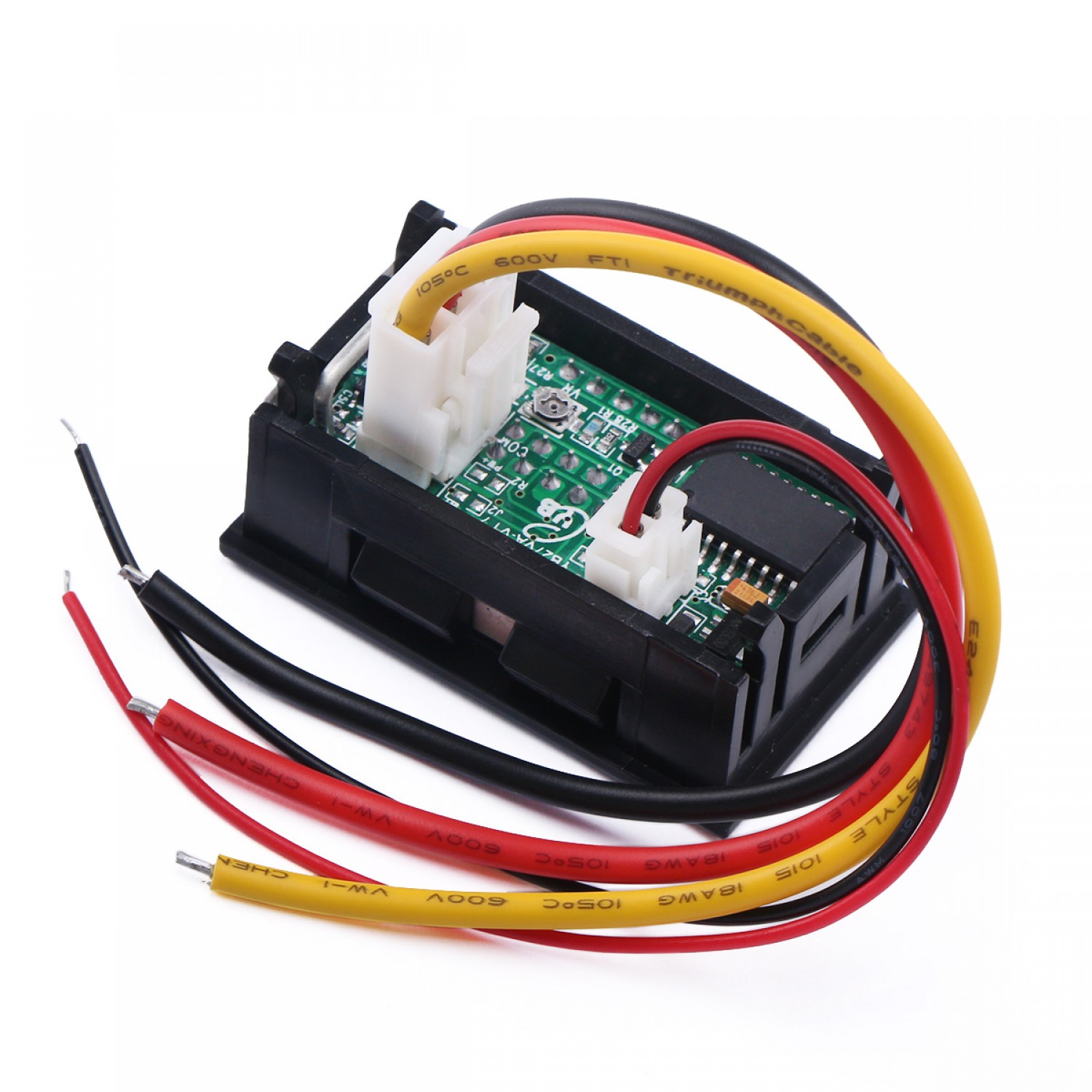

Wiring:

Black line (thin): vacant or buck circuit (module) negative
Red line (thin): power supply+
Black line (thick): COM, common measuring
Red line (thick): PW+, measuring terminal voltage input positive
Yellow line (thick): IN+, current input+

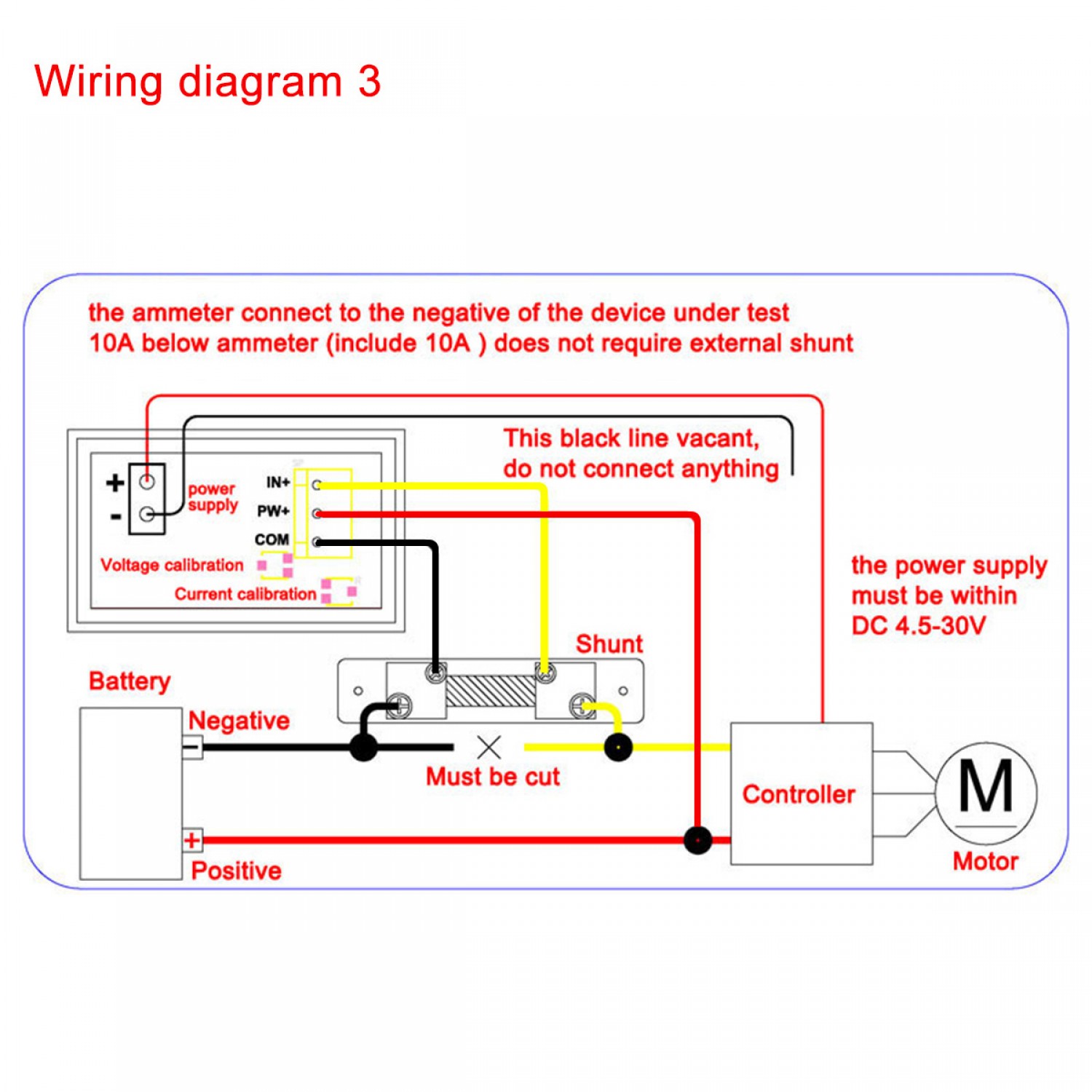

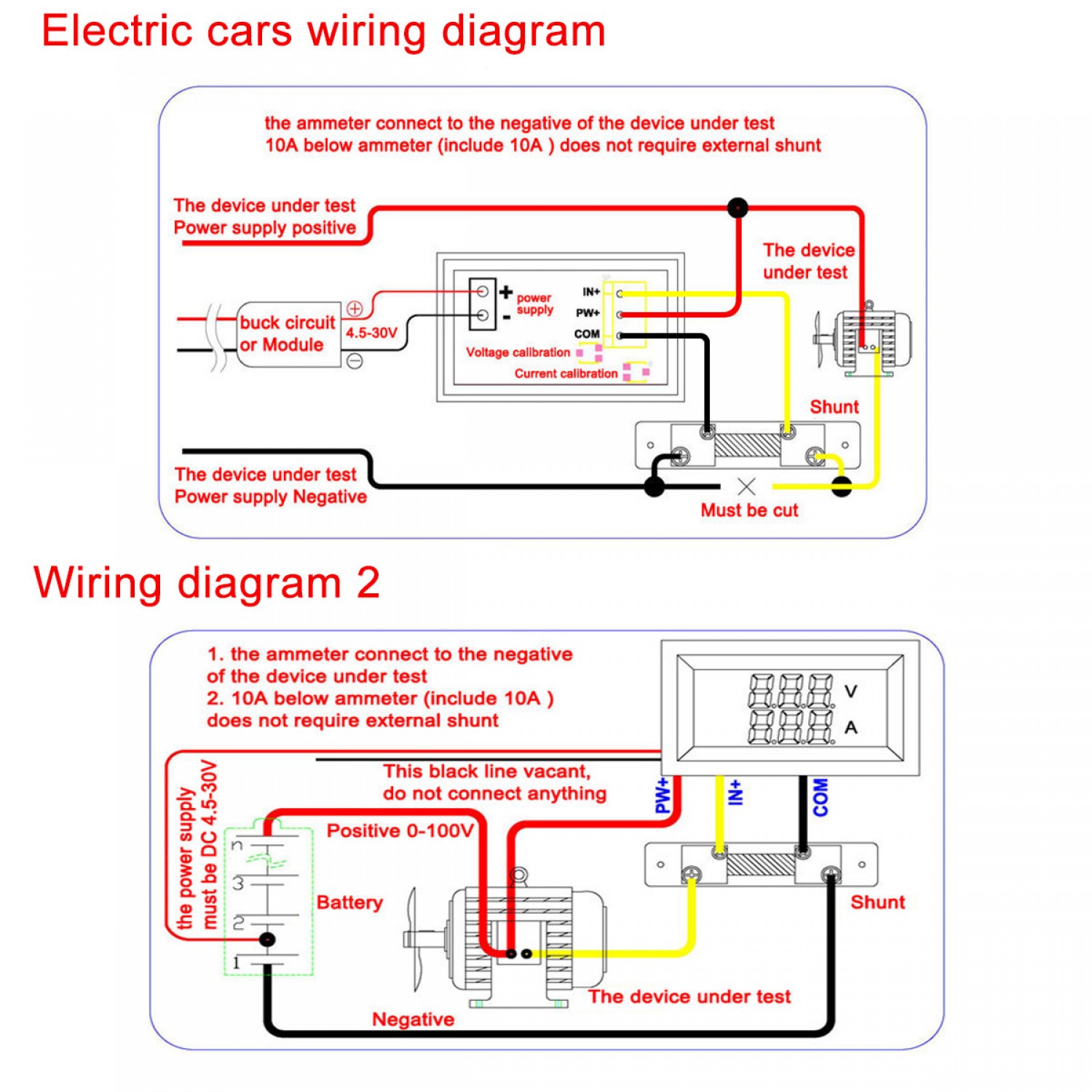

(Please refer to the wiring diagrams for more details)

Notice:

The voltage between the thin red and thin black lines must be within DC 4.5-30V
The ammeter can only be connected to the negative of the device under test
10A below ammeter (include 10A), built-in shunt, does not require external shunt
Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket
When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits
If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing
