-51% 2in1 DC 300V/10A Ammeter Voltmeter Amp Volt Meter Voltage Current Gauge Red/Blue

Ask Question

It is a 2in1 Volt Amp Panel Meter, Power Supply: DC 4.5-30V,Measure Voltage Range DC 0-300V,Measure Current Range:0-10A forward current (built-in shunt, can measurement directly), Accuracy: 1% (± 1 digit ),small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:LED lights measure automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.

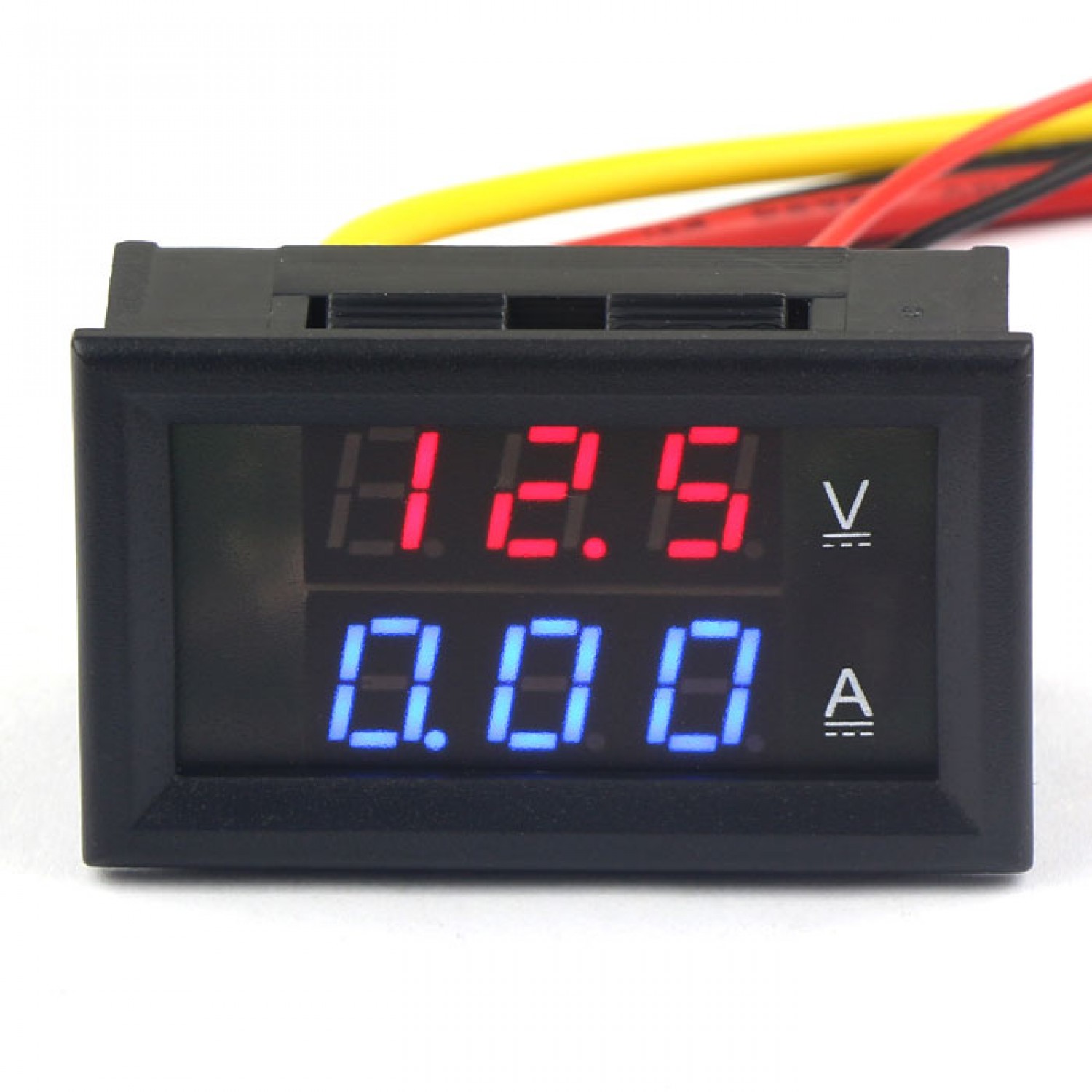

  • Dual LED: Red voltage, Blue current, Display Voltage Current at same time
  • this panel meter is common ground design, it means that the ( measure ground wire) and (power supply ground) is common ground.
  • Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC.

  • Power Supply: DC 4.5-30V
  • Measure Voltage: DC 0-300V
    voltage < 100V, resolution: 0.1V
    voltage >= 100V, resolution: 1V
  • Measure Current: 0-10A forward current ( built-in shunt, can measurement directly )
  • Current Resolution: 0.01A
  • Operating Current: <20mA
  • Display: 0.28" LED, Dual Color, Red and Blue
  • Dimensions: 48 x 29 x 21 mm
  • Cutting Size: 45 x 26 mm
  • Measurement rate: ≥ 500mS / times
  • Accuracy: 1% (± 1 digit )
  • Operating Temperature: -10℃ ~ +65℃
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 ~ 106kPa

Wire Connection, please check the description pictures.

Power supply (two line socket):
  • Red wire: Power Supply +;
  • Black wire: Power Supply -
  • the power supply voltage can not exceed 30V

Measure Port ( three line socket)
  • COM: Black wire, measure common ground
  • PW+: Red wire, Measure Voltage +
  • IN+, Yellow wire, Measure current input. if use the voltmeter function only, please connect the Yellow wire and black wire together to avoid the Interference

Package Include:
  • 1x 2in1 Voltmeter Ammeter

input voltage4.5~30V
output current0~10A
output power--
output voltage0~300V
output ways1
