It is a 2in1 Volt Amp Panel Meter, Measure Voltage Range DC 4.5-30V,Measure Current Range:0-50A forward current (need extra 50A shunt for measuring current), Accuracy: 1% (± 1 digit ),small size, high efficiency, long term stable and reliable quality,easy installation and use . Applications:LED lights measure automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.

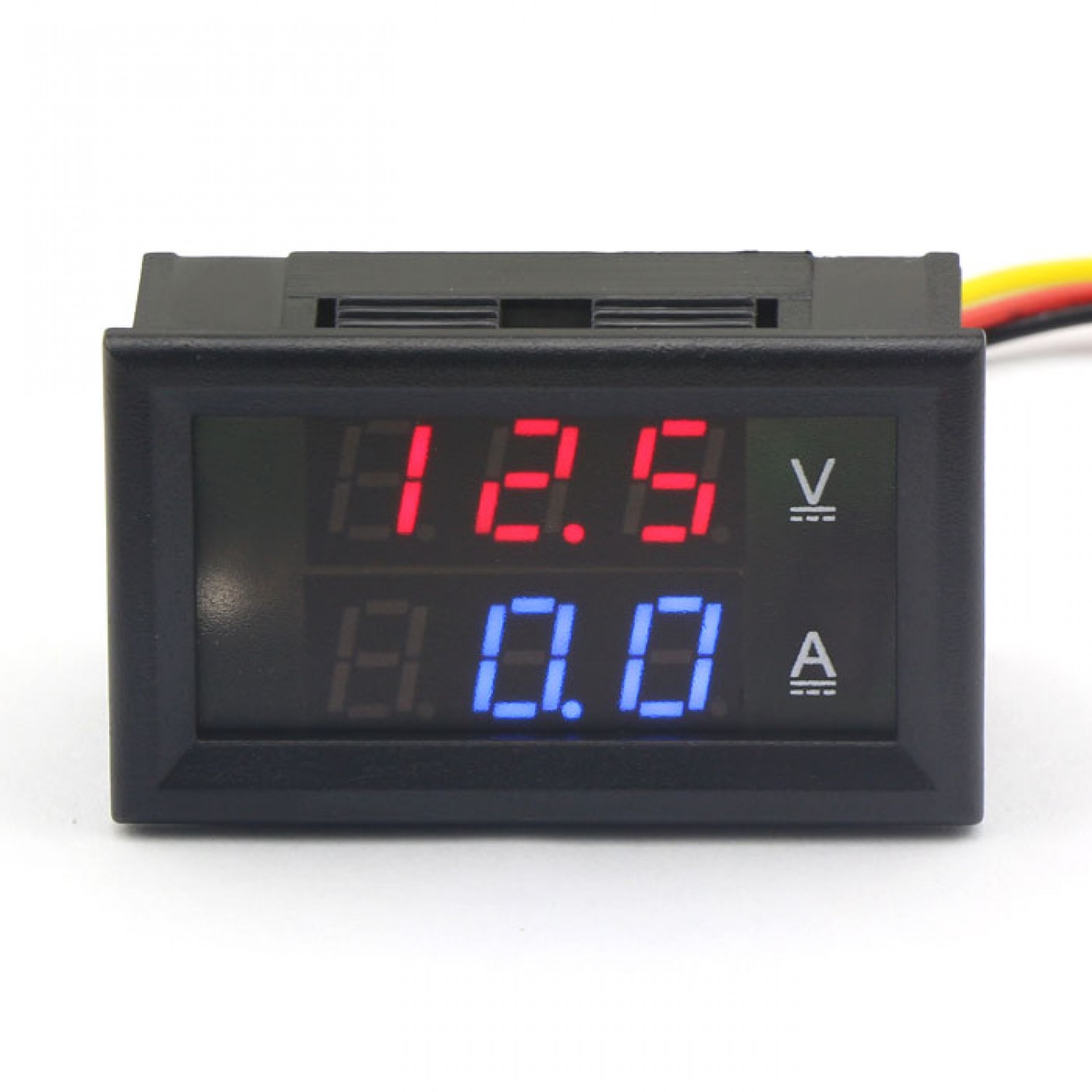

- Dual LED: Red voltage, Blue current, Display Voltage Current at same time
- this panel meter is common ground design, it means that the ( measure ground wire) and (power supply ground) is common ground.
- Power Supply DC 4.5-30V. With reverse polarity protection, but the max power supply can not exceed 30VDC.
- Power Supply (Measure Voltage): DC 4.5-30V
- voltage < 10V, resolution: 0.01V
- voltage >= 10V, resolution: 0.1V
- Measure Current: 0-50A forward current ( need extra 50A shunt for measuring current )
- Current Resolution: 0.1A
- Operating Current: <20mA
- Display: 0.28 "LED Dual-color (red and blue)
- Dimensions: 48 x 29 x 21 mm
- Cutting Size: 45 x 26 mm
- Measurement rate: ≥ 500mS / times
- Accuracy: 1% (± 1 digit )
- Operating Temperature: -10°c ~ +65°c
- Operating Humidity: 10 ~ 80% (non-condensing)
- Working pressure: 80 ~ 106kPa
- COM: Black wire,Power Supply - , Measure Voltage -
- PW+: Red wire, Power Supply +, Measure Voltage +
- IN+, Yellow wire, Measure current input. if use the voltmeter function only, please connect the Yellow wire and black wire together to avoid the Interference
More detailed please check the description picture.
- 1x Amp Volt Meter 2in1
