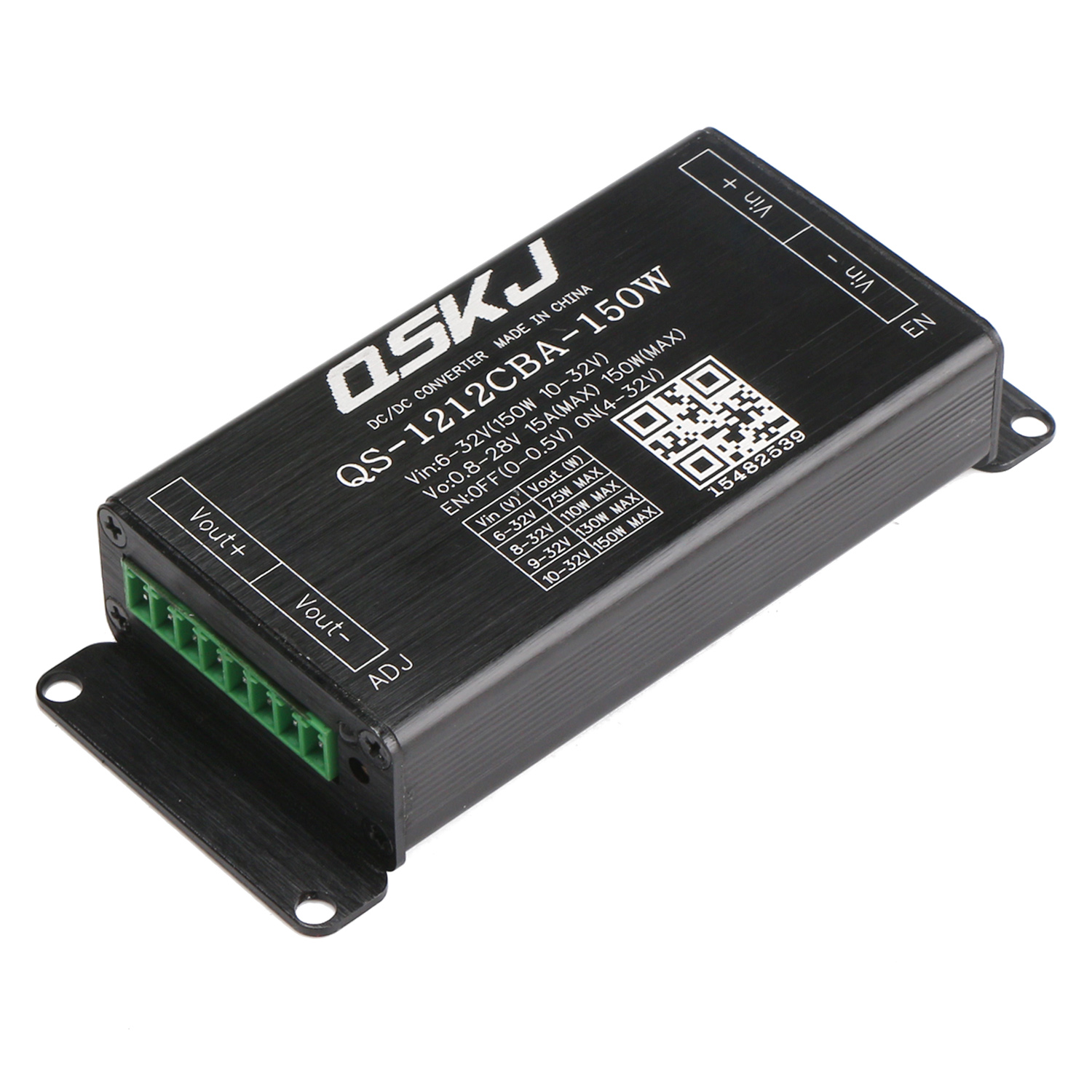

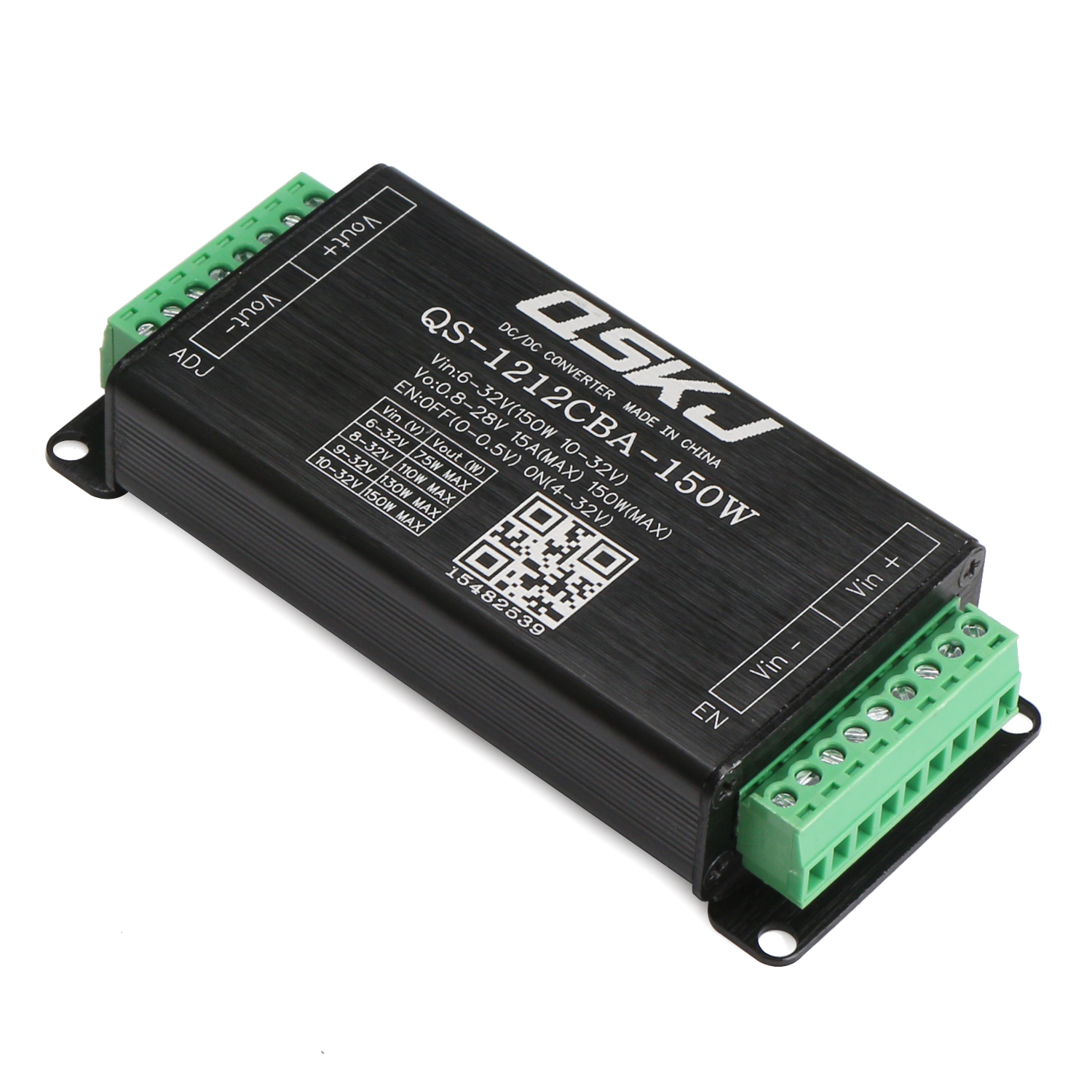

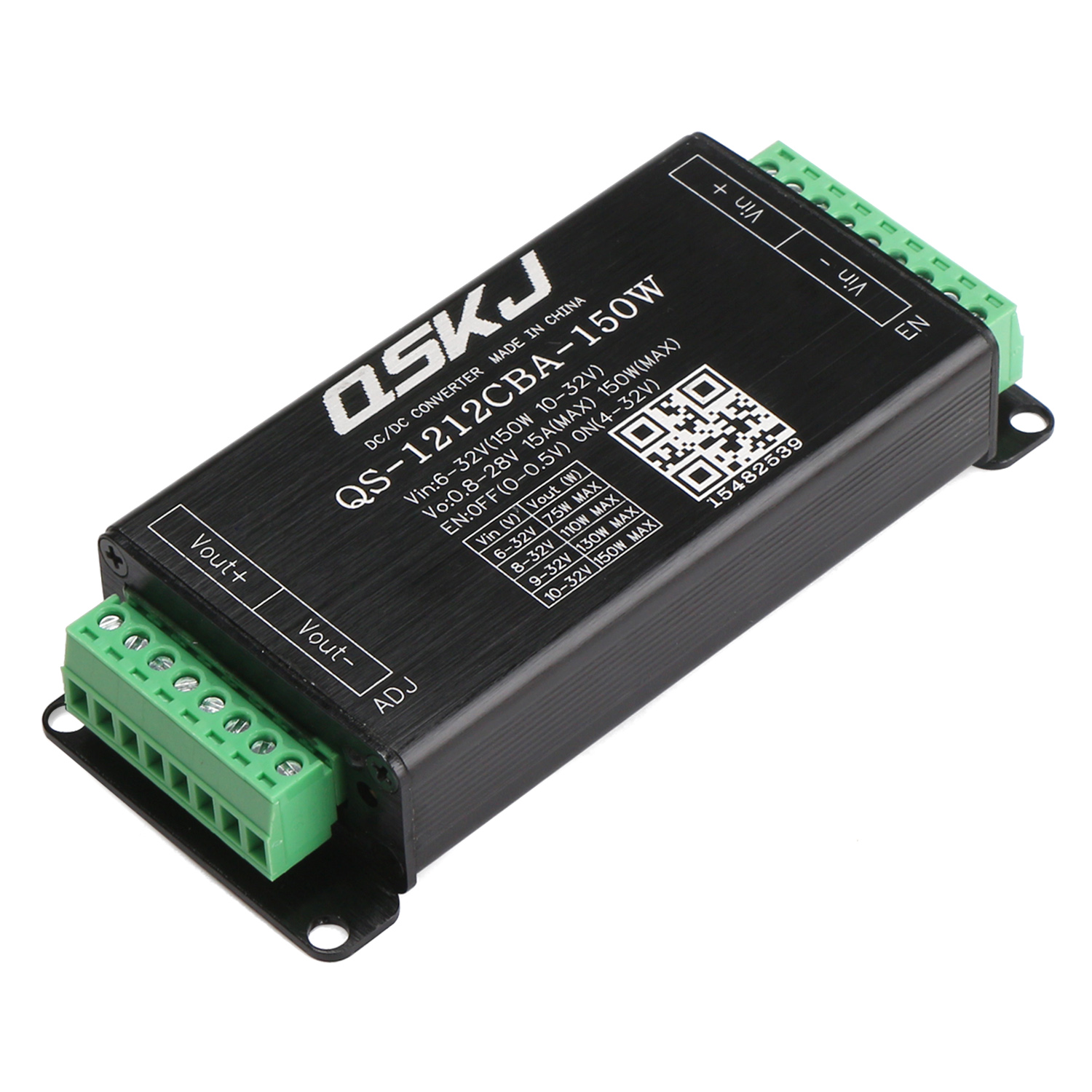

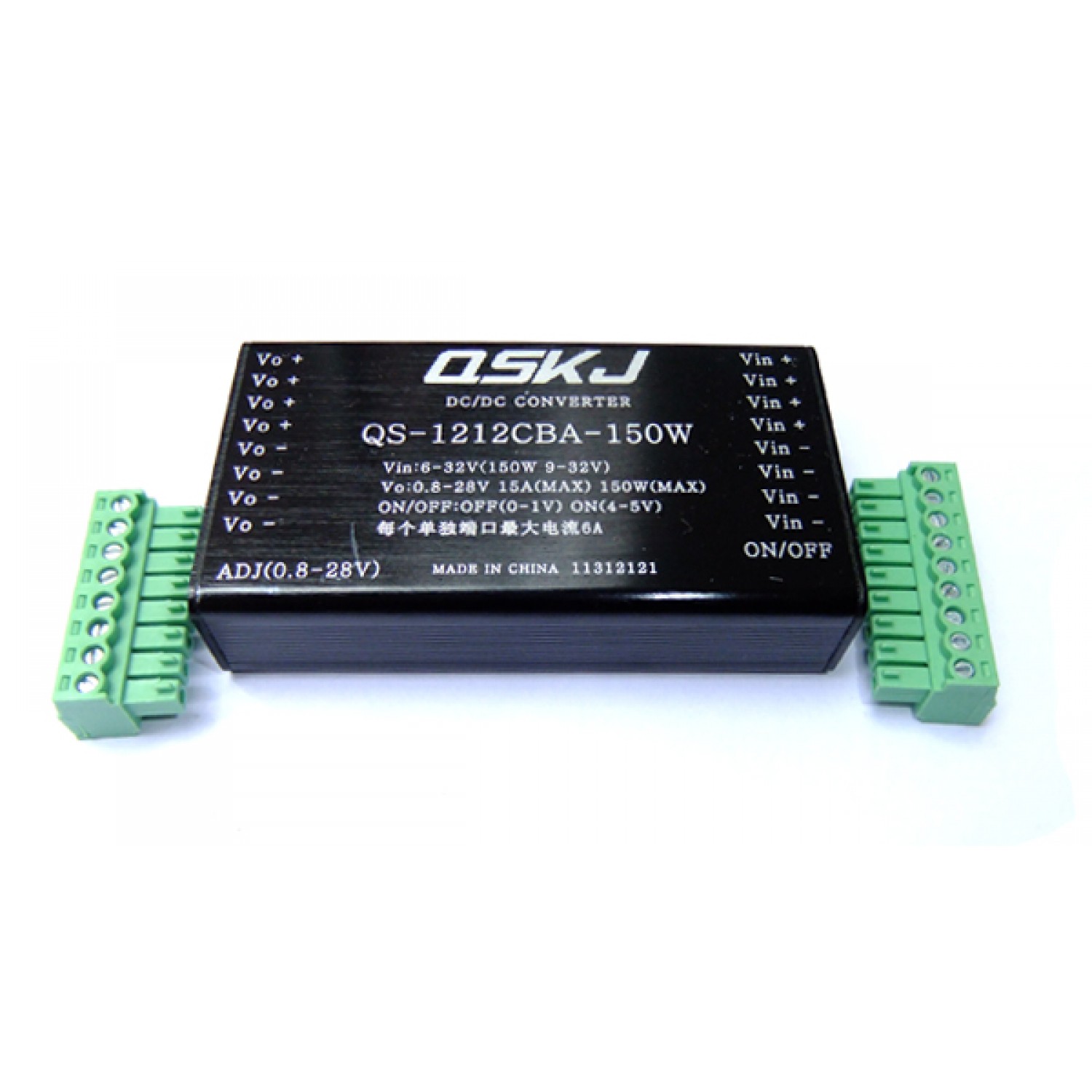

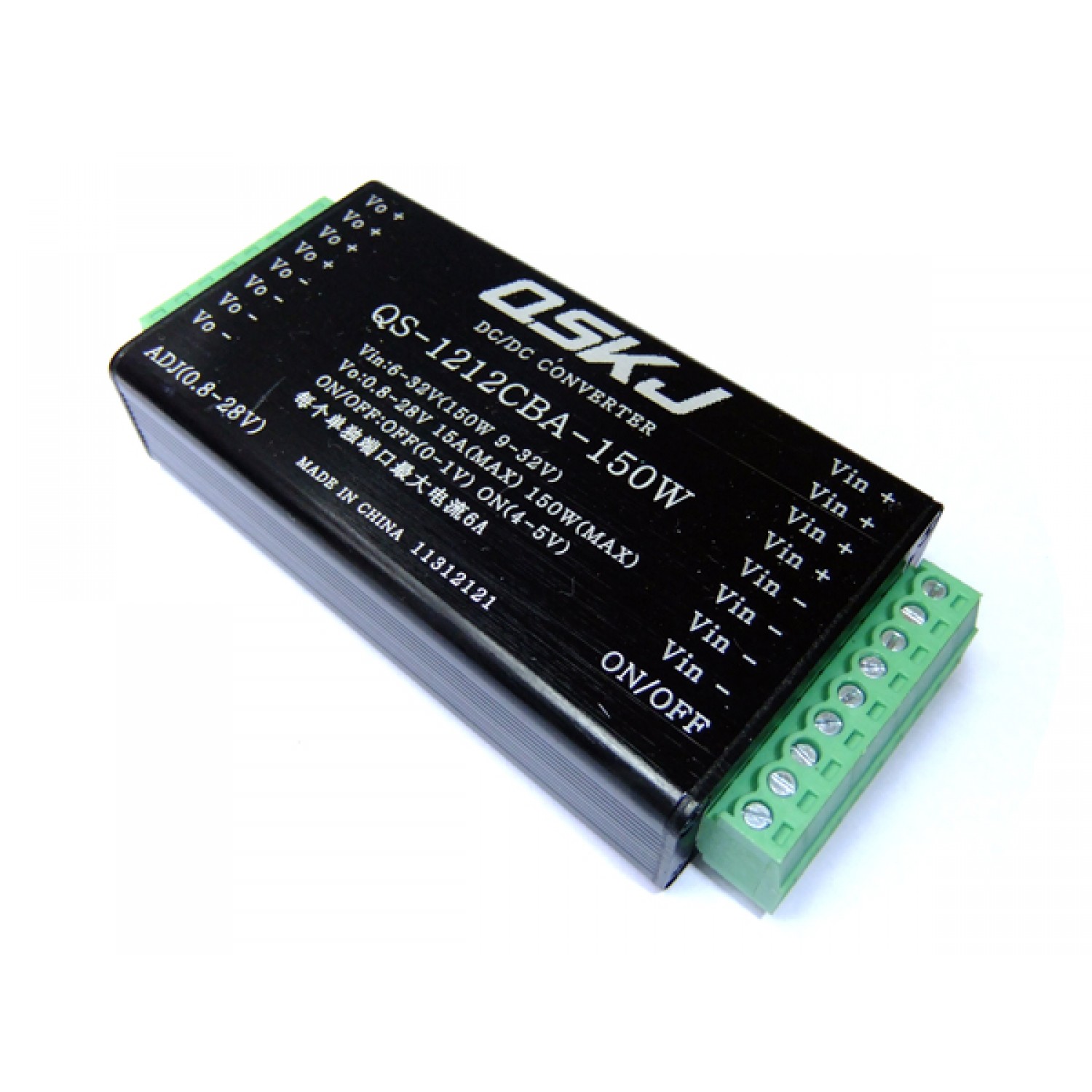

It is a Auto Boost Buck Converter ,Power Supply 150W 6-32V to 0.8-28V,Conversion efficiency Up to 97% ,It has Shortage Protection,Reverse polarity protection,Overcurrent protection. Applied to the Car ,Battery ,laptop,Electronic equipment,power adapter,industrial ,microcontroller,LED lighting power supply,And other platforms

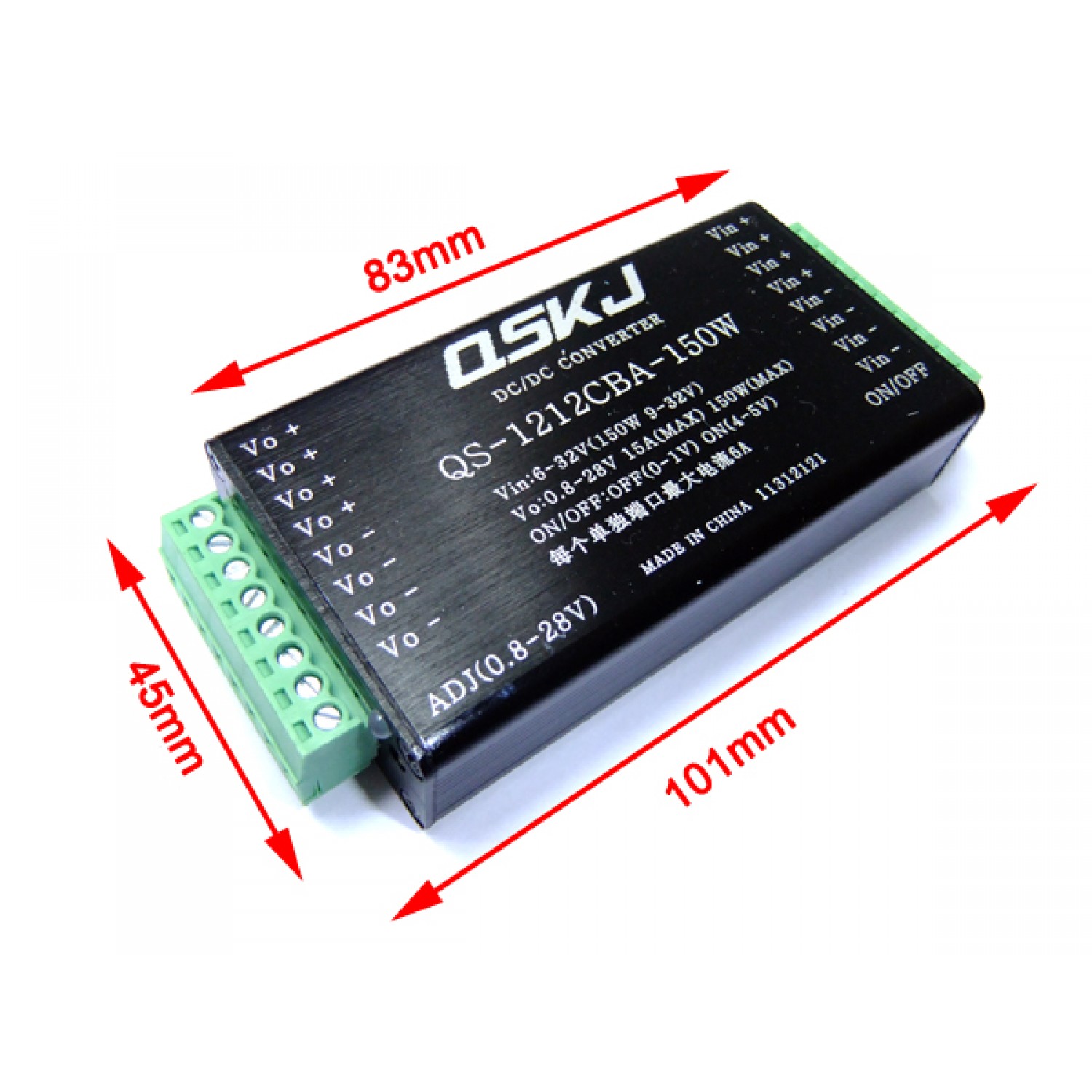

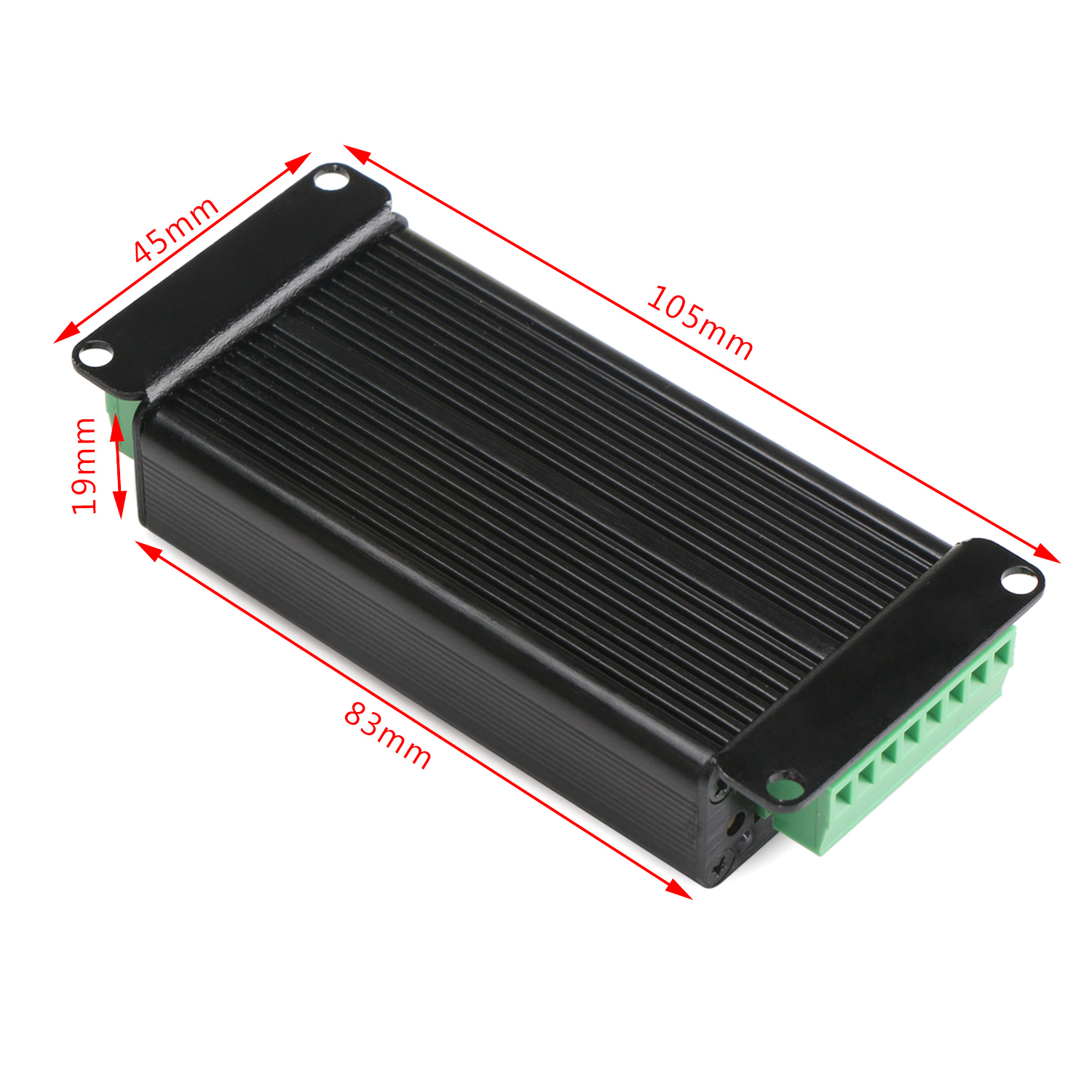

Size: 83 (L) x 45 (W) x 19 (H) mm (excluding input and output terminals)
Size: 101 (L) x 45 (W) x 19 (H) mm (including the input and output terminals)

Feature:

• Module Properties: non-isolated buck-boost module (high efficiency)
• Rectification: synchronous rectification
• Input voltage :6-32V (Rated Power, input voltage equal to 9V; if input 6v, output about 90W)
• Minimum pressure: 0V (seamless automatic switching buck-boost, no minimum pressure requirements)
• Output voltage :0.8-28V (adjustable)
• Output Current: 15A (MAX)
• Output Power: 150W (MAX) (eg: output 12V 13A)
• Conversion efficiency: Up to 97% (the higher the output voltage, the higher the efficiency, the smaller the pressure the higher the efficiency)
• Soft-start time: 100mS
• Remote control port: Yes, ON/OFF, (Connect 0V, closed), (Connect  5V or Vacant, work).
• Output ripple: 1% (MAX), 20M-bandwidth
• Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40 °c, please lower power use, or to enhance heat dissipation)
• Full load temperature rise: 40°c
• Load regulation: ± 1%
• Voltage regulation: ± 0.5%
• Dynamic response speed: 5% 200uS
• Short circuit protection: Yes, output current limiting (current limit of about 17A)
• Input Reverse Polarity Protection: Yes
• Input over-voltage protection: Yes, over-voltage protection is 33V, the maximum input voltage can not exceed 36V.
• Indicator: Yes, working properly (Green), not working or protection (Red)

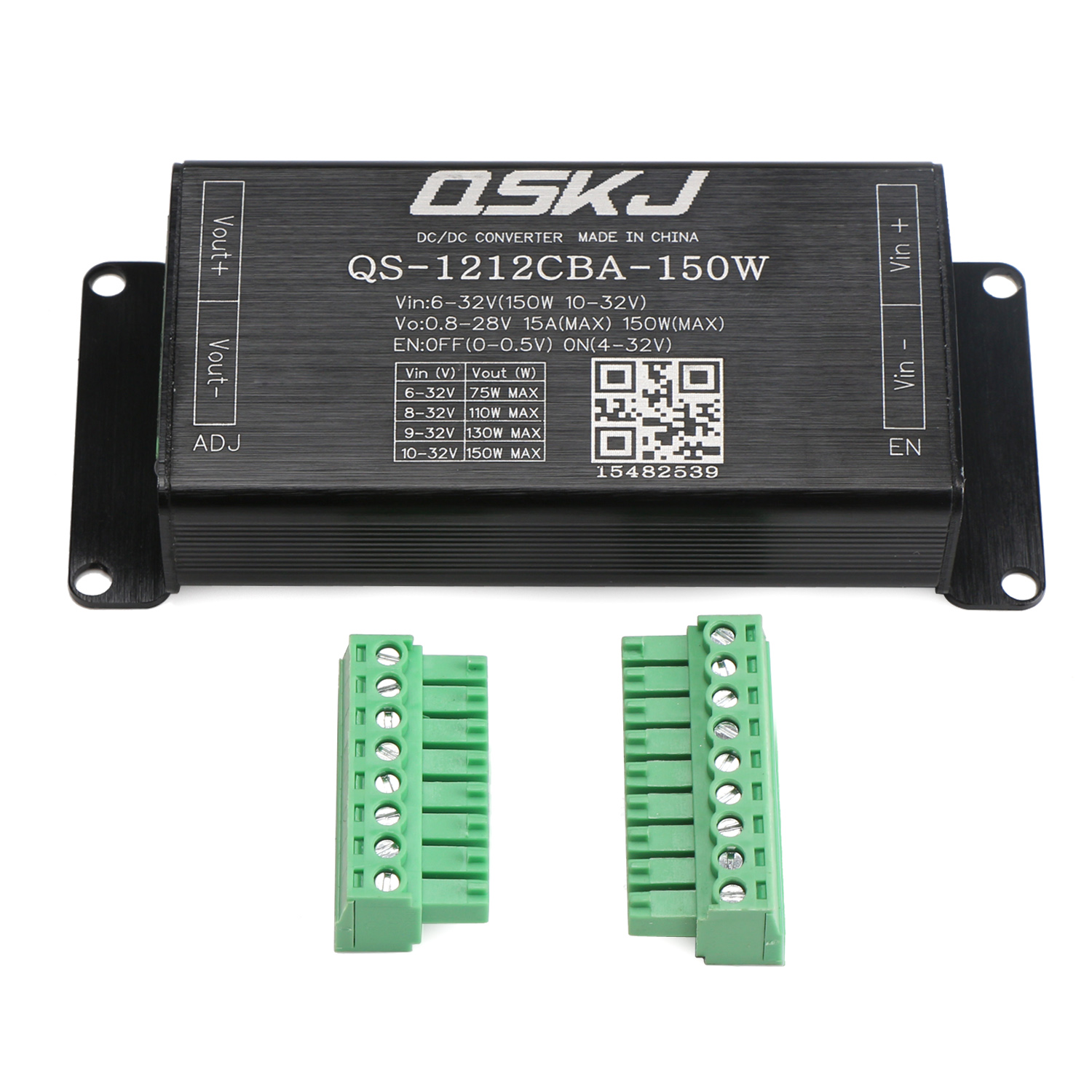

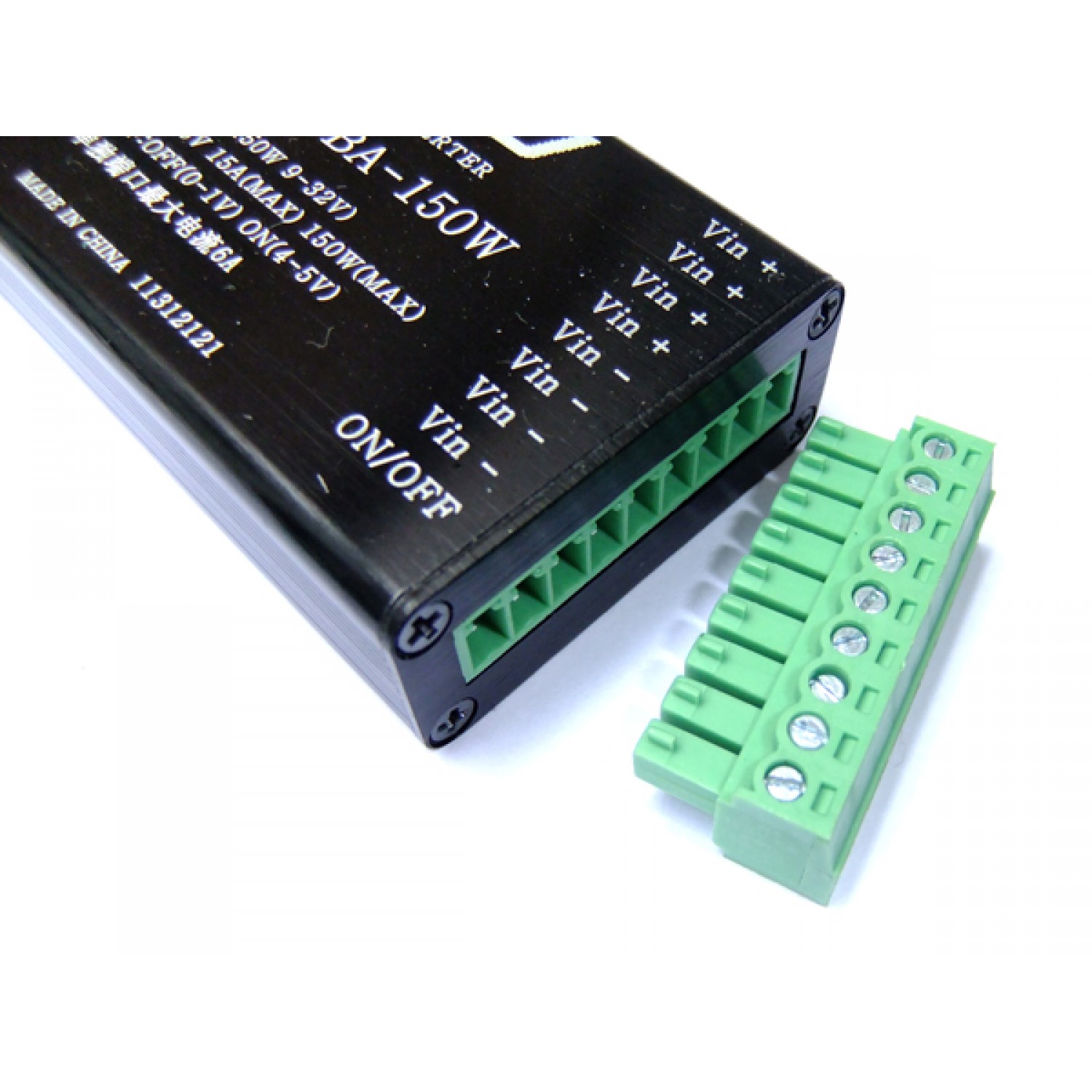

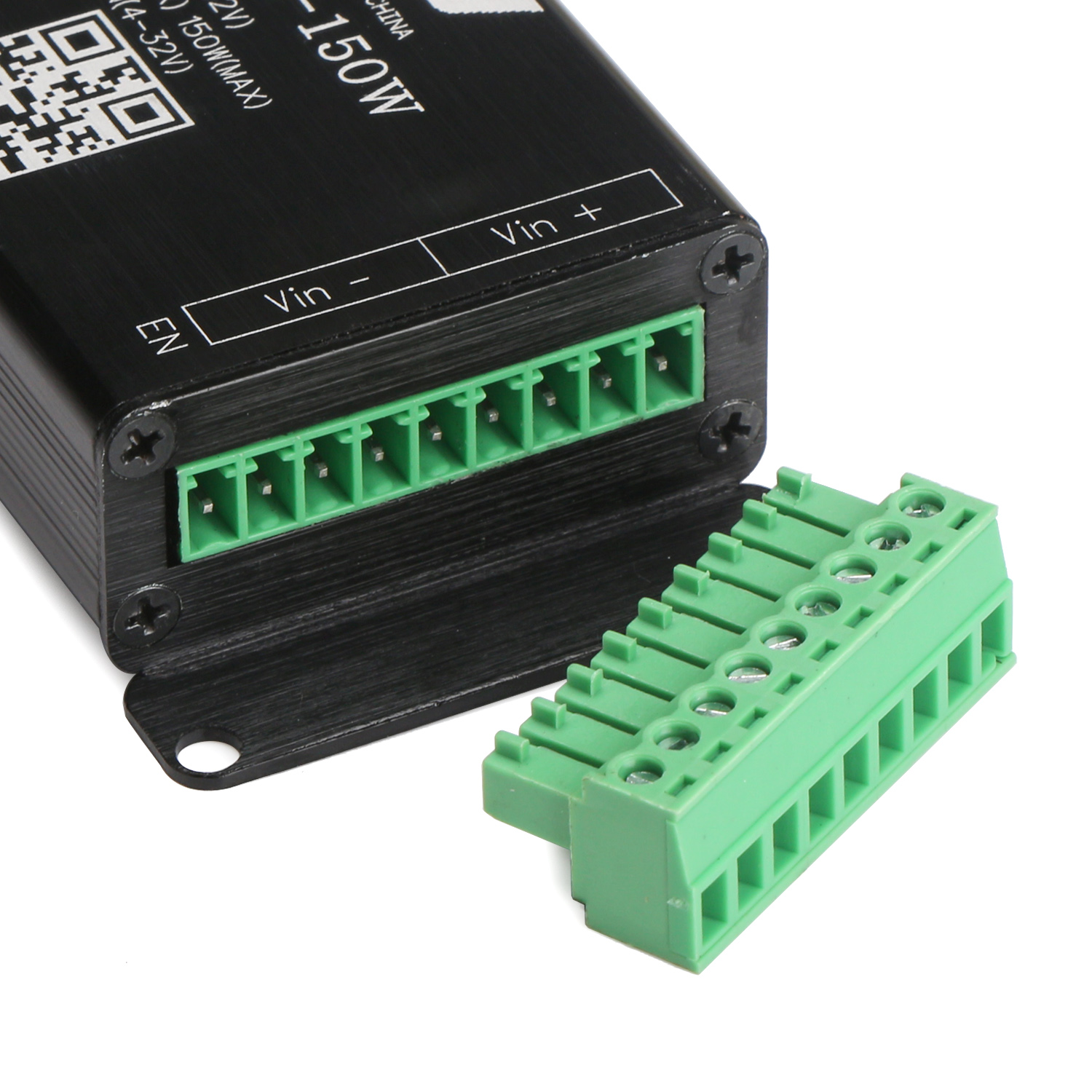

• Connection: Removable terminal, The eight input and output terminals,Maximum current per port 6A, Please use multiple ports in parallel when large current.

 Some Applications

• 12V 24V Car power supply. Input 12V/24V, output could be 0.8-28V adjustable.
• Laptop power supply. within the 6-32V input, output could be 16V 19V 20V, etc., to drive  laptop, and high efficiency.
• DIY multi-function power supply.
• Power for Electronic equipment
• Car voltage regulator
• Battery voltage regulator

Package Includes:

• 1 x DC/DC Converter
