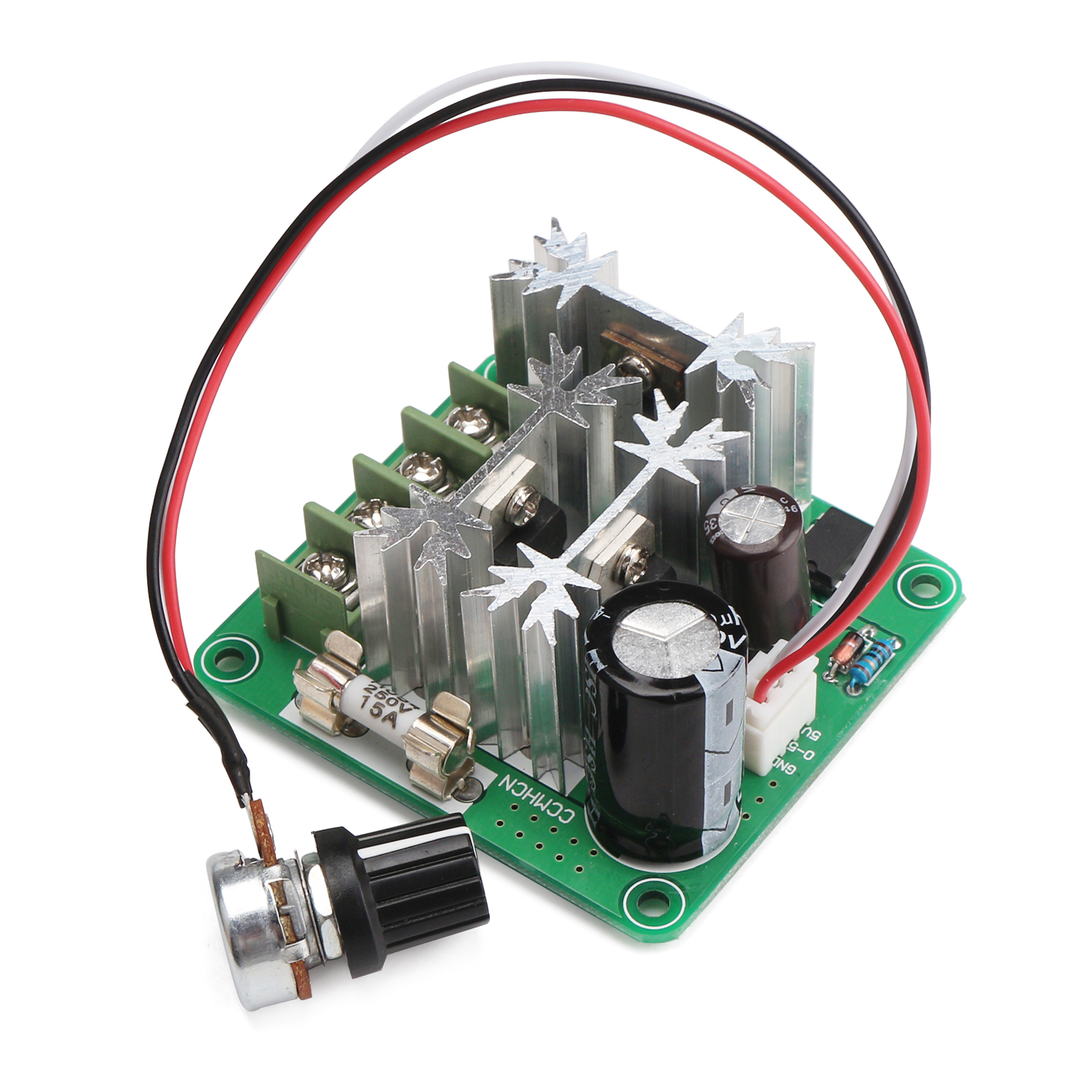

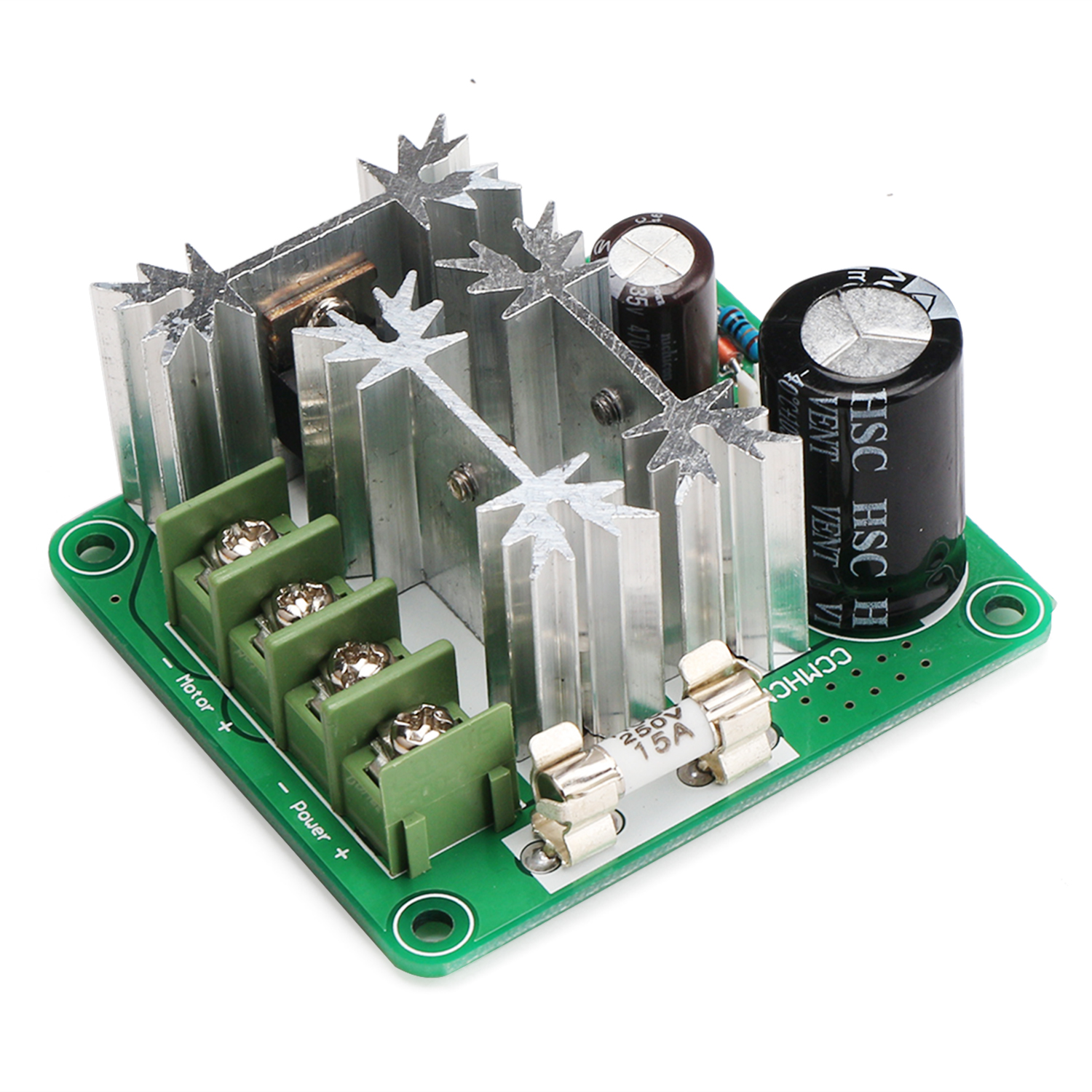

It is a High Power PWM Controller, Operating voltage: DC 6V~90V, Output current: 8A, Control power:48W~720W, It has small size, high efficiency, long term stable and reliable quality,easy installation and use . Especially Suitable for regulation of low-voltage electric wire fever, such as: cutting styrofoam, EPE, raincoat production, galvano cautery painting,and other equipment etc.
- Working Voltage: DC 6V~90V(the output voltage is 1~100 percent of input voltage)

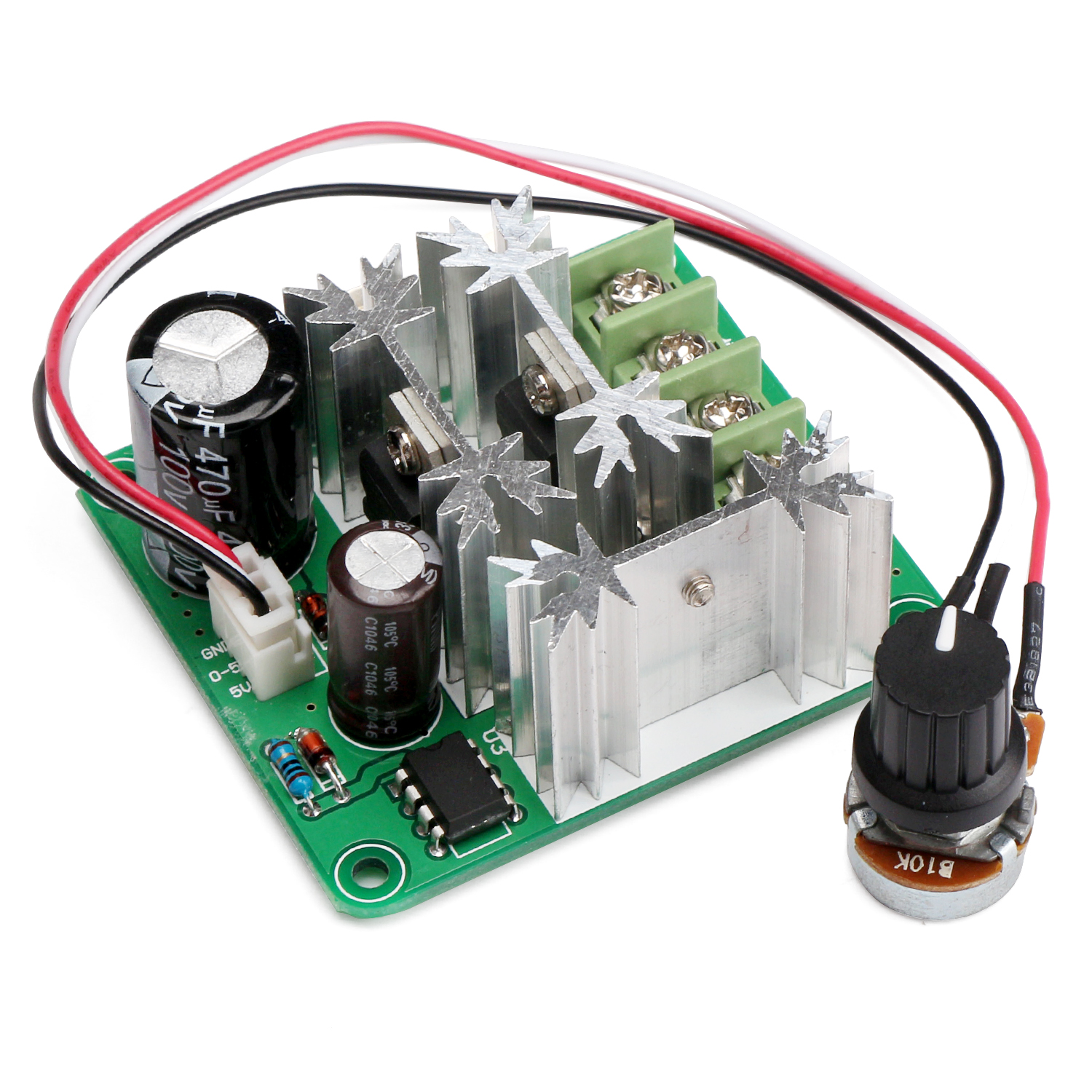

- Potentiometer: Resistance B10K; Line 20cm; Hole 8mm
- Control Power: 48W~720W
- Rated Current: 8A
- Maximum Current: 15A
- Speed Adjustable Range: 0%~100%
- PWM Frequency: 16KHZ
- Dimension: 64 x 89 x 28mm
- Net Weight: 75g
- The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.

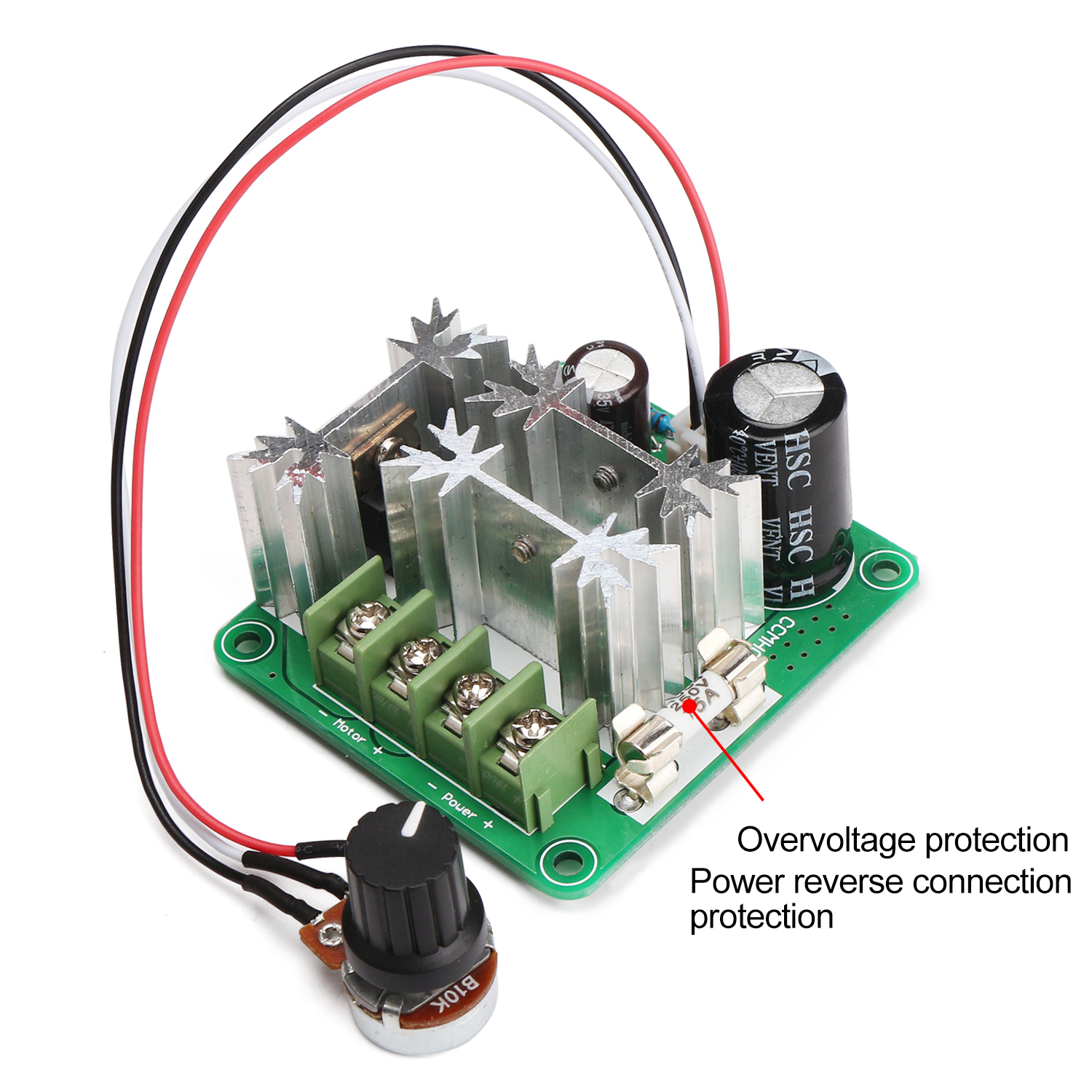

- Please make sure the connection with power supply is correct, or the speed controller will be broken.
- The positive and negative can be ignored, when the running direction is inconsistent with the expectations, you can change the direction by changing line sequence.

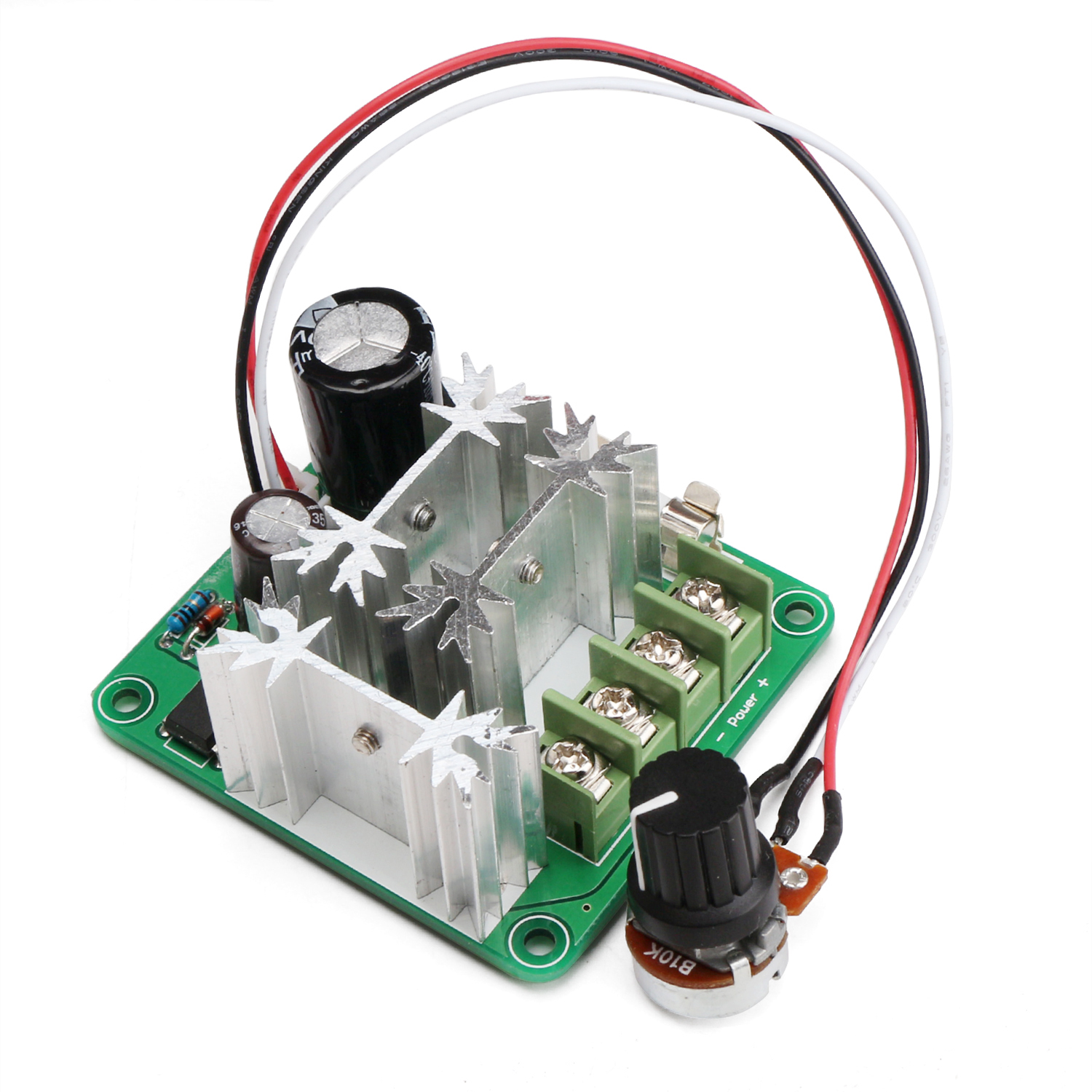

- Adjust potentiometer knob, which can change the speed controller output duty cycle, to change motor speed.
1 x DC Motor Speed Controller
