Product Description
Input voltage: DC 9V~36V (9V 12V 24V 36V)
Output voltage: DC 12V
Output current: 20A Max
Output Power: 240W Max
Conversion efficiency: >90%
No-Load regulation: ±1%
Load Regulation: ±5%
Static power consumption: about 30mA
Operating Temprature: -25~80℃
Waterproofing Grade: IP68
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

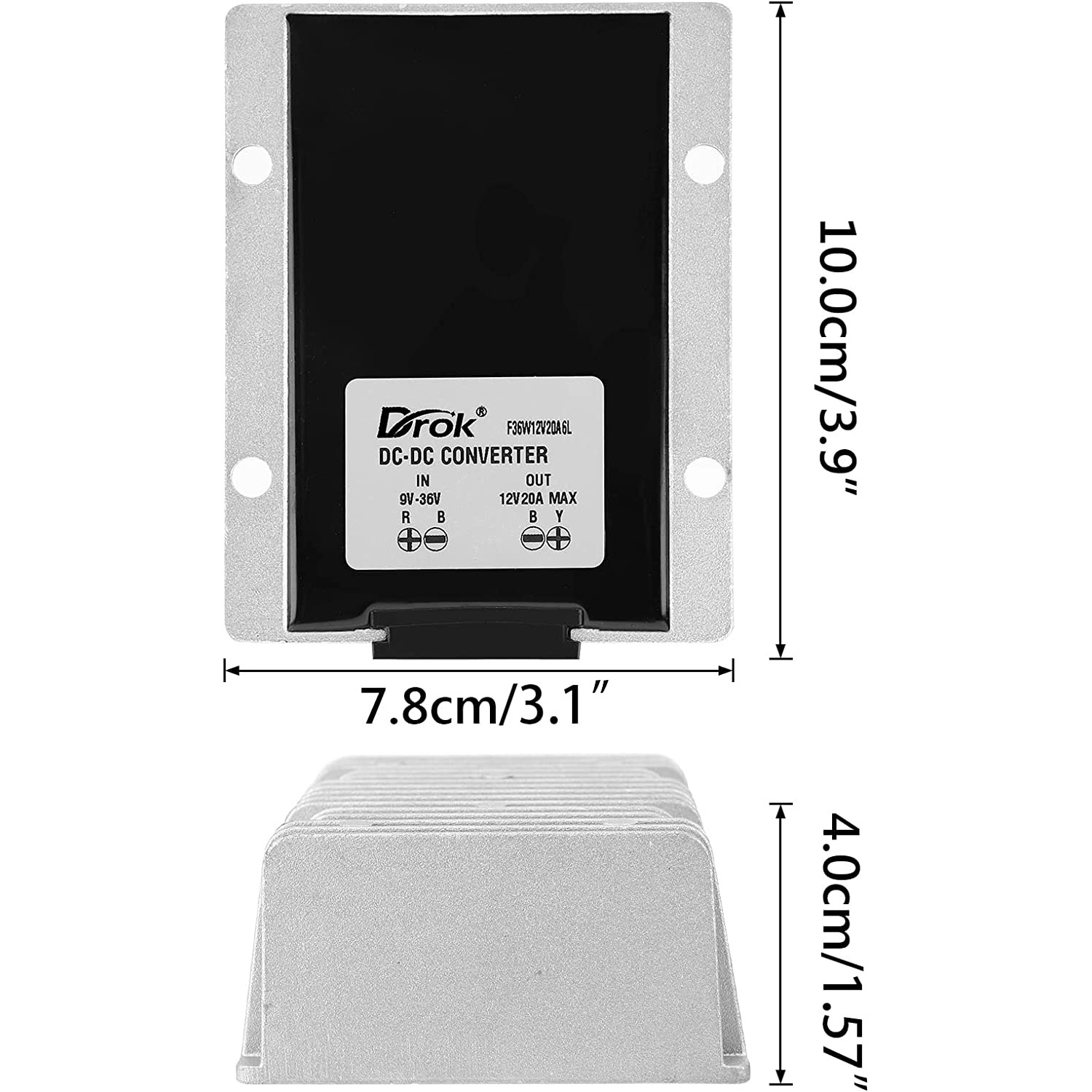

Dimensions: 2.95*2.9*1.18 inch
Note:
1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Includes:

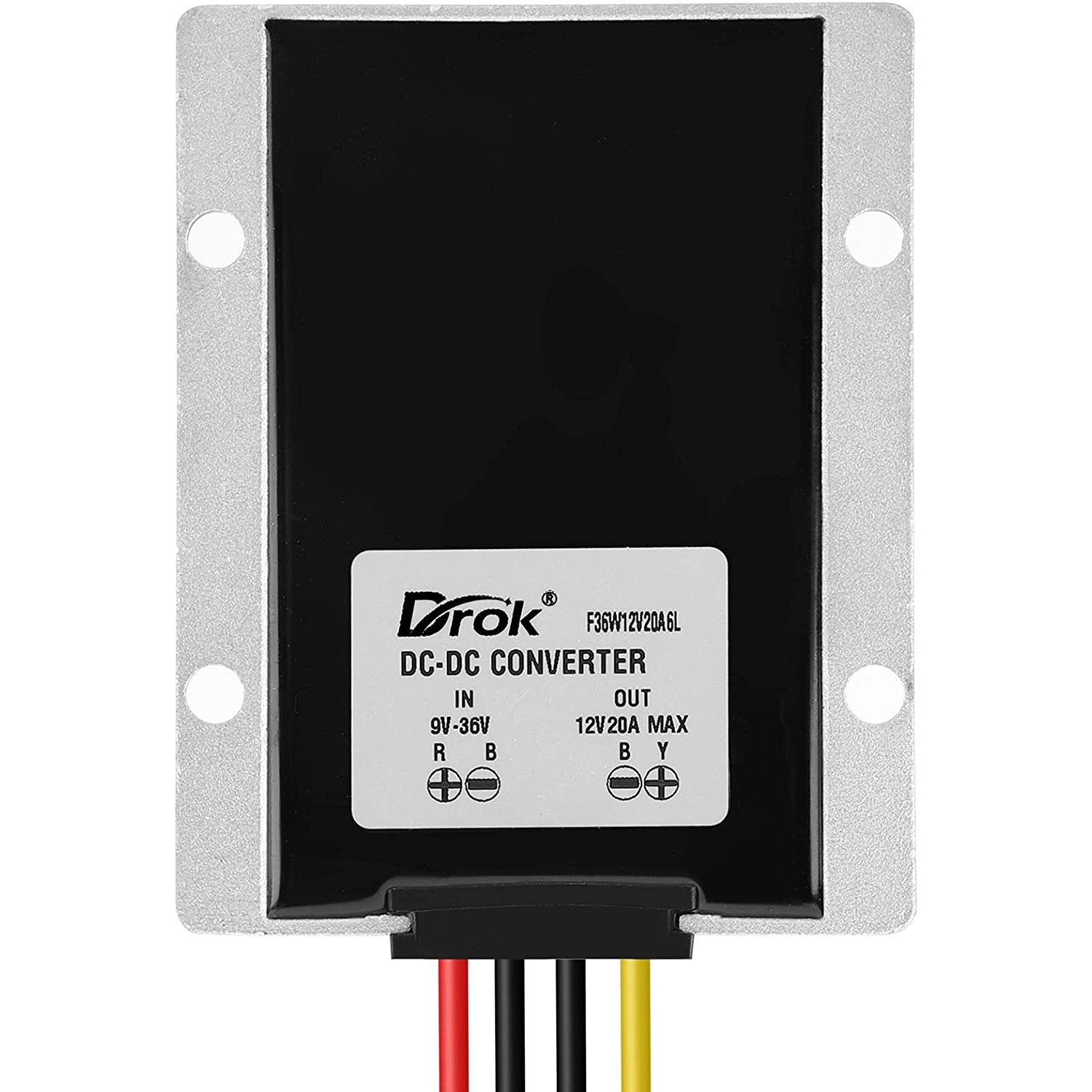

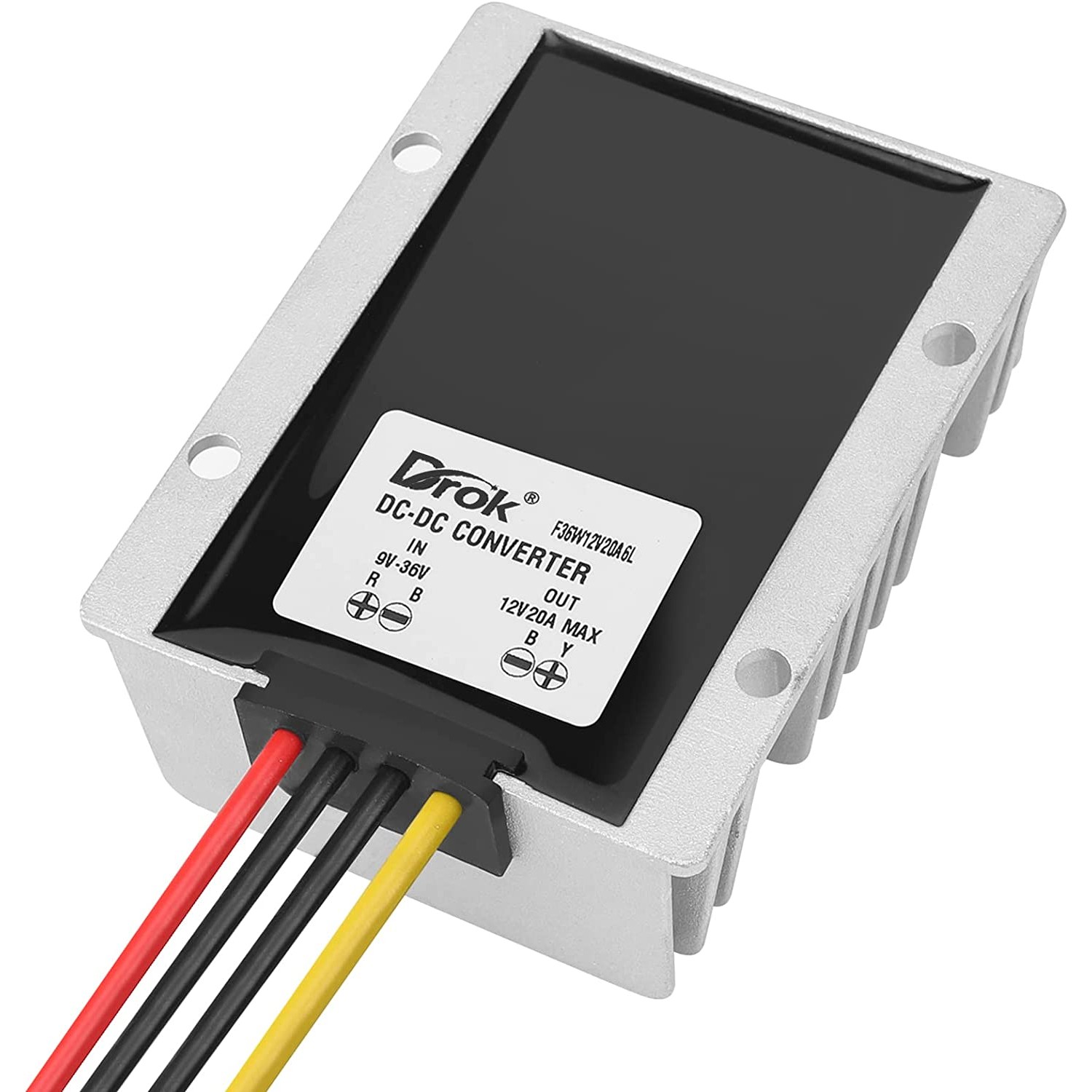

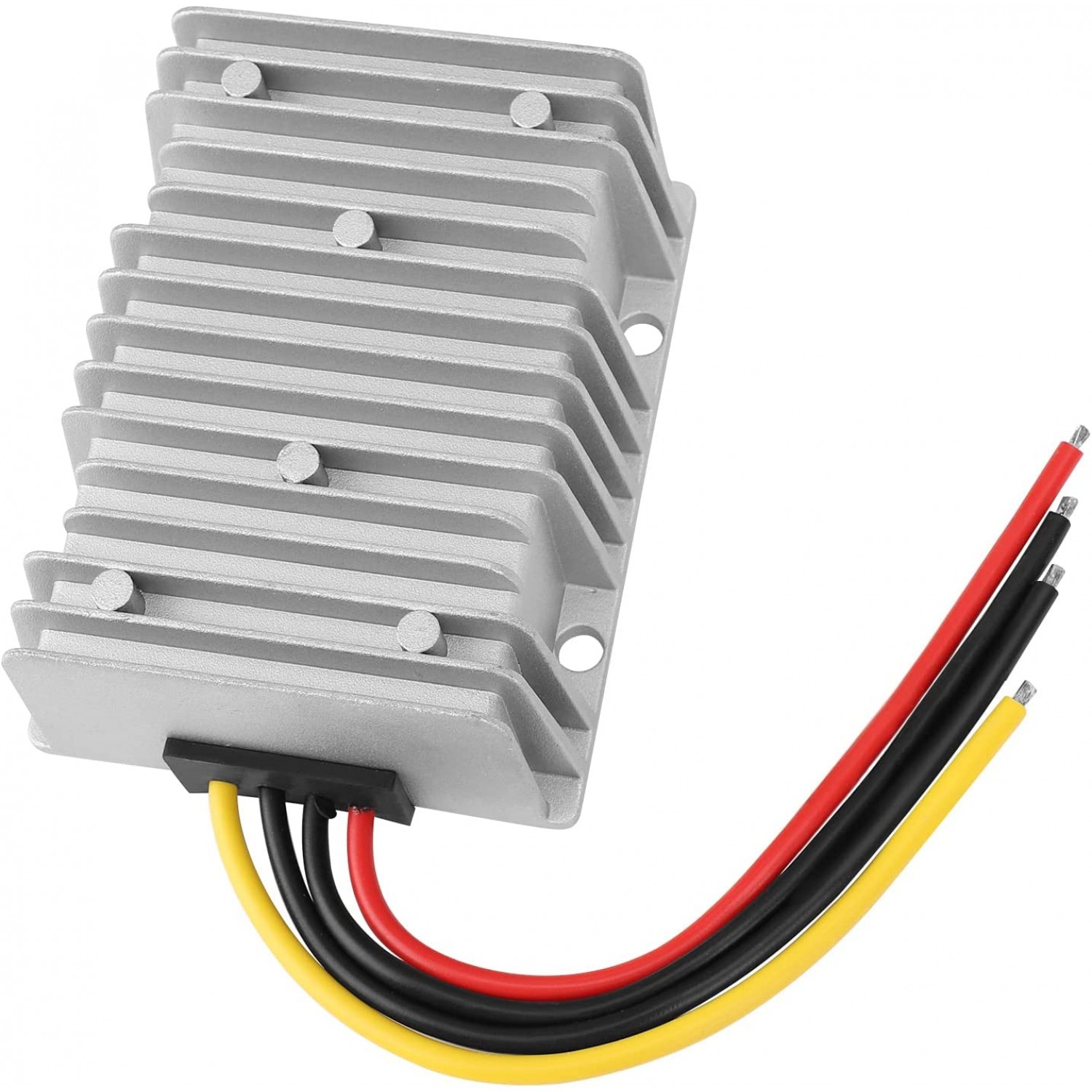

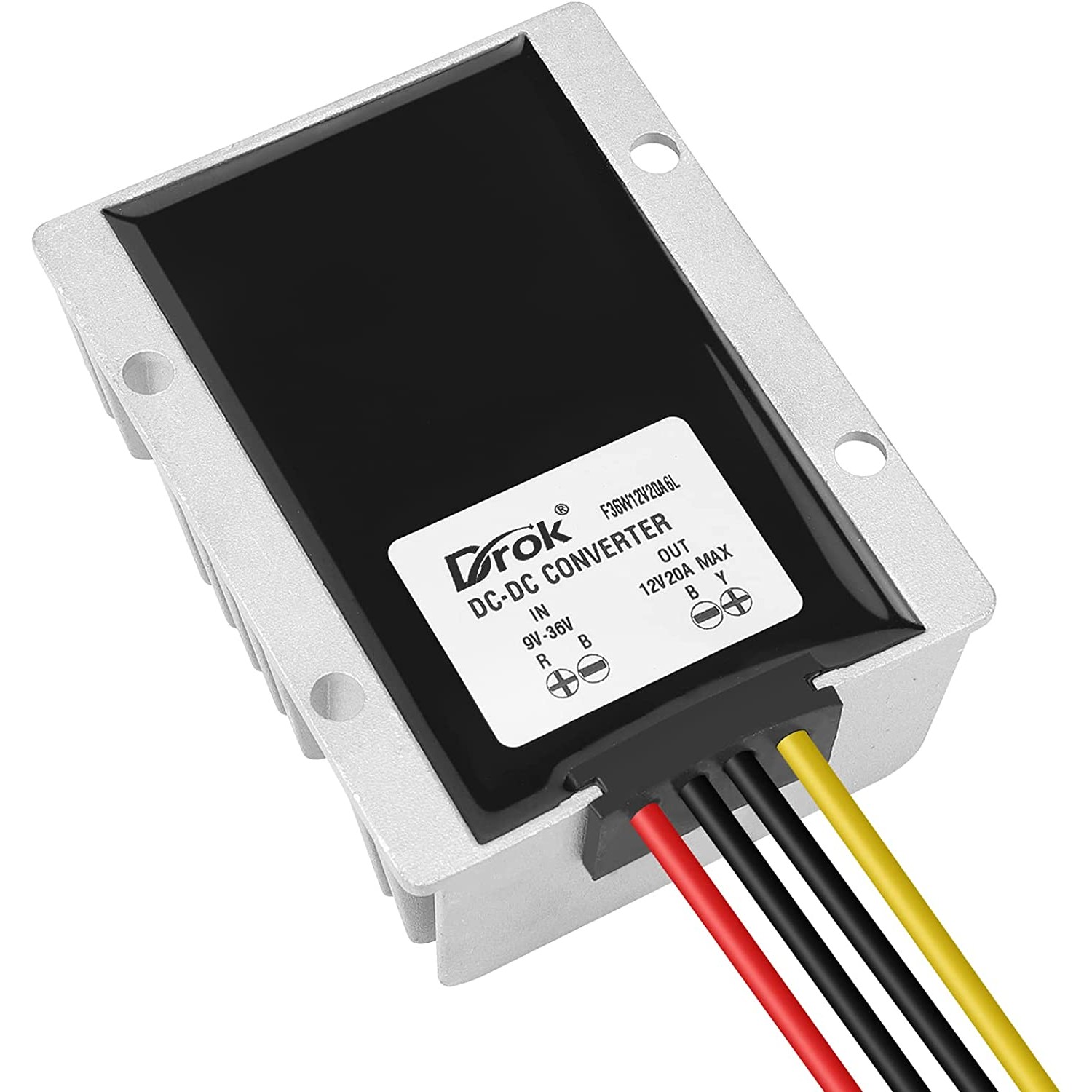

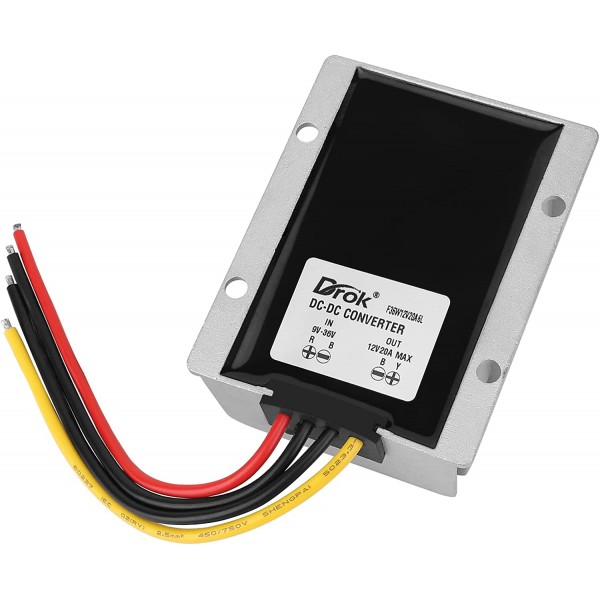

1 x DC-DC Boost Buck converter
Boost Buck Converter 9V-36V to 12V 20A 240W Aluminium Shell Waterproof Auto Step Up Down Voltage Regulator 12V Volt Transformer for Car Audio Solar Power System LCD Television LED Display Screen
- Brand: Drok
- Product Code: 200667
- Availability: In Stock
- $36.99
- $33.29
-
Bulk Buy Discounts. Buy more please contact us
Qty 2 5 10 20 30+ Price $31.63 $30.63 $28.30 $27.30 $26.63
 |
