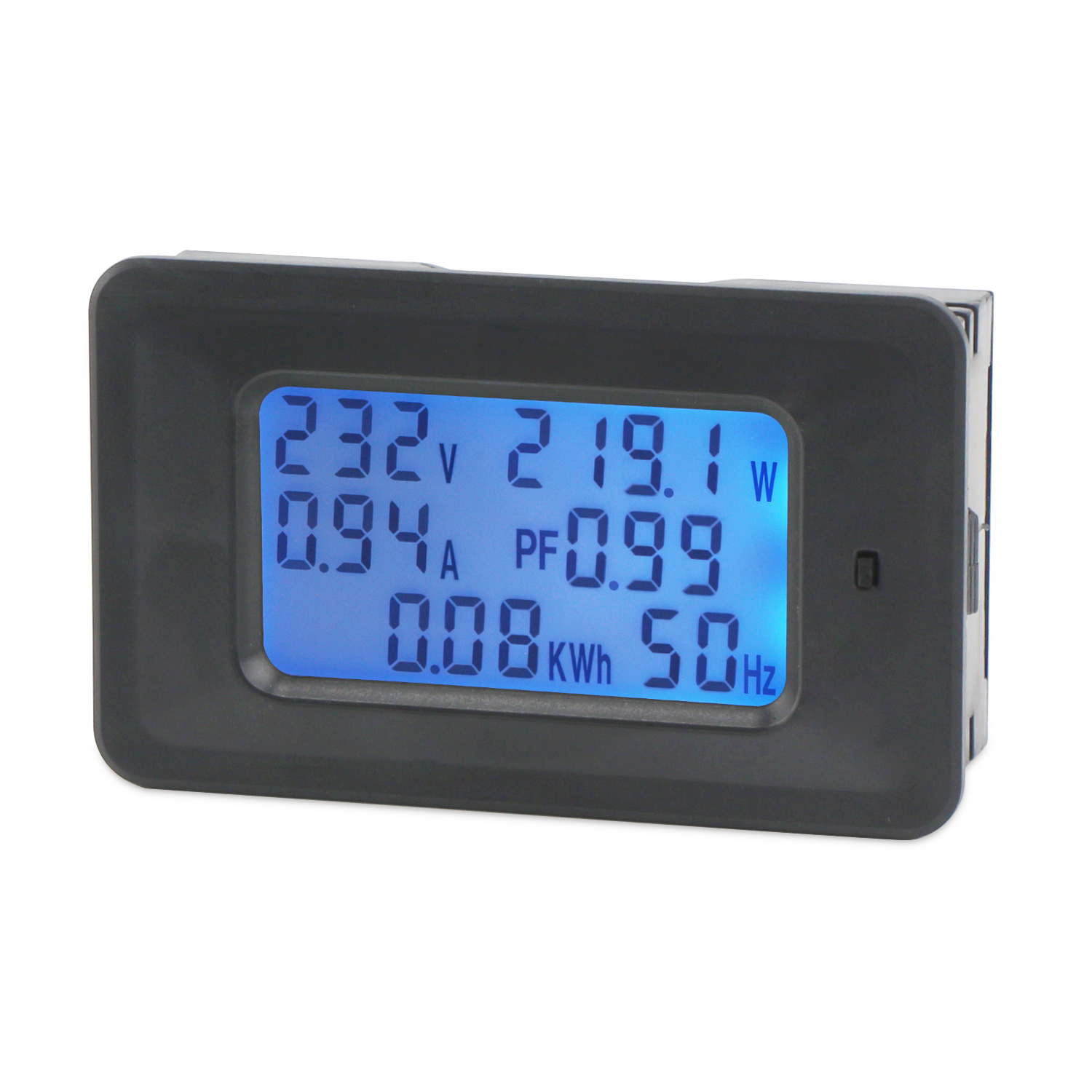

It is a Digital Tester/Multimeter, Rated power: 20A/4500W, measuring voltage: 80V~260V, Current measuring range: 0.01~20A, Frequency measuring range: 45~65Hz, Power measuring range: 0.01W~4500W, Energy measuring range: 0.01W~99999kWh, Applications:The meter can be used in charger, inverter, solar energy, wind turbines, LED lights measurement, distribution box, voltage regulator,education appliances, appliance Repair, flapper,  industrial equipment,electronic equipment measurement or other products.

Parameters:
  • Rated power: 20A/4500W
  • The maximum current: 20A
  • Measuring voltage: 80V~260V
  • Frequency measuring range: 45~65Hz
  • Power measuring range: 0.01W~4500W
  • Energy measuring range: 0.01W~99999kWh
  • Current measuring range: 0.01~20A
  • Voltage precision: ±1%
  • Current precision: ±2%
  • Power precision: ±2%

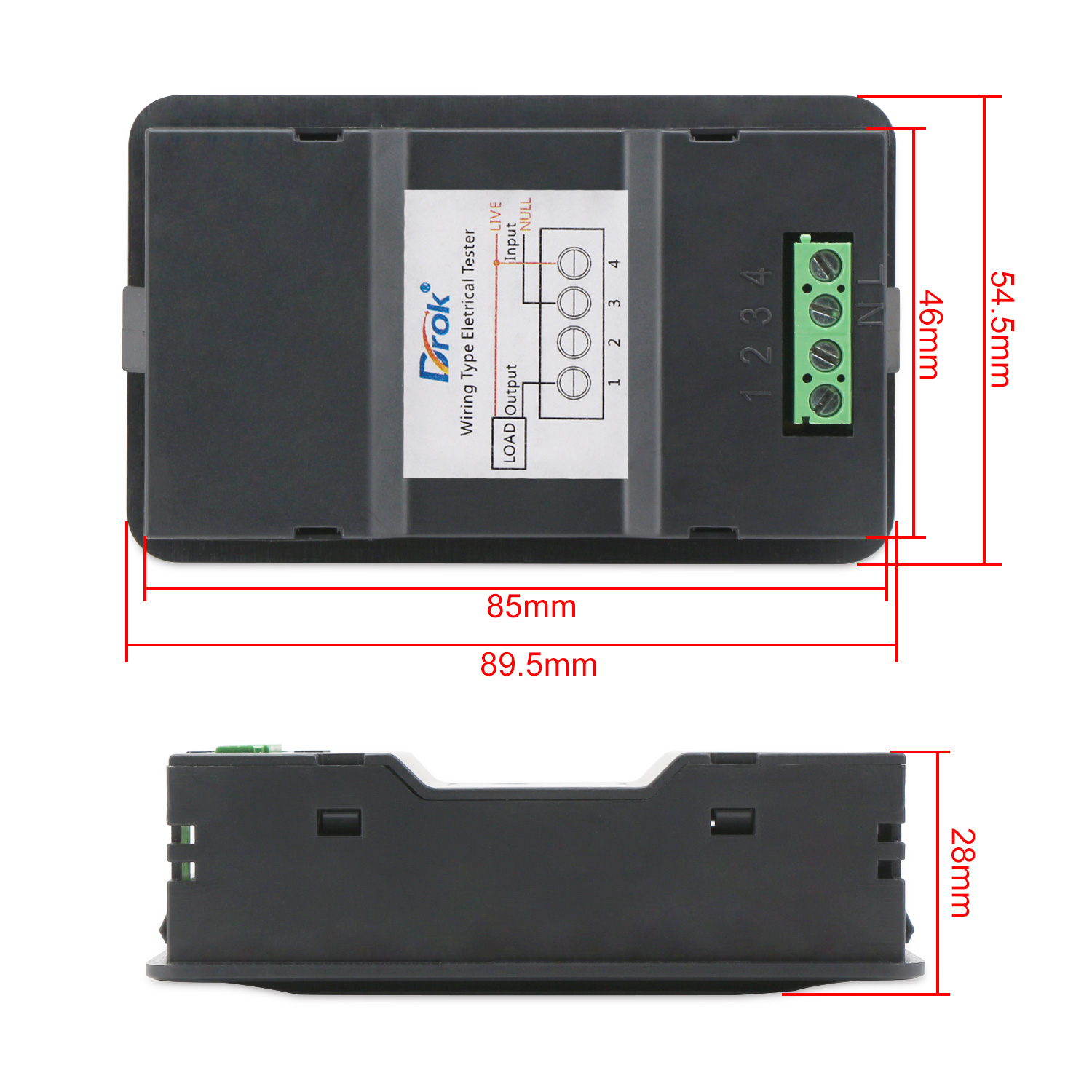

  • Product size: 89.5*54.5*28mm
  • Product weight: 67g

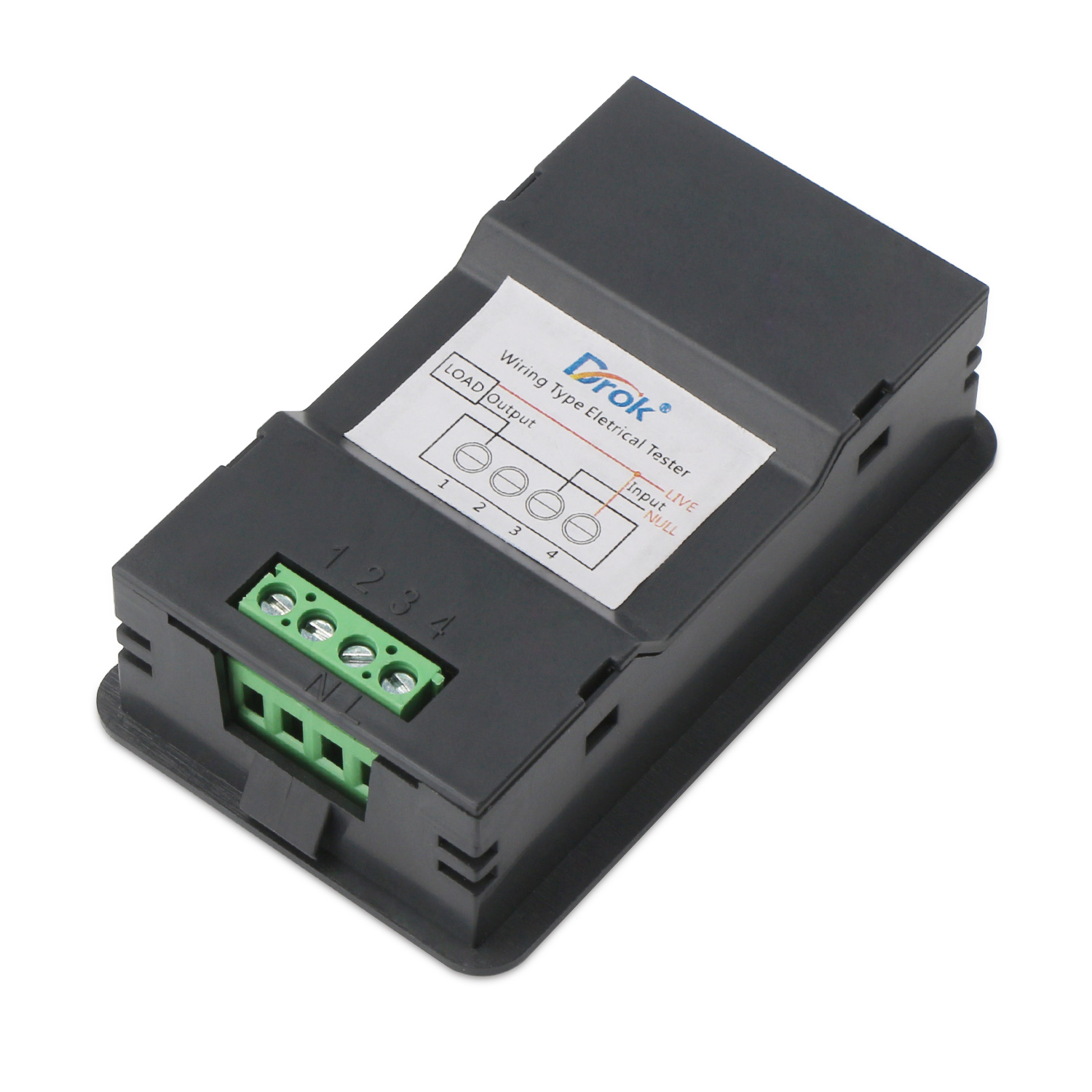

Wiring Connection:
  • Output: 1&4
  • Input:  3&4
  • 1: output NULL
  • 2: input NULL
  • 3: input NULL
  • 4: input & output LIVE
Operation Instructions:
  • 1.Short press the button to switch the backlight ON or OFF.
  • 2.Long press 3s to enter the over-load power setting:
  • (1)The over-load power value defaults 4.4kw; over-load alarm backlight and power flashing, it will auto-release when less than 4.4kw.
  • (2)The highest bit is flashing, short press the corresponding number plus 1; long press 2s to shift, 99.9KW is the maximum values can be set.
  • (3)After 5s exit and save the data if without any operation.
  • 3.Long press 5s, system reset, cumulative power zeroing, over-load power setting restore default values.
Notes:
  • 1. The total power resistive load of the connected appliances cannot excess the rated power, otherwise it will be damaged, even fire.
  • 2. 20A electrical tester is built-in shunt, if it doesn't display power and the power factor, means the wiring connection is wrong, please check the wiring diagram.
  • 3. Except for the wires, other objects should not be inserted into the connection hole; tightening the screws.
  • 4. No waterproof function, only used in dry indoor environment.
  • 5. Far away from children and fire.
Package Includes:
  • 1 x Wiring Type Electrical Tester ( Digital Multimeter )
