-68% High Torque Bipolar Stepper Motor 42 Stepper Motor 2-Phrase Universal DC Motor for 3D printer/laser engraving/Stage lighting etc

Ask Question

It is a Stepper Motor/Bipolar 42 Stepper Motor, Holding torque: 0.46 N·m/ 65 oz-in, Rated current: 1.7A, It has small size, high efficiency, long term stable and reliable quality,easy installation and use, Suitable for Stage lighting; laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; 3D printer; automation equipment etc

Product Parameters:
  • Product name: Bipolar 42 Stepper Motor
  • Holding torque: 0.46 N·m/ 65 oz-in
  • Rated current: 1.7A
  • Resistance: 2.1 ohm
  • Inductance: 4mH
  • Rotor inertia: 55g·cm2/ 0.30oz-in2
  • Weight: 0.28kg
  • Length: 39.5mm/ 1.56 inch
  • Phrase: 2
  • Step angle: 1.8°

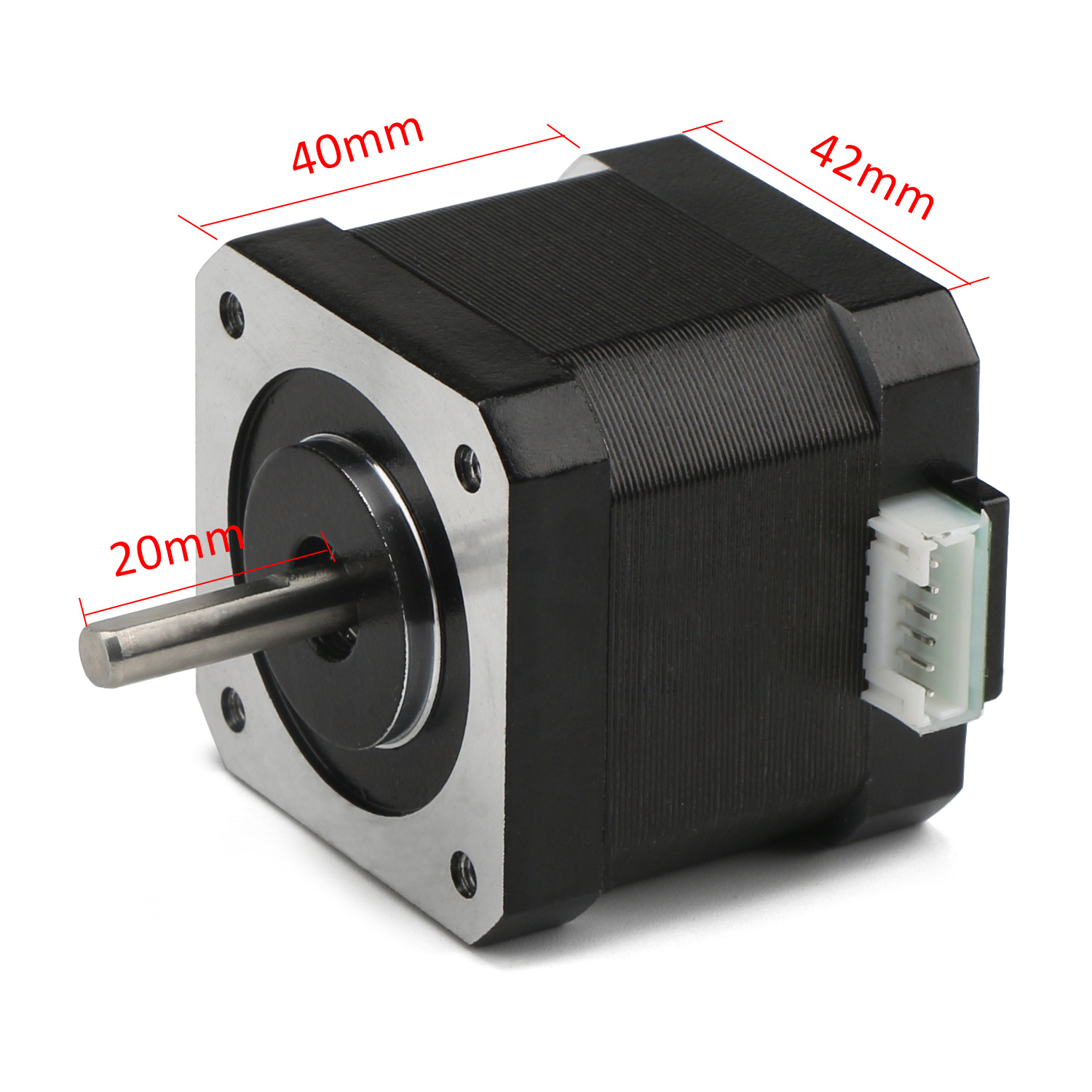

  • Motor frame size: 42 x 42mm
Application:
  • Stage lighting; laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; 3D printer; automation equipment
Product Features:
  • HIGH TORQUE: This product adopts imported high quality motor steel, bearing made with German craftsmanship, low self-inductance reactance, responsive. It can be connected with the load and drive in low speed in the condition near locked rotor, and no need to use gear to decelerate, so it can produce high torque to inertia ratio on the shaft of load and eliminate the system error produced by using gear.
  • LOW NOISE: The internal rotor adopts German craftsmanship. The rotor is covered by rotor rubber, which can prevent the noise rising when the carbon steel is oxidized or grinded.
  • GOOD SHAPE: This product is made by high hardness metal, tough and durable. And the matte texture in the side wall can increase friction.
Product Includes:
  • 1 x  42 Stepper Motor
Attributes
input voltage--
output current1.7A
output power--
output voltage--
output ways1
