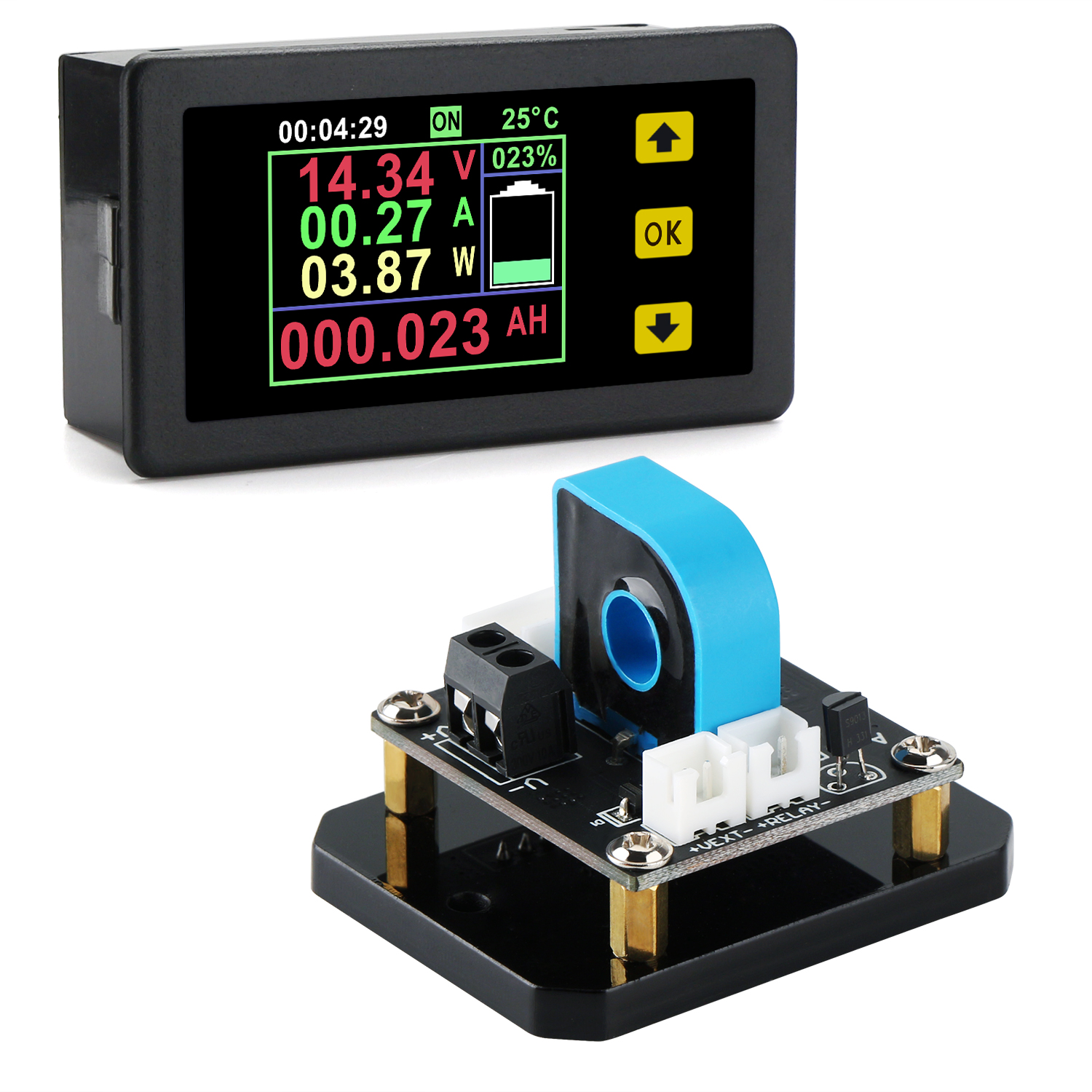

Description:

Measuring Range:

• Voltage: DC 6V-45V (self-powered)/ DC 0-12V (external power source)
• External Power Source Voltage Range: DC 6-60V
• Current: 0-20A
• Capacity: 0.001AH-65000.00AH
• Energy: 0.00KWH-99999.9WH
• Running Time: 0-100h
• Power: 99KW

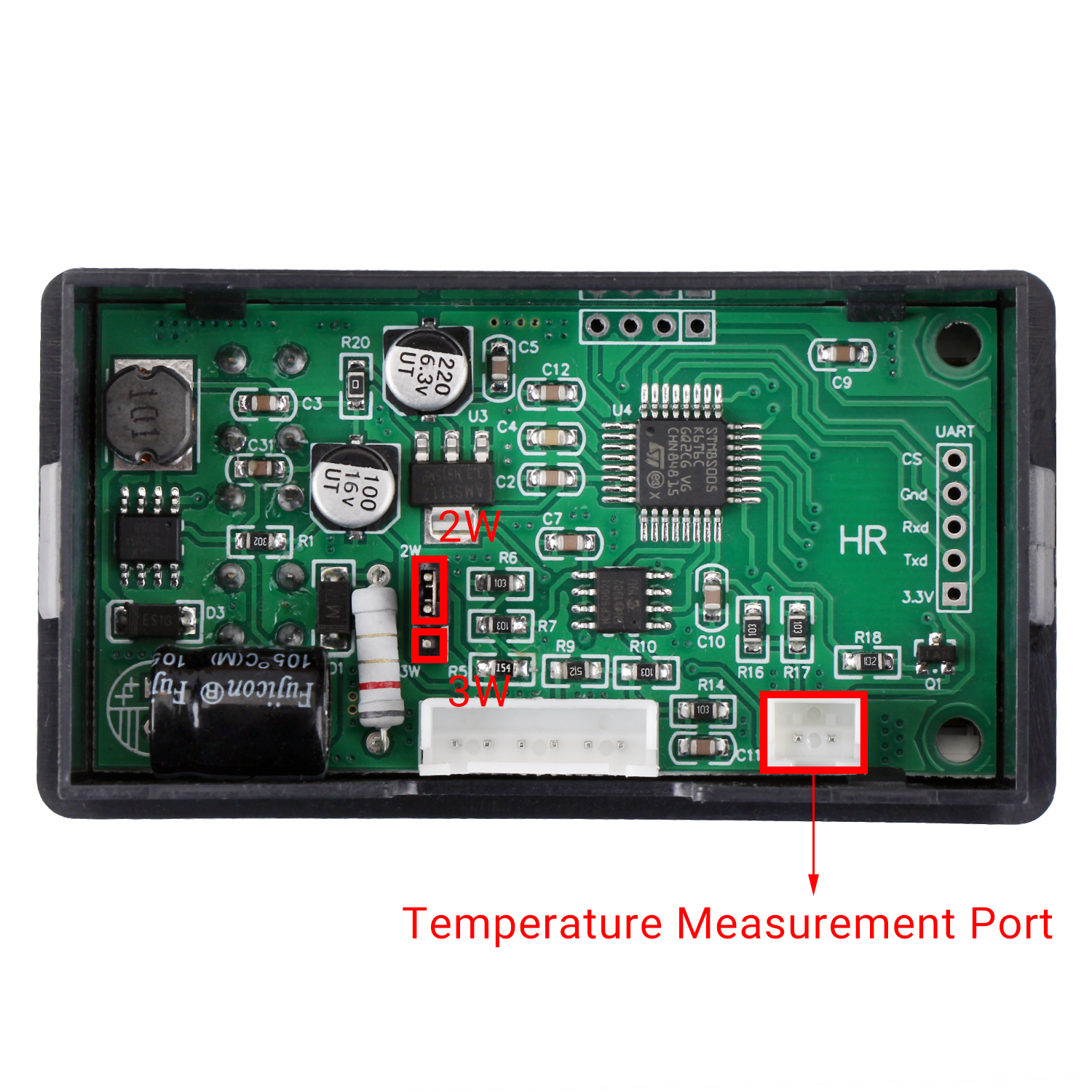

• Temperature: 1-100℃

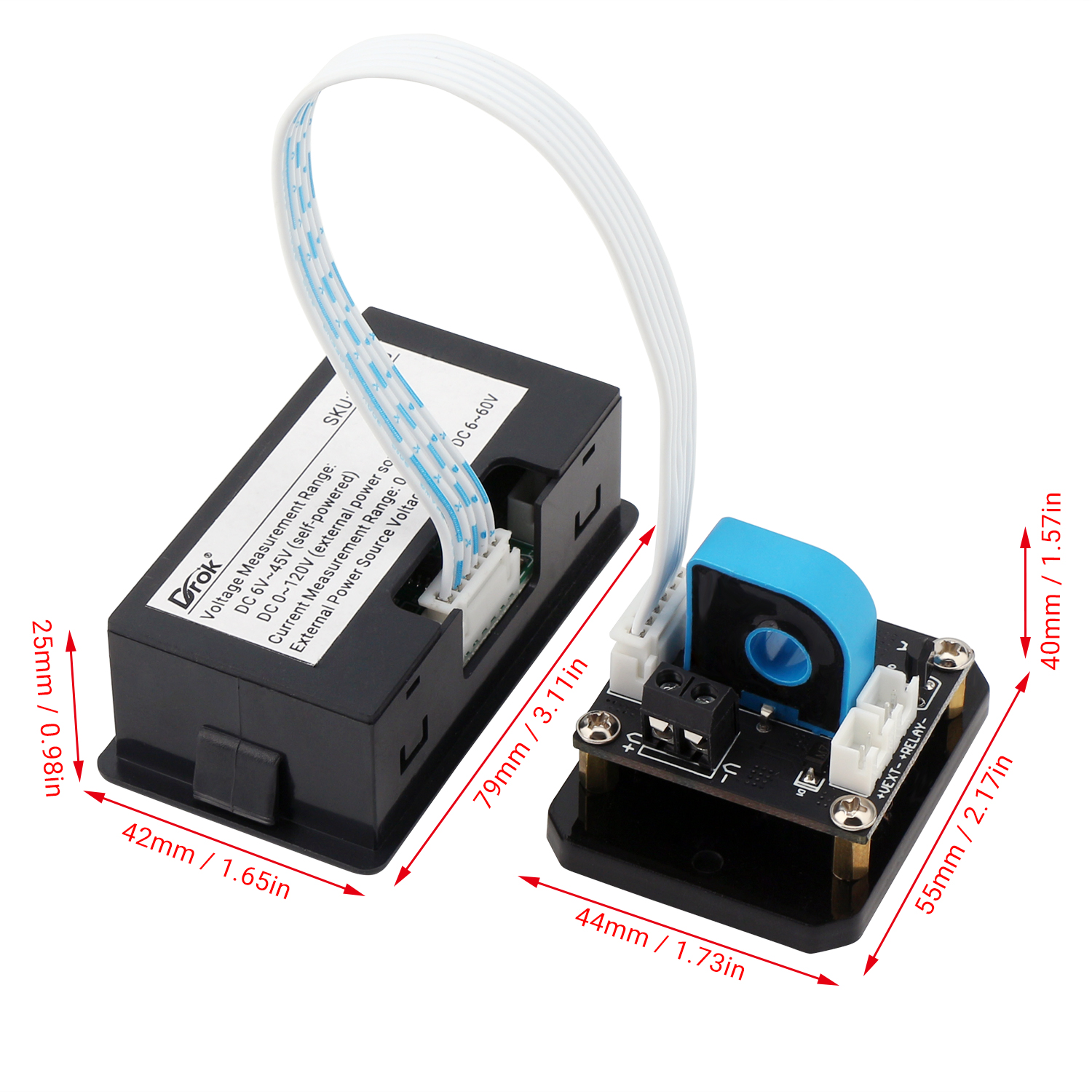

• Display Panel Dimension: 78*42*26mm/3.07*1.65*1.02 inch

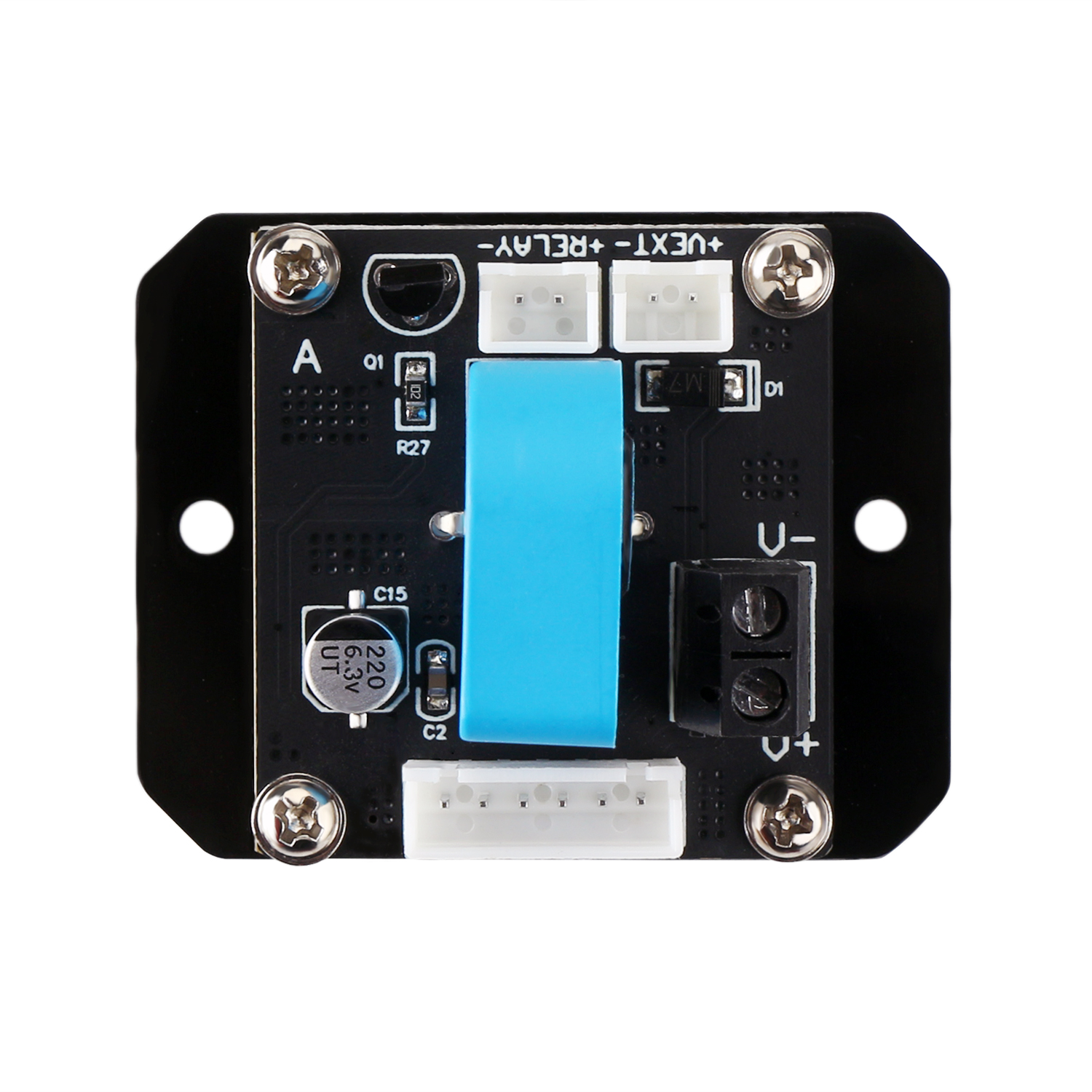

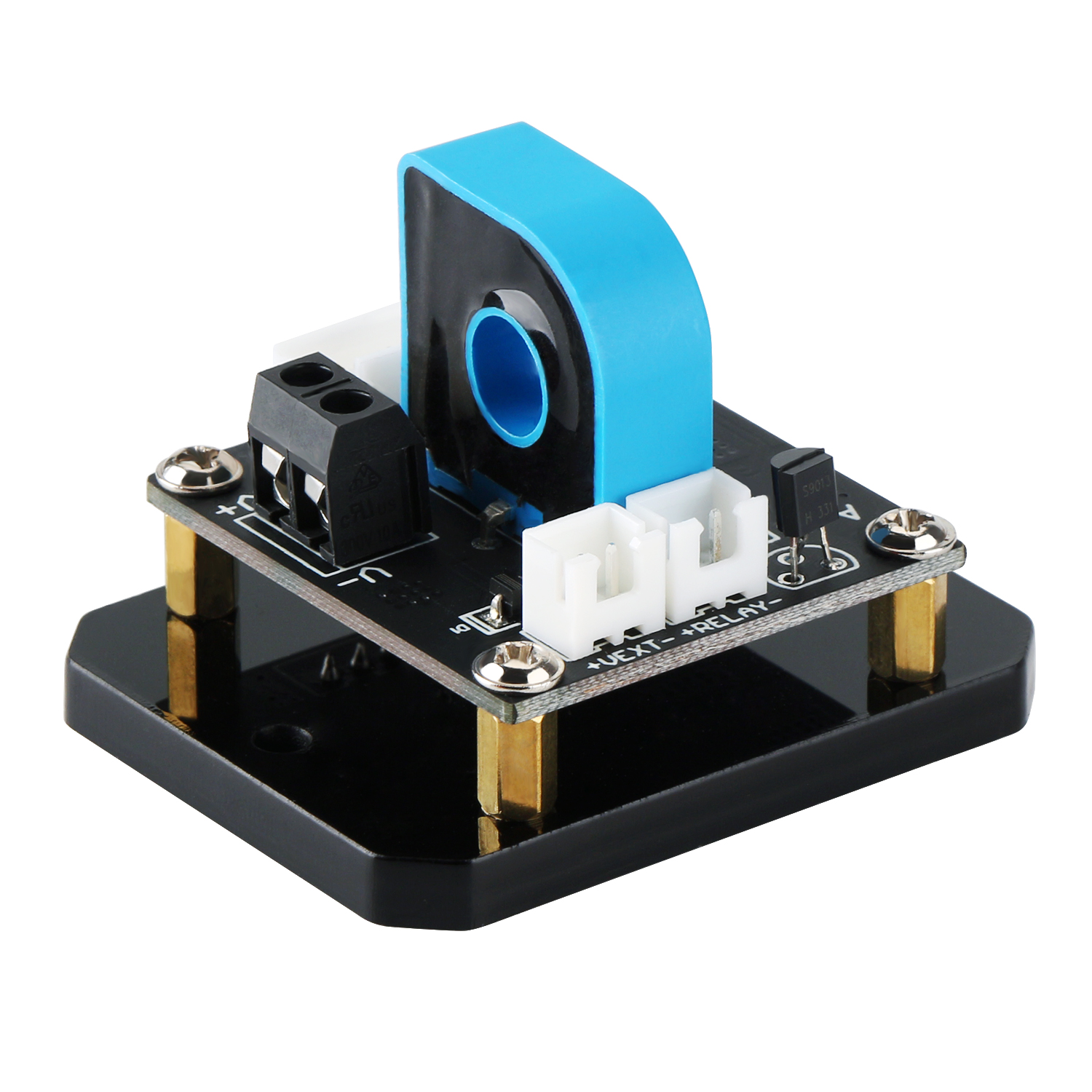

• Measurement Panel Dimension: 87*49*24mm/3.43*1.93*0.94 inch

Accuracy:

• Voltage: ±1% + 2 digits
• Current: ±2% + 5 digits
• Temperature: ±1℃
• Measuring Rate: 5 times/second

Protection:

1. OVP (Over-voltage protection): 0.01V-120V
2. LVP (Low-voltage protection): 0.01-120V
3. OCP (Over-current protection): 0-30A
4. NCP (Discharging over-current protection): 0-30A
5. OTP (Over-temperature protection): 0-100℃

Features:

(1) 7-IN-1 MULTIMETER --- measure and display voltage (self-powered DC 6V-45V/external power supply DC 0-120V); current (0-20A); power (99kw); capacity (0-65000.00AH); energy (0-99999.9WH); running time (0-100h); temperature (1-100℃). External power source voltage range DC 6-60V.

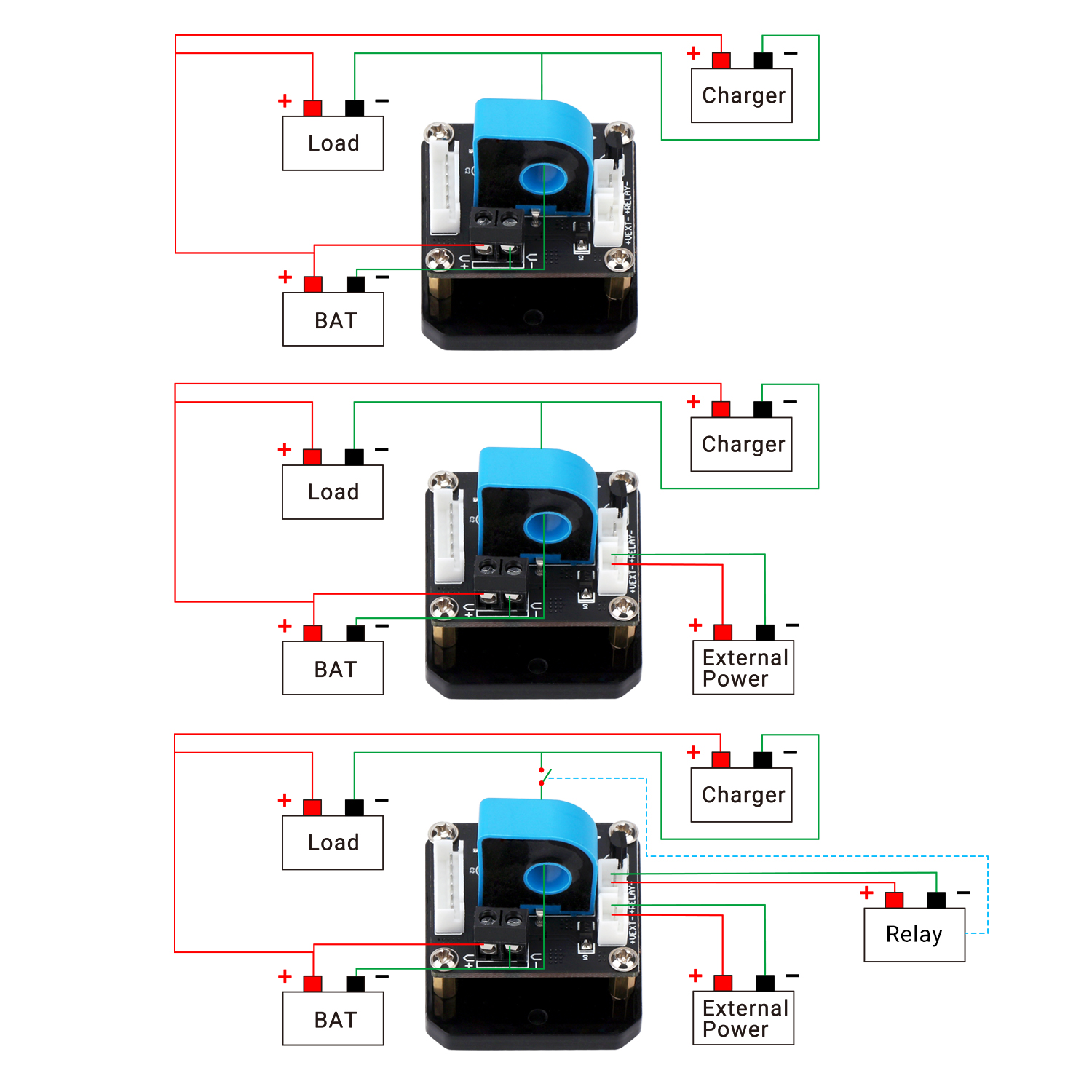

(2) APPLICATION --- can be used as battery charging-discharging tester meter for automobile and car battery; as battery capacity monitor for photovoltaic system; as voltage meter, current meter, power meter, etc.

(3) BIDIRECTIONAL AMMETER --- detect current in dual direction without changing the wiring direction when used for monitoring charging and discharging.

(4) PROTECTION --- over-voltage protection; low-voltage protection; over-current protection; discharging over-current protection; over-temperature protection.

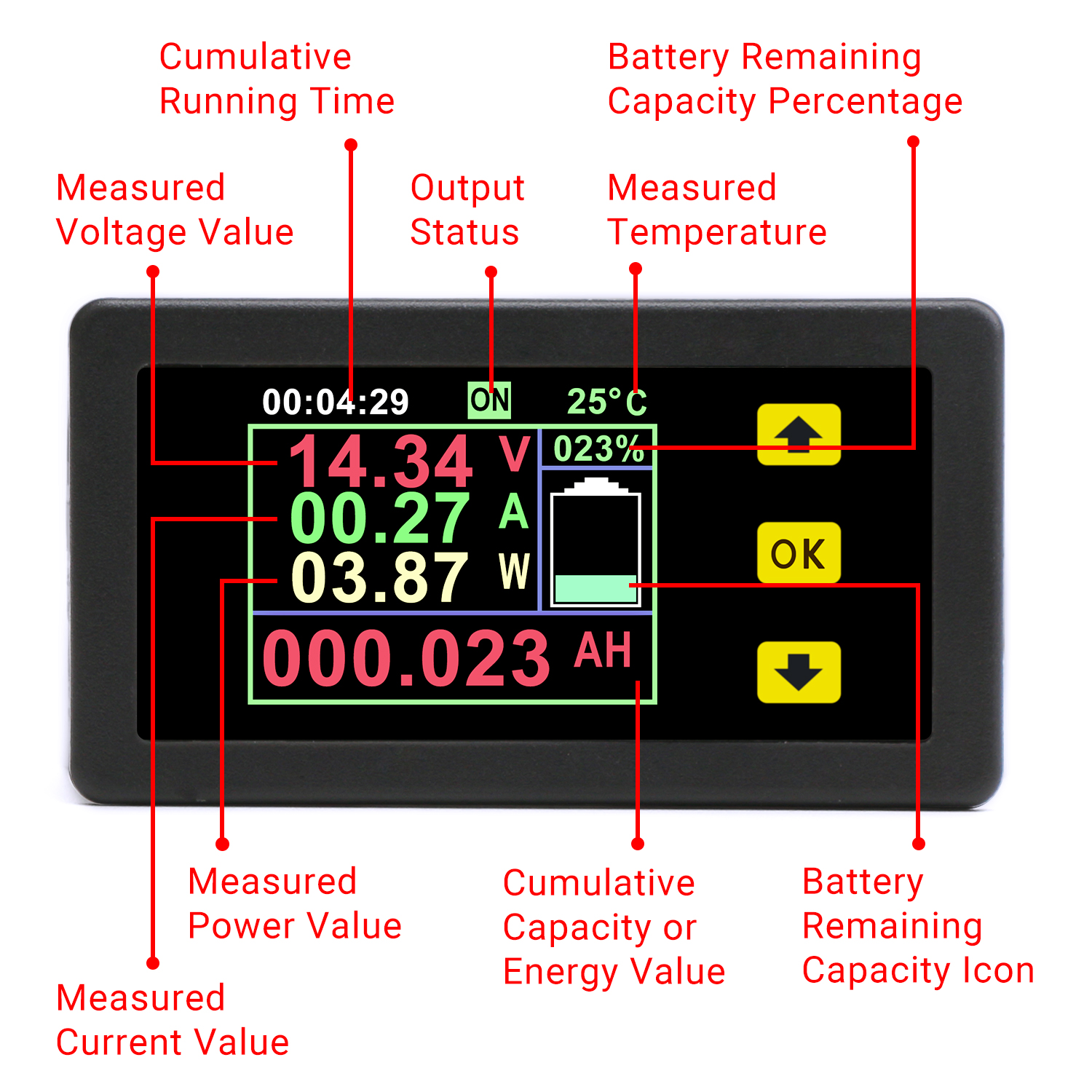

(5)OTHER FEATURES --- LCD color display; AH & WH power off memorized function; time & AH resettable; calibration function; with output control button to enable/disable output.

Note:

• If the voltage of the power supply (battery) to be detected is within DC 6V~75V in normal operation, the meter can be powered by the battery.
• If the voltage of the power supply (battery) to be detected is beyond DC 6V~75V in normal operation, it needs a external power source to supply power to the meter. External power source voltage range is DC 6V-60V.

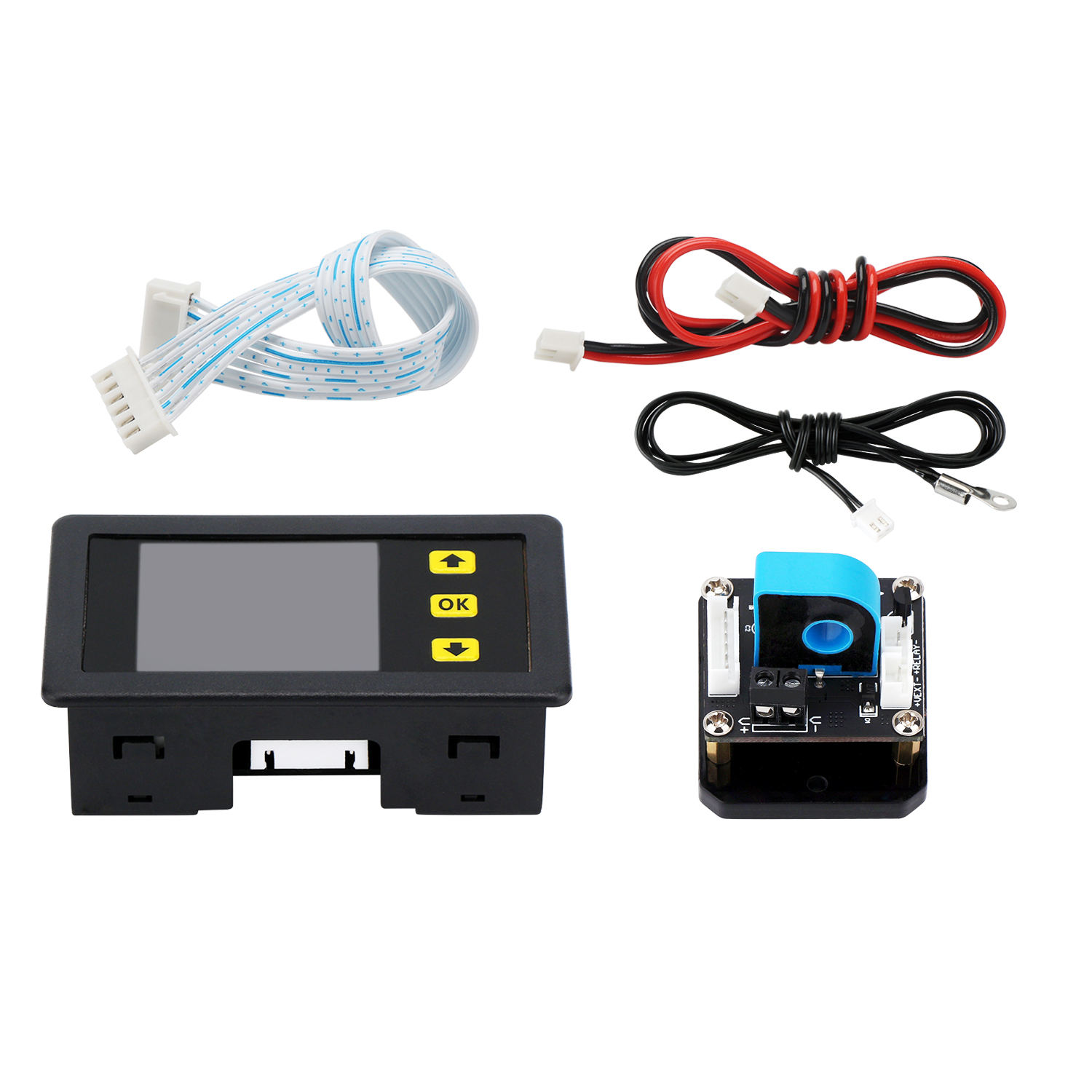

Package Included:

1x Digital Multimeter Panel
