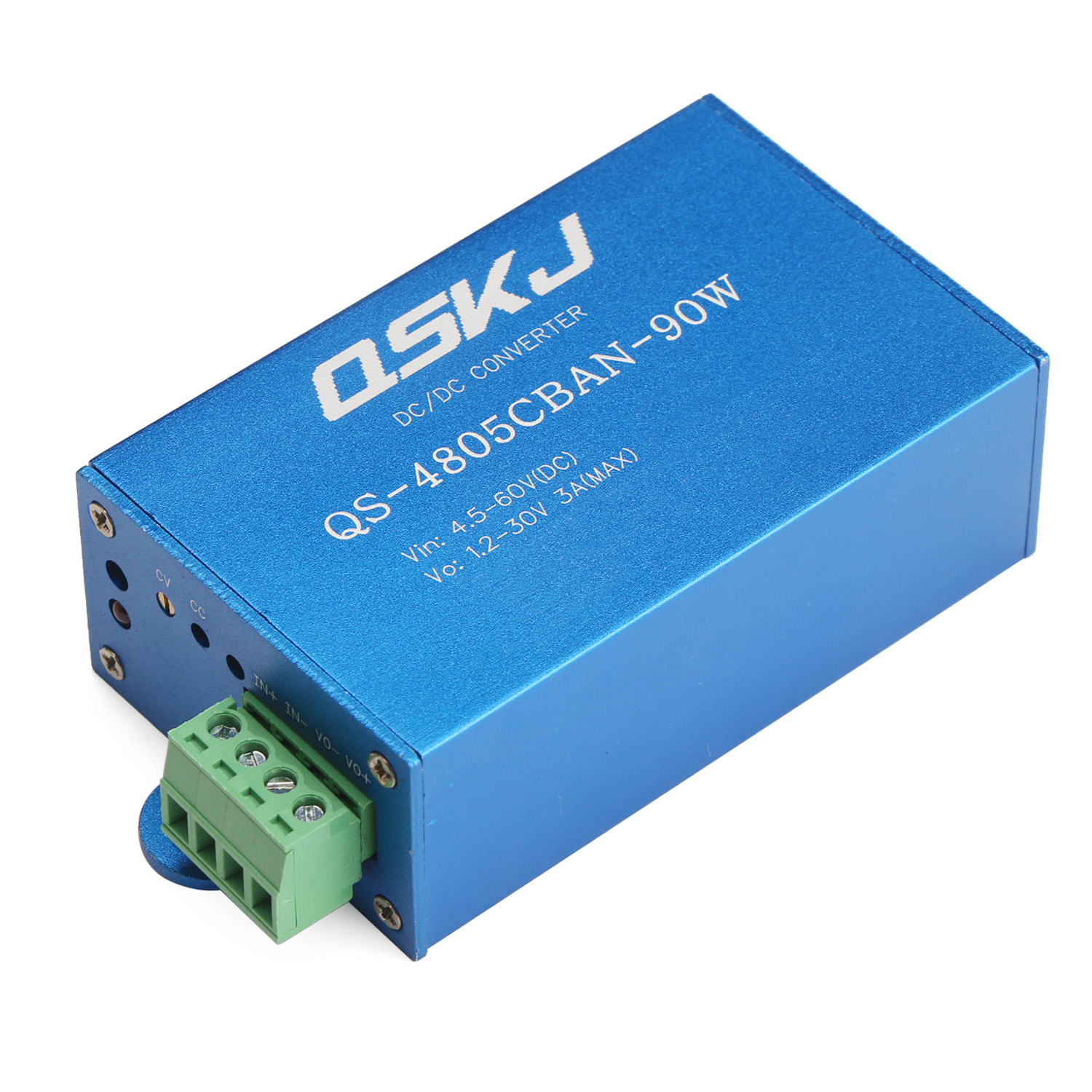

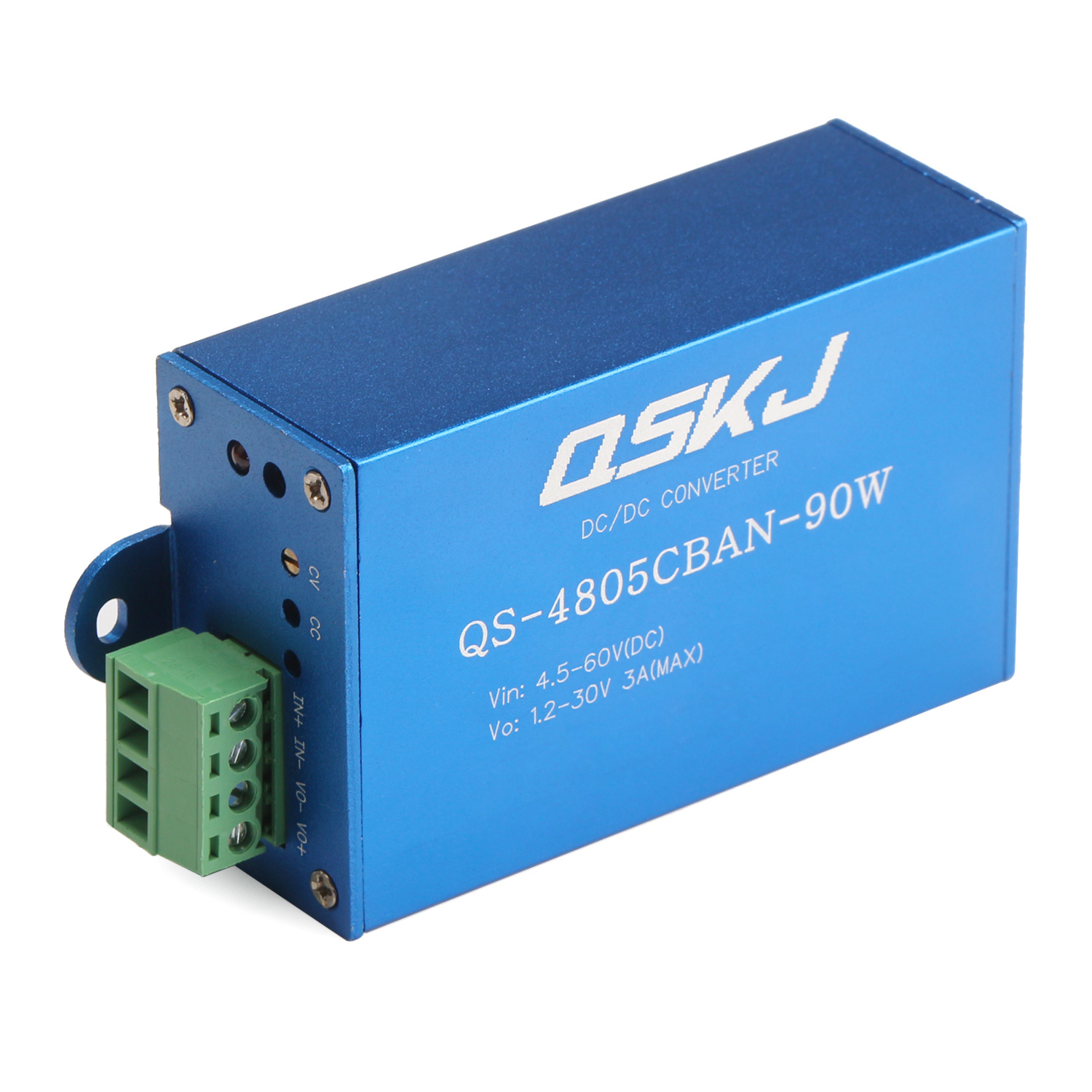

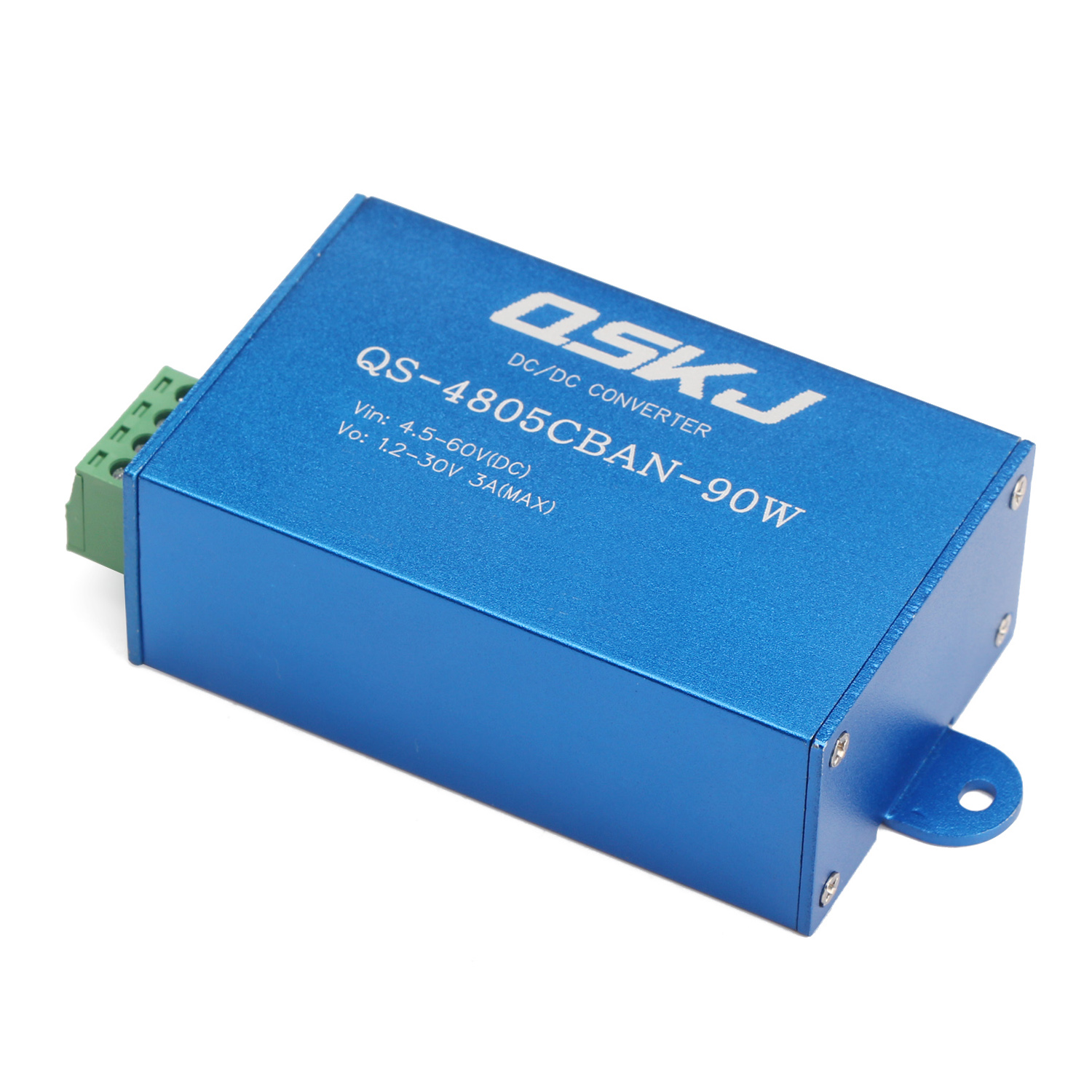

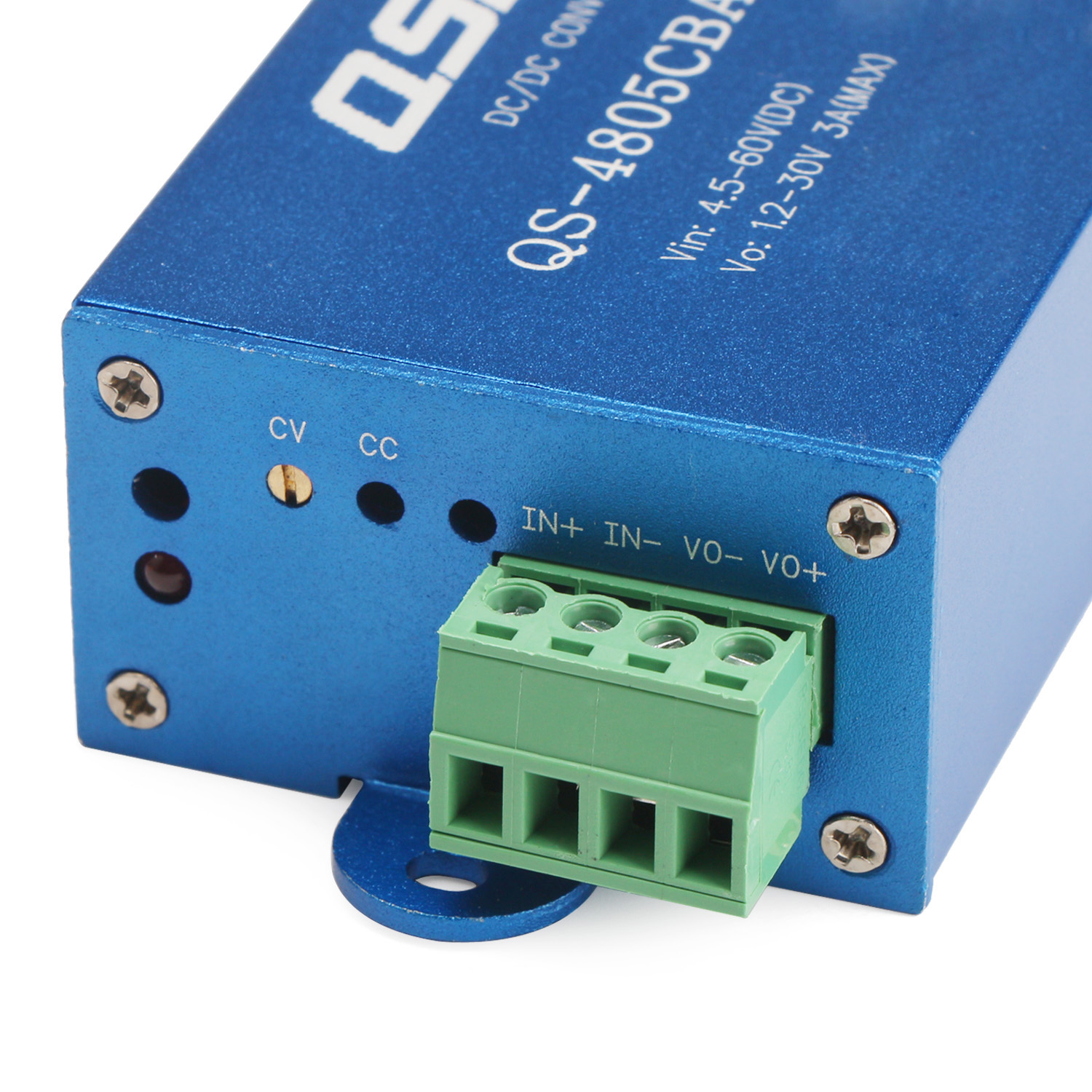

-42% 90W Power Supply Module DC 4.5~60V to 1.25~30V 3A Buck Converter/Adjustable Voltage Regulator Driver Module DC 12V 24V Power Adapter

Ask Question

90W Power Supply Module/Driver Module/Adapter, Input voltage: DC 4.5~60V, Output voltage: DC 1.25~30 adjustable, Output Current: 3A, Application: DIY Power adapter/Charger, industrial equipments, electronic equipment, Communications Equipment, Power Tools, Car Driving Recorder, Car GPS, Car audio, LCD TV, Advertising screen, Monitoring System, LED lights, Fan, intercom and monitor system, etc.

Feature:
  • Module Properties: non-isolated step-down module (buck)
  • Rectification: non-synchronous rectification
  • Input voltage: DC 4.5~60V
  • Output voltage: DC 1.25~30 adjustable
  • Output Current: 3A. Can 30V 3A 90W at full load. Please enhance heat dissipation.
  • Efficiency: Up to 92% (the smaller the pressure, the higher the efficiency)
  • Switching frequency: 50KHz
  • Minimum pressure: 2V
  • Operating Temperature: Industrial (-40°c to +85°c) (output power 20W or less)
  • Full load temperature rise: 40°c
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 0.5%
  • Output ripple: Input 48V, Output 5V, 3A, ripple less than 10mV
  • Bandwidth: 20M
  • Dynamic response speed: 5% 200uS
  • Short circuit protection: current limiting, since the recovery (output voltage lower than 20V)
  • Output over-voltage protection: None
  • Input Reverse Polarity Protection: Yes.

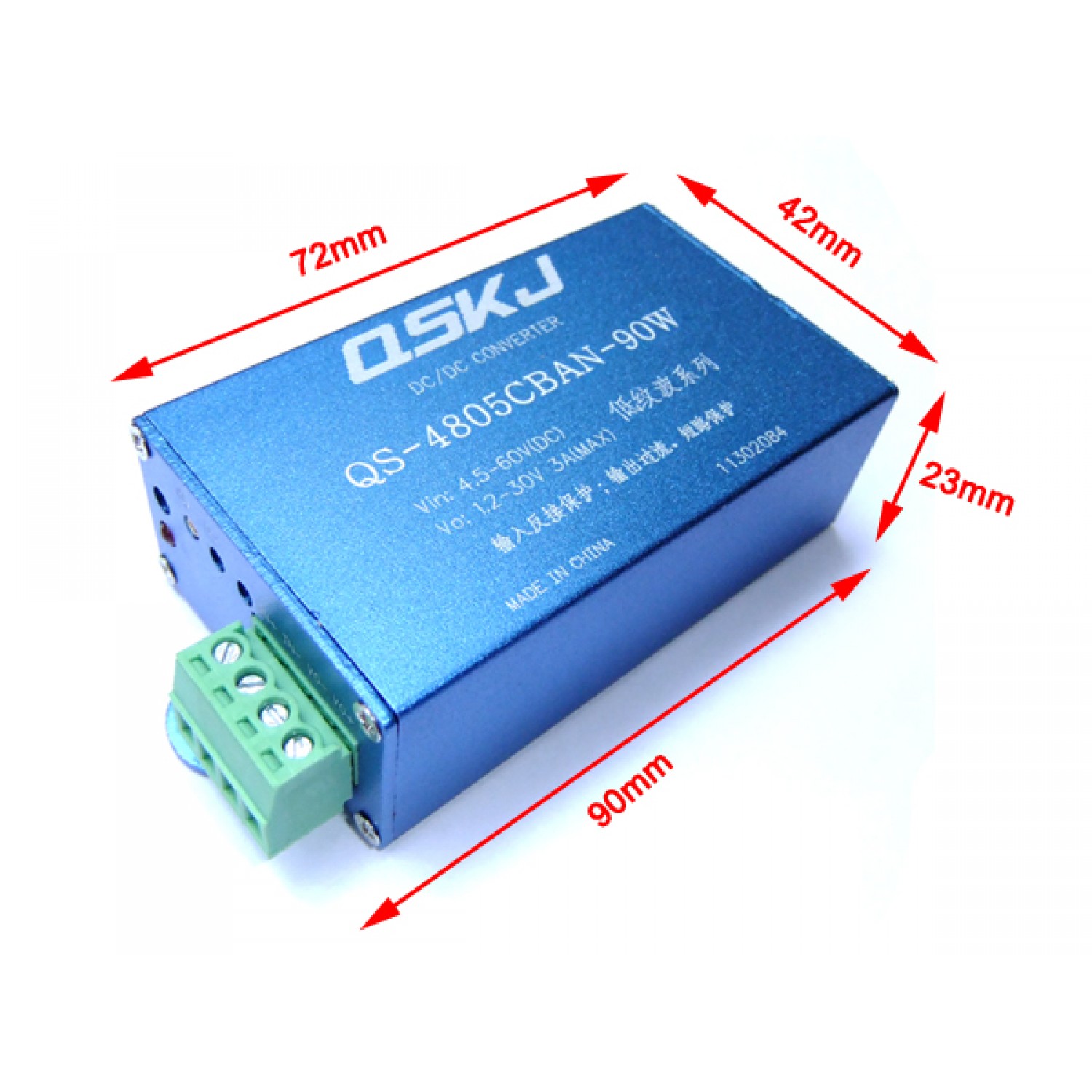

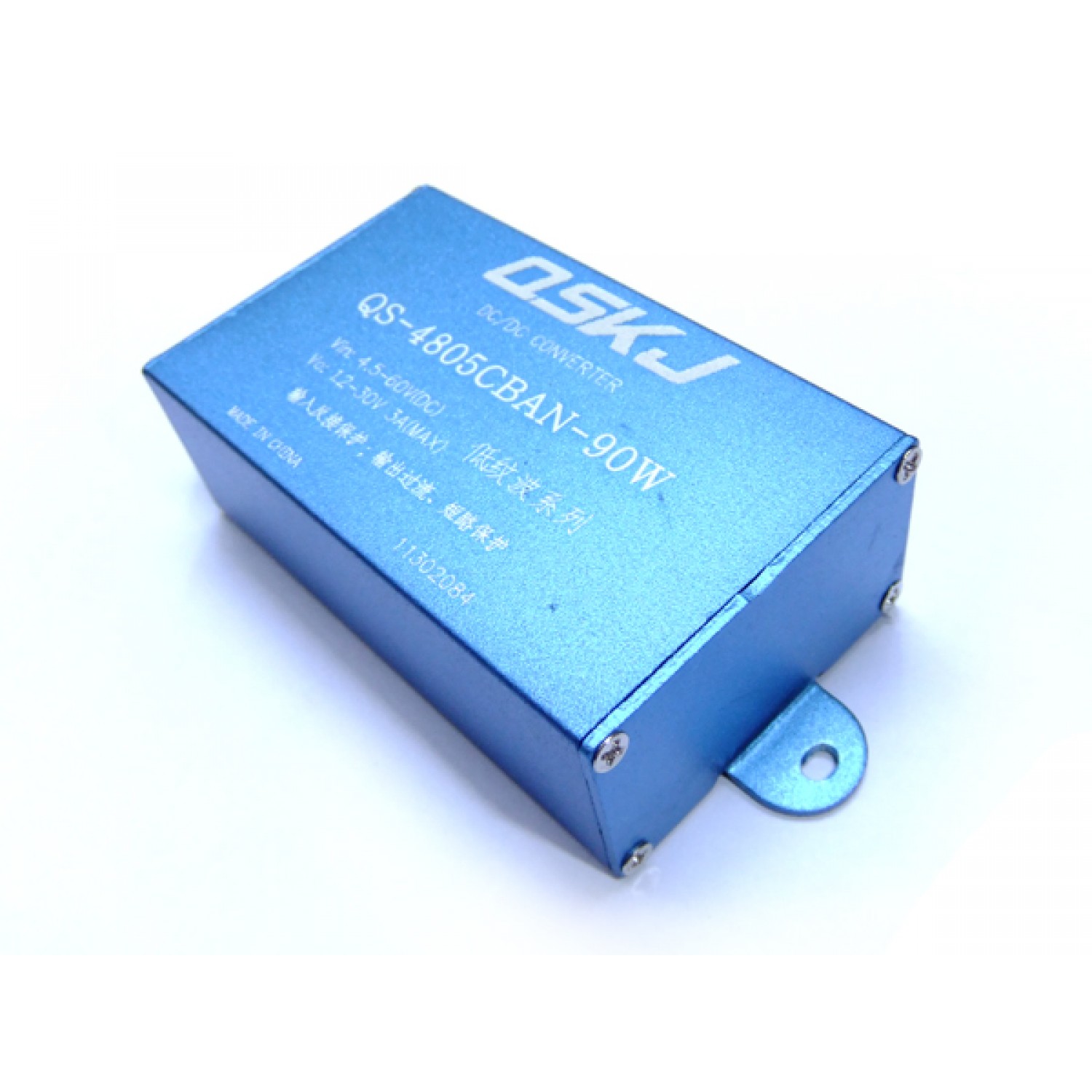

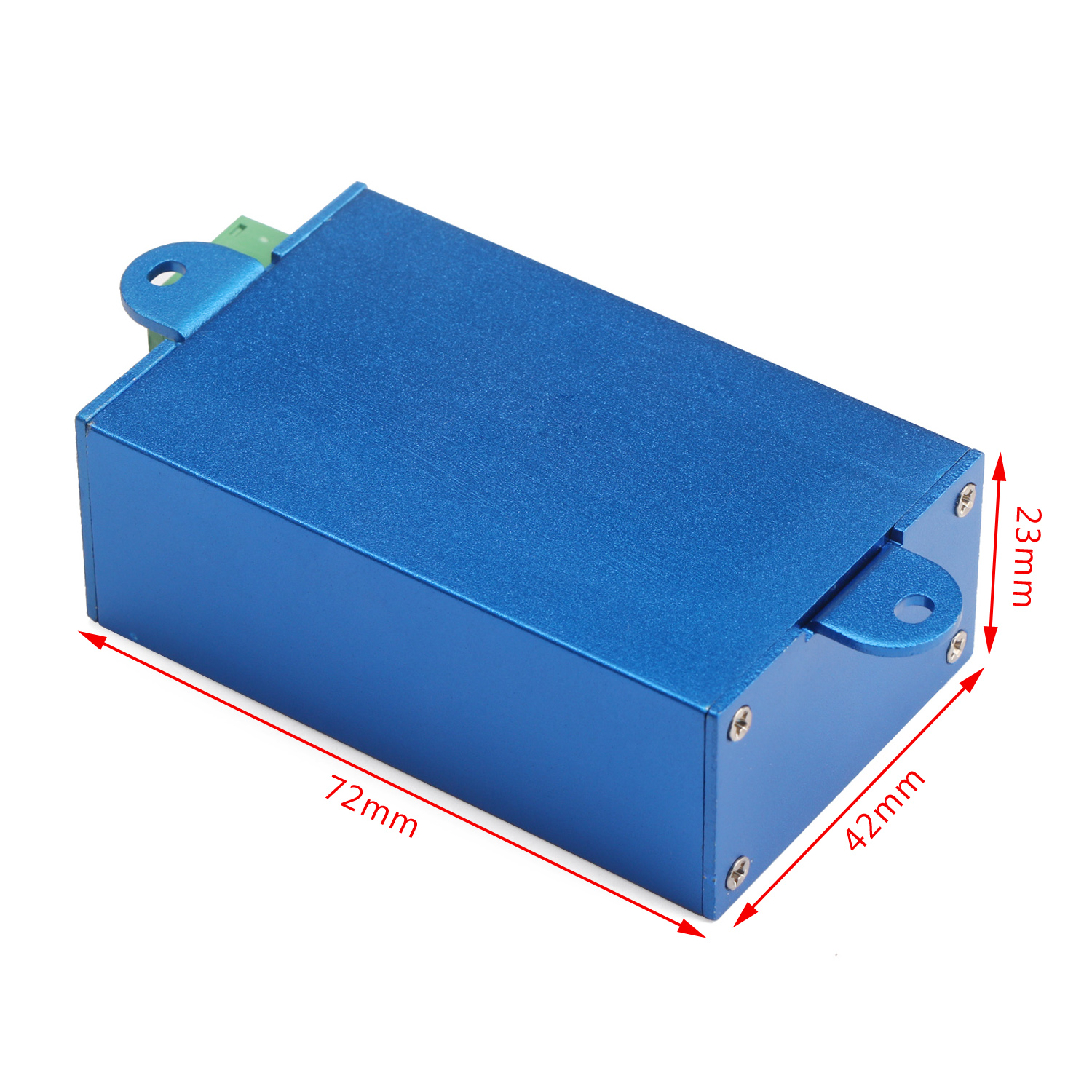

  • Installation: screw (diameter 3 mm), 2 mounting holes, 2 holes spaced 82mm
  • Shell: All aluminum, casting process, can work in harsh conditions
Some Applications
  • Buck: 12V 24V 36V 48V battery for the buck, Input can withstand up to 60V, Output stable 3.3V 5V 9V 12V 24V and so on.
  • POE remote power supply.
Package Includes:
  • 1 x DC/DC Buck Converter ( Power Supply Module/Voltage Regulator/Adapte )
Attributes
input voltage4.5~60V
output current3A
output power20W
output voltage1.25~30V
output ways1
