Technical Parameters:

Accuracy: 1%2digits
Measurement Range:
AC Voltage: 80-150V
DC Voltage: 0-99.9V

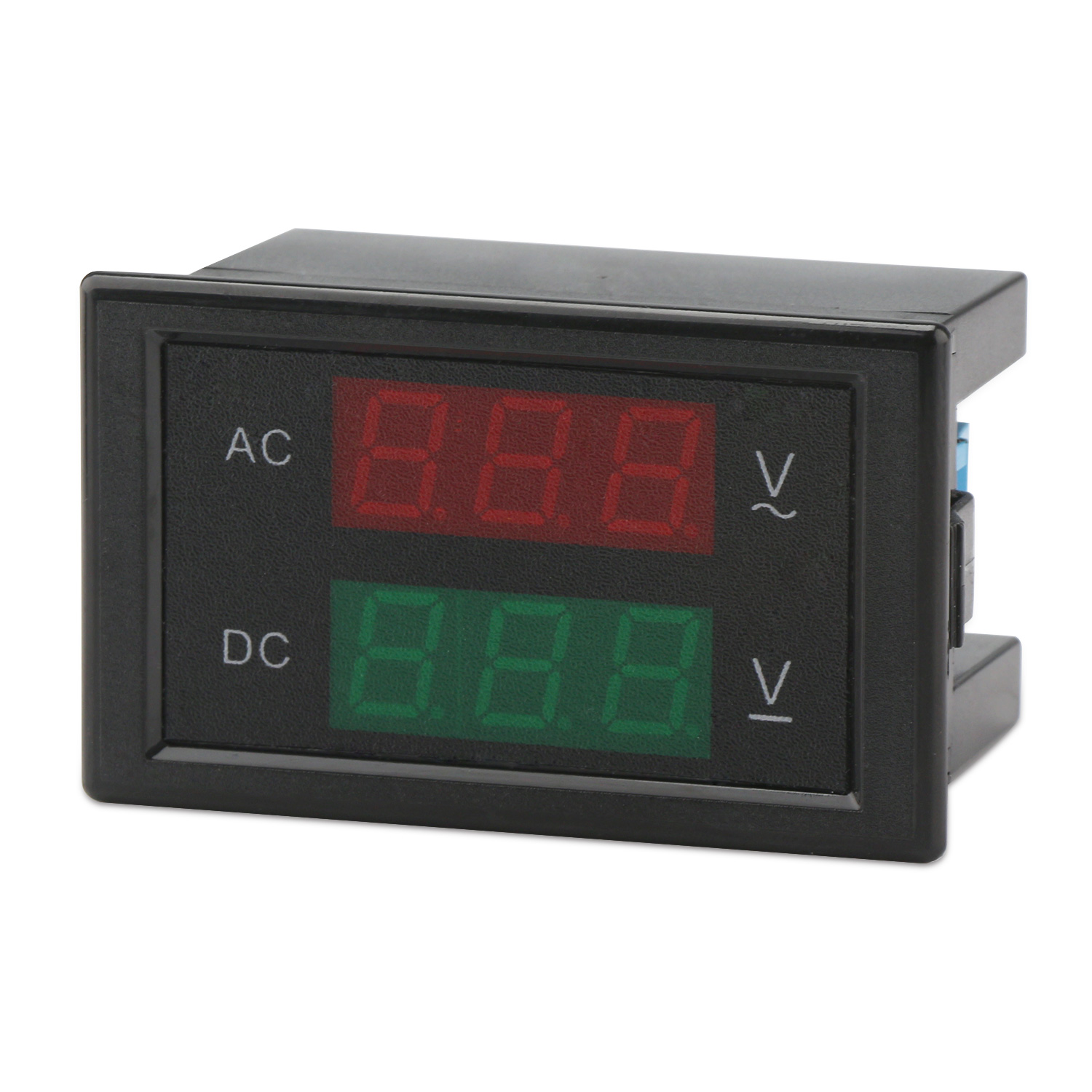

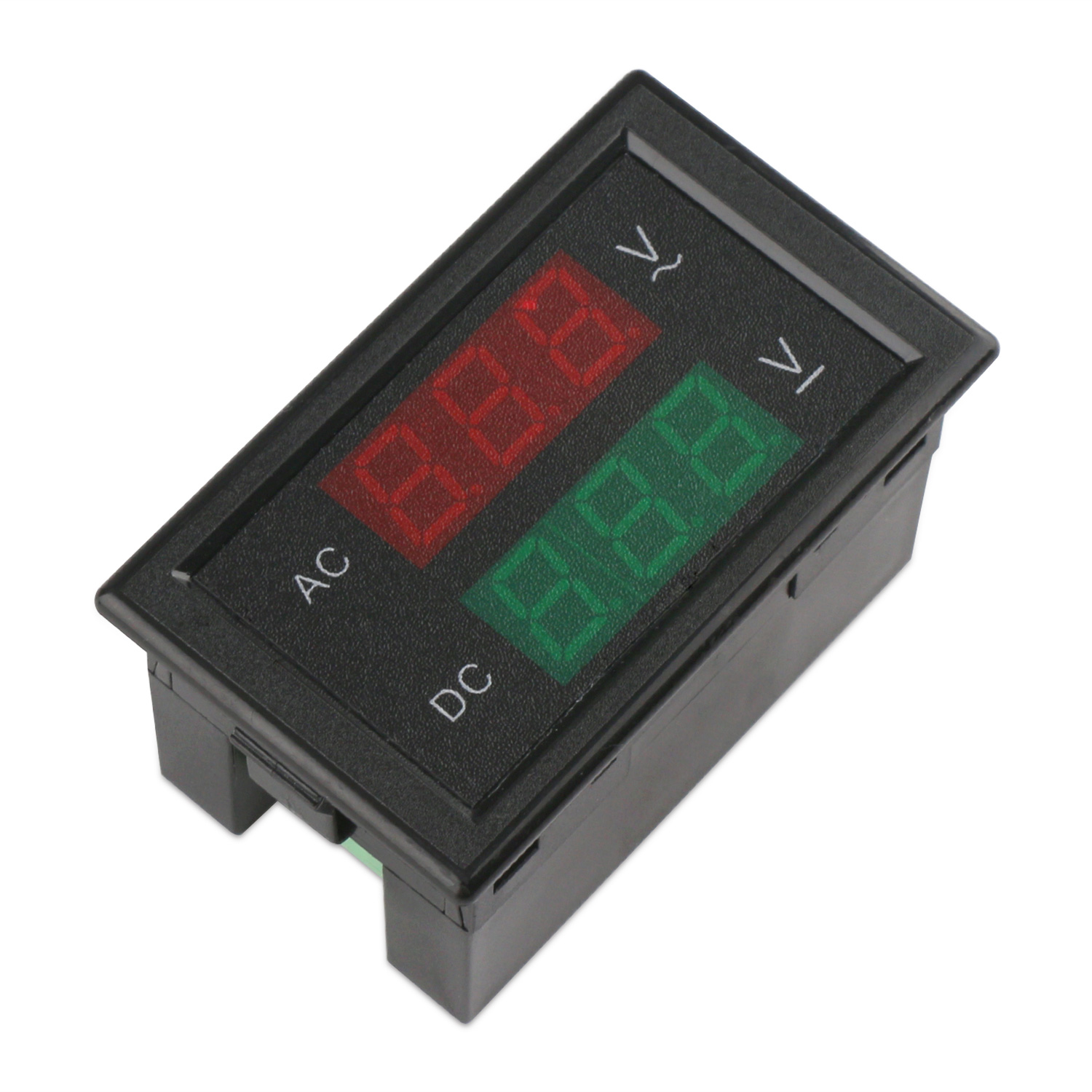

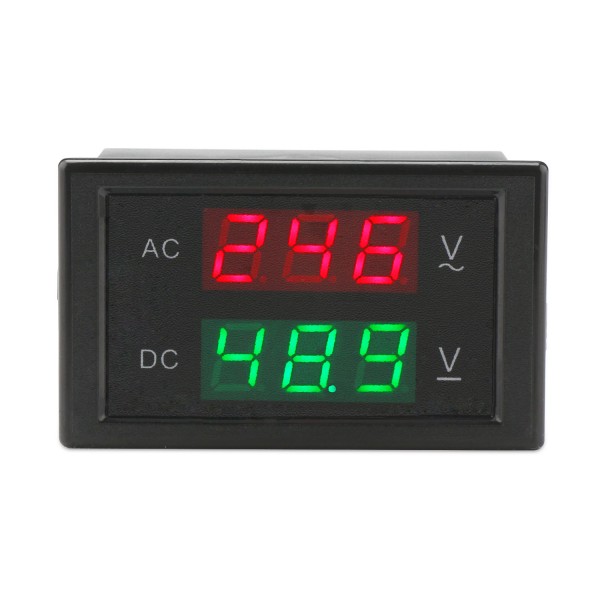

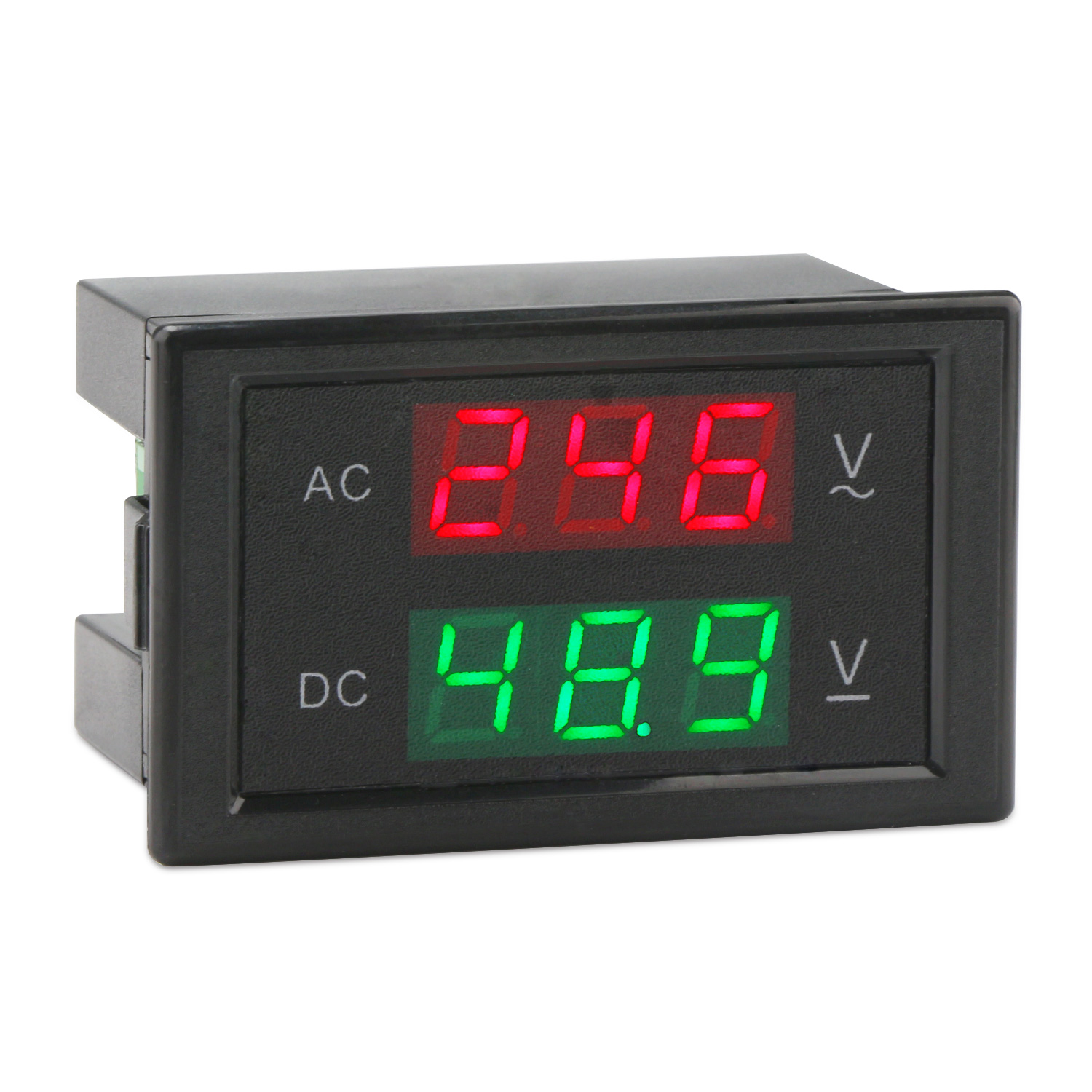

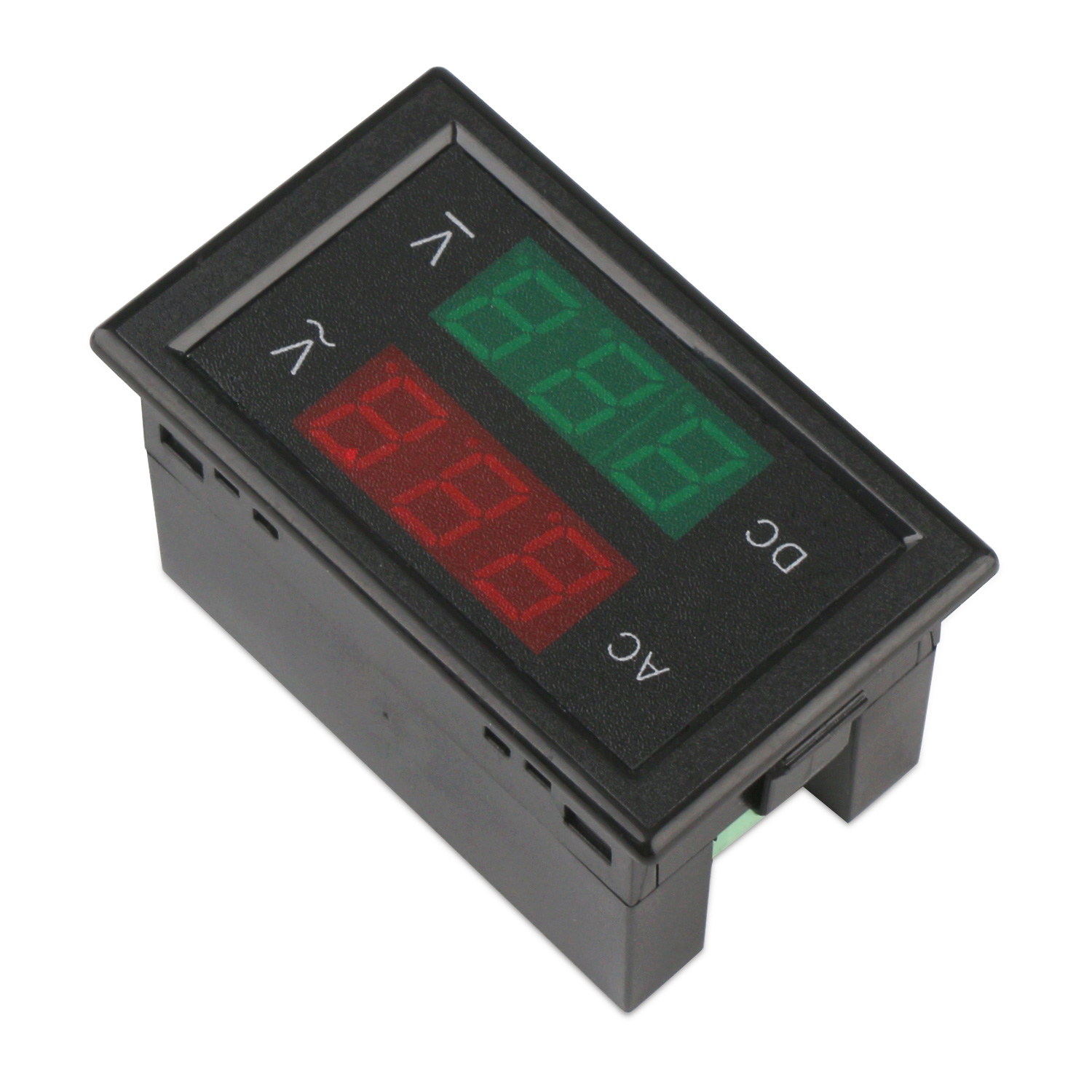

Display:

DC voltage show with green 0.39-inch LED
AC voltage show with red 0.39-inch LED
Power supply power: < 0.5VA
Measurement rate: about 2 times per second

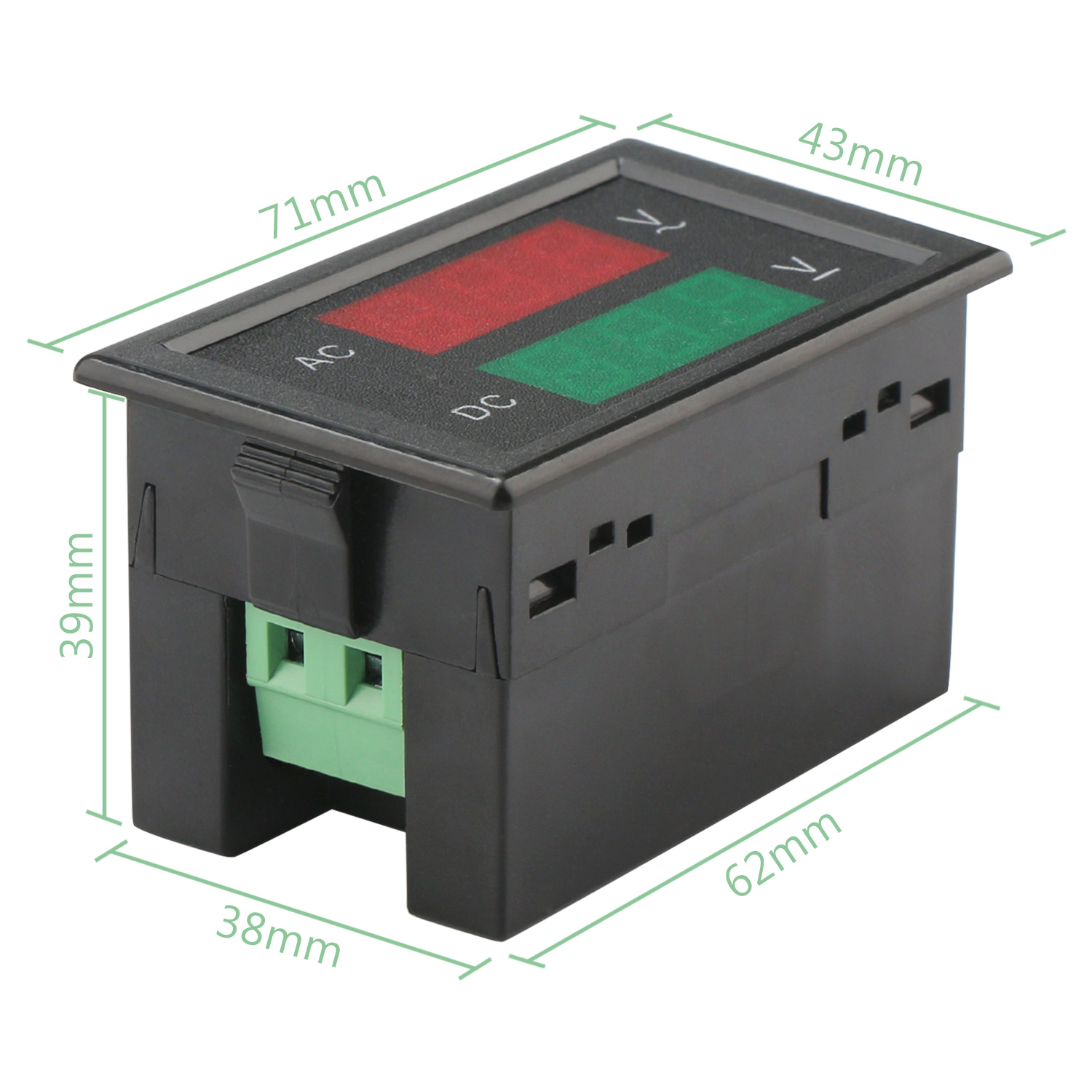

Size : 70*40*39mm
Installation size: 68*38mm

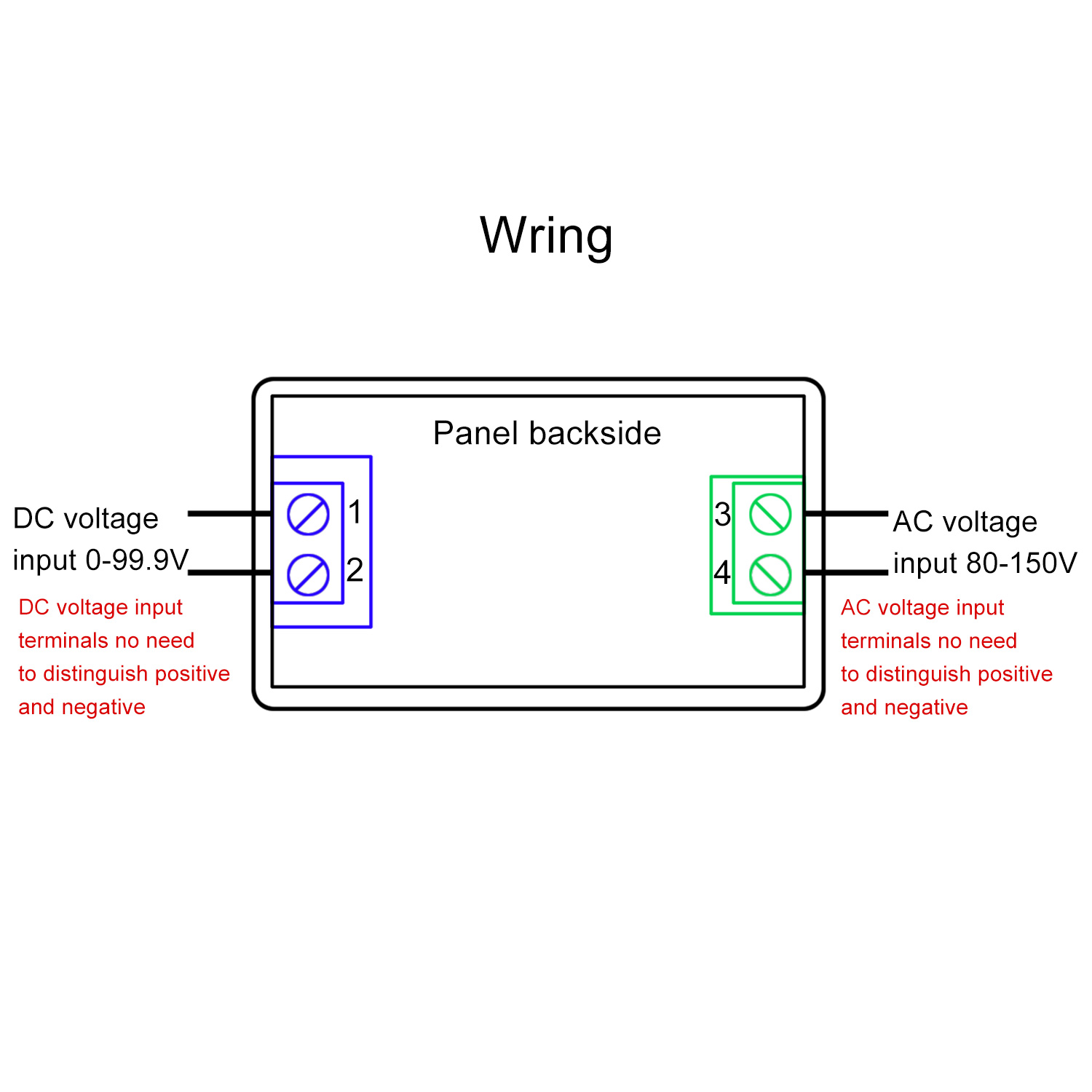

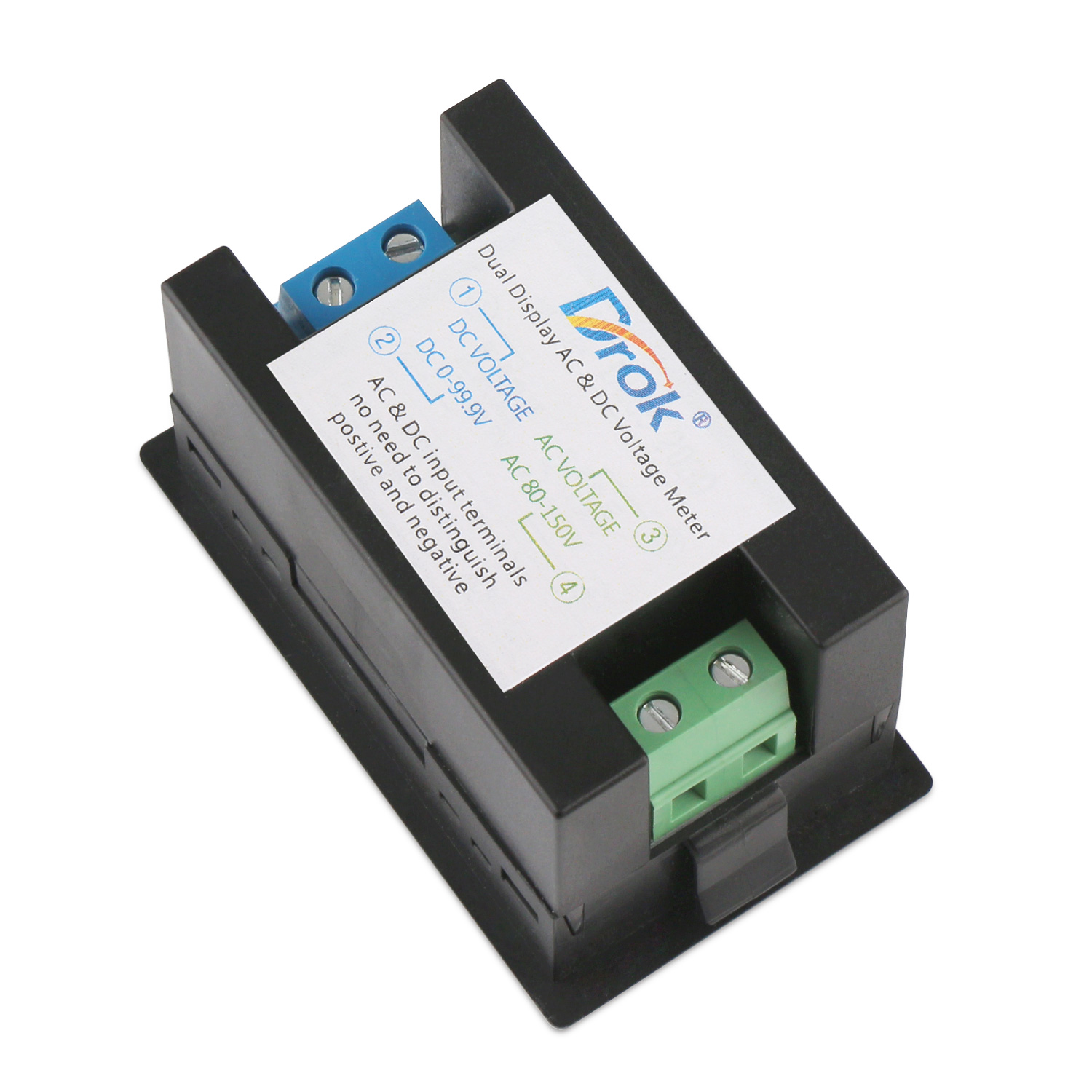

Wring:

Connect the measured DC voltage to the terminal of 1 and 2.
Connect the measured AC voltage to the terminal of 3 and 4
Note: The meter begins to display the measured value after the AC voltage input is connected, and the meter will not be displayed when there is only DC voltage input.


Package Including:

1x AC DC Voltage Meter
