Parameters:
- Input voltage: AC 85~264V, DC 110~370V
- Input current: 1A/115V AC, 0.5A/230VAC
- Frequency range: 47~63Hz
- Inrush current: Cold boot 15A/230VAC
- Efficiency (TYP.): 83
- Stand-by consumption: ≤500mW
- Output voltage: DC 9V
- Output voltage precision:±1%
- Rated current: 2.3A
- Rated power: 20W
- Ripple & Noise(rated input voltage,20MHz bandwidth): ≤50mV
- Linear adjustment rate(full-load): ±1%
- Load adjustment rate(10-100% load): ±3%
- Boot time (full-load): 300ms, 30ms/115VAC; 200ms30ms/230VAC
- Hold time (full-load):16ms/115VAC, 50ms/230VAC
- Working temperature: -30~70°c
- Working humidity (RH):20~90%, no condensation
- Temperature drift coefficient: ±0.02%/°c
- Storage temperature and humidity:-40~+85°c, 10~95%RH
- Switch frequency: 20~65 KHz
- Boot delay time (Vin: 230VAC):200ms
- Disconnect hold time (Vin: 230VAC): 20ms
- Protective functions (rated input voltage): over-load protection, short-circuit protection, over-current protection.
- Applied to Power adapter, industrial equipment, power microcontroller and LED lights
Characteristics:

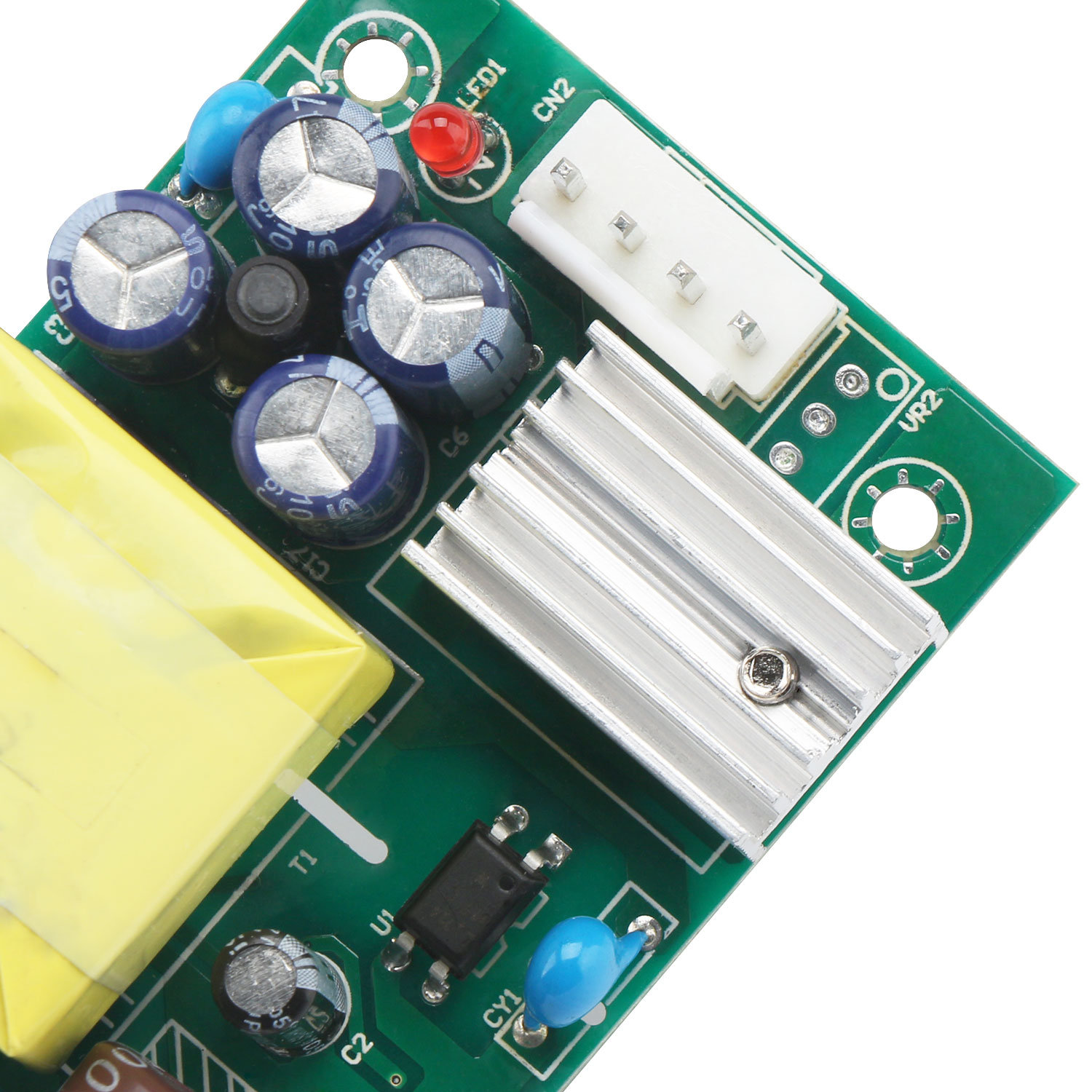

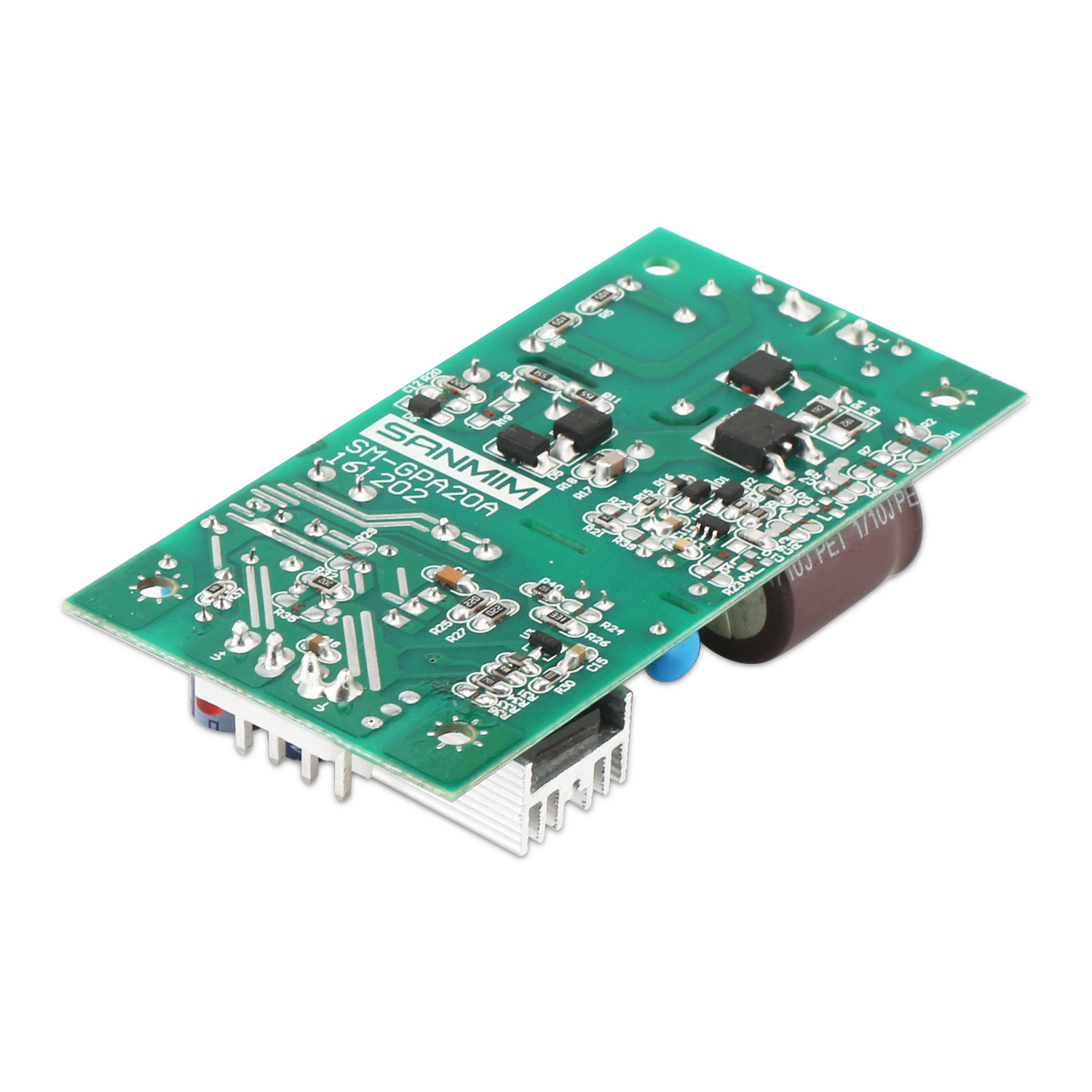

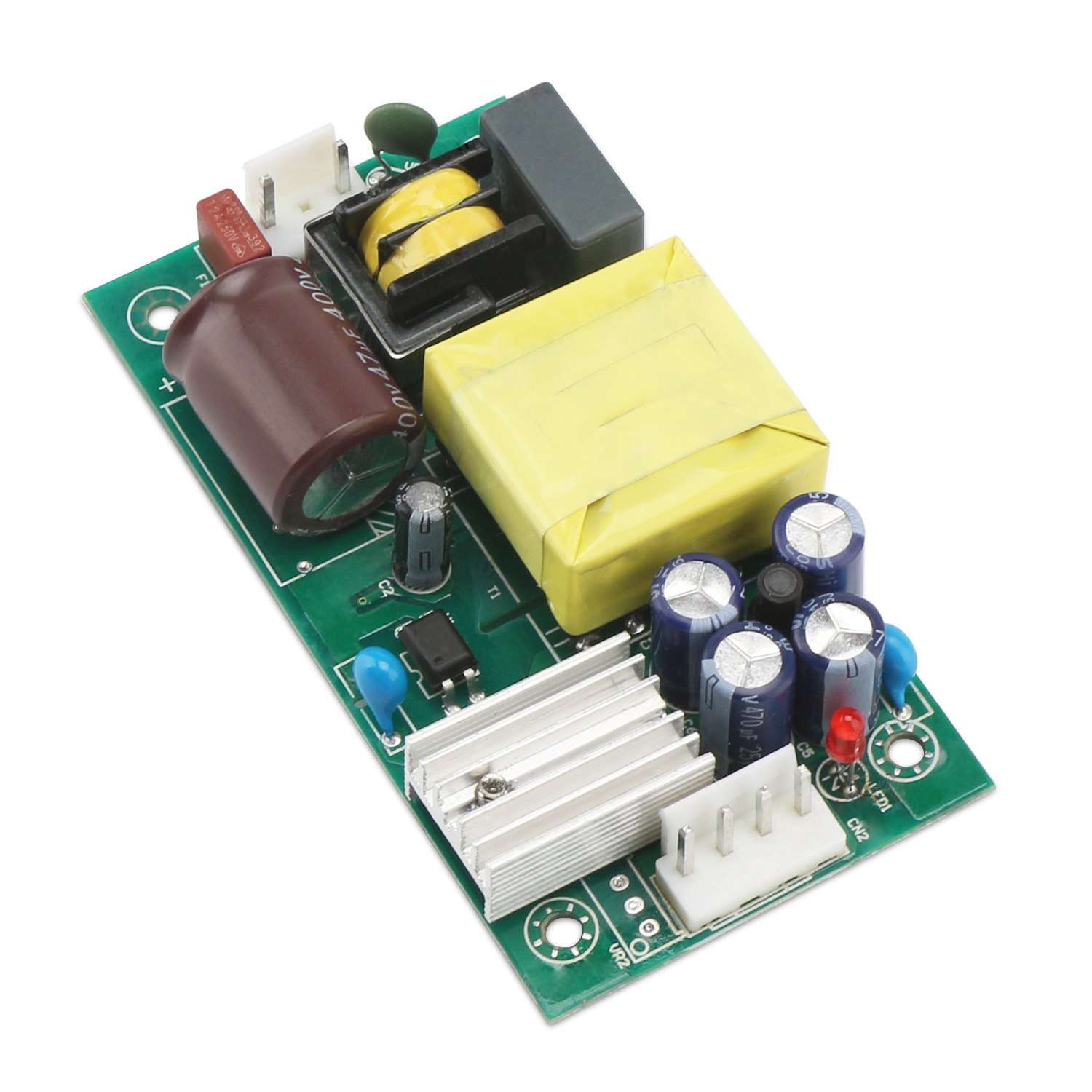

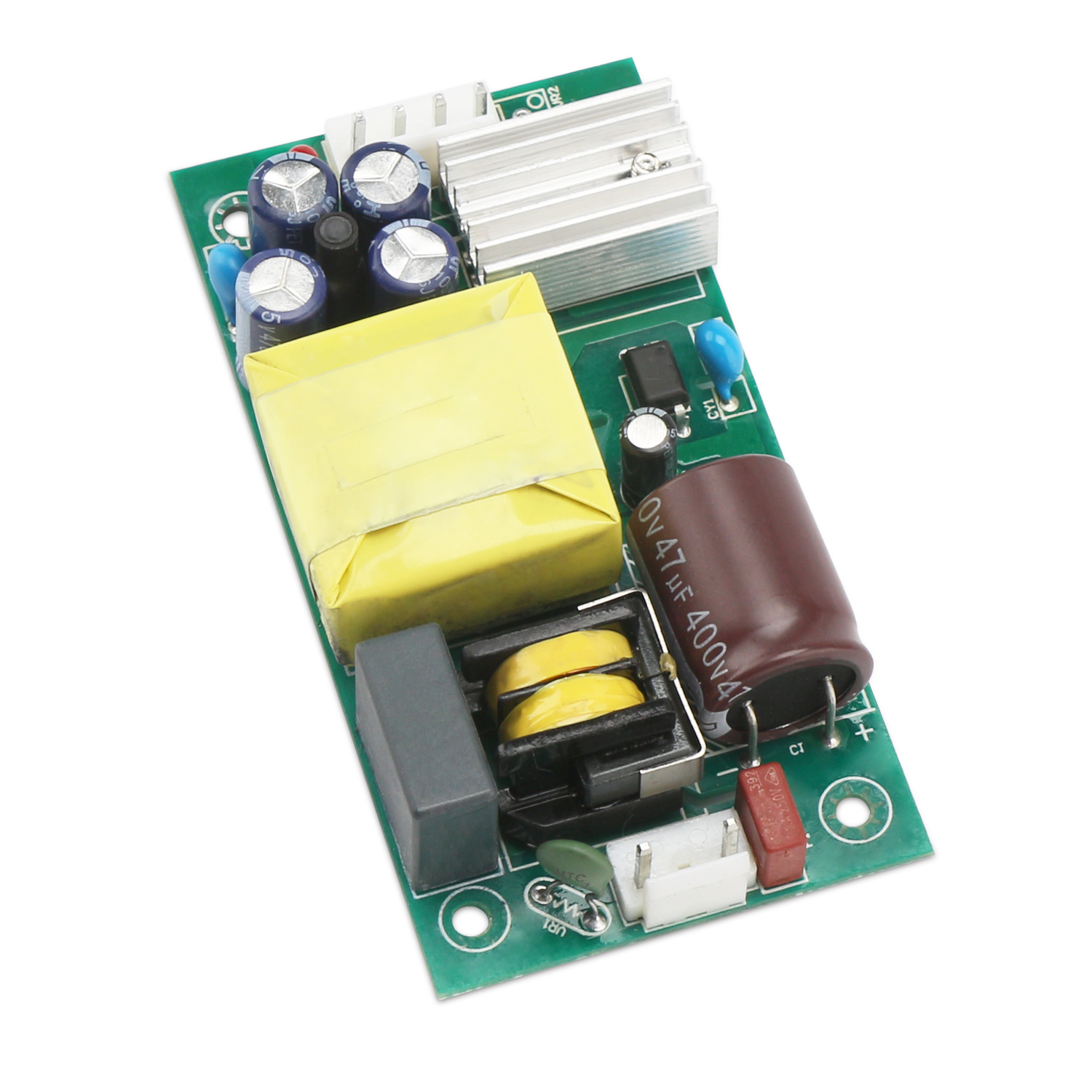

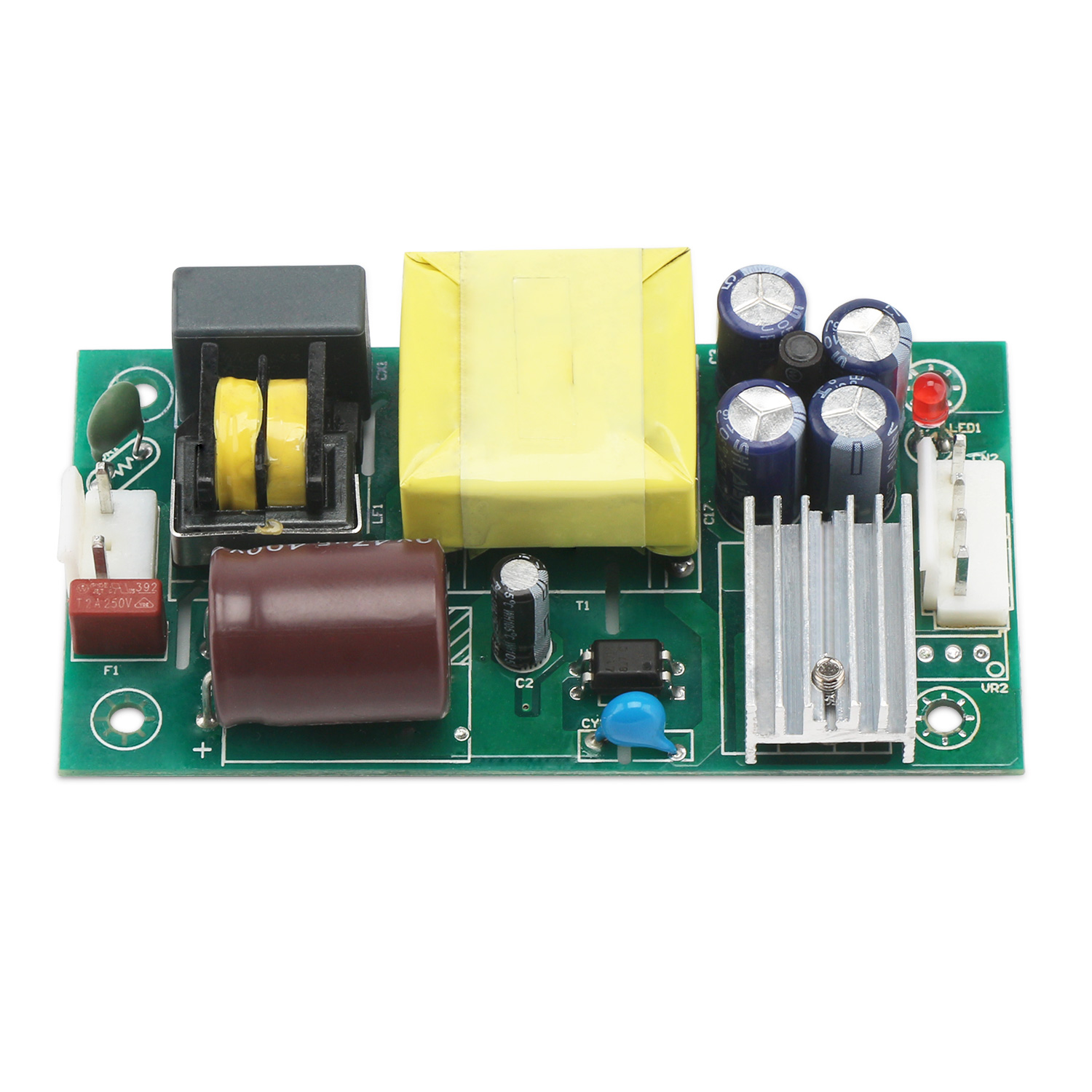

- Easy to install, pre-installed sockets are on the motherboard, connect the socket to use.
- There are fixed installing holes on the four corners, to prevent movement or vibration from disconnecting, the diameter of the fixed hold is 3.2mm.
- Globally input voltage: 85~264VAC or 110~370VDC.
- High efficiency, high power density, low output Ripple & Noise.
- Isolate input and output
- Short-circuit protection, over-current protection, temperature protection.
- Built-in LCπ type filter, no extend filter circuit.
- Can add high precision adjustable(3296)
- CE certification.
- A two-year warranty
Package includes:
1 x AC/DC AdapterAttributes | |
input voltage | 85~264V |
output voltage | 9V |
