Parameter:
Input voltage range: DC 4.0V-32.0V
Output voltage range: DC 1.25V-30.0V adjustable (output voltage should be at least 2V less than input voltage)
Max output current: 3A
Continuous operating current: 1.5A (total output power within 20W)
Voltage Measurement Accuracy: ± (1% + 2 digits)
Current Measurement Accuracy: ± 2 digits

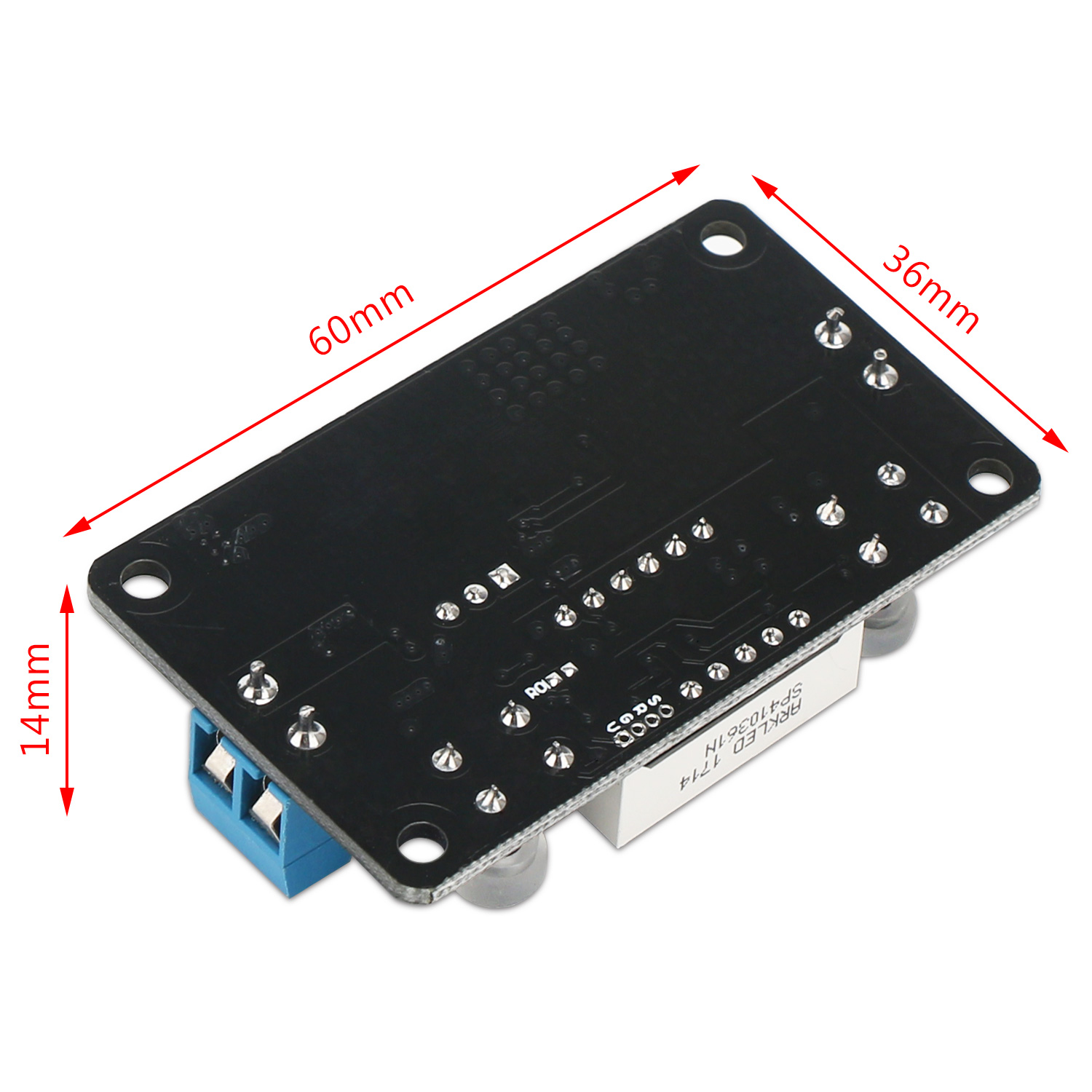

Product Dimension: 6.0*3.4*1.3cm/2.3*1.3*0.5 inch

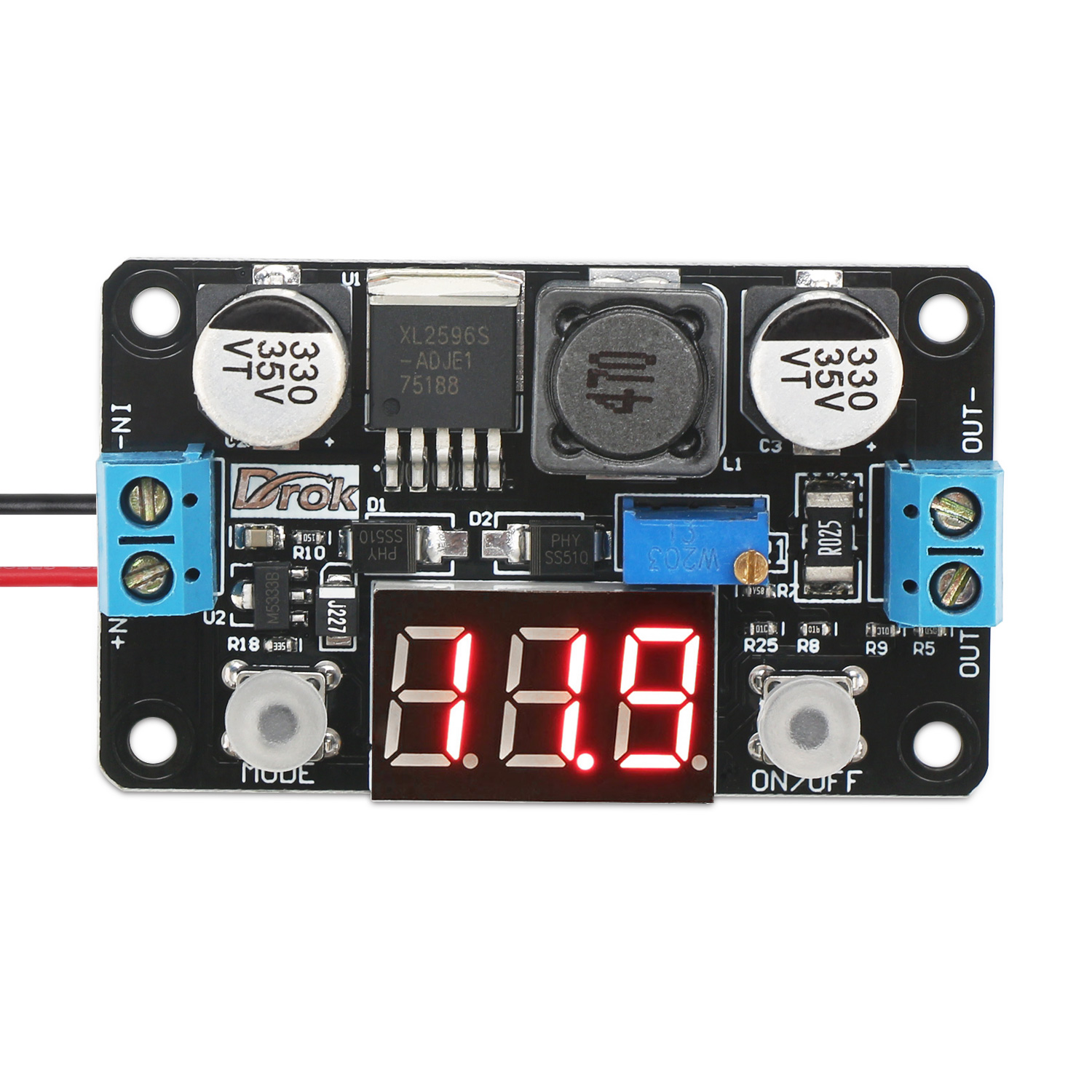

Display: LED screen

Display value:
Input voltage;
Output voltage;
Output current

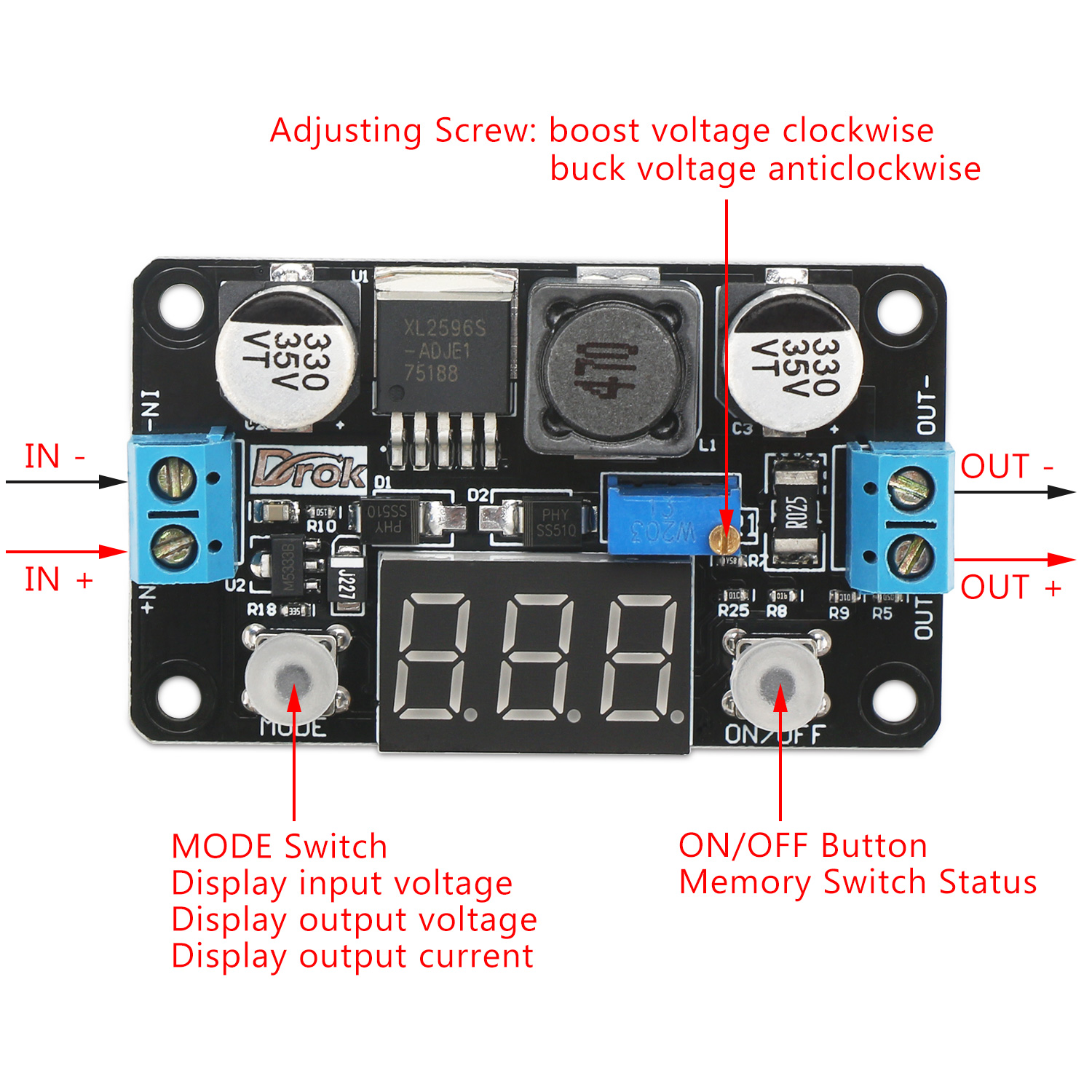

Button:
MODE button: switch displaying value
- Press it to circularly display output voltage, output current, input voltage, and it will automatically memorize the default display mode.
ON/OFF button: turn on/off output voltage
- Press it to alternately turn on/off the output, and it will automatically memorize the default switch status.
- When the output is off, the display will display OFF.

Output voltage adjustment:
Increase/decrease the output voltage by adjusting the screw on top of the potentiometer clockwise/counterclockwise.

Protection:
Input reverse connection protection;
Short circuit protection

Wiring:
IN+：Input Positive
IN-：Input Negative
OUT +：Output Positive
OUT-：Output Negative

Package Included:
1x Step Down Module
