DROK DC 6-60V Battery Charge Discharge Protecter

Features:

• 【Wide Application】This Battery Protecter has variable application. It can be used as a 5V 12V 24V 30V 36V 48V power supply for RV, Car, Lab, CCTV, etc.

• 【Easy To Use】Easy to connect to devices, with simple mode switching and clear indicator lights. It is safe and convenient to keep batteries fully charged without having to constantly monitor the charging process by setting charging time. Please follow the instructions of the manual.

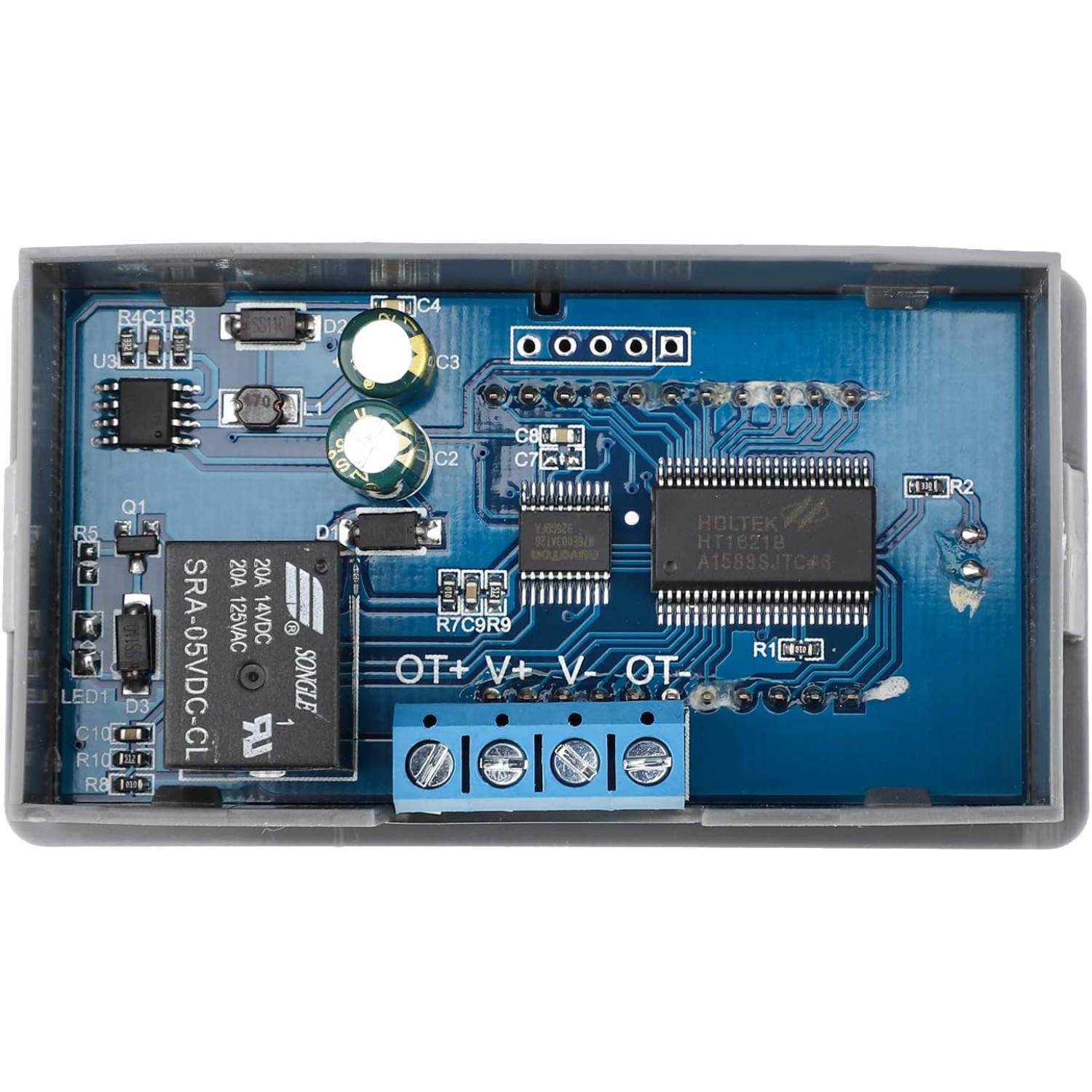

• 【Automatic Charging】It can help devices automatically recharged while being used based on their voltage changes ( 6-60V ). Please note: This product is a voltage controller, which can turn on/off output by relay. It can not be used as voltage converter!

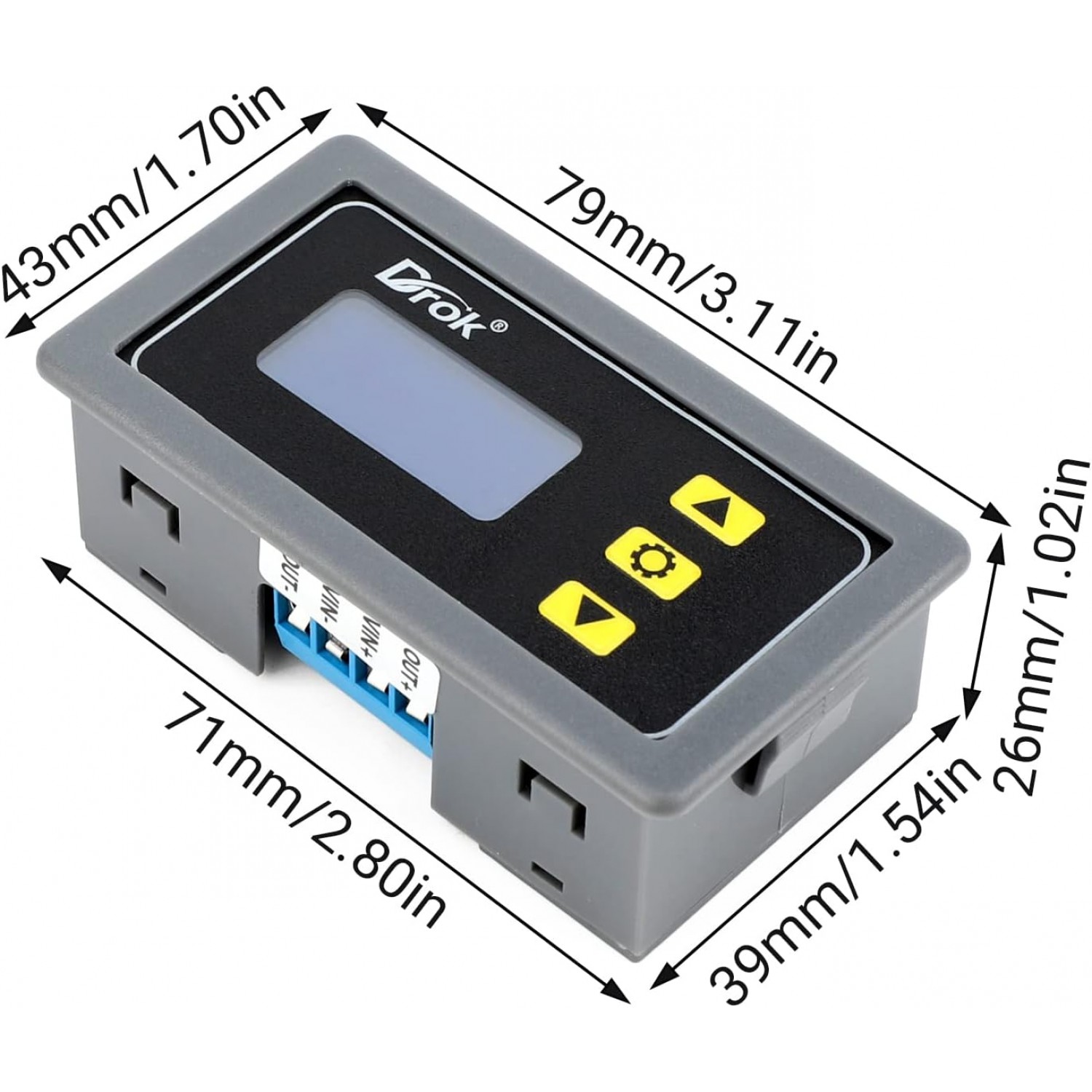

• 【Compact Size】The Battery Protecter size is 79x43x26 mm/3.11x1.7x1.02 inch (length width height), which is small and portable. This device can fit well in tight spaces and is versatile for various uses.

• 【Protection】 Over Load Protection, Over Voltage Protection, which can protect your device from damage and extend battery life

Parameters:
Input voltage: DC 6-60V
Output voltage: DC 6-60V
Product Dimension: 79*43*26mm (length*width*height)

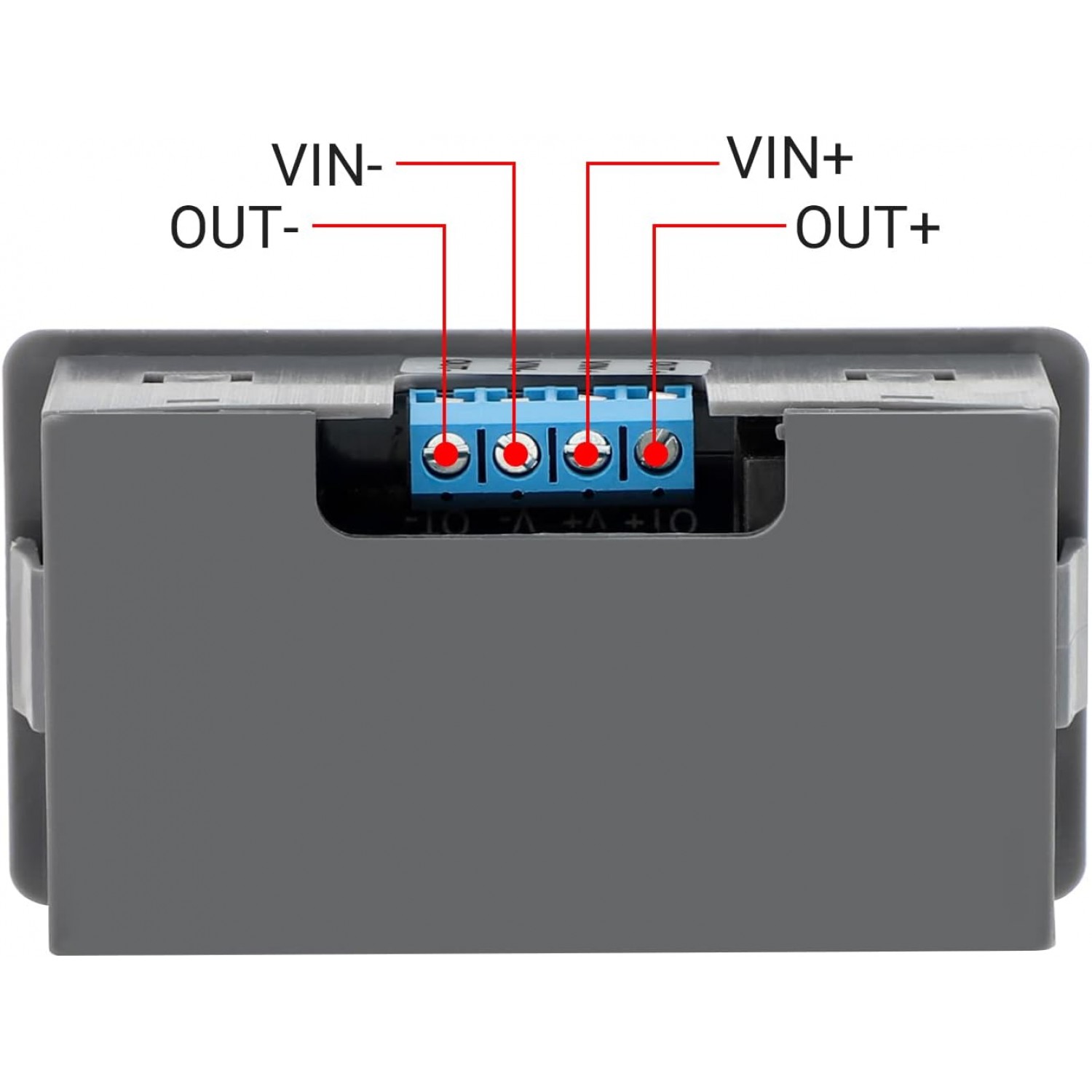

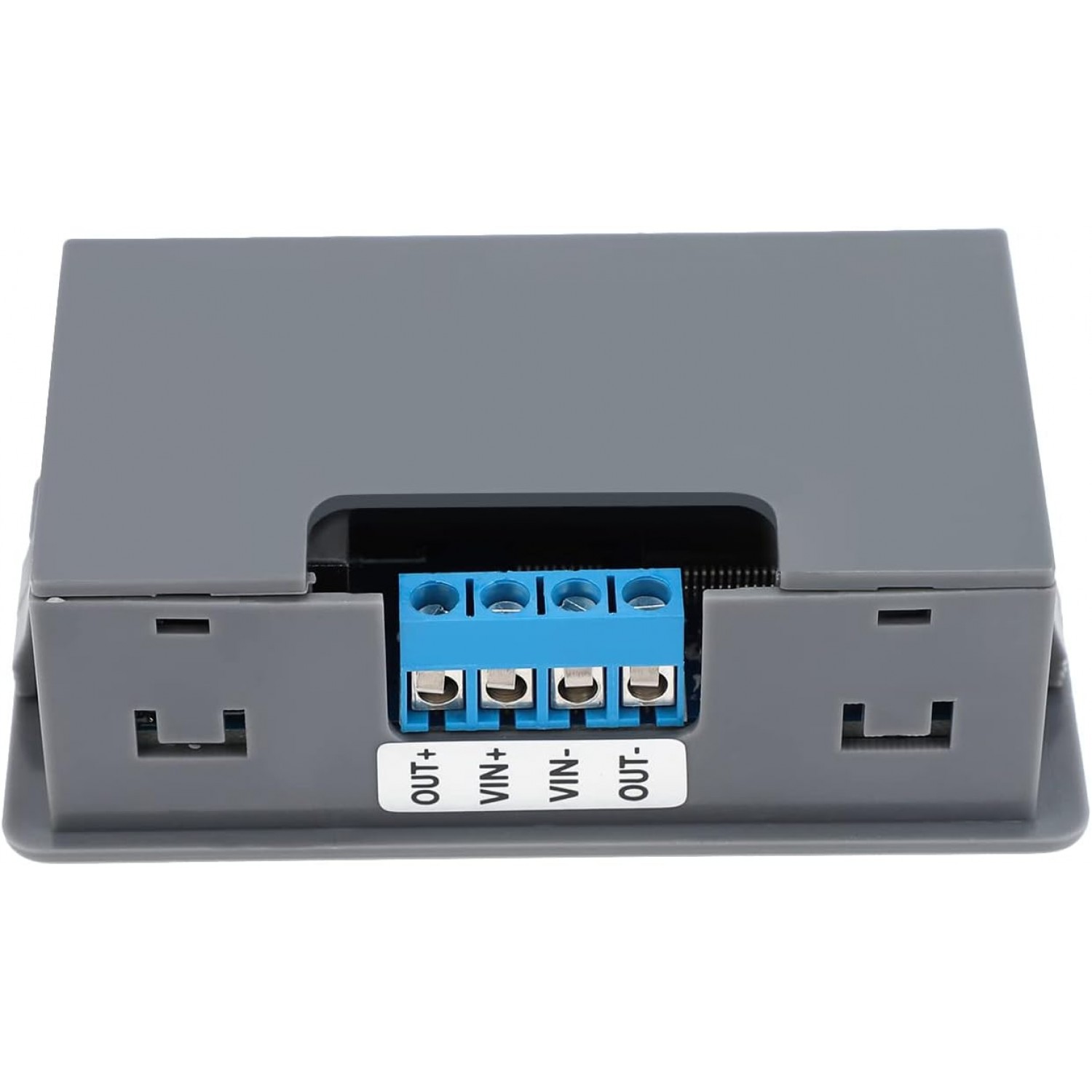

Wiring:
V+: DC output +
V-: DC output -

Instructions for use:
Applicable Battery: DC 6-60v any types of batteries, lithium battery, lead-acid battery, lithium iron phosphate battery,Ni MH battery, etc.

Note:

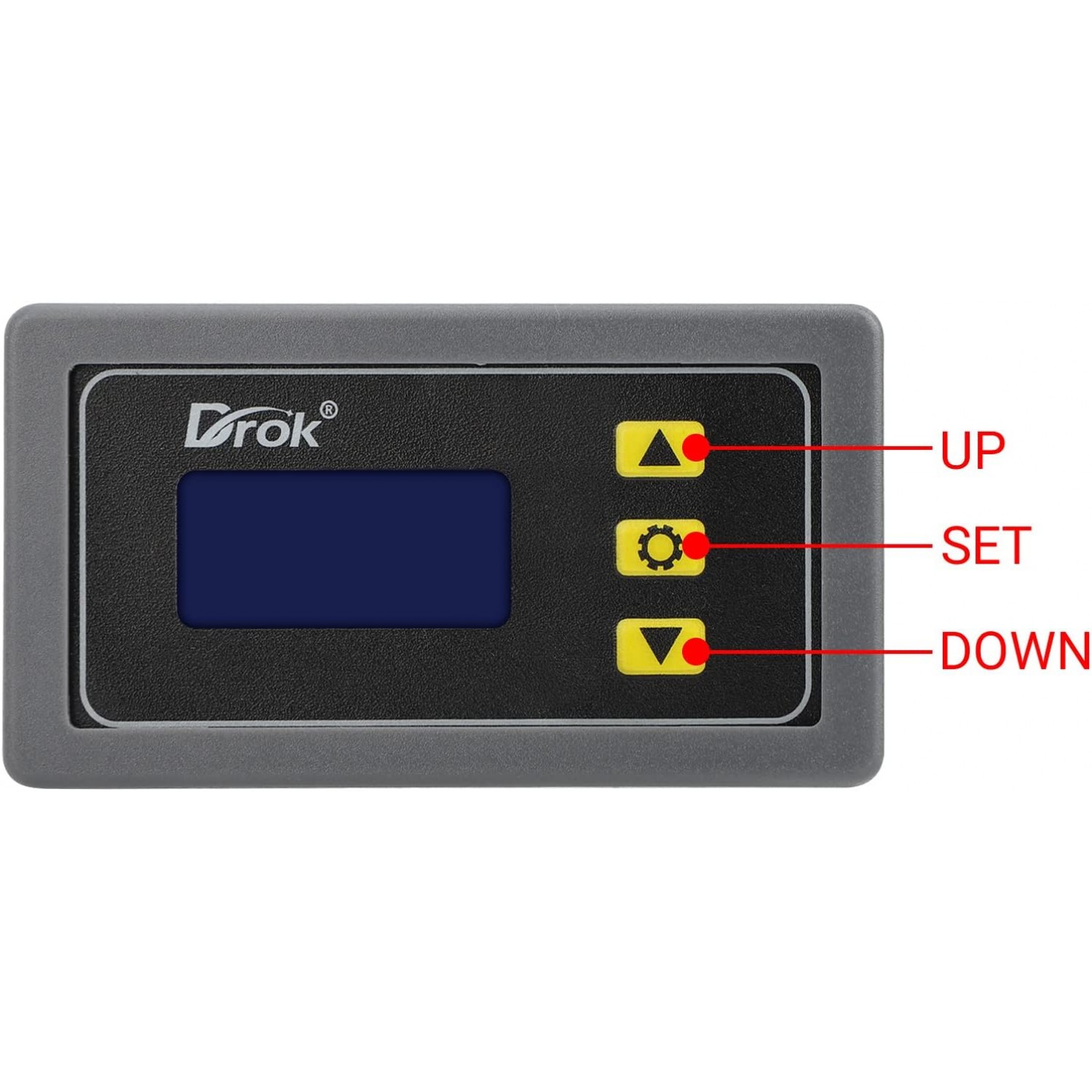

Up Key: press to switch voltage % and time. Press for 5 secondsto switch modes, charging mode:lN; discharging mode: Out.

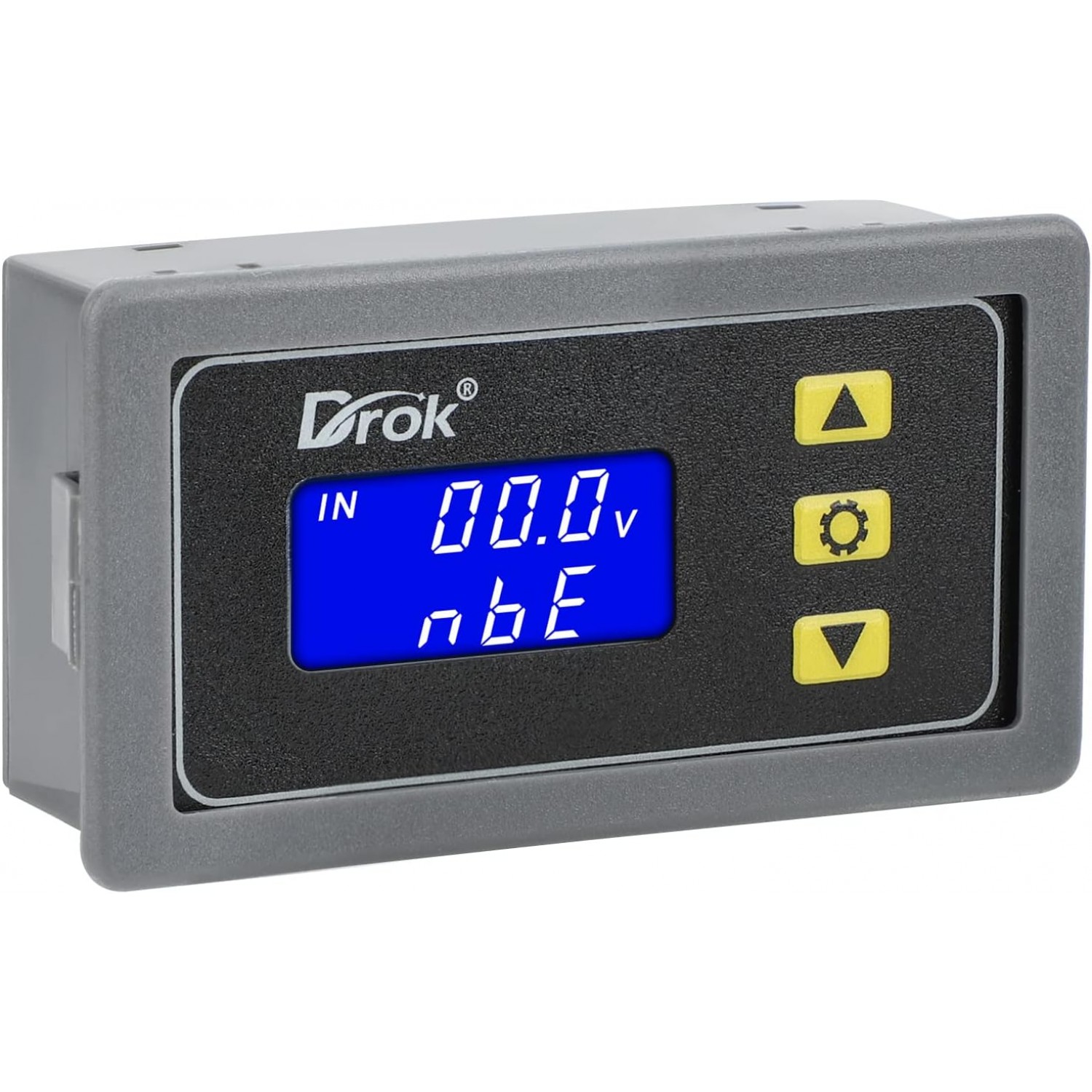

Charging Mode lN: set the upper limit voltage UP and lower limitvoltage DN.
When battery voltage ≤lower limit voltage, relay on,the battery starts charging.
When battery voltage ≥ upper limitvoltage UP, relay off, finish charging.
When relay on and lN flashing,it means the battery is charging.

Package includes:
1 x DC Battery Charge Discharge Protecter
