-50% Digital Electrical Ammeter Gauge DC 0-500A Current Panel Meter LCD Monitor DC 8 ~ 12V Powered

Ask Question

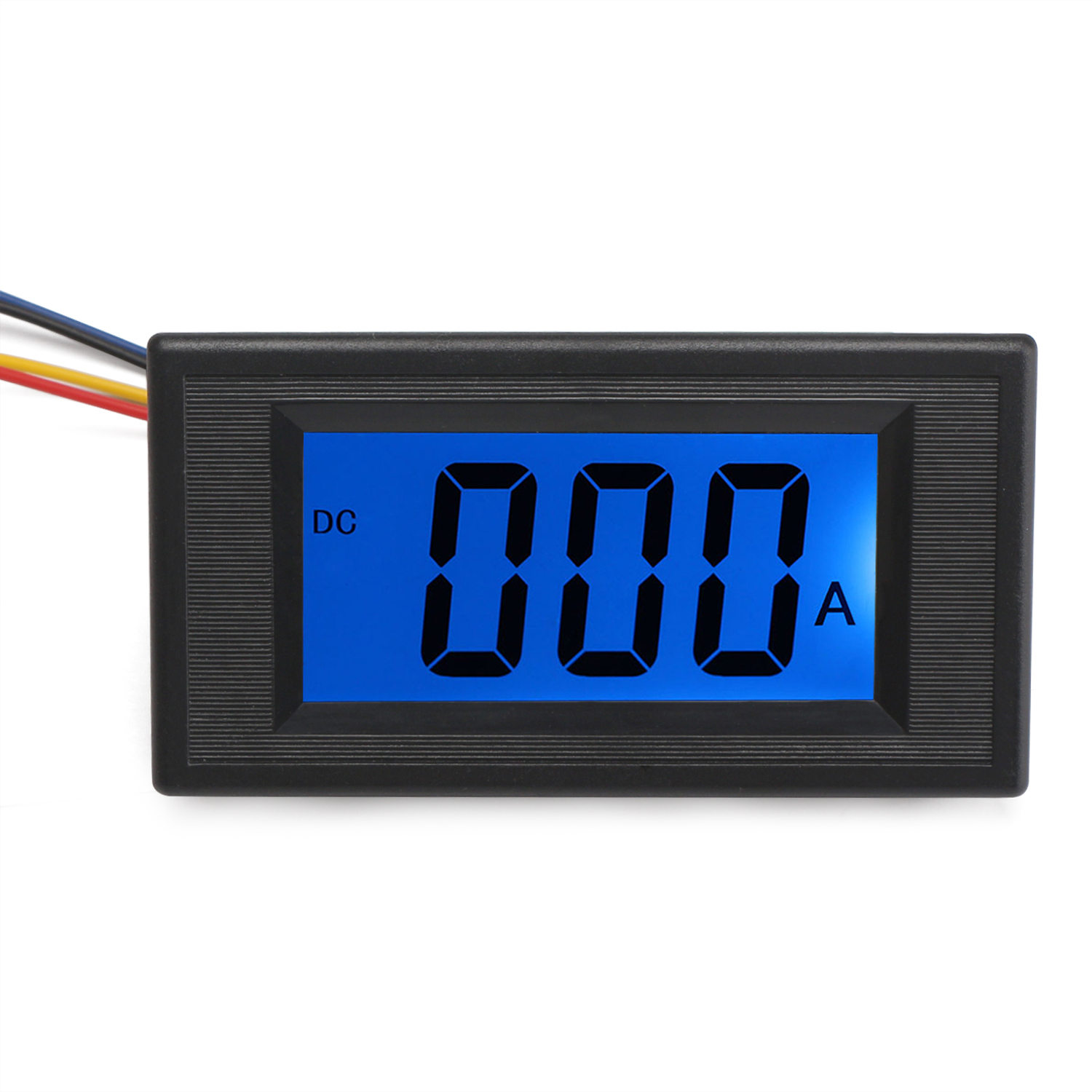

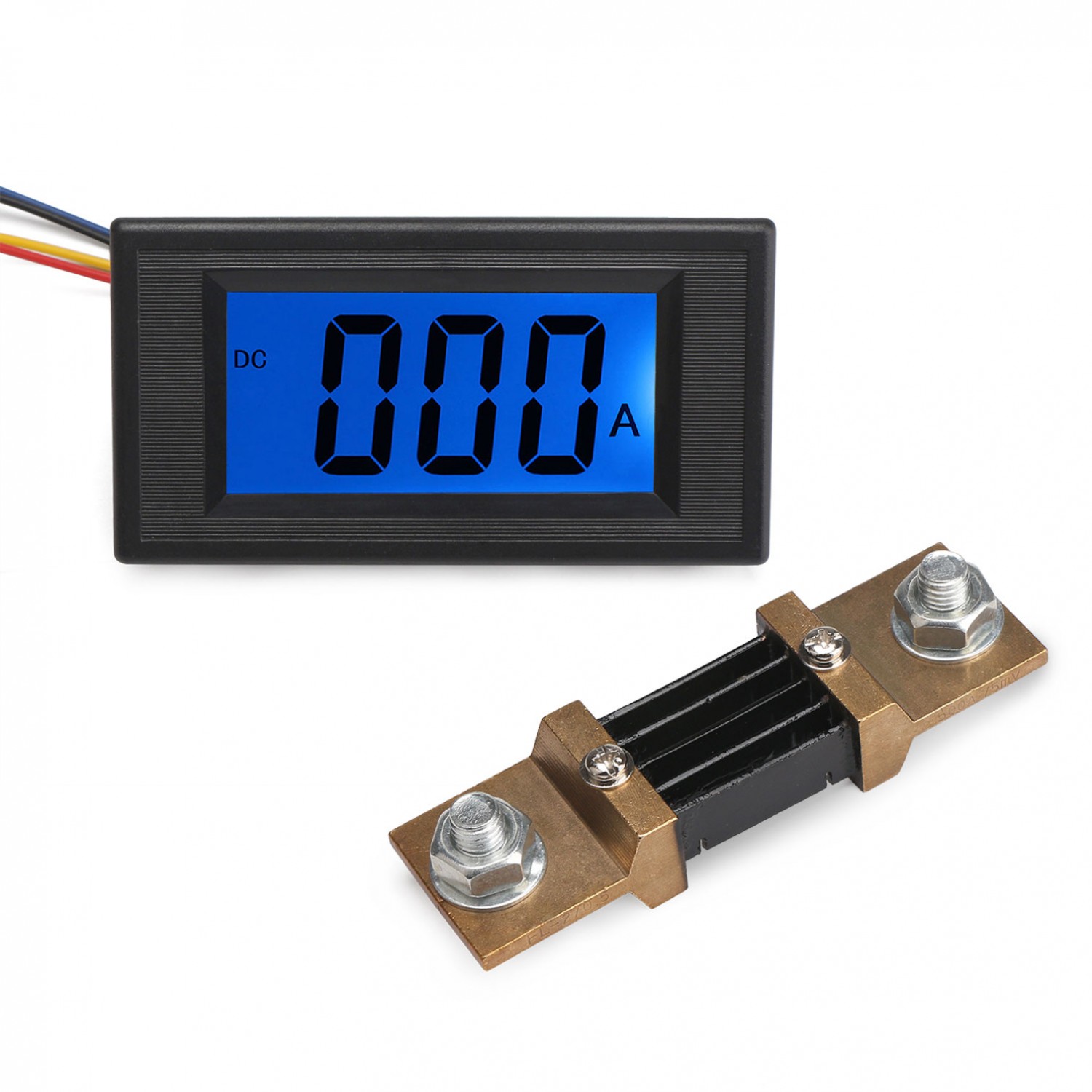

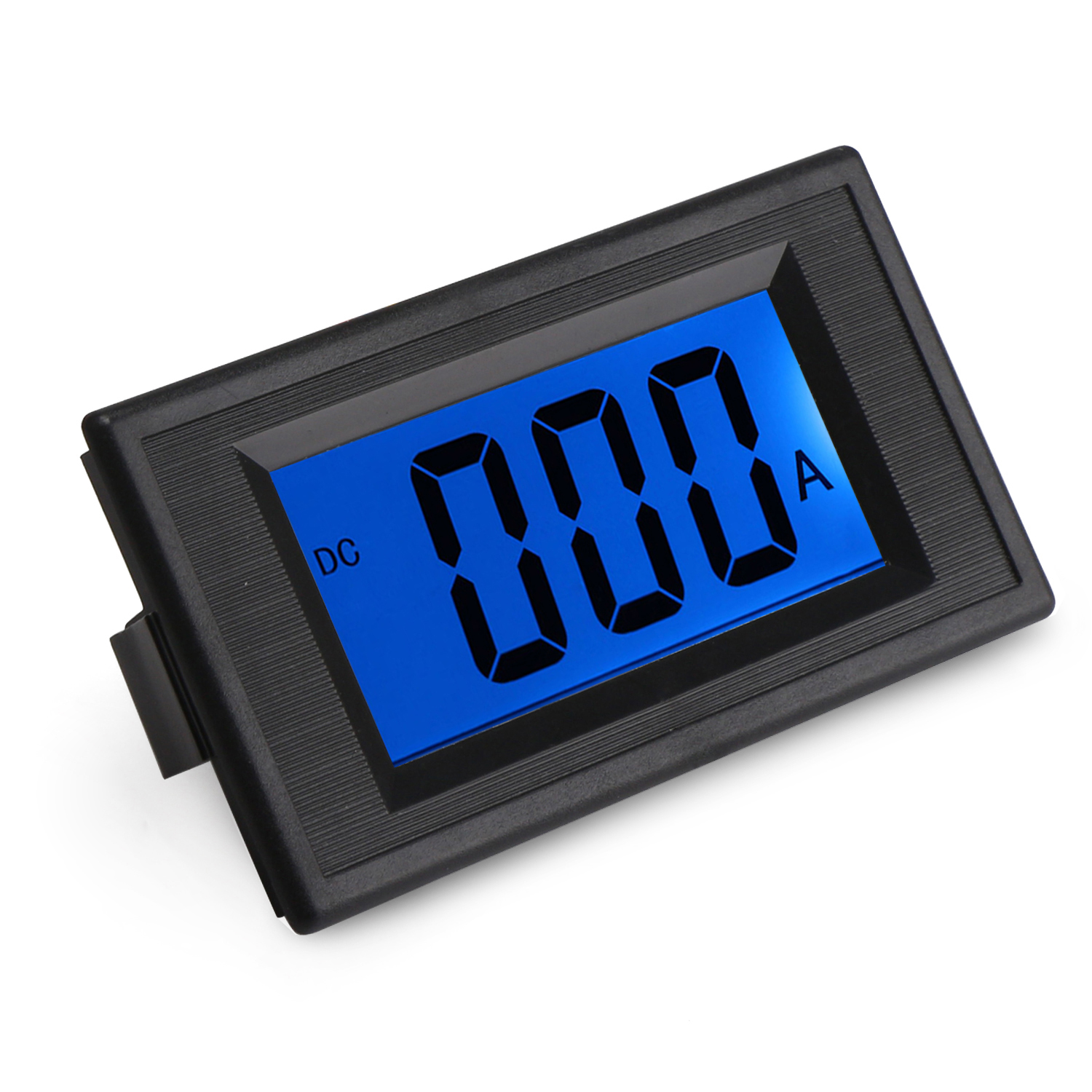

It is a DC 0~500A Digital Ammeter,DC 8 ~ 12V Powered,with blue backlight LCD.


Technical parameters:

  • Operating voltage: DC 8 ~ 12V
  • Measuring rang: DC 0~500A
  • Operating current: <15mA
  • Display: LCD, blue backlight, character height 20mm

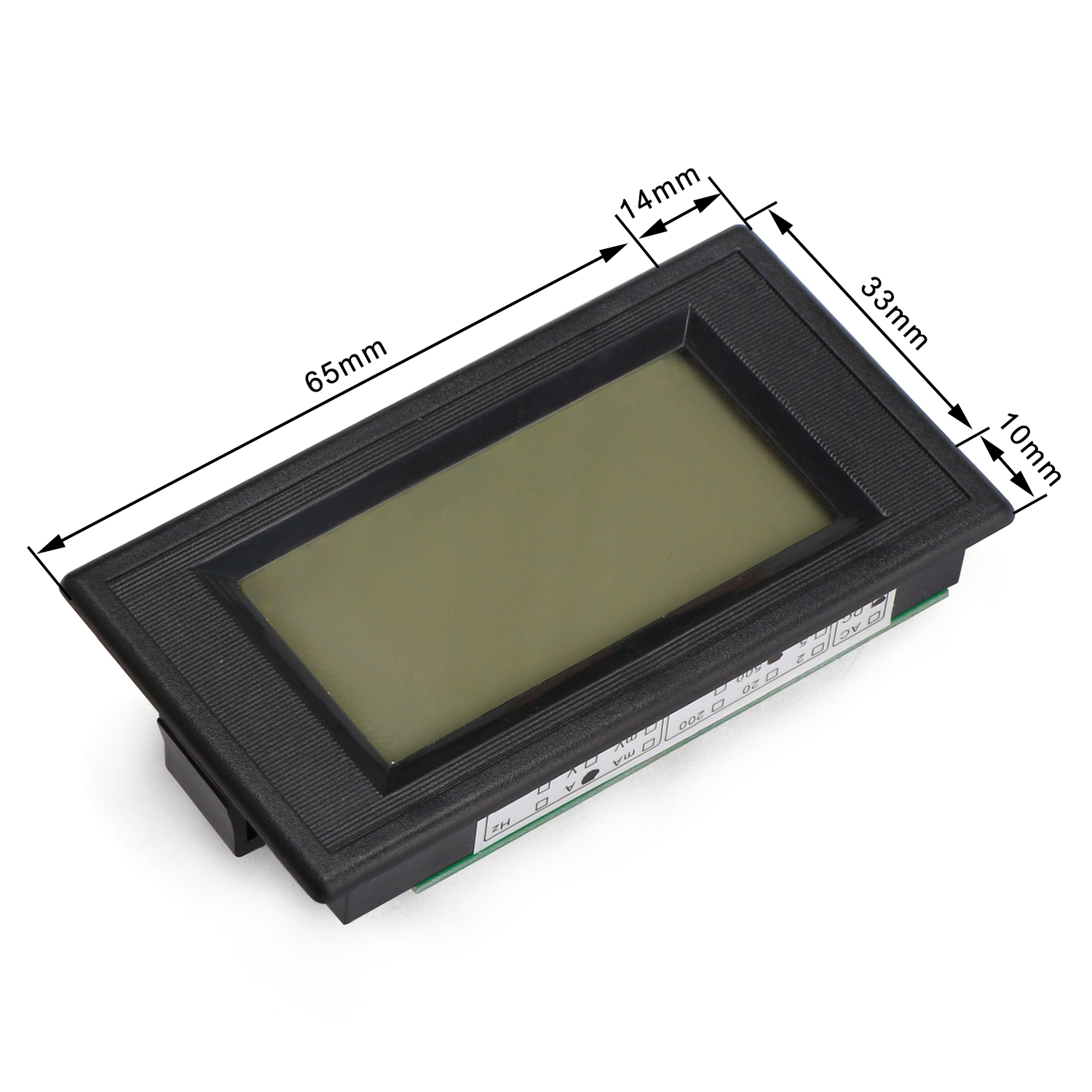

  • Dimensions: 79 × 43 × 25 mm
  • Installation hole: 76 × 39 mm
  • Weight: about 60g
  • Measuring rate: ≥2 times / S
  • Over-range display: the first shows "1" or "-1"

Extreme working conditions:
  • Working temperature: -10 ~ + 50 ℃
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 ~ 106 kPa
  • Sun exposure: no direct exposure

Package include:

  • 1x LCD Digital Ammeter


Attributes
input voltage8~12V
output current0~500A
output power--
output voltage--
output ways1

Write a review

Please login or register to review

Digital Electrical Ammeter Gauge DC 0-500A Current Panel Meter LCD Monitor DC 8 ~ 12V Powered

  • Brand: Drok
  • Product Code: 300118
  • Availability: In Stock
  • $19.09
  • $9.50
  • Bulk Buy Discounts. Buy more please contact us
    Qty5102030+
    Price$5.87$5.56$5.25$4.94
