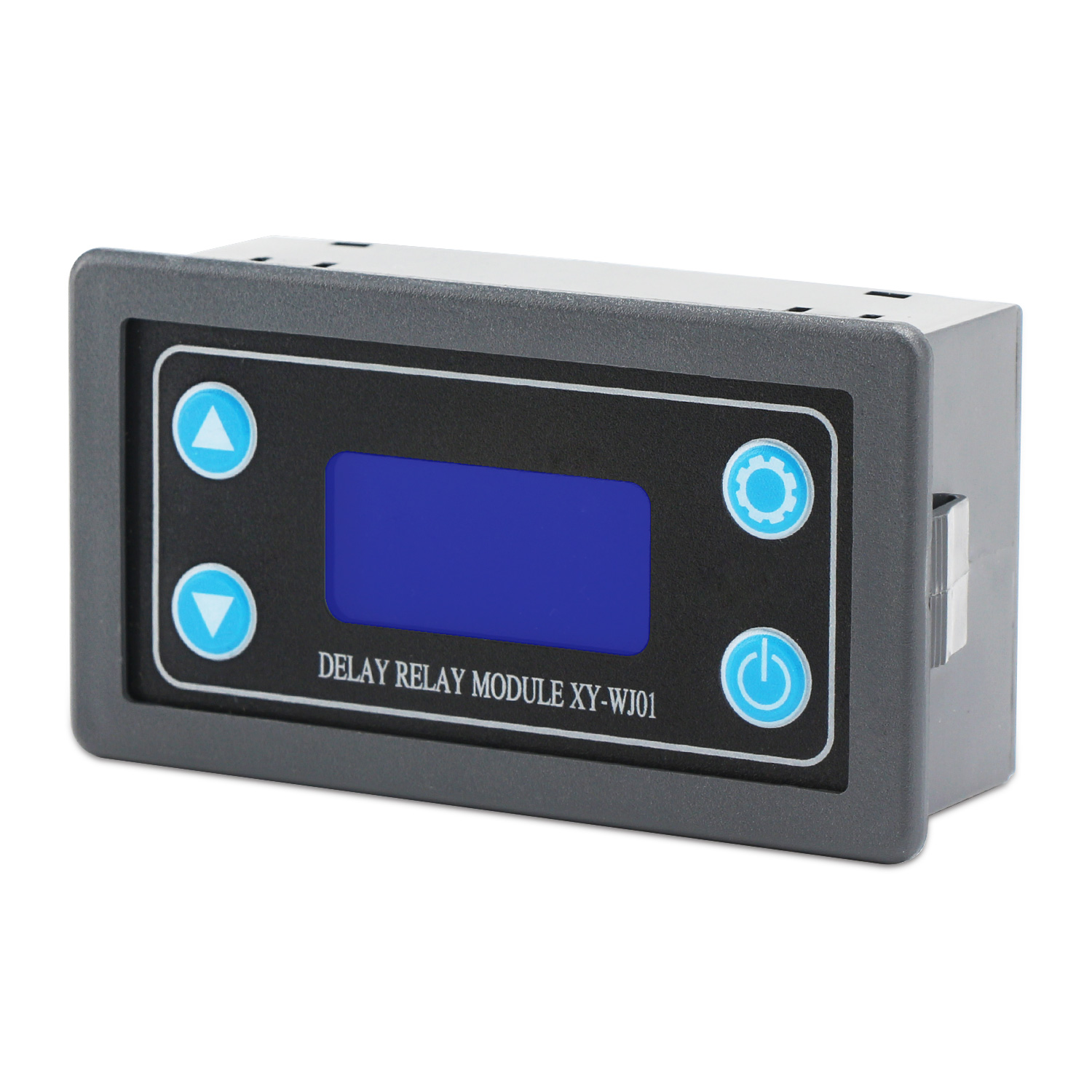

Parameter:

1. Working voltage: DC 6-30V

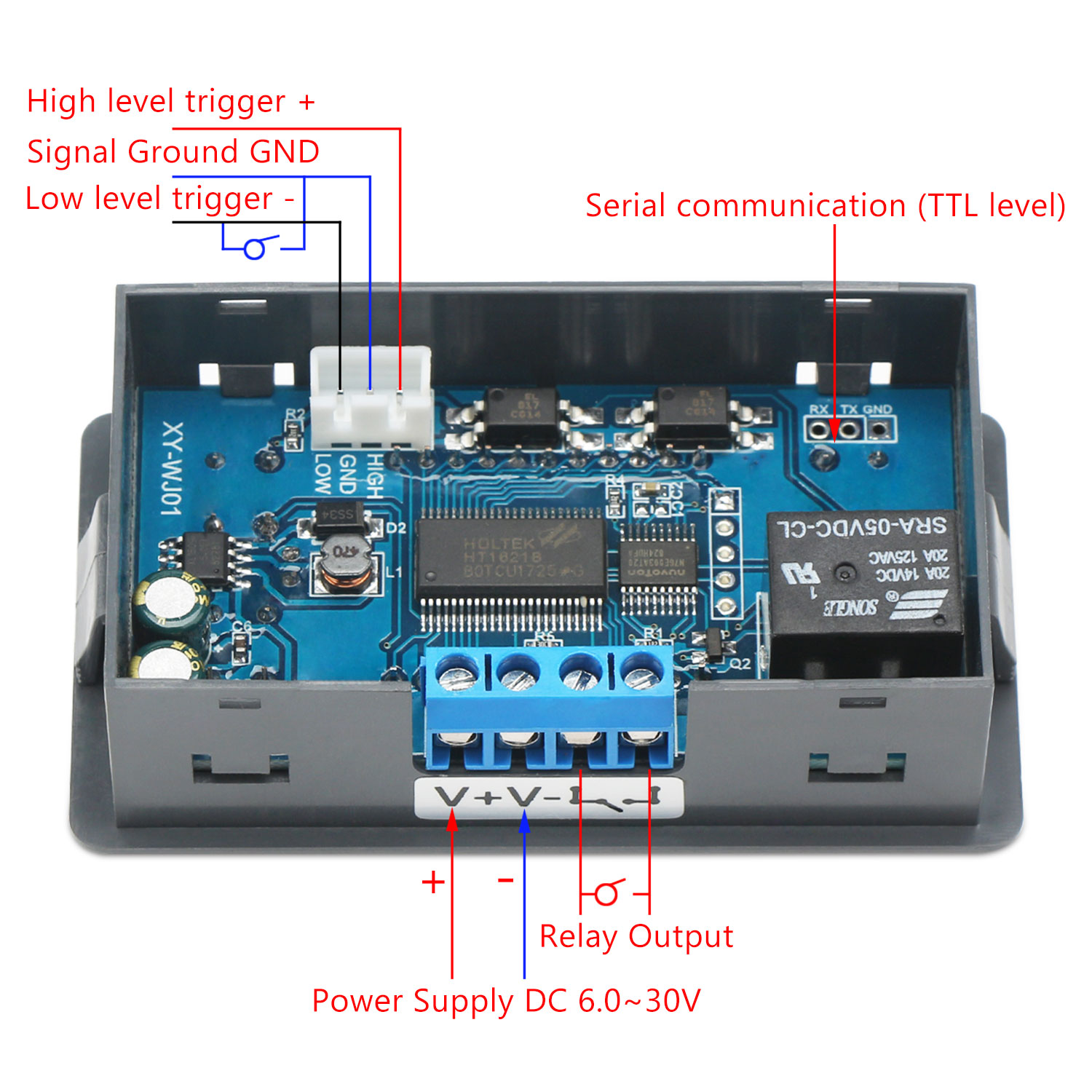

2. Trigger signal source: high level trigger (3.0~24v), low level trigger (0.0~0.2V), switching value control (passive switch).

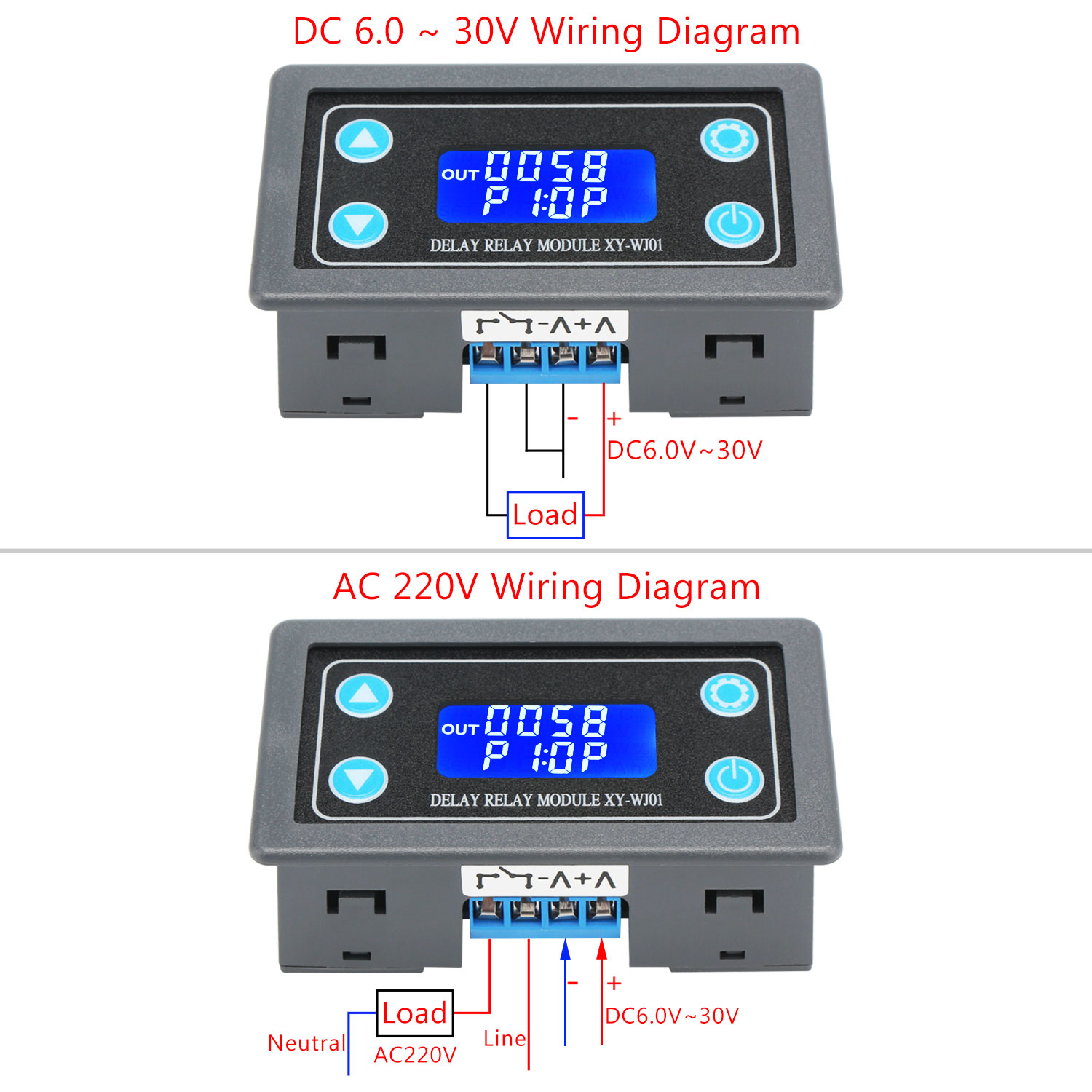

3. Output capacity: can control devices within DC 30V 10A or within AC 220V 5A.

4. Timing range: 0.01s~9999mins

5. Working current: 50mA

6. Quiescent current: 15mA

7. Service life: more than 100,000 times

8. Working temperature: -40~85℃

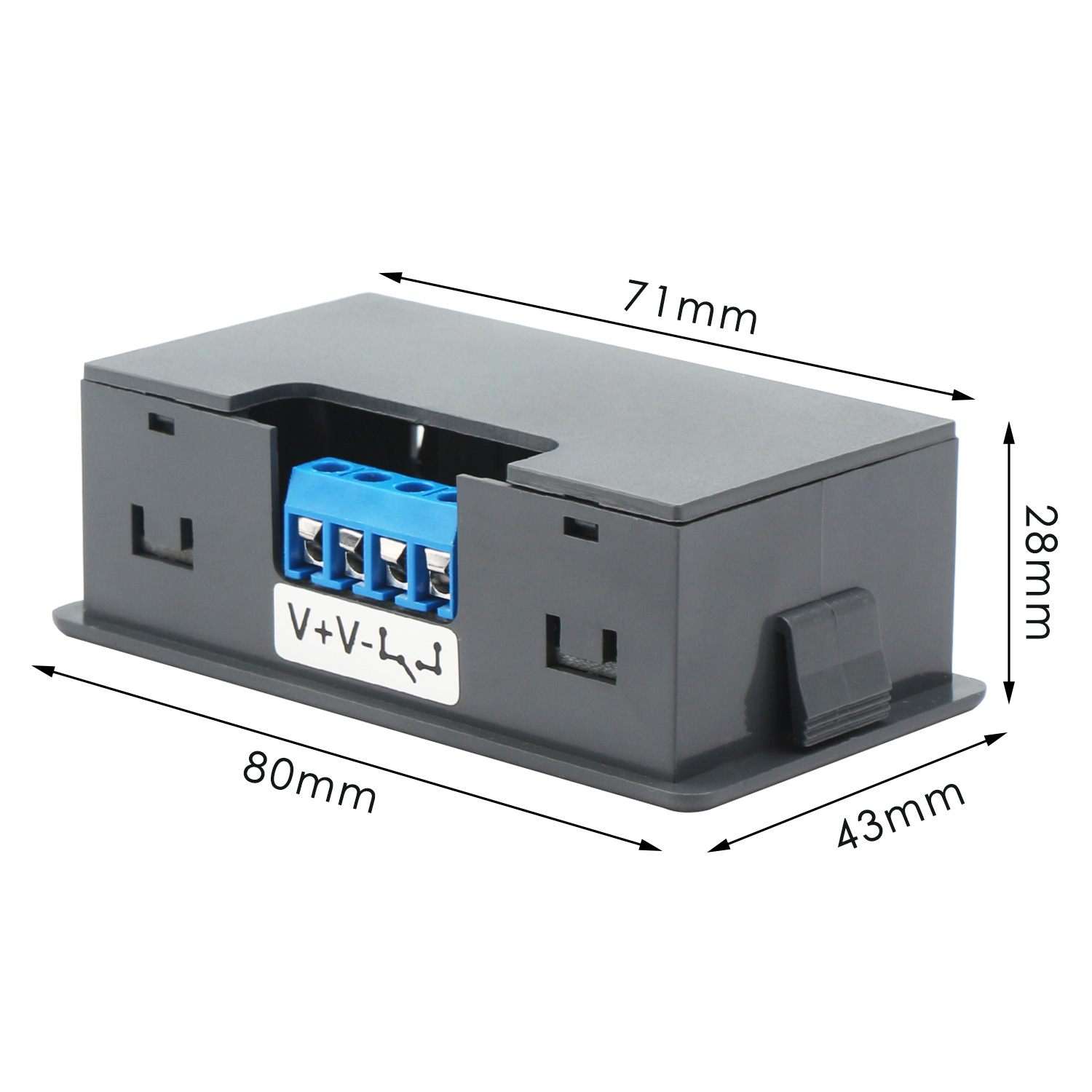

9. Dimension: 7.1*3.9*2.5cm

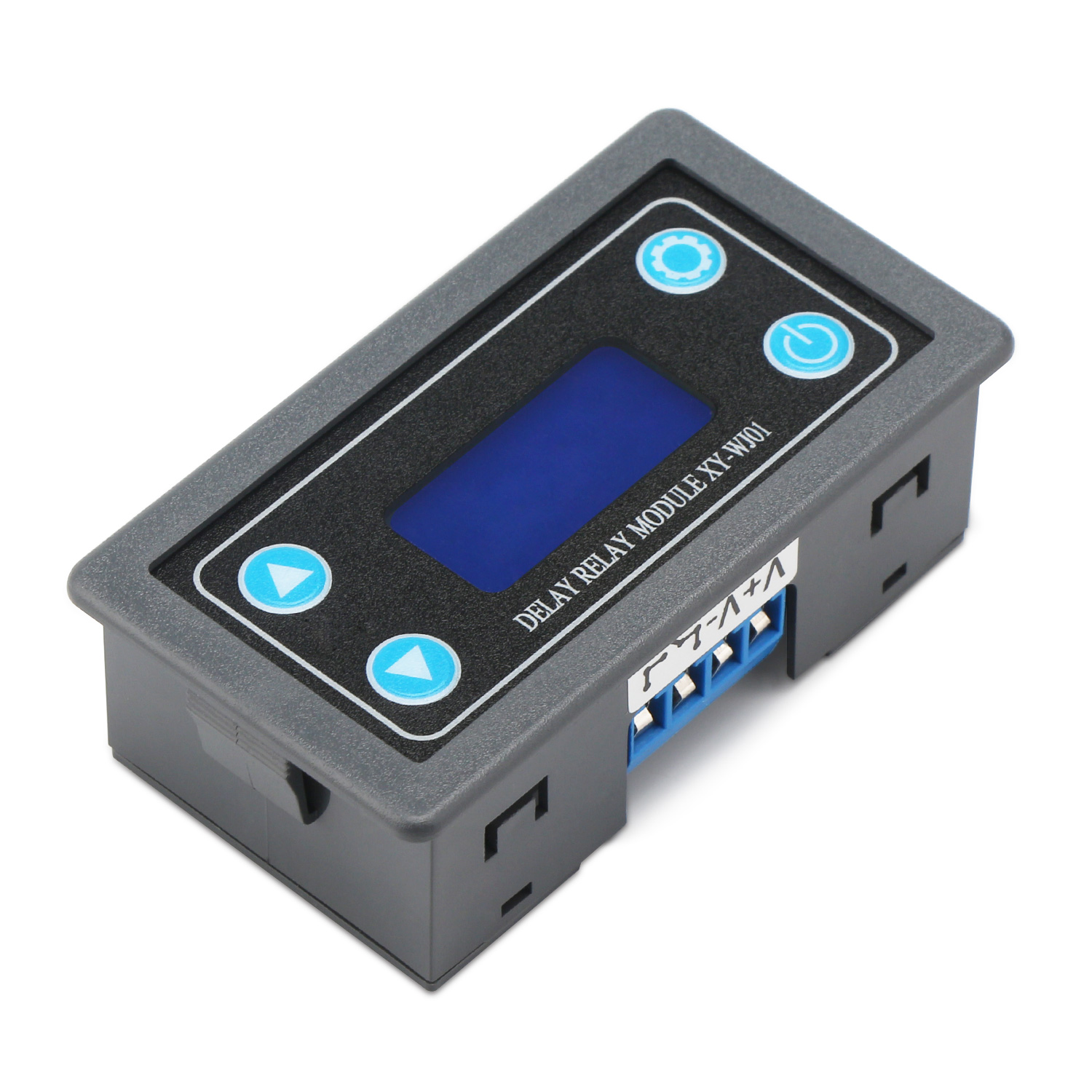

Features:

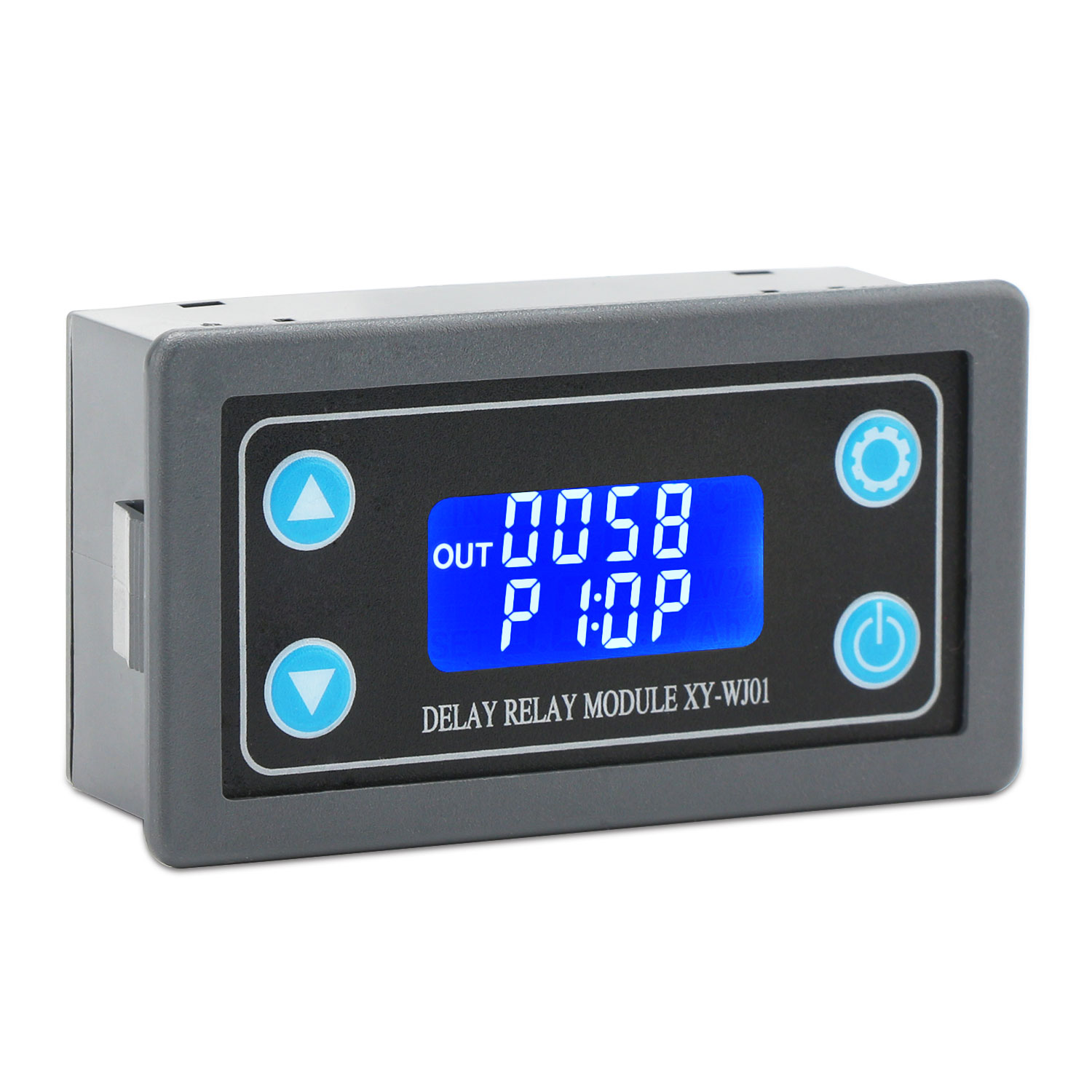

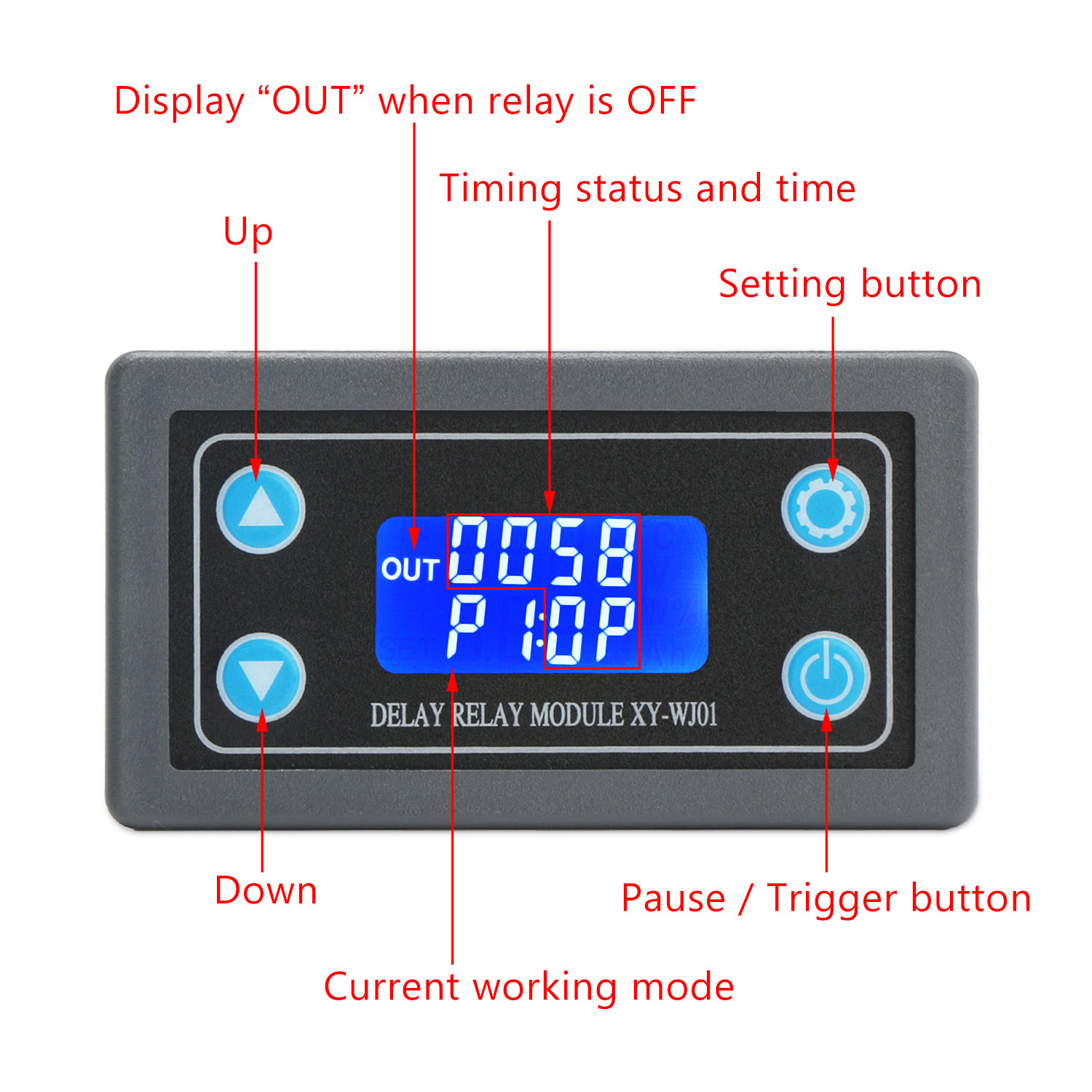

1. Adopts LCD display, can long term display current working mode and timed time. All the parameters will be clear at a glance.

2. Trigger mode: Support button trigger control, high and low level control, switching value control. Meet most of the needs.

3. Wide input voltage of 6~30v.

4. Support UART data upload and parameter setting.

5. With one-button pause function, with reverse connection protection, won’t burn when connected reversely;

6. With sleep mode. After enabling, the LCD backlight is automatically turned off after no operation for about 5 minutes; press any button to wake up;

7. Different OP, CL, LOP parameters can be set. All these parameters are independent and saved separately.

8. All set parameters are automatically saved after power-off.

Timing Range Display:

XXXX: No decimal point, timing range is 1 second ~ 9999 seconds.

XXX.X: The decimal point is in ten digits, timing range is 0.1 second ~ 999.9 seconds.

XX.XX: The decimal point is in the hundred digits, timing range is 0.01 second ~ 99.99 seconds.

X.X.X.X: Full decimal point, timing range is 1 minute ~ 9999 minutes.

Parameter Description:

OP: Conneting time

CL: Disconnecting time

LOP: Loop time (1-9999 times, "----" means infinite loop)

Package Included:

1x Time Relay Module
