Parameter:

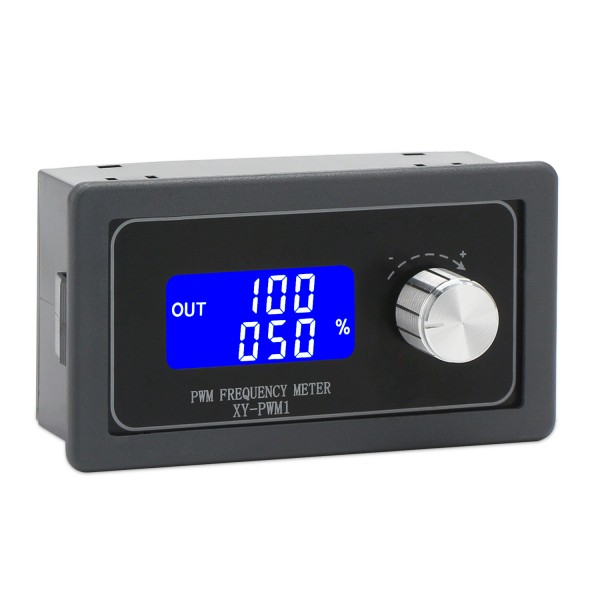

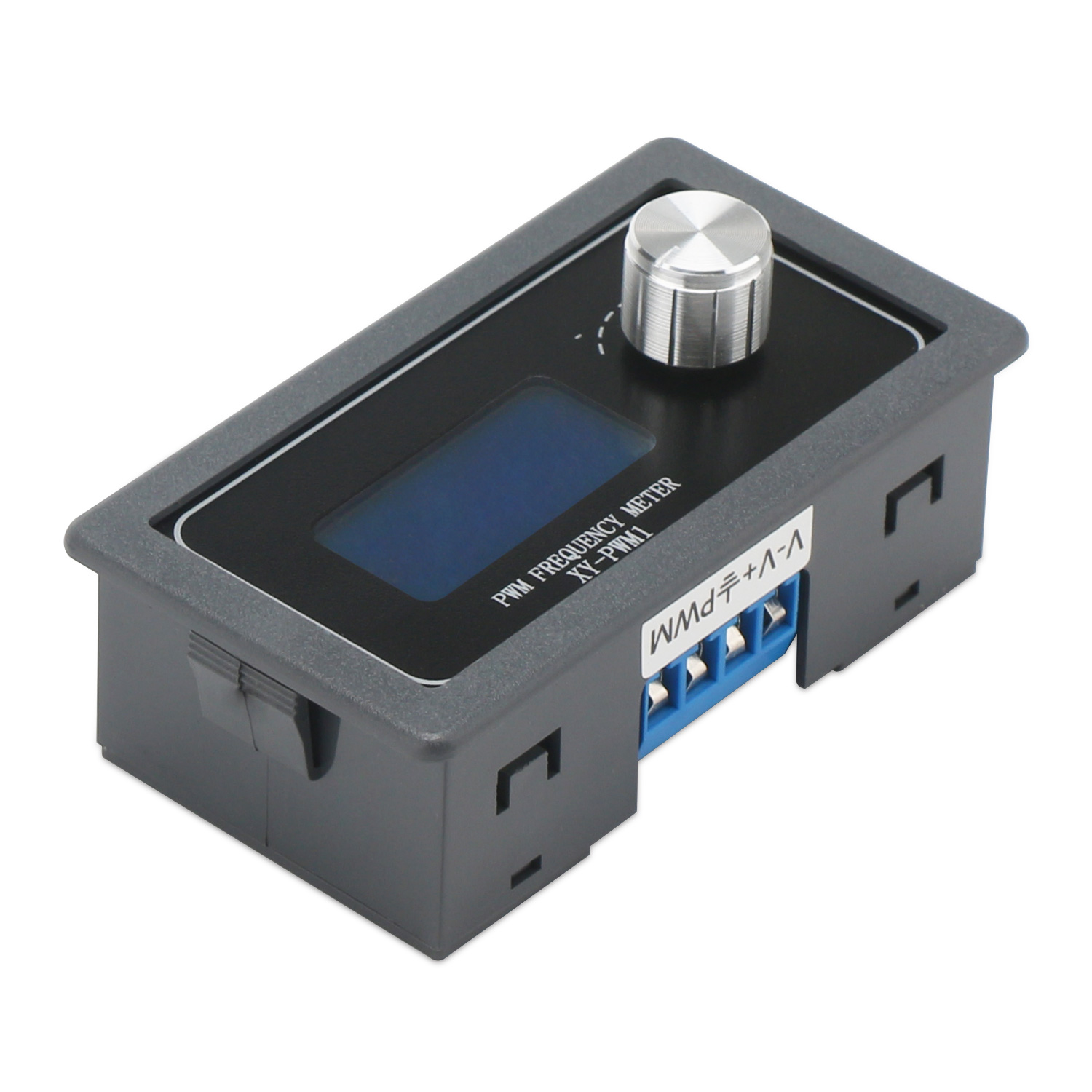

Model: XY-PWM1

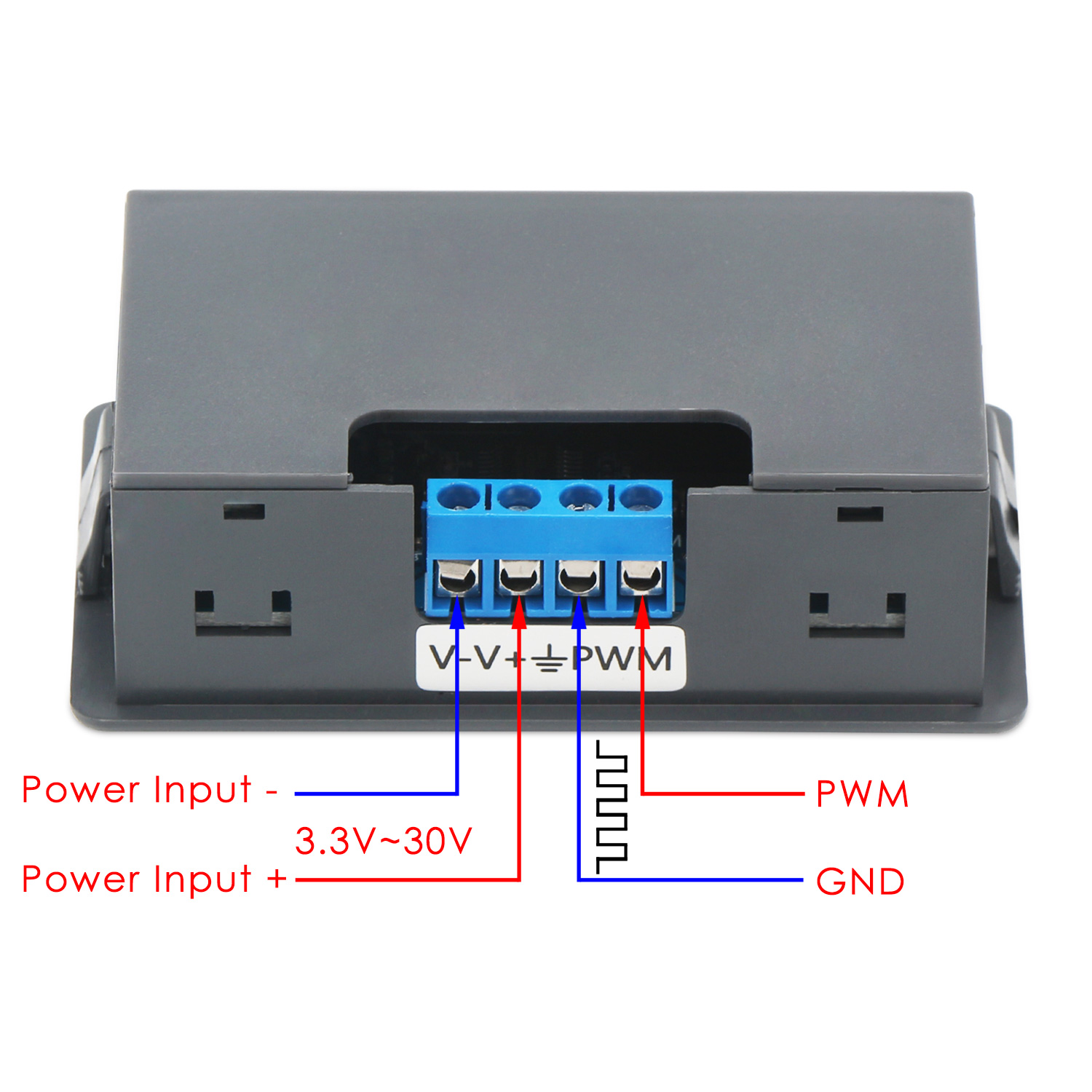

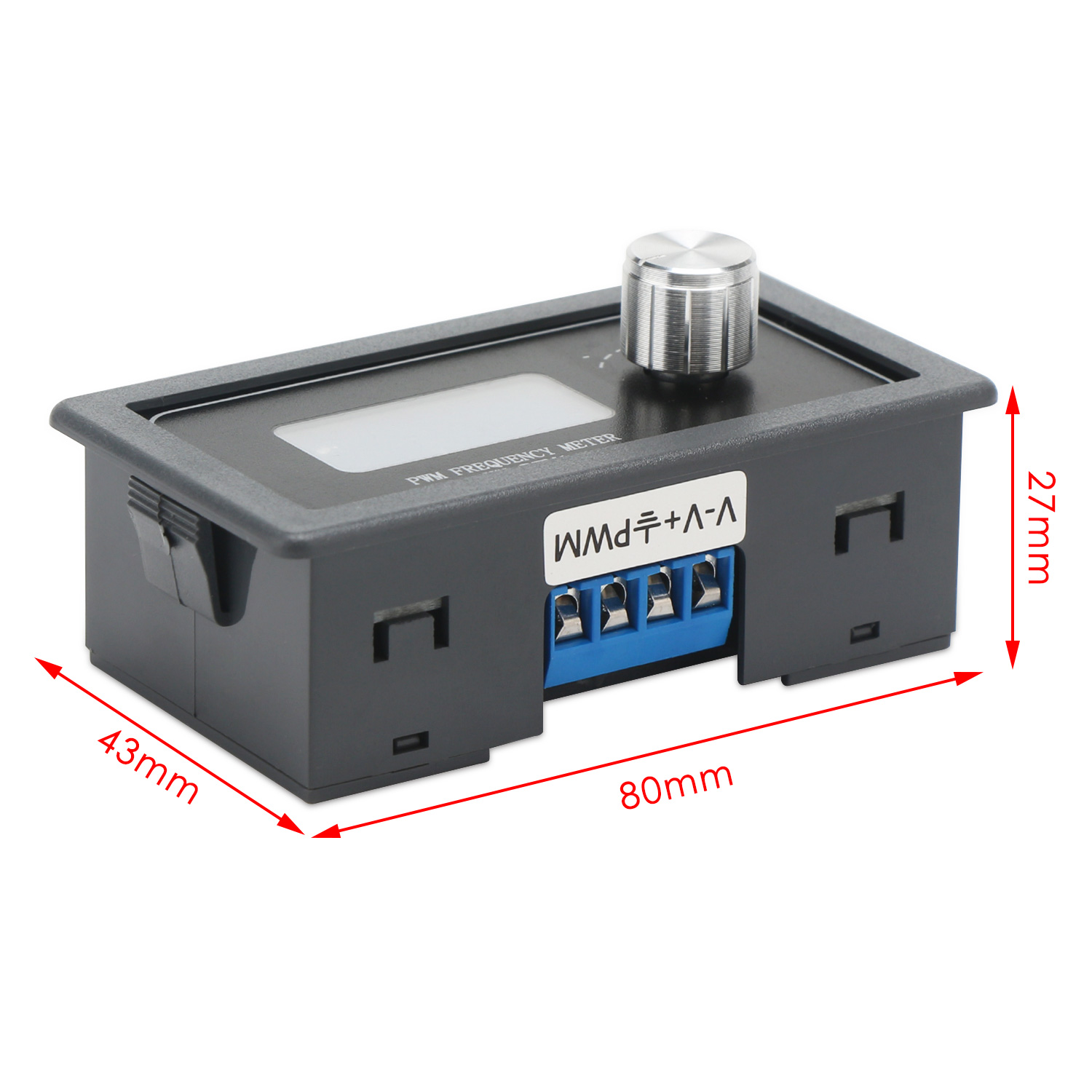

Working voltage: DC 3.3V-30V

Frequency range: normal mode 1Hz-150kHz; accurate mode 1Hz-15kHz

Frequency accuracy: 2% in each range

Signal load capacity: output current about 5-30mA

Output amplitude: PWM amplitude equals to input voltage value

Working temperature: -20℃~+70℃

Duty cycle range: 0-100%

Features:

_ With 2 modes.

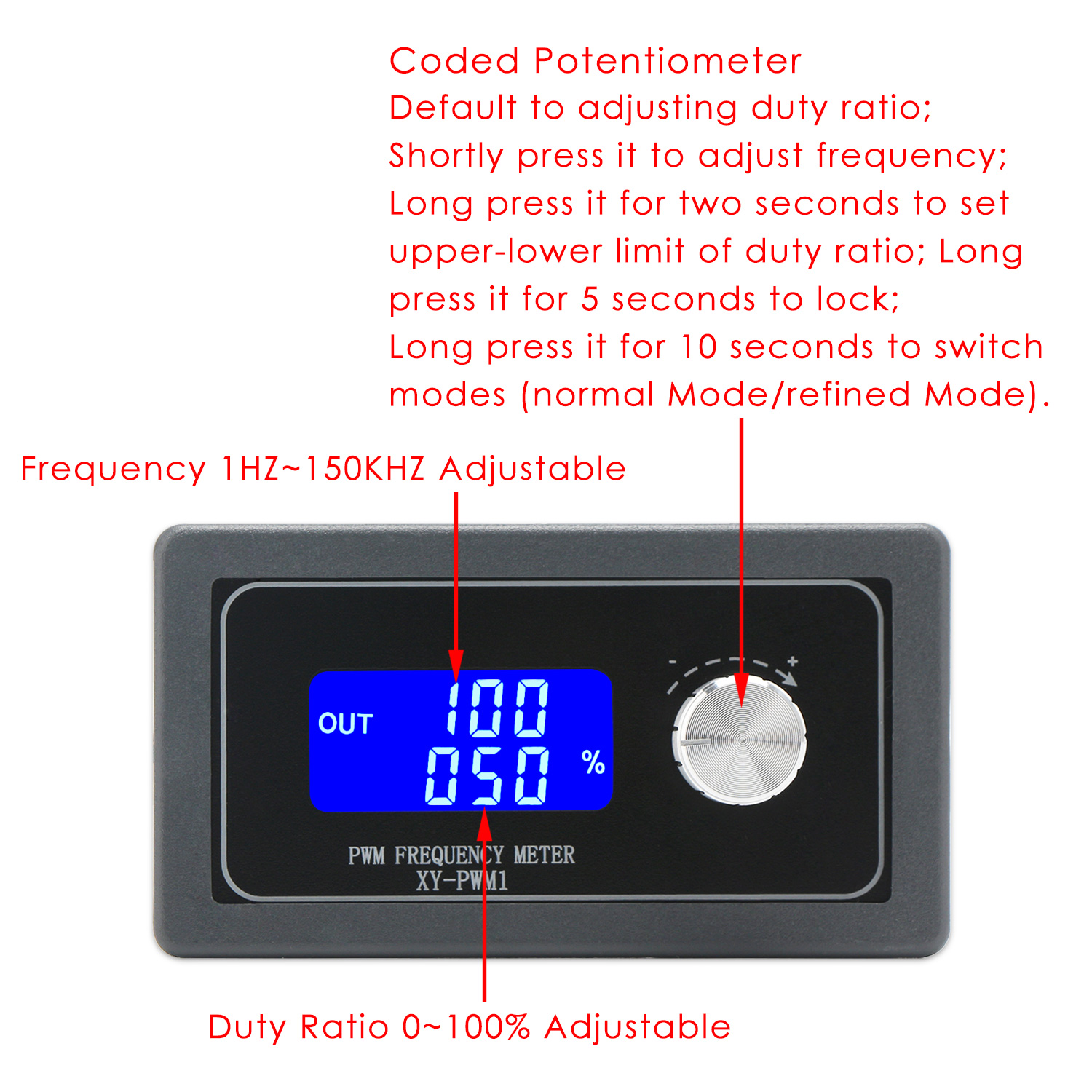

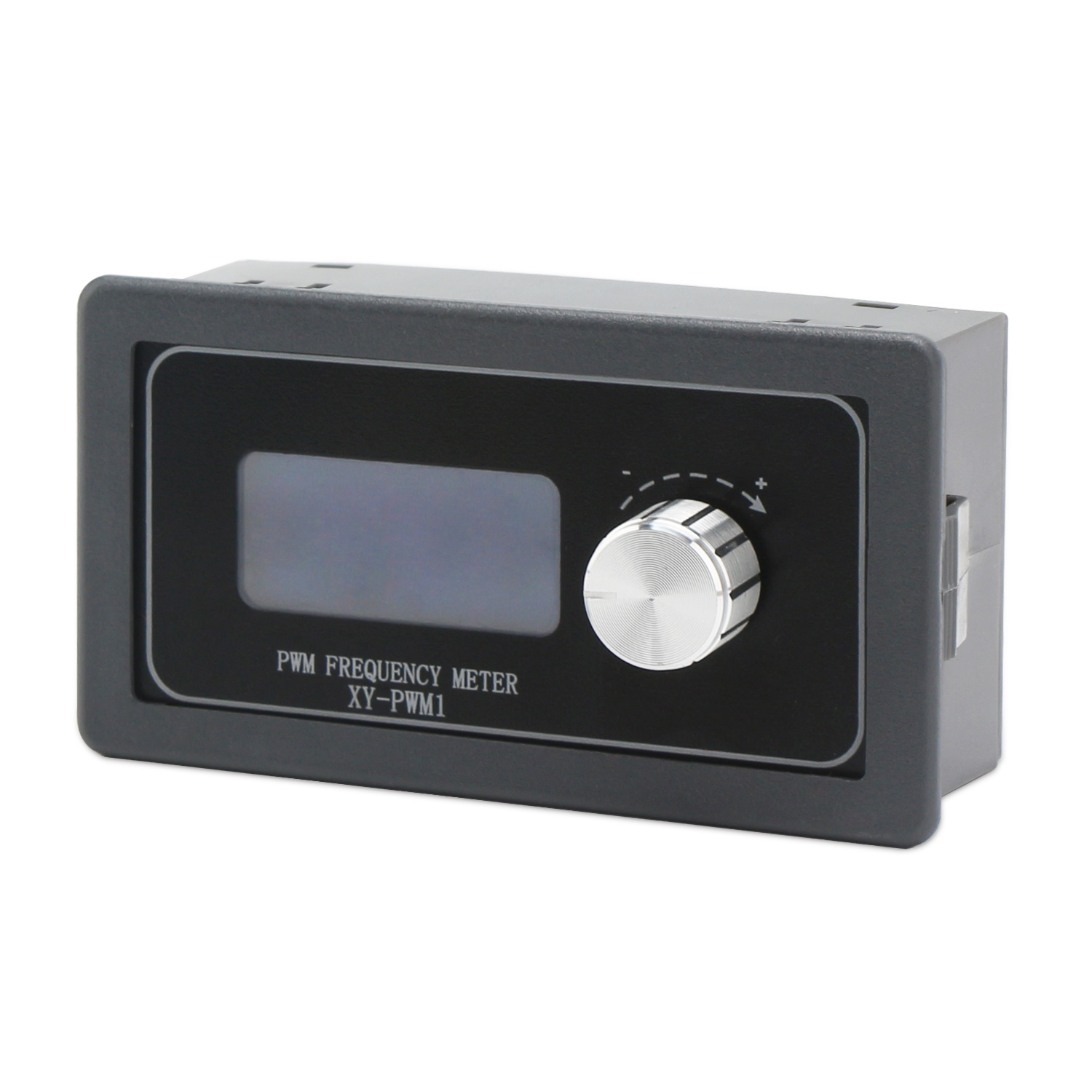

_ Operated by code potentiometer.

_ With lock function to avoid misoperation.

_ Duty cycle upper and lower bounds is adjustable.

2 Modes:

Normal mode:

Frequency range 1Hz-150kHz, duty cycle 000-100%, duty cycle step 1%

Accurate mode:

Frequency range 1Hz-15kHz, duty cycle 00.0-100%, duty cycle step 0.1%

Application:

1. As square wave signal generator for experimental development;

2. As square wave signal generator for motor driver;

3. As adjustable pulse generator for MCU;

4. As pulse generator, control related circuits (PWM dimming, speed regulating).

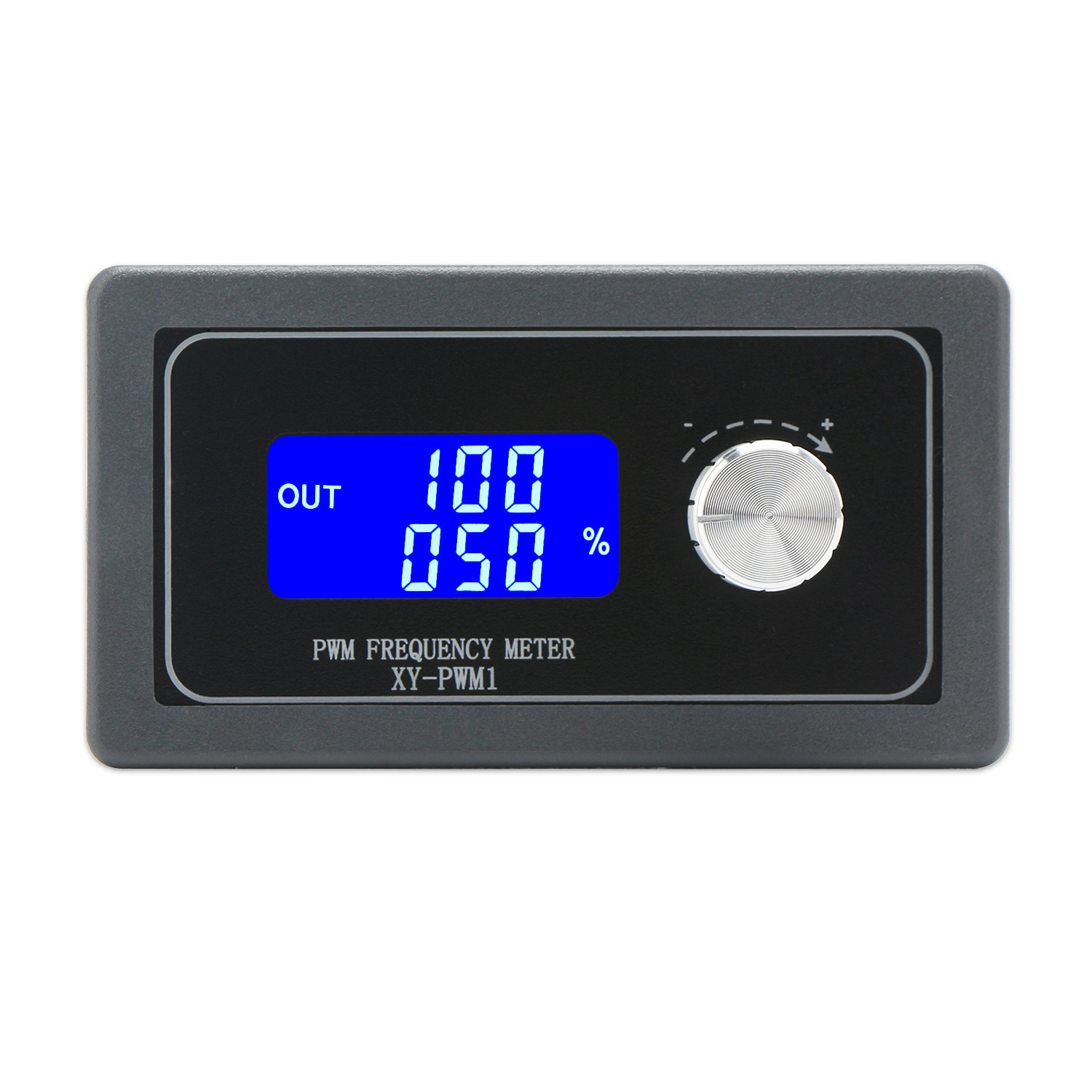

Frequency Display Instruction:

The frequency is divided into 4 ranges and switched automatically.

1. XXX (without decimal point): minimum unit 1Hz, value range 1Hz~999Hz.

2. X.XX (decimal point in the hundred digit): minimum unit 0.01kHz, value range 1.00kHz~9.99kHz.

3. XX.X (decimal point in the ten digit): minimum unit 0.1kHz; value range 10.0kHz~99.9kHz.

4. X.X.X (full decimal point): minimum unit 1kHz; value range 1kHz~150kHz.

e.g.

(1) Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;

(2) displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz.

Package Included:

1x Function Signal Generator
