Input voltage: DC 9V~36V (9V 12V 24V 36V)
Output voltage: DC 12V
Output current: 10A Max
Output Power: 120W Max
Conversion efficiency: >90%
No-Load regulation: ±1%
Load Regulation: ±5%
Static power consumption: about 20mA
Operating Temprature: -25~80℃
Waterproofing Grade: IP68
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

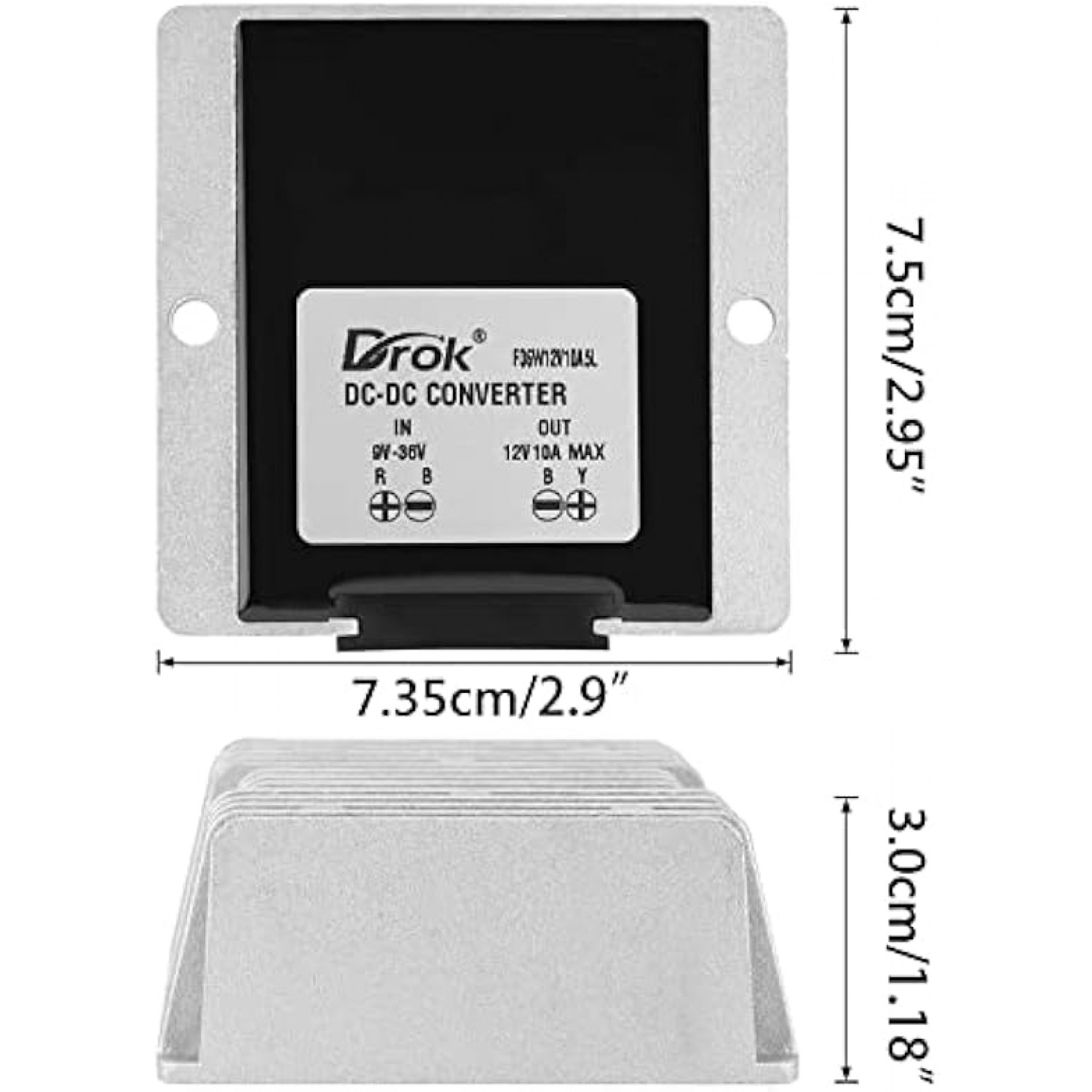

Dimensions: 2.95*2.9*1.18 inch
1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.

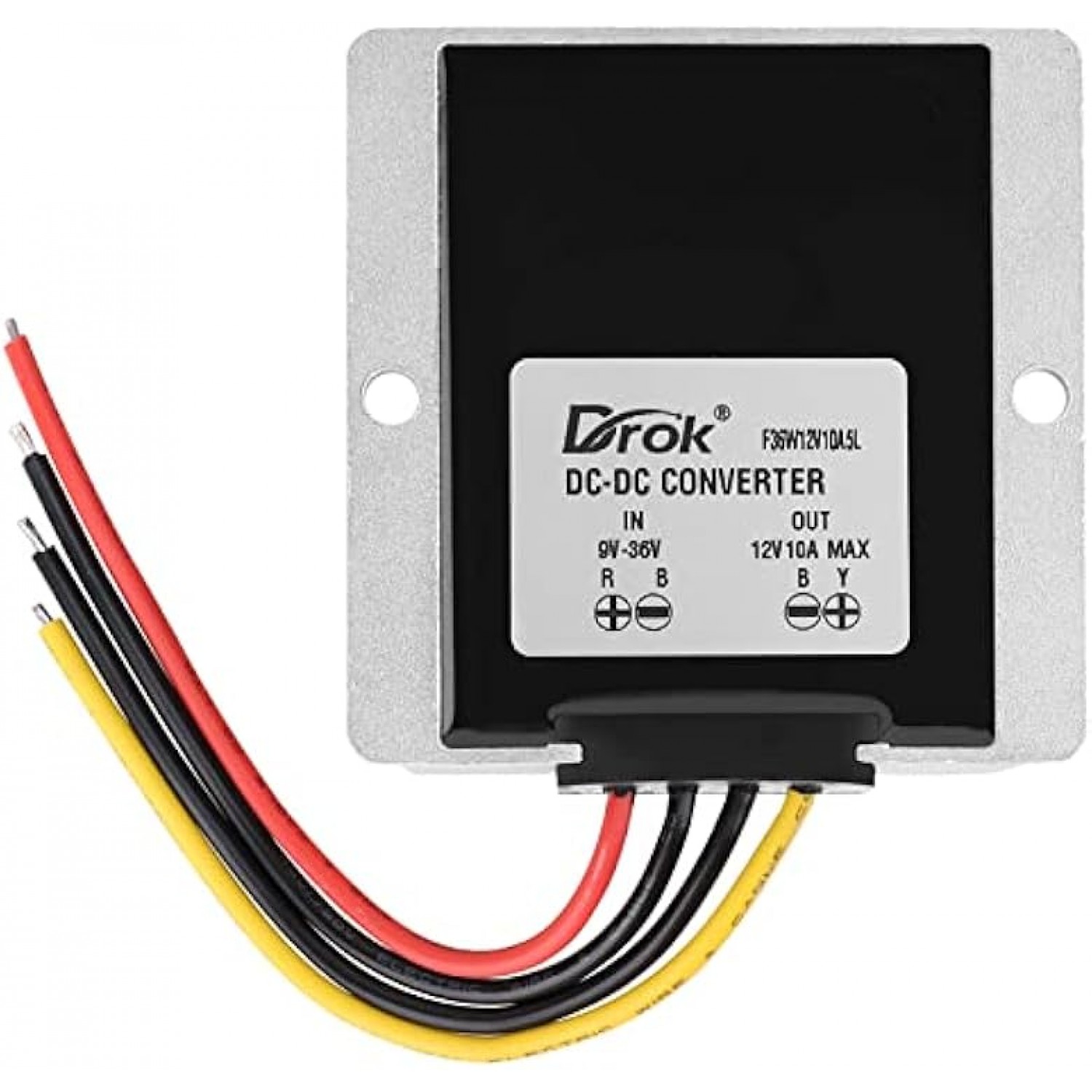

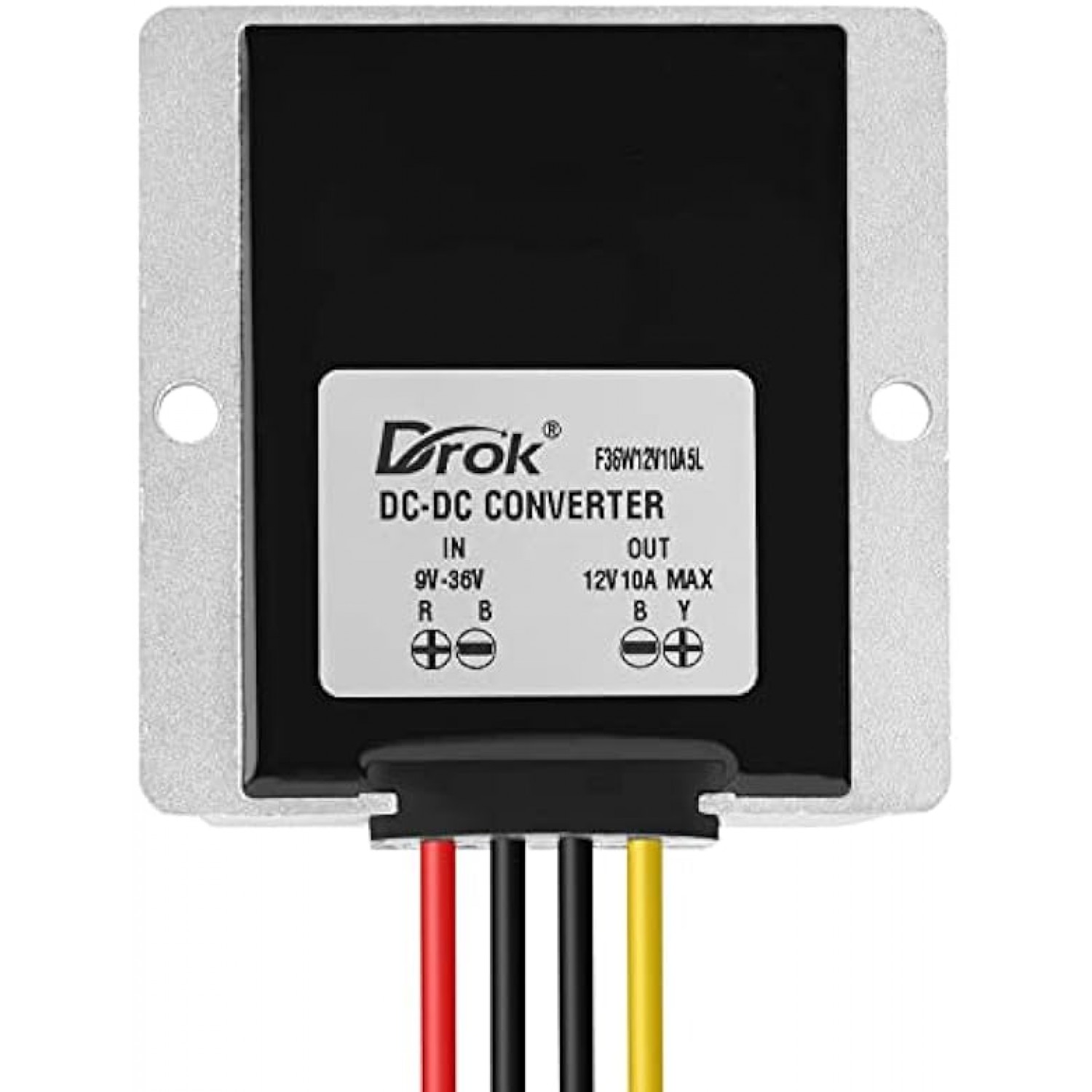

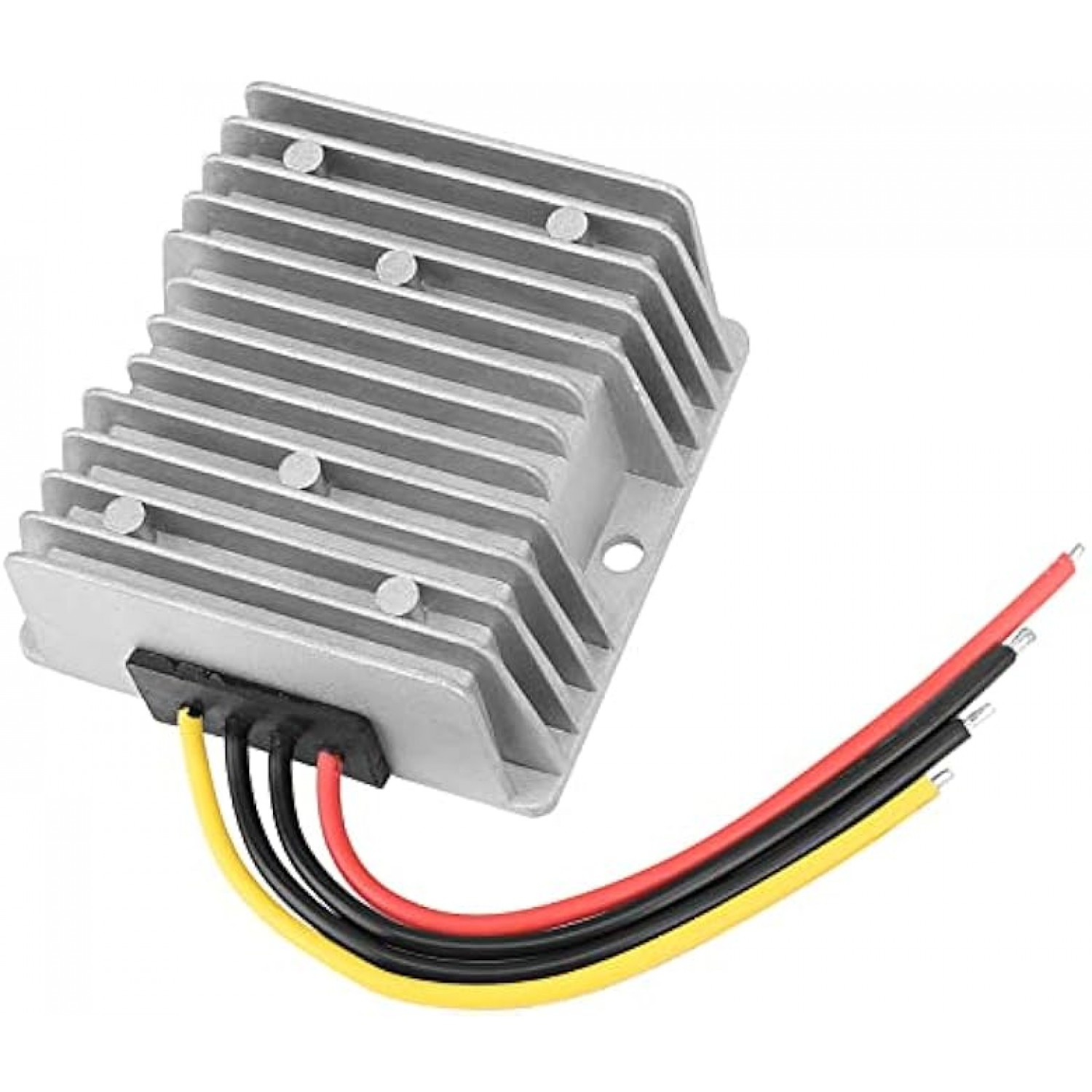

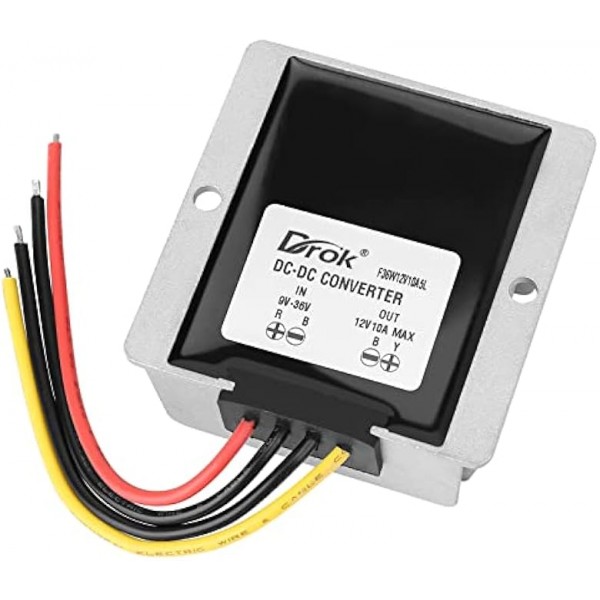

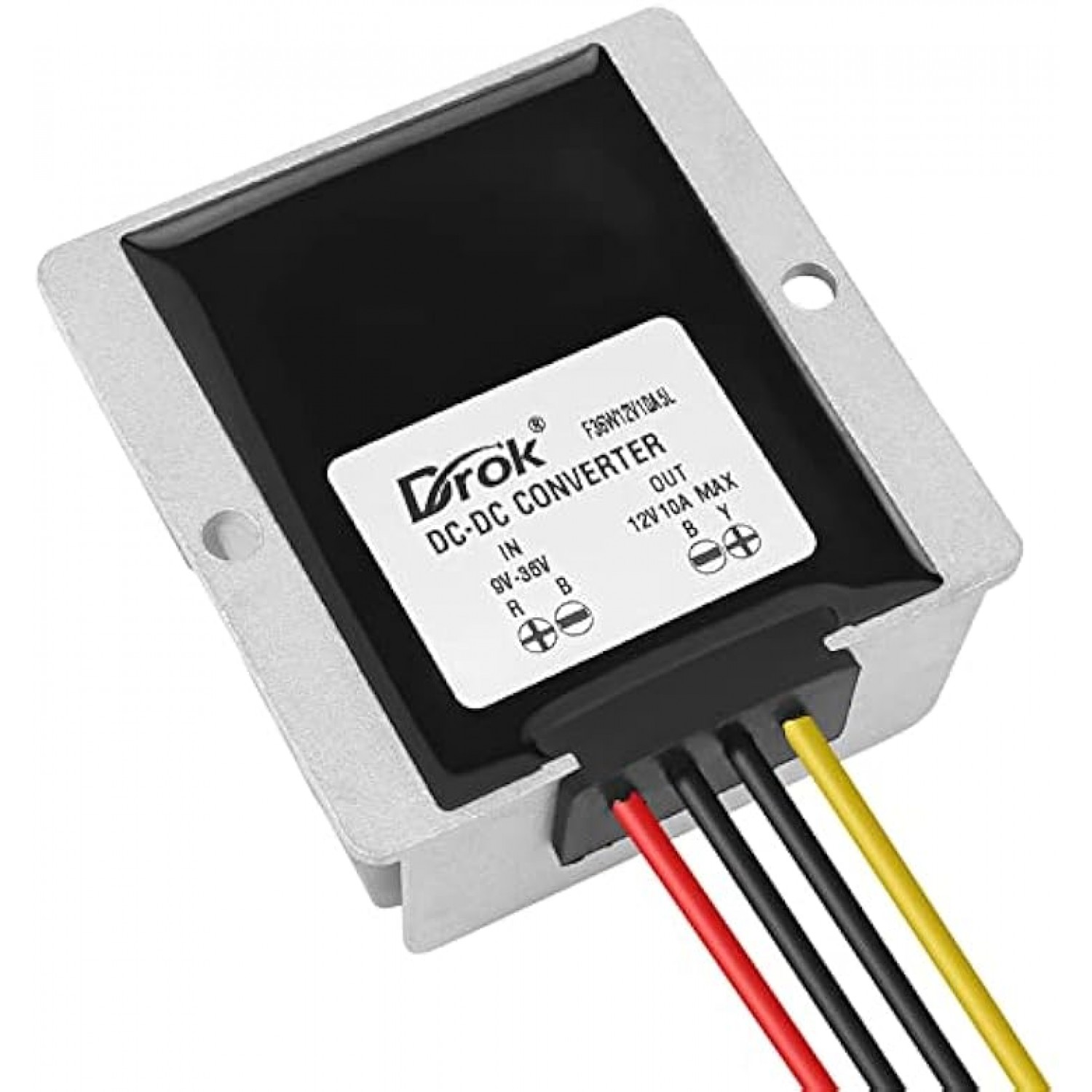

1 x DC-DC Boost Buck converter
