Description:

1) Input voltage range: DC 4-13V (When using solder terminal as input port, please do not connect the positive and negative20 reversely, and do not connect AC power supply).

2) Output voltage range: DC 0.5-30V

3) Output current: 0-2A (When under CV mode, the output current is automatically adapted to the load and cannot be adjusted manually. Assume that the limit current is set to be 1A, then when the load current > 1A, it willenter CC mode automatically, and the max output current is 1A).

4) Output power: lower than 15W (When output power is greater than 15W, it will automatically turn off output and display -OP-. After lower the load power, press ON/OFF button).

5) Voltage resolution: 0.1V

6) Default voltage accuracy:±0.1V

7) Current resolution: 0.01A

8) Measurement current range: 0-2.2A

9) Default current accuracy: ±0.05A

10) Power display: 0.00W-15.0W

11) Working current: about 30mA

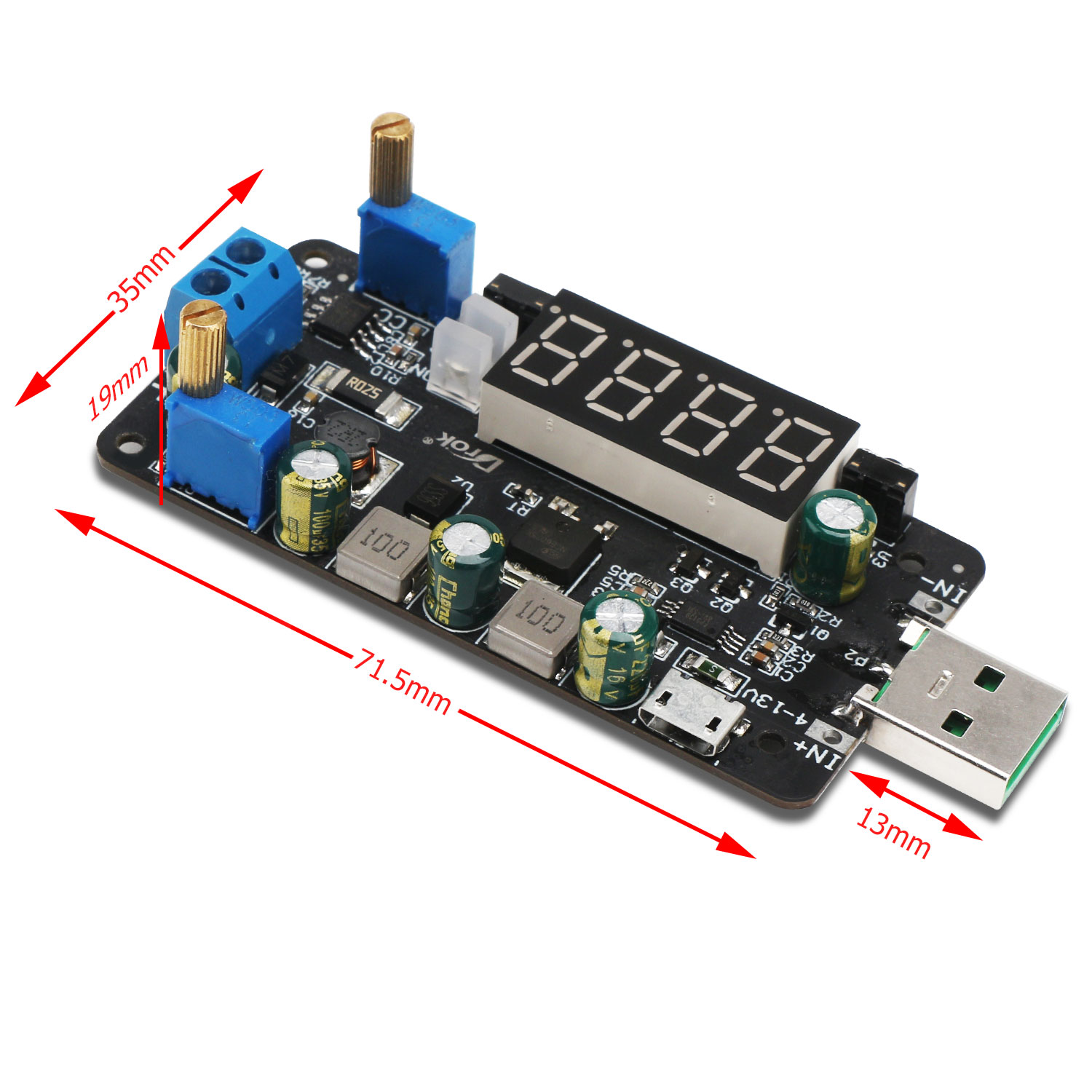

12) Cable length: 268mm

Features:

--- PARAMETER --- input voltage range DC 4-13V; output voltage range DC 0.5-30V; output current 0-2A; output power 15W.

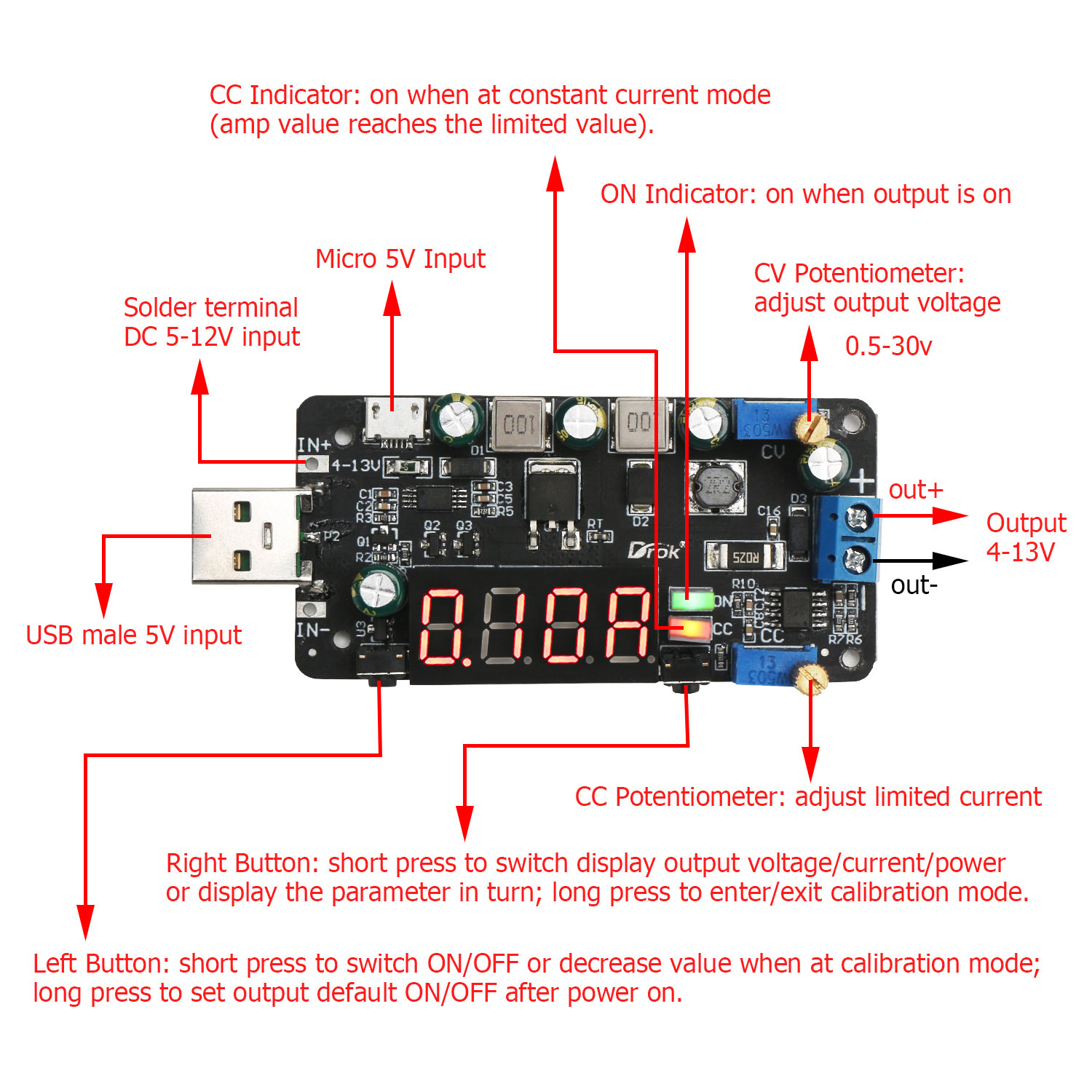

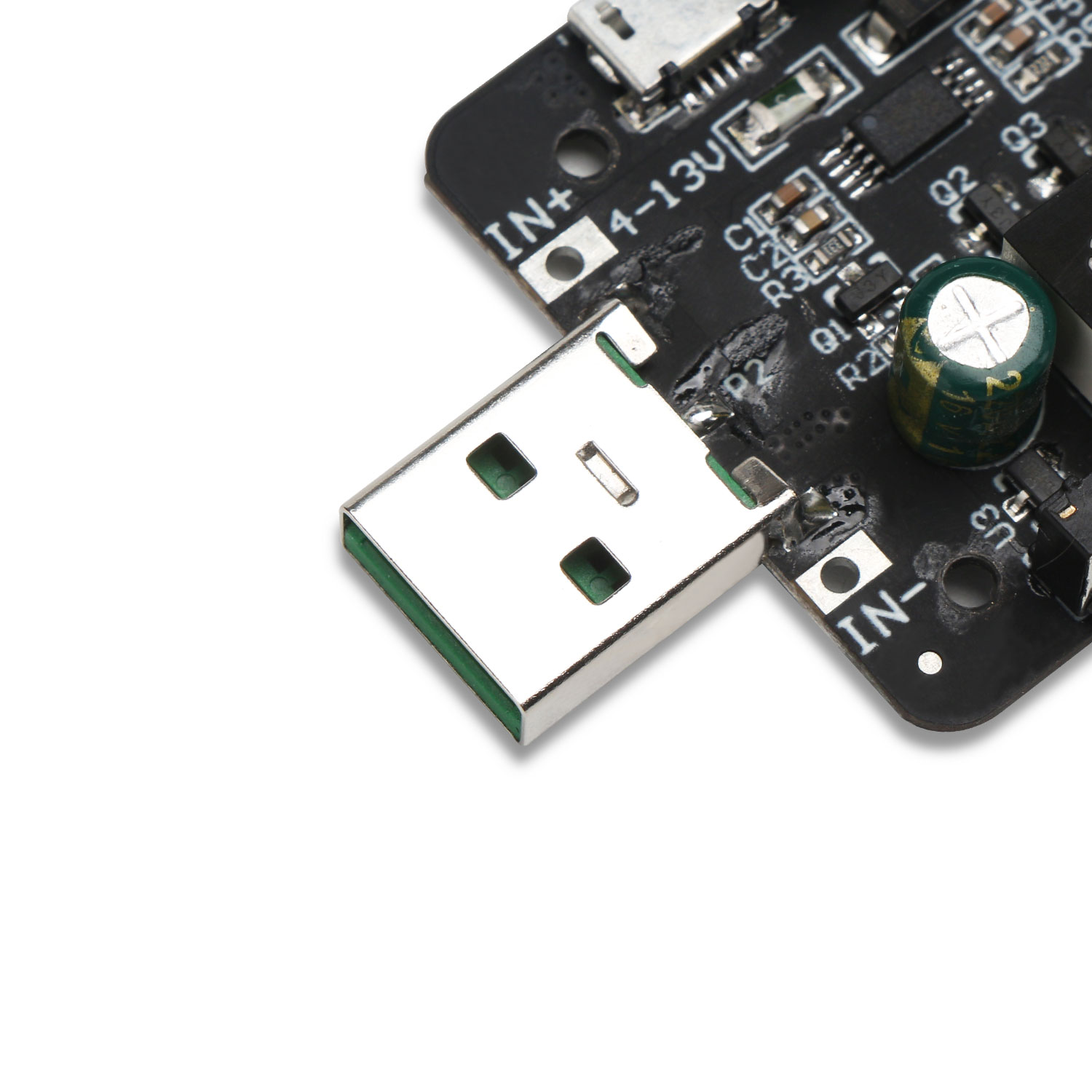

--- INPUT METHOD --- 3 kinds of input method, male USB 5V input, micro USB 5V input, solder terminal DC 5-12V input.

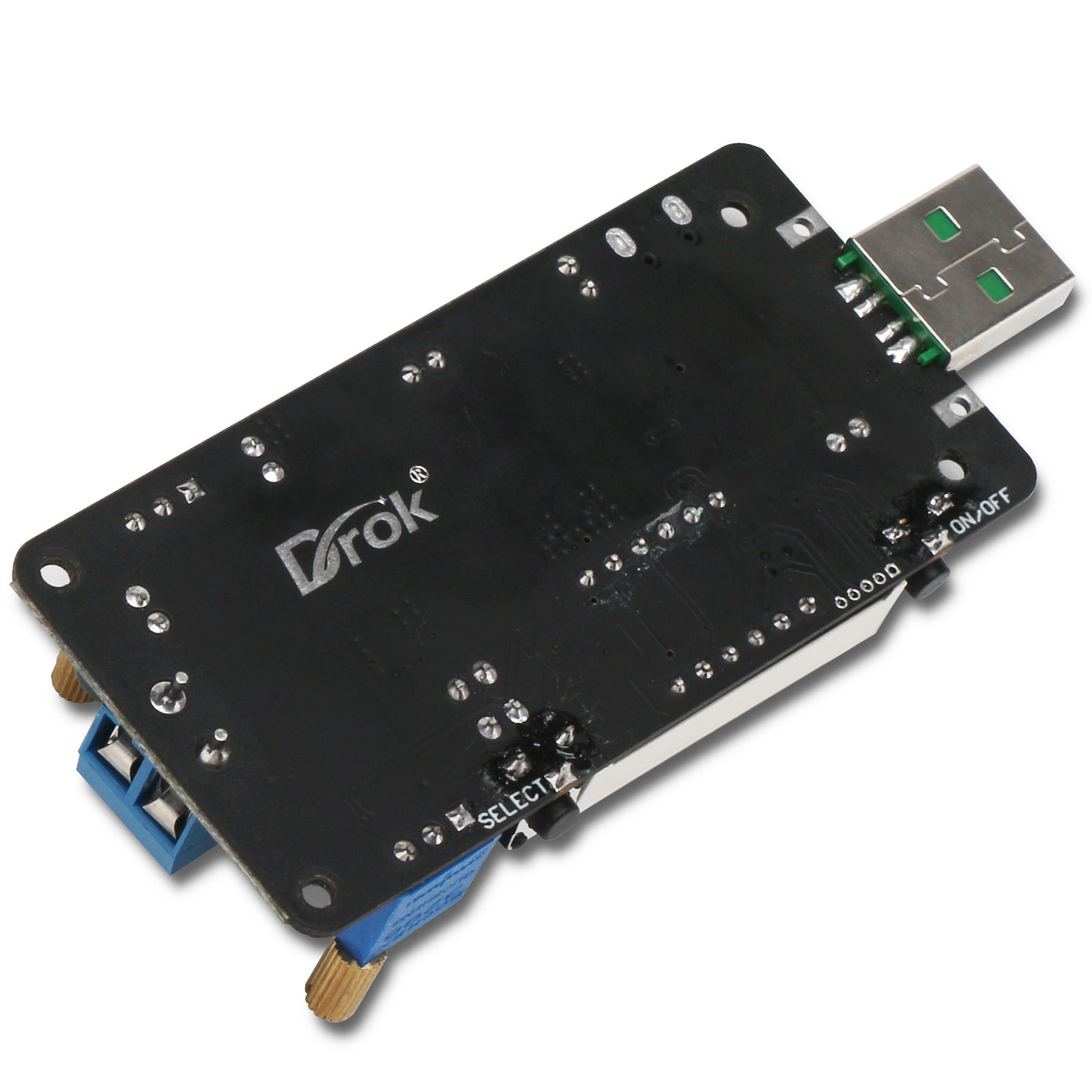

--- BUTTON & POTENTIOMETER KNOB --- with buttons to switch ON/OFF, adjust value & switch displayed parameter; with CC & CV potentiometer knobs to adjust constant current value and constant voltage value.

--- PROTECTION --- shrot-circuit protection, over-current protection, over-voltage protection, over-power protection, over-temperature protection, charging anti-backflow protection.

--- OTHER FEATURES --- with indicators to indicate output status & CC status; with voltage & current calibration function.

Protection:

Shrot-circuit protection;

Over-current protection;

Over-voltage protection;

Over-power protection;

Over-temperature protection

Charging anti-backflow protection

Package Included:

1x Adjustable Voltage Regulator
