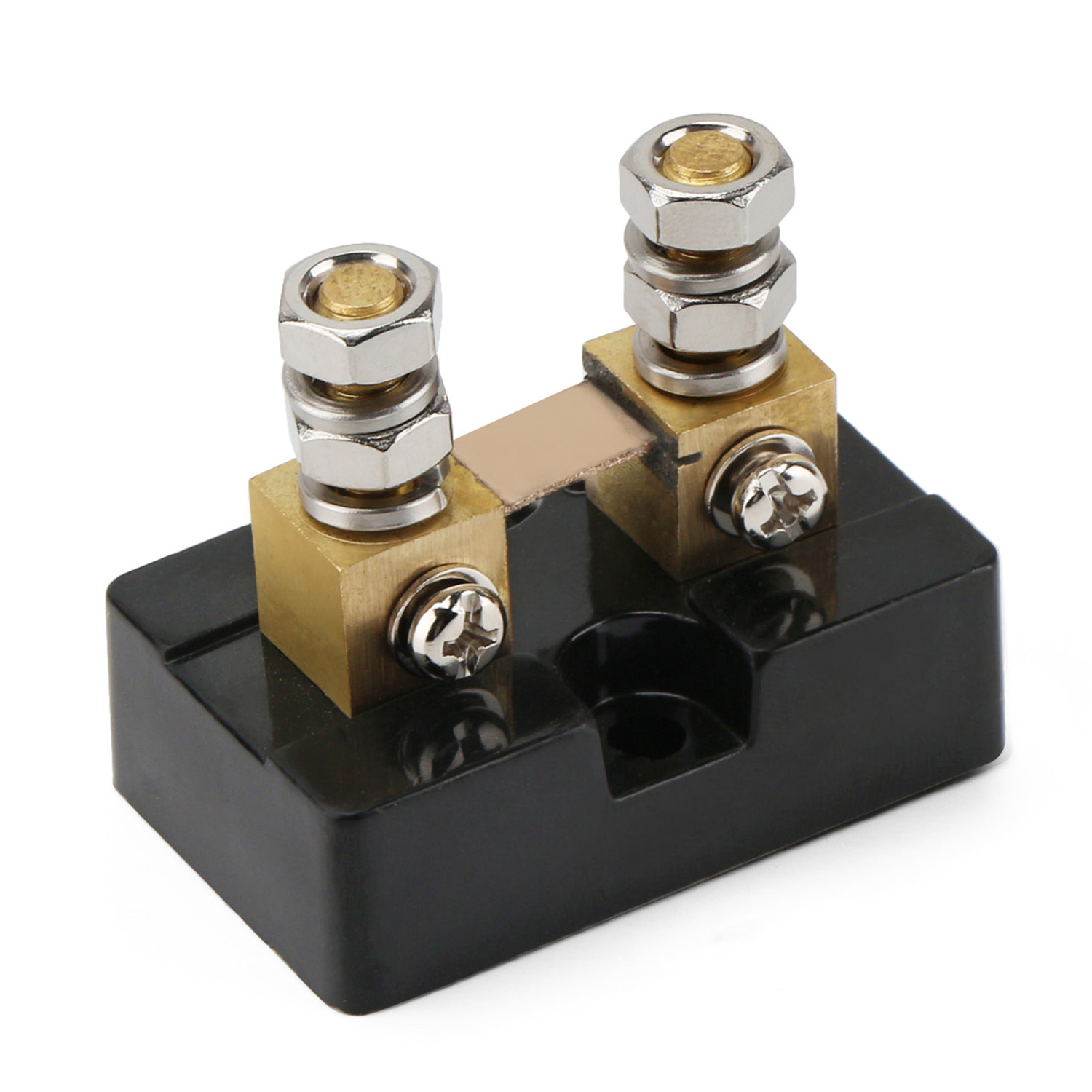

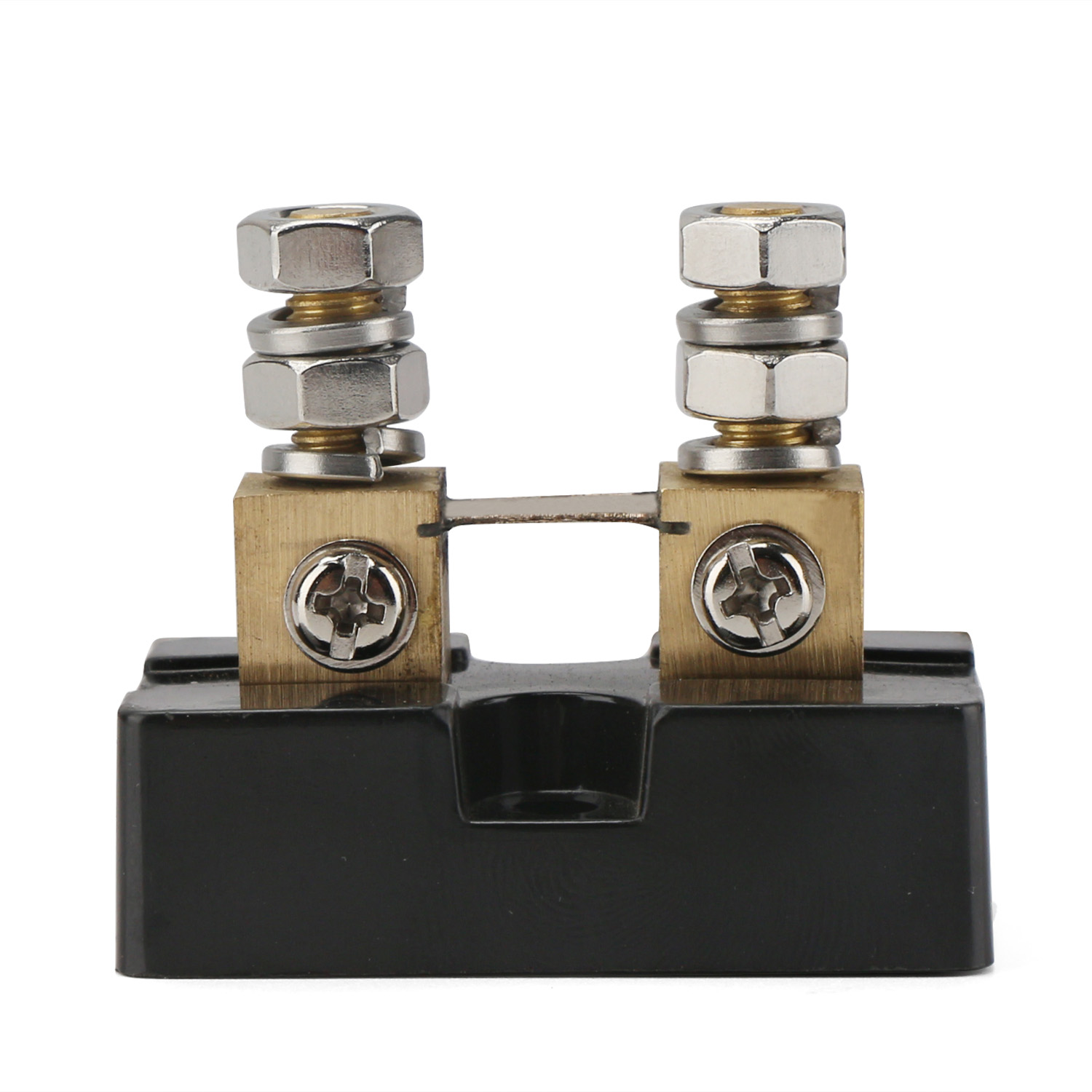

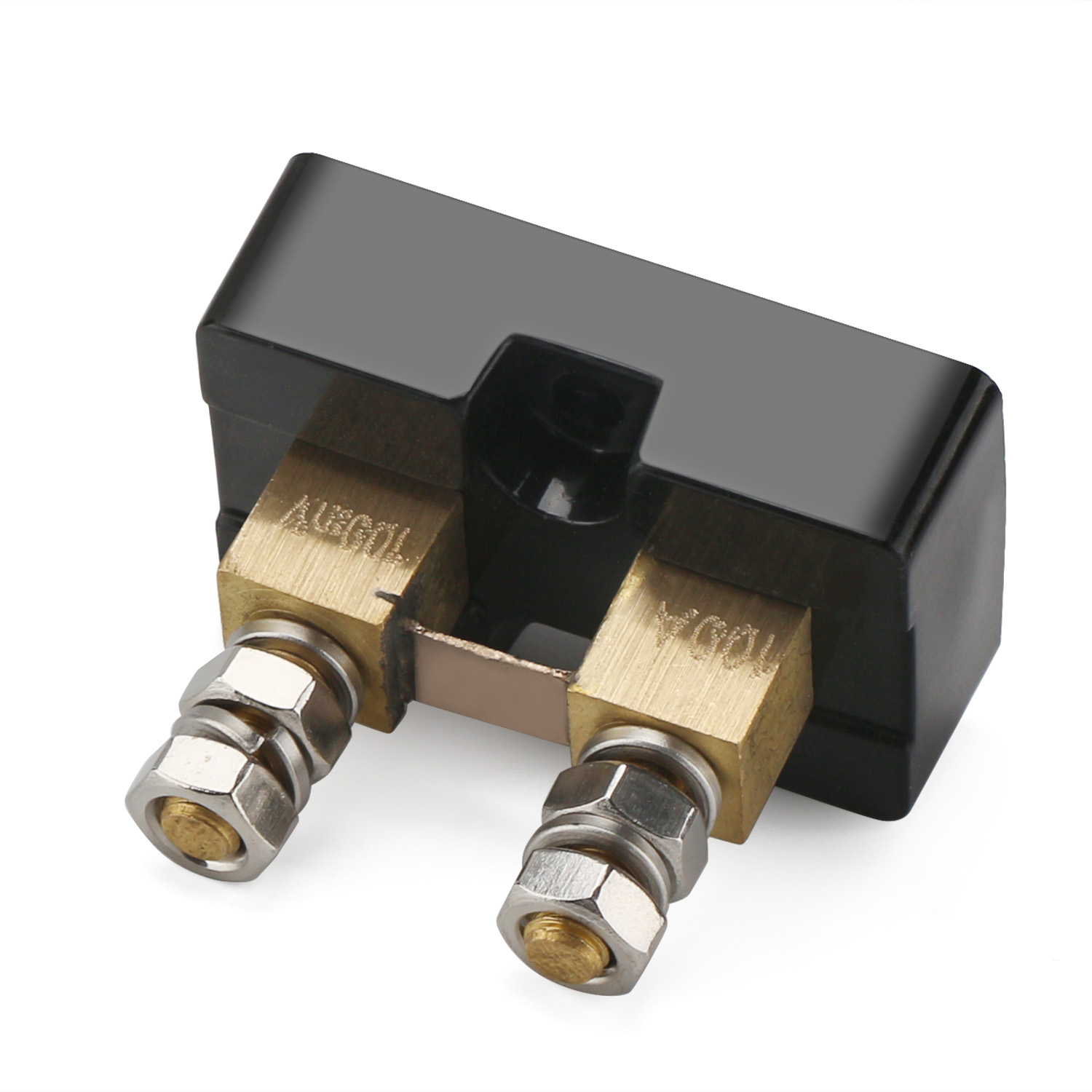

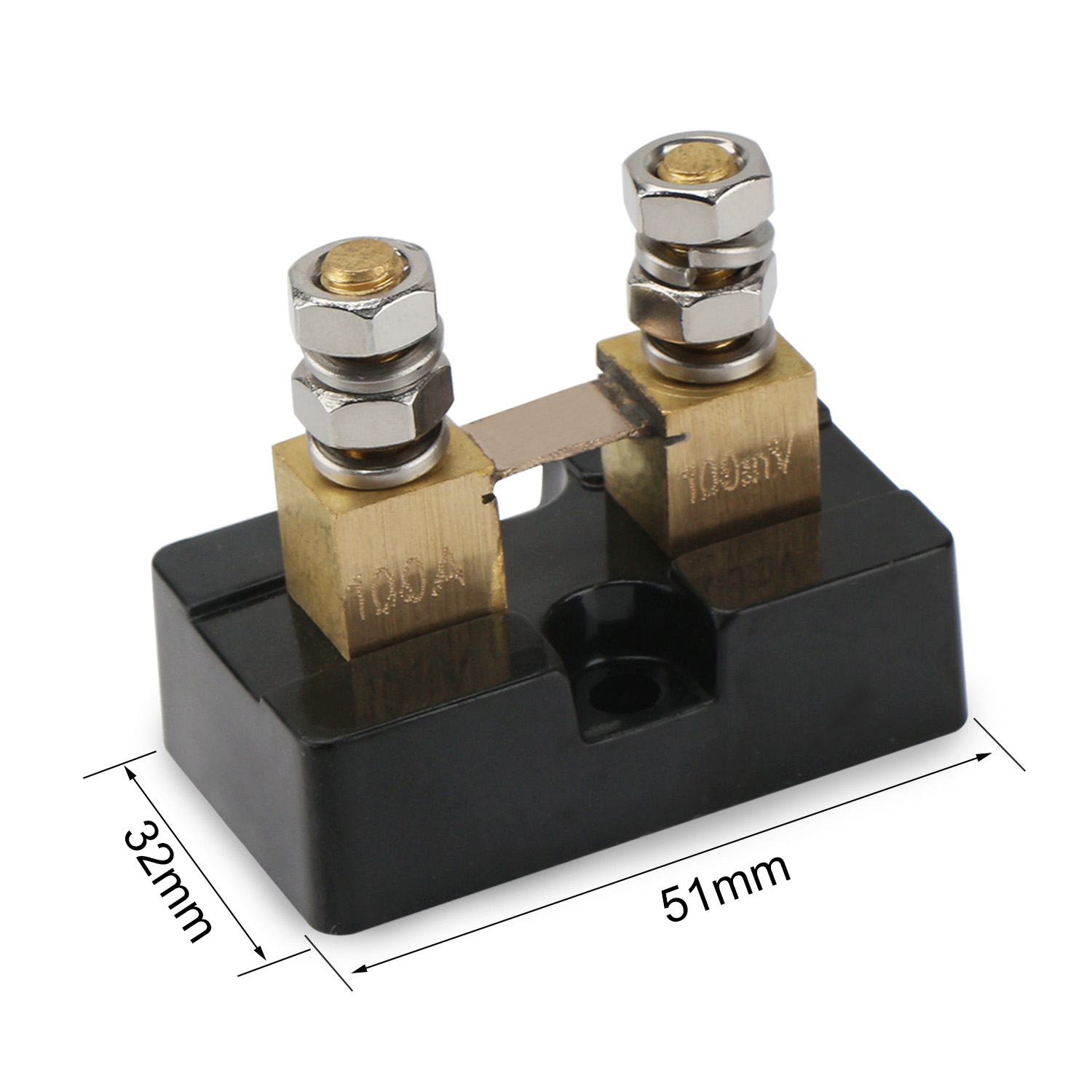

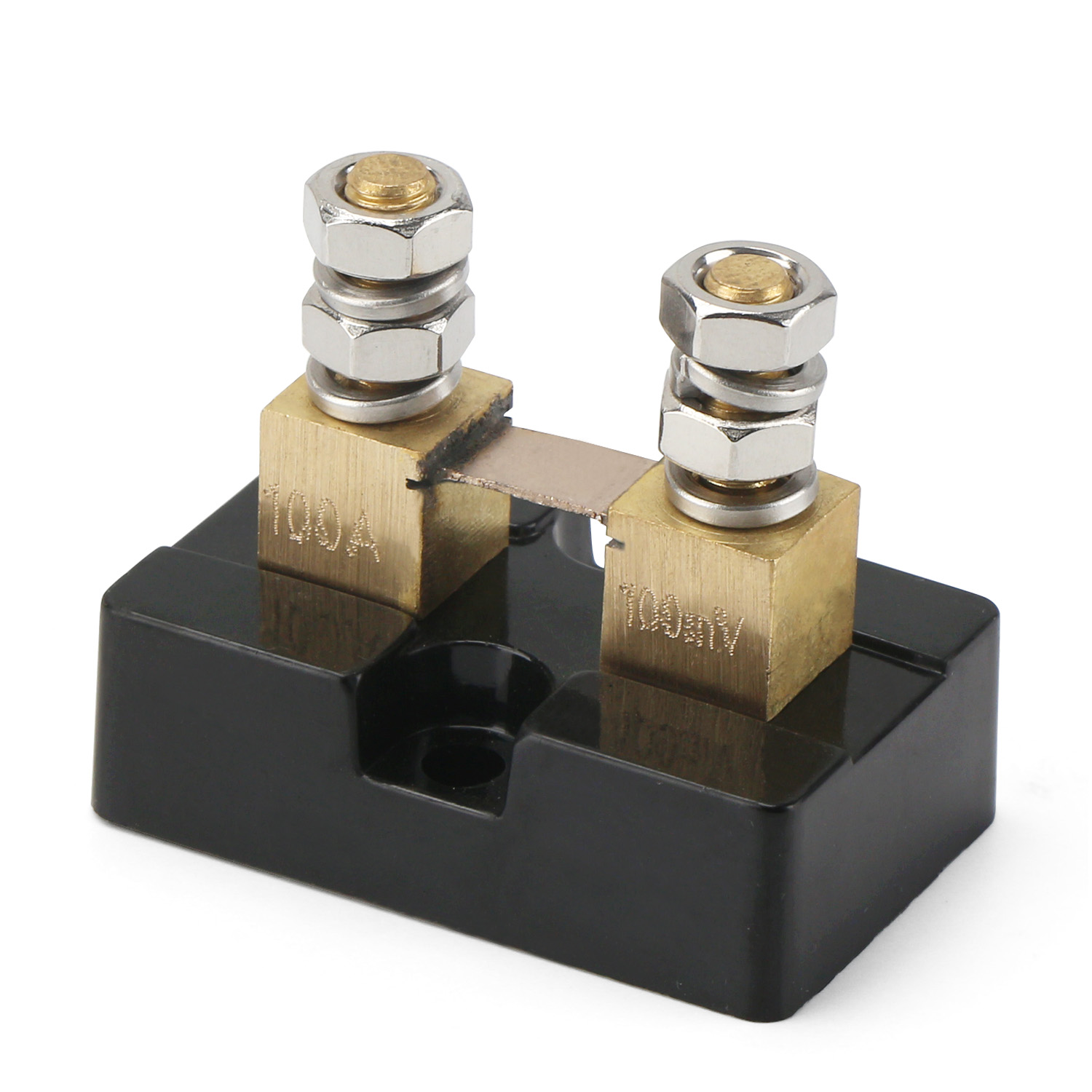

It is a Current Shunt Resistor, Product name: 100A 100mV shunt, Voltage drop: 100mV, Suitable for Digital Ammeter Amperimetro AMP Ampere Wattmeter.

• Product name: 100A 100mV shunt
• Accuracy level: 0.5
• Working temperature: -40 to +60℃, relative humidity: less than or equal to 95% (35℃)
• Over-load ability: rated current 120%, 2 hours
• Voltage drop: 100mV
• Temperature rise with load: When the change of temperature tends to be stable, if rated current is below 50A, the temperature will be not higher than 80℃;
• if rated current is above 50A, the temperature will be not higher than 120℃.

• It is not allowed to connect an artificial contact resistance between the primary circuit (or copper) and the connection of the shunt.
• The secondary sampling point cannot be sampled form the non-sampling point.
• It is not recommended that the practical used current over the 80% of rated current (for a long time).

• 1 x 100A/100mV Current Shunt
