DC 0-20mA Blue Digital display LCD Panel Ammeter/ amp Ampere Meter

DC 0-20mA Blue Digital display  LCD Panel Ammeter/ amp Ampere Meter
-47 %
DC 0-20mA Blue Digital display LCD Panel Ammeter/ amp Ampere Meter

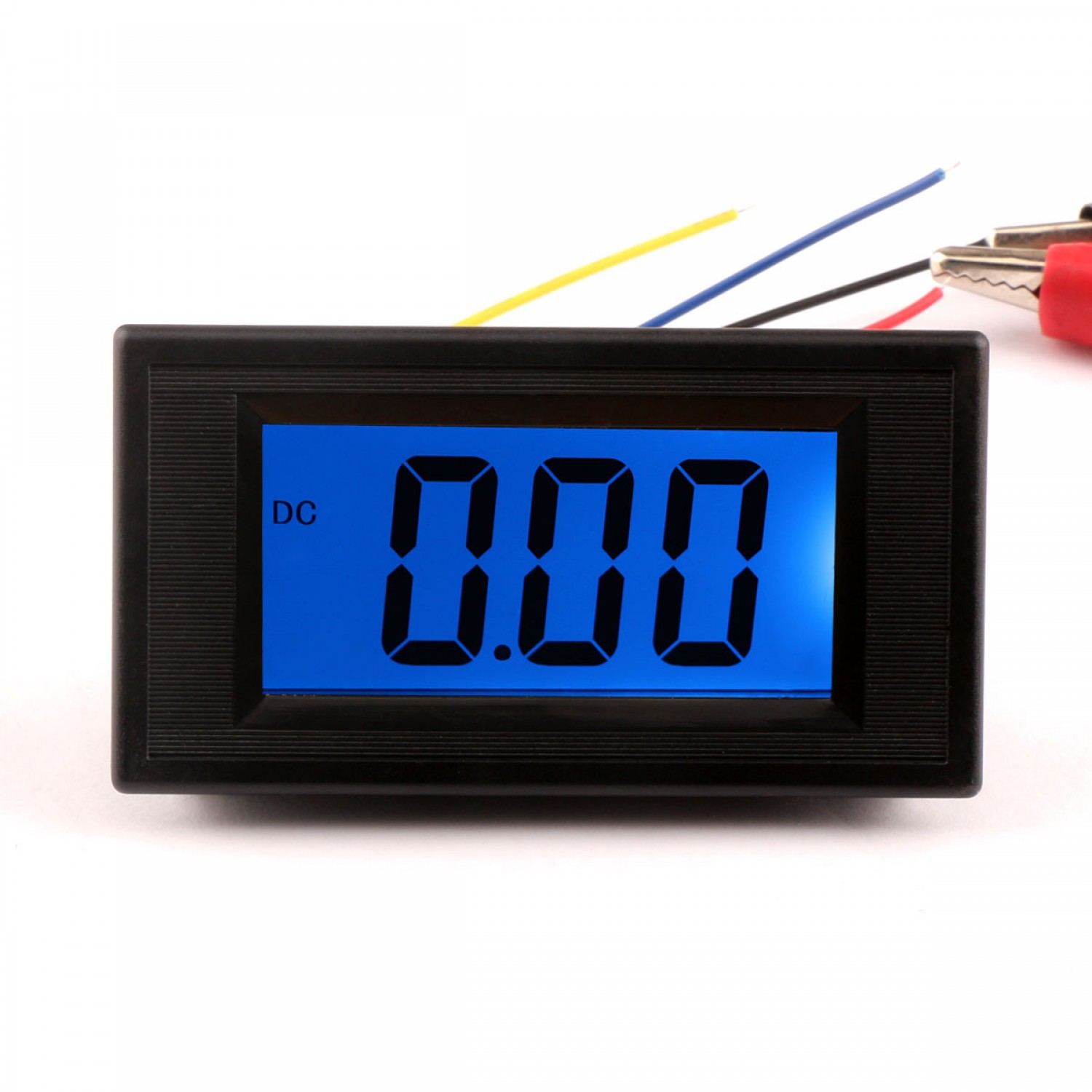

It is a Blue LCD Digital Ammeter,Measuring rang: DC 0~ 20mA,Measuring rate: ≥2 times / S,DC 8 ~ 12V Powered.


Technical parameters:

  • Operating voltage: DC 8 ~ 12V
  • Measuring rang: DC 0~ 20mA
  • Operating current: <15mA
  • Display: LCD, blue backlight, character height 20mm
  • Dimensions: 79 × 43 × 25 mm
  • Installation hole: 76 × 39 mm
  • Weight: about 60g
  • Measuring rate: ≥2 times / S
  • Over-range display: the first shows "1" or "-1"

Extreme working conditions:
  • Working temperature: -10 ~ + 50 ℃
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 ~ 106 kPa
  • Sun exposure: no direct exposure

Package include:

  • 1x LCD Digital Ammeter

Attributes
input voltage 8~12V
output current 0~0.02A
output power --
output voltage --
output ways 1
