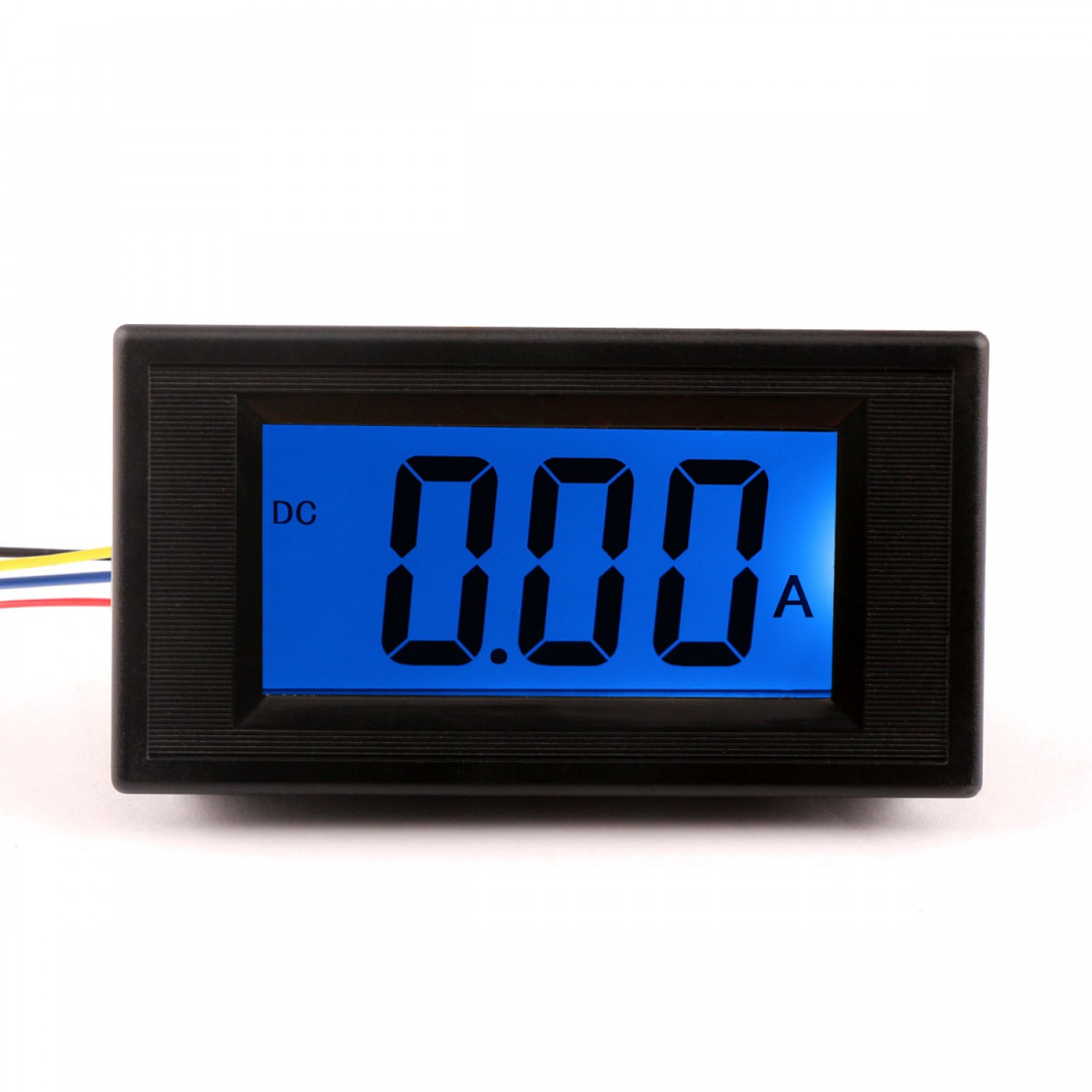

DC Blue Digital display DC 0-10A LCD Panel Ammeter/ amp Ampere Meter DC 8 ~ 12V Powered

DC  Blue Digital display  DC 0-10A  LCD Panel Ammeter/ amp Ampere Meter DC 8 ~ 12V Powered
-58 %
DC Blue Digital display DC 0-10A LCD Panel Ammeter/ amp Ampere Meter DC 8 ~ 12V Powered

It is a DC 0-10A Digital Ammeter,Operating voltage: DC 8 ~ 12V,Operating current: <15mA,Measuring rate: ≥2 times / S.


Technical parameters:

  • Operating voltage: DC 8 ~ 12V
  • Measuring rang: DC 0~ 10A
  • Operating current: <15mA
  • Display: LCD, blue backlight, character height 20mm
  • Dimensions: 79 × 43 × 25 mm
  • Installation hole: 76 × 39 mm
  • Weight: about 60g
  • Measuring rate: ≥2 times / S
  • Over-range display: the first shows "1" or "-1"

Extreme working conditions:
  • Working temperature: -10 ~ + 50 ℃
  • Operating Humidity: 10 ~ 80% (non-condensing)
  • Working pressure: 80 ~ 106 kPa
  • Sun exposure: no direct exposure

Package include:

  • 1x LCD Digital Ammeter

Attributes
input voltage 8~12V
output current 0~10A
output power --
output voltage --
output ways 1
